Product information "XS 700"

LD Systems XS700 Power Amplifier

The XS700 is the flagship of the XS series of power amplifiers and an absolute flyweight with just 1U and 3.4kg. Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy. The power amp has an output of 350W per channel at 4 ohms, 2x 200W at 8 ohms, and 700W in bridged mode. It is conceived for all professional applications in which ease of transport and space is essential, whether mobile or in permanent installations.

The XS700 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay.

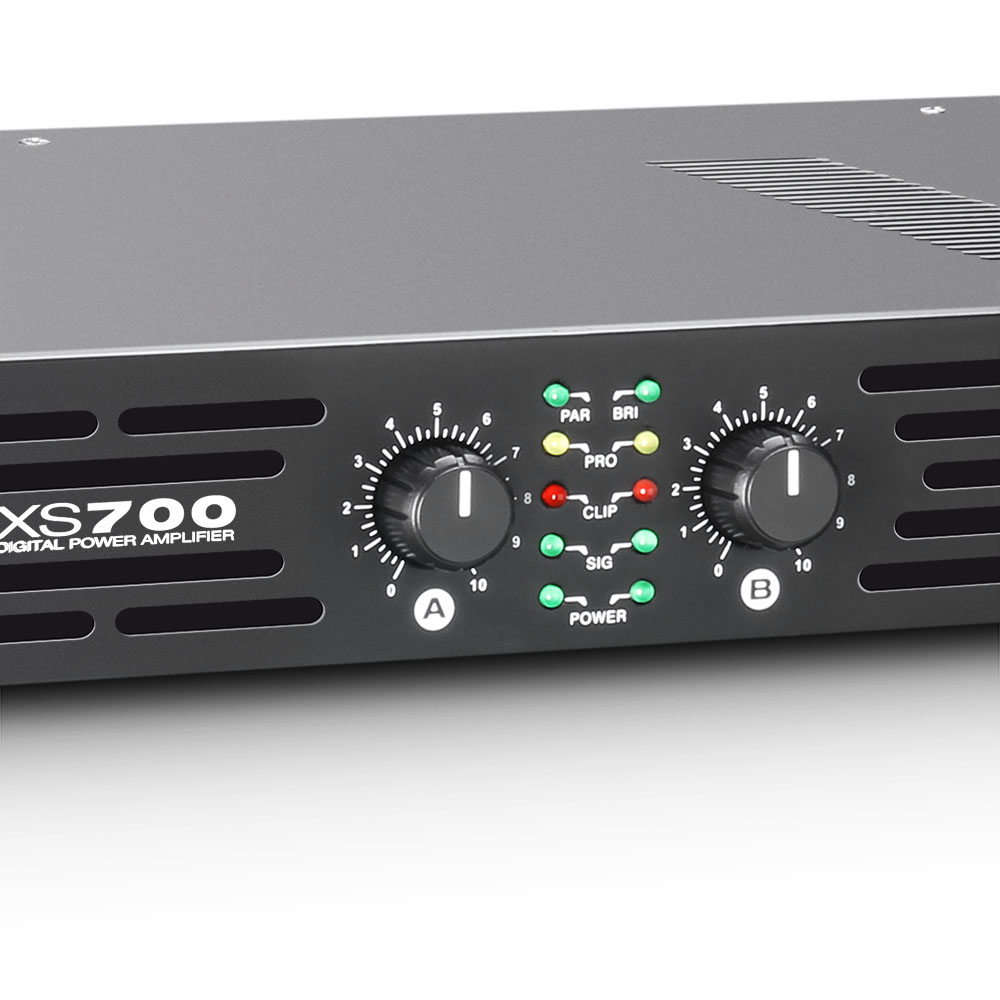

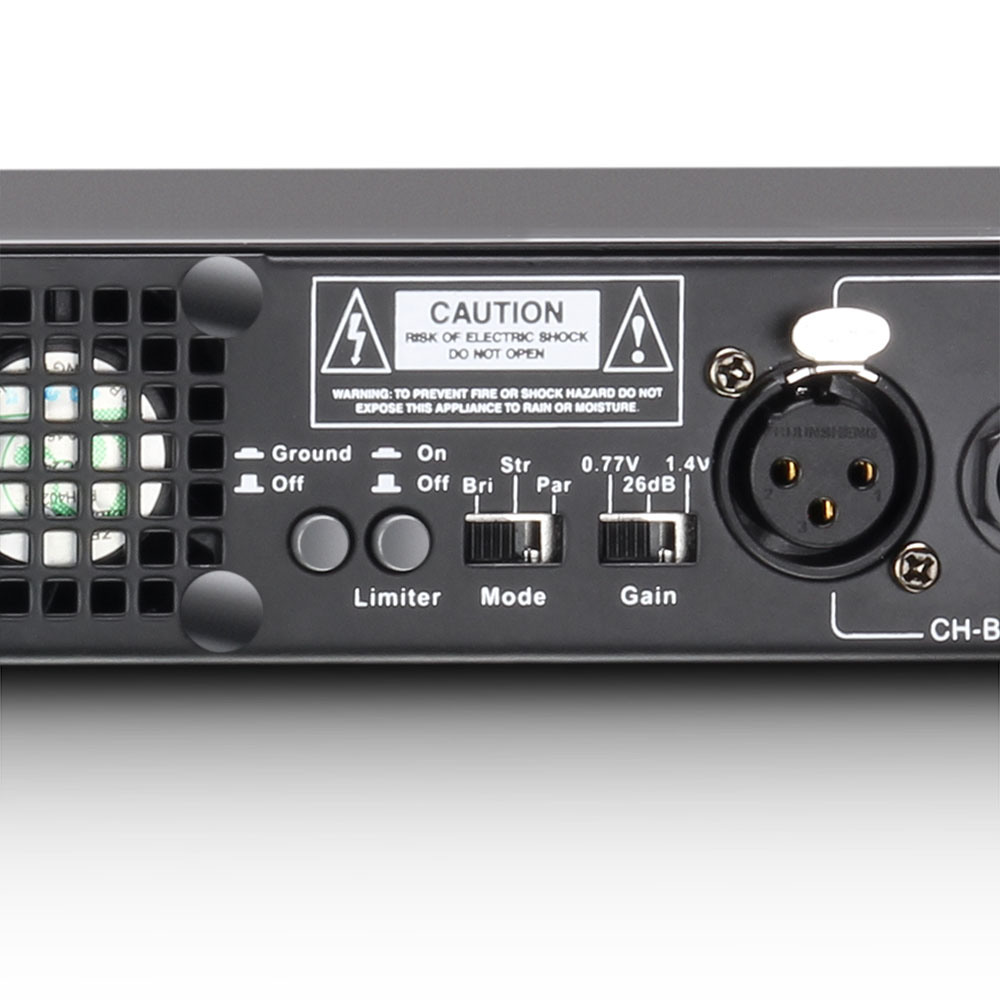

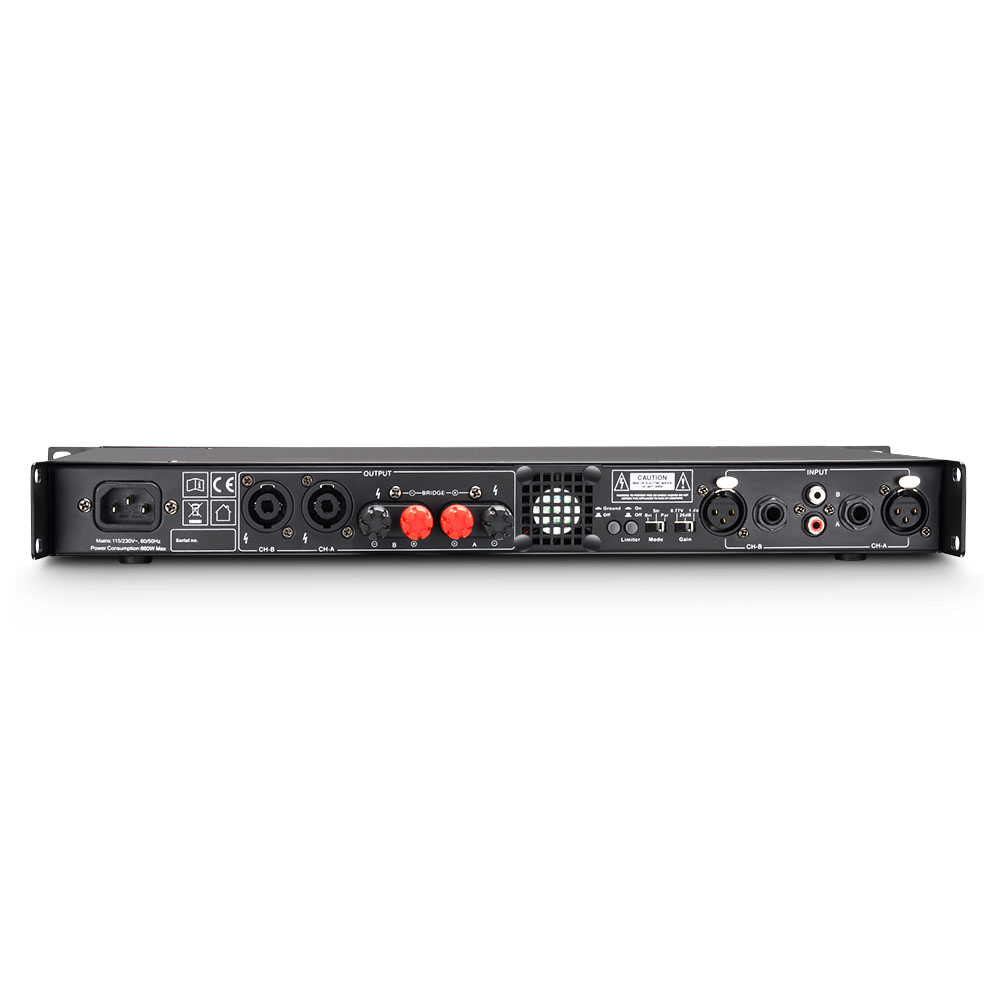

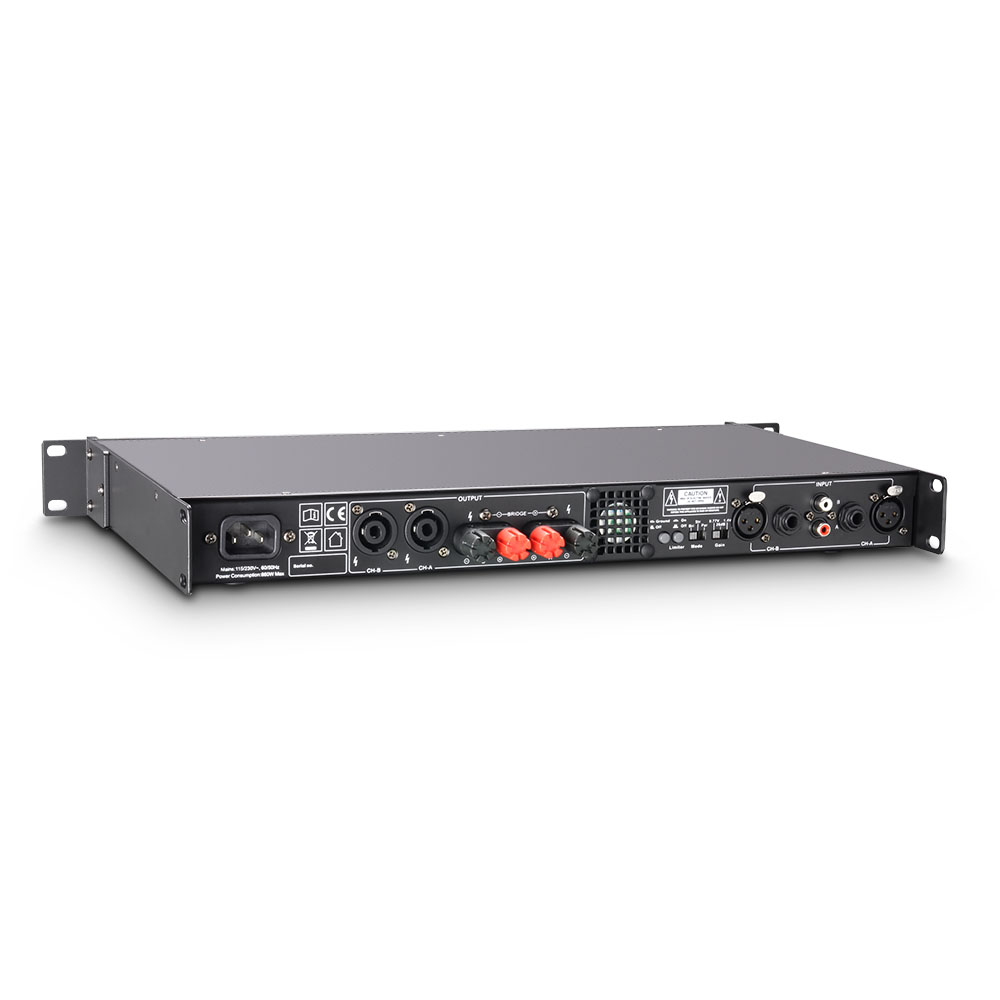

The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS700 impresses with operational dependability and a transmission range of 20Hz – 20kHz, which is reproduced transparently and dynamically with high impulse fidelity.

Amp class: Class D
Protection features: Overload, Overheating, Short circuit
RMS output power: 400 W
Frequency response (±0.5 dB, rel. Avg): 20 - 20000 Hz
Peak output power: 700 W
Line-In connector type: RCA female, 6.3 mm Jack TRS female, XLR 3-pole female
Input gain: 24 - 30 dB
Number of line inputs: 3
Number of speaker outputs: 2
Speaker output connection type: Speaker terminal 2-pole, Standard speaker connector 4-pole male & speakON®
Bridged output power (Peak): 8 Ω: 1 x 700 W
Output channels number: 2
Bridged output channels number: 1
Total RMS output power: 4 Ω: 700 W | 8 Ω: 400 W
Total Peak output power: 8 Ω: 700 W
Rated power: 860 W
Mains connector: IEC C14 plug male
Operation voltage: 115 V AC - 230 V AC / 50 - 60 Hz
Power supply type: Switched-mode power supply (SMPS)
Height: 1.73 in
Depth: 9.61 in
Weight: 7.5 lbs
Width: 18.98 in

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

accessories

5 STAR MMF 0500
5 STAR MMF 0500

For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.

$70.75*
3 STAR 2.5 SPEAKER 10m
3 STAR 2.5 SPEAKER 10m

Highly flexible speaker cable with a conductor diameter of 2 x 2.5 mm², equipped with standard 4-pole speaker connectors (2-fold occupancy). Ideally suited for cabling high-power speakers or stage monitors.

$44.99*
3 STAR MMF 0600
3 STAR MMF 0600

High Quality CableFor users who demand high-quality on stage, in the studio, or in the rehearsal room, we have developed this cable from our 3 STAR SERIES. This product is completely developed in Germany and therefore meets the relevant requirements for users with high-quality standards.

$18.15*

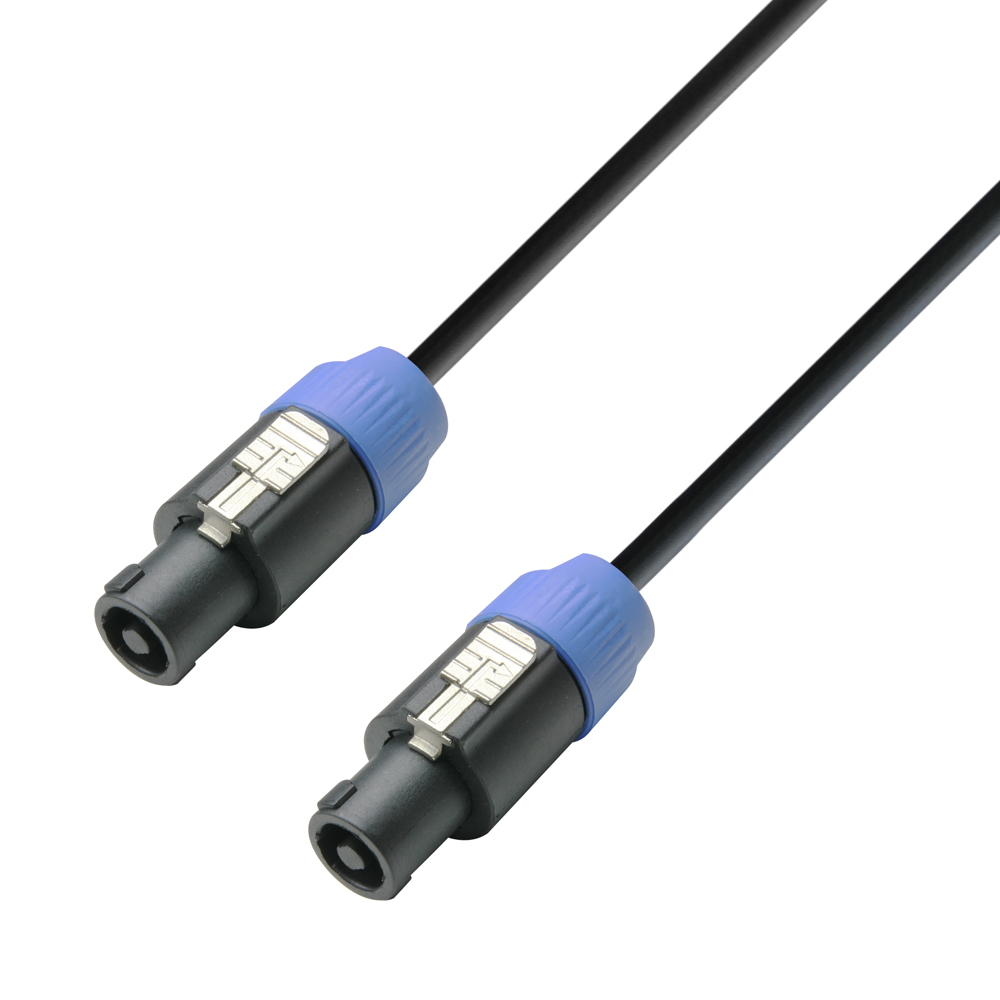

3 STAR 1.5 SPEAKER 10m
