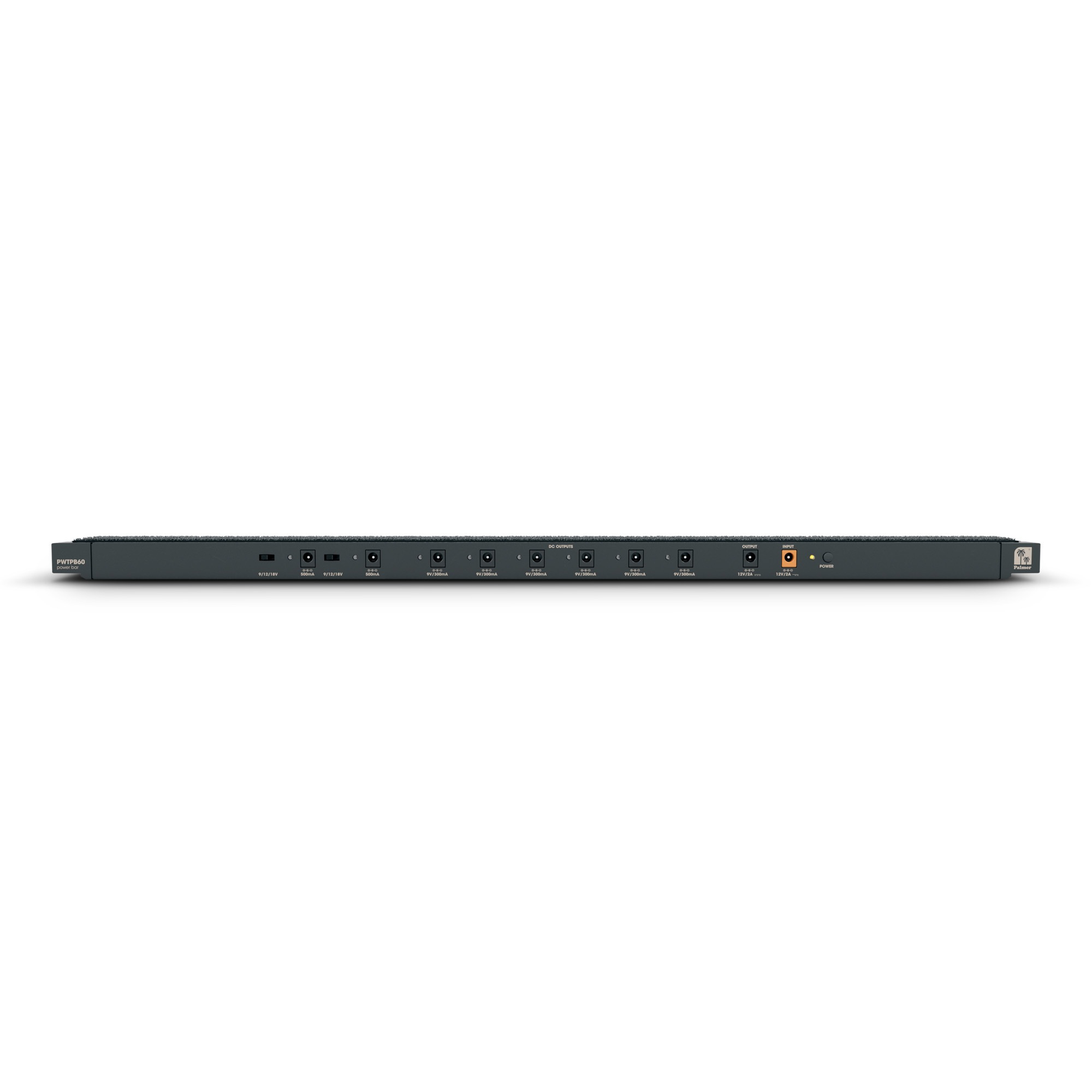

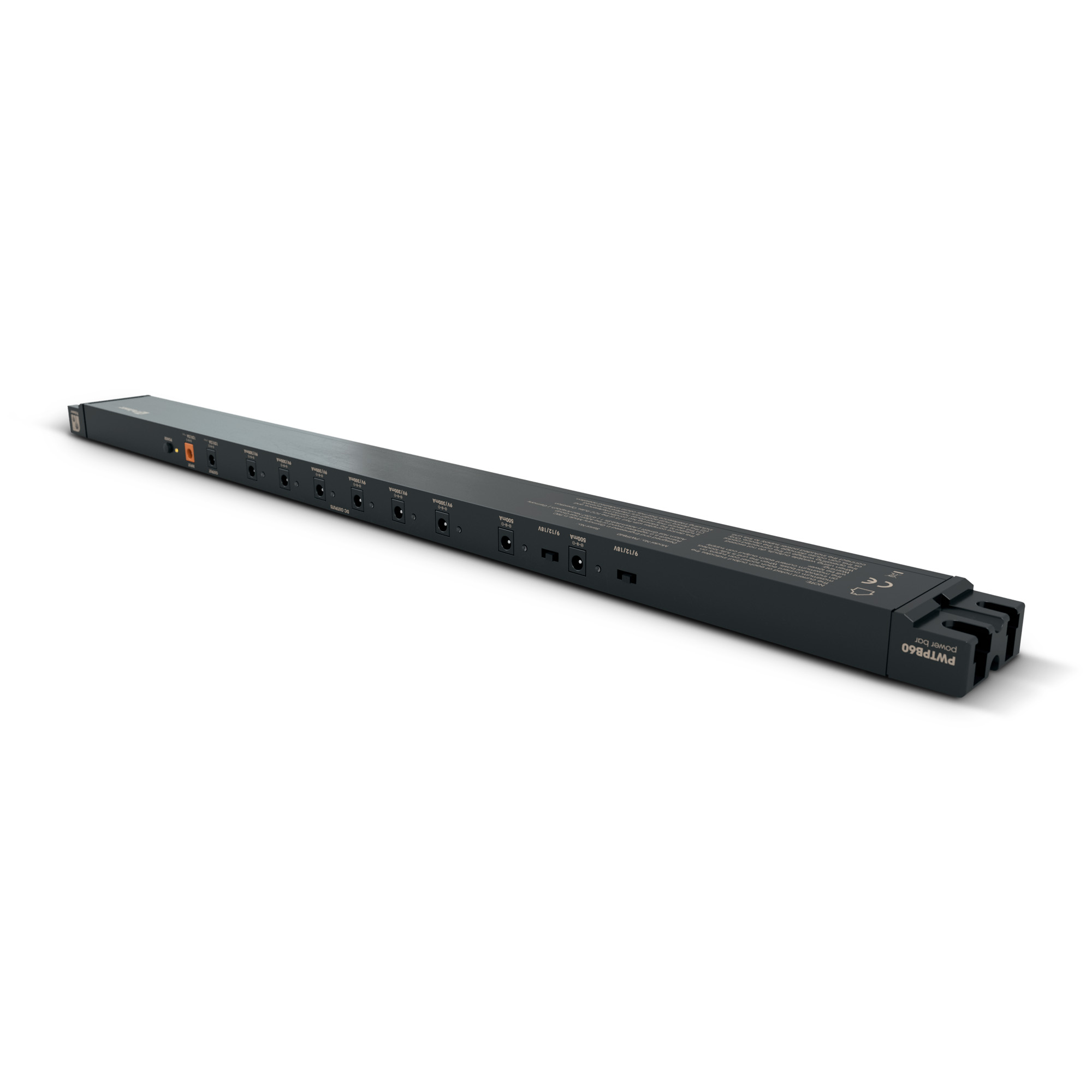

WT PB 60
Power Supply with 8 Outputs for PEDALBAY® 60
$199.99
Backordered – More on the Way!
Product information "WT PB 60"

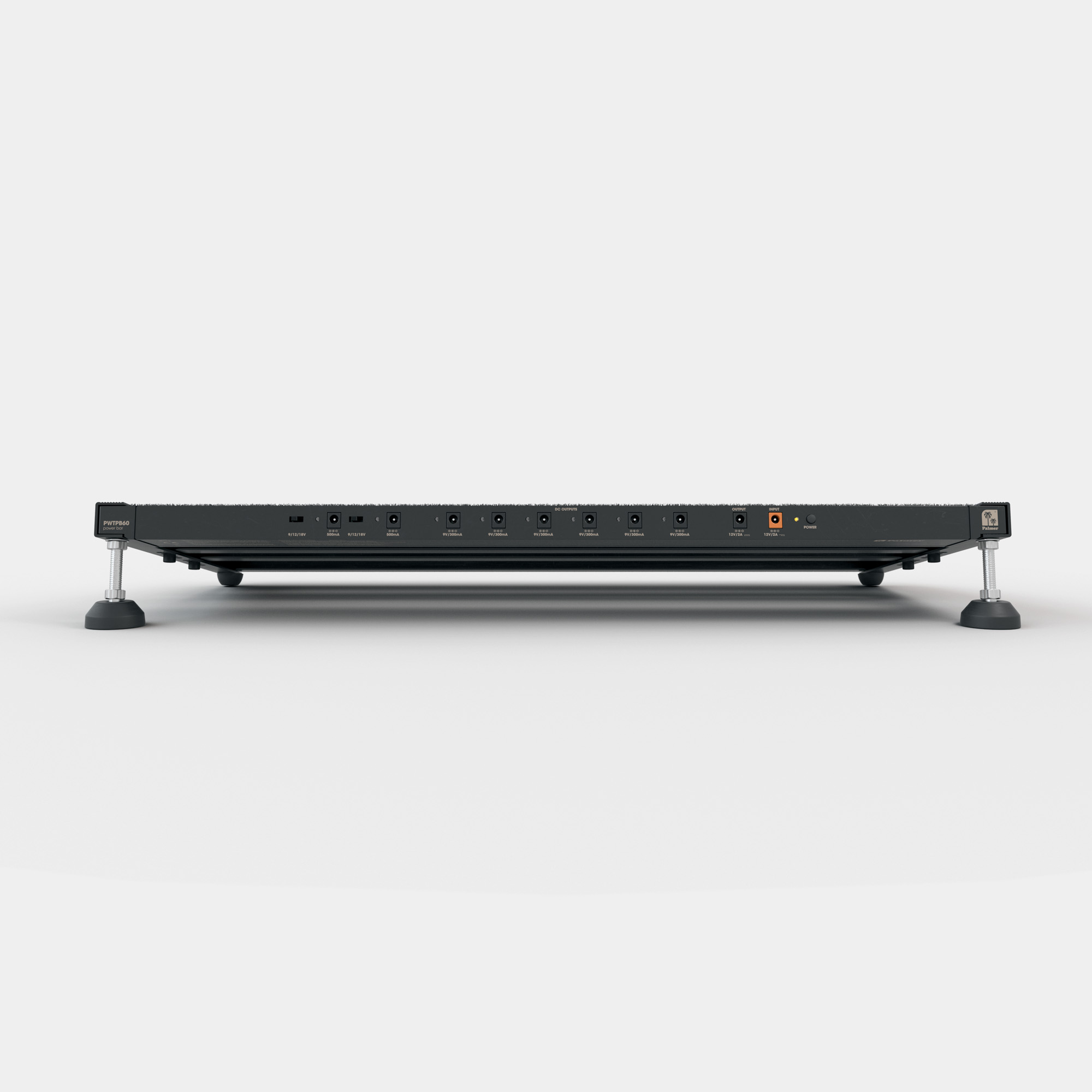

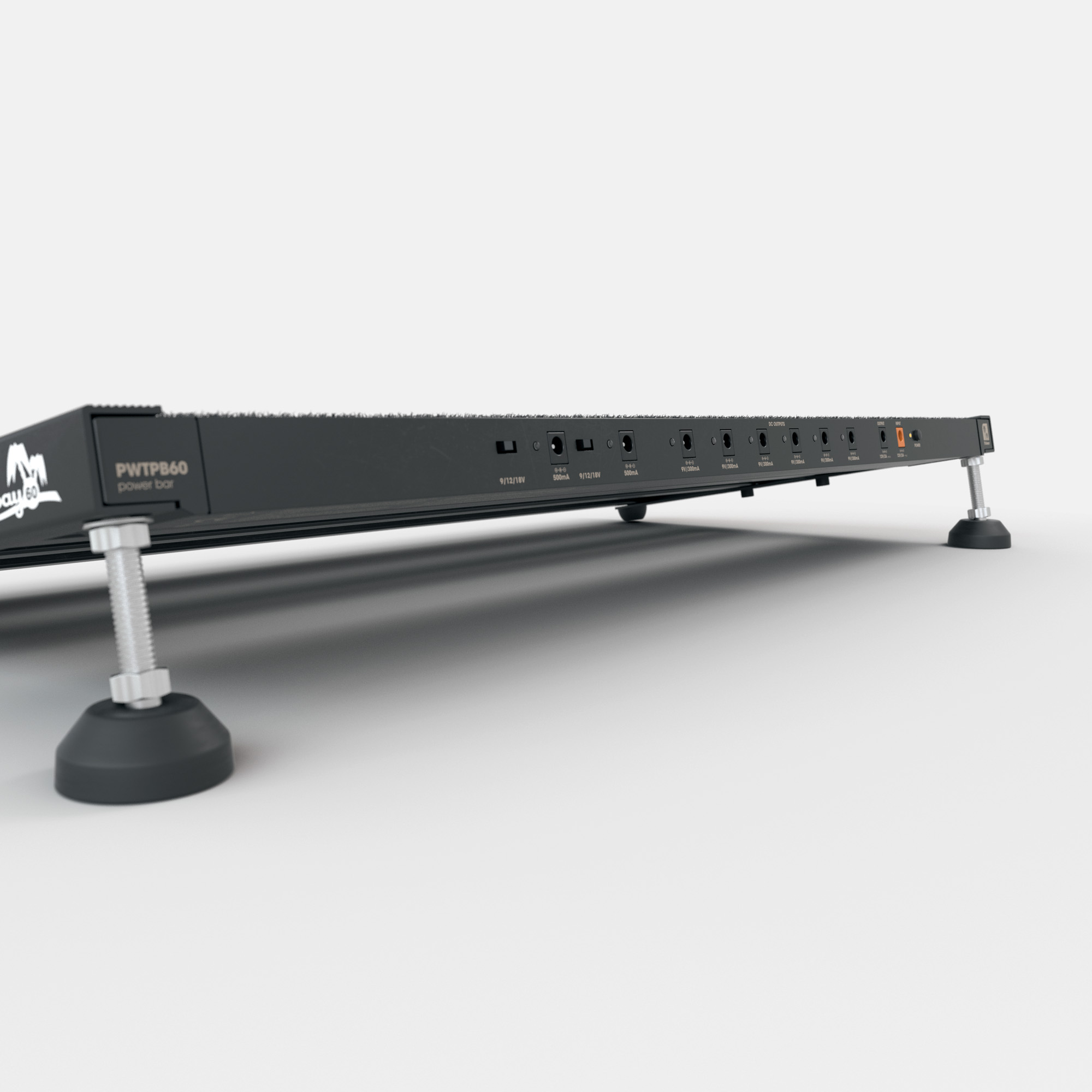

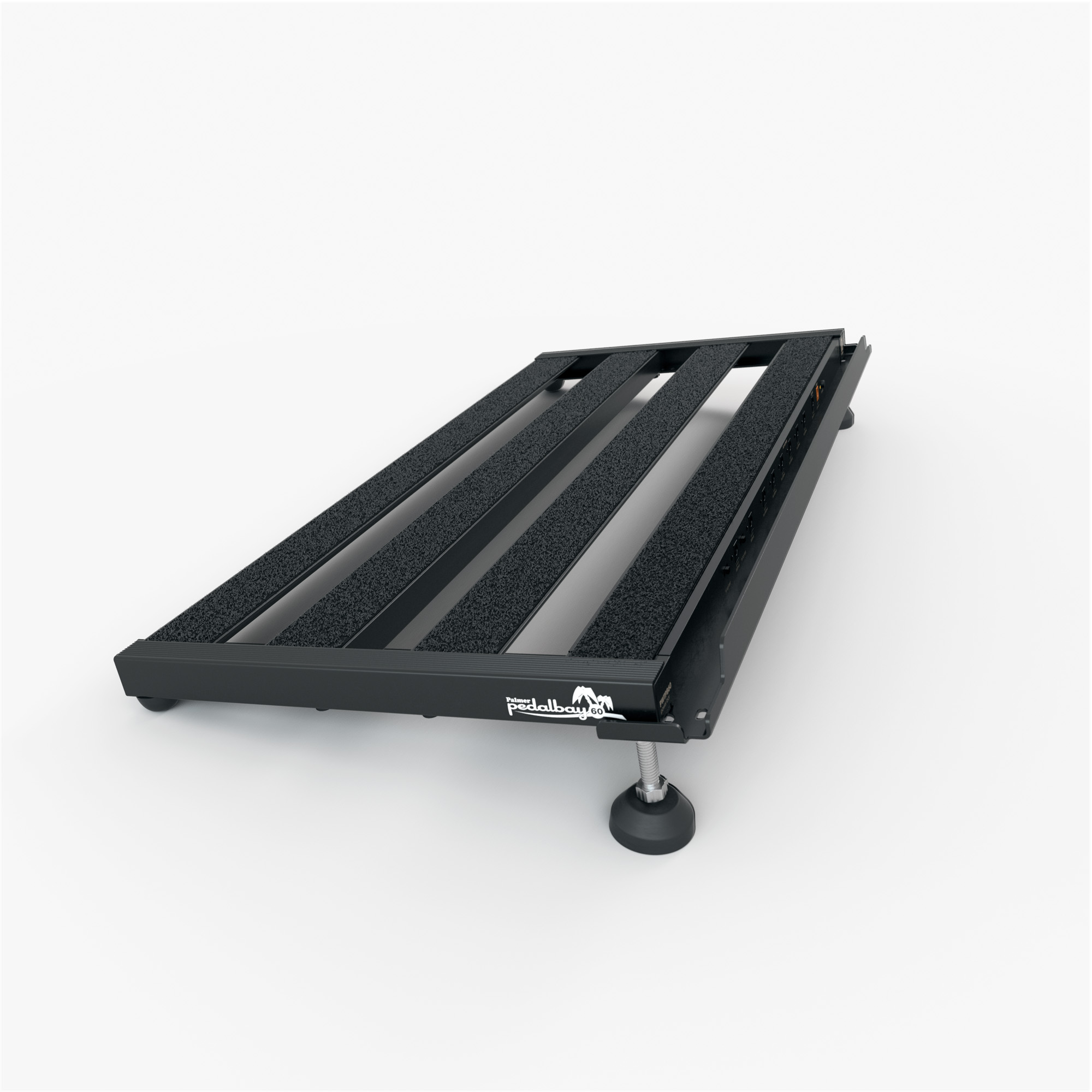

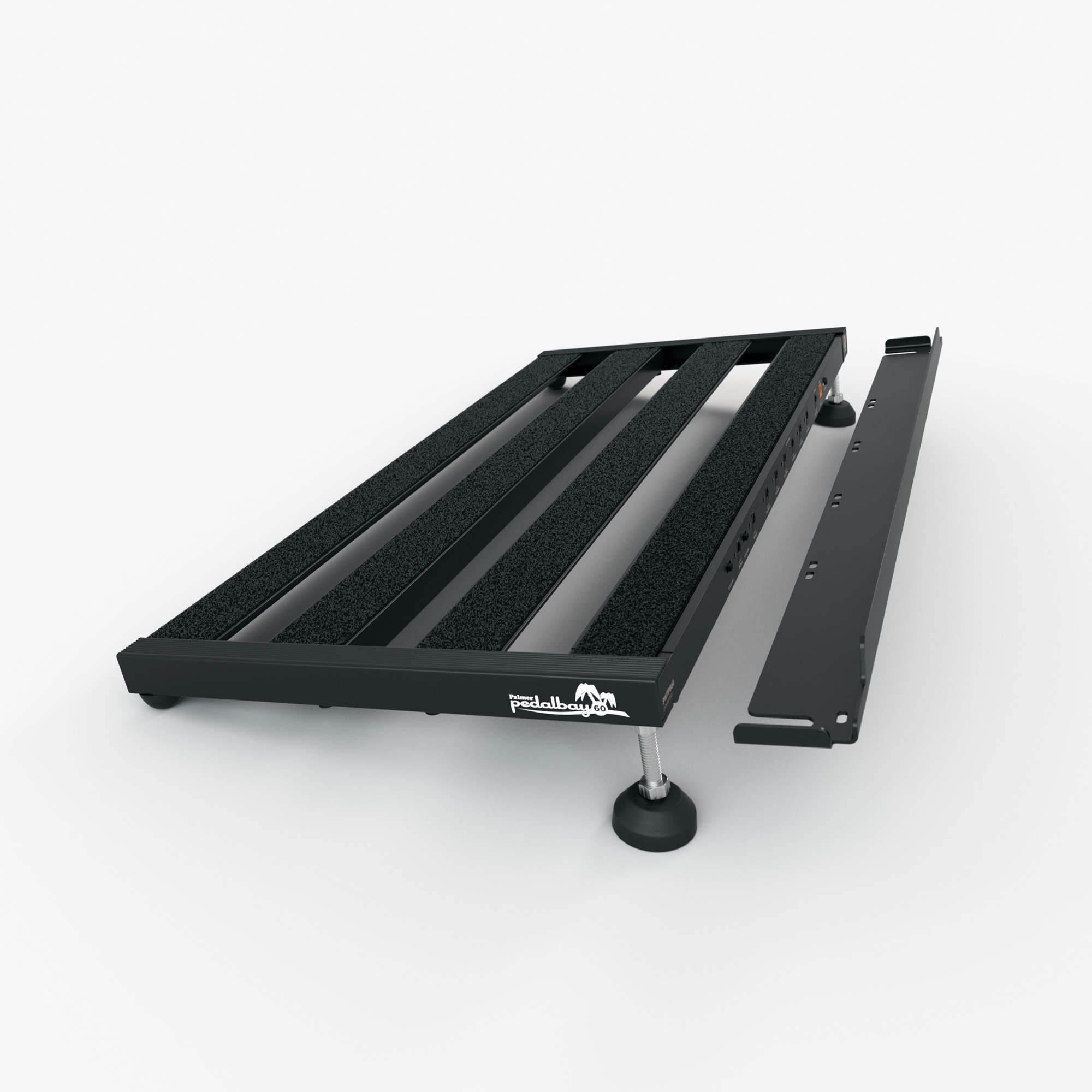

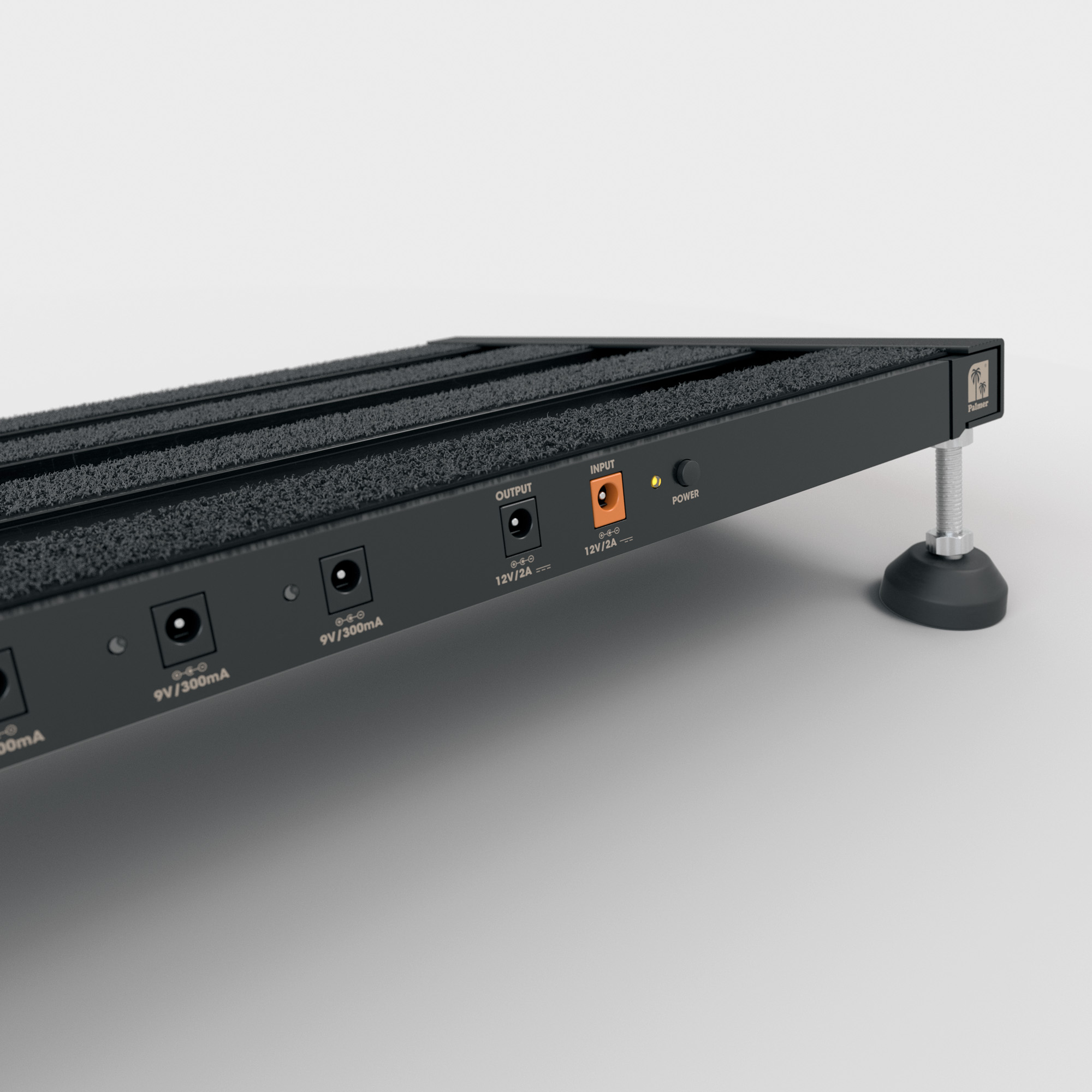

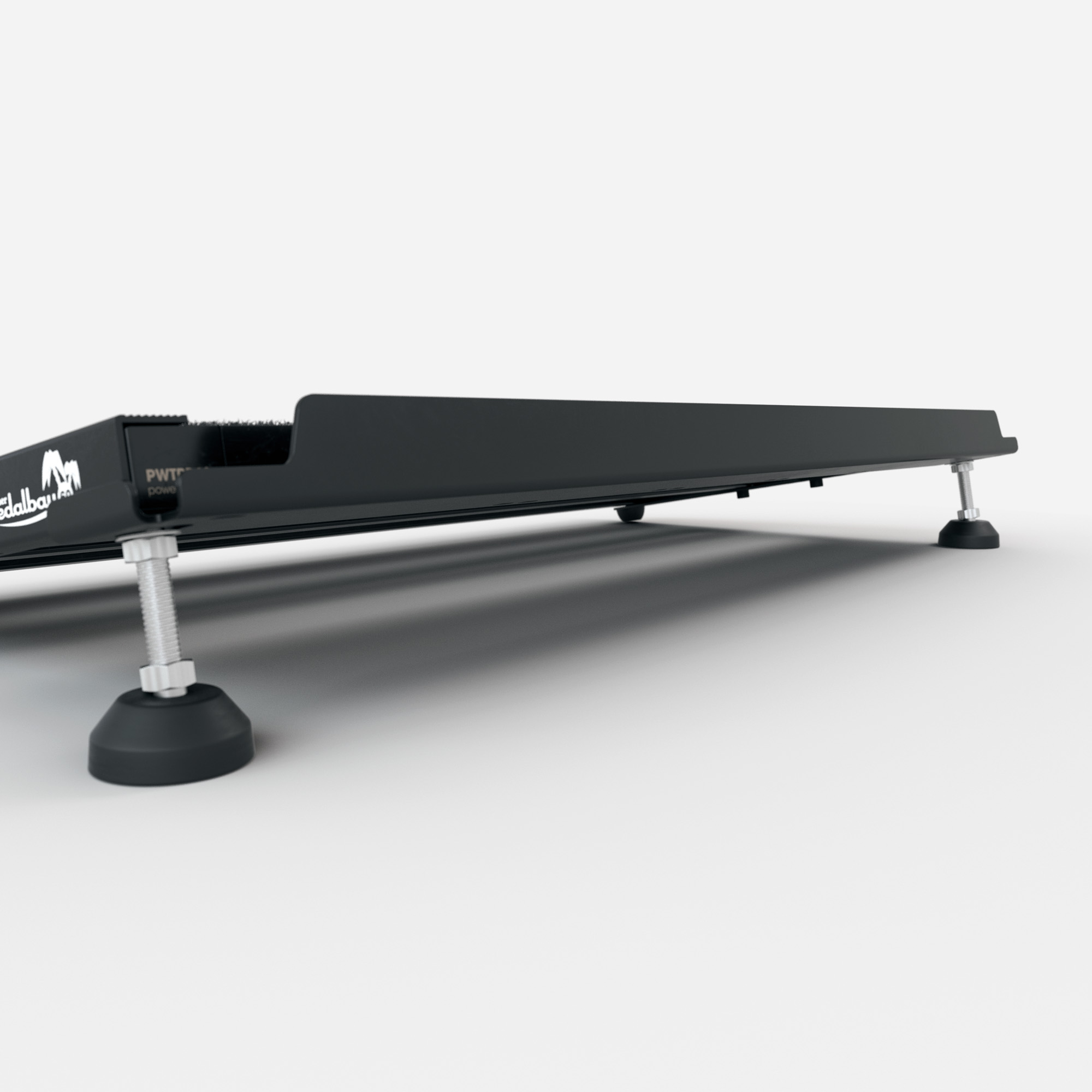

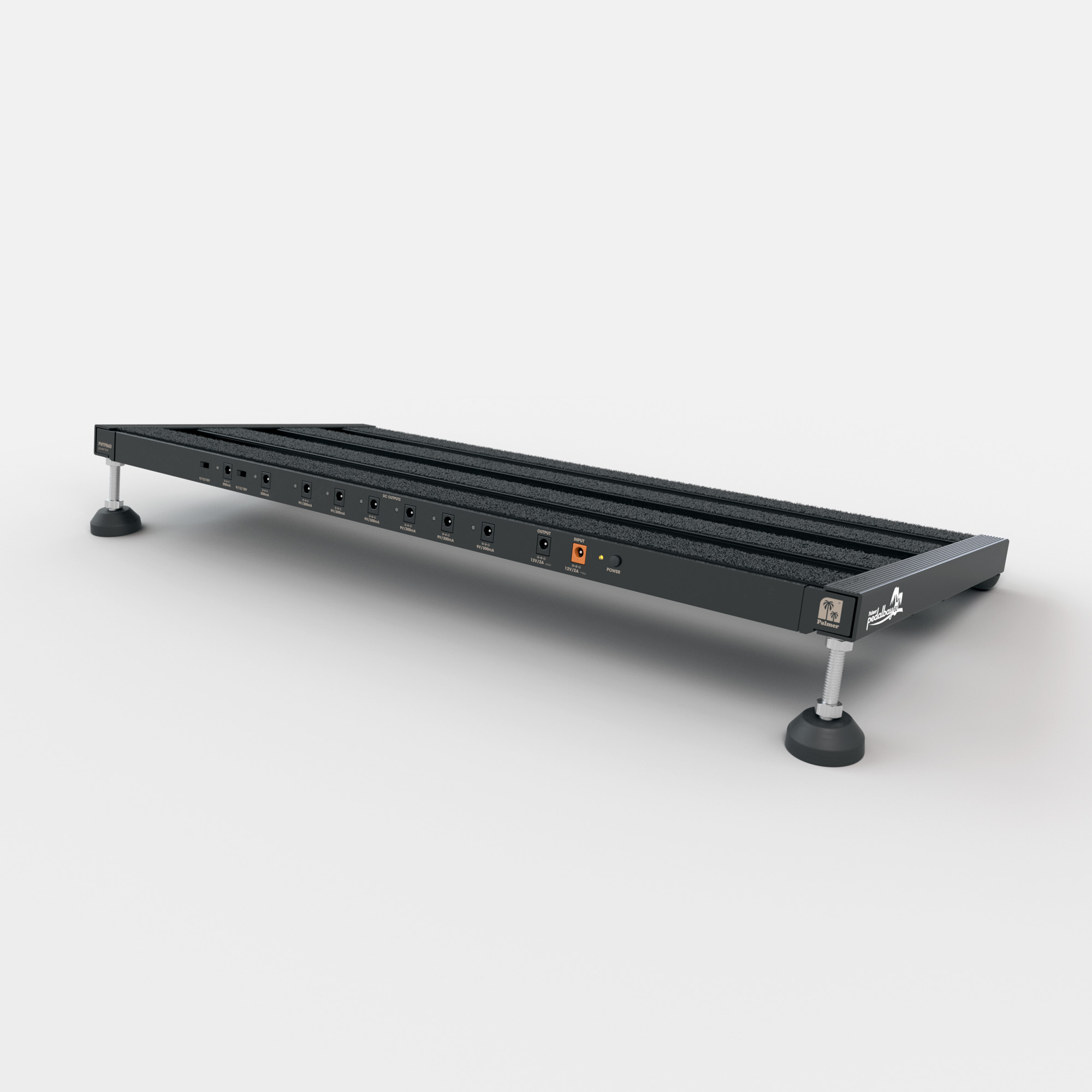

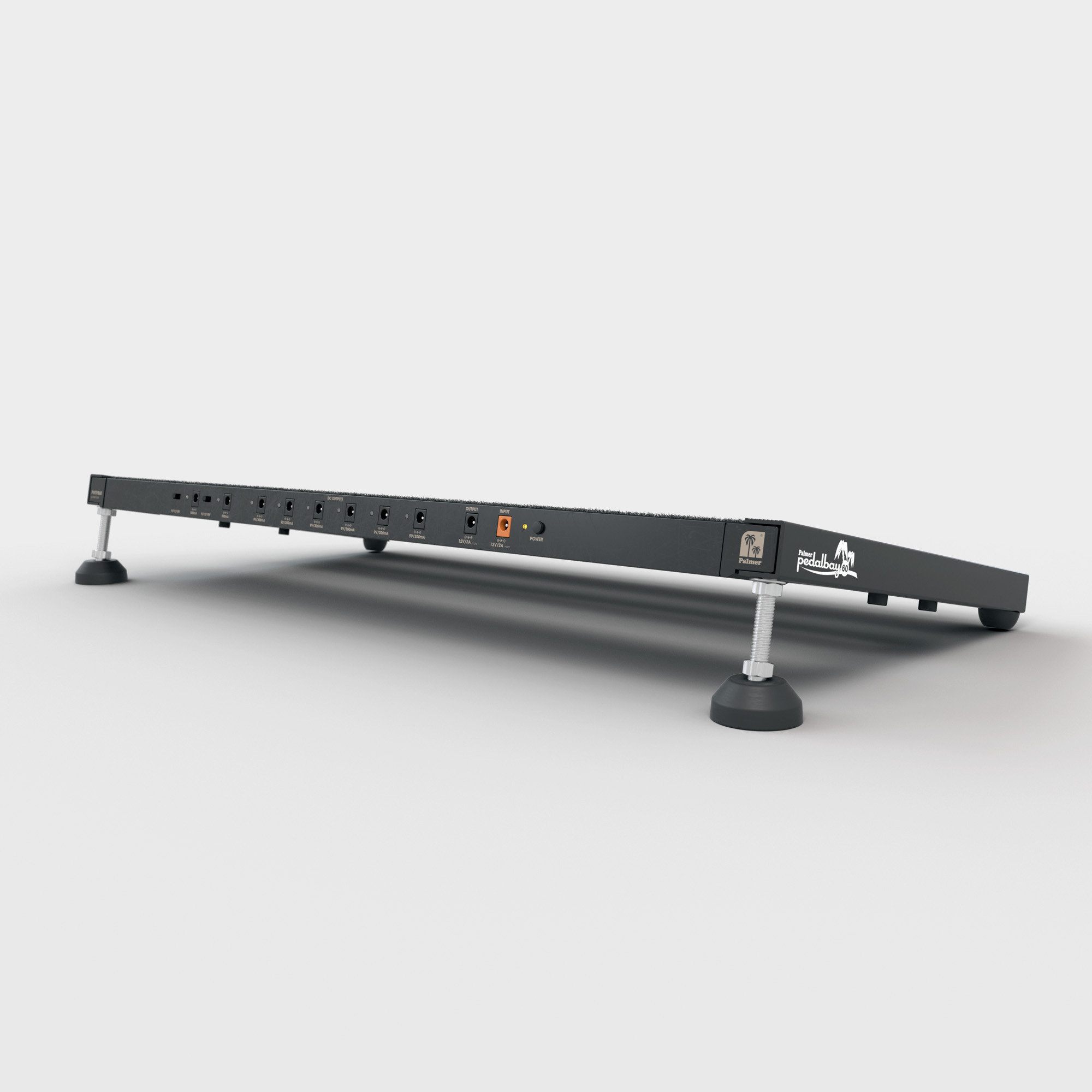

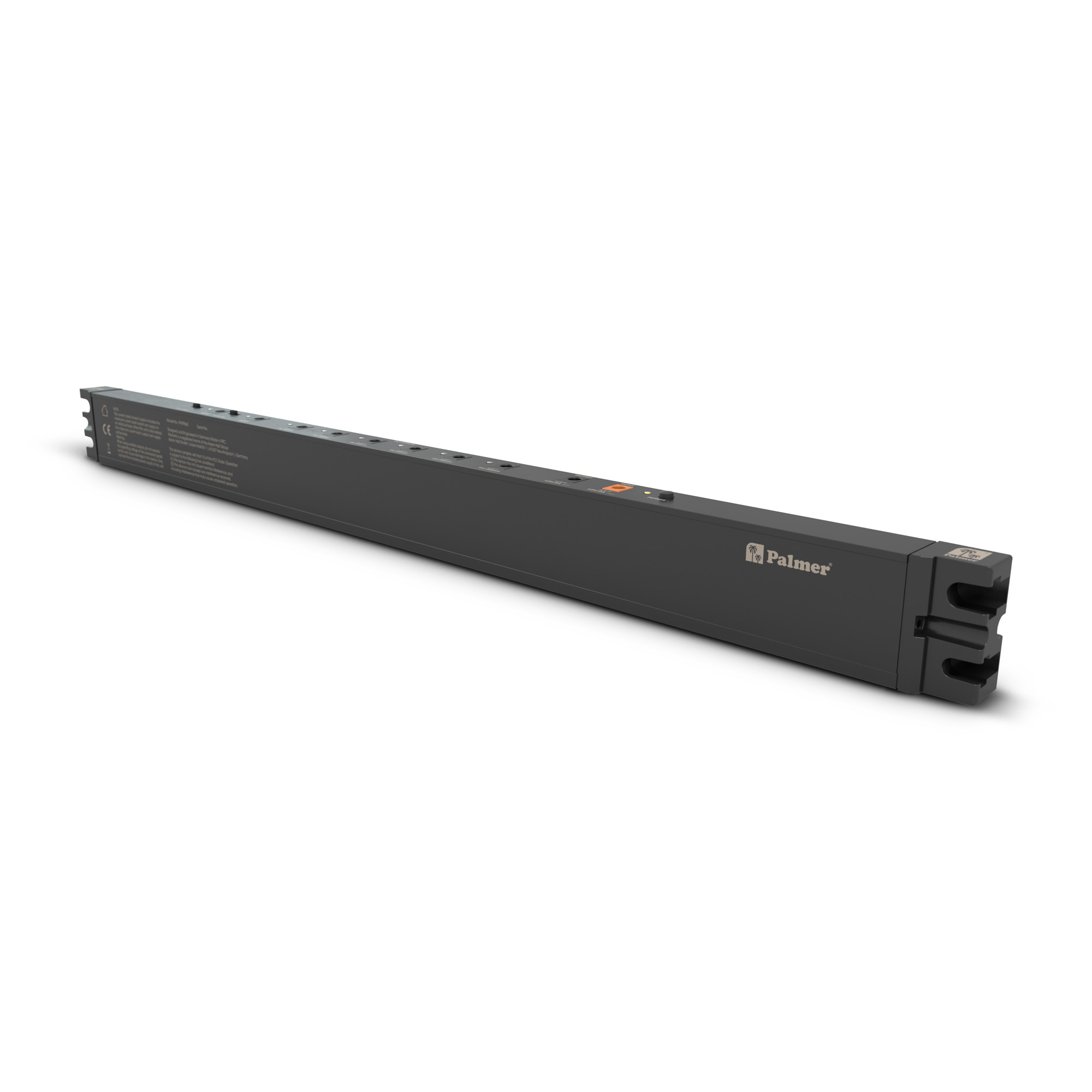

Attention stage-musicians: The Palmer Powerbar greatly reduces your gig set-up time thanks to the universal power supply which can be completely and discreetly integrated into the pedalboard. Simply replace the first crossbar with the power supply to experience the familiar high quality: Eight single isolated centre-negative outputs of which two are switchable outputs of 9, 12 or 18 volts for added flexibility. Optimum performance is provided by a total current of 2,000 mA. The best thing: no more forgotten power supplies or unnecessary cable clutter on-stage means no more stress.
| Product type: | Power Supplies |
|---|---|
| Polarity: | Center negative |
| Height: | 0.94 in |
| Accessories (included): | M6 Nuts, 9x DC cable straight to angled 60cm long, Power supply, 5x DC cable straight to angled 16cm long, M8 Nuts, hook-and-loop tape |
| Mains connector: | Plug-in power supply |
| Indicators: | Power, Fault |
| Width: | 23.62 in |
| Input voltage: | 100 - 250 V |
| Surface: | anodized, Powder coated |
| Cord length: | 150 + 150 cm |
| Controls: | Output voltage selector |
| Output voltage: | 9 V, 12 V, 18 V |
| Depth: | 1.97 in |
| Max. output current: | 2 A |
| Output connectors: | 2.1 x 5.5 mm |
| Material: | Aluminium |
| Isolated outputs: | Yes |
| Outputs: | 8 |
Login
accessories

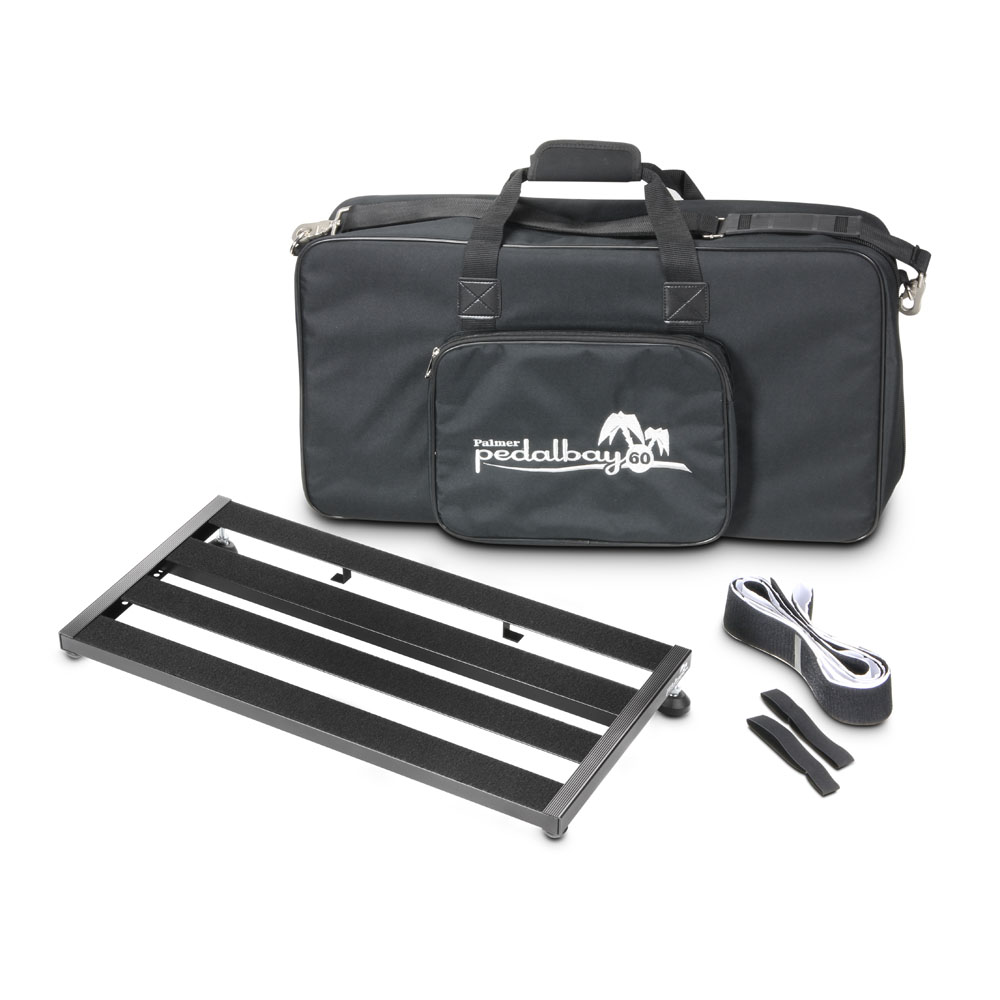

Universal aluminium Pedalboard for the storage of all commercially available floor effects. The cross bars as well as the height and the tilt of the Pedalboard can be individually adjusted. The cross bars are already covered with Velcro (fleece), a sufficient amount of hook strap is also included. Power supplies and similar peripheral devices can be mounted below the board. For this the Pedalboard features 4 practical hooks on the underside. 2 Elastic bands are supplied - making fixation easy!This set also features a high-quality padded softcase with an accessory compartment and a shoulder strap.
