ULTRA L
Cable protector 2 channels | heavy duty | height 13.9cm
$559.99
Backordered – More on the Way!
Product information "ULTRA L"

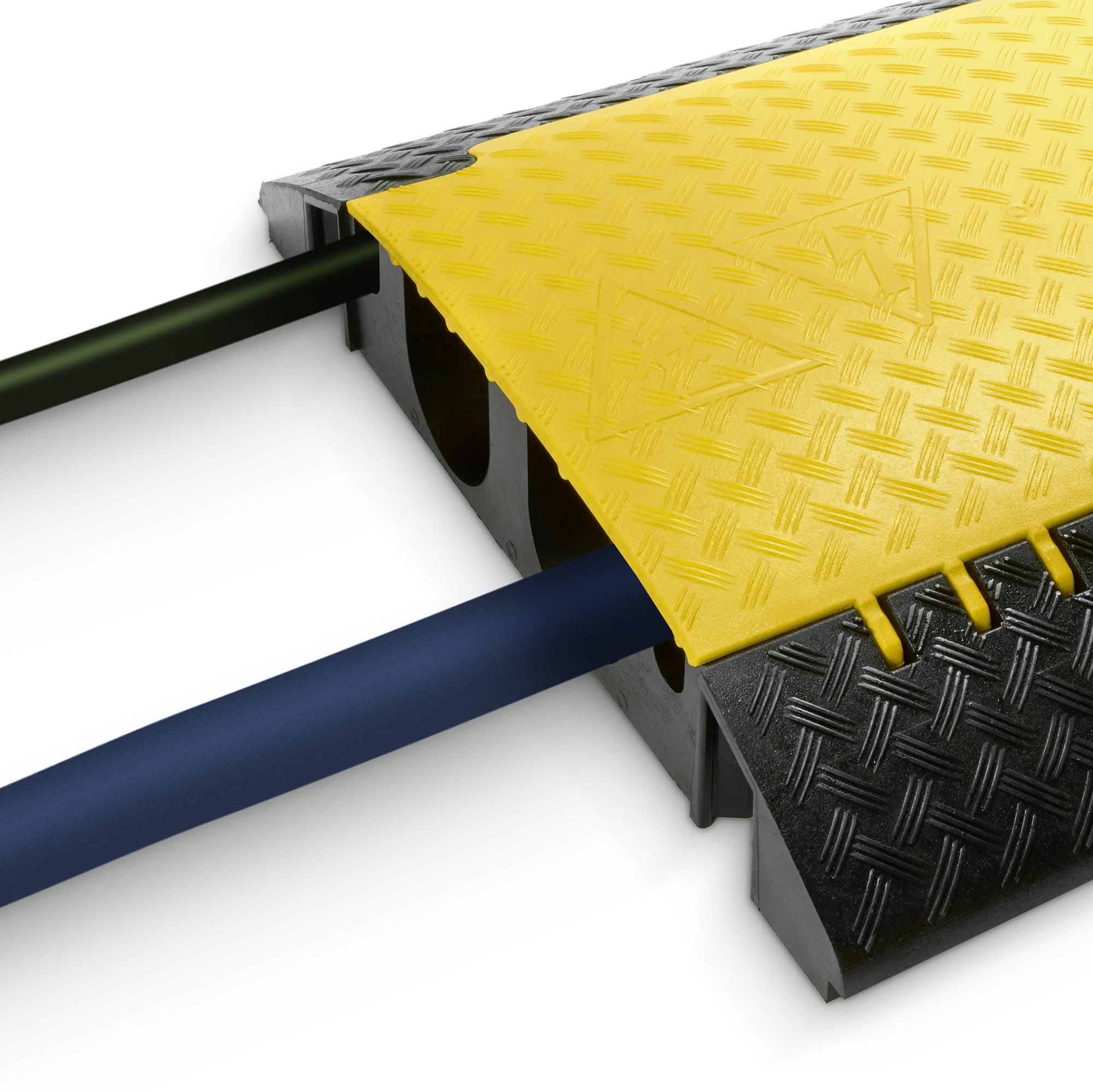

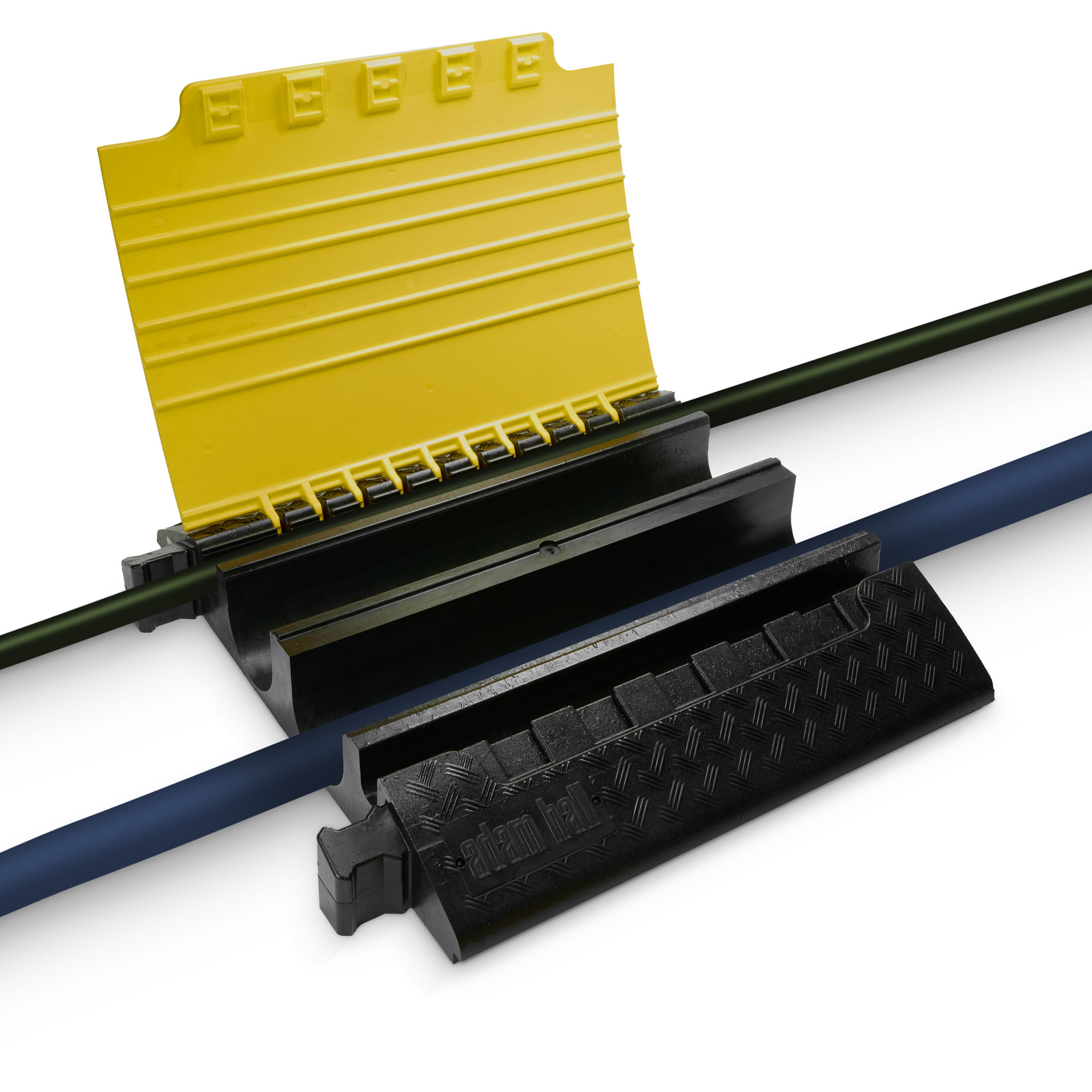

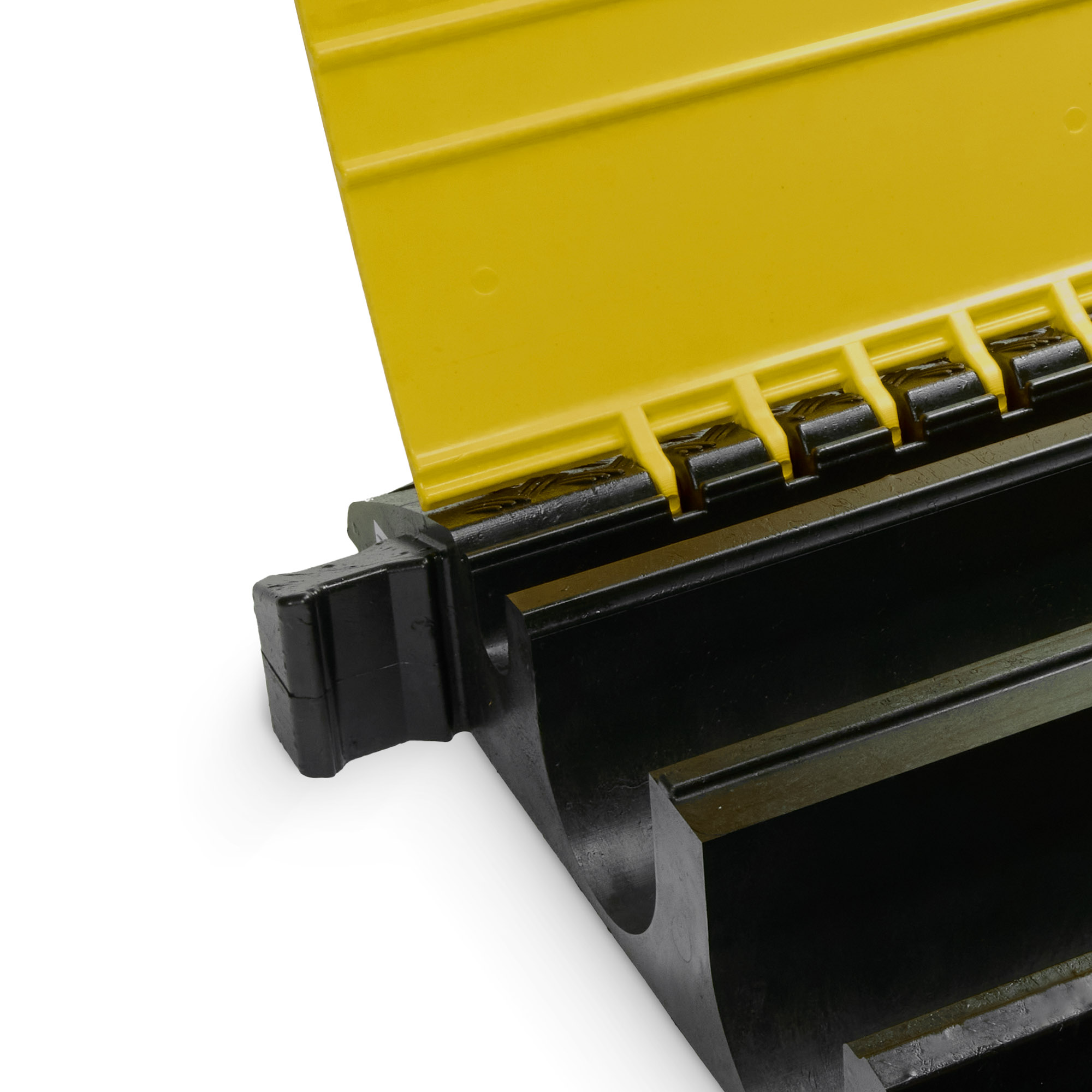

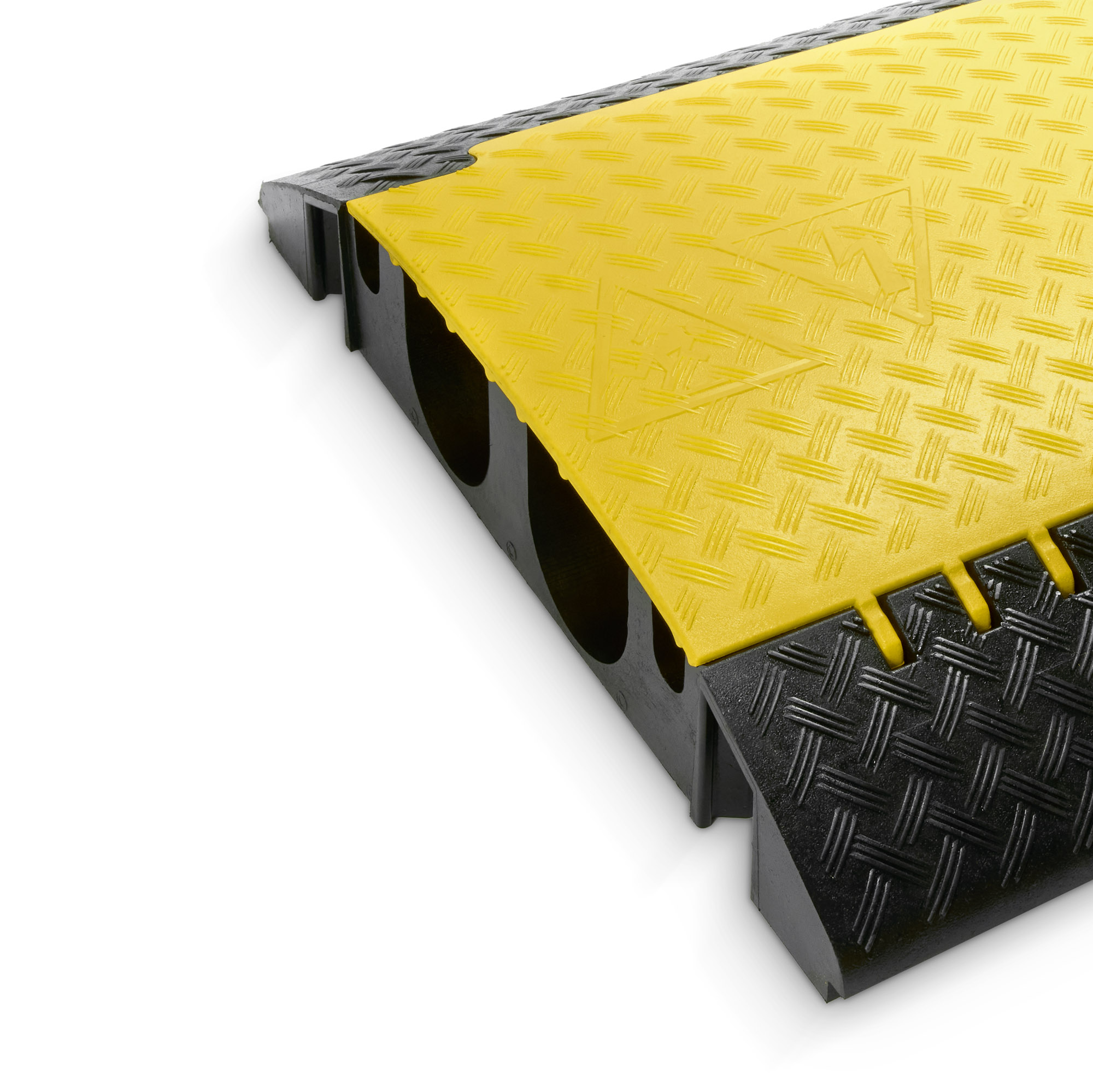

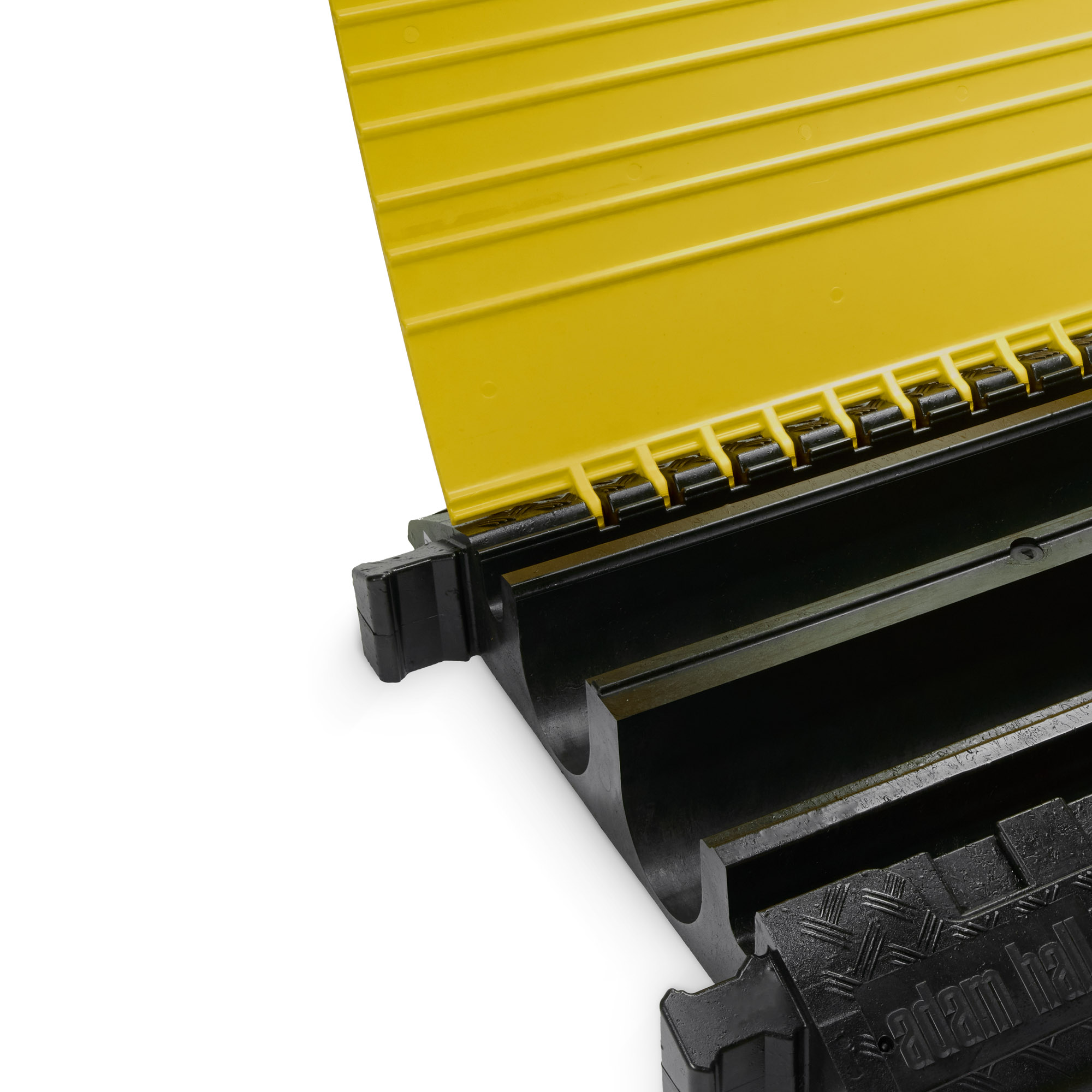

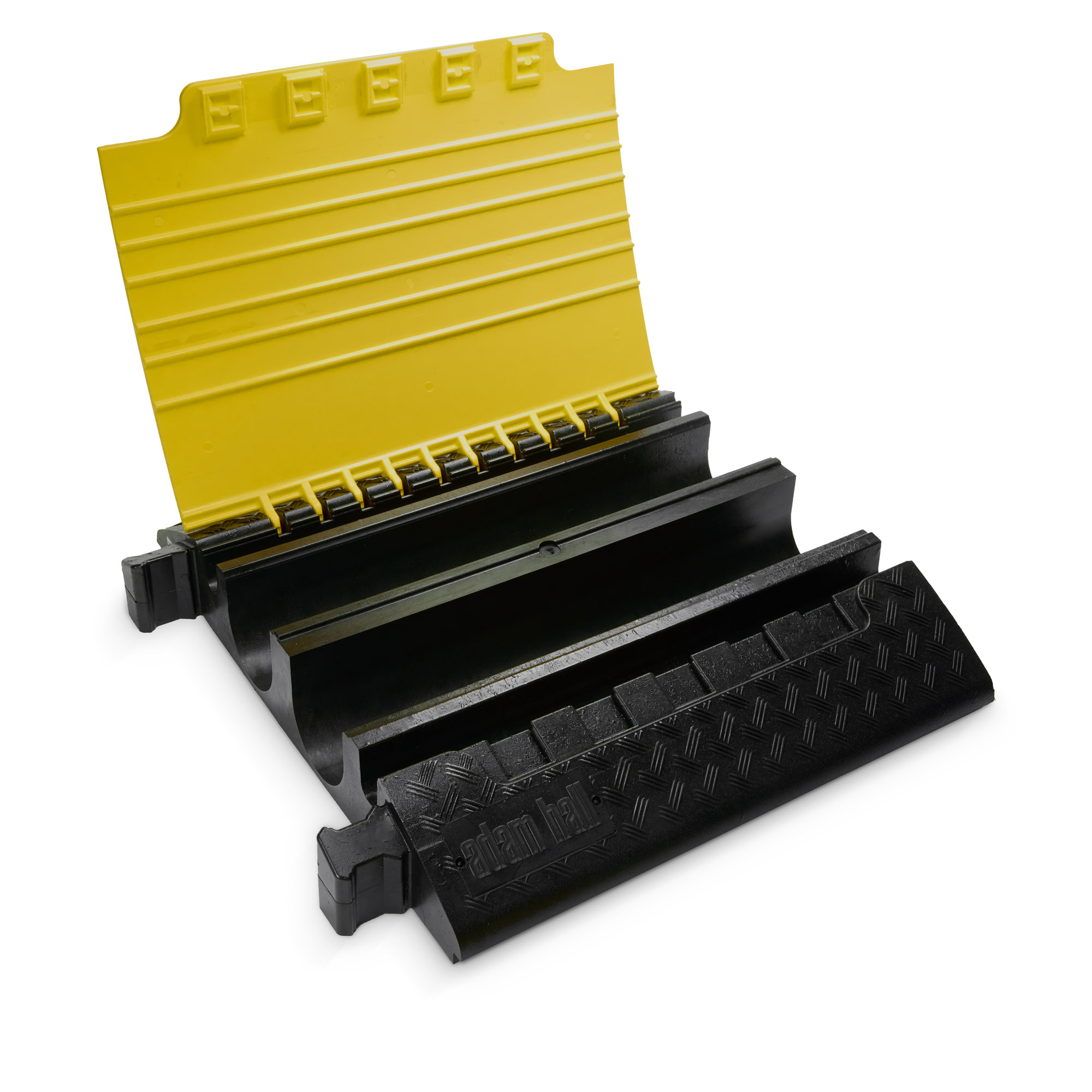

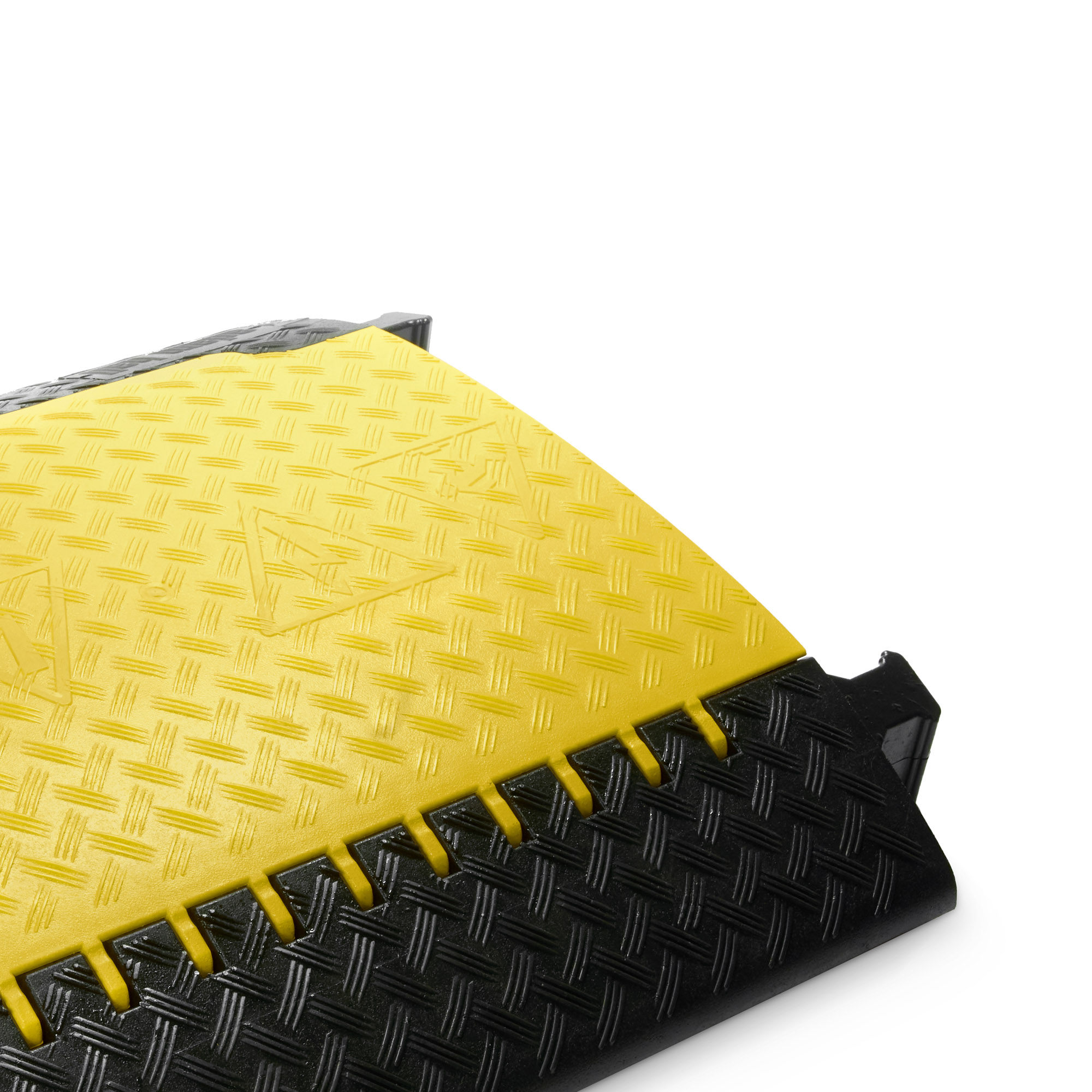

Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. The load-bearing capacity is approx. 5 tons on a 25 x 30 cm surface area. This makes Ultra L cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnival and music events, as well as other applications involving particularly heavy use.
Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.
| Max. Passing speed: | 7 km/h |
|---|---|
| Lid colour: | Yellow |
| Chemical resistance: | Oil, Petrol, Solvents (short-term contact) |
| Shape: | Round |
| Colour: | Black |

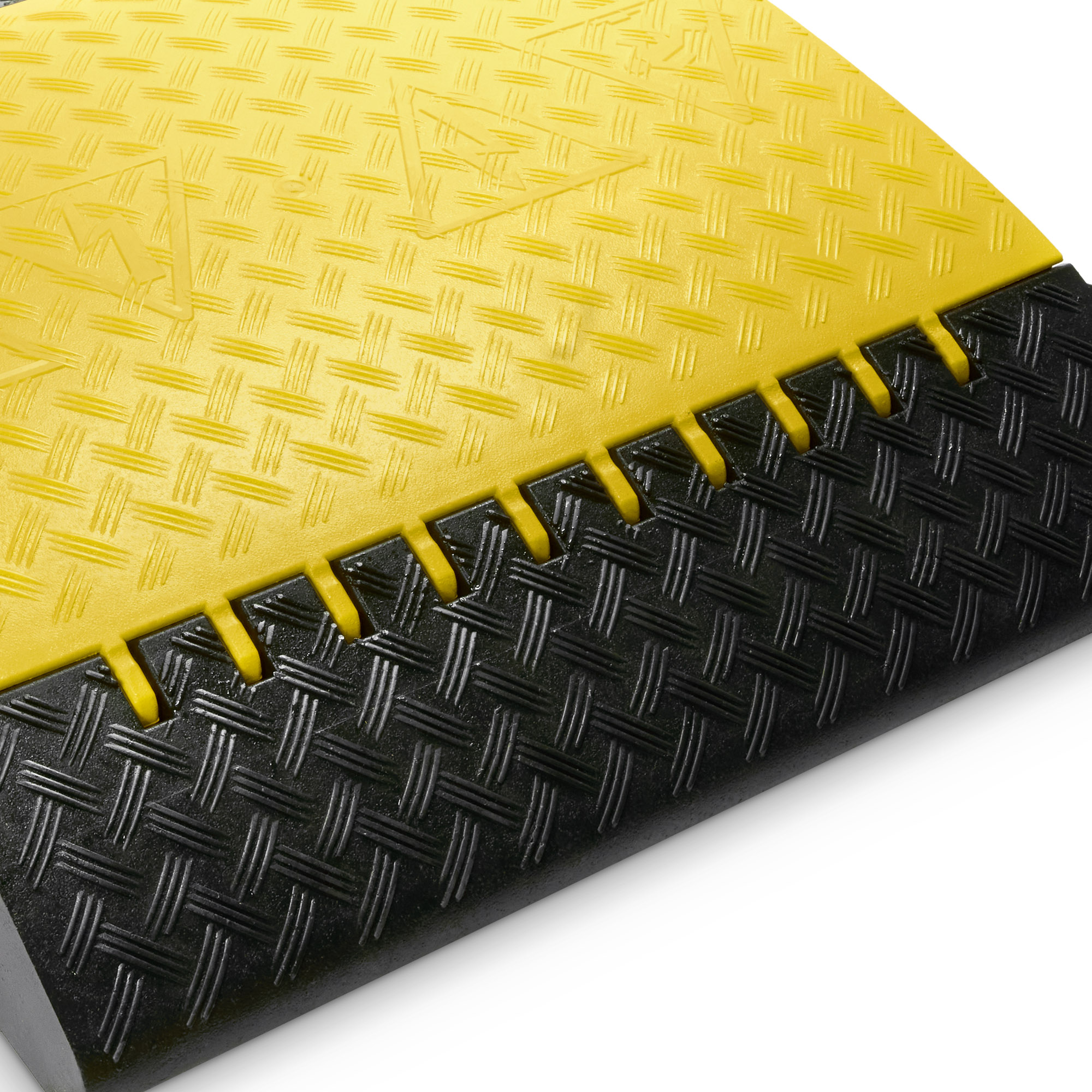

| Surface structure: | Ribbed |
| Material: | TPU (Thermoplastic polyurethane) |
| Hardness range (±4 Shore A): | 88 Shore A |
| Maximum load (on 25 x 30 cm): | 5 t |
| Load per axle: | 10 t |

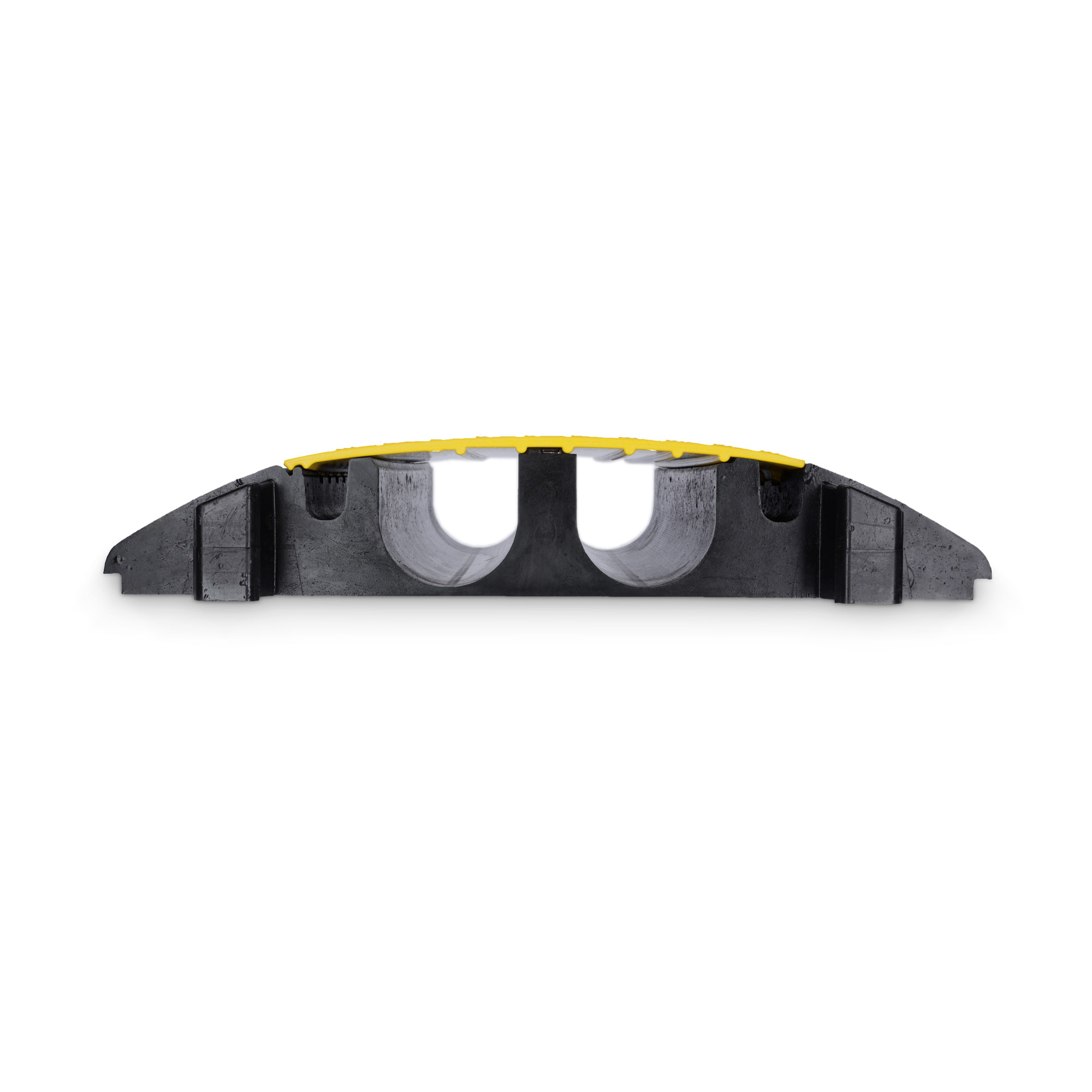

| Cable ducts size (W x H): | 33 mm x 50 mm / 120 mm x 113 mm |
|---|---|
| Quantity: | 4 |
| Duct length (effective length): | 27.56 in |
| Inflammability (UL 94): | V-2, HB |
|---|---|
| Fire protection class per DIN 4102-1: | B2 |
| Meets CP65: | 1 |
| Ambient temperature: | -30 - 60 °C |
| Meets TSCA: | 1 |
| Fire protection class per EN 13501-1: | E |
| Length: | 30.55 in |
|---|---|
| Height: | 5.63 in |
| Width: | 30.31 in |
| Weight: | 70.33 lbs |
| Certifications: | Germany: TÜV Süd |
|---|
