U505 BPH
Wireless Microphone System with Bodypack and Headset - 584 – 608 MHz.
$449.99
Backordered – More on the Way!
Product information "U505 BPH"
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
Overview of frequency ranges of vocal sets:
- U505 // 584 - 608 MHz // 12 systems can be used simultaneously
- U506 // 655 - 679 MHz // 12 systems can be used simultaneously
- U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
- U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
- U518 // 1785 – 1800 MHz // four systems can be used simultaneousl
| Type: | Set |
|---|---|
| Transmission frequency range: | 584 - 608 |
| Product type: | Wireless Microphone Systems |
Login
accessories

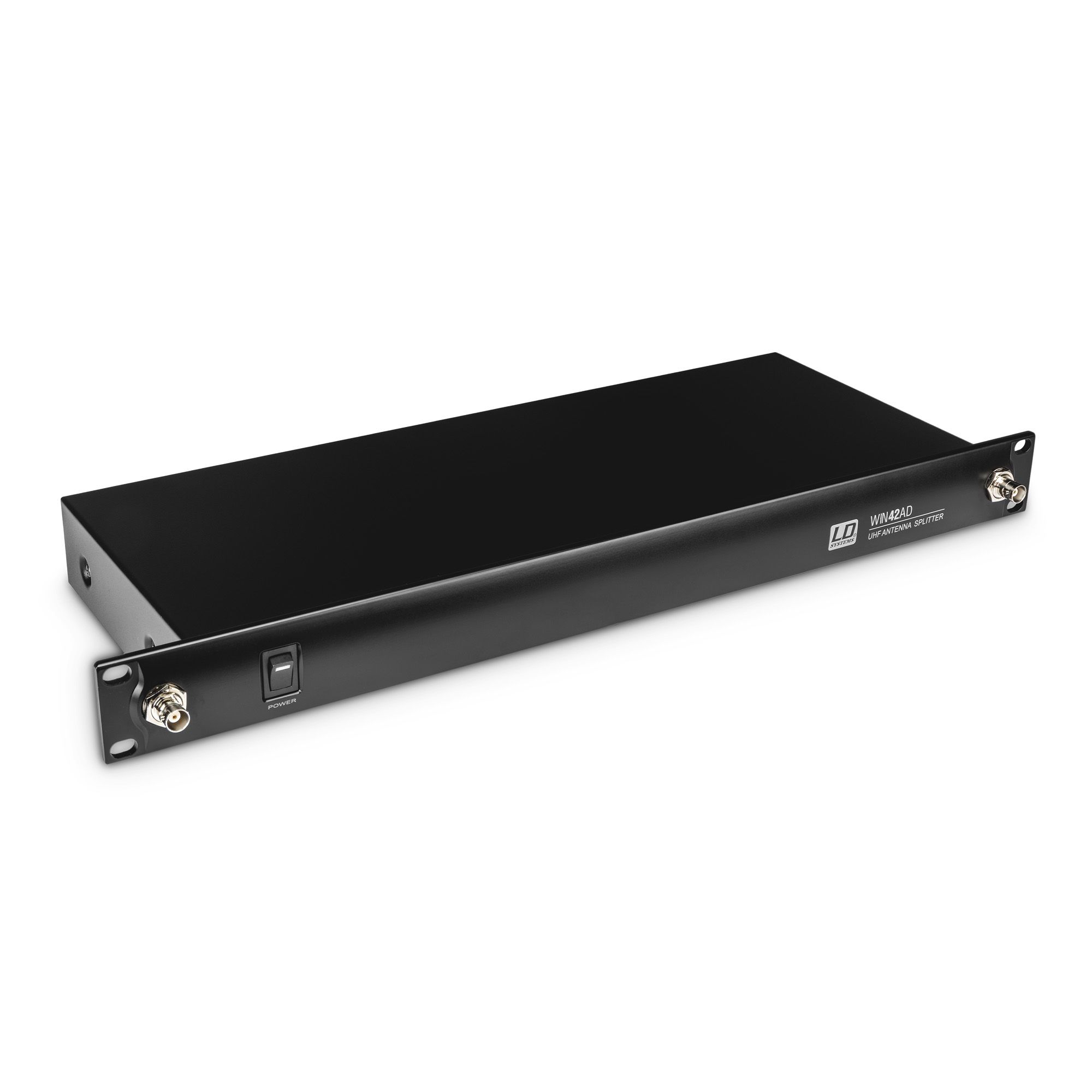

Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500 and 900 MHz.

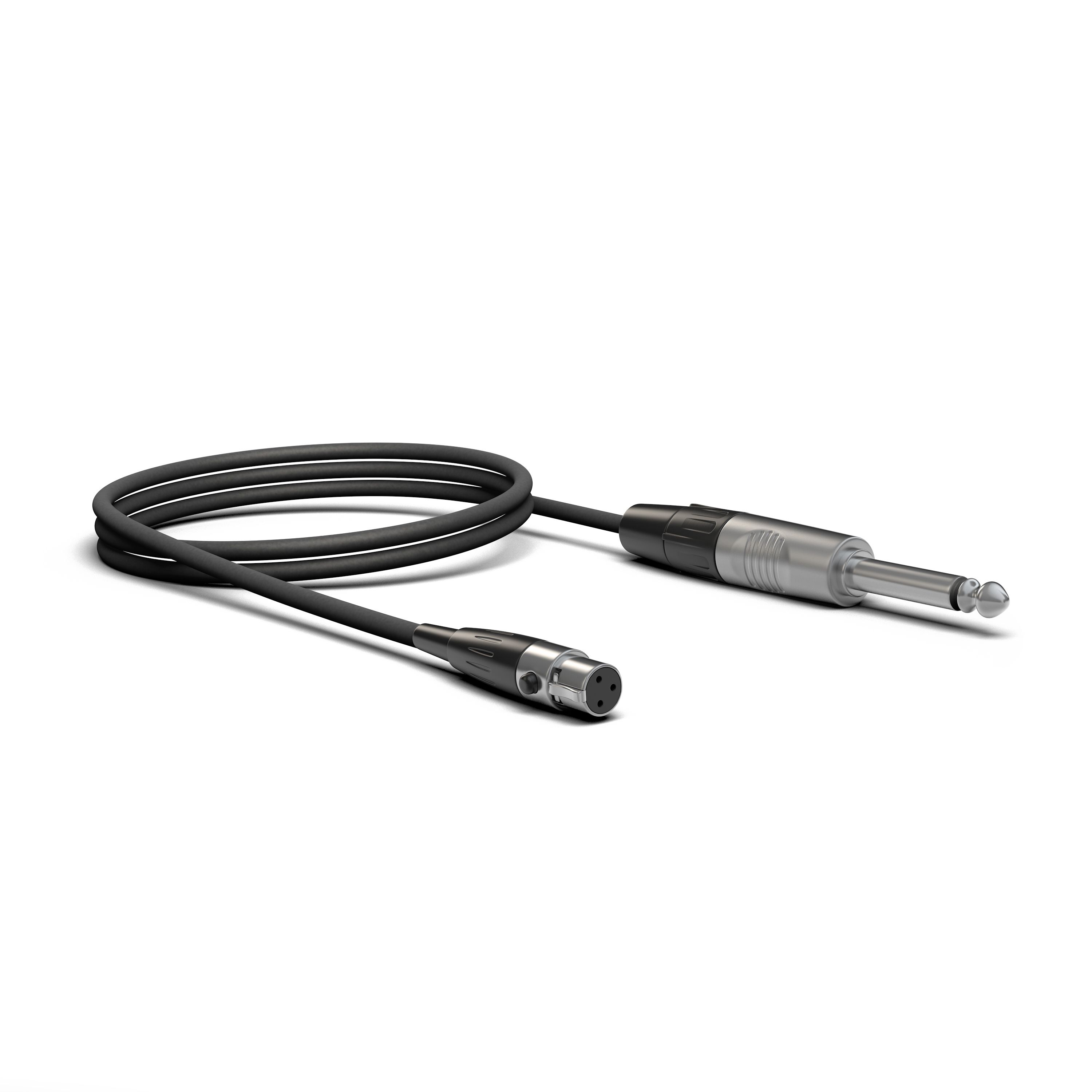

The low-capacitance U500 Series instrument cable with a rugged, highly flexible sheath for optimal signal transmission and 100% trouble-free operation are shielded and fitted with a 6.3 mm Rean® Neutrik jack plug and a 3-pin female mini XLR plug.
We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound, reliability and ease of operation.With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500® Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.U500® vocal and instrument sets are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time.The U500® conference system can be extended to a maximum of 20 terminals and provides effective communication with excellent speech intelligibility.

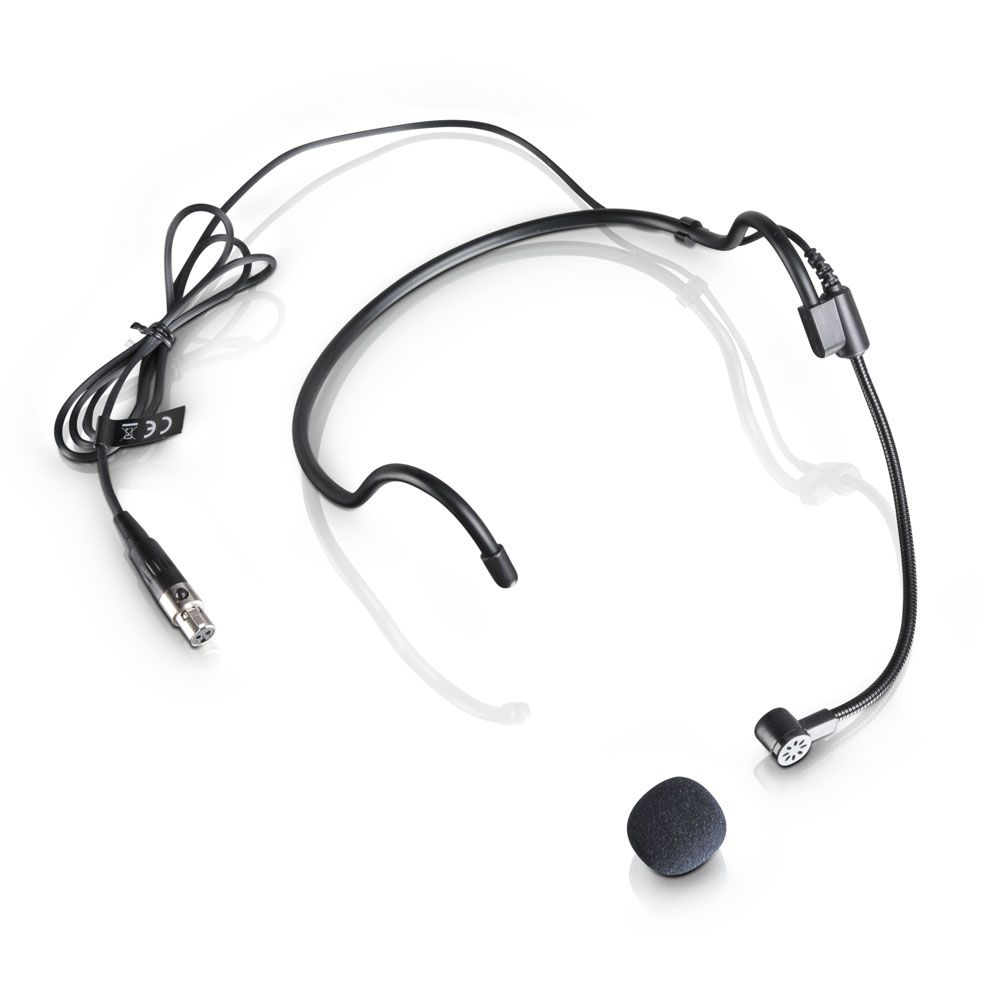

The LDWS100MH1 headset microphone is a lightweight headset with a condenser microphone. It offers high wearing comfort and is equipped with a 3-pin mini XLR connector. The headset offers very clear voice reproduction and can be easily used in a variety of voice and sports applications. A windscreen is included to improve the sound quality outdoors.

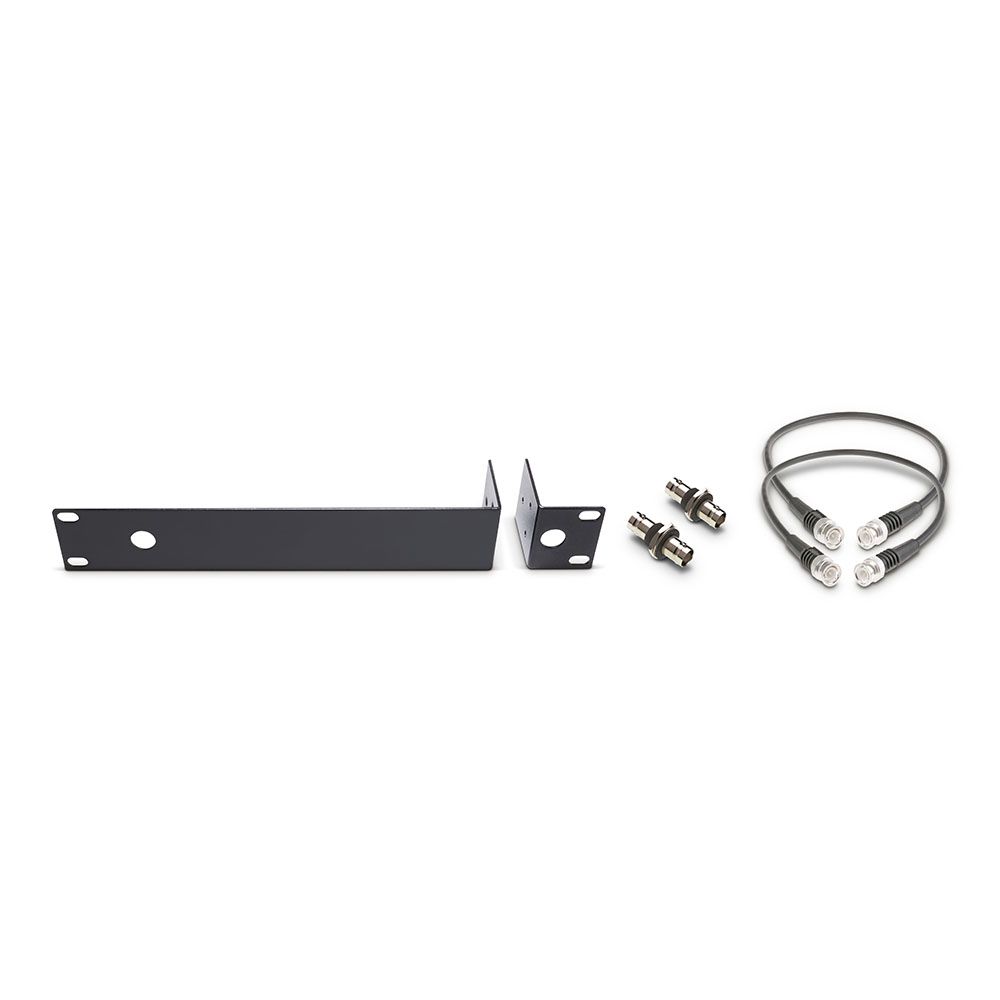

This kit allows mounting a half-rack U500 Receiver into a standard 19” rack. It comes with two BNC cables and two BNC adapters to front-mount the antennas for improved reception.

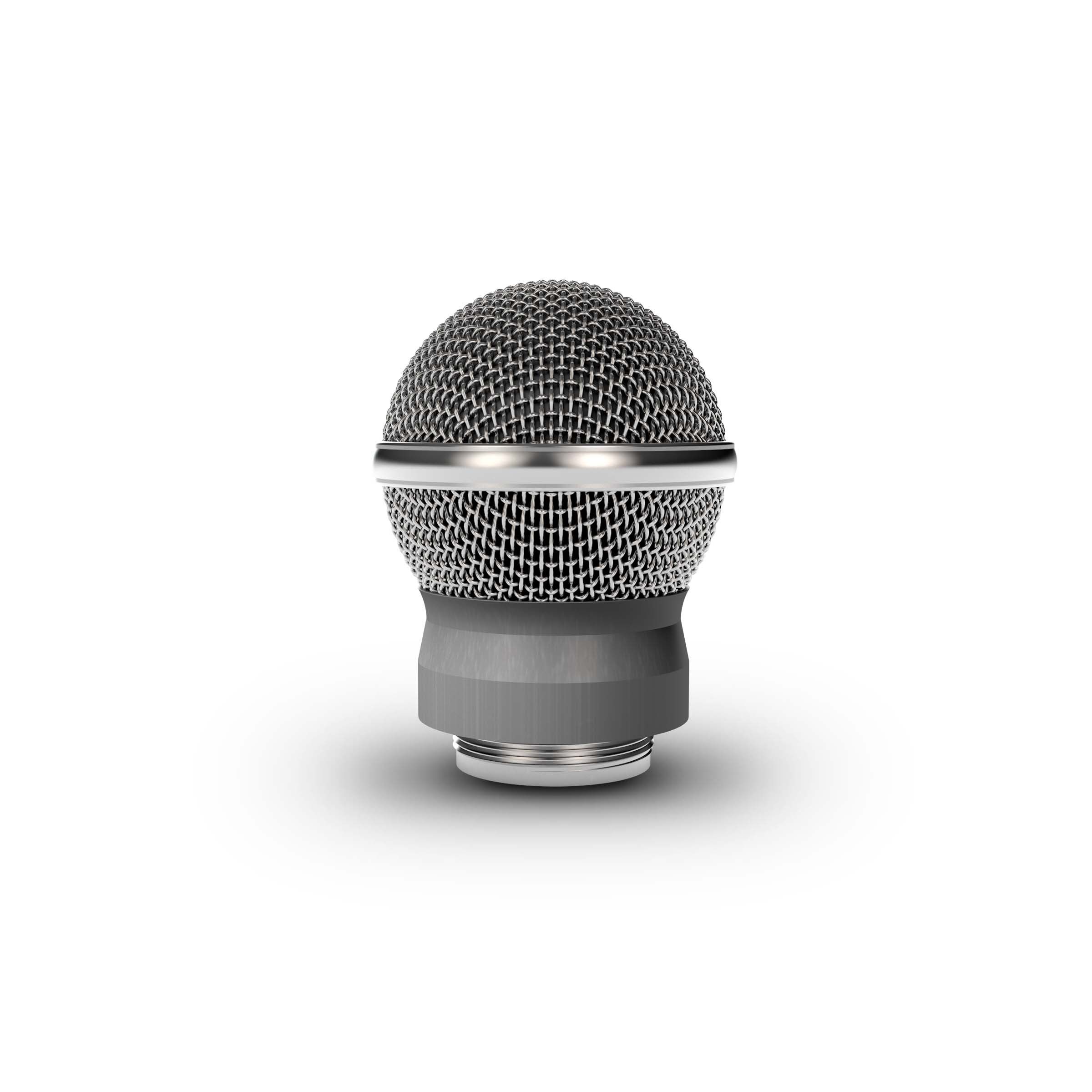

Four types of U500 Series microphone heads provide flexible handheld use and application variety. Including cardioid or extremely feedback resistant hypercardioid patterns. The U500 microphone heads feature shock-mount capsules to prevent handling noise, convenient screw-on installation and gold plated contacts for superior conductivity.

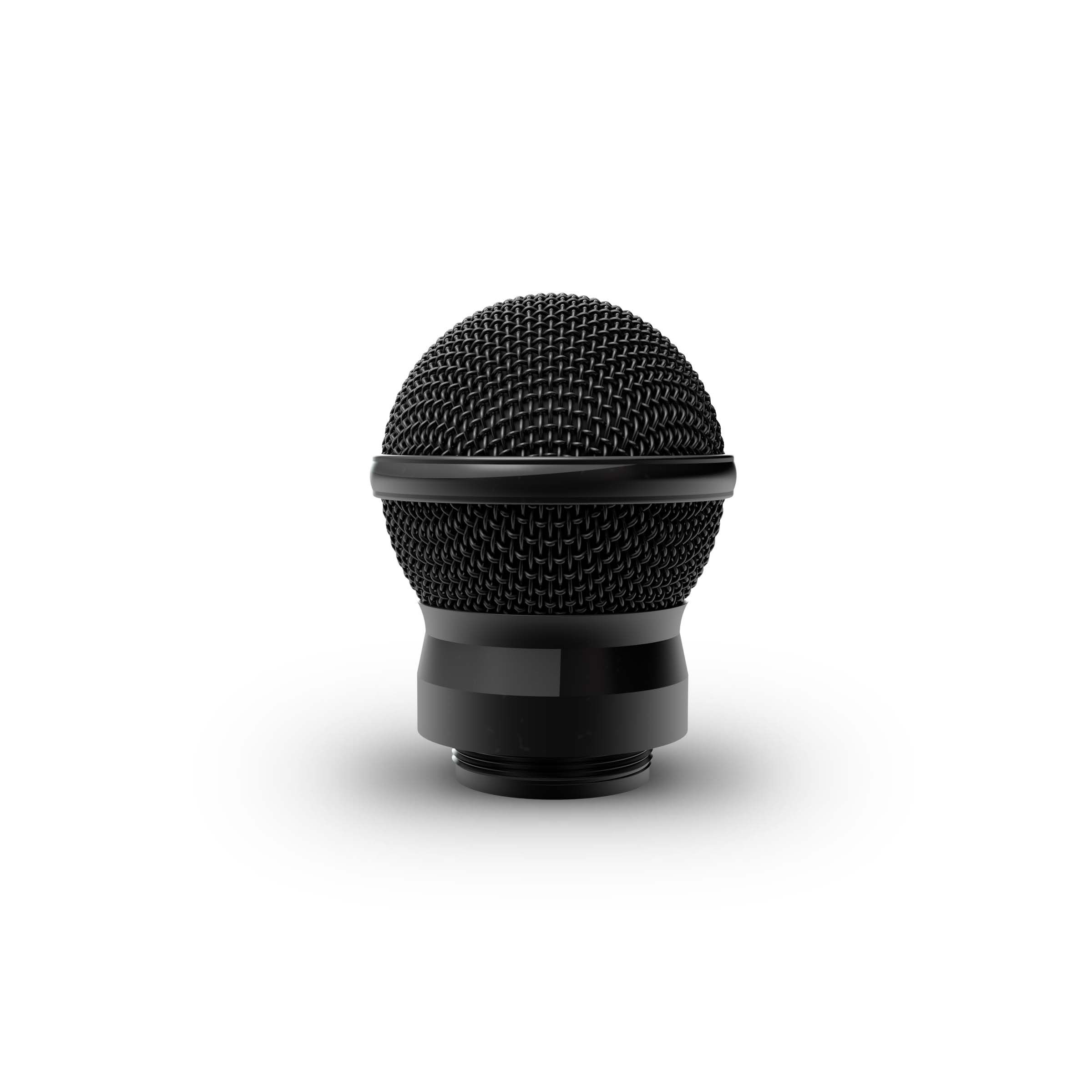

Four types of U500 Series microphone heads provide flexible handheld use and application variety. Including cardioid or extremely feedback resistant hypercardioid patterns. The U500 microphone heads feature shock-mount capsules to prevent handling noise, convenient screw-on installation and gold plated contacts for superior conductivity.

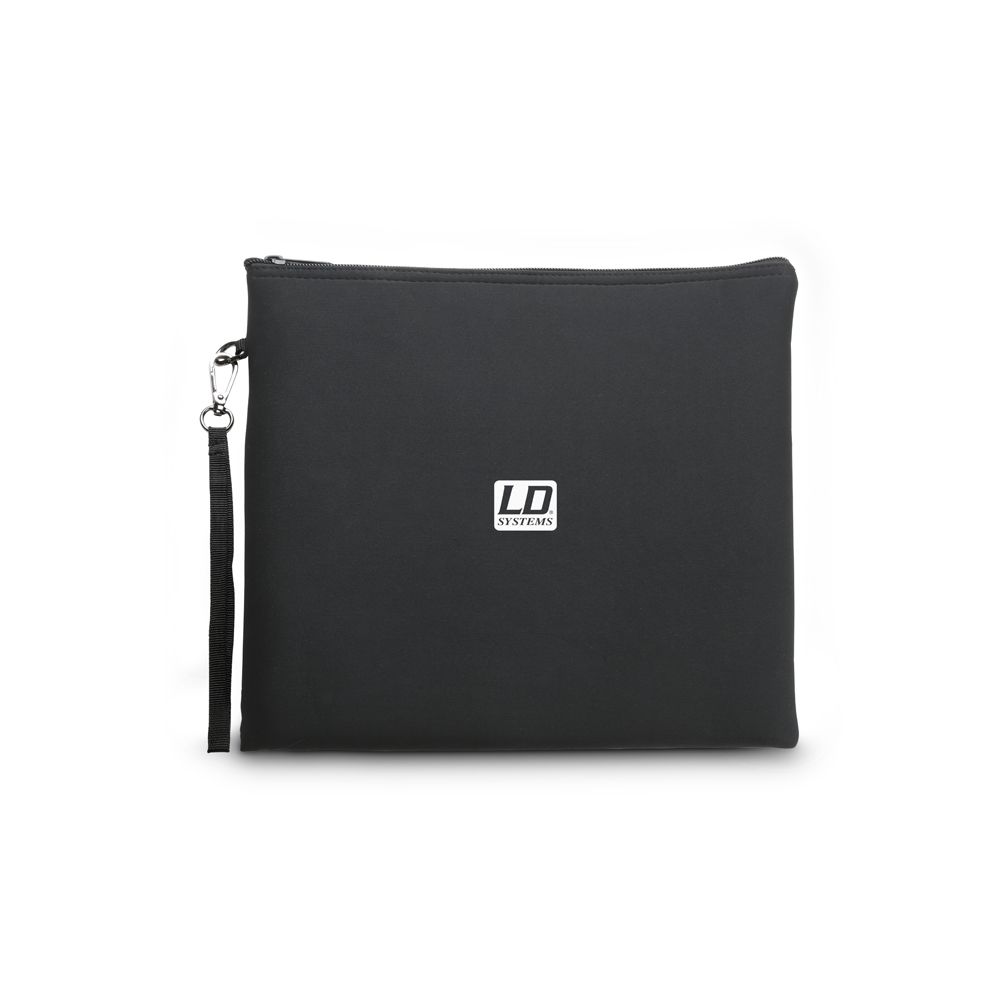

The spacious universal bag by LD measures 30 x 30 cm, offering plenty of space for diverse storage options. It also provides ideal protection for your equipment from soiling, damp and damage. The bag holds up to ten microphones as well as various accessories such as microphone clips, cables and other equipment. Made of durable and flexible neoprene, it is neat, functional and elegant in design. The bag is closed with a robust, continuous zip fastener. A separating web divides the interior to protect the equipment. A removable strap keeps your hands free while carrying the bag and also serves as a convenient hanger.
