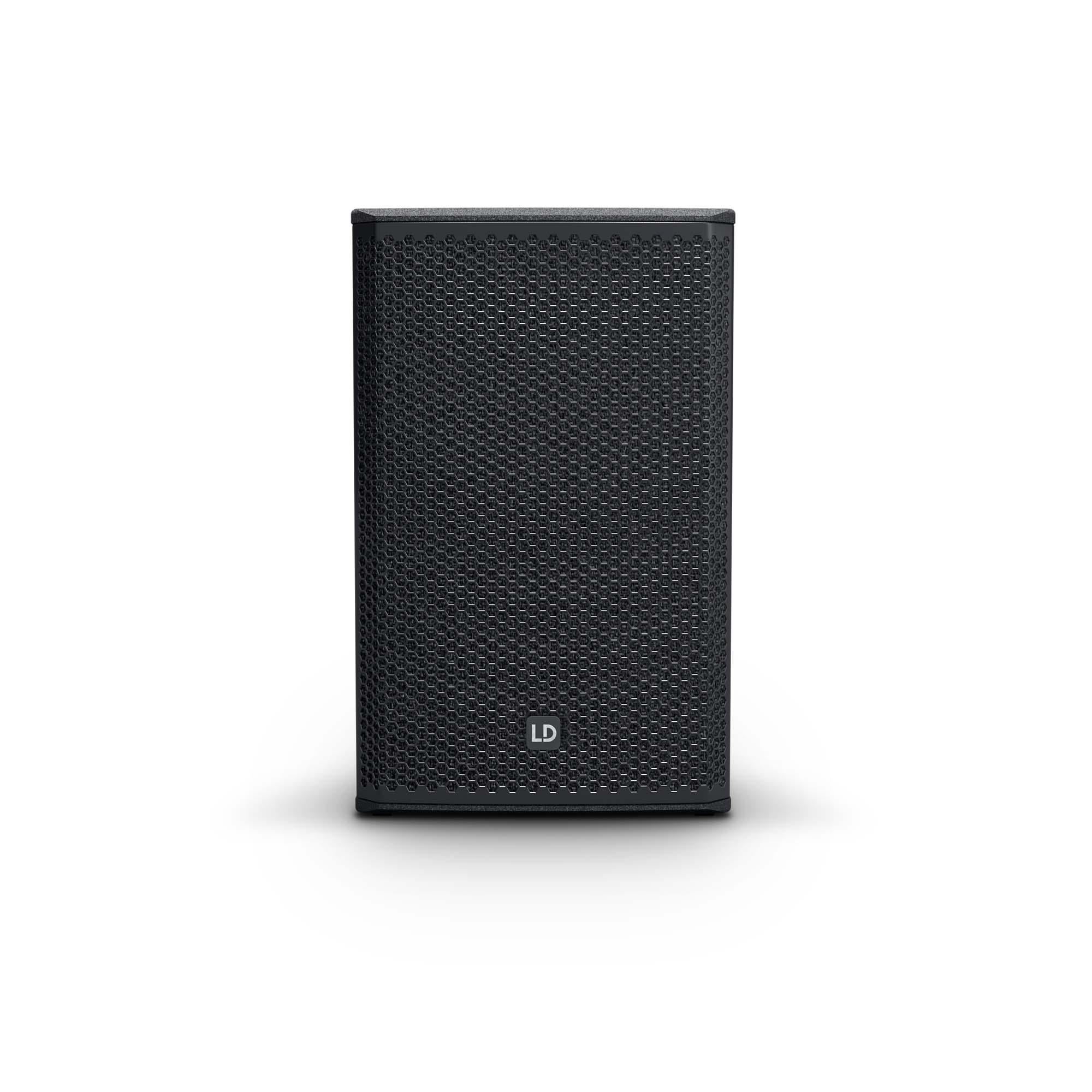

STINGER 12 G3
2-Way Passive 12” Bass Reflex PA Loudspeaker
$659.99
Backordered – More on the Way!
Product information "STINGER 12 G3"

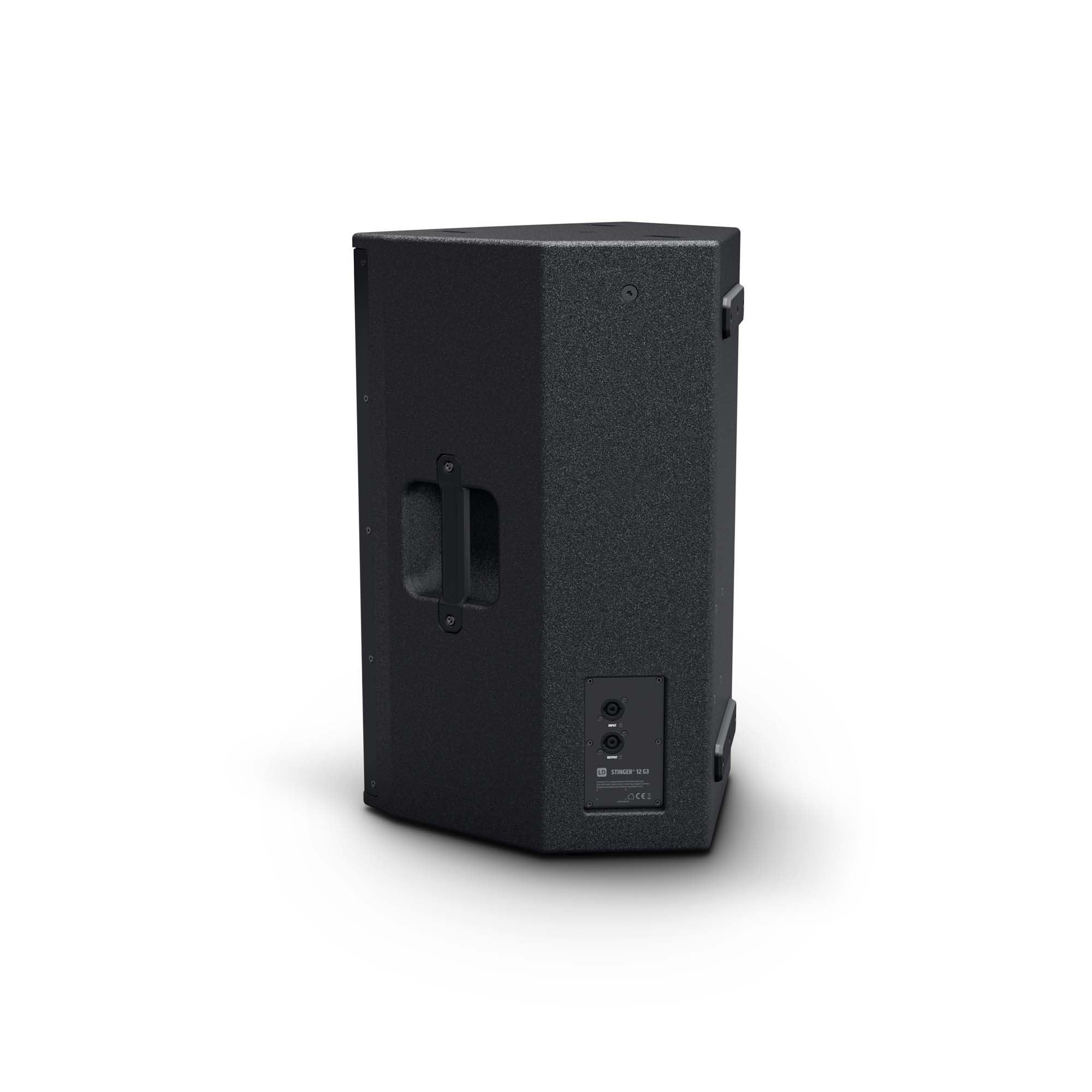

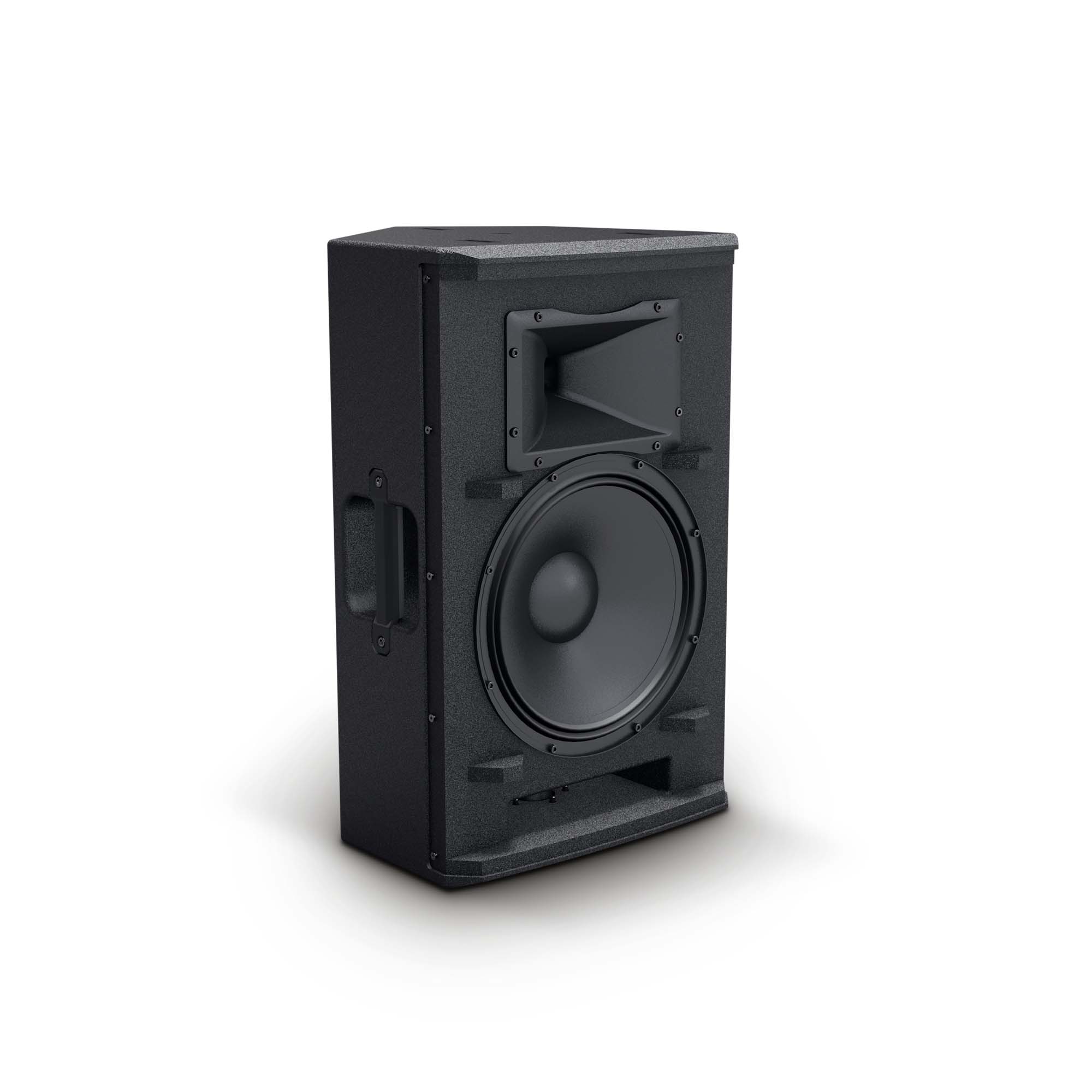

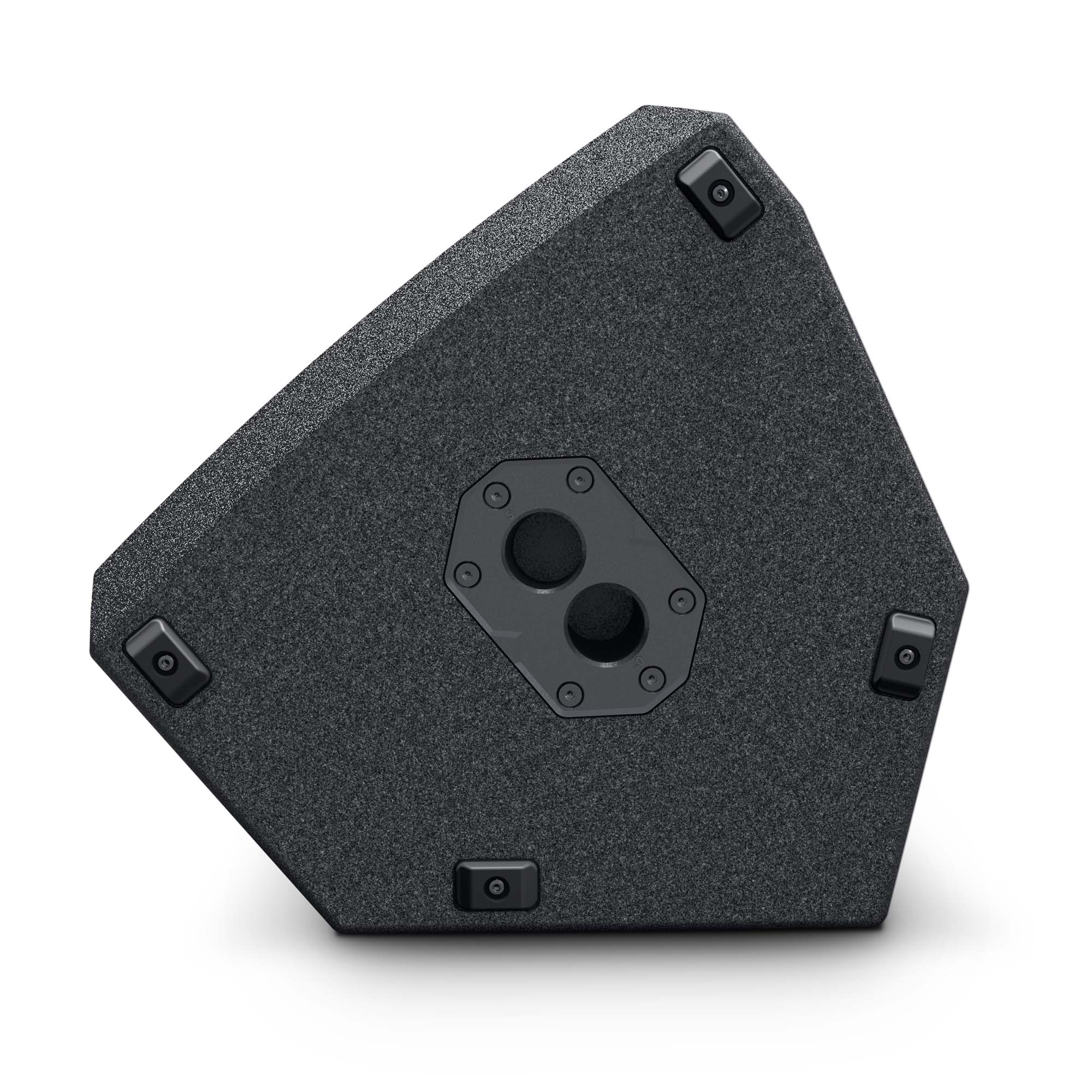

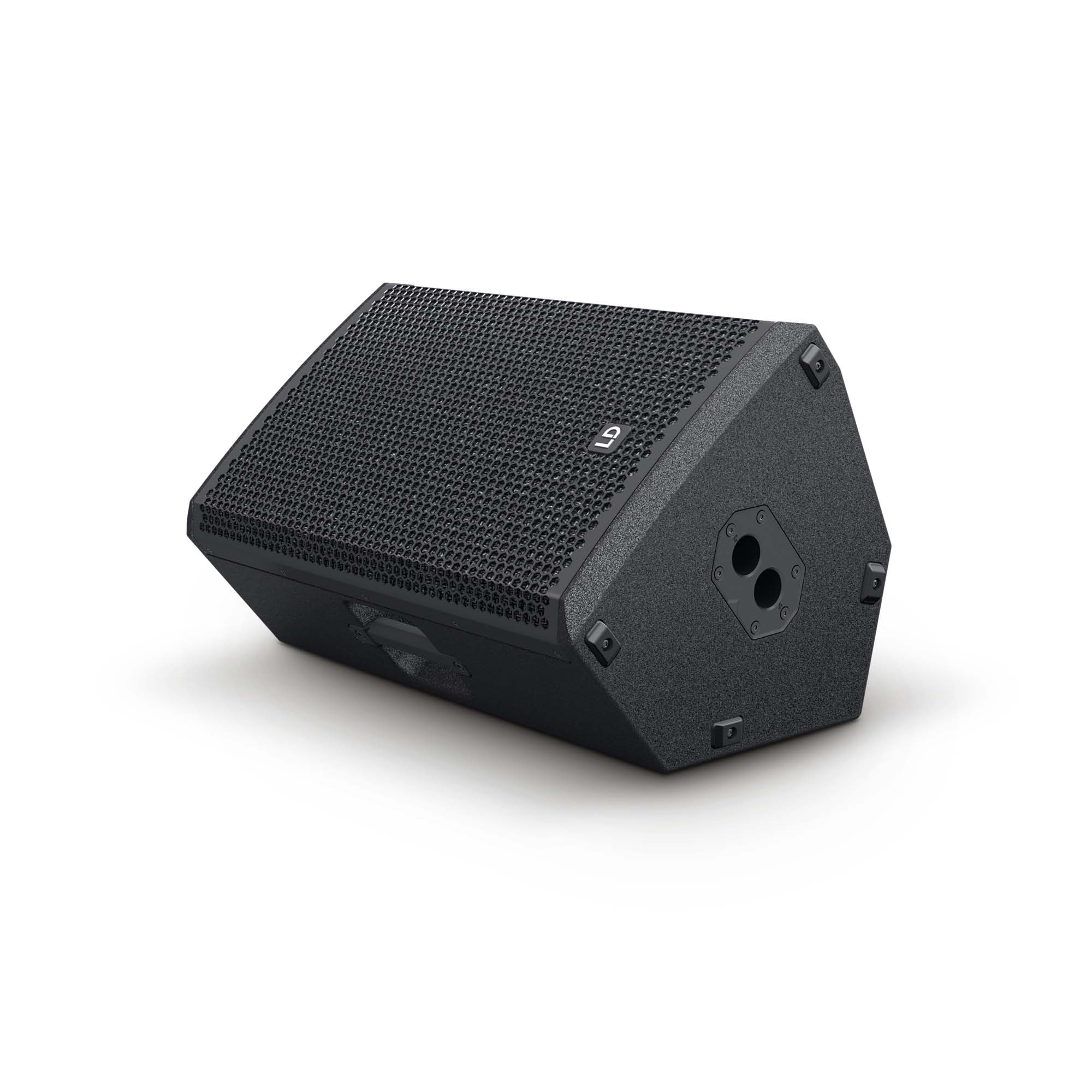

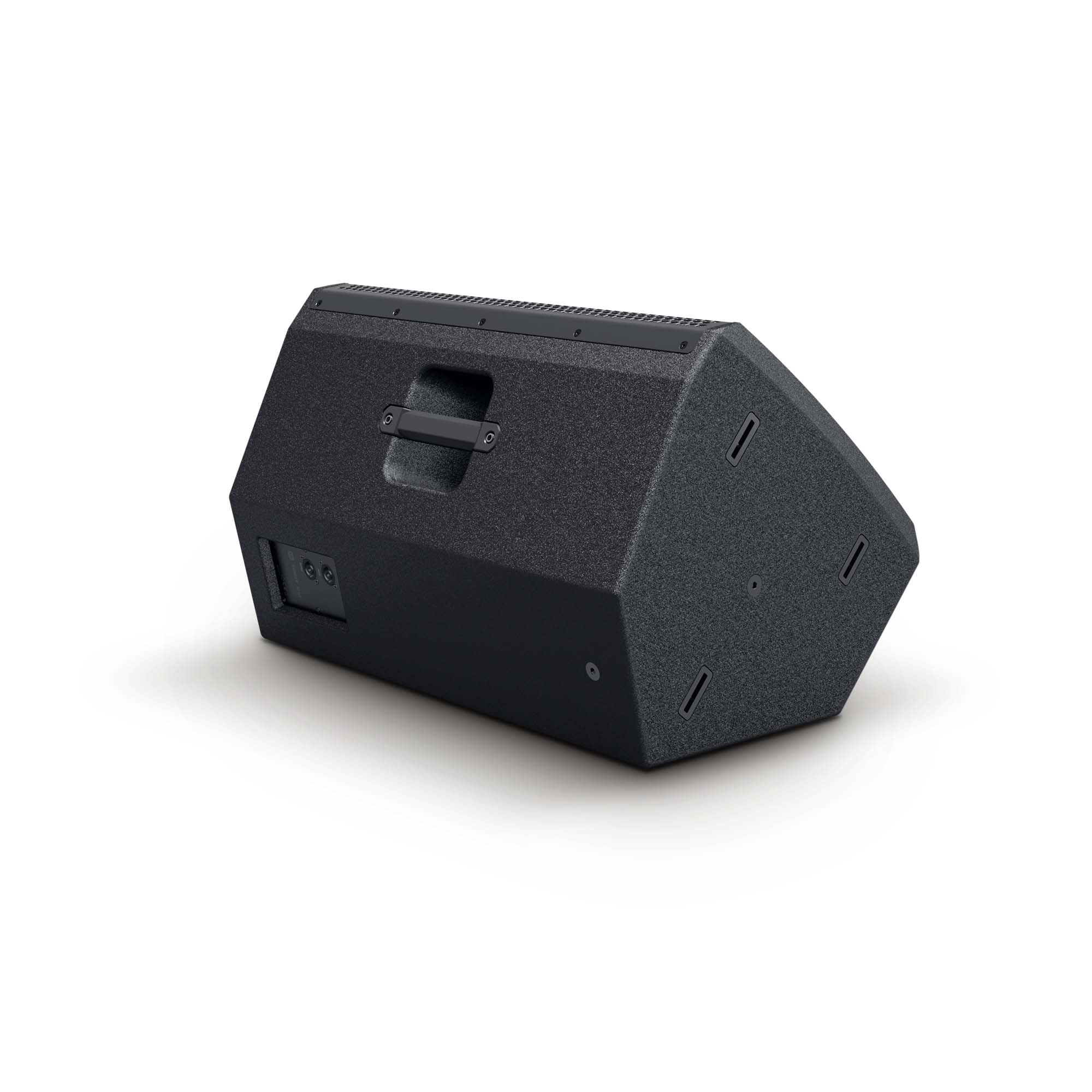

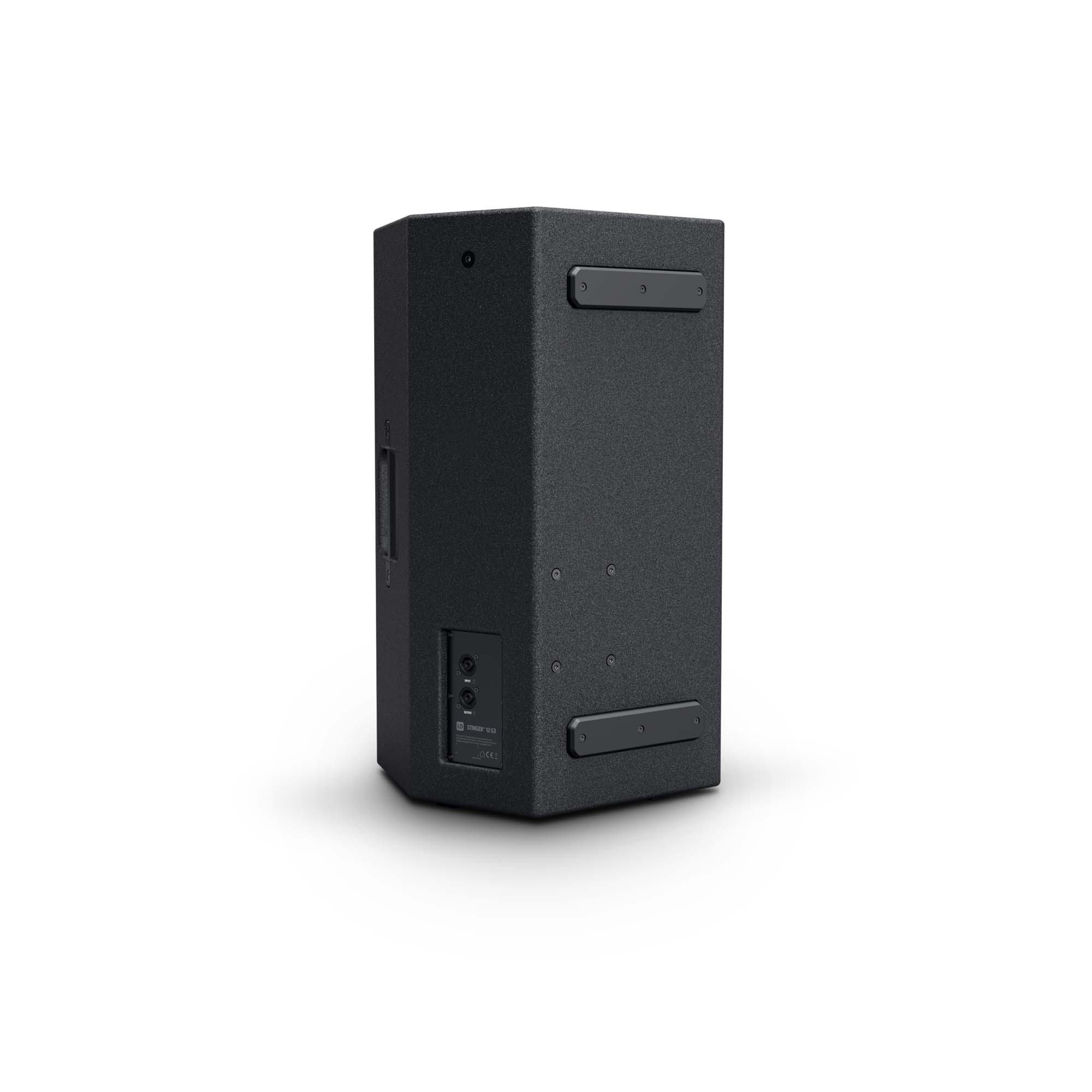

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 12 G3 provides 400 watts of continuous power; the maximum sound pressure level is 125 dB. Its specially developed 12" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The STINGER® 12 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers an exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 12 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

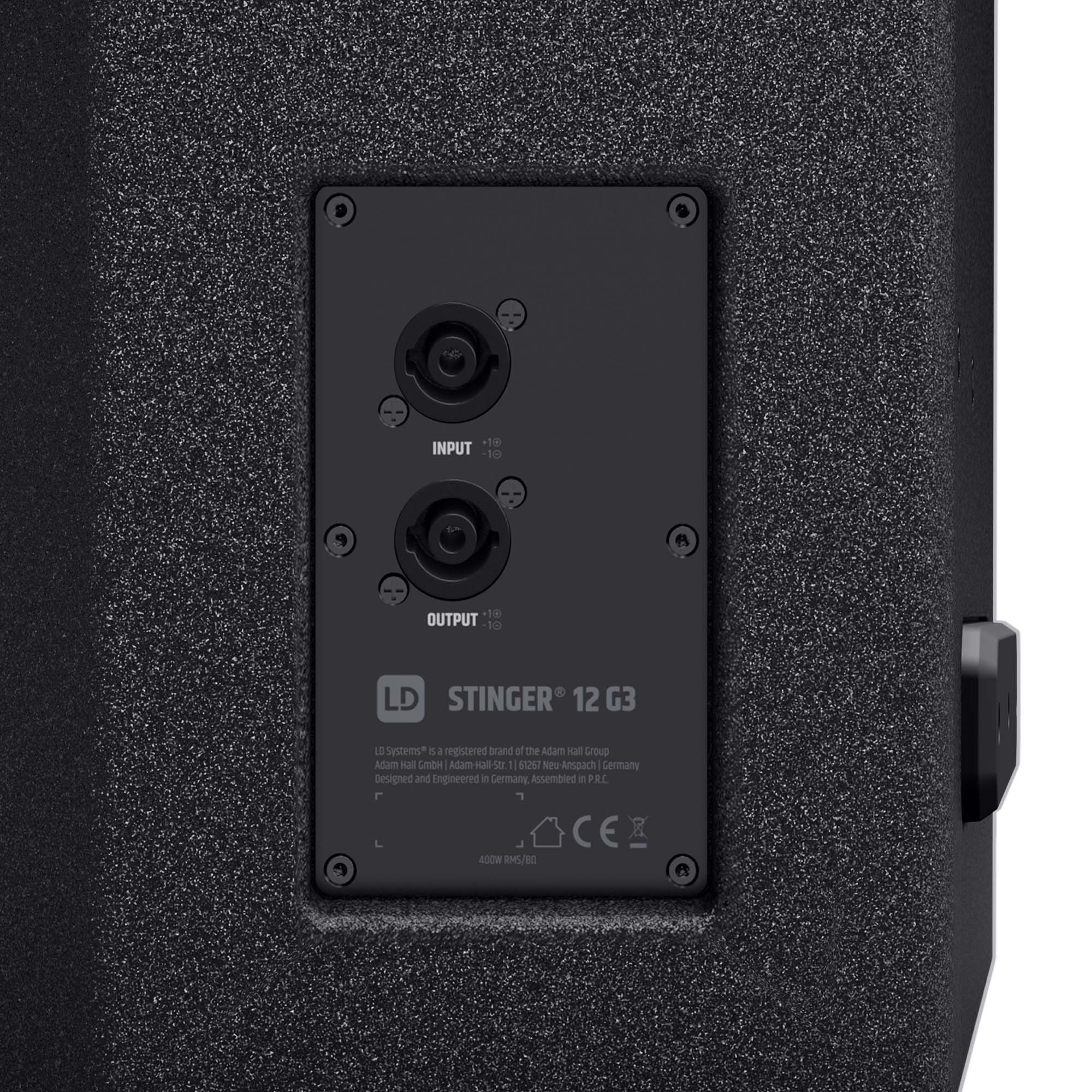

| Input connector types: | Standard speaker connector 4-pole male & speakON® |
|---|---|
| Beam angle: | Hor.: 90° / Vert.:50° |
| Power handling (Peak): | 800 W |
| SPL (1 W/1 m): | 99 dB |
| Frequency response: | 58 - 20000 Hz |
| Type: | Passive |
| Output connector types: | Standard speaker connector 4-pole male & speakON® |
| Impedance: | 8 Ω |
| Colour: | Black |
| Speaker system: | 2-way system |
| Number of inputs: | 1 |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 125 dB |
| Number of outputs: | 1 |
| Power handling (RMS): | 400 W |
| Manufacturer: | Custom Made |
|---|---|
| Size: | 12 " |
| Magnet: | Ferrite |
| Voice coil: | 2.5 " |
| Manufacturer: | BMS |
|---|---|
| Driver size: | 0.04 in |
| Voice coil: | 0.04 in |
| Magnet: | Ferrite |

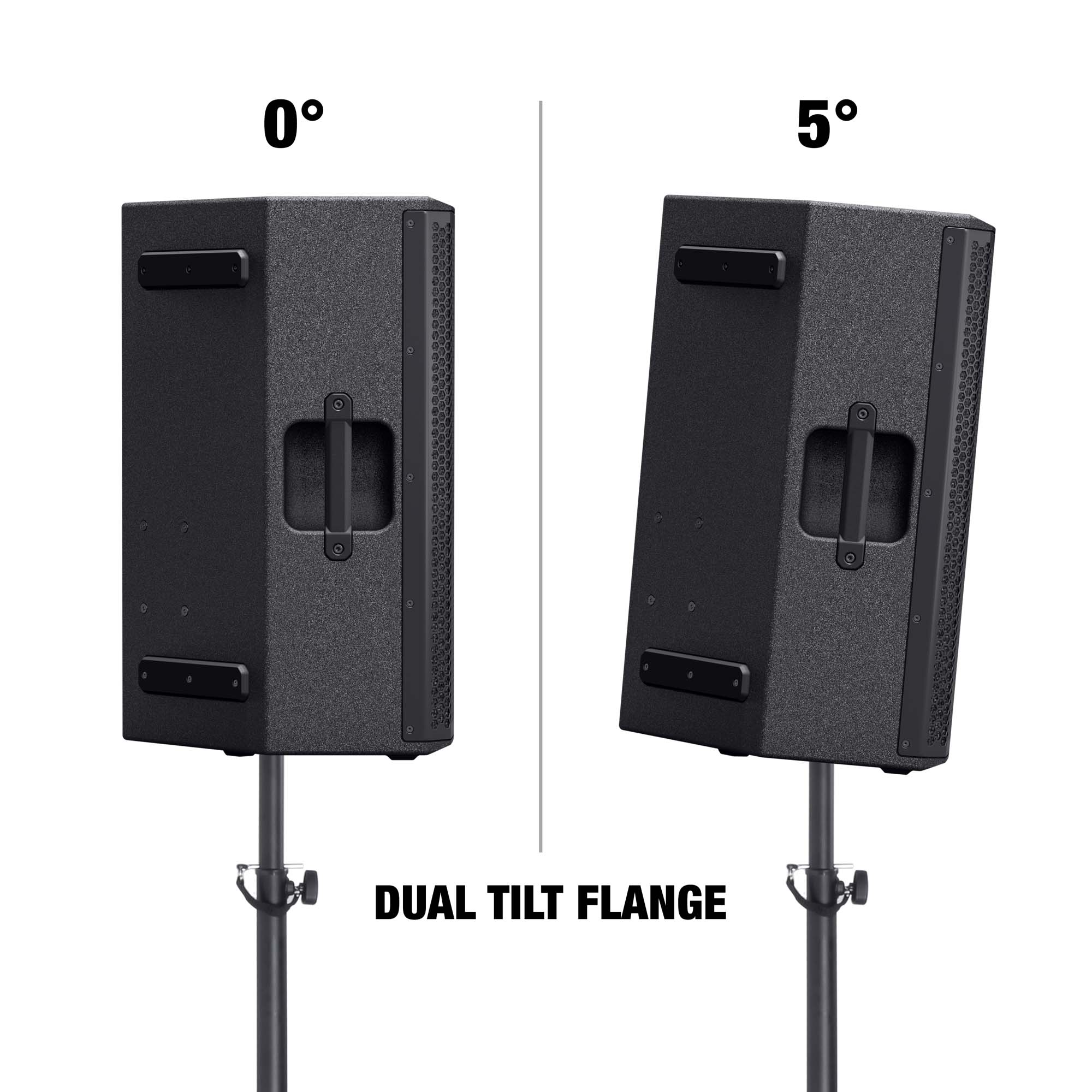

| Flange: | 36 mm (0°/5°) |
|---|---|
| Cabinet material: | Birch plywood |
| Design: | Bass reflex |
| Front grille material: | Aluminium |
| Mounting type: | M10 for SuperClamp |
| Number of handles: | 1 |
| Material thickness: | 0.59 in |
| Width: | 15.35 in |
|---|---|
| Depth: | 14.84 in |
| Weight: | 42.77 lbs |
| Height: | 24.69 in |
| Included accessories: | Mains cable |
|---|
