STINGER 10 G3
2-Way Passive 10” Bass Reflex PA Loudspeaker
$449.99
Backordered – More on the Way!
Product information "STINGER 10 G3"

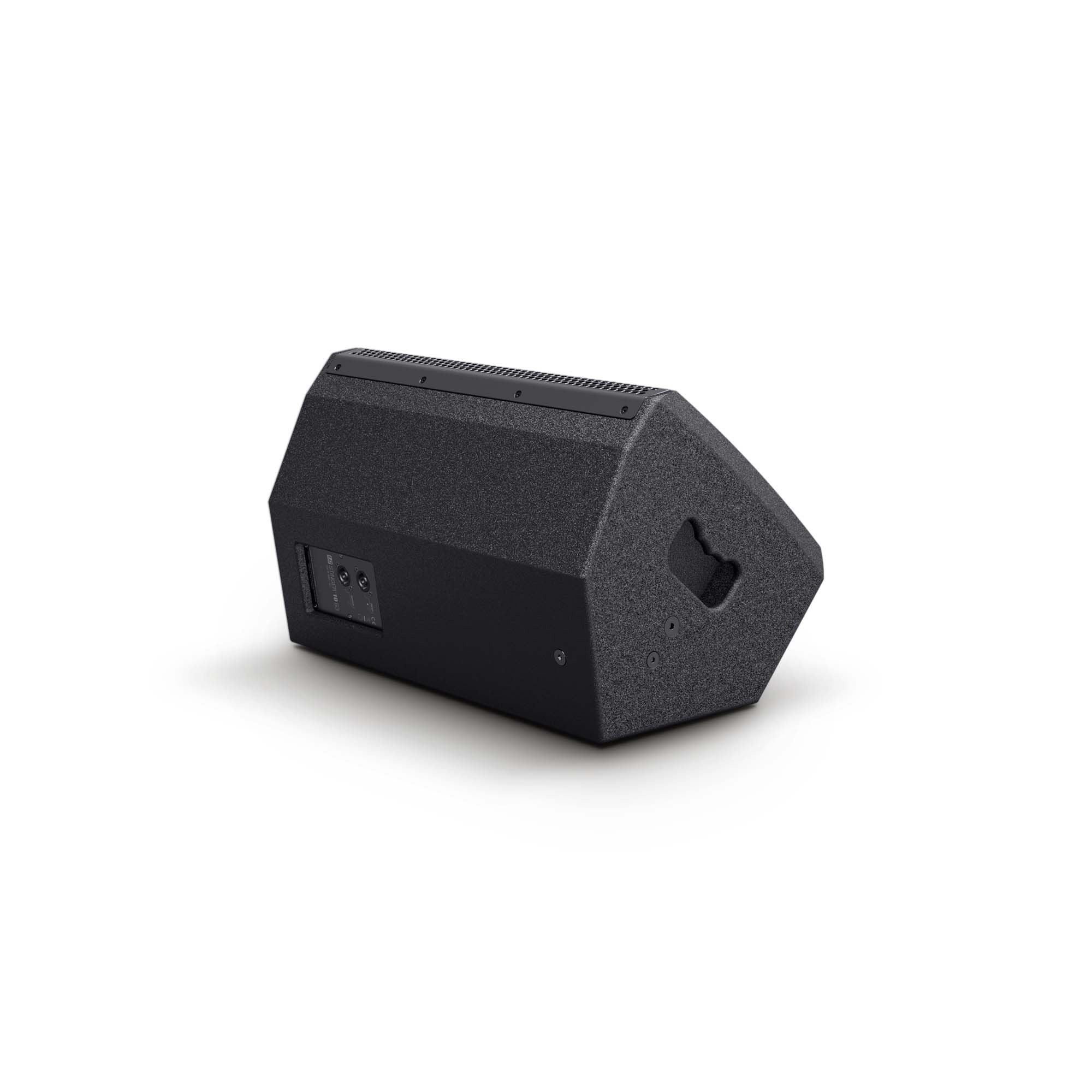

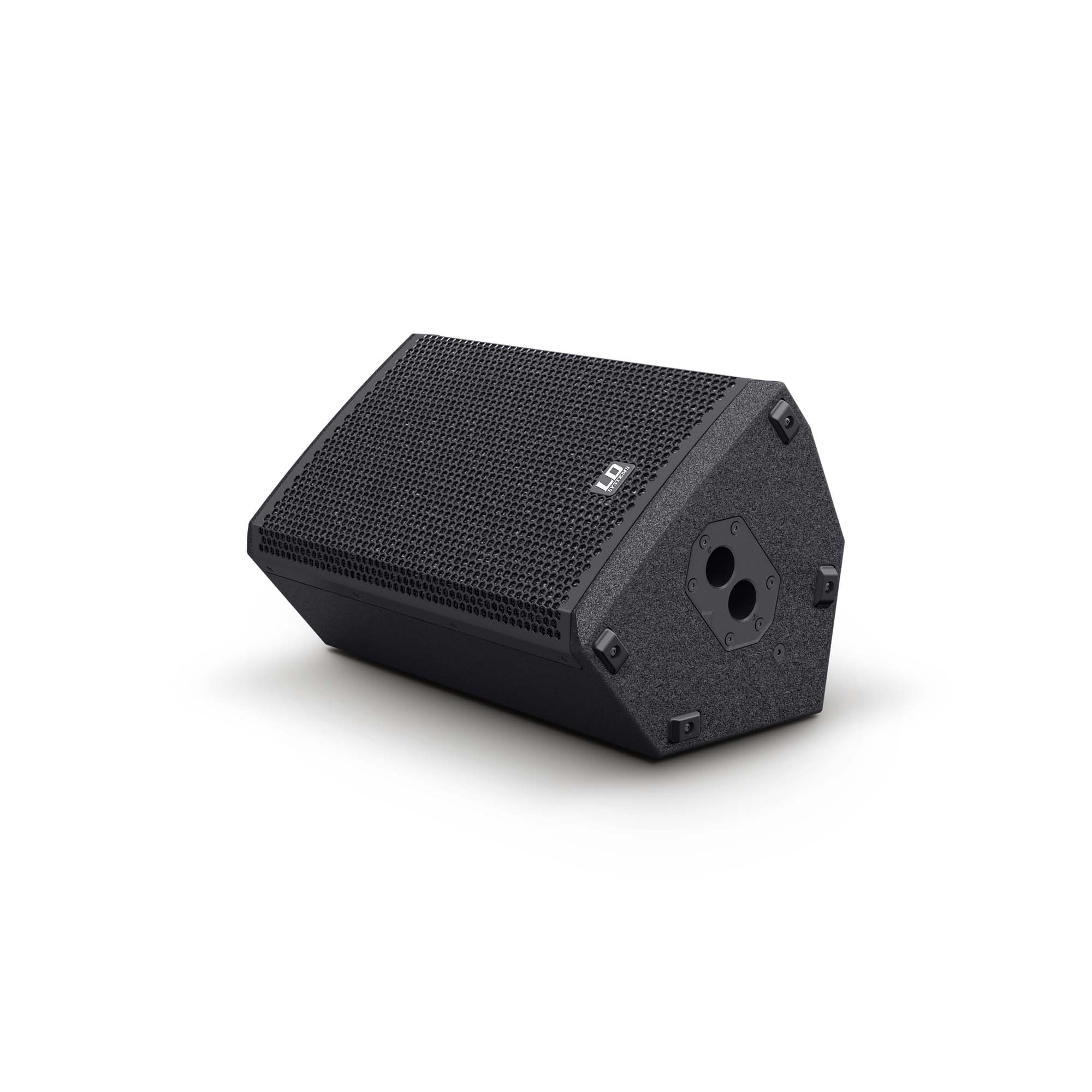

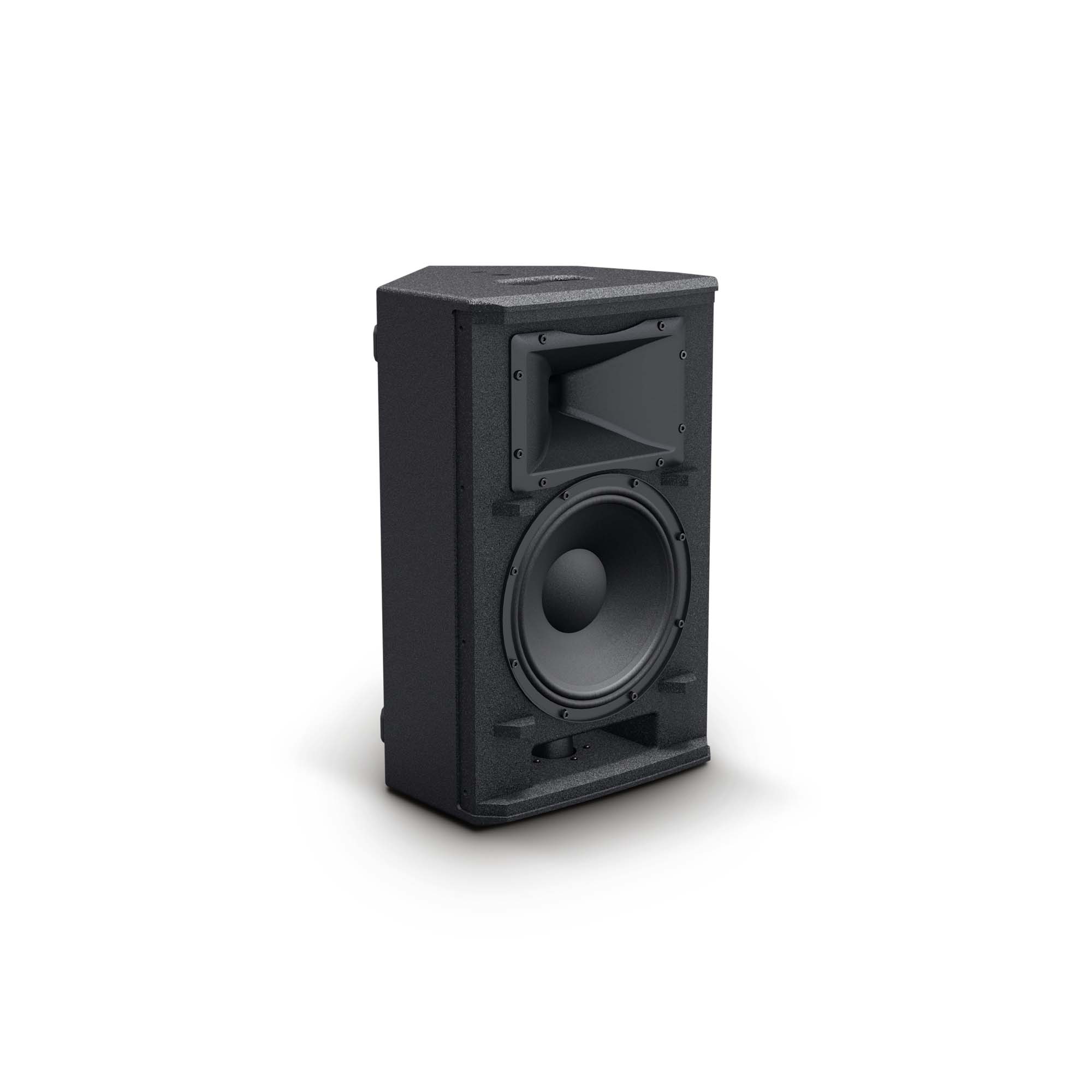

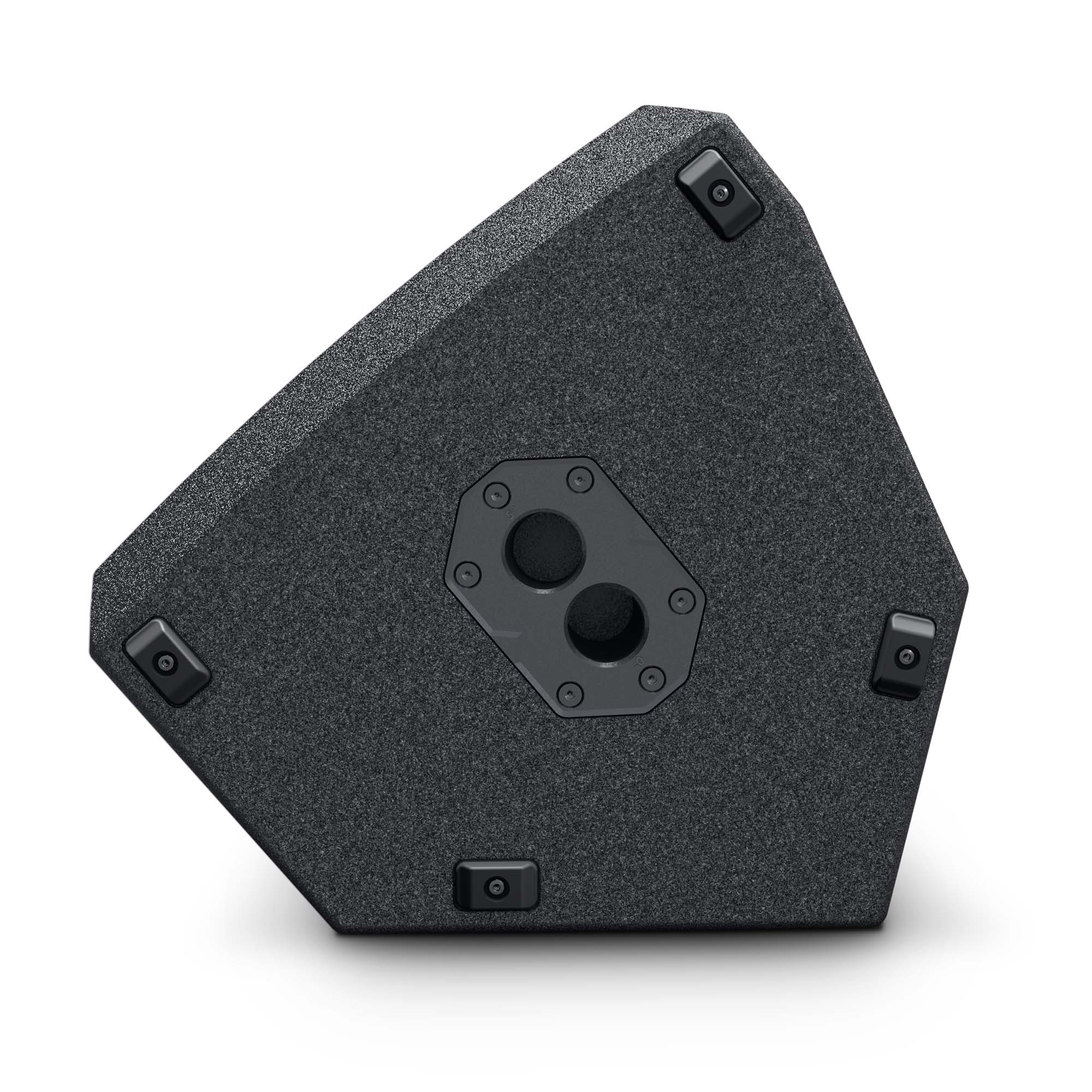

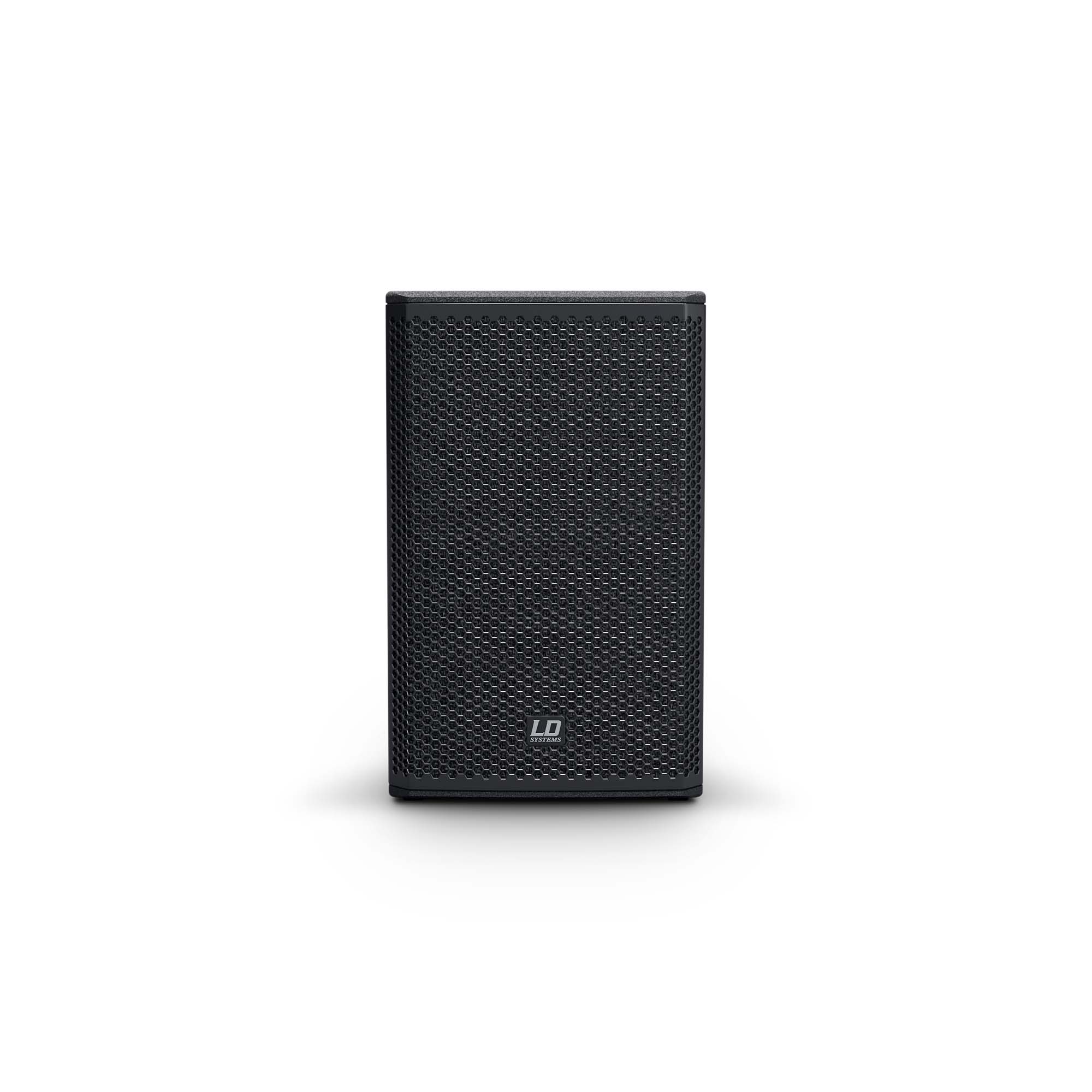

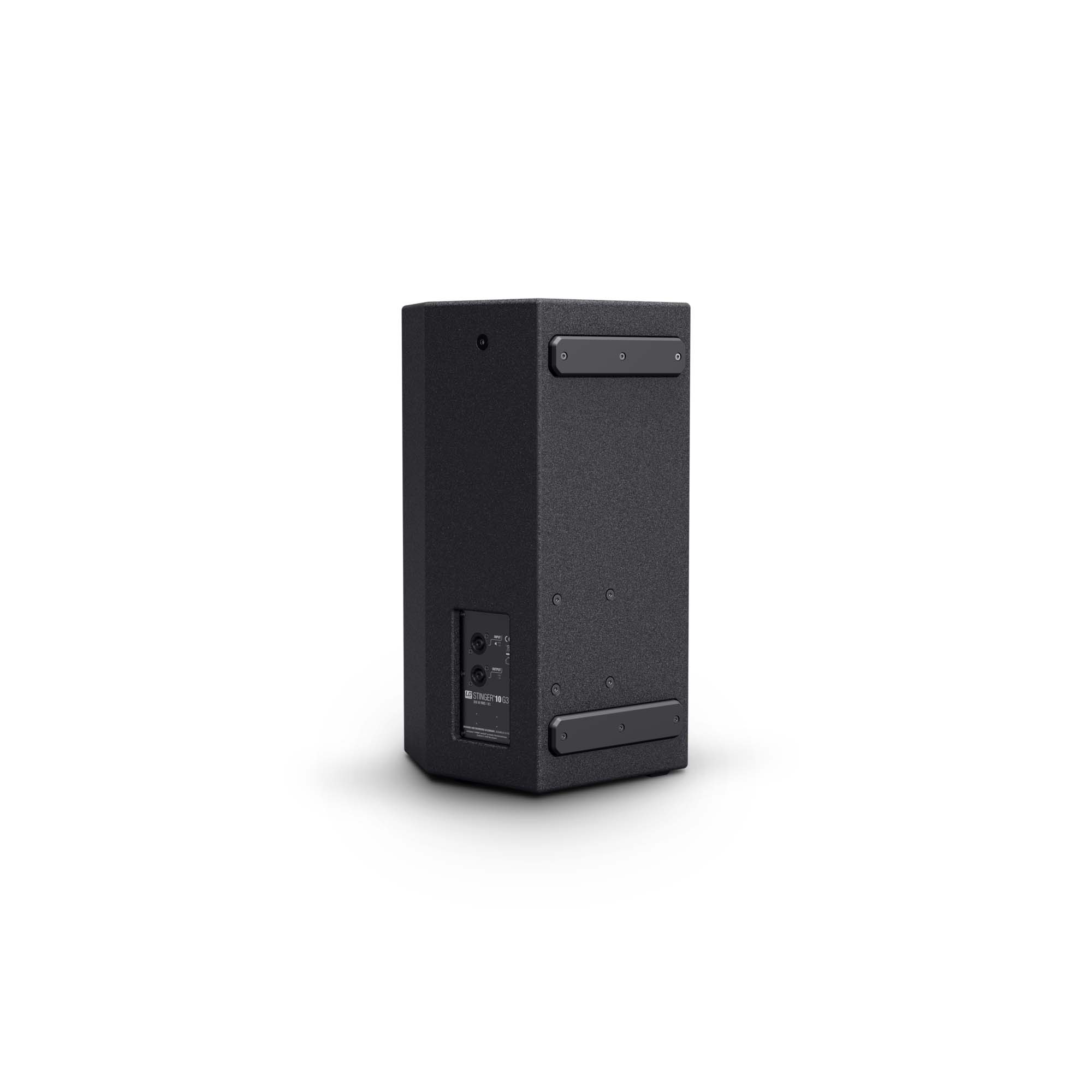

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 10 G3 provides 300 watts of continuous power; the maximum sound pressure level is 120 dB. Its specially developed 10" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The STINGER® 10 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 10 G3 is an affordable solution for professional PA applications; extensive accessories support the use on stage and in fixed installations.

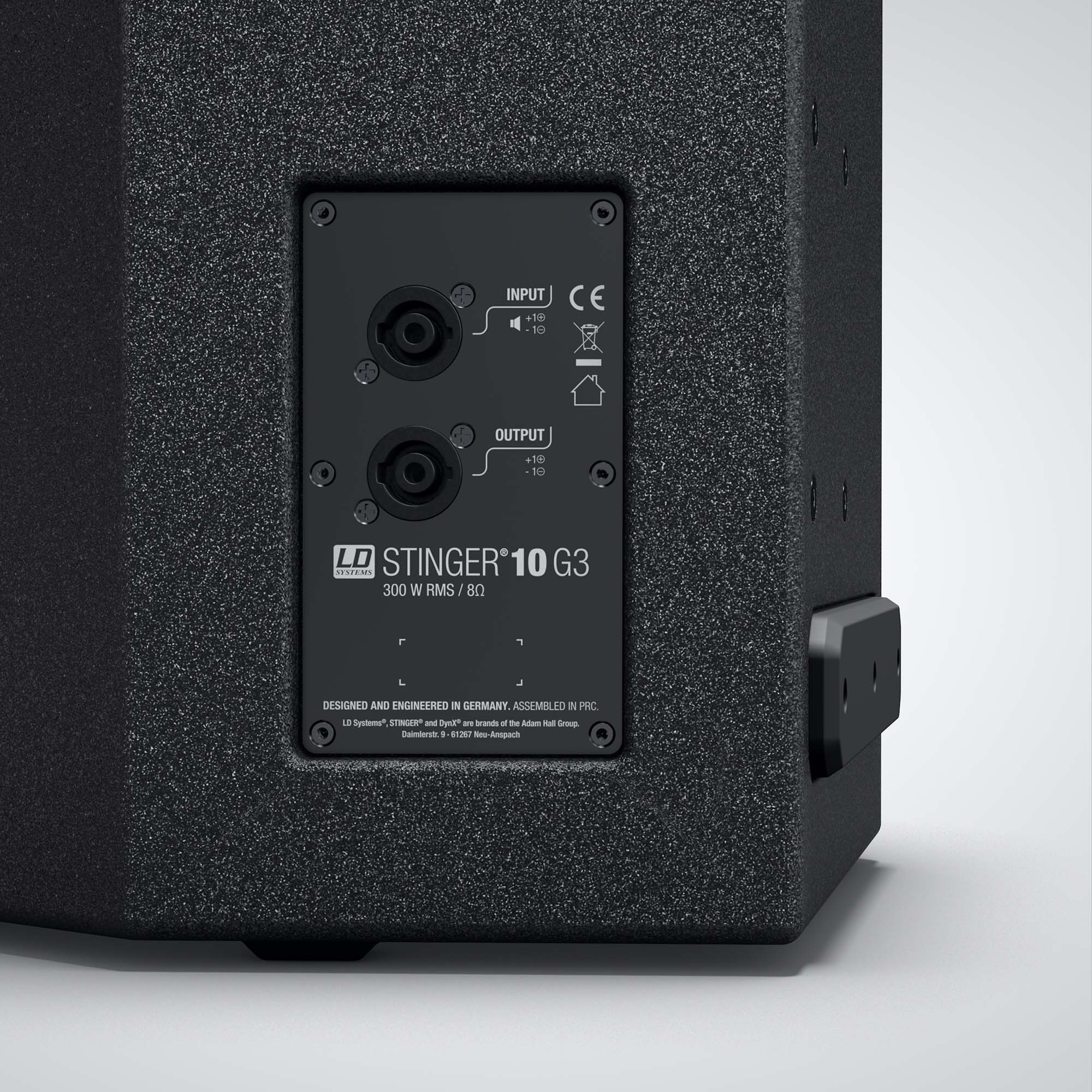

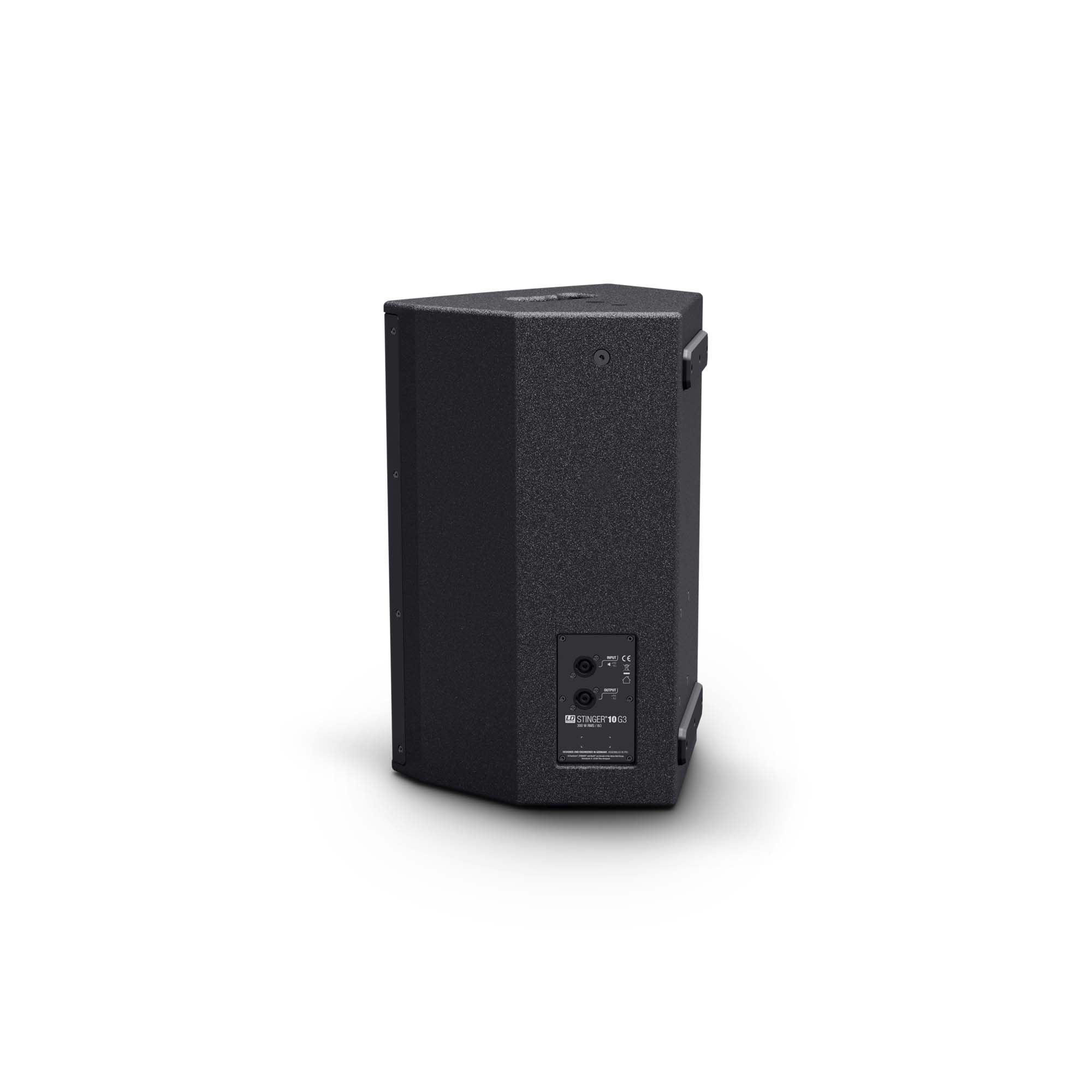

| Input connector types: | Standard speaker connector 4-pole male & speakON® |
|---|---|
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 121 dB |
| Frequency response: | 65 - 20000 Hz |
| Beam angle: | Hor.: 90° / Vert.:50° |
| Power handling (Peak): | 600 W |
| SPL (1 W/1 m): | 96 dB |
| Type: | Passive |
| Output connector types: | Standard speaker connector 4-pole male & speakON® |
| Impedance: | 8 Ω |
| Colour: | Black |
| Speaker system: | 2-way system |
| Number of inputs: | 1 |
| Power handling (RMS): | 300 W |
| Number of outputs: | 1 |
| Manufacturer: | Custom Made |
|---|---|
| Voice coil: | 2 " |
| Magnet: | Ferrite |
| Size: | 10 " |
| Manufacturer: | BEM |
|---|---|
| Driver size: | 0.04 in |
| Voice coil: | 0.04 in |
| Magnet: | Ferrite |

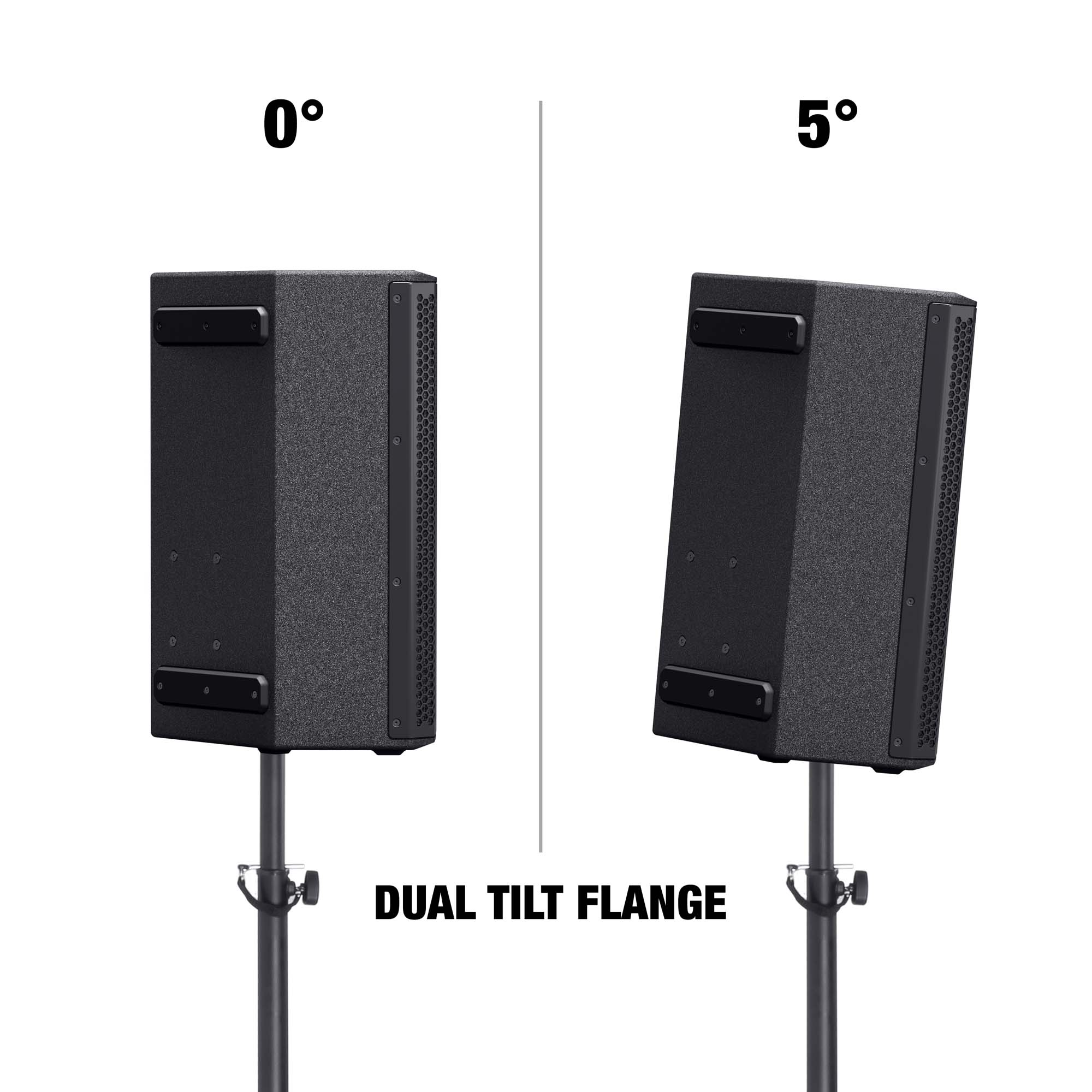

| Flange: | 36 mm (0°/5°) |
|---|---|
| Cabinet material: | Birch plywood |
| Design: | Bass reflex |
| Front grille material: | Aluminium |
| Material thickness: | 0.47 in |

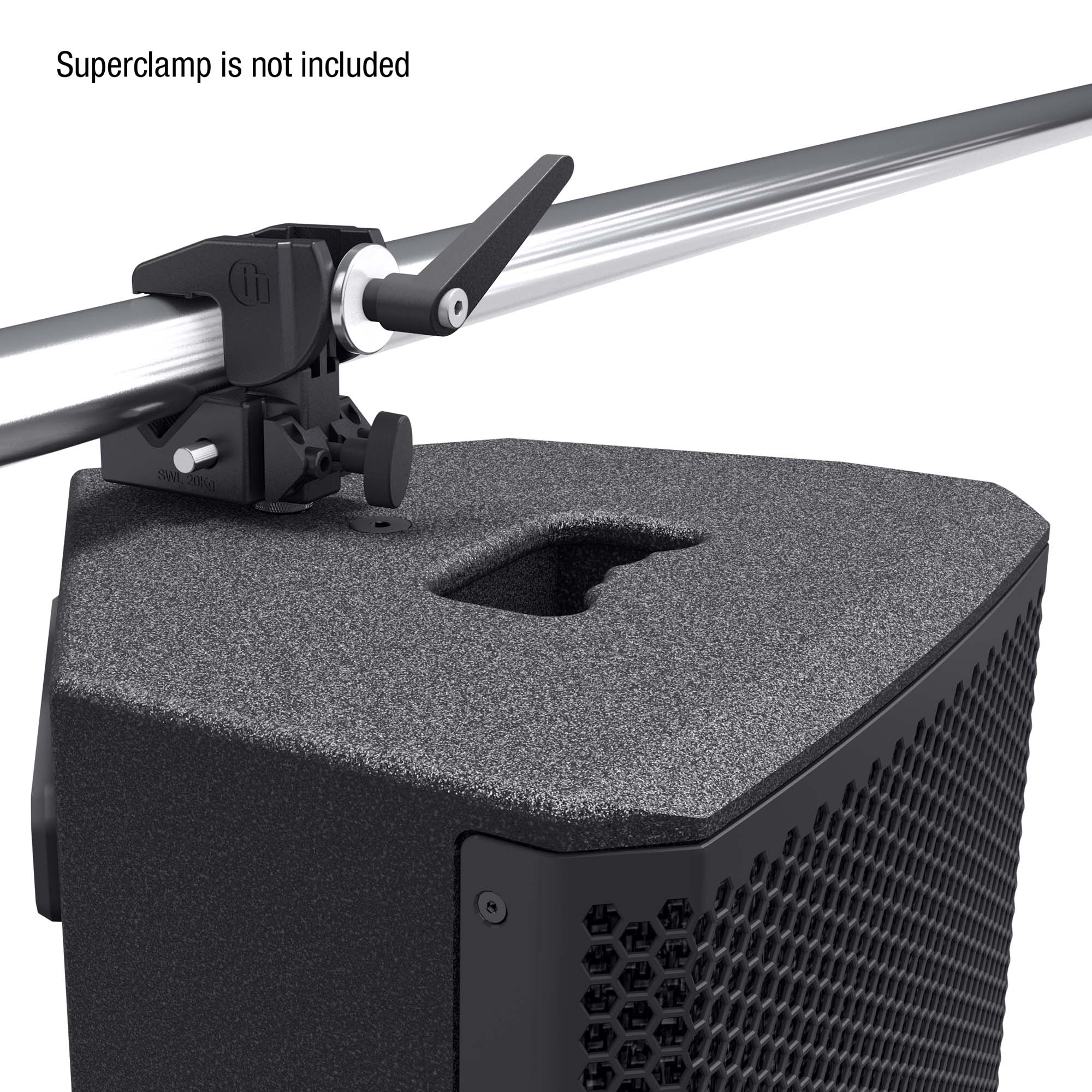

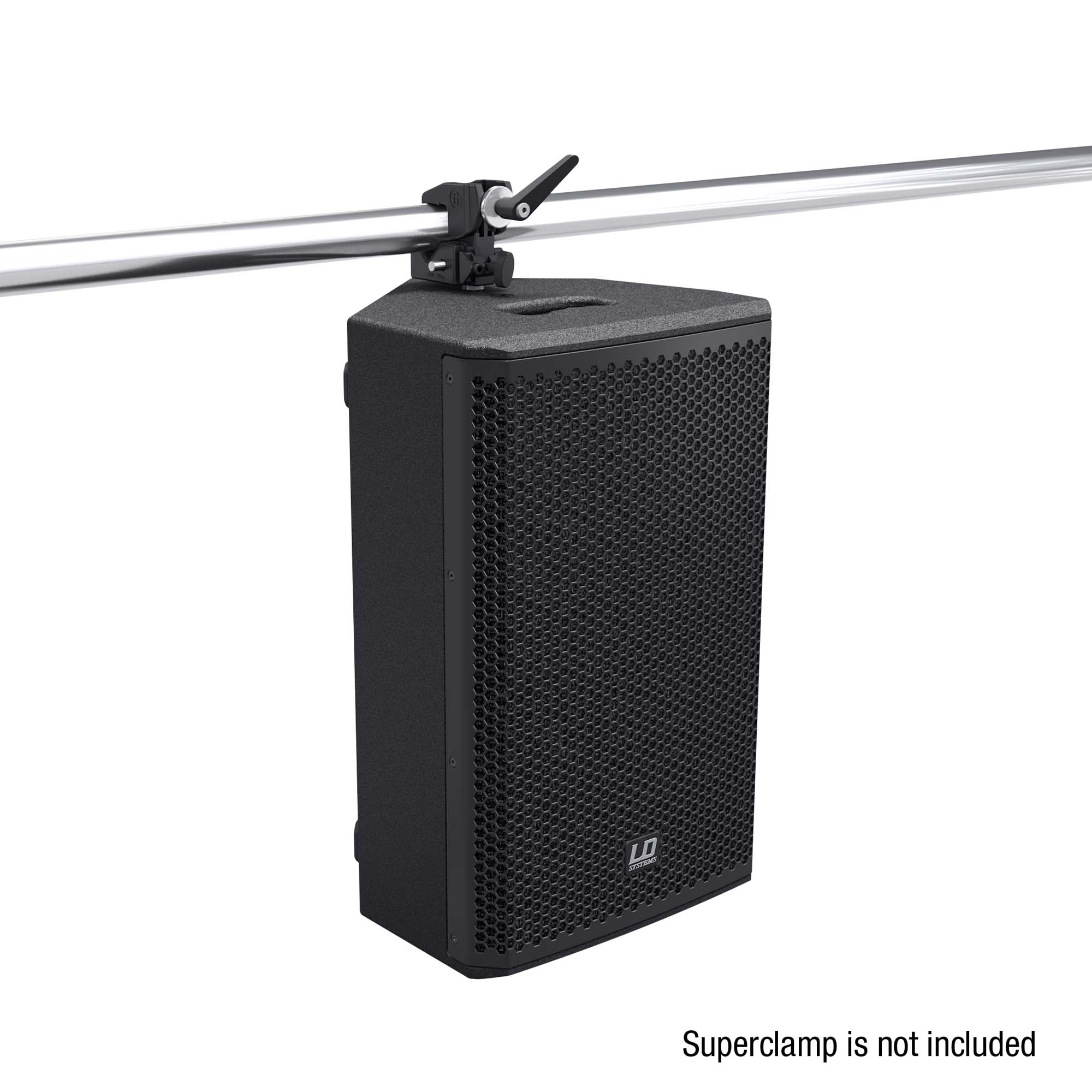

| Mounting type: | M10 for SuperClamp |
| Number of handles: | 1 |
| Width: | 10.63 in |
|---|---|
| Depth: | 11.42 in |
| Weight: | 25.35 lbs |
| Height: | 17.99 in |
| Included accessories: | Mains cable |
|---|
Login
accessories

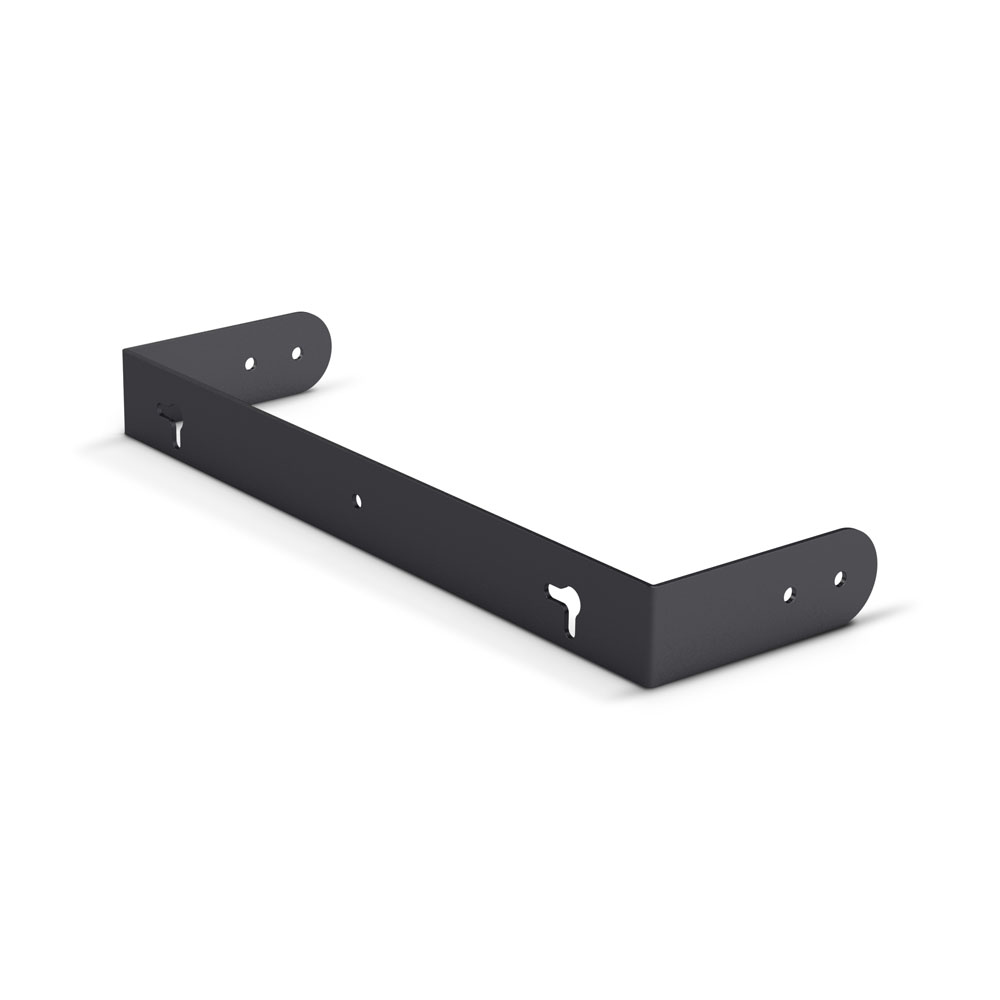

This powder-coated steel mounting bracket allows Stinger® 10" models to be installed vertically on walls or ceilings. The speaker can be swivelled vertically in the bracket for optimum alignment.

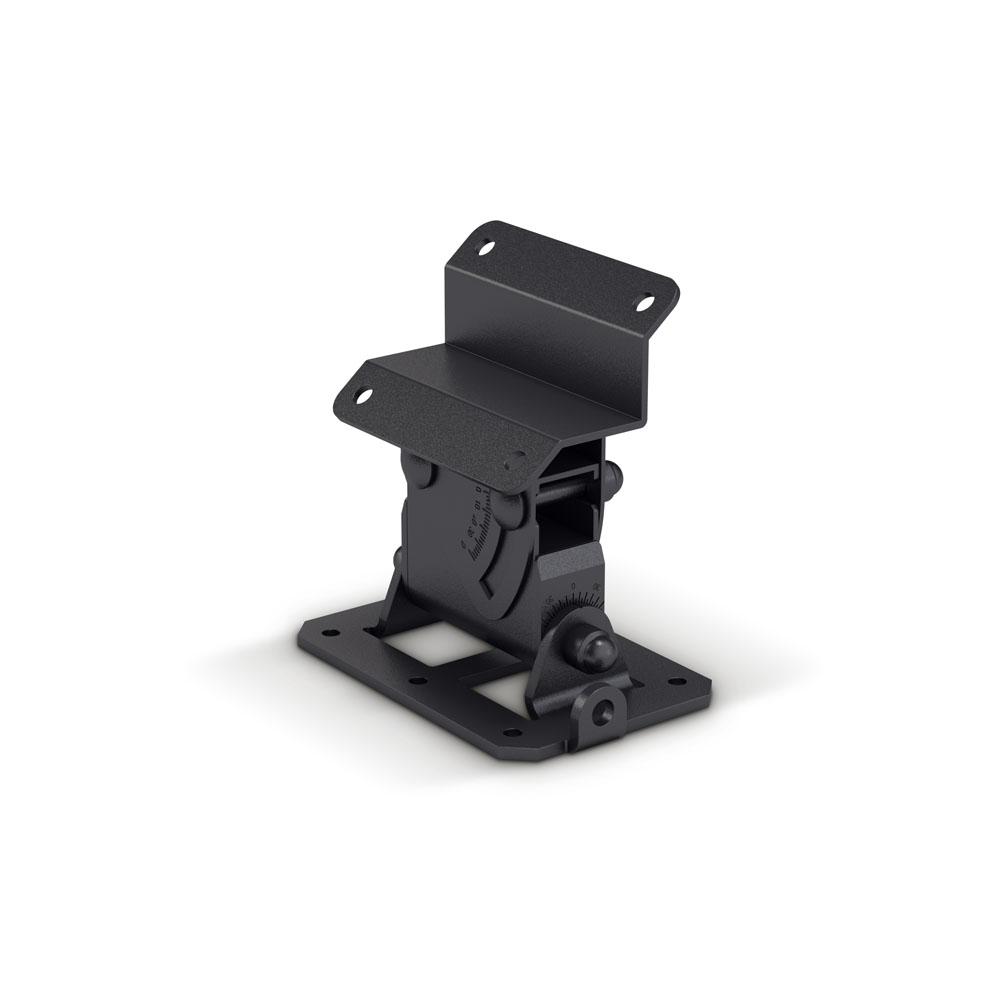

This heavy duty wall mount for Stinger® 10" models is made of powder-coated steel and provides horizontal plus vertical adjustment for precision aiming. Side to side swivel is 160° while down tilt is continuously variable to a maximum of 40°. The heavy duty 5 mm wall plate features a safety rope eyelet in accordance with BGV C1.
As a 4-channel amplifier with DSP & DANTE™, the ADA 8K4 offers maximum power, precise sound and maximum reliability for professional touring and installation applications. With 4 × 2000 W @ 4 Ω, a 24-bit/96 kHz DSP with 32-bit floating point and FIR, IIR and raised-cosine filters, it delivers outstanding audio quality and enables flexible sound processing. Thanks to two Dante™ ports with integrated switch and Armonía Pro Audio Suite™ integration, the amplifier can be seamlessly integrated into networks. Armonía Plus allows LD Systems speaker presets to be managed and updated on the DSP amplifier without the need for complex configurations. Alternatively, individual presets can be created and managed to optimise the system for specific requirements. Versatile connection options with 4 analogue and 4 AES3 inputs as well as 4 analogue, 4 SpeakON and 4 AES3 outputs ensure maximum flexibility. The automatic input backup strategy guarantees uninterrupted operation. The 4.3-inch touch display with rotary-push encoder and virtual metre bridge for monitoring the available headroom ensures intuitive operation. Flexible routing and mixing options enable customised signal routing for individual applications. Comprehensive limiters (peak, RMS, current, TruePower™) and Active DampingControl™ offer reliable system protection. In addition, together with HealthPlus monitoring in Armonía Plus, the LiveImpedance™ function offers comprehensive and detailed system monitoring. The protection system against direct current, overvoltage/undervoltage, short circuits and overheating ensure maximum operational safety, bolstered by signal protection mechanisms such as clipping, VHF and long-term RMS protection. Thanks to an energy-efficient mains adapter with Power Factor Correction (PFC) and intelligent rail management, the amplifier is particularly efficient and reliable, making it ideal for professional use.

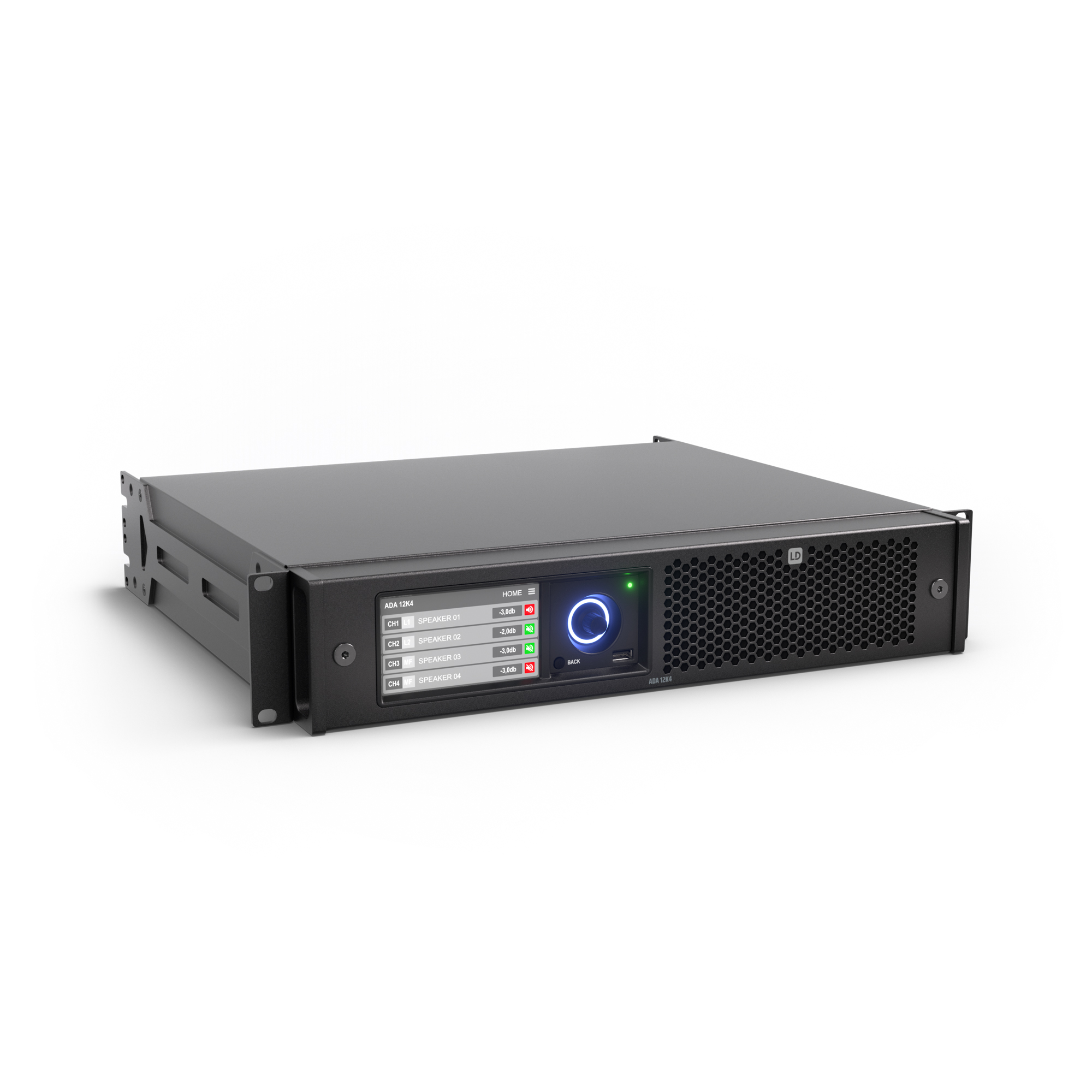

As a 4-channel amplifier with DSP & DANTE™, the ADA 12K4 offers maximum power, precise sound and maximum reliability for professional touring and installation applications. With 4 × 2700 W @ 4 Ω, a 24-bit/96 kHz DSP with 32-bit floating point and FIR, IIR and raised-cosine filters, it delivers outstanding audio quality and enables flexible sound processing. Thanks to two Dante™ ports with integrated switch and Armonía Pro Audio Suite™ integration, the amplifier can be seamlessly integrated into networks. Armonía Plus allows LD Systems speaker presets to be managed and updated on the DSP amplifier without the need for complex configurations. Alternatively, individual presets can be created and managed to optimise the system for specific requirements. Versatile connection options with 4 analogue and 4 AES3 inputs as well as 4 analogue, 4 SpeakON and 4 AES3 outputs ensure maximum flexibility. The automatic input backup strategy guarantees uninterrupted operation. The 4.3-inch touch display with rotary-push encoder and virtual metre bridge for monitoring the available headroom ensures intuitive operation. Flexible routing and mixing options enable customised signal routing for individual applications. Comprehensive limiters (peak, RMS, current, TruePower™) and Active DampingControl™ offer reliable system protection. In addition, together with HealthPlus monitoring in Armonía Plus, the LiveImpedance™ function offers comprehensive and detailed system monitoring. The protection system against direct current, overvoltage/undervoltage, short circuits and overheating ensure maximum operational safety, bolstered by signal protection mechanisms such as clipping, VHF and long-term RMS protection. Thanks to an energy-efficient mains adapter with Power Factor Correction (PFC) and intelligent rail management, the amplifier is particularly efficient and reliable, making it ideal for professional use.

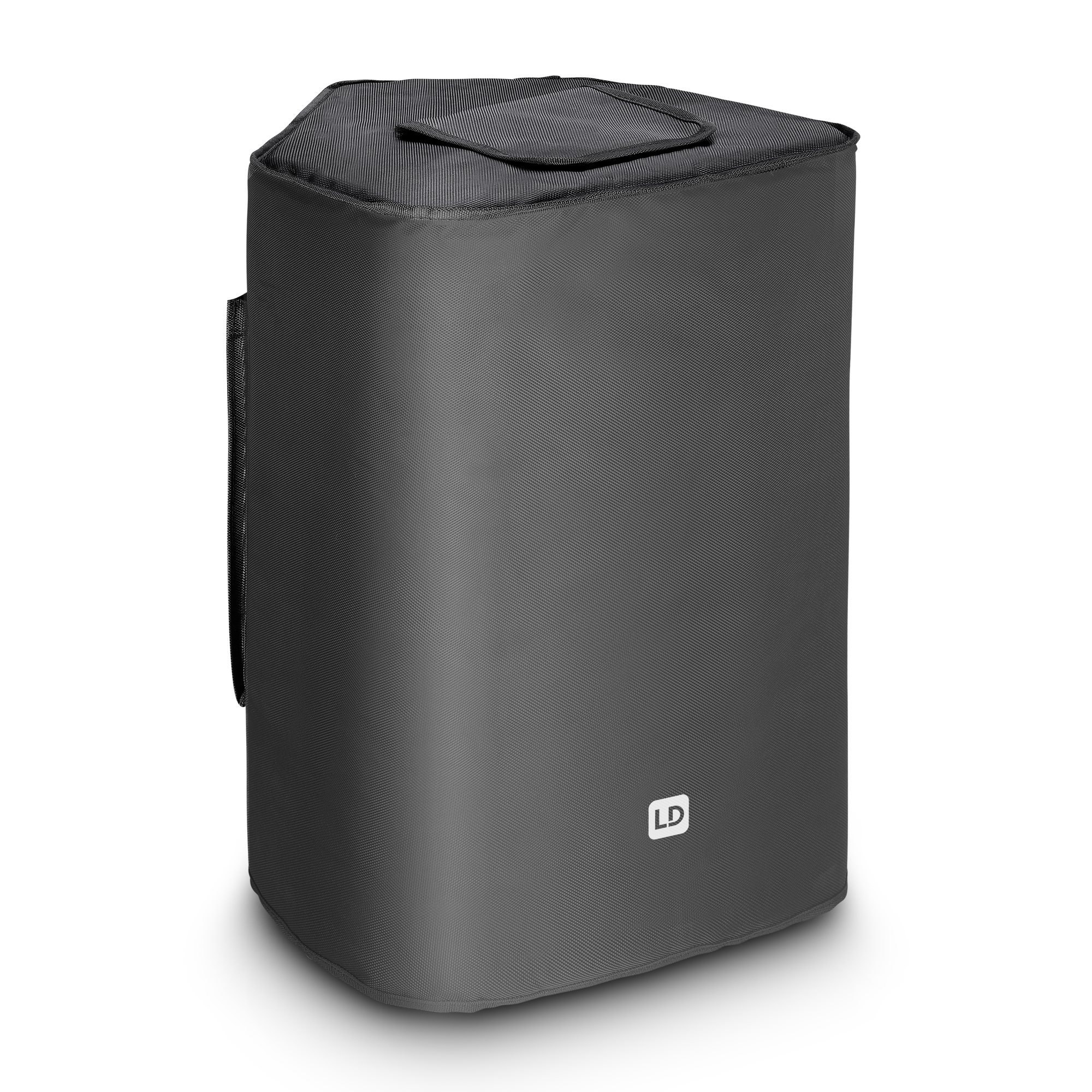

This slip cover is made of hard wearing water repellent 1680D nylon with 8 mm padding to protect your STINGER® G3 loudspeaker. It features a reinforced cutout with hook-and-loop fastener flap for easy handle access and an outer pocket to store accessories.
The SP 5211 B is a classic tripod speaker stand made from thick walled, yet lightweight powder coated alumium tubing with a load capacity of 50 kg and 195 cm maximum height.The die cast aluminium leg collar has been completely redesigned to provide superior durability and longevity, the height adjustment collar is made of steel for additional strength and is virtually indestructable. It features a safety pin to securely lock the 35 mm diameter extension pole in place.The ergonomic set screw knobs are made from high grade ABS with a soft touch, non-slip thermoplastic coating for comfortable operation.A set of black coding rings is included with the SP 5211 B, additional ring packs are available in a wide array of colors for instant personalization.
The GLS 431 B lighting stand features a large heavy steel base providing a firm footing and three M20 female threads that allow to mount off-centre. The 35 mm extension with female threaded M10 insert permits a maximum height of 2.4 m. Two integrated base handles facilitate transport.
This rugged speaker stand has a much smaller footprint than tripods and a 35 mm rod with a high-strength steel sleeve, ergonomic locking screw and safety stud for secure height adjustment. This stand is adjustable from 1.05 to 1.8 m in 7.5 cm increments. It comes with an additional weight disc from our patented VARI-WEIGHT® stability system, ensuring both a more secure footing and more convenient transport of the system as a whole. The flat round base and the additional disc weigh 17.1 kg in total, thereby ensuring excellent stability.
