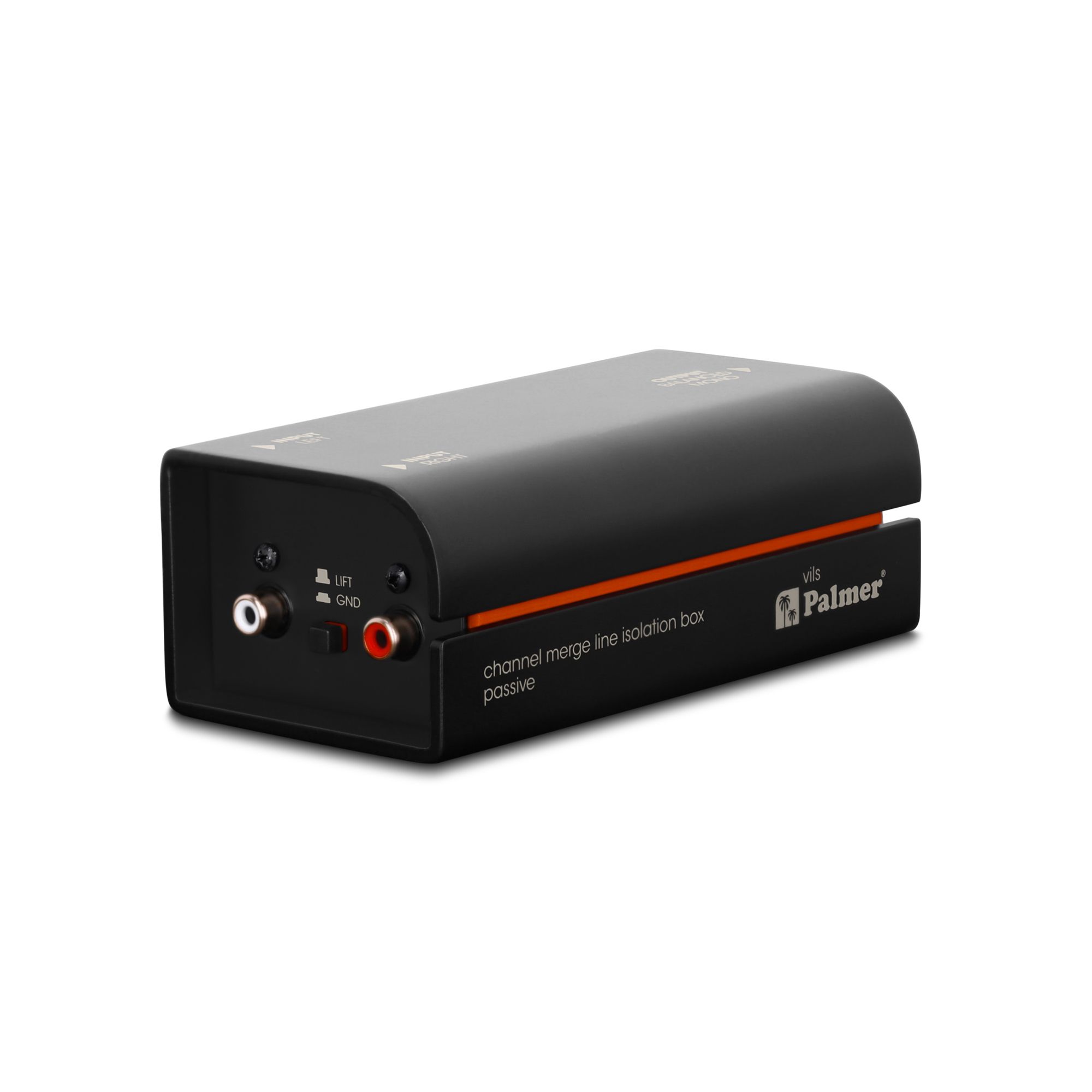

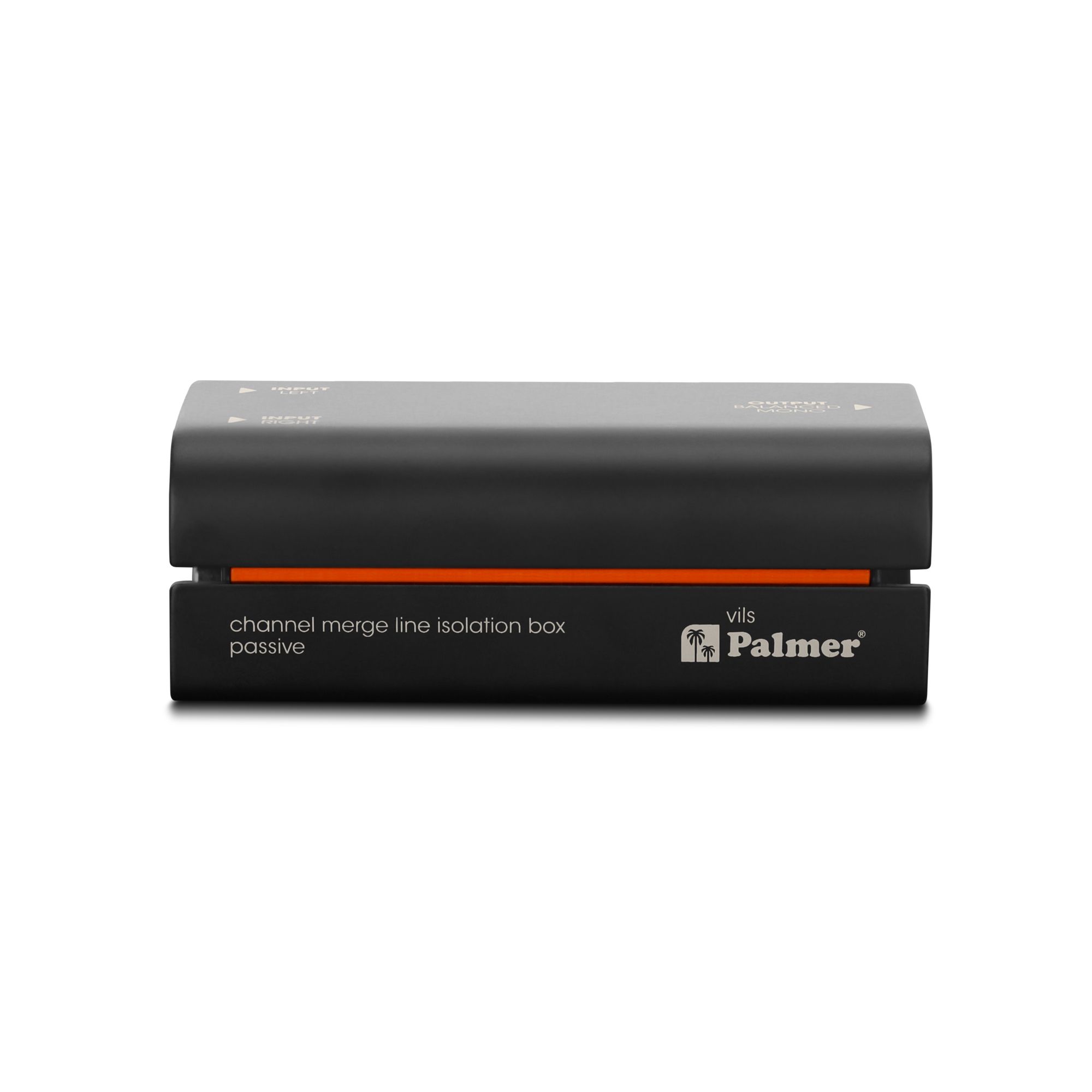

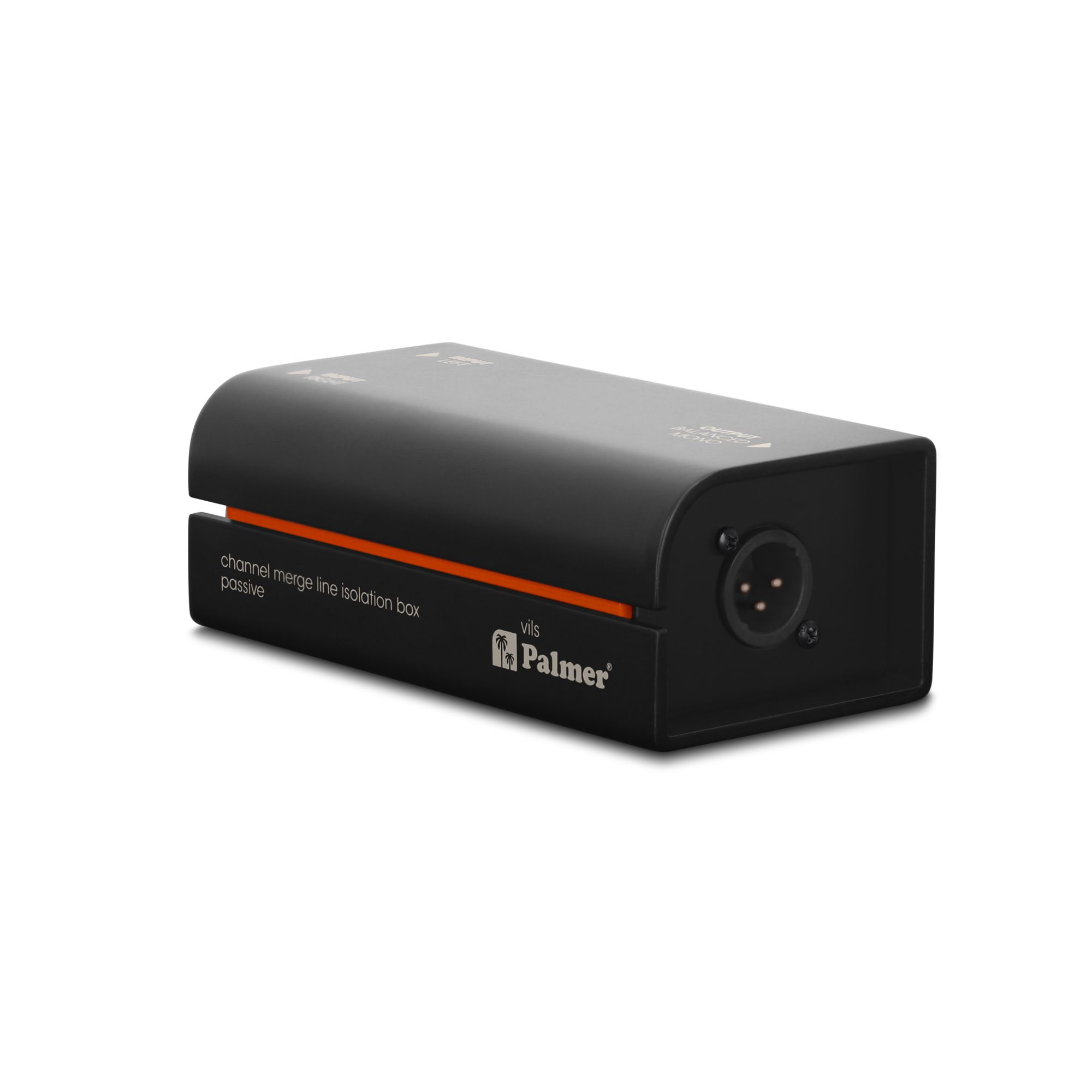

RIVER vils
Channel Merge Line Isolation Box
$99.99
Backordered – More on the Way!
Product information "RIVER vils"
We've all had the same experience before:
At home the sound was crisp and clean but during the presentation it hums and buzzes and there is no time to figure out the cause.

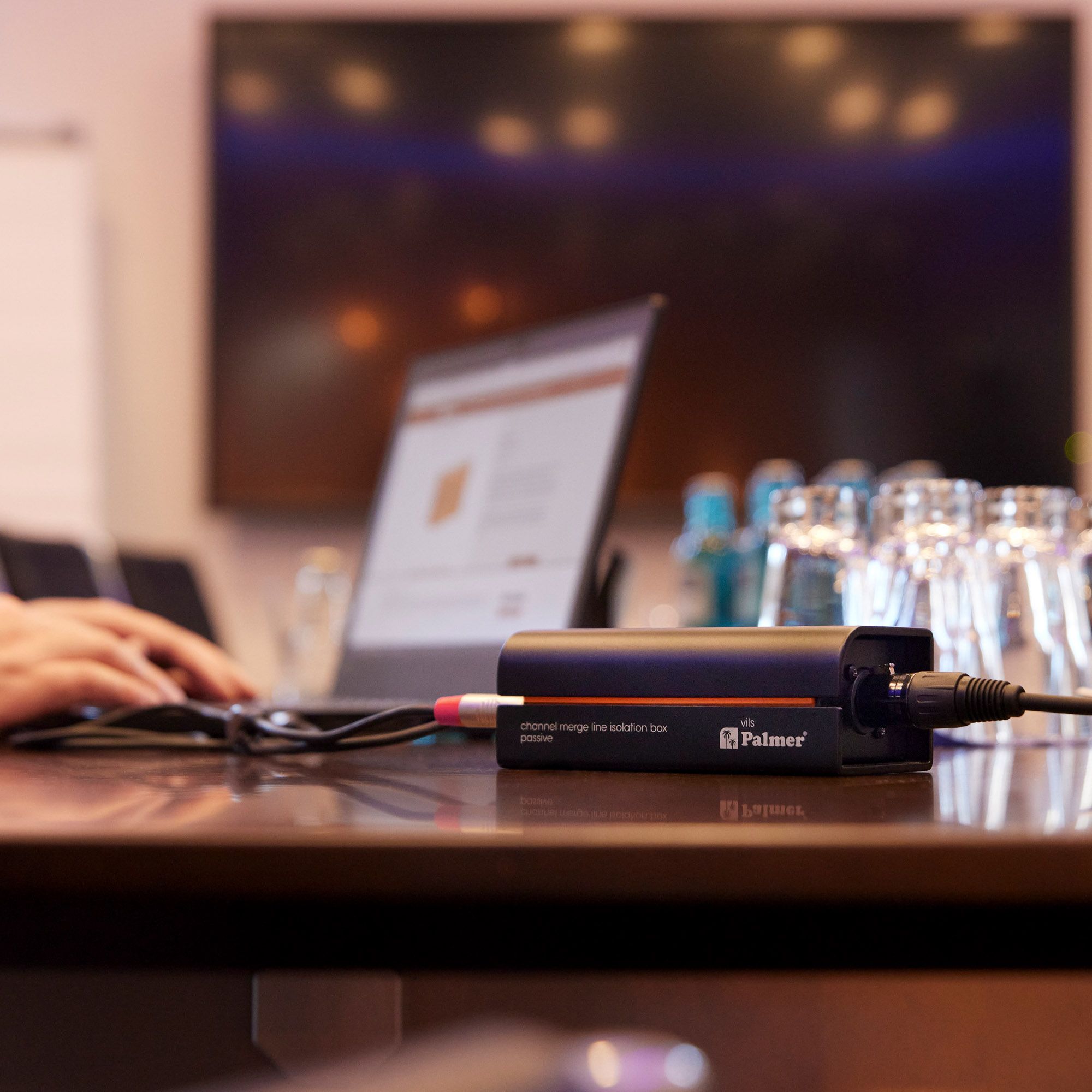

Here is where the Palmer vils comes in handy as it safely isolates the ground potentials of the laptop, media devices and PA systems from each other. (Calm returns and the audience and you can concentrate fully on your presentation again.)

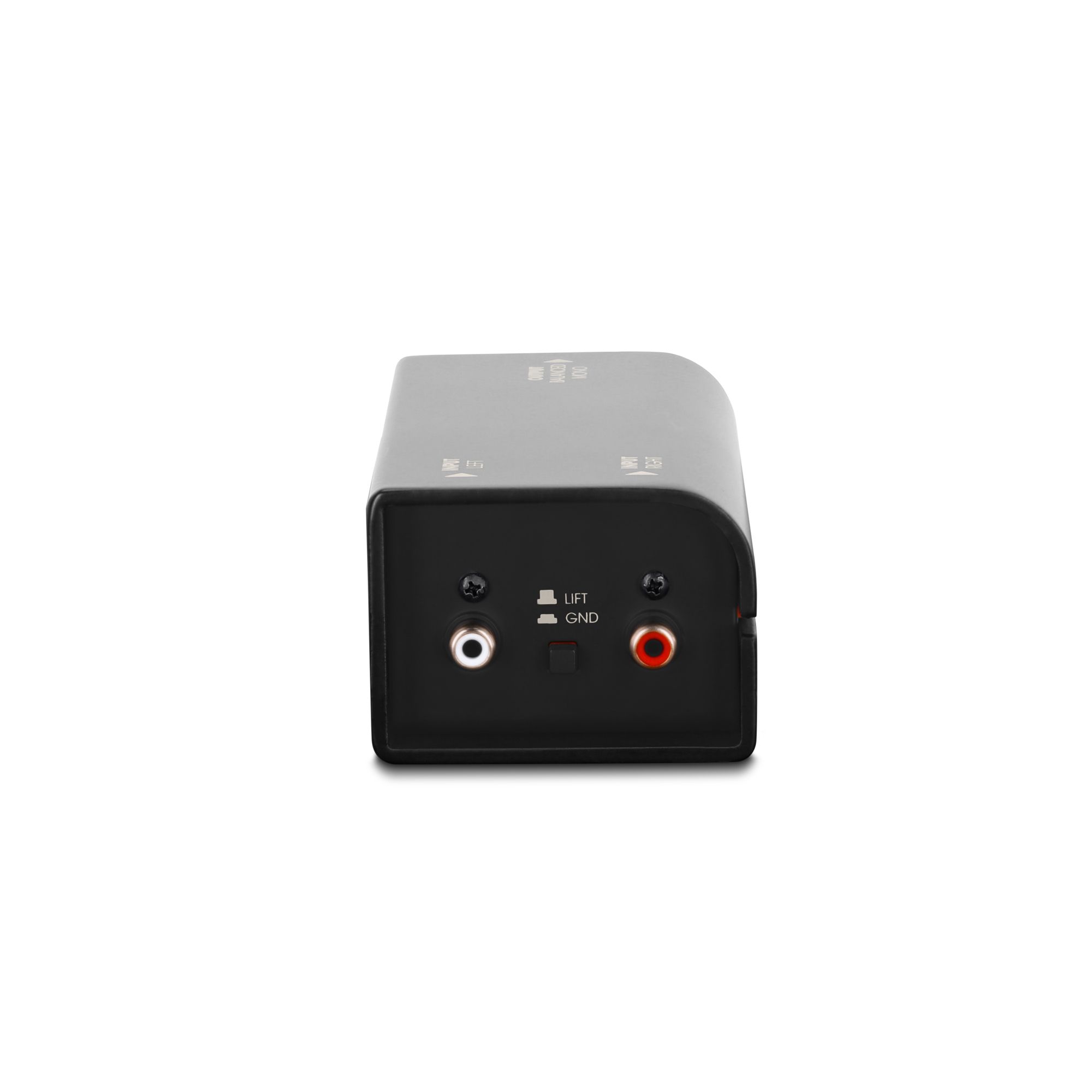

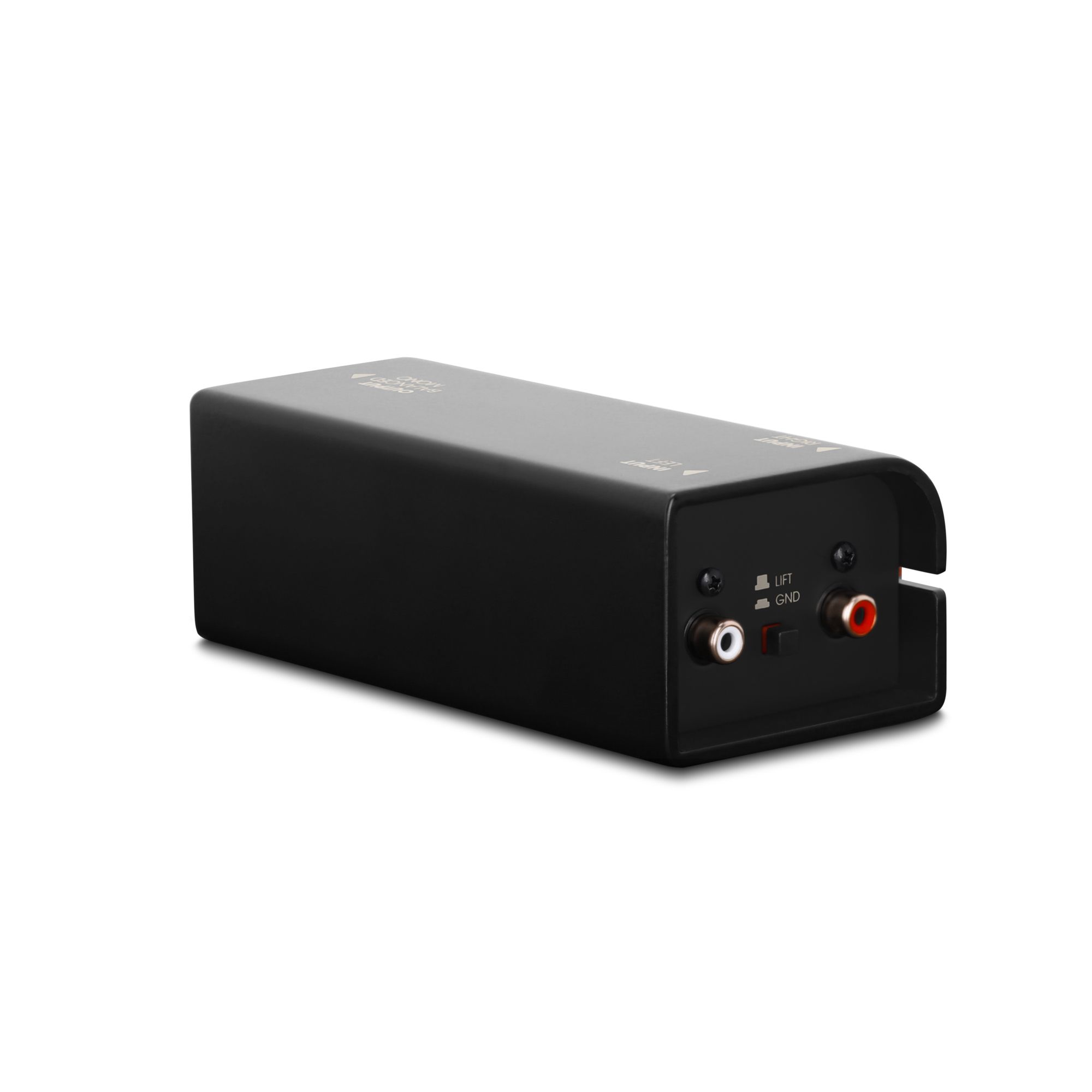

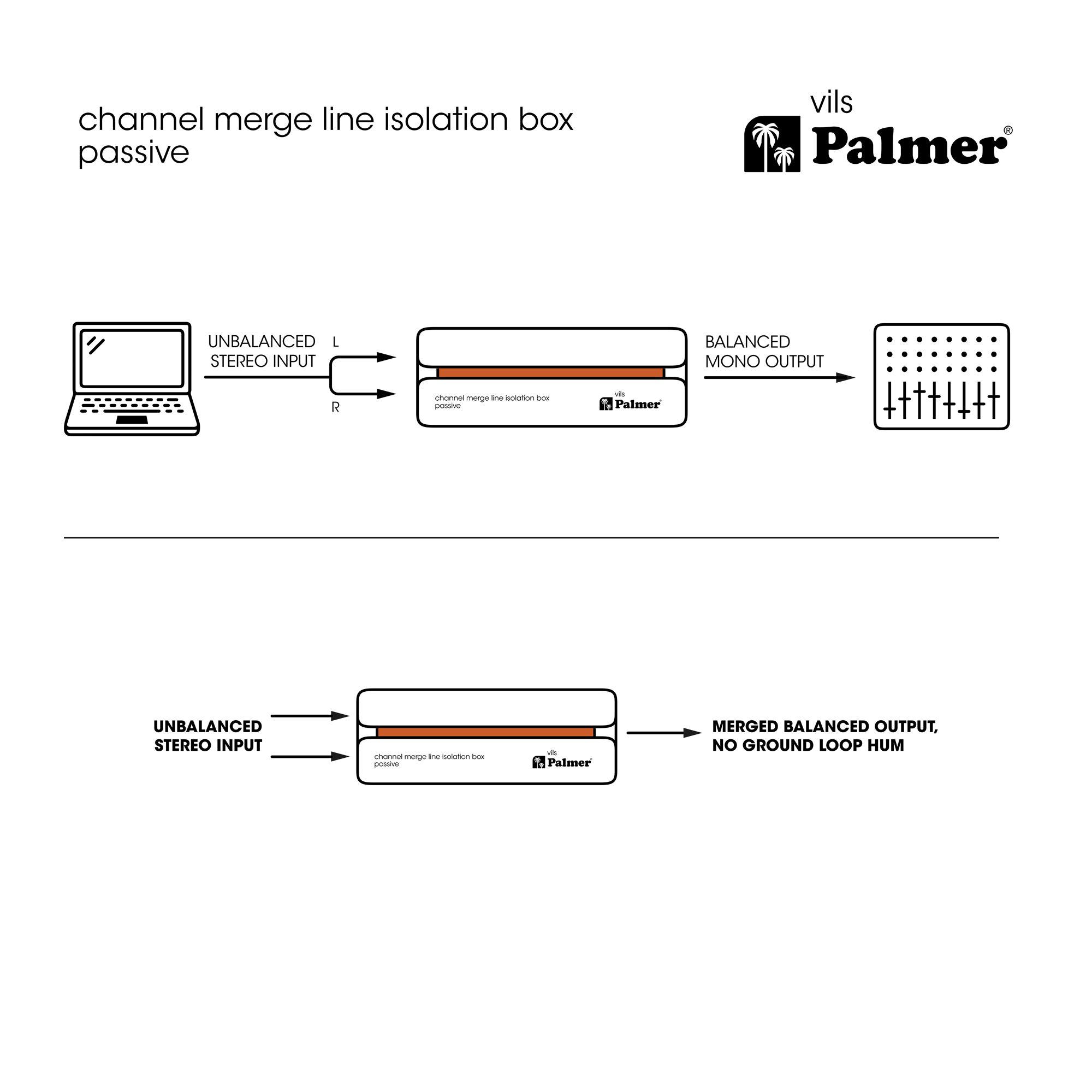

The Palmer vils has two unbalanced RCA inputs. You can use a standard Y cable with 3.5 mm jack to connect to the headphones output on the laptop. The vils sums both stereo channels to mono so that you only require one free microphone input for the connection to the PA.
The Palmer vils is extremely easy to use and its passive operation means it does not need a power supply. A resistor network and a transformer, which simultaneously balances the signal, ensure an optimal adjustment of level and impedance. This means that there is no interference even with longer cable runs.
With the Palmer vils, you can be sure that your presentations are as crisp and clear as they sound at home.
| Ambient temperature (in operation): | - 20 - 70 °C |
|---|---|
| Product type: | line isolator |
| Dimensions (W x H x D): | 140 x 50 x 50 mm |

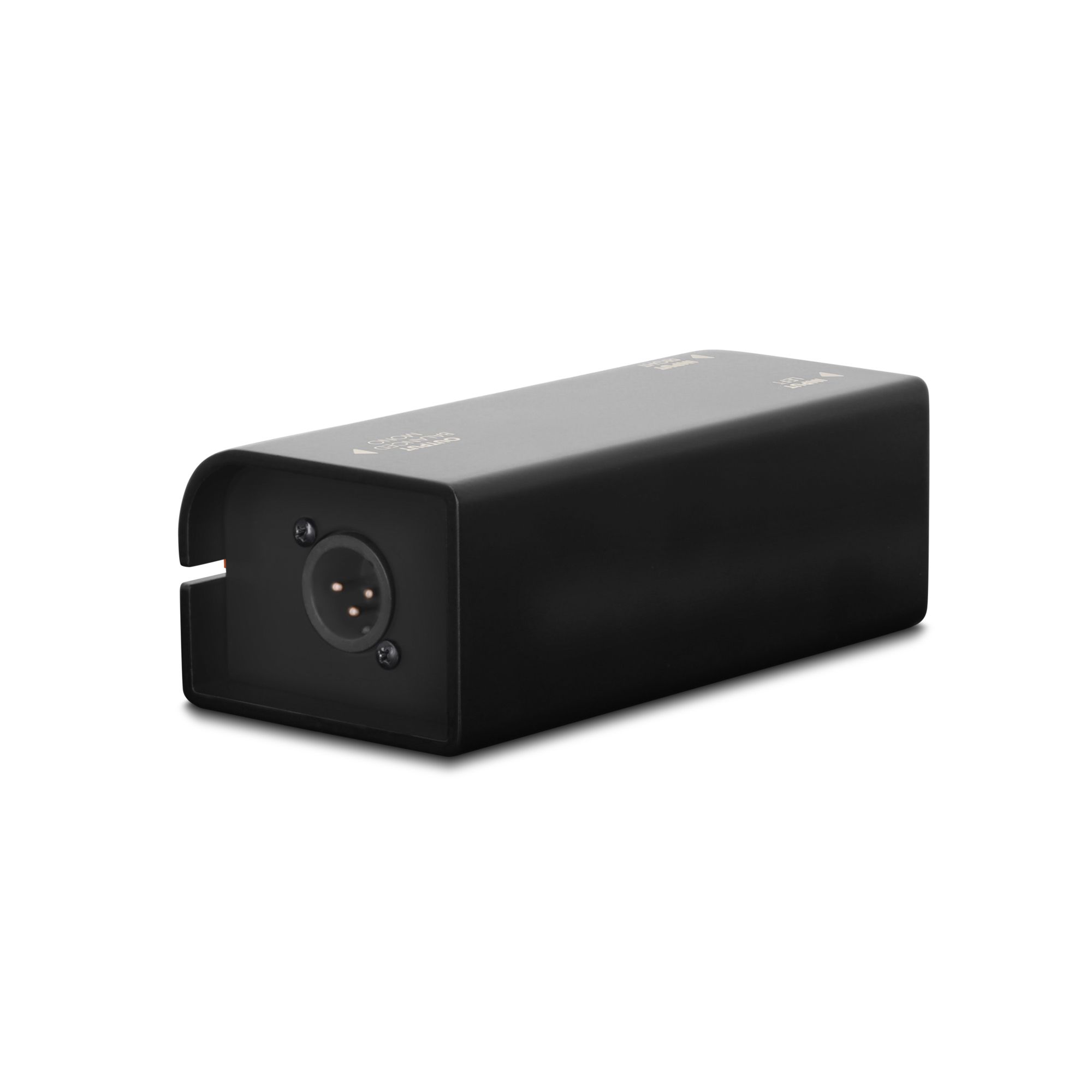

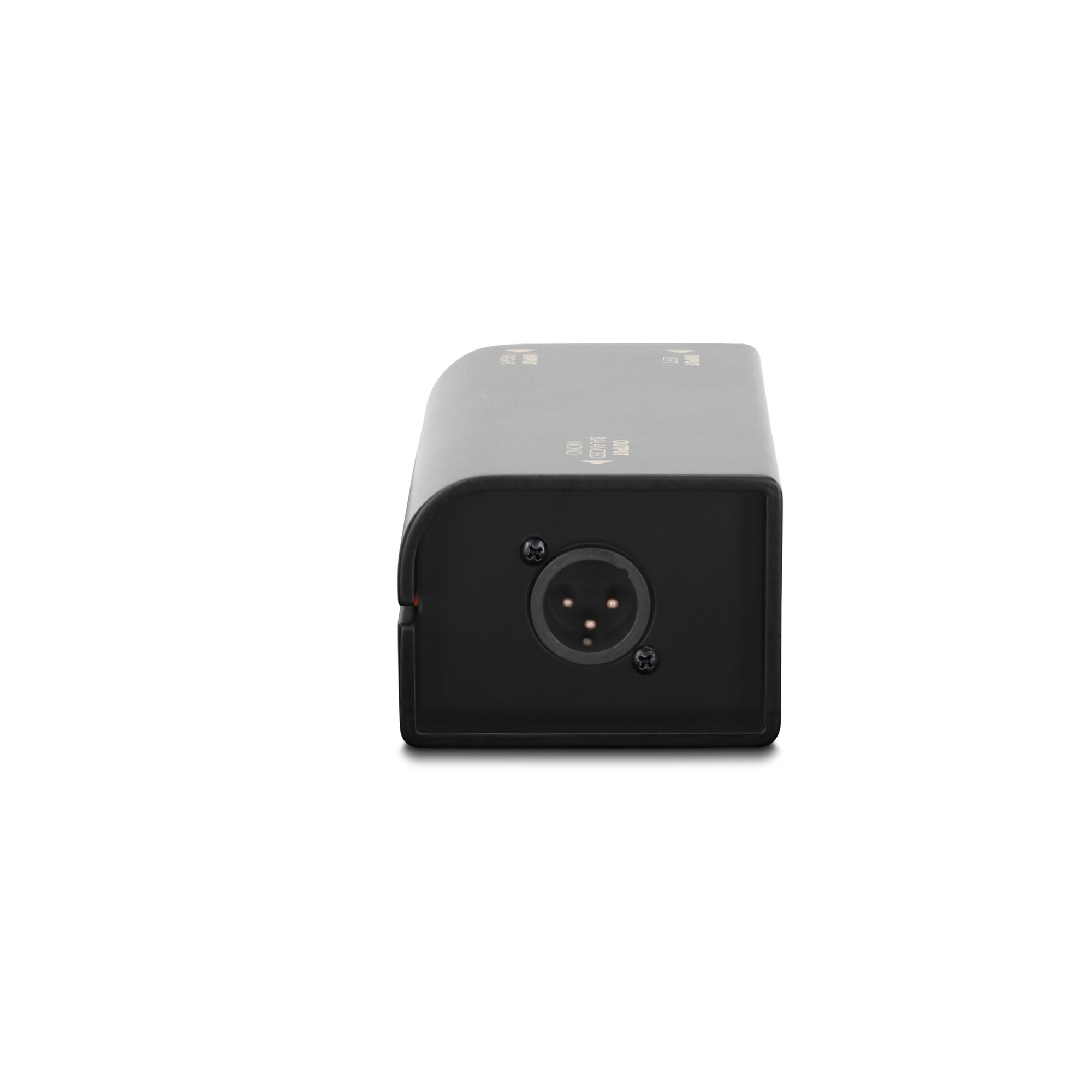

| Output connectors: | XLR |
| Transformer isolated: | yes |
| Input type: | unbalanced |
| Output type: | balanced |
| Channels: | 1 |
| Number of inputs: | 2 |
| Type: | passive |
| Input connectors: | RCA |
| Ground/lift switch: | yes |
| Housing: | Aluminium continuous casting |
| Accessories (included): | rubber feet, Inscription label (tour label) |
| Number of outputs: | 1 |
| Relative Humidity: | < 80 %, not condensing |
| THD (1 kHz, +4 dBu, unity, unweighted): | <0,003% |
|---|---|
| THD (30 Hz, +4 dBu, unity, unweighted): | <0,08% |
| Output impedance (1 kHz, Setting : 0 dB Pad, THRU): | 600 Ohm |
| Frequency response (±0,2dB, relative 1kHz): | 20 Hz - 30 kHz |
| Max. input level (< 1% THD, 20 Hz): | +12 dBu |
| Input impedance (1 kHz, Setting: 0 dB Pad, THRU): | 2,7 kOhm |
| Max. input level (< 1% THD, 1 kHz): | + 32 dBu |
| Transformer ratio: | 1 : 1 |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): | < 0,002 % |
Login
accessories

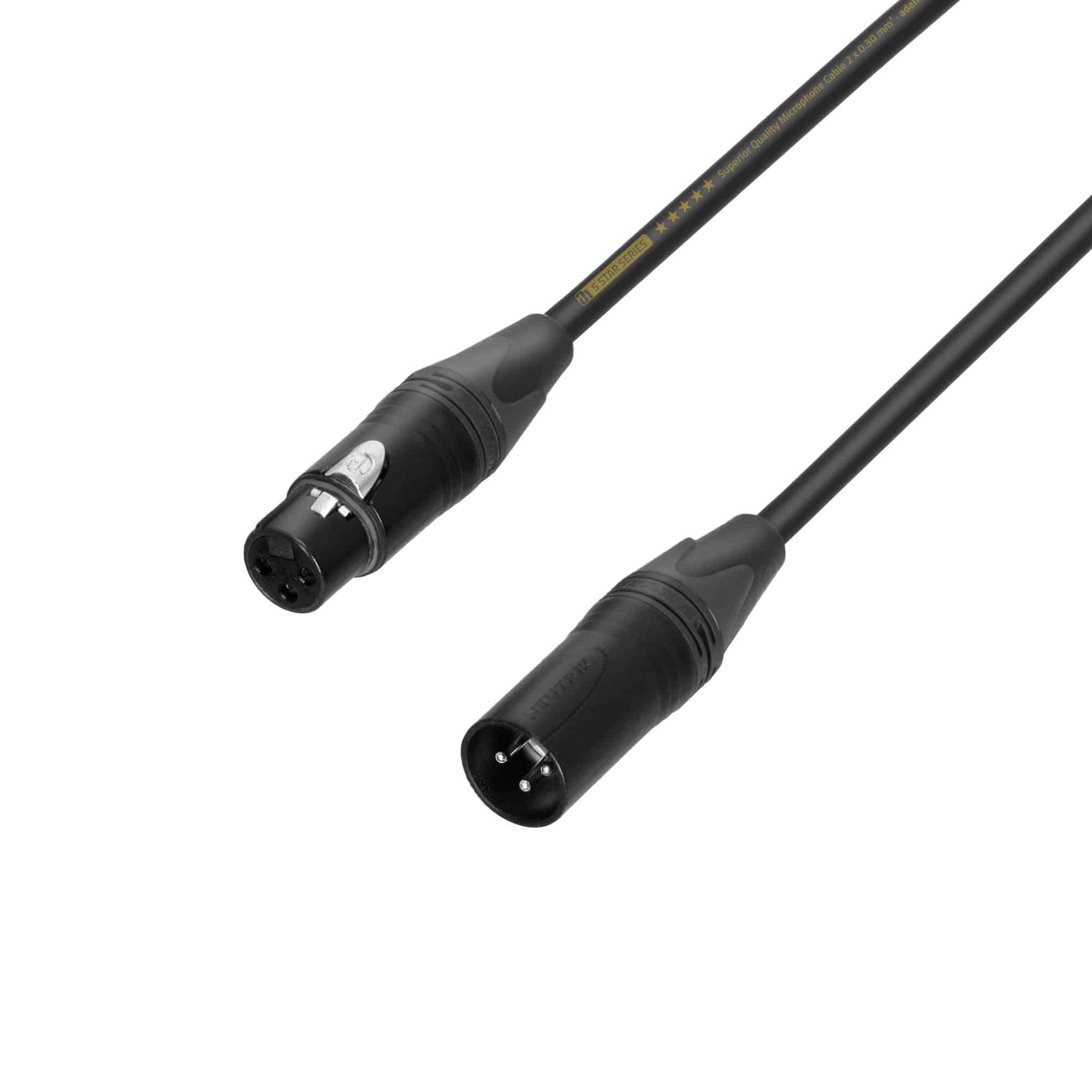

For professional applications on stage, in the studio or in the rehearsal room, excellent quality is available with our 5 STAR SERIES. This cable is made in the EU and therefore meets the relevant requirements for professional use.Durability and reliability find their master in the hard road everyday life! We have therefore developed a cable that is not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 5 STAR SERIES, which is friction resistant and bendable. For excellent signal transmission, but is also more abrasion resistance. The cable comes with a cable tie and two transparent, loose heatshrinks for labeling.Engineered in Germany & Made in EU: This stands for precision & quality.

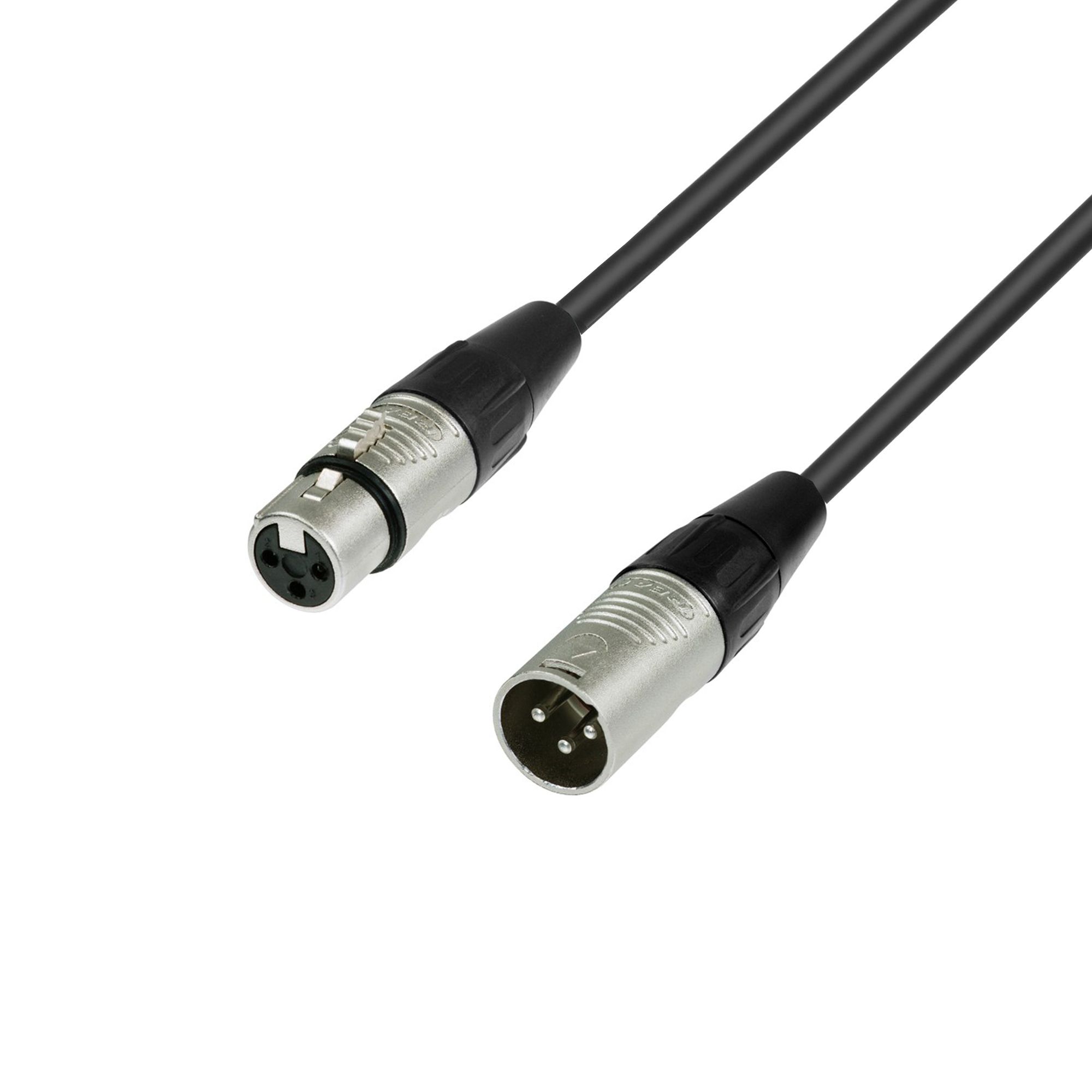

Professional Quality CableFor professional applications on stage, in the studio or in the rehearsal room, professional quality is available with our 4 STAR SERIES. THis cable is completely developed in Germany and therefore meets the relevant requirements for professional use.We focus on durability and reliability, and have therefore developed a line of cables that are not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 4 STAR SERIES which has very good bending abilities. Of course, the jacket is not the only factor that makes a cable great, so we use a dense copper-spiral shielding, for professional transmission values. All these parts make the cable very flexible.

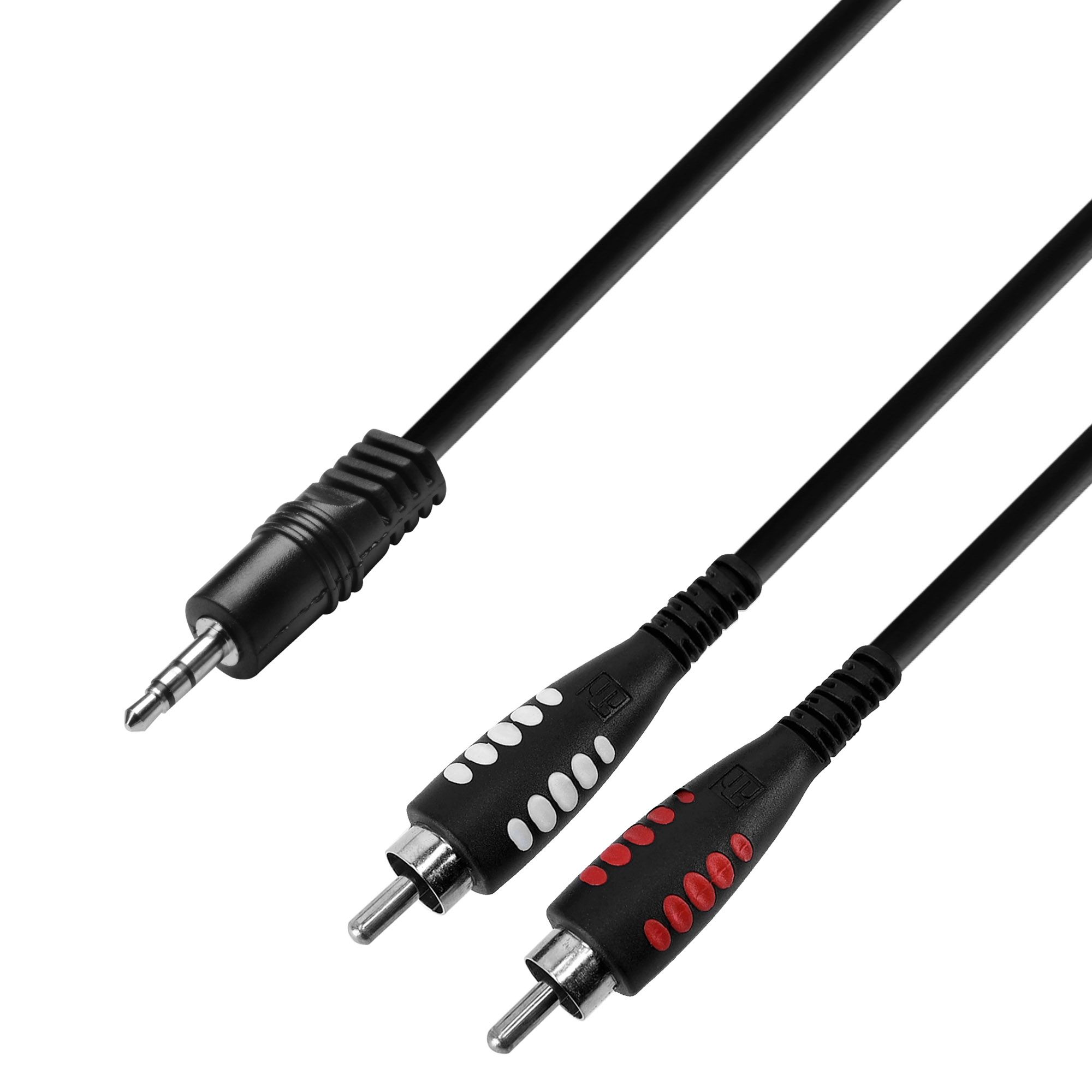

Adapter cable from 3.5 millimetre mini TRS plug to 2 x RCA. For connecting external signal sources, for example, MP3 players or PC sound cards.
