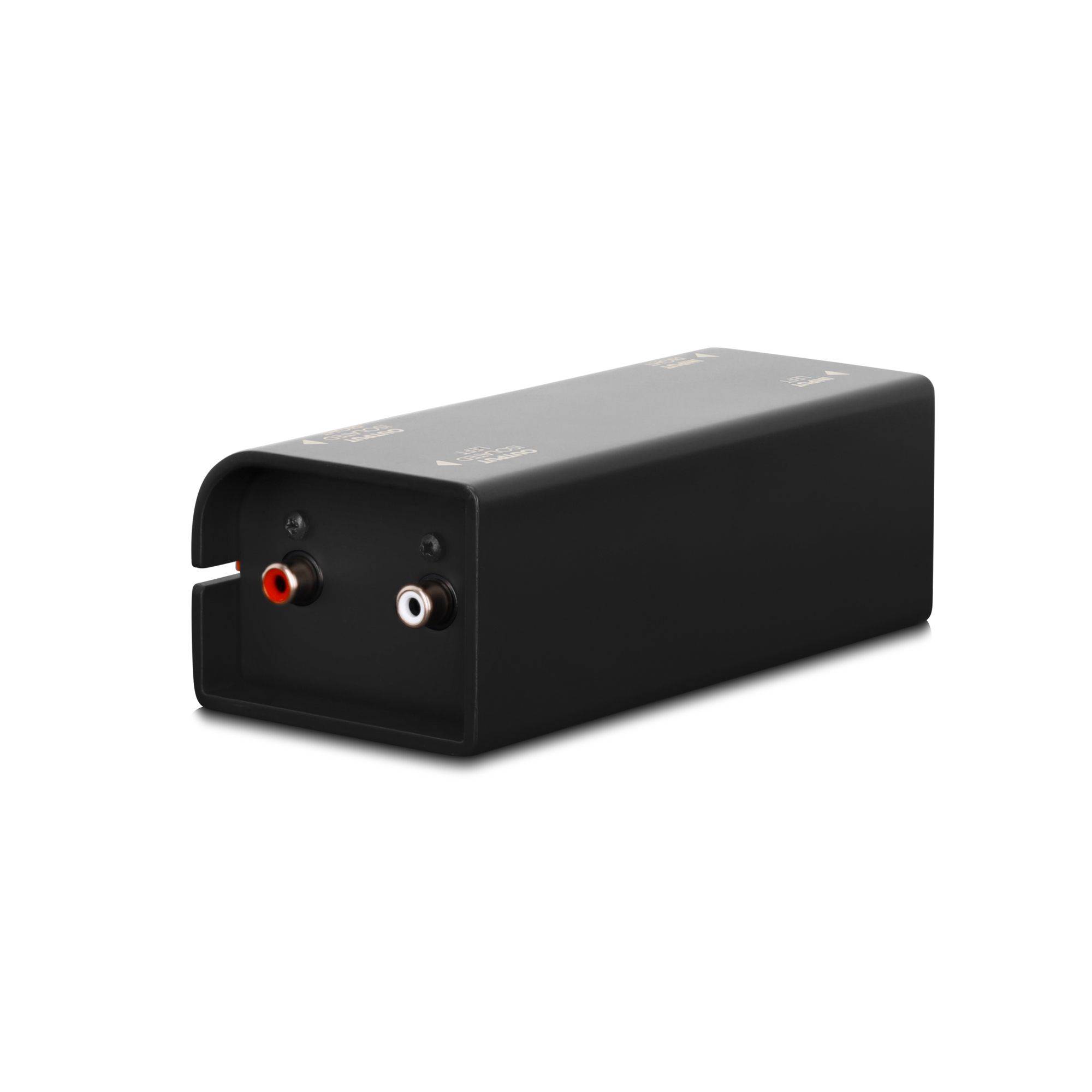

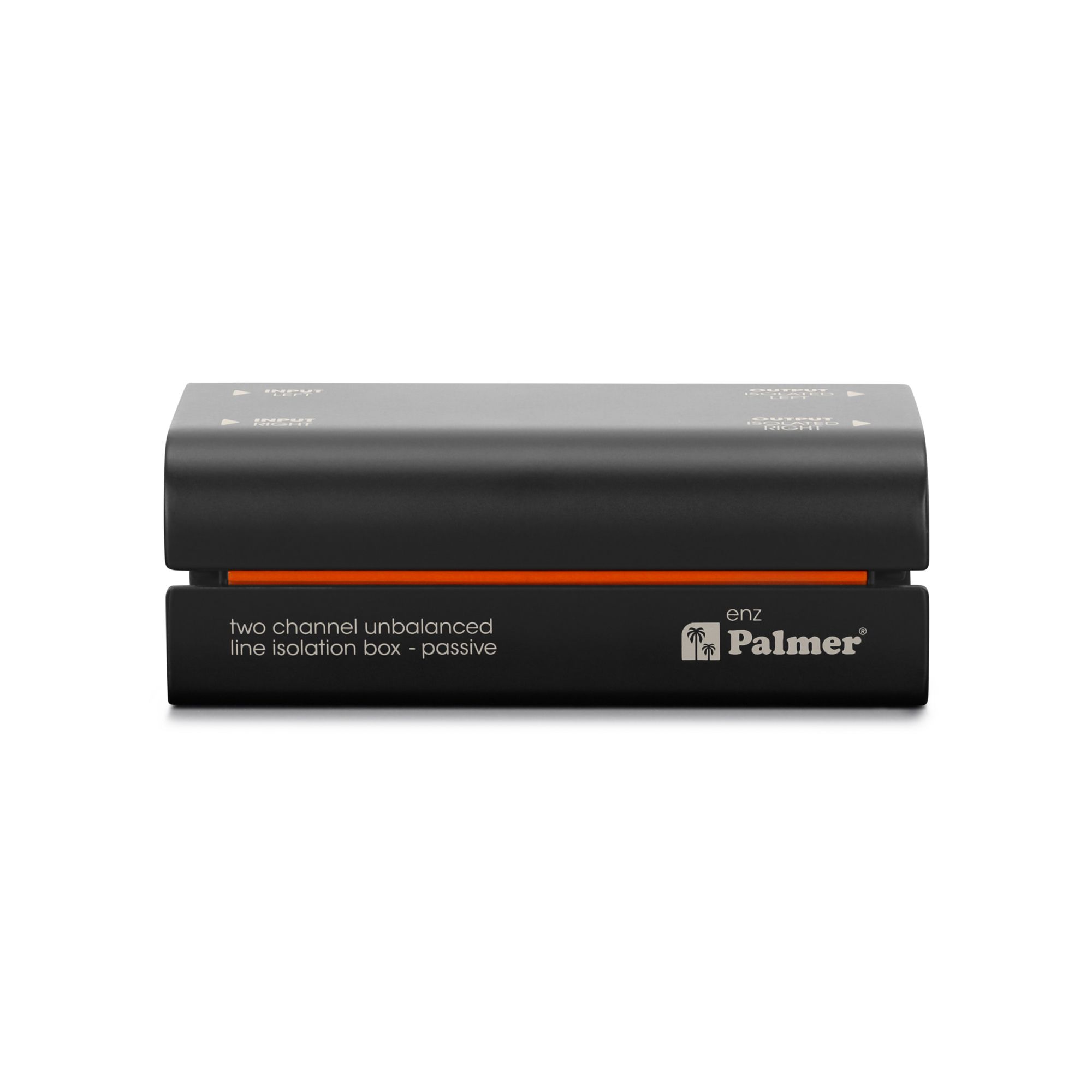

RIVER enz

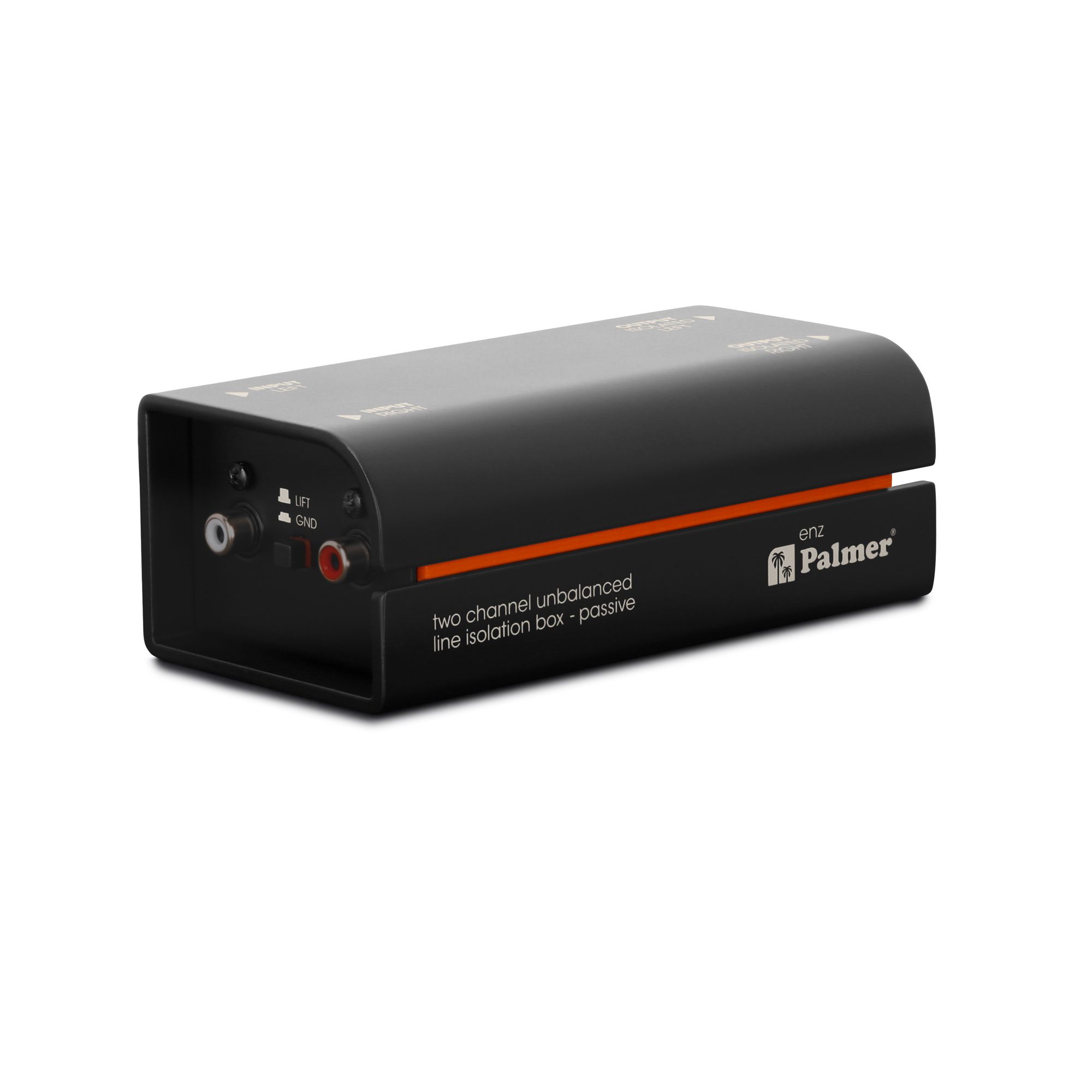

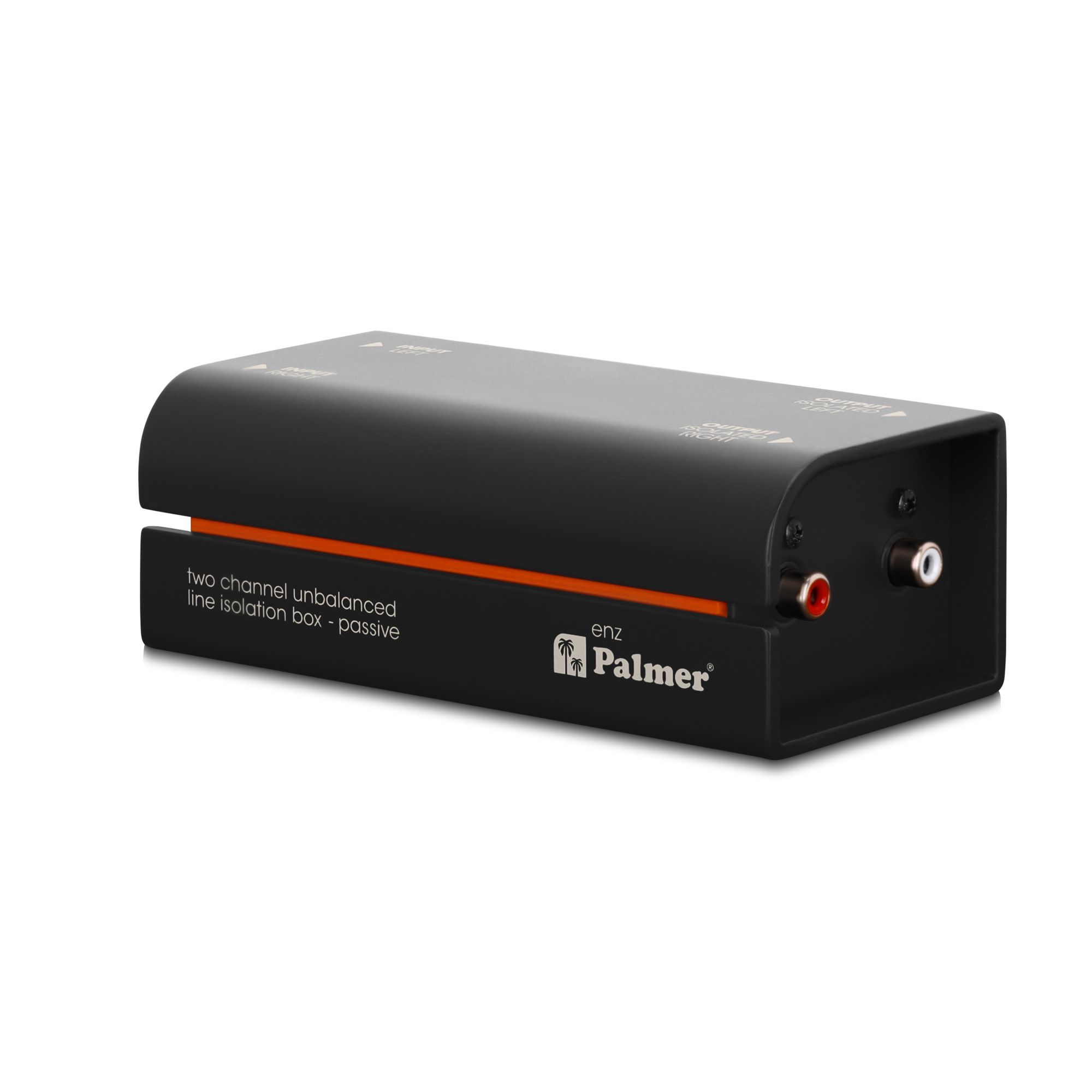

Two Channel Unbalanced Line Isolation Box
$129.99
Backordered – More on the Way!
Product information "RIVER enz"

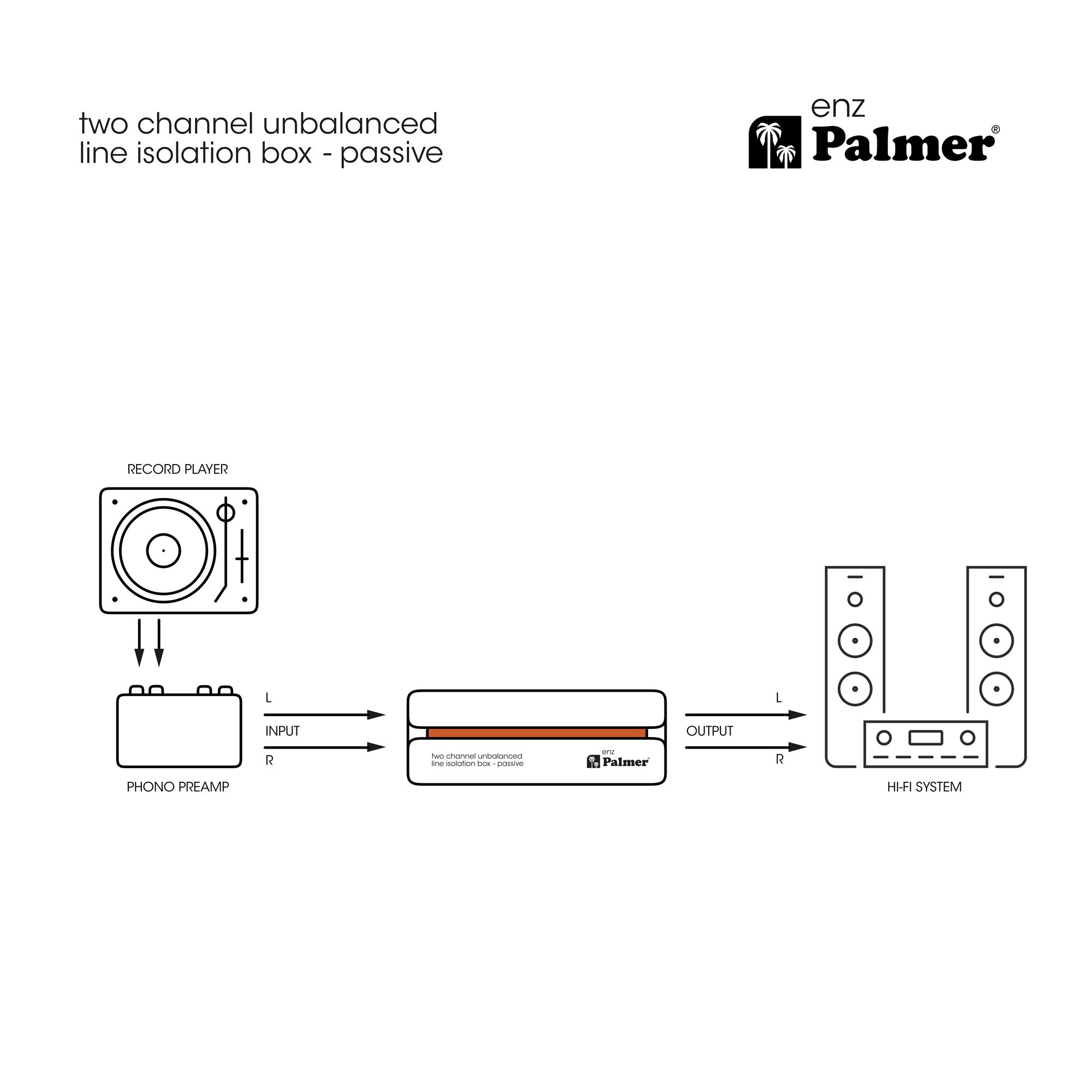

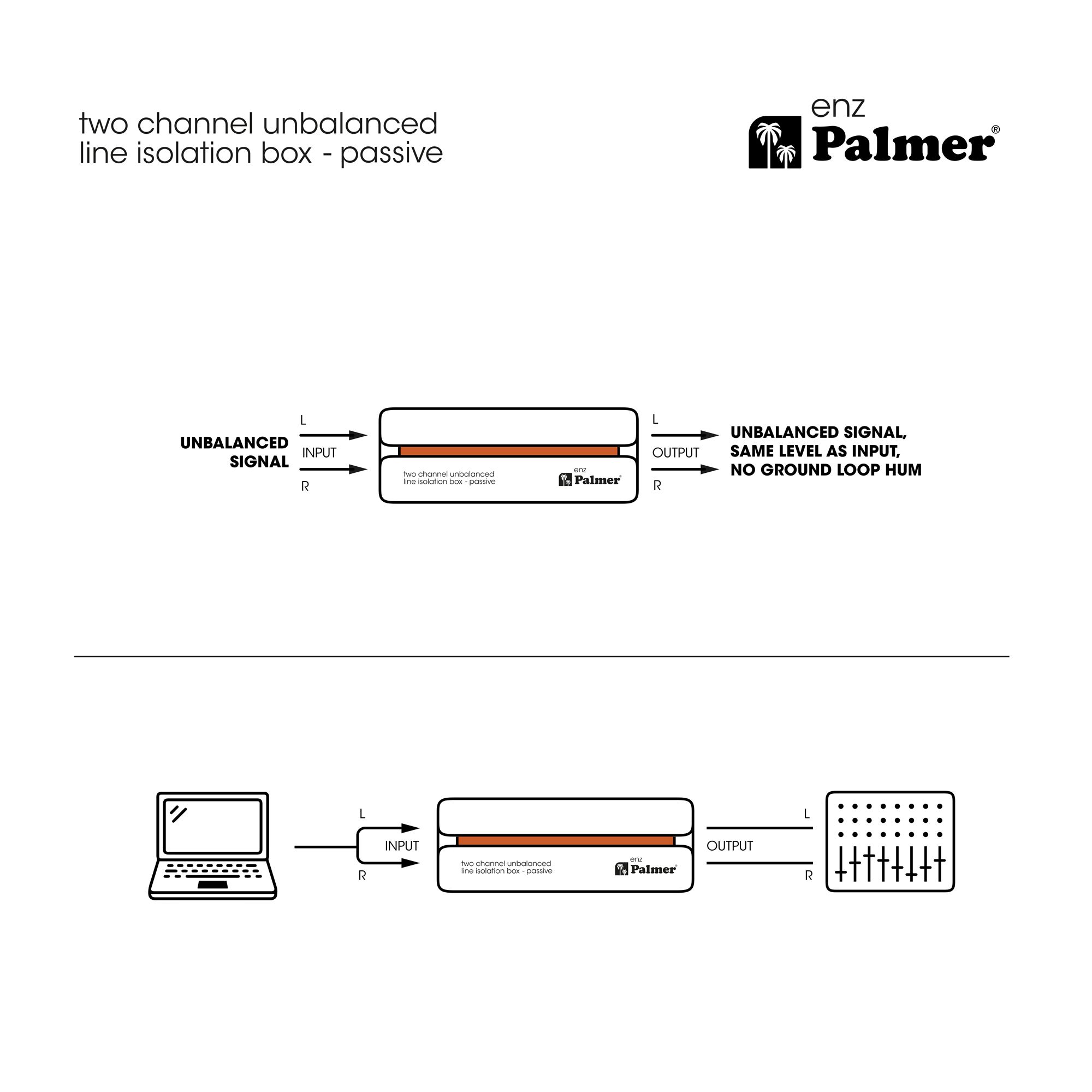

When connecting a media player or a laptop to a HiFi- or PA system, you often experience noise such as hum and buzz caused by ground loops. With the Palmer enz,
With the Palmer enz, you can be sure that such annoying interference signals do not occur anymore!
The cause of this interference lies mostly in ground potential differences, which result in stray DC currents via the audio lines. The solution is to place a transformer between the two devices to isolate the ground line. Palmer enz has two of these transformers for its two channels. Its inputs and outputs are RCA sockets, which are common for HiFi and consumer equipment. However, the sound quality will also satisfy professionals, since the sound remains unaltered.
This makes the enz Line Isolation Box a useful problem solver for home or car HiFi systems and PA systems from conference rooms to nightclubs. A Line Isolation box simply belongs in every DJ's kit. Whenever there is buzzing and humming, the Palmer enz brings silence with a touch of a button.
| Output type: | unbalanced |
|---|---|
| Ambient temperature (in operation): | - 20 - 70 °C |
| Product type: | line isolator |
| Output connectors: | RCA |
| Input type: | unbalanced |
| Number of outputs: | 2 |
| Dimensions (W x H x D): | 140 x 50 x 68 mm |
| Number of inputs: | 2 |

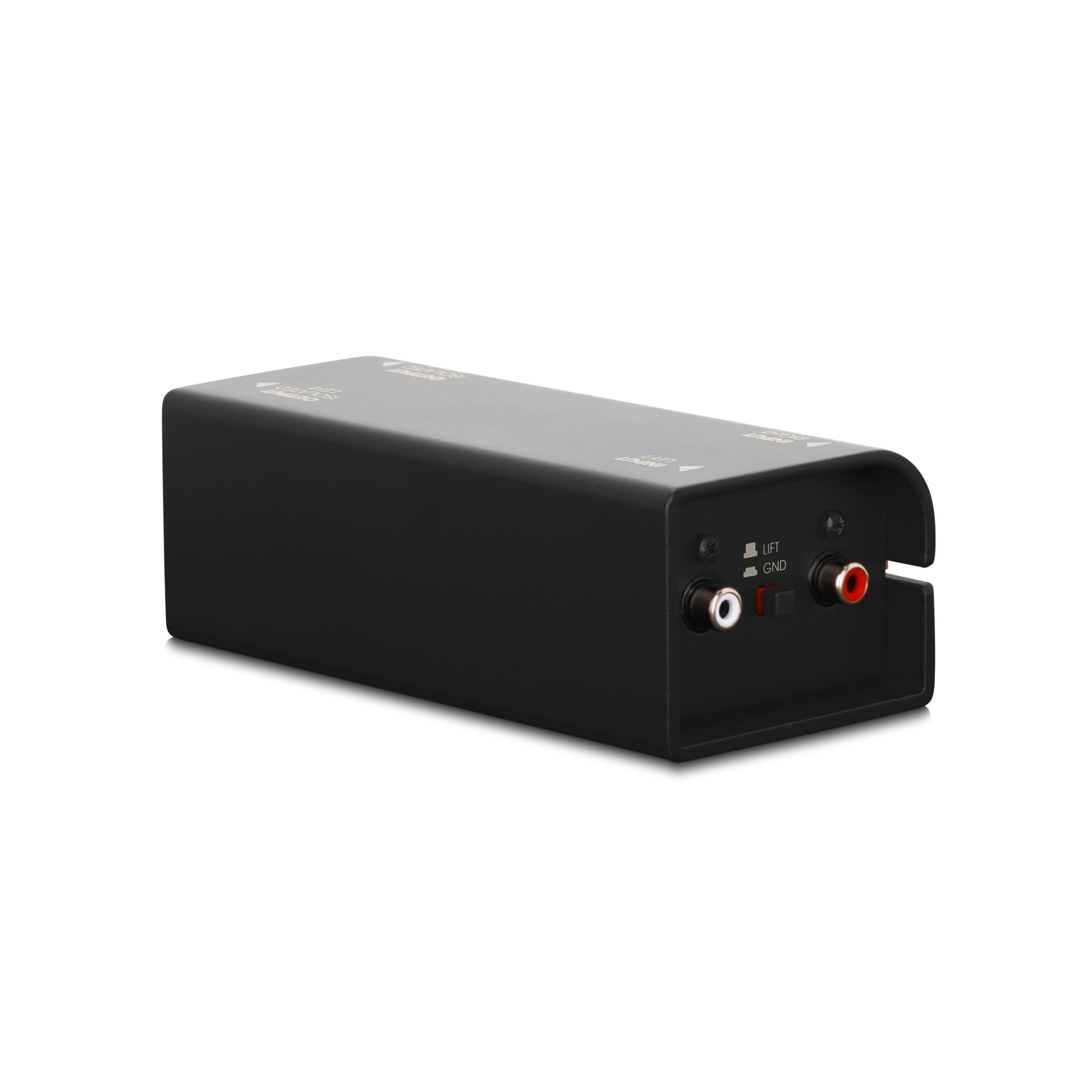

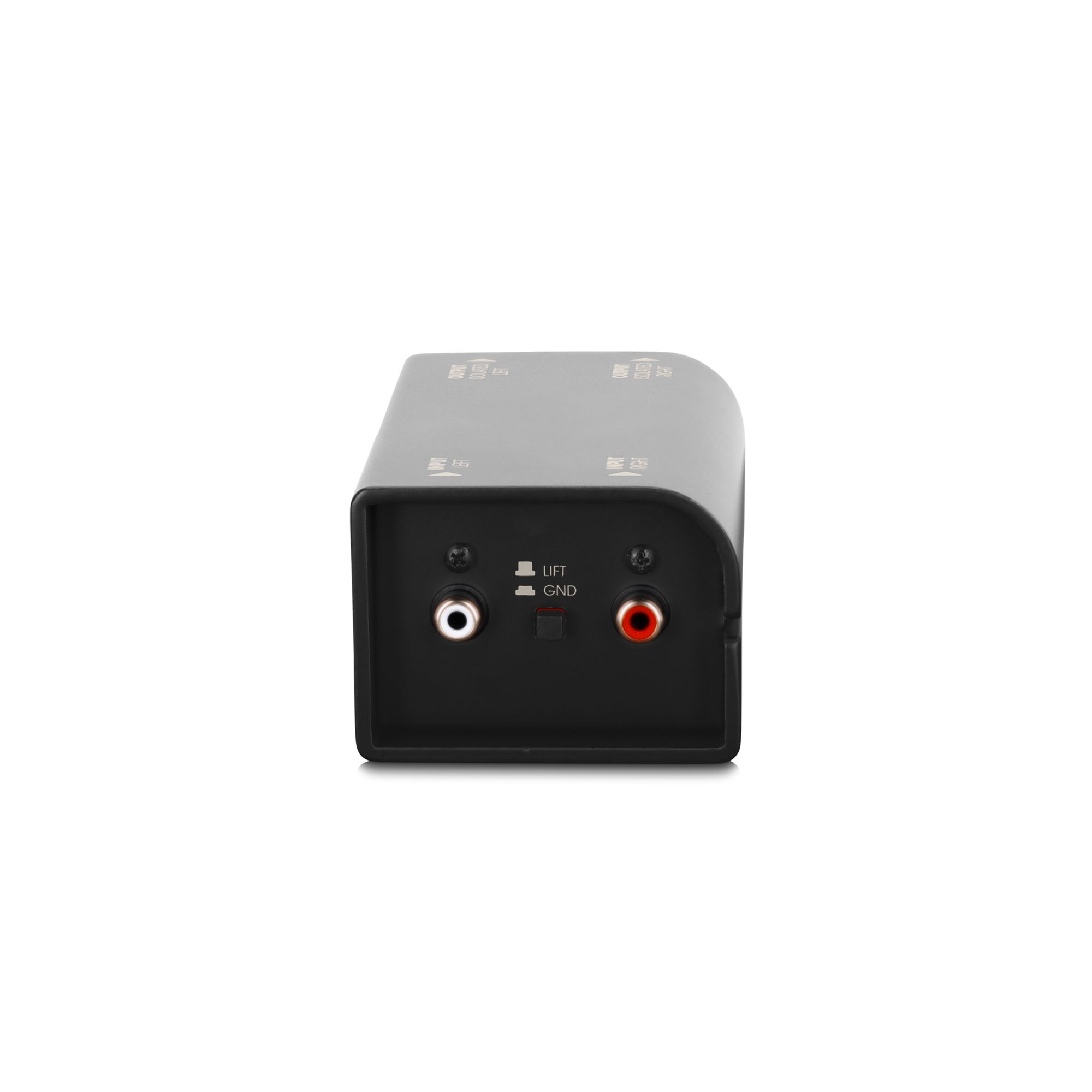

| Ground/lift switch: | Yes |
| Channels: | 2 |
| Transformer isolated: | Yes |
| Type: | passive |

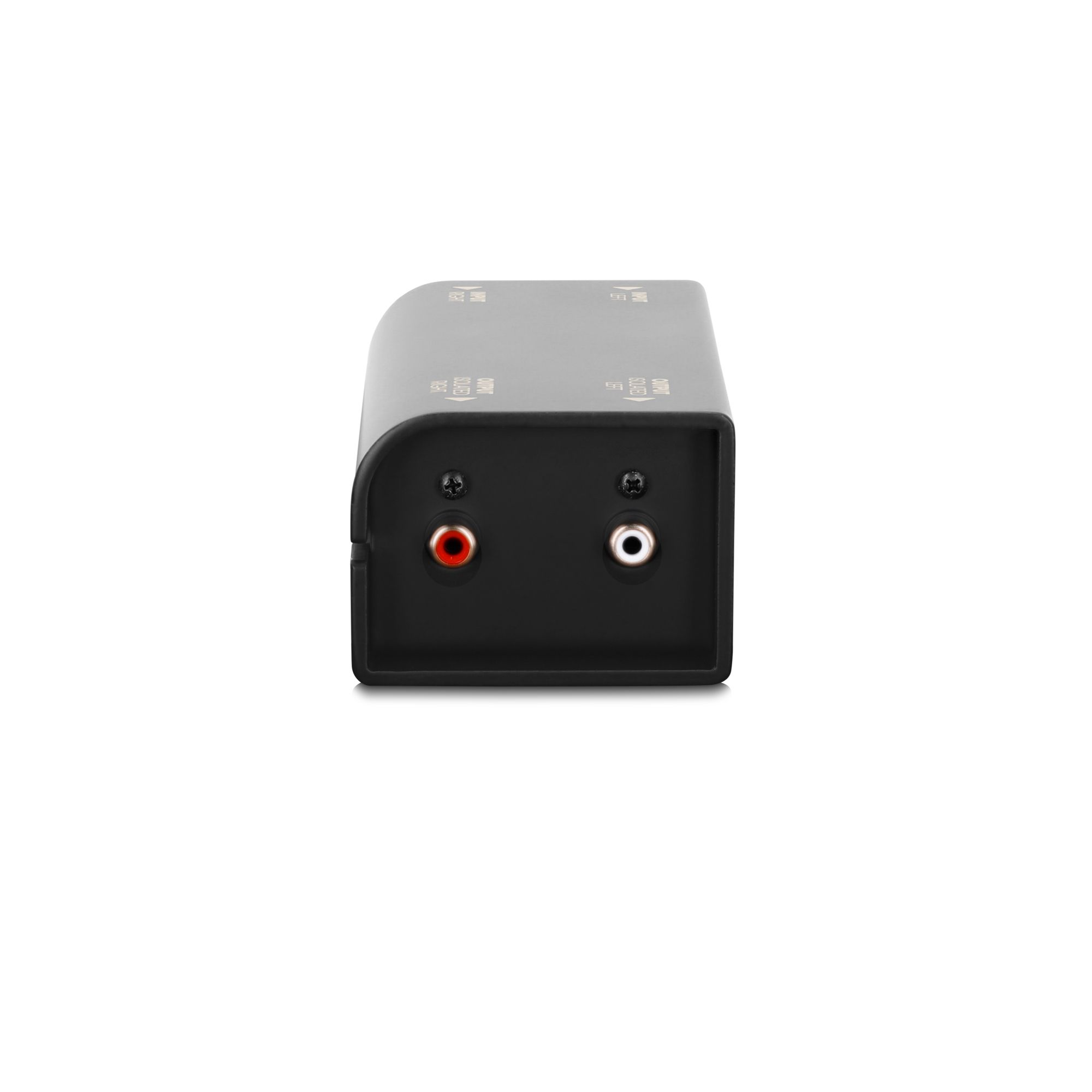

| Input connectors: | RCA |
| Housing: | Aluminium continuous casting |

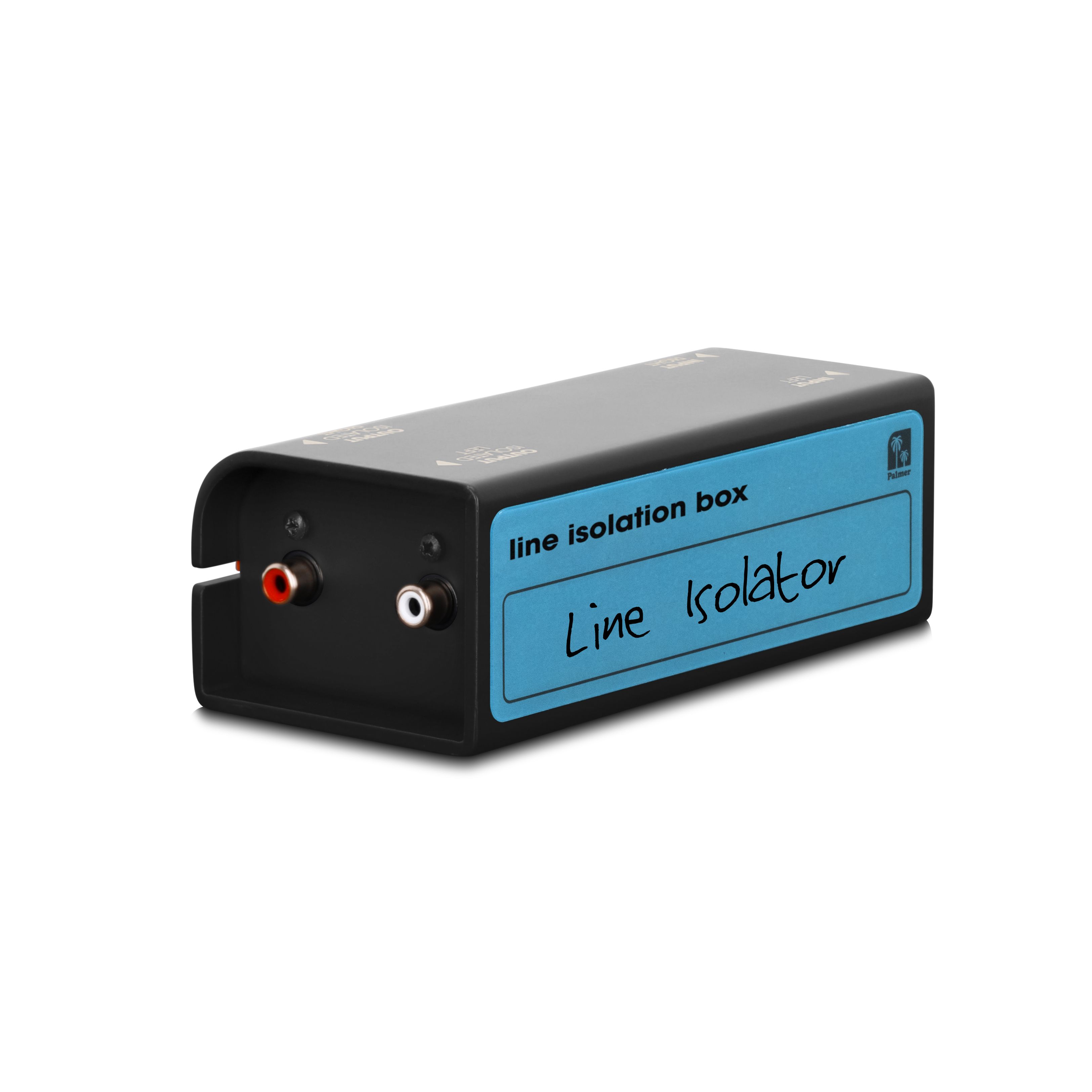

| Accessories (included): | rubber feet, Inscription label (tour label) |
| Relative Humidity: | < 80 %, not condensing |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): | < 0,003 % |
|---|---|
| Frequency response (±1dB, relative 1kHz): | 5 Hz - 20 kHz |
| Output impedance (1 kHz, Setting : 0 dB Pad, THRU): | 1,3 kOhm |
| THD (1 kHz, +4 dBu, unity, unweighted): | < 0,003 % |
| THD (30 Hz, +4 dBu, unity, unweighted): | < 0.15 % |
| Input impedance (1 kHz, Setting: 0 dB Pad, THRU): | 16 kOhm |
| Transformer ratio: | 1 : 1 |
| Max. input level (< 1% THD, 1 kHz): | +32 dBu |
| Max. input level (< 1% THD, 20 Hz): | + 14 dBu |
Login
accessories

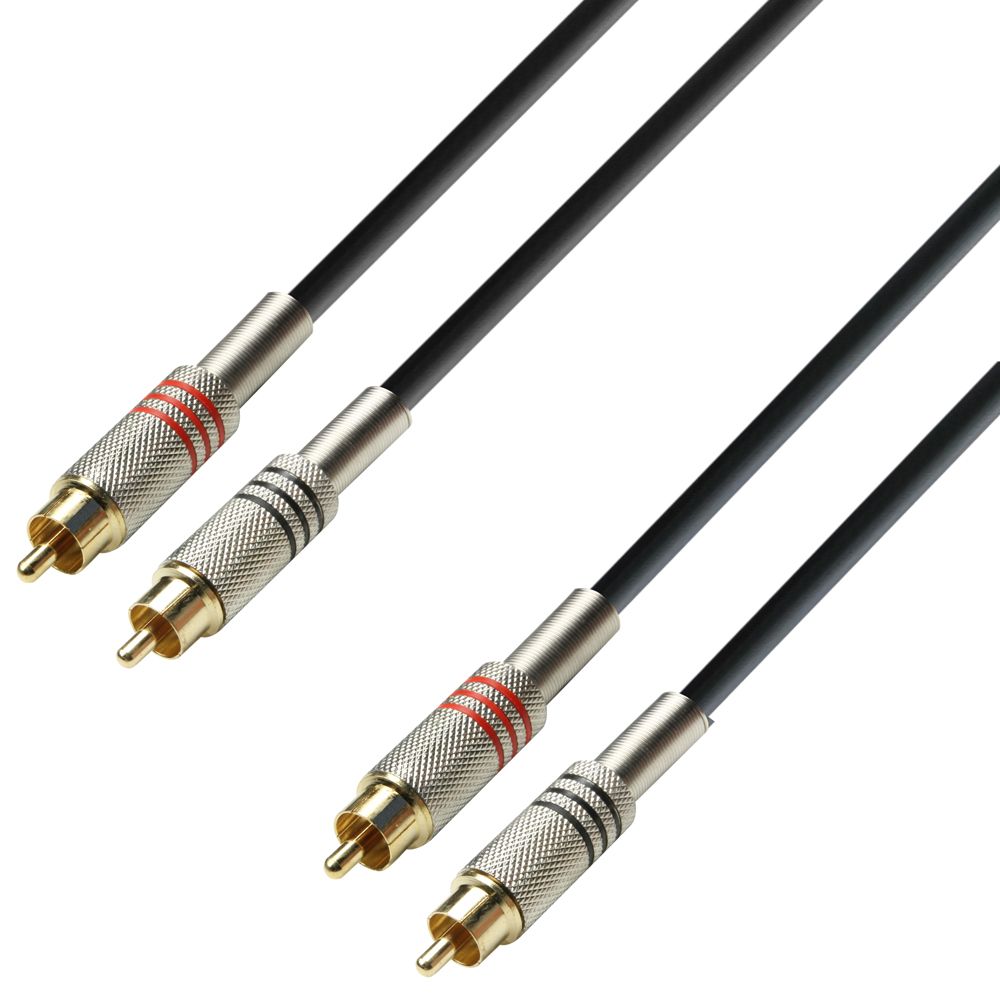

High-quality stereo audio cable with all-metal RCA plugs with gold-plated contacts on both ends. Clear identification of the channels with engraved colour rings, spring strain relief, and high-quality cable material round out the features of this cable. Equally suitable for studio or ambitious hi-fi applications.
