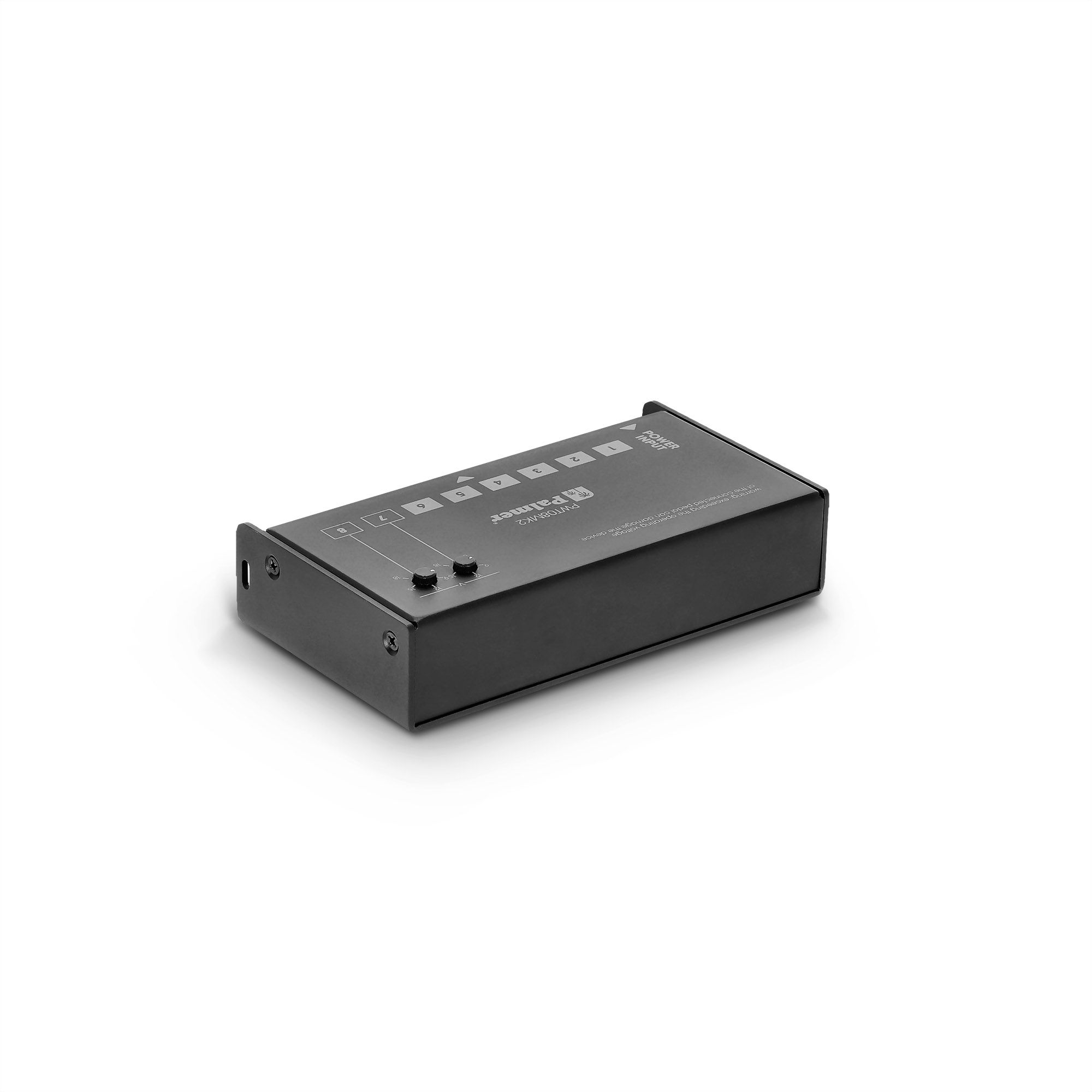

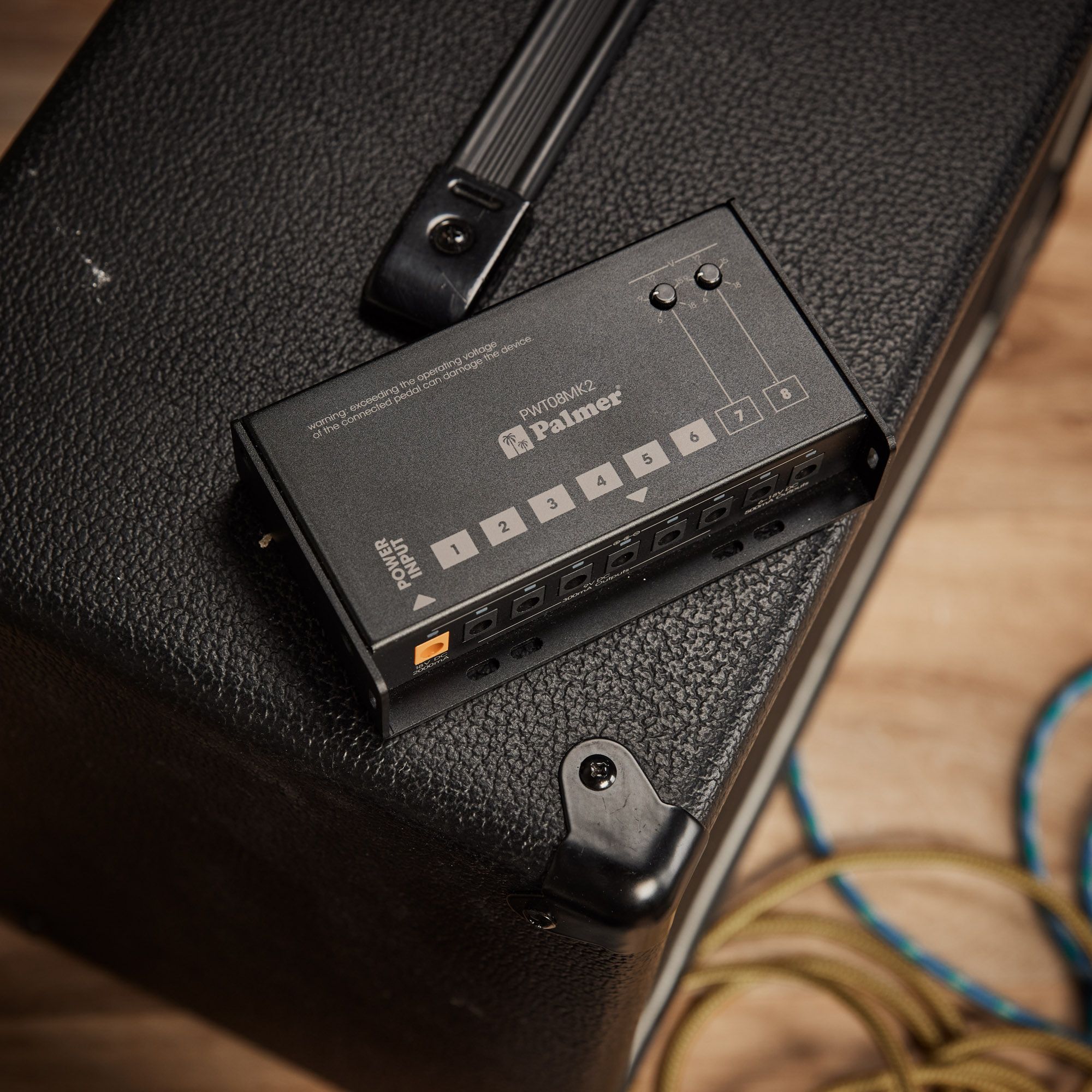

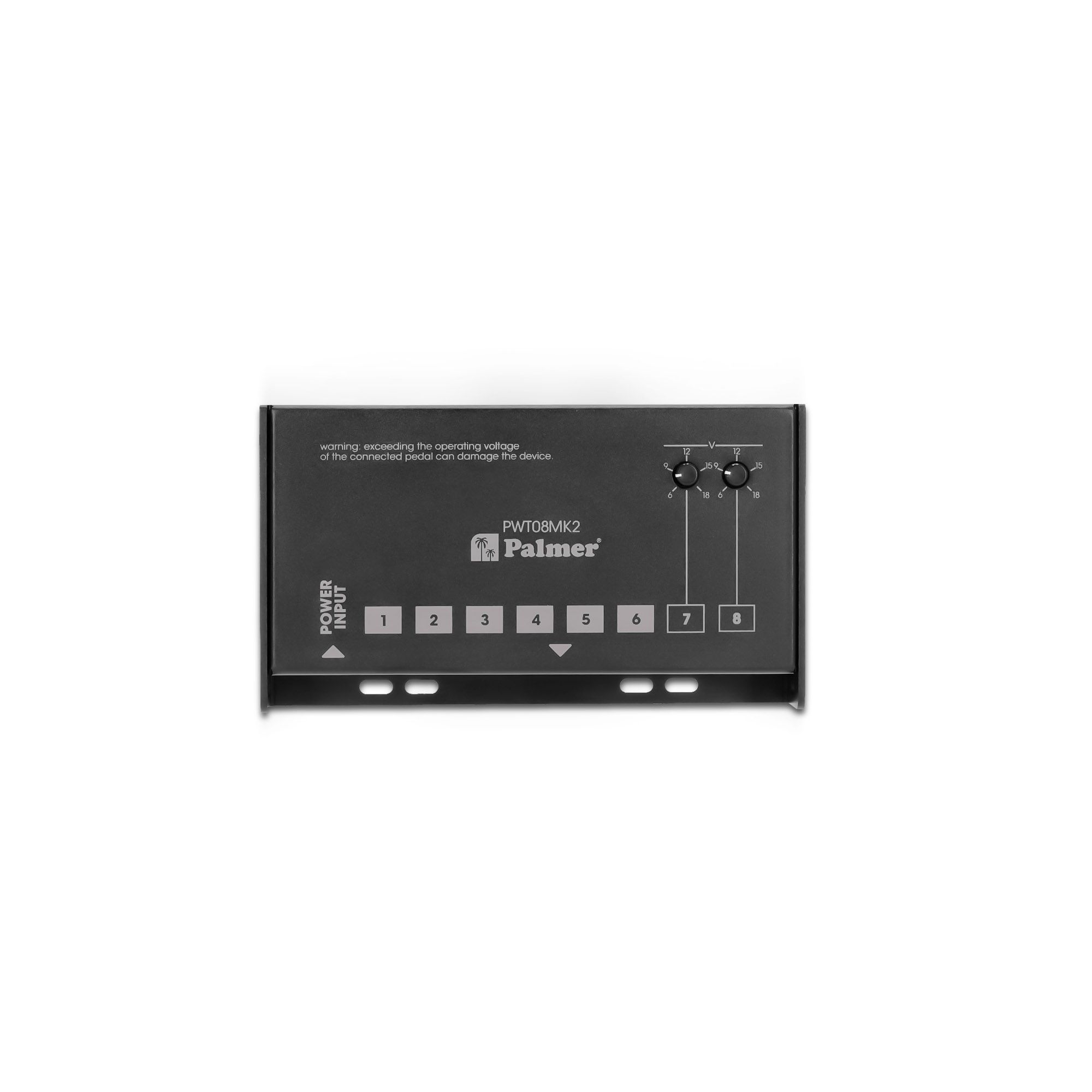

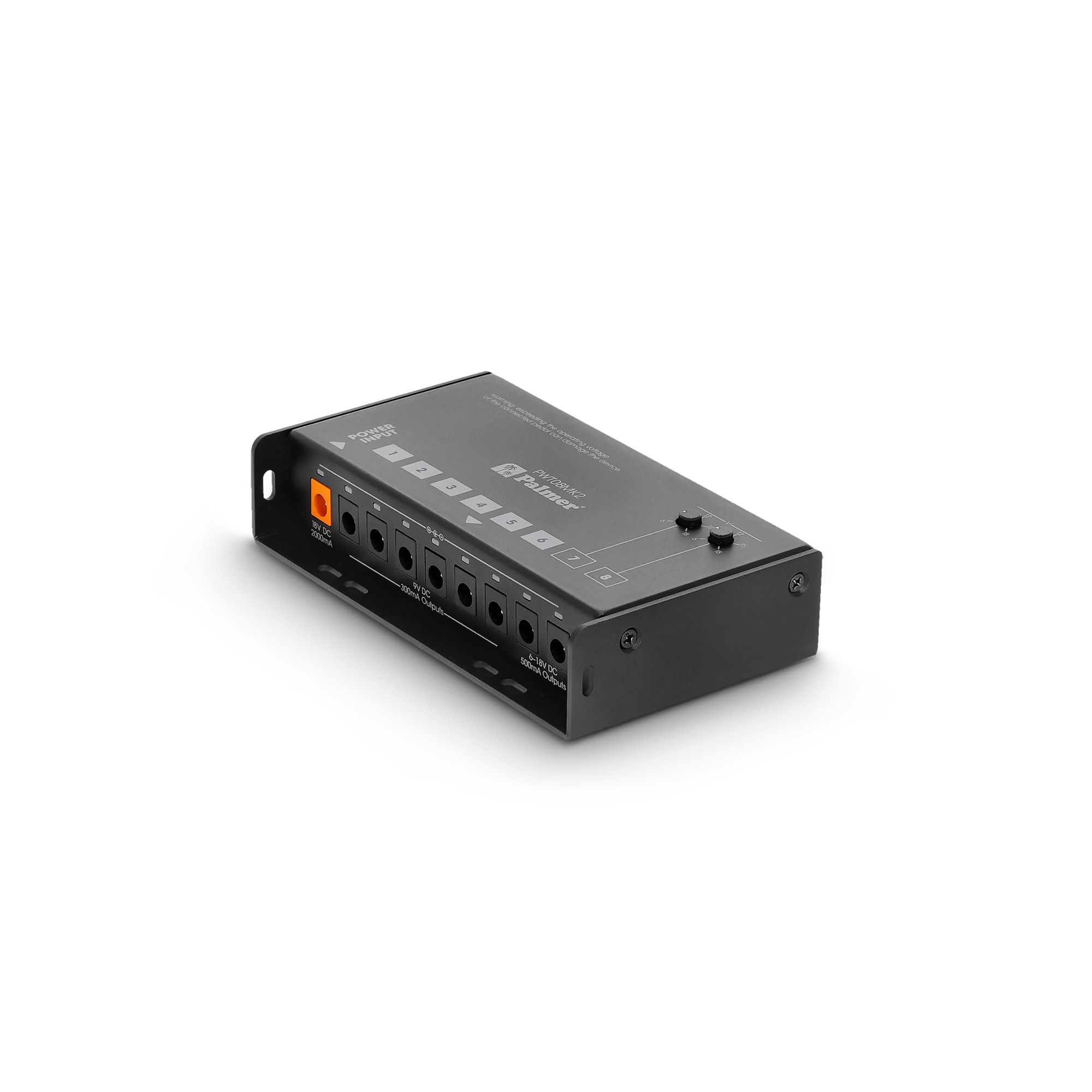

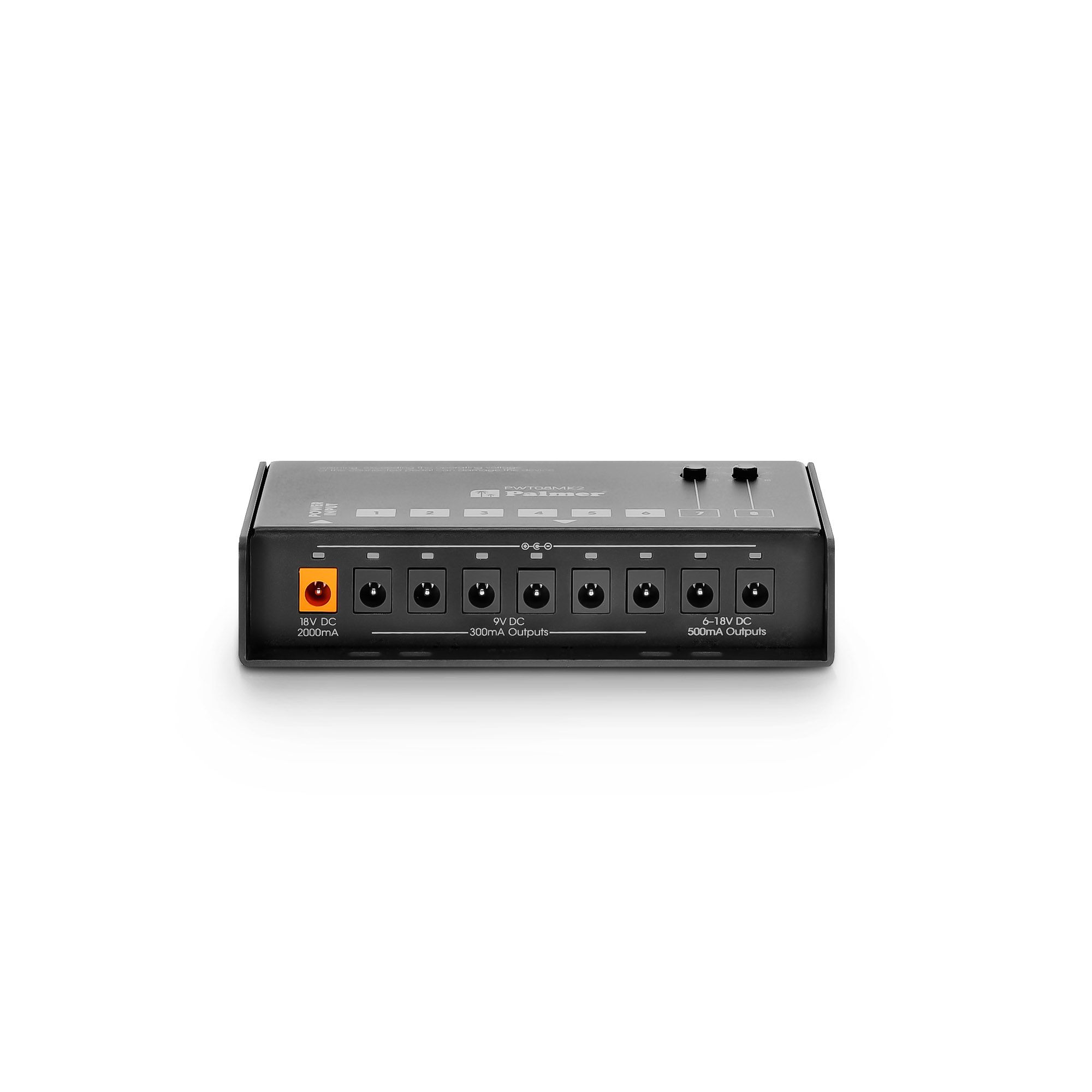

Product information "PWT 08 MK2"

No unwanted noise, plenty of output for power-hungry pedals, and slim design

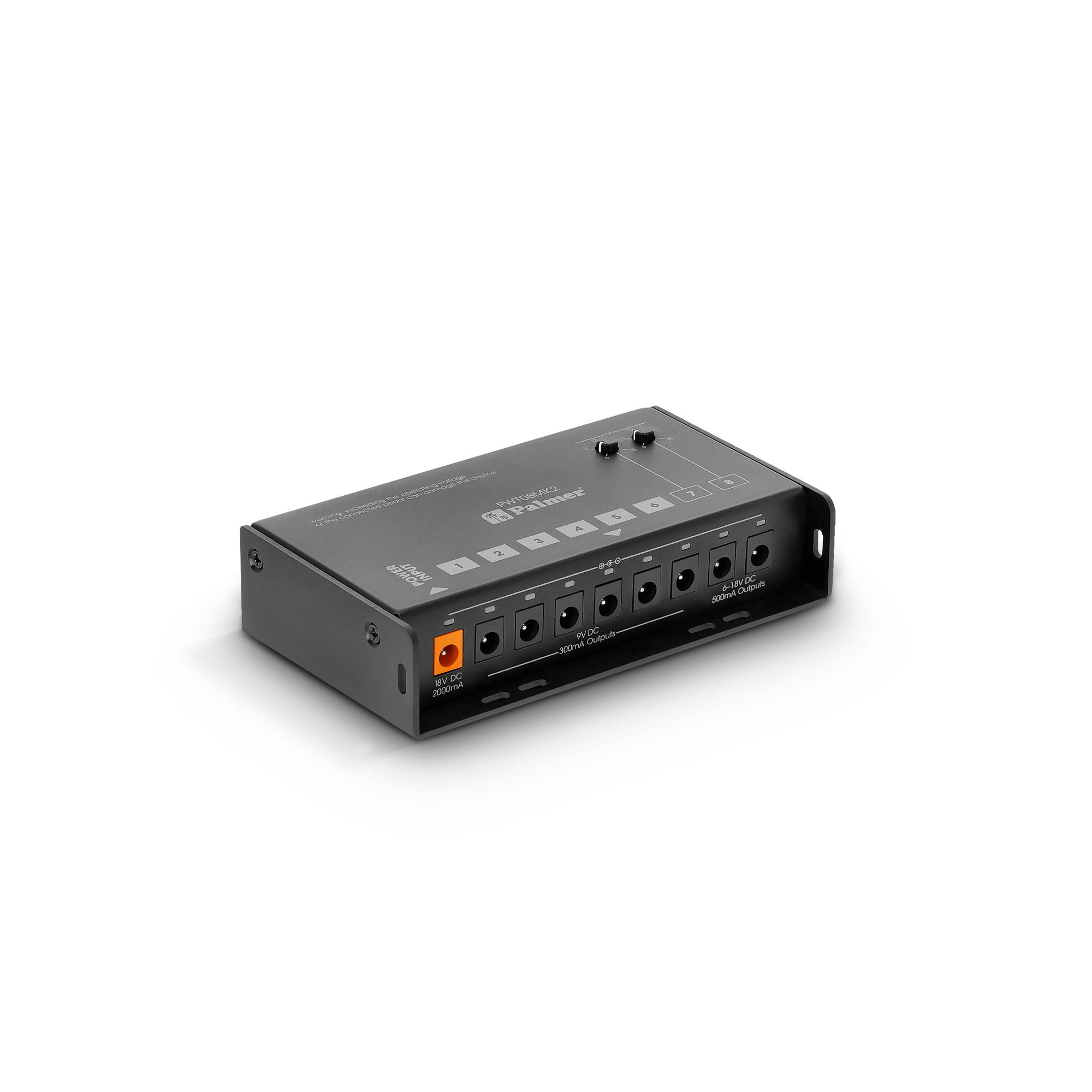

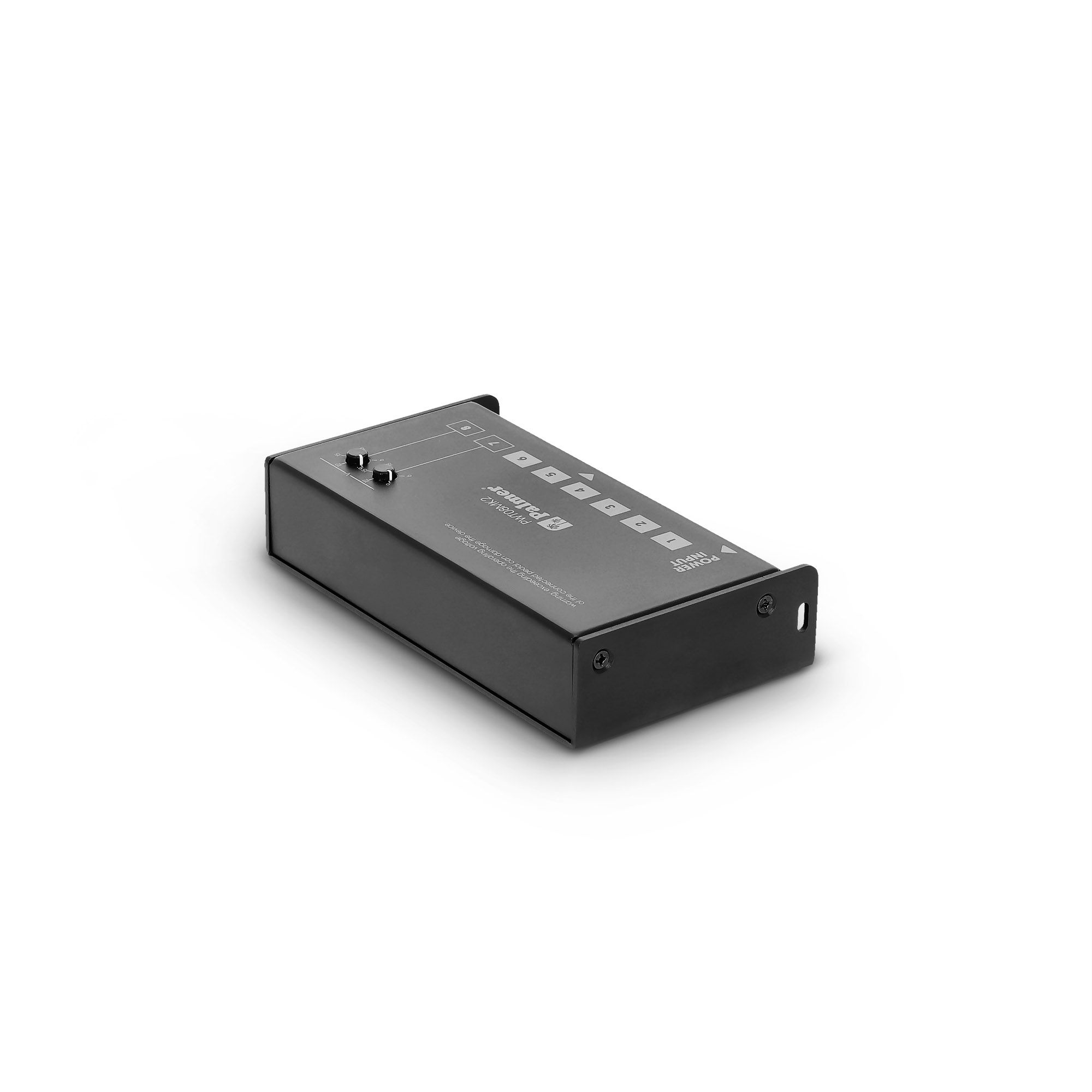

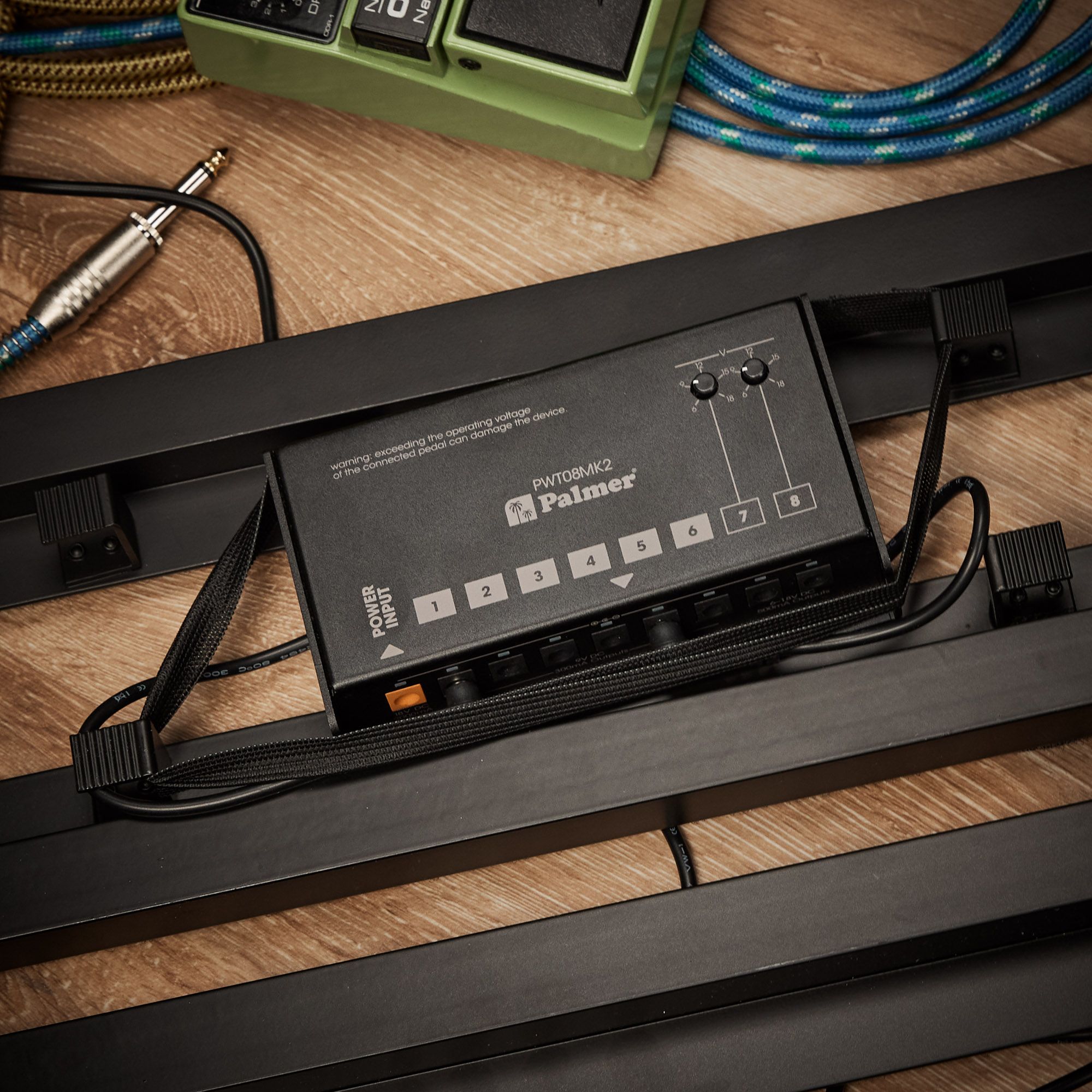

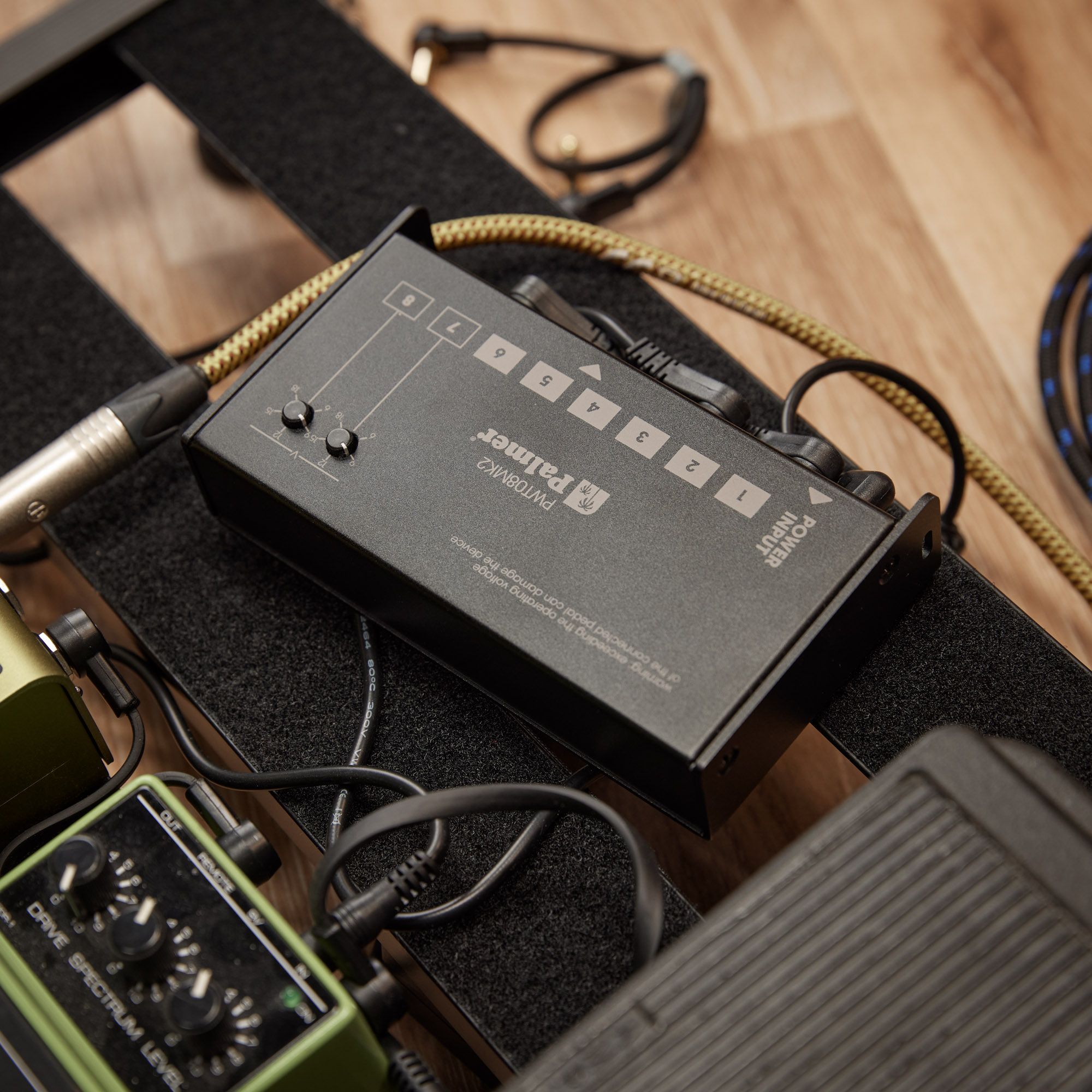

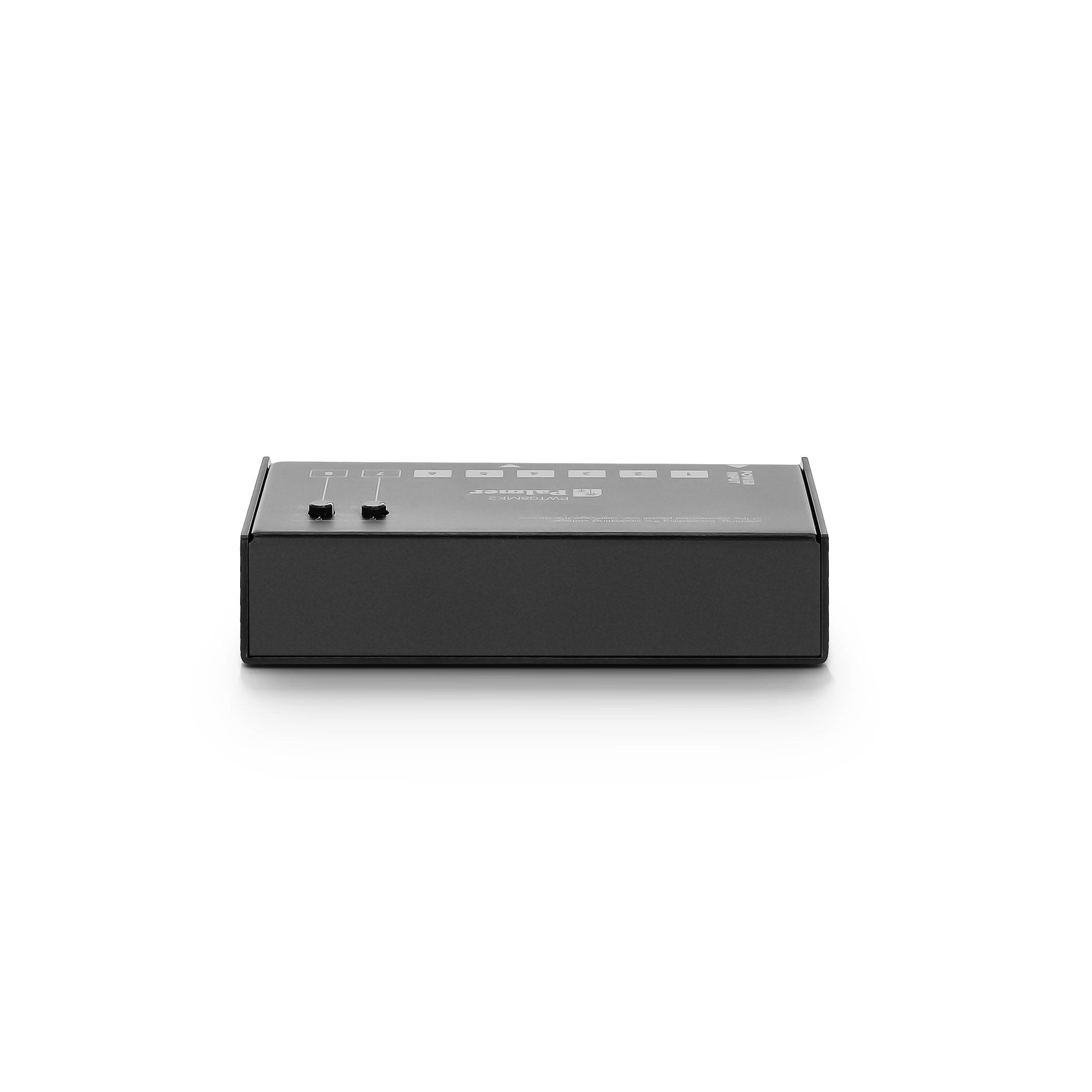

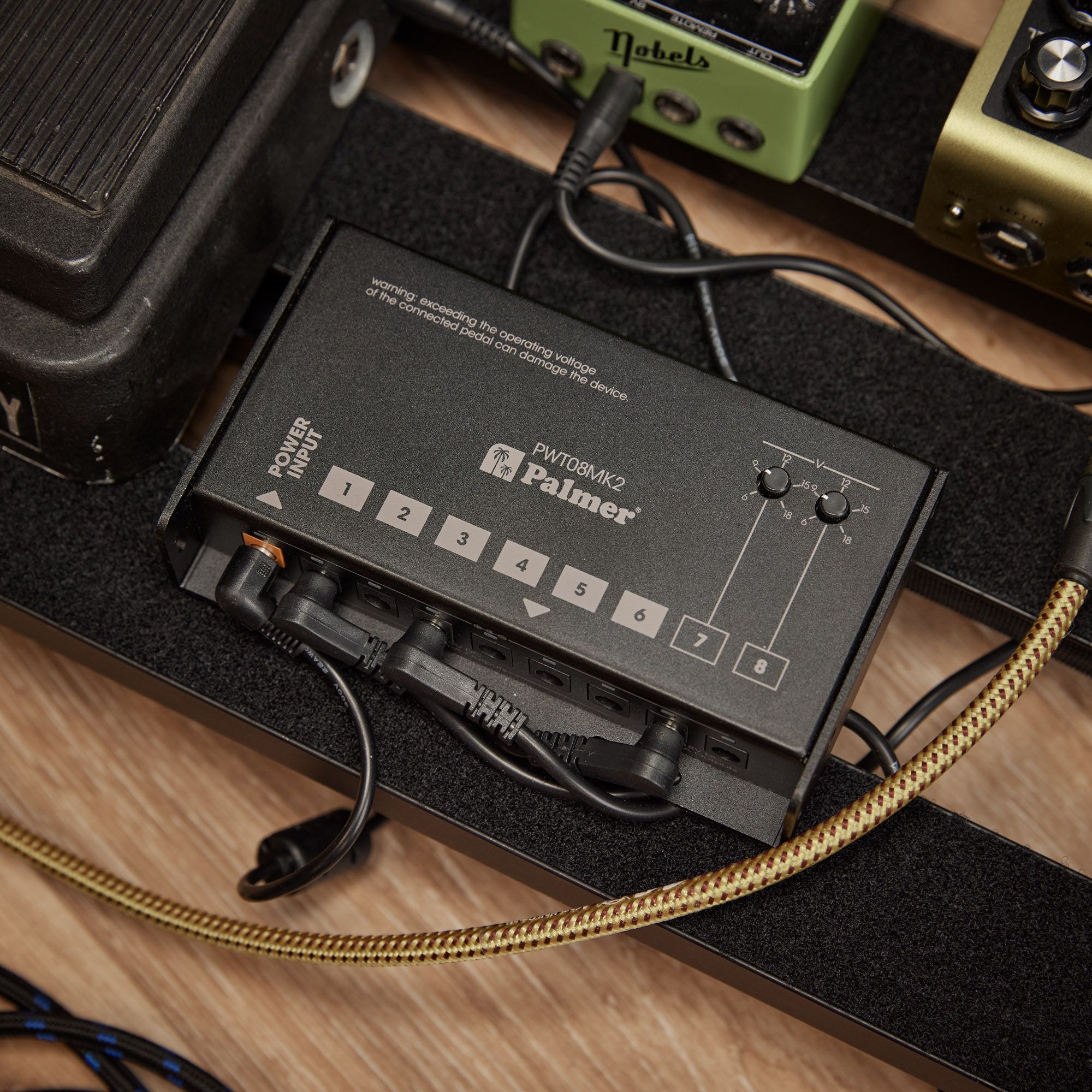

The PWT 08 MK2 power supply stands out with its slim design, which easily fits under almost any pedal boards. The total capacity of 2,000 mA is distributed over eight individually isolated 9V DC outputs.

Two of the outputs are adjustable between 6 and 18 volts to simulate the voltage drop of old batteries, or to feed effects pedals with higher voltage requirements. In addition, these two individually isolated outputs provide 500 mA each, making them ideal for digital effects pedals with high current requirements. The other six individually isolated outputs provide 300 mA each.

The PWT 08 MK2 power supply is regulated for a stable voltage supply, and is protected against short circuit and overvoltage issues. The PWT 08 MK2 pedalboard power supply is also equipped with a power LED on the input socket, and a two-colour LED on all outputs to indicate output status.

It comes with the appropriate US/UK/EU power adapter and a complete set of DC cables.

The PWT 08 MK2 is the ideal solution for a low-noise pedalboard that features power-hungry effects pedals.

Output 7-8: 6 V - 18 V (500 mA max)
Indicators: Power, status LED (green: output OK / red: error)
Product type: Power Supplies
Polarity: Center negative
Noise: < 40 µV (Output 1 - 8)
Width: 5.51 in
Output voltage: 6 V - 18 V
Accessories: Plug-in power supply PW18VDCUNI (EU/UK/US), 8x DC cable (60cm), 4x rubber feet
Height: 1.26 in
Depth: 3.15 in
single isolated DC outputs: 8
Output 1-6: 9 V (300 mA max)
Ambient temperature (in operation): 0°C - 40
Controls: Output voltage regulator
Output connectors: 2.1 x 5.5 mm
Individually isolated outputs: Yes
Relative Humidity: < 80 %, not condensing

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Skip product gallery

accessories

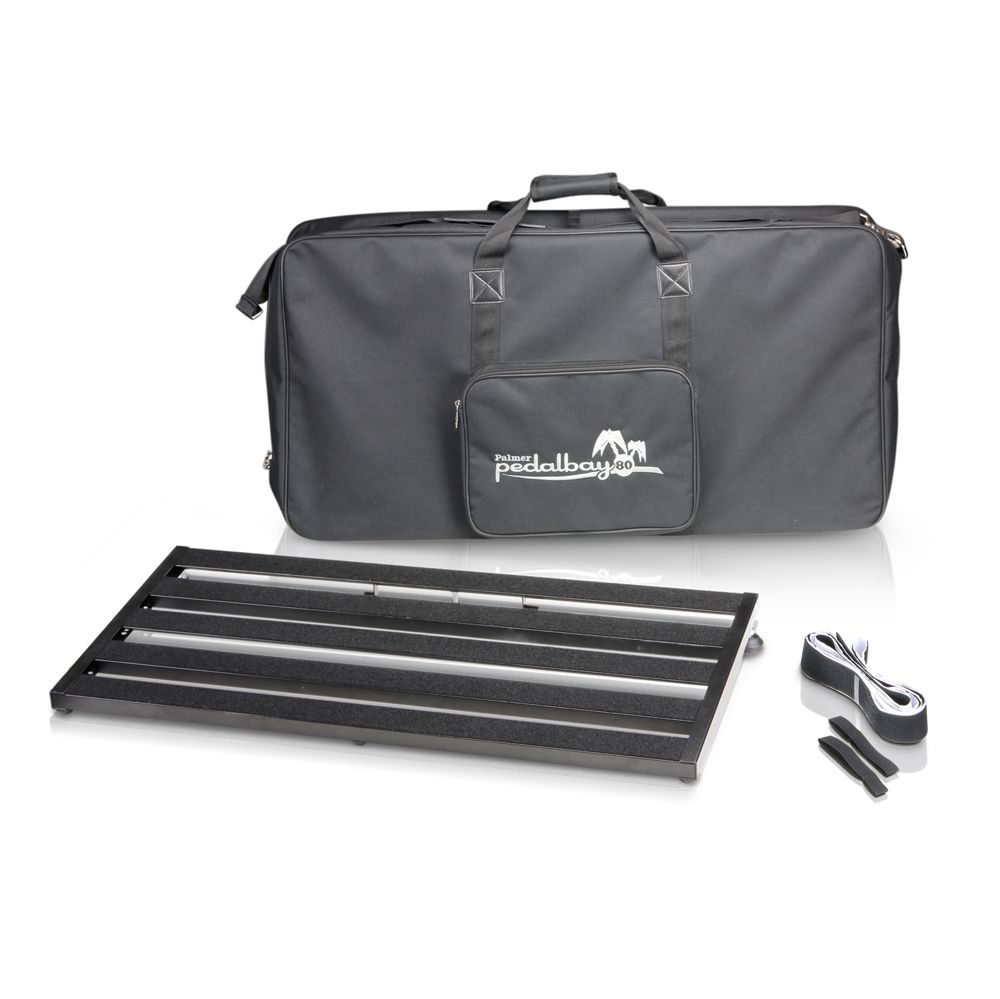

PEDALBAY® 80
PEDALBAY® 80

Universal aluminium Pedalboard for the storage of all commercially available floor effects. The cross bars as well as the height and the tilt of the Pedalboard can be individually adjusted. The cross bars are already covered with Velcro (fleece), a sufficient amount of hook strap is also included. Power supplies and similar peripheral devices can be mounted below the board. For this the Pedalboard features 4 practical hooks on the underside. 2 Elastic bands are supplied - making fixation easy!This set also features a high-quality padded softcase with an accessory compartment and a shoulder strap.

$185.99*

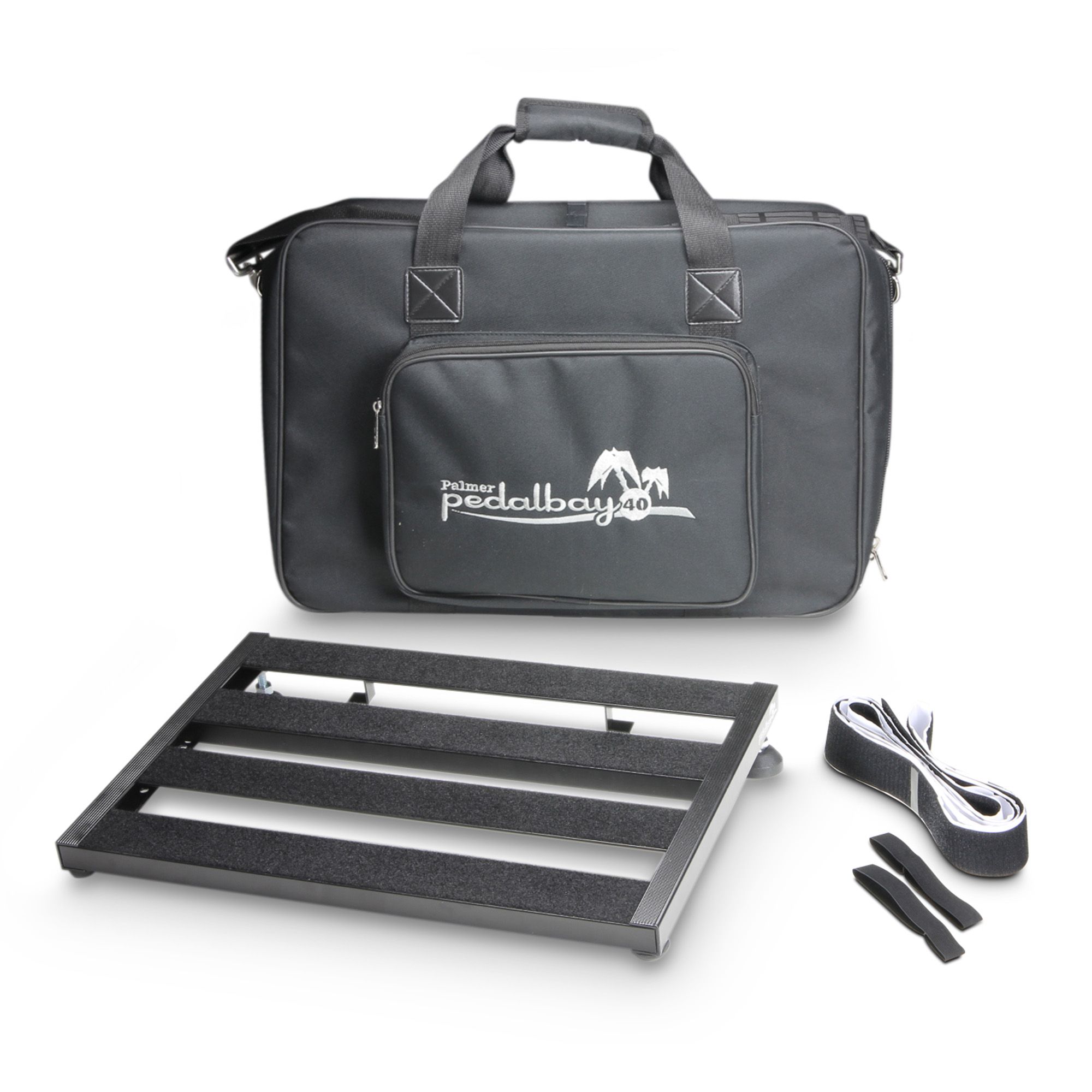

PEDALBAY® 40
PEDALBAY® 40

Universal aluminium Pedalboard for the storage of all commercially available floor effects. The cross bars as well as the height and the tilt of the Pedalboard can be individually adjusted. The cross bars are already covered with Velcro (fleece), a sufficient amount of hook strap is also included. Power supplies and similar peripheral devices can be mounted below the board. For this the Pedalboard features 4 practical hooks on the underside. 2 Elastic bands are supplied - making fixation easy!This set also features a high-quality padded softcase with an accessory compartment and a shoulder strap.

$119.99*

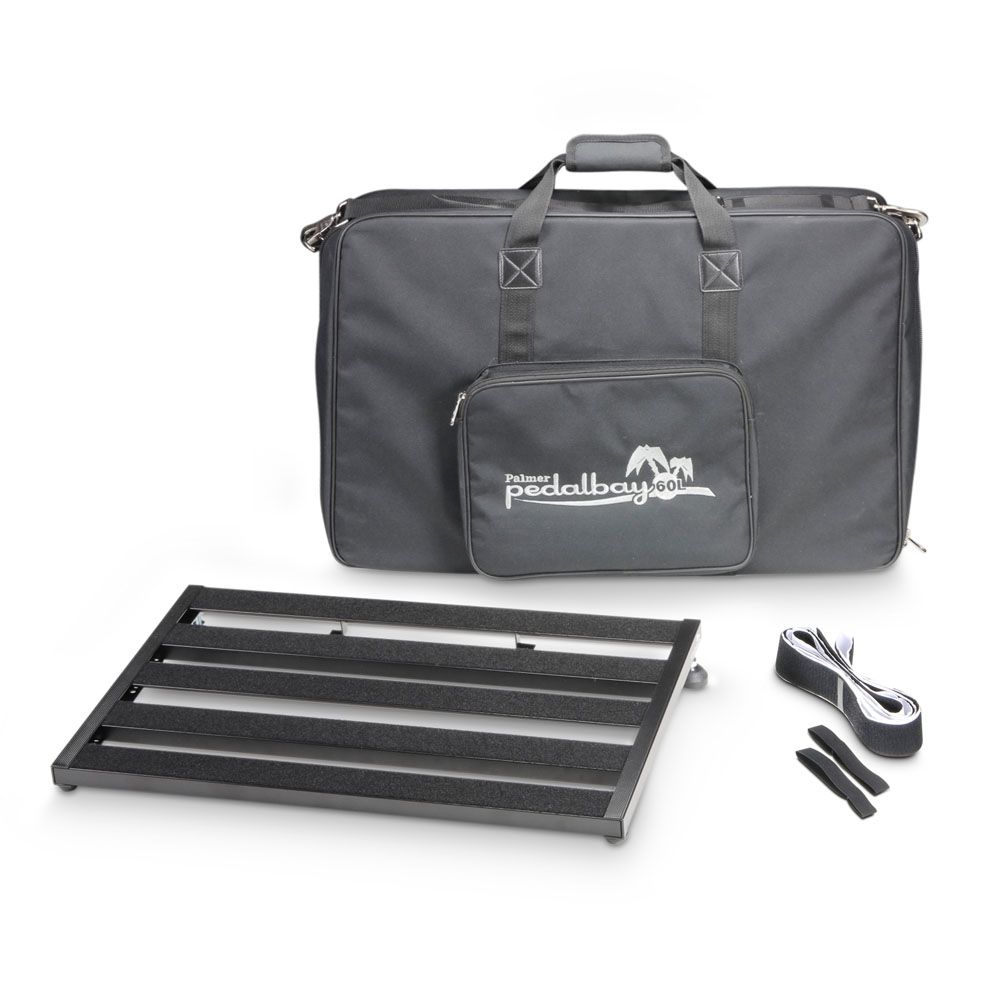

PEDALBAY® 60 L
PEDALBAY® 60 L

Universal aluminium Pedalboard for the storage of all commercially available floor effects. The cross bars as well as the height and the tilt of the Pedalboard can be individually adjusted. The cross bars are already covered with Velcro (fleece), a sufficient amount of hook strap is also included. Power supplies and similar peripheral devices can be mounted below the board. For this the Pedalboard features 4 practical hooks on the underside. 2 Elastic bands are supplied - making fixation easy!This set also features a high-quality padded softcase with an accessory compartment and a shoulder strap.

$149.99*

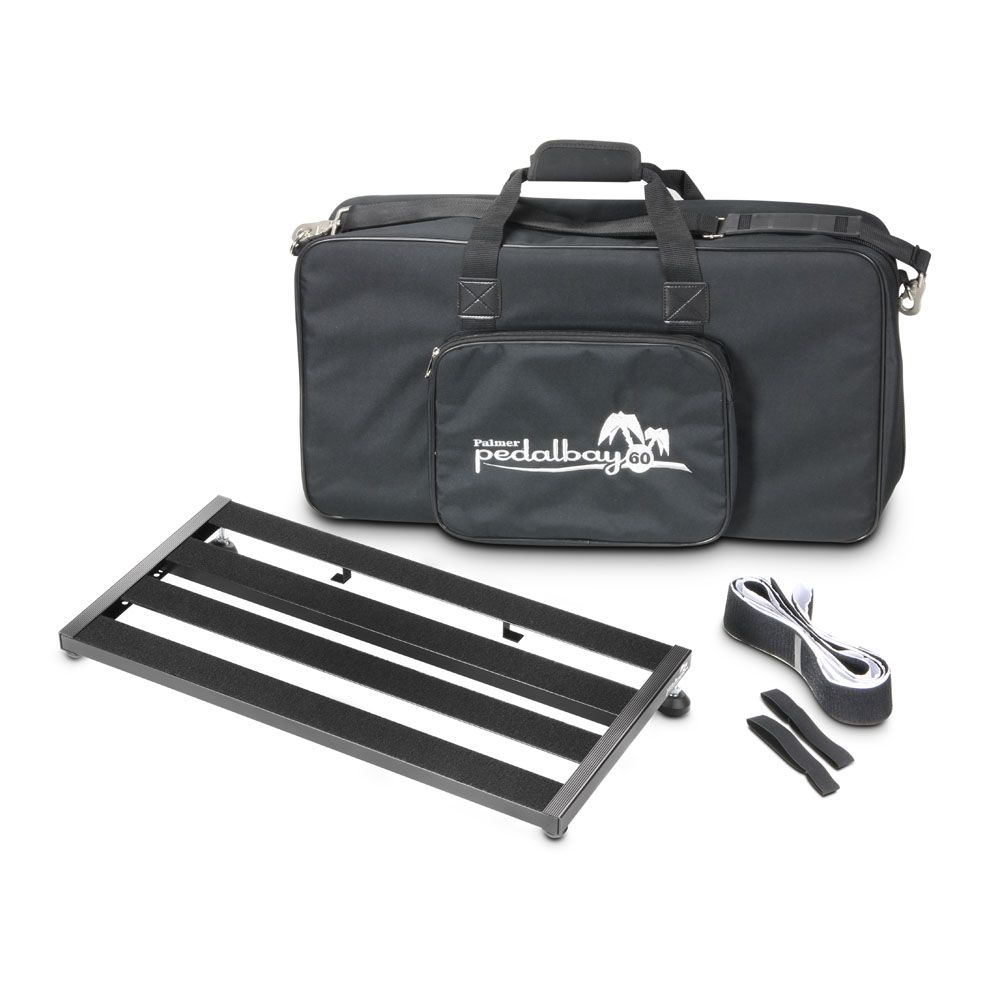

PEDALBAY® 60
