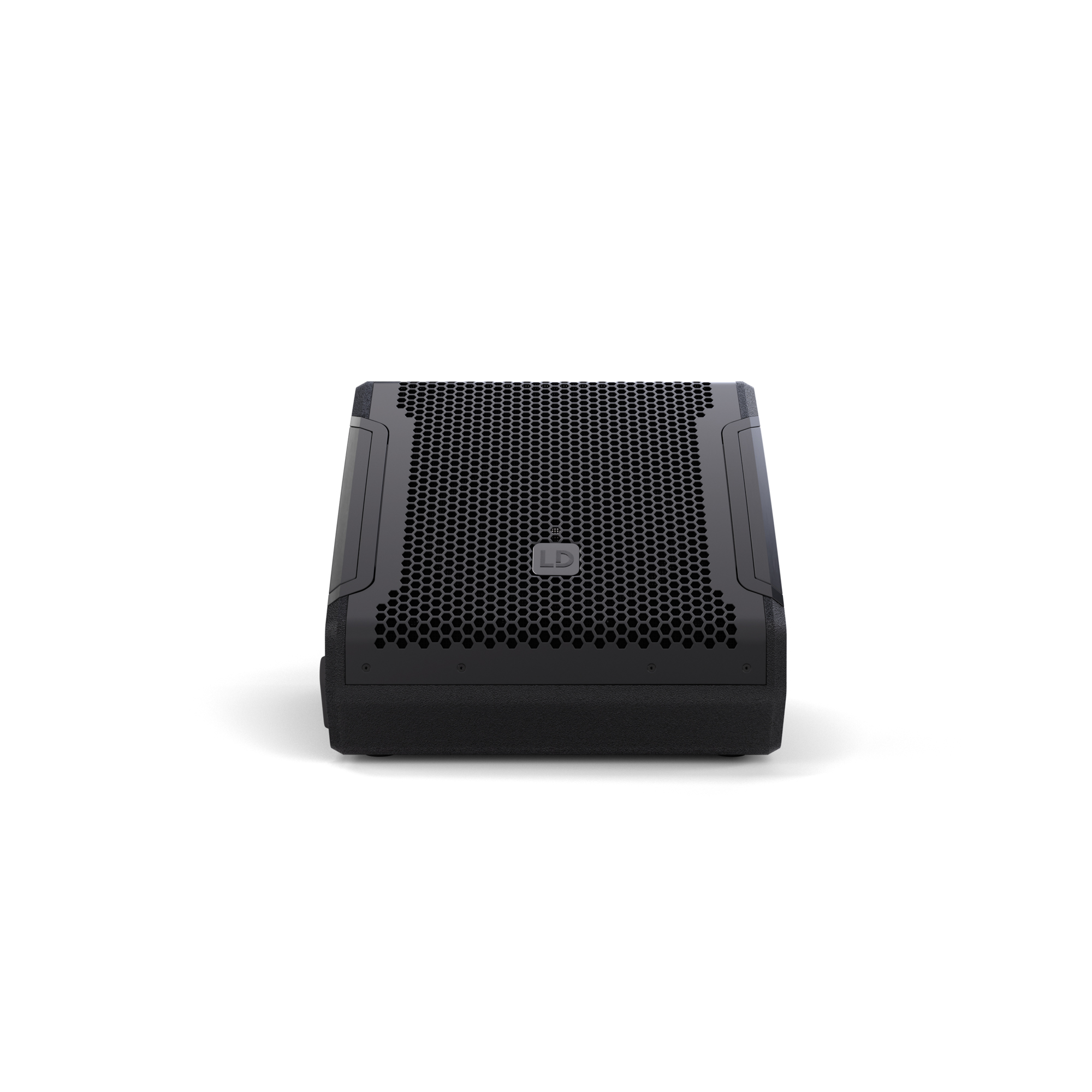

MON 8 A G3
8" powered coaxial stage monitor
$499.99
Backordered – More on the Way!
Product information "MON 8 A G3"

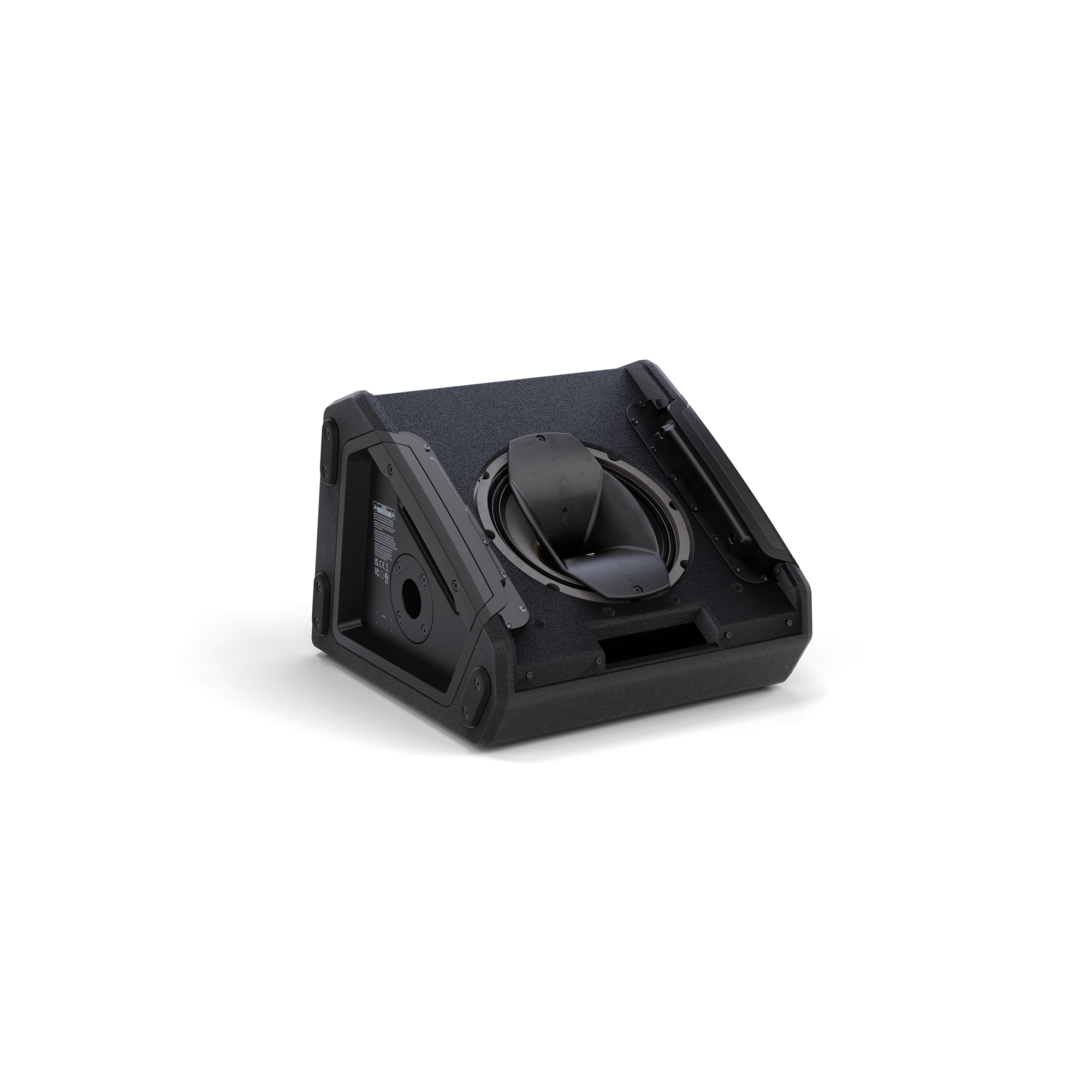

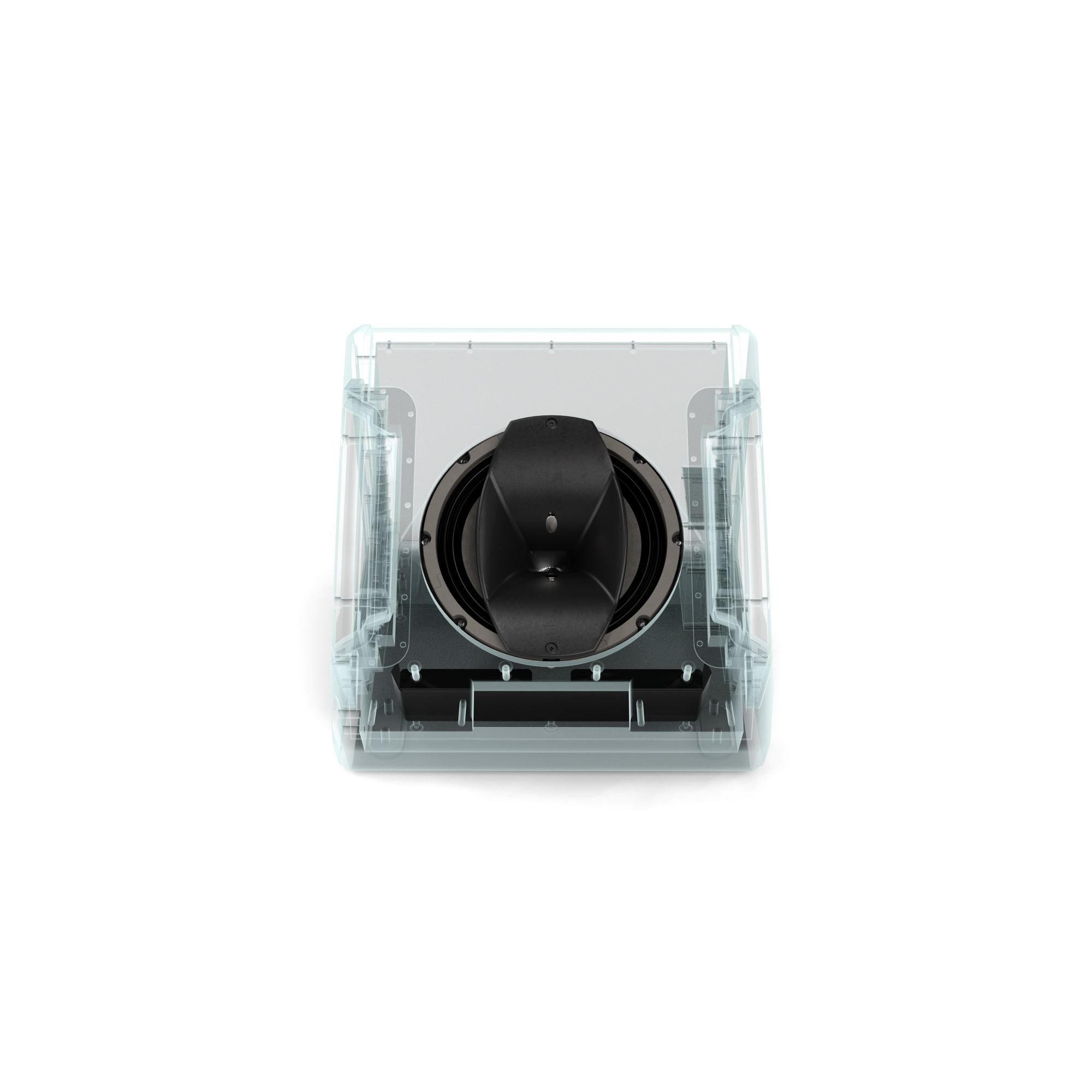

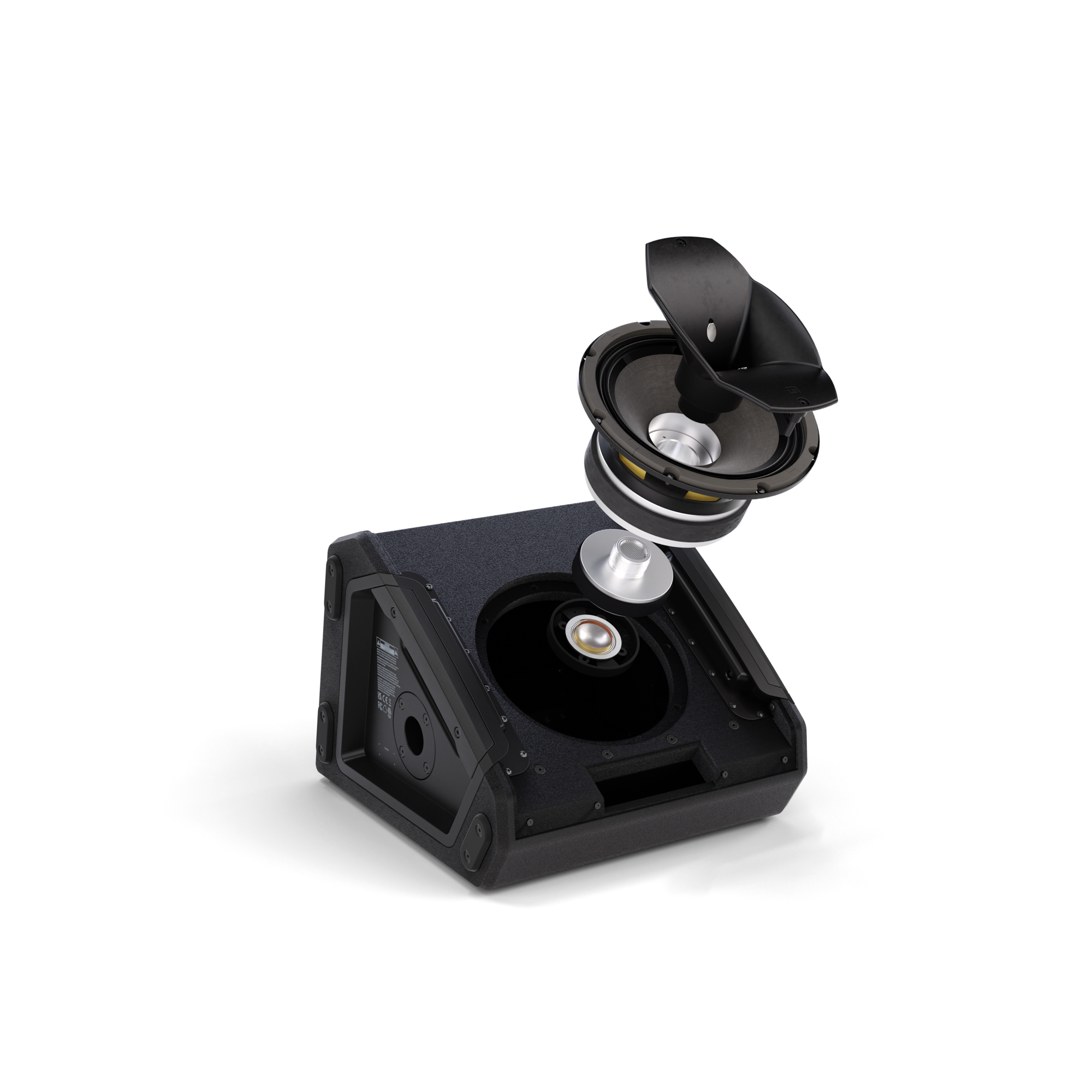

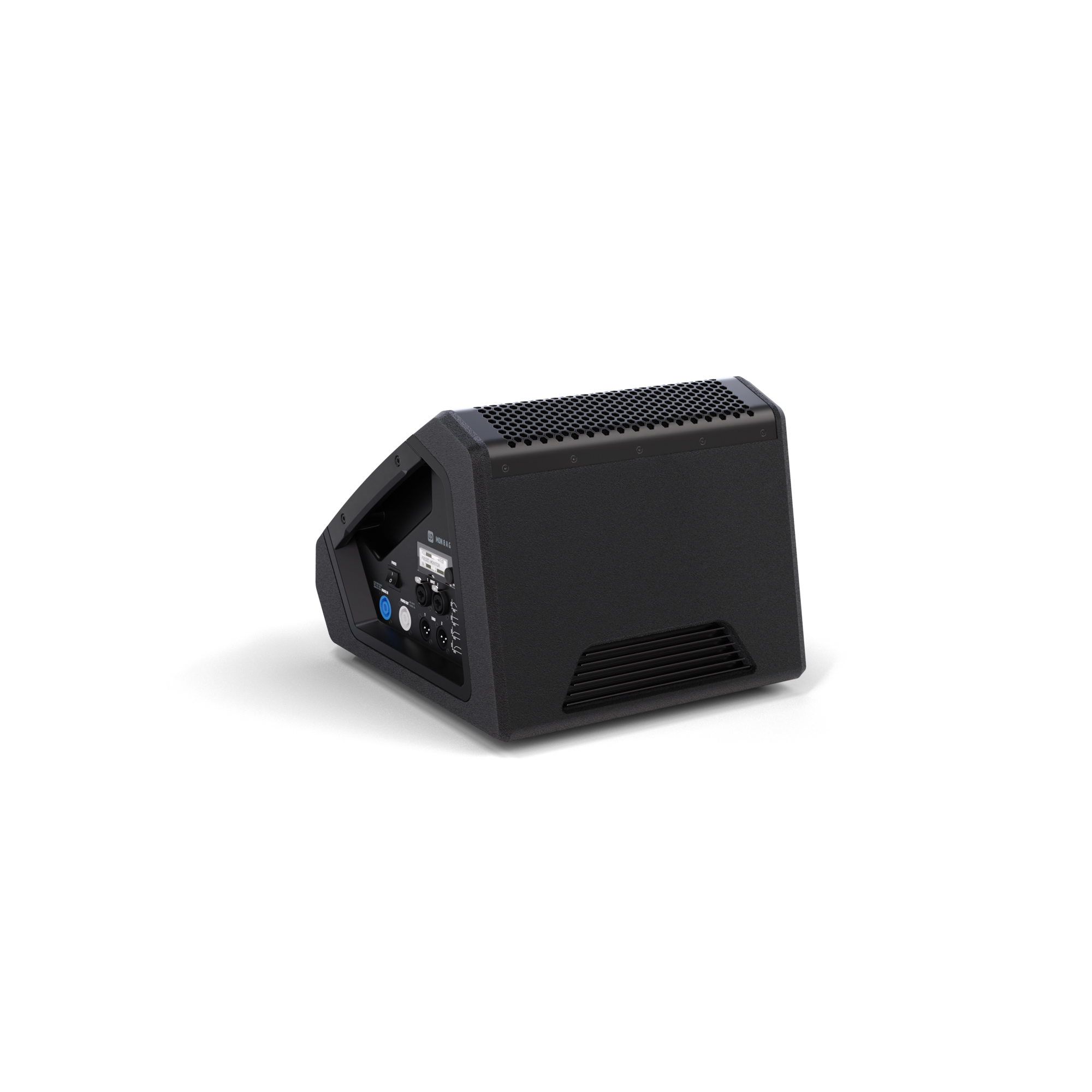

The MON 8 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

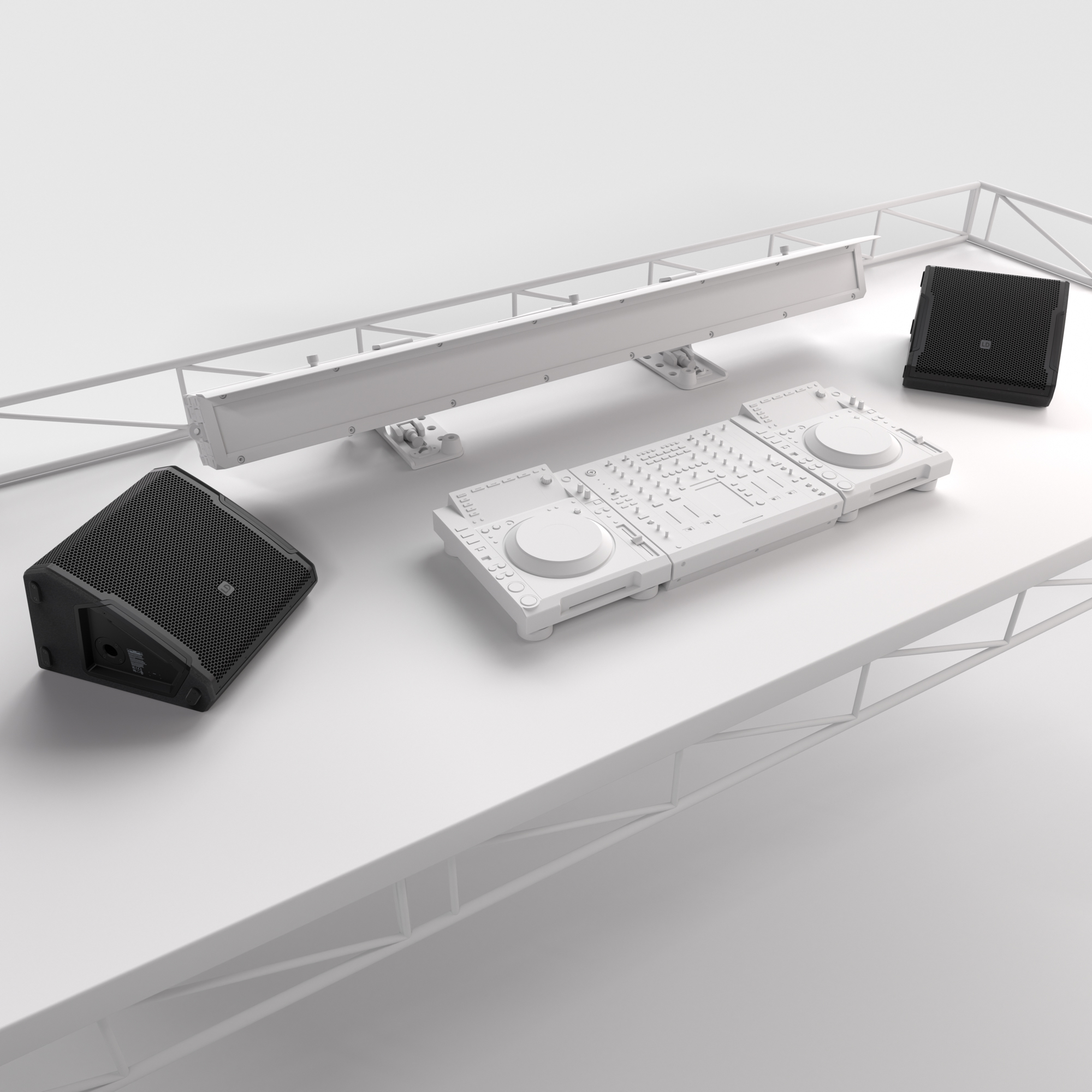

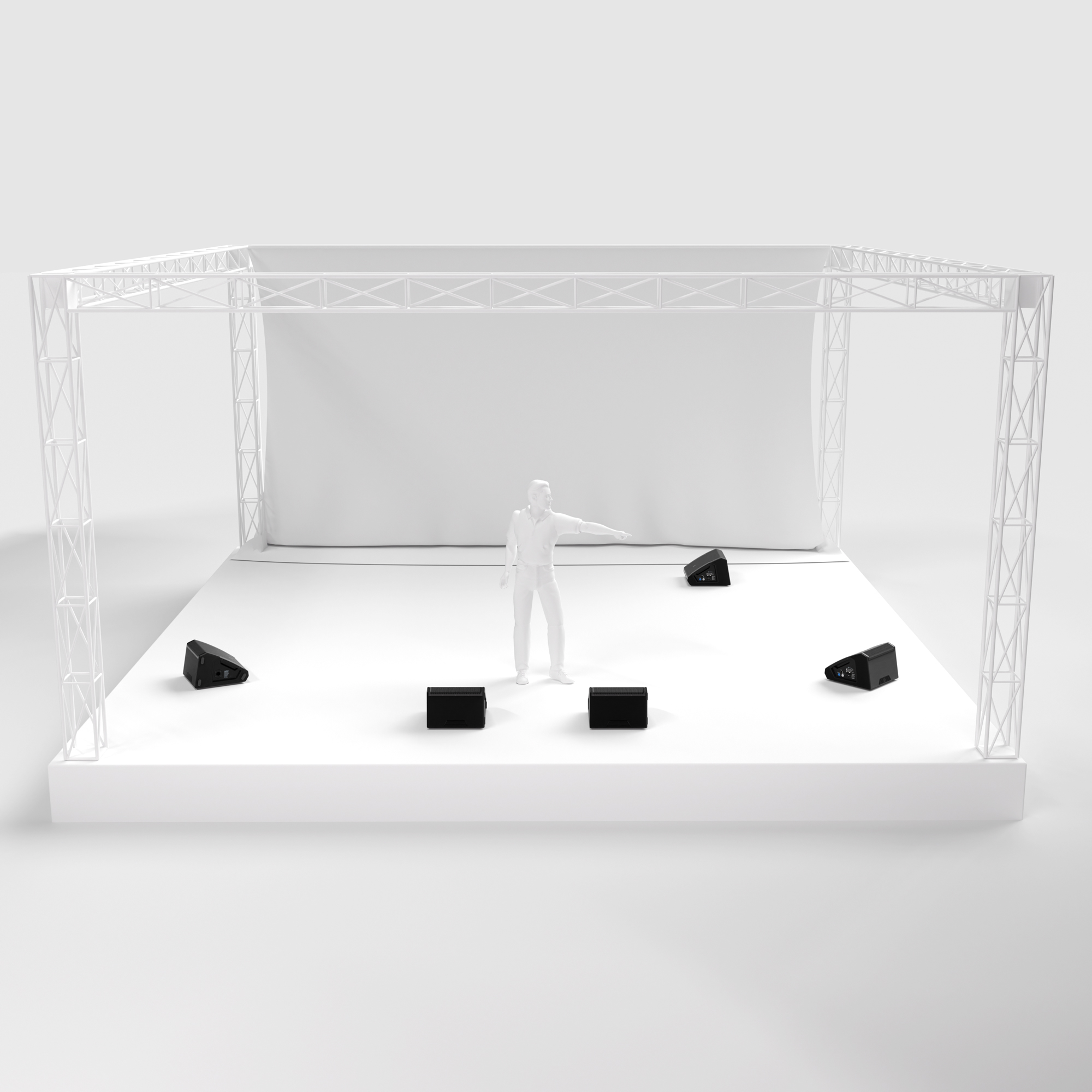

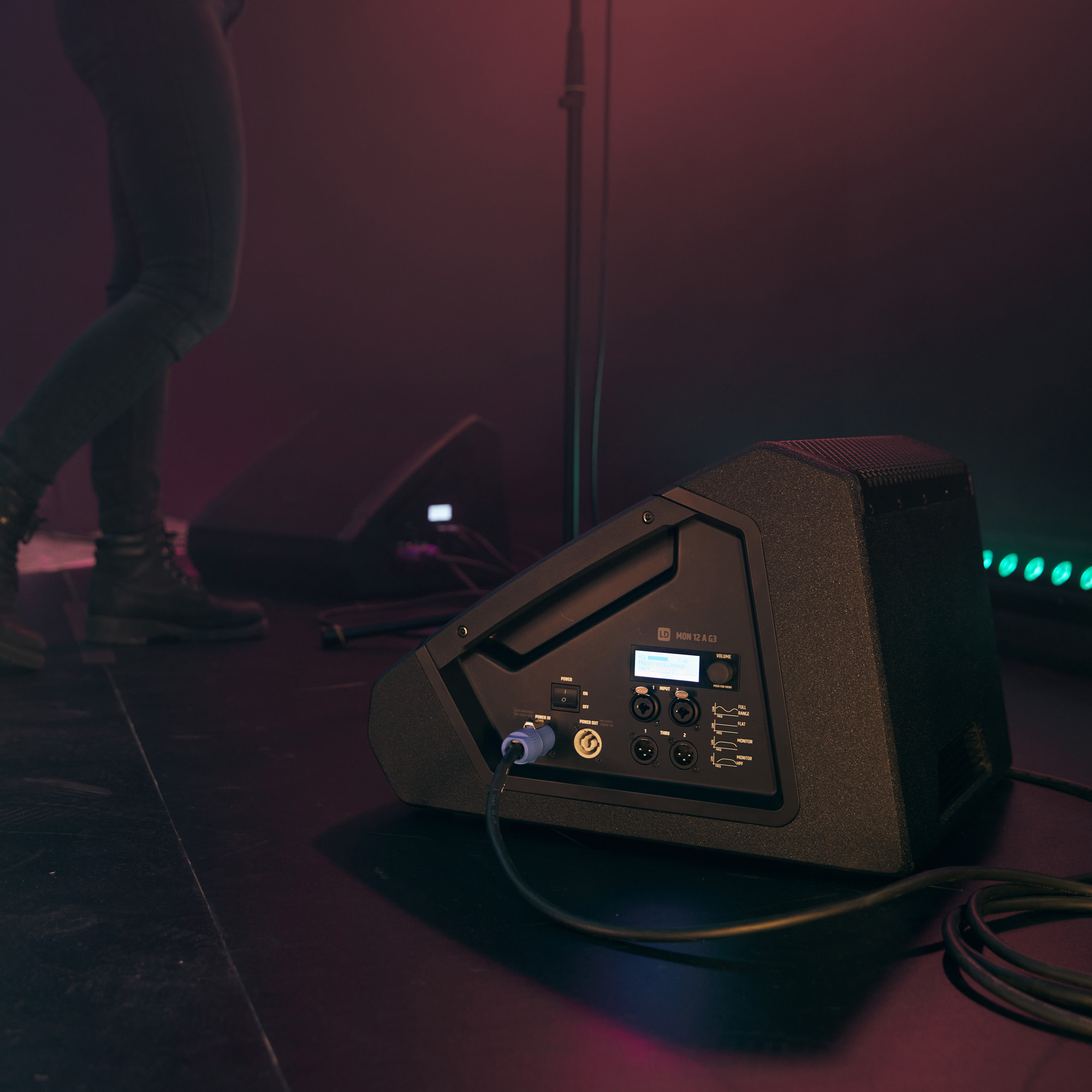

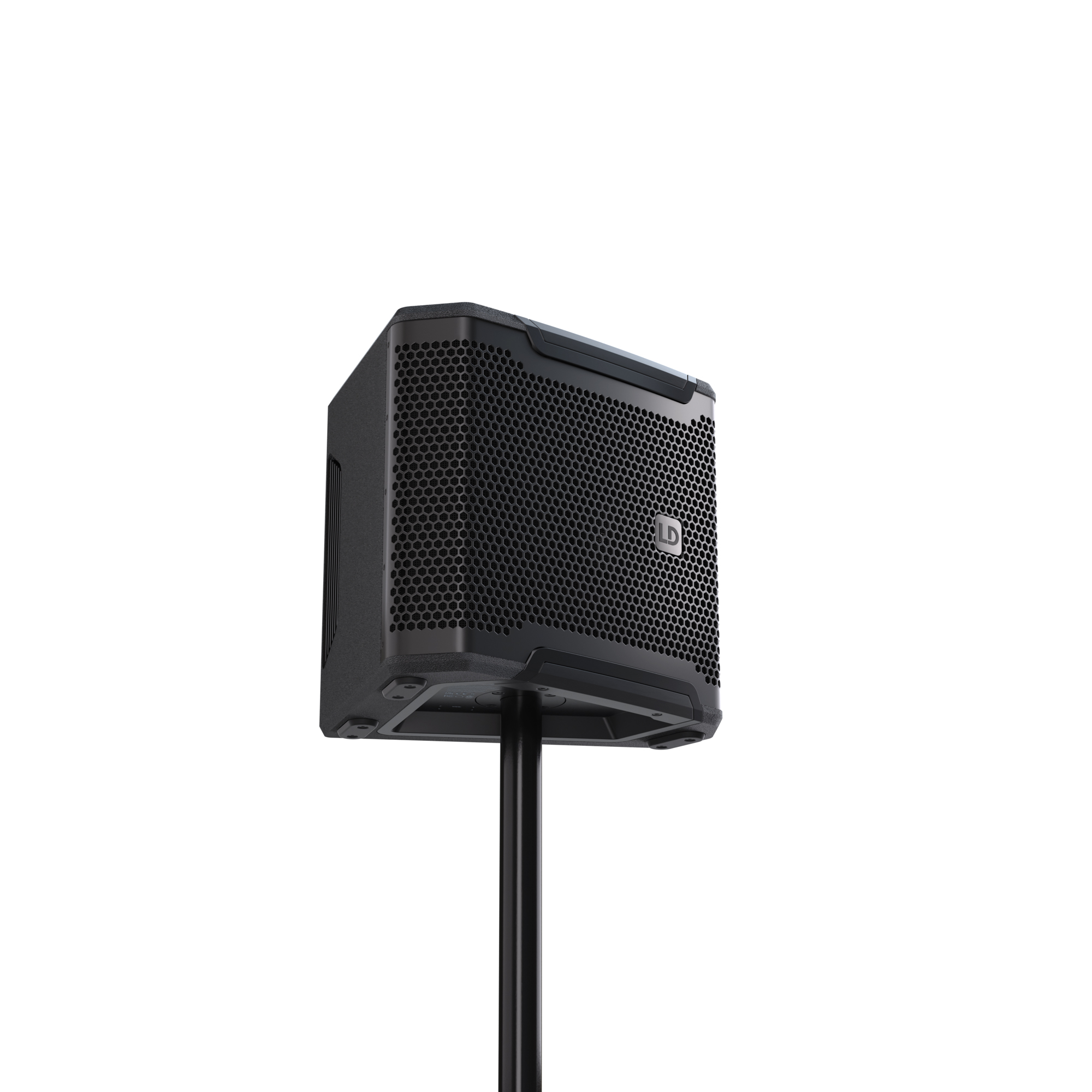

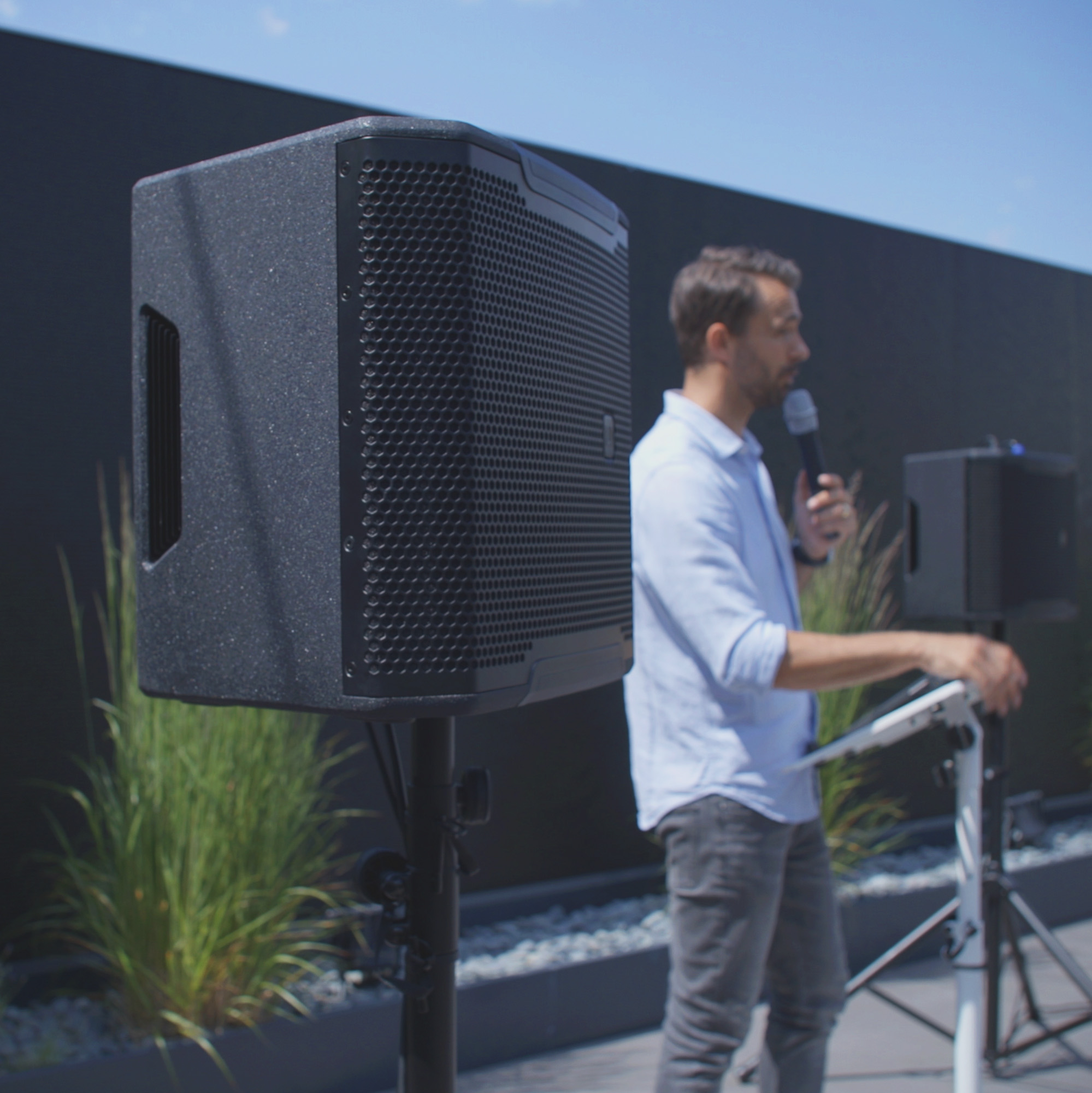

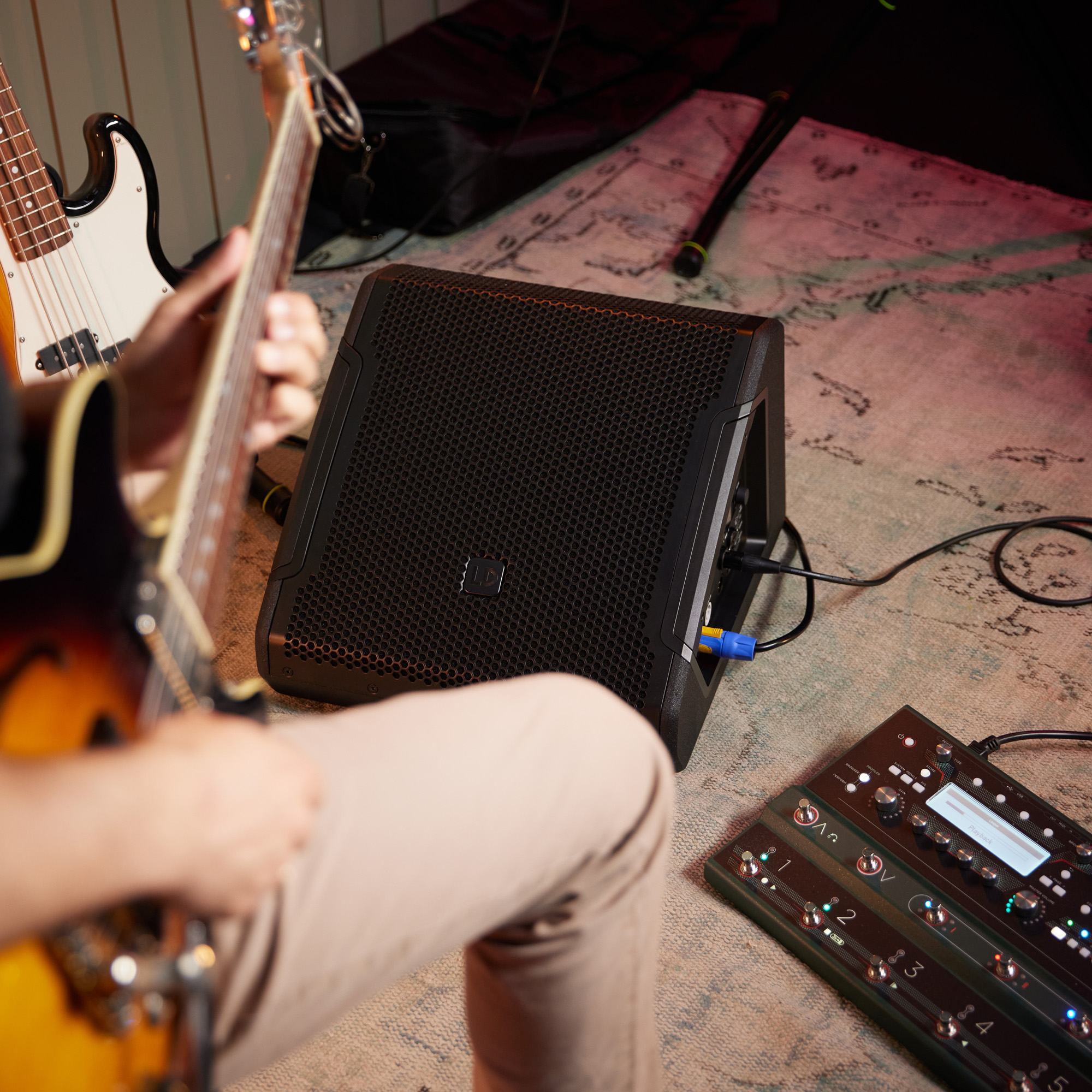

As the smallest member of the new stage monitor family, the MON 8 A G3 is particularly inconspicuous and flexible in use: as a stage monitor, in a DJ setup or on a speaker stand as a FOH speaker, as a satellite in 2.1 systems or as a delay line speaker. At the same time, the MON 8 A G3 offers a frequency response of up to 59 Hz, which is unusually low for its size, and thus full-range sound.

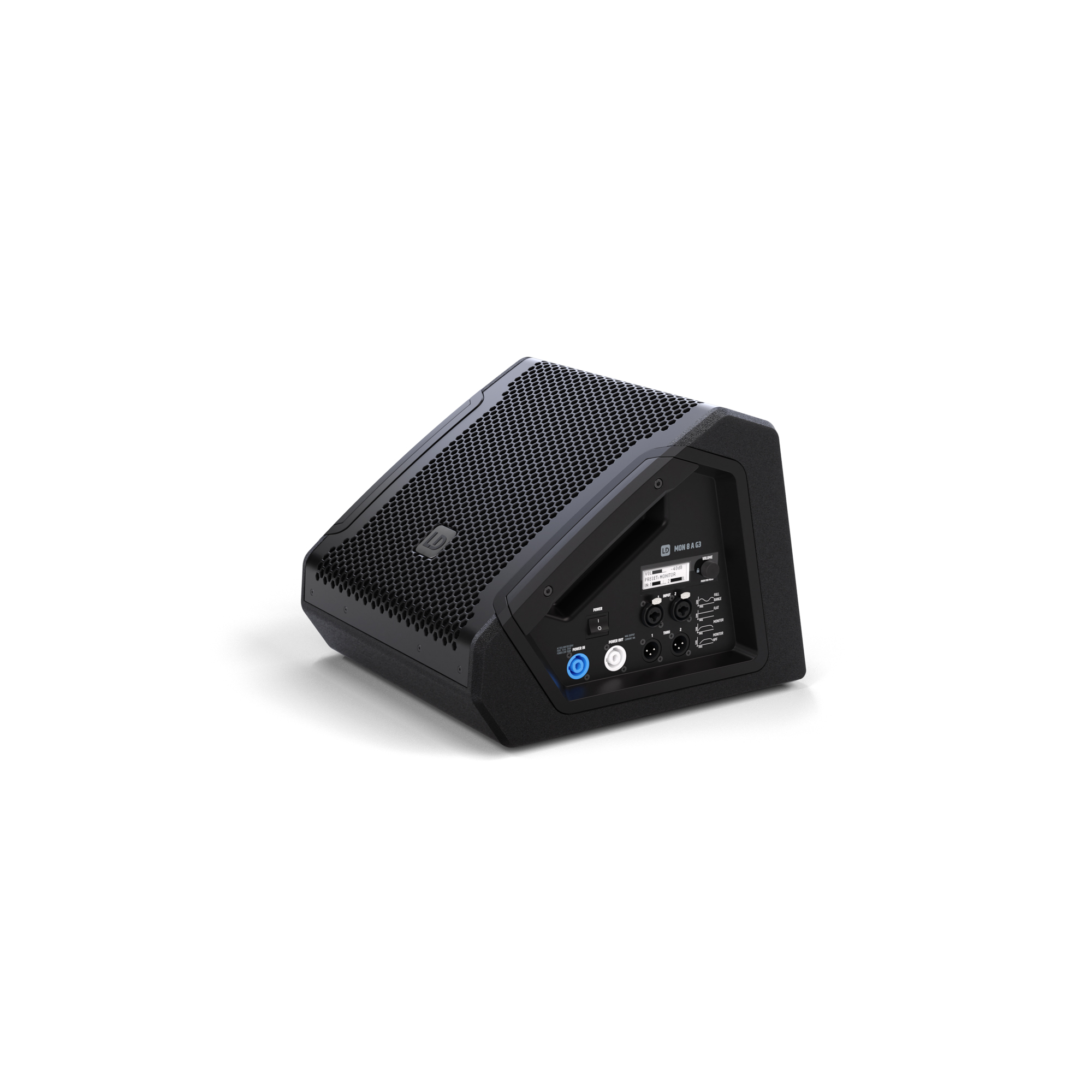

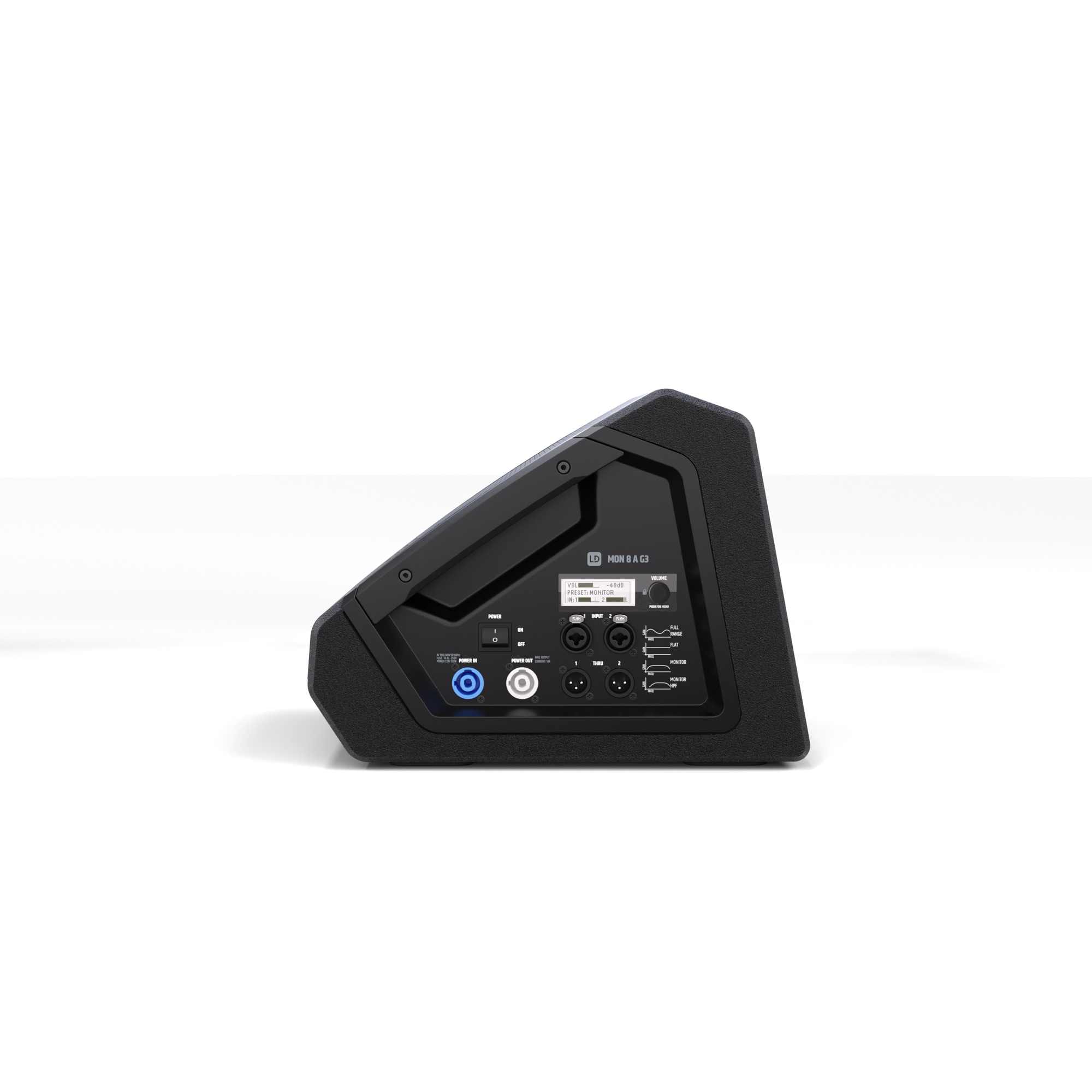

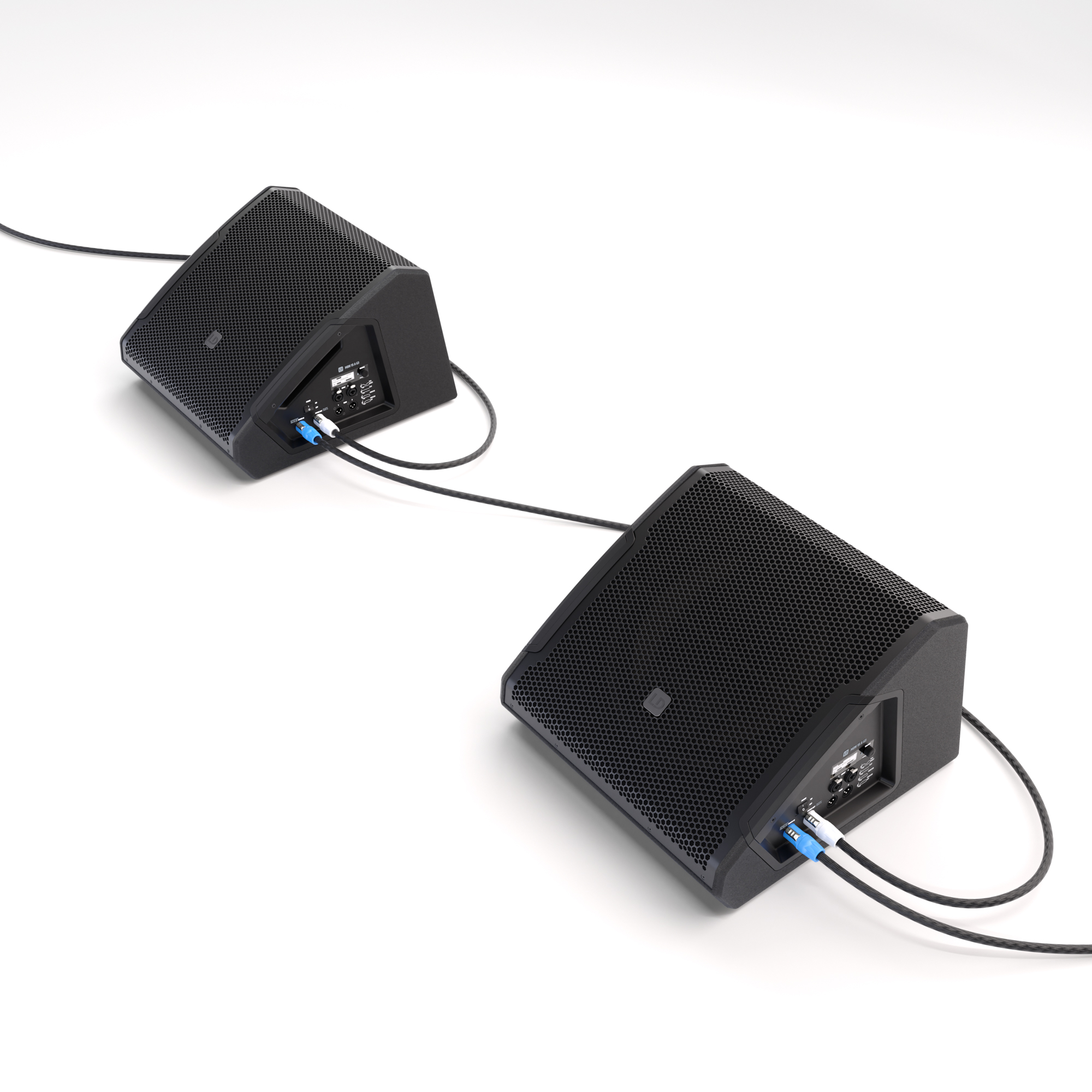

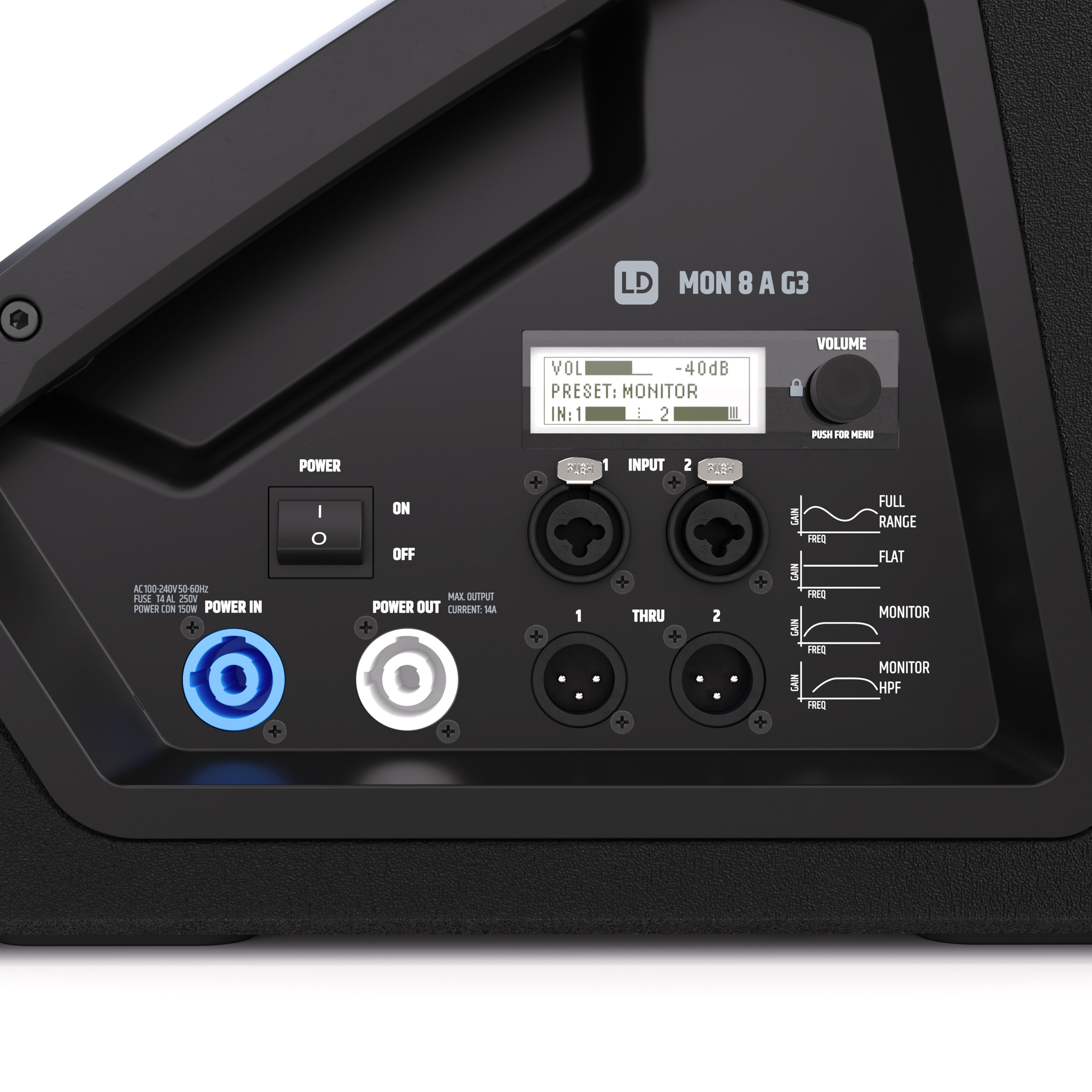

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
| Type: | Active |
|---|---|
| Frequency response (-3 dB, rel. Avg): | 68 - 18000 Hz |
| Amp class: | Class D |
| Frequency response (-10 dB, rel. Avg): | 59 - 20000 Hz |
| Beam angle: | Hor.: 50° / Vert.:90° |
| Speaker system: | 2-way coaxial system |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 116 dB |
| Protection features: | Overload, Multiband Limiter, Overvoltage, Overheating |
| RMS output power: | 300 W |
| Monitor angle: | 33 ° |
| Peak output power: | 1200 W |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 121 dB |
| Colour: | Black |
| Crossover frequency: | 2500 Hz |
| Number of inputs: | 2 |
| Number of outputs: | 2 |
| Line-In connector type: | XLR combo socket, 6.3 mm Jack TRS female |
|---|---|
| Number of line inputs: | 2 |
| Number of mic/line inputs: | 2 |
| Line outputs connector type: | XLR 3-pole female |
|---|---|
| Number of line outputs: | 2 |
| Audio processing: | Delay Line, 3 band EQ (High, Mid, Low), Presets, Notch filter |
|---|---|
| Mixer: | 1 |
| Manufacturer: | Custom Made |
|---|---|
| Voice coil: | 2 " |
| Size: | 8 " |
| Magnet: | Ferrite |
| Manufacturer: | Custom Made |
|---|---|
| Outlet diameter: | 0.98 in |
| Driver size: | 0.04 in |
| Voice coil: | 0.04 in |
| Magnet: | Ferrite |
| Rated power: | 150 W |
|---|---|
| Mains fuse: | T4AL/250 V |
| Operation voltage: | 100 V AC - 230 V AC / 50 - 60 Hz |
| Mains connector: | Mains socket indoor power in male & powerCON® |
| Power supply type: | Switched-mode power supply (SMPS) |
| Flange: | 36 mm (0°/5°) |
|---|---|
| Design: | Bass reflex |
| Front grille material: | Aluminium |
| Cabinet material: | Birch multiplex, Medium-density fibreboard MDF |
| Material thickness: | 0.59 in |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Width: | 13.39 in |
|---|---|
| Height: | 10.94 in |
| Weight: | 29.1 lbs |
| Depth: | 14.49 in |
| Included accessories: | Mains cable |
|---|
Login
accessories

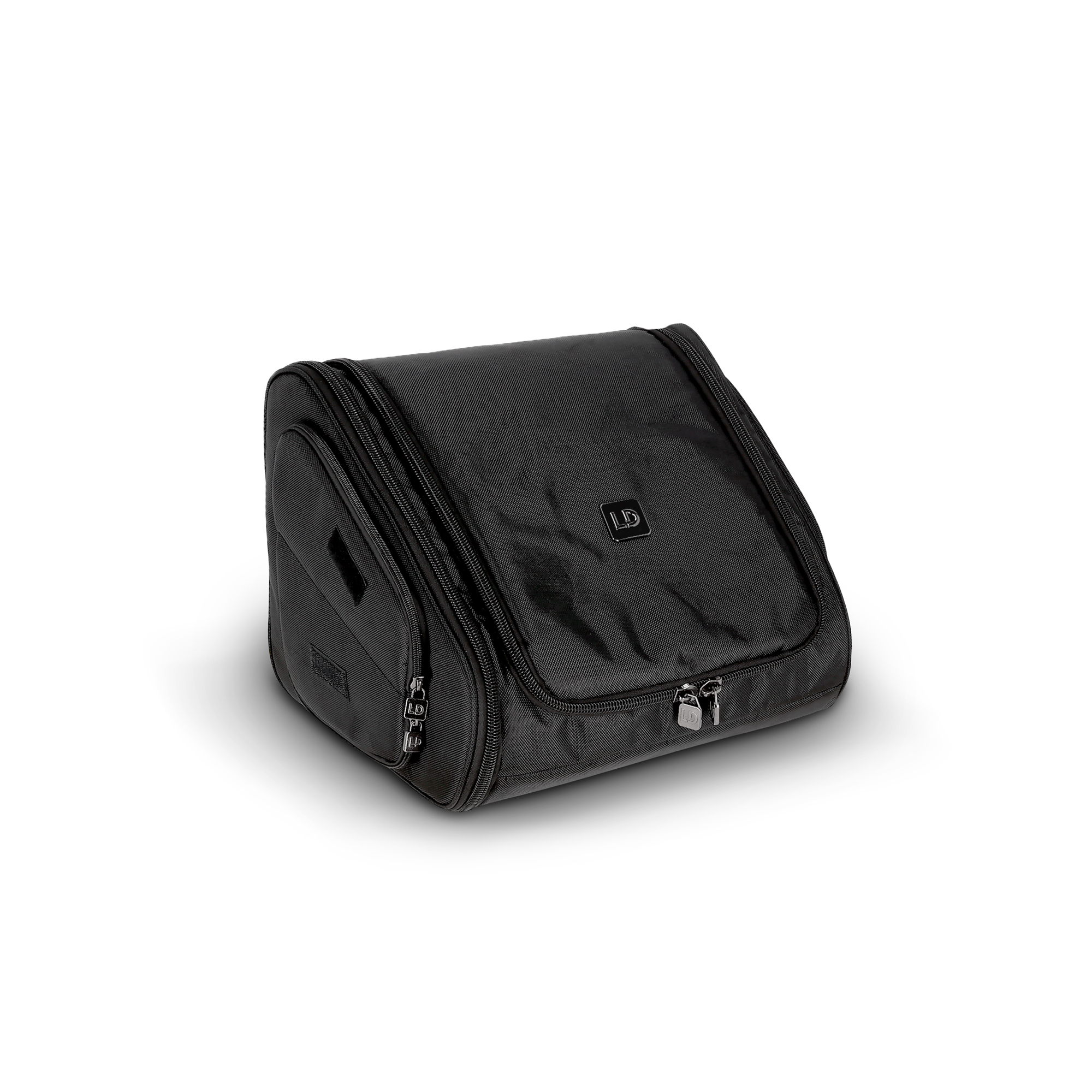

With the padded protective cover made of durable and water-repellent 1680D nylon, the MON 8 A G3 monitor is optimally protected against weather influences and other impacts. The 8 mm thickly padded protective cover can be easily slipped over the monitor standing on its side due to the large side zipper opening. The crossing of the internal Velcro straps ensures a secure fit in the protective cover.The large roll-up front opening and side flaps allow full use of the monitor with the protective cover in place. The cutouts for handles, control panel, connections, speaker stand flange, and heat sink each have their own flap. These flaps are closed with a zipper and can be kept open using Velcro to optimally protect the monitor while still allowing it to be operated.
