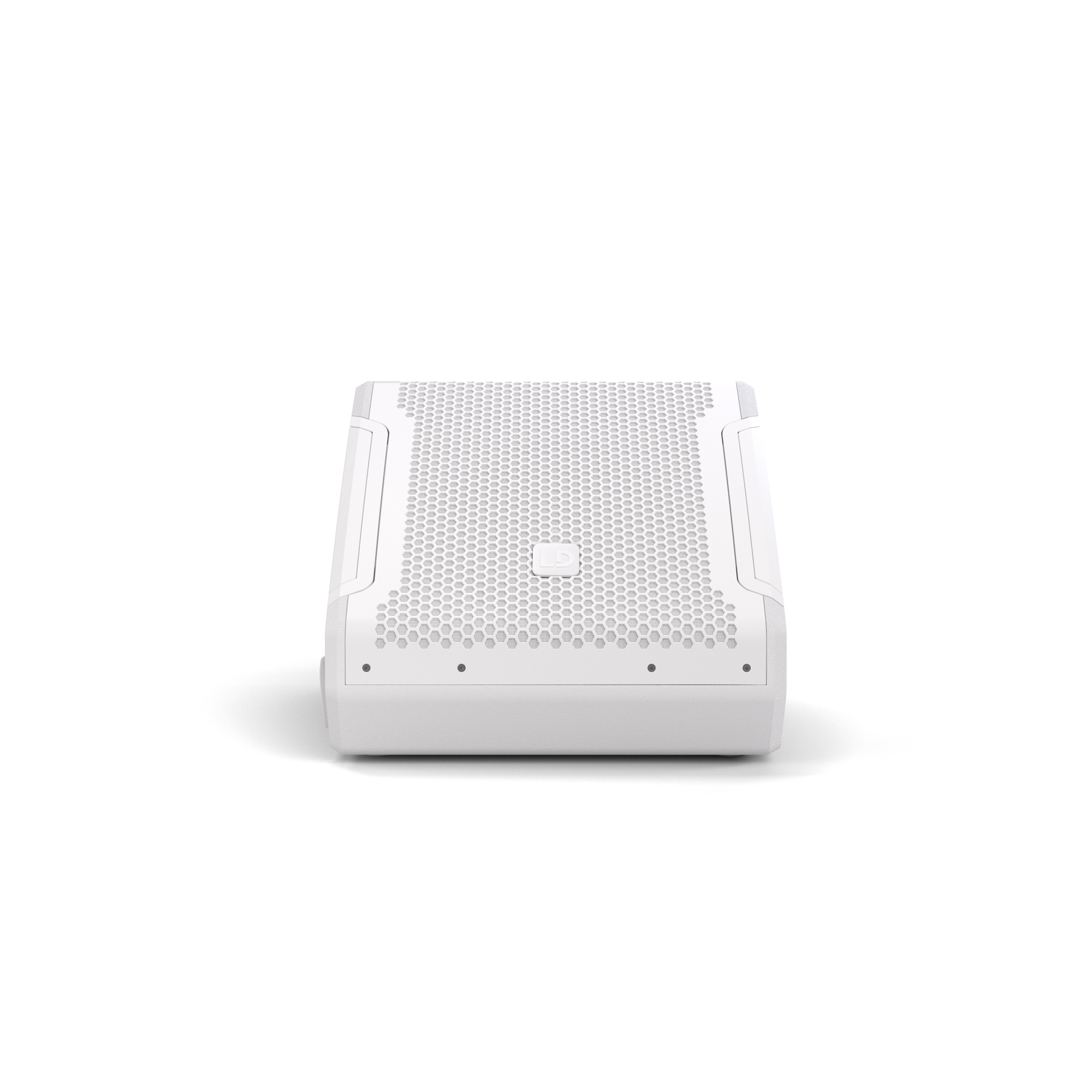

MON 8 A G3 W
8" powered coaxial stage monitor, white
$499.99
Backordered – More on the Way!
Product information "MON 8 A G3 W"

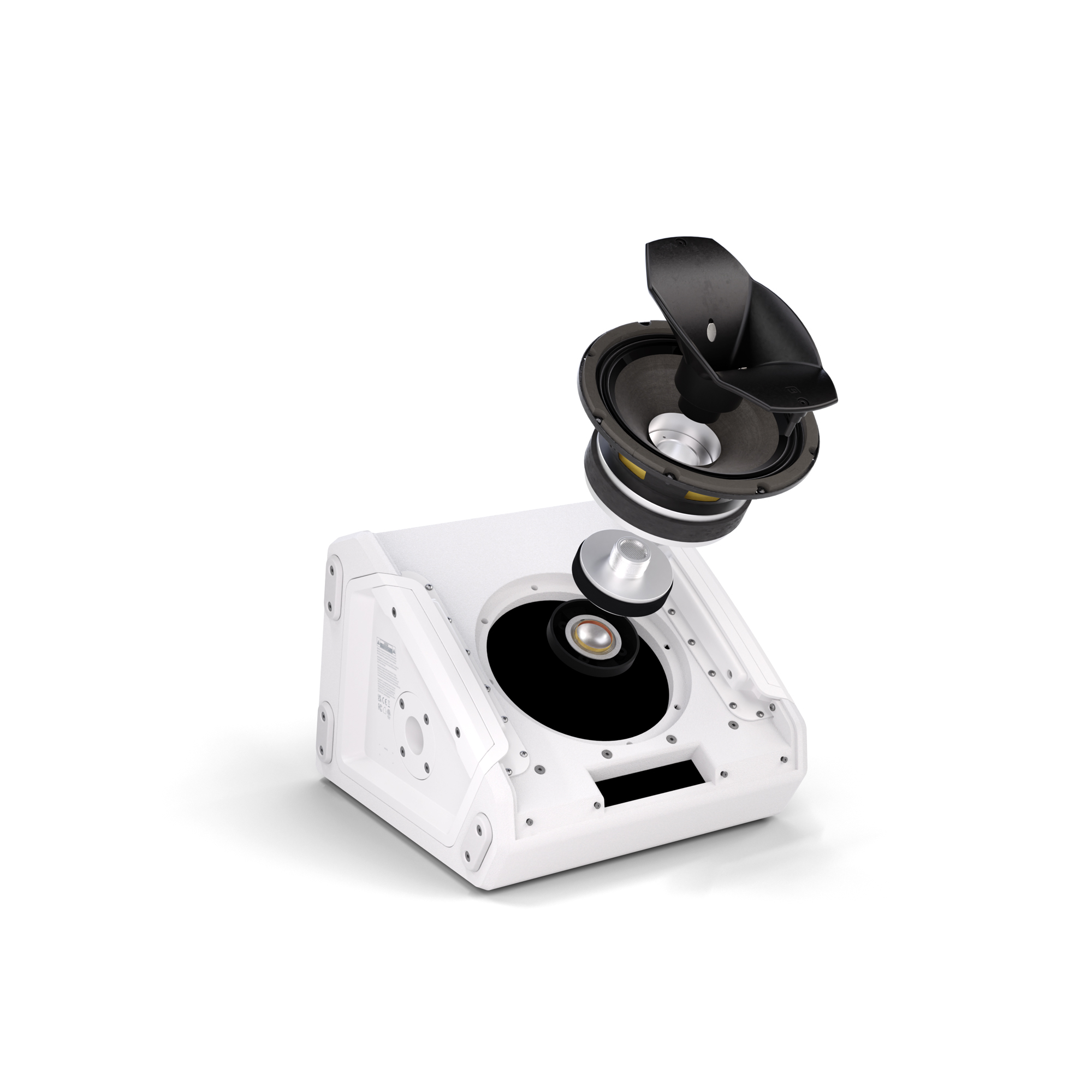

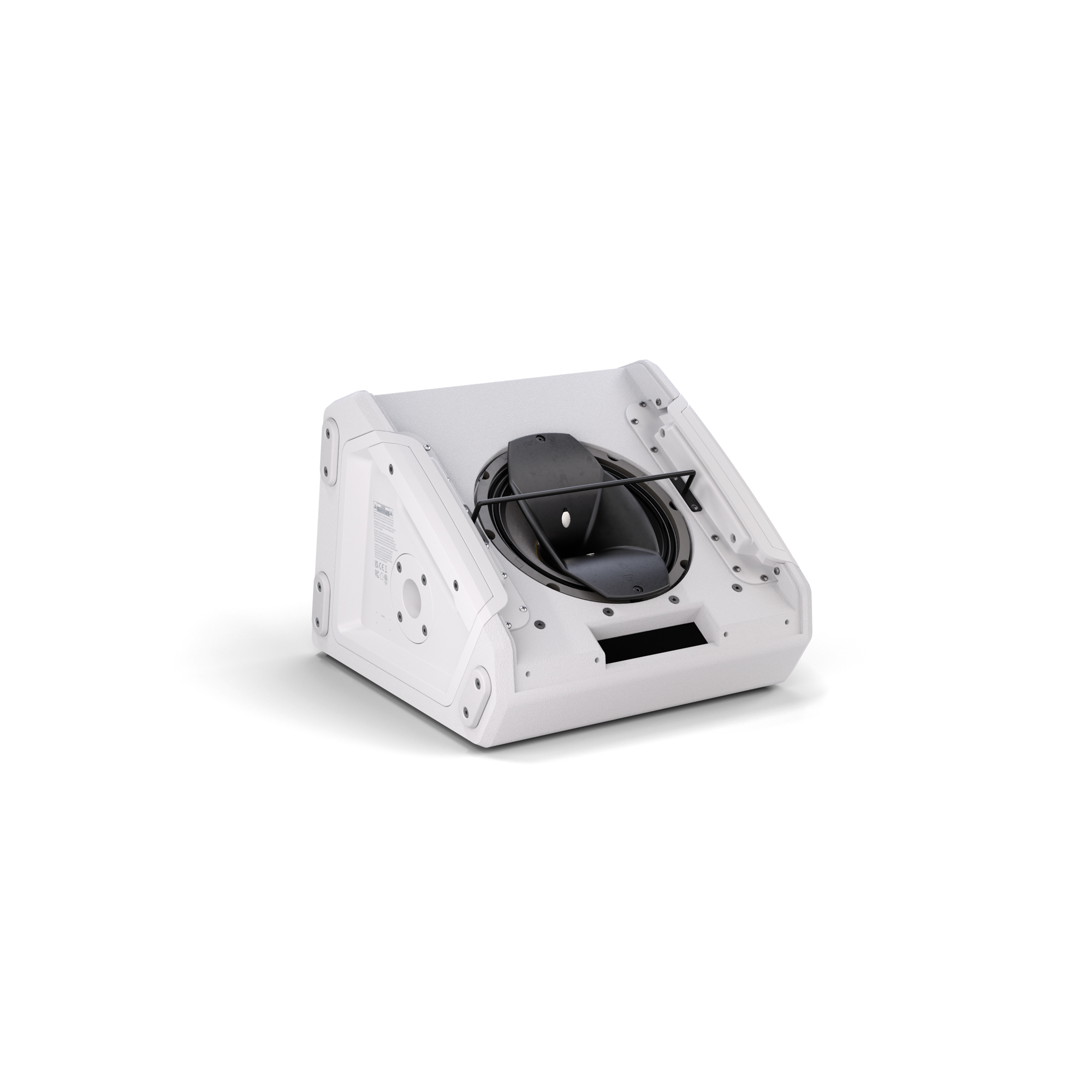

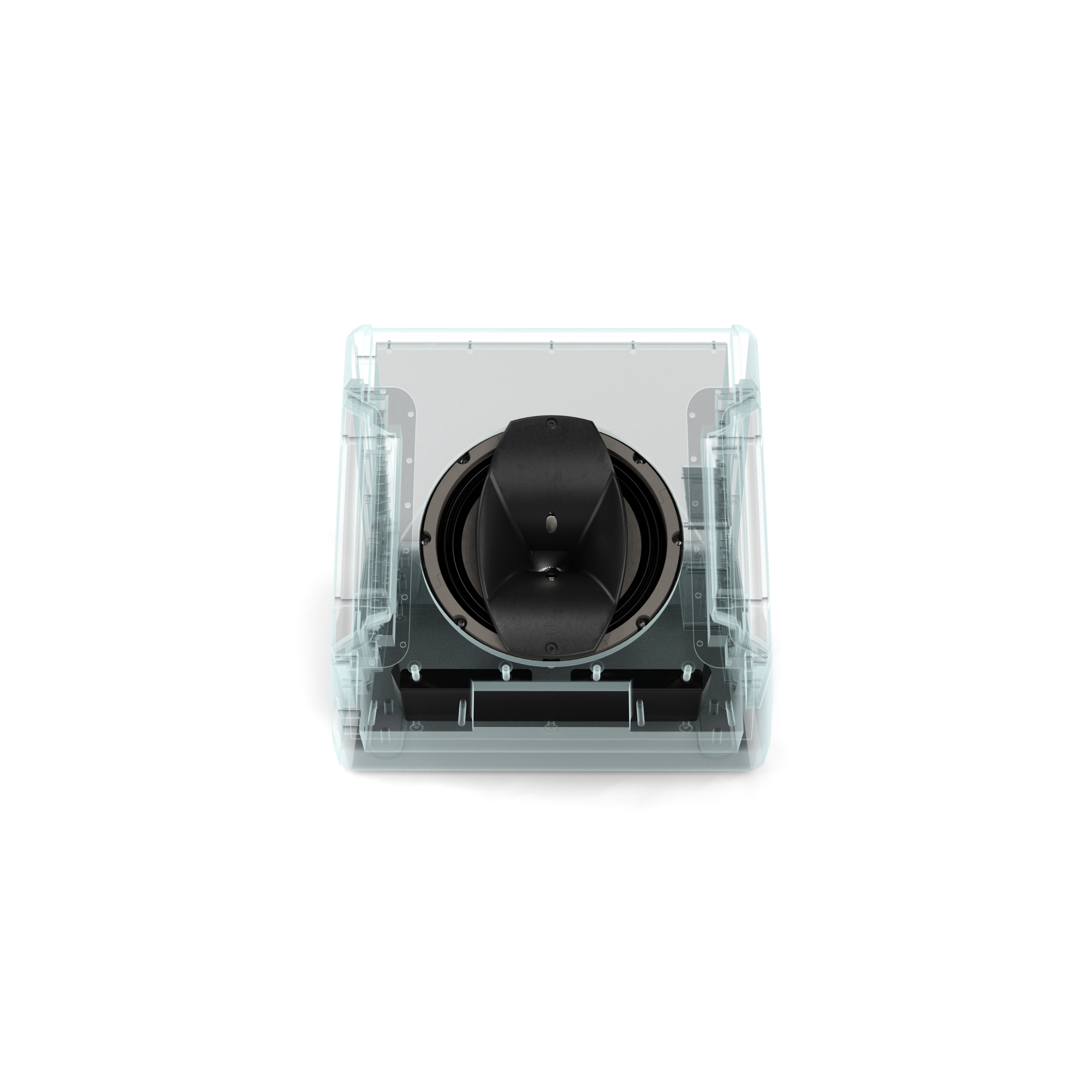

The MON 8 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

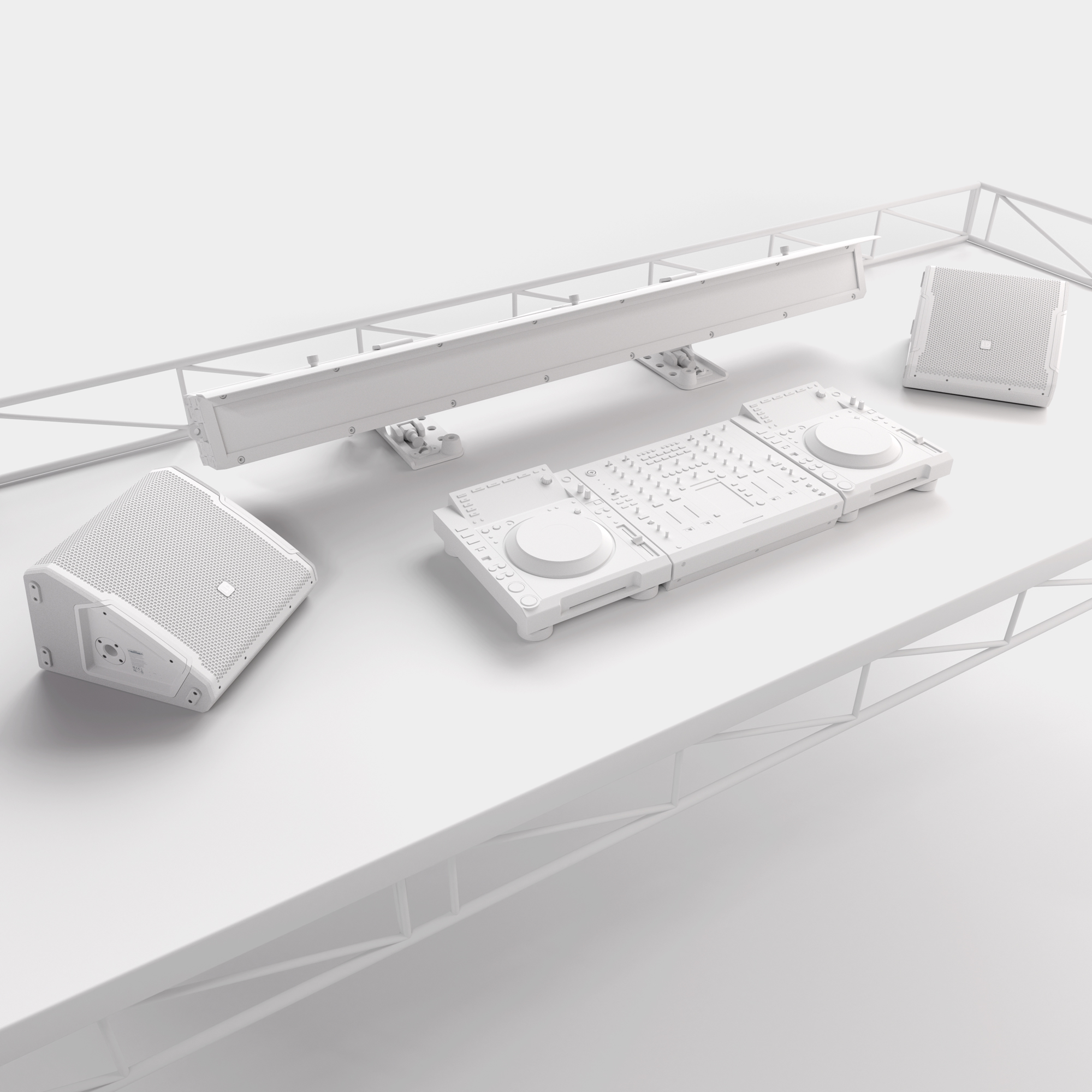

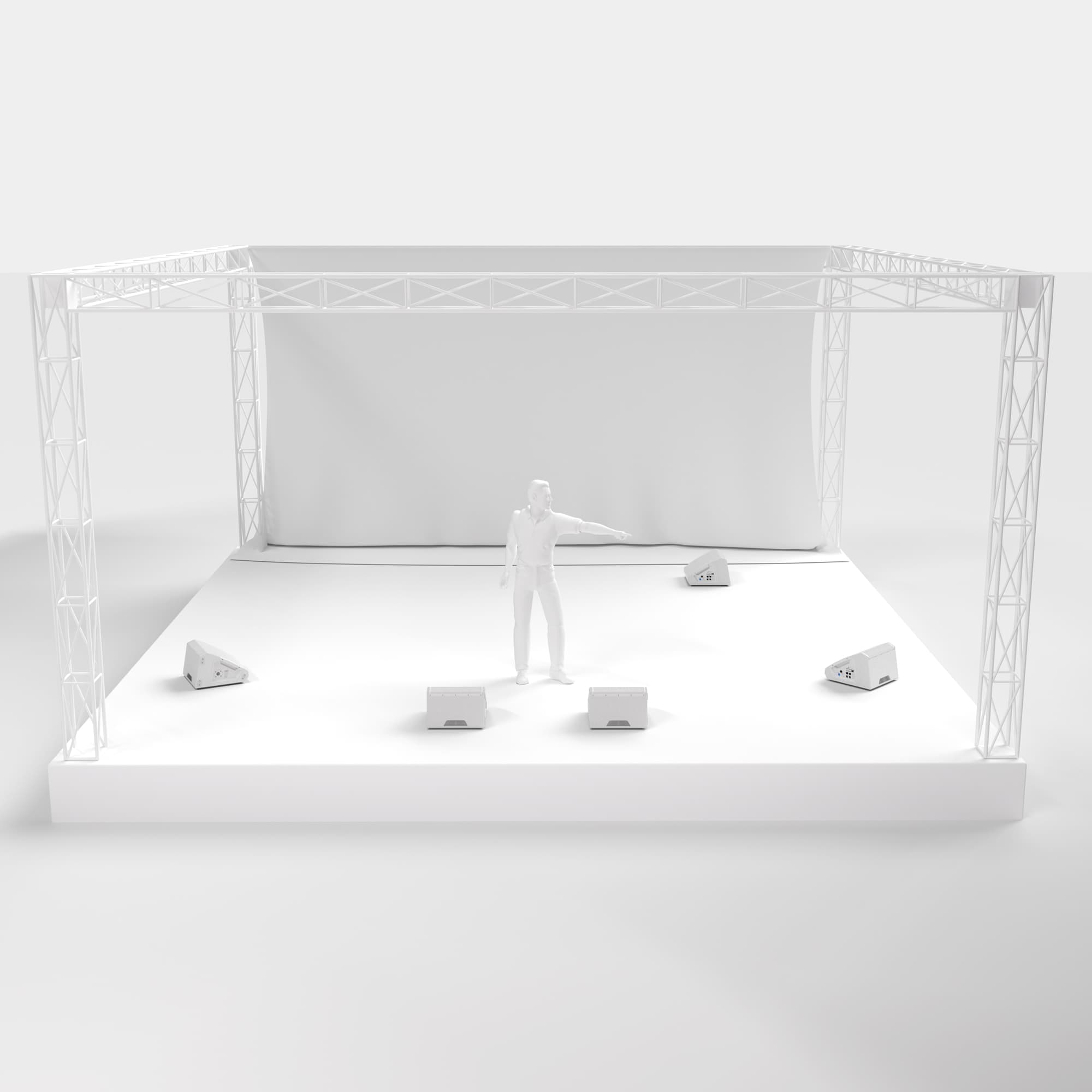

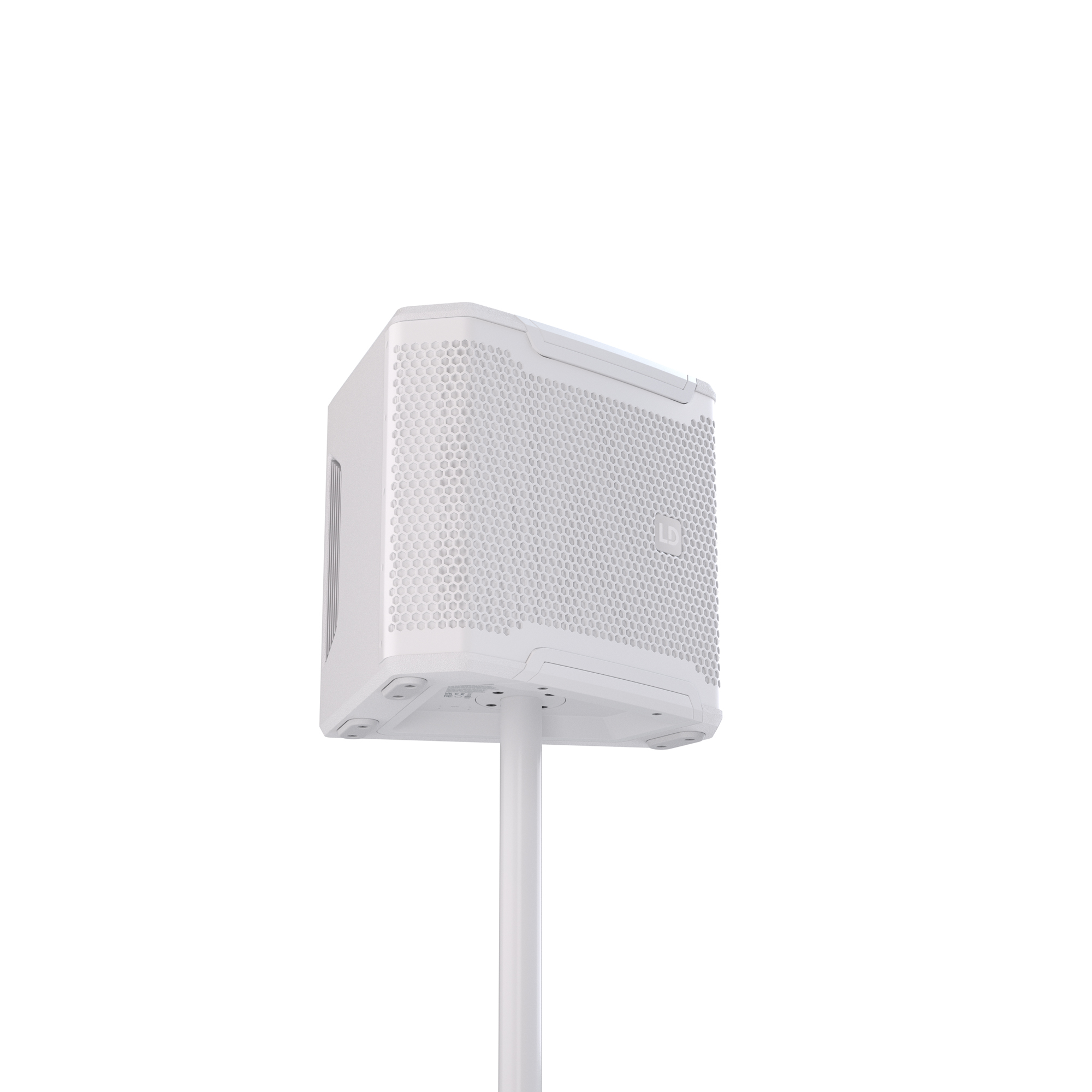

As the smallest member of the new stage monitor family, the MON 8 A G3 W is particularly inconspicuous and flexible in use: as a stage monitor, in a DJ setup or on a speaker stand as a FOH speaker, as a satellite in 2.1 systems or as a delay line speaker. At the same time, the MON 8 A G3 W offers a frequency response of up to 59 Hz, which is unusually low for its size, and thus full-range sound.

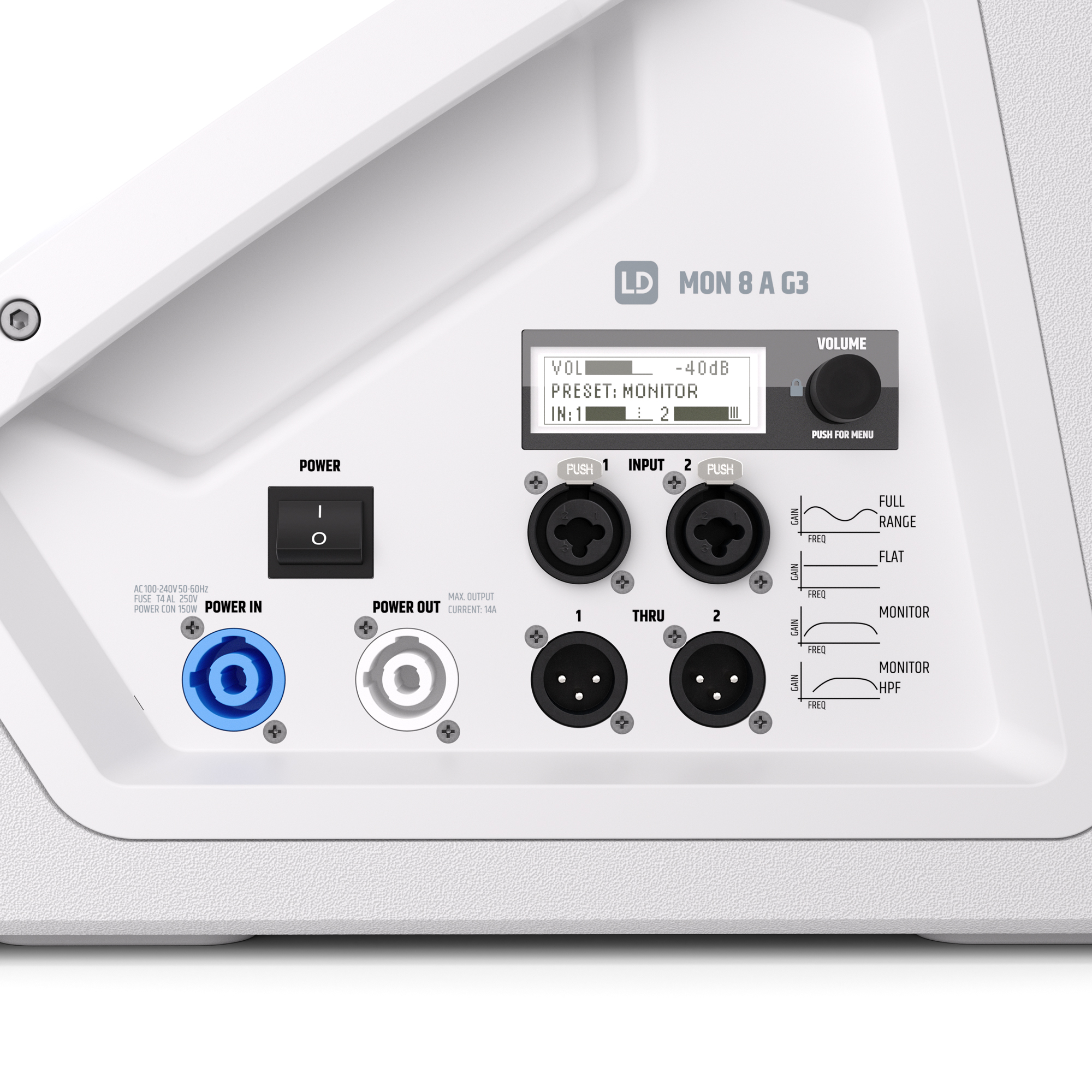

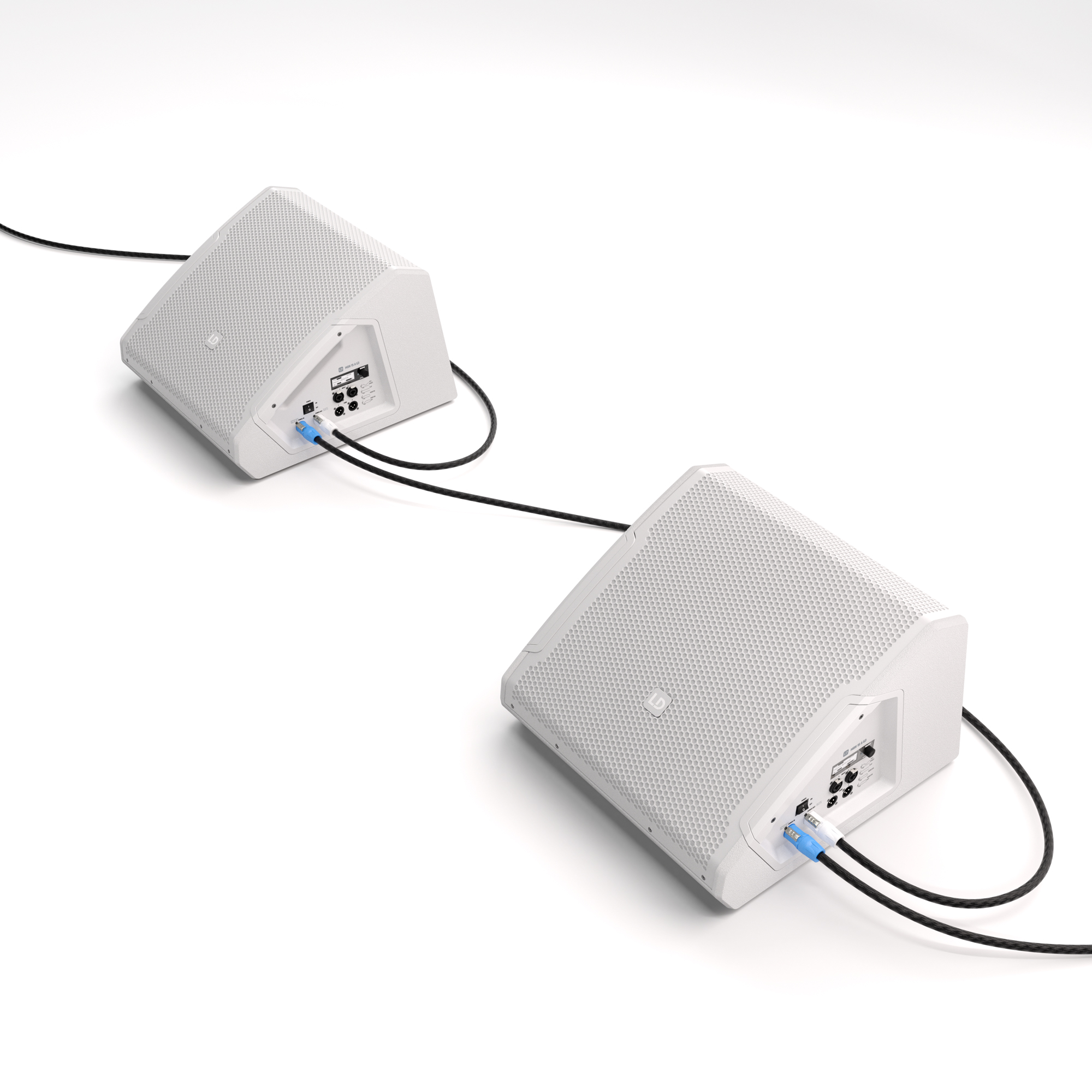

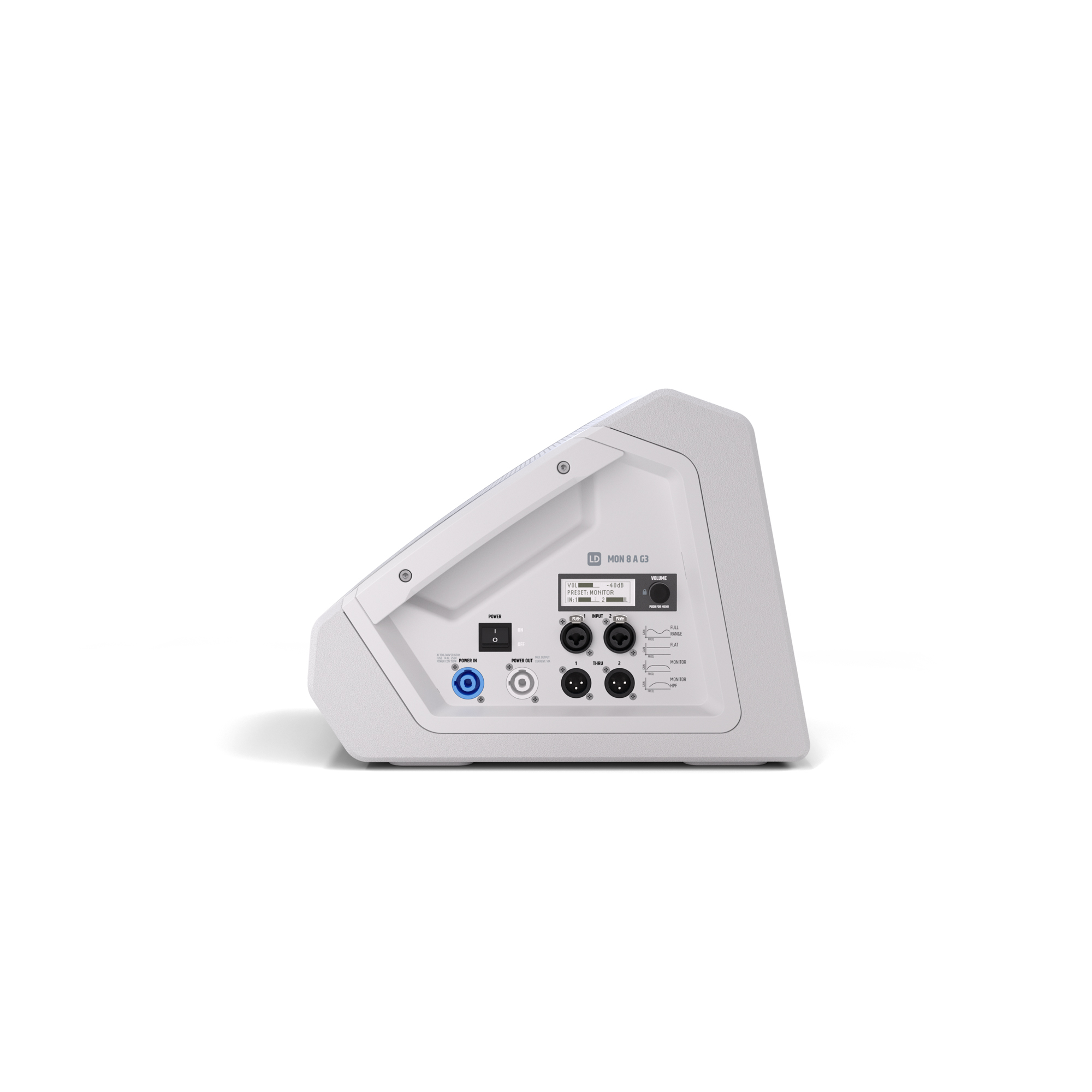

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
| Width: | 13.39 in |
|---|
| Voice coil: | 2 " |
|---|---|
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 116 dB |
| Monitor angle: | 33 ° |
| Number of line outputs: | 2 |
| Audio processing: | 3 band EQ (High, Mid, Low), Presets, Delay Line, Notch filter |
| Protection features: | Overload, Overvoltage, Multiband Limiter, Overheating |
| Number of inputs: | 2 |
| Line outputs connector type: | XLR 3-pole female |
| Peak output power: | 1200 W |
| Mains connector: | IEC C14 plug male |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 121 dB |
| Frequency response (-10 dB, rel. Avg): | 59 - 20,000 Hz |
| Height: | 10.94 in |
| Number of line inputs: | 2 |
| Magnet: | Ferrite |
|---|---|
| Amp class: | Class D |
| Maximum air humidity (non-condensing): | 80 % |
| Outlet diameter: | 0.98 in |
| Speaker system: | 2-way coaxial system |
| Crossover frequency: | 2500 Hz |
|---|---|
| Power supply type: | Switched-mode power supply (SMPS) |
| Type: | Active |
| Number of mic/line inputs: | 2 |
|---|---|
| Frequency response (-3 dB, rel. Avg): | 68 - 18,000 Hz |
| Colour: | White |
| Magnet: | Ferrite |
| Operation voltage: | 100 V AC - 230 V AC / 50 - 60 Hz |
|---|
| Number of outputs: | 2 |
|---|---|
| Weight: | 29.1 lbs |
| Depth: | 14.49 in |
| Mixer: | Yes |
| Rated power: | 150 W |
| Cabinet material: | Birch multiplex, Medium-density fibreboard MDF |
| Flange: | 36 mm (0°/5°) |
| Voice coil: | 1 " |
| Front grille material: | Aluminium |
| Material thickness: | 0.59 in |
| Driver size: | 1 " |
|---|---|
| Design: | Bass reflex |
| Included accessories: | Mains cable |
|---|---|
| Line-In connector type: | 6.3 mm Jack TRS female |
| Ambient temperature: | 0 - 40 °C |
| RMS output power: | 300 W |
| Beam angle: | Hor.: 50° / Vert.:90° |
|---|---|
| Mains fuse: | T4AL/250 V |
| Size: | 8 " |
Login
accessories
With the padded protective cover made of durable and water-repellent 1680D nylon, the MON 8 A G3 monitor is optimally protected against weather influences and other impacts. The 8 mm thickly padded protective cover can be easily slipped over the monitor standing on its side due to the large side zipper opening. The crossing of the internal Velcro straps ensures a secure fit in the protective cover.The large roll-up front opening and side flaps allow full use of the monitor with the protective cover in place. The cutouts for handles, control panel, connections, speaker stand flange, and heat sink each have their own flap. These flaps are closed with a zipper and can be kept open using Velcro to optimally protect the monitor while still allowing it to be operated.
