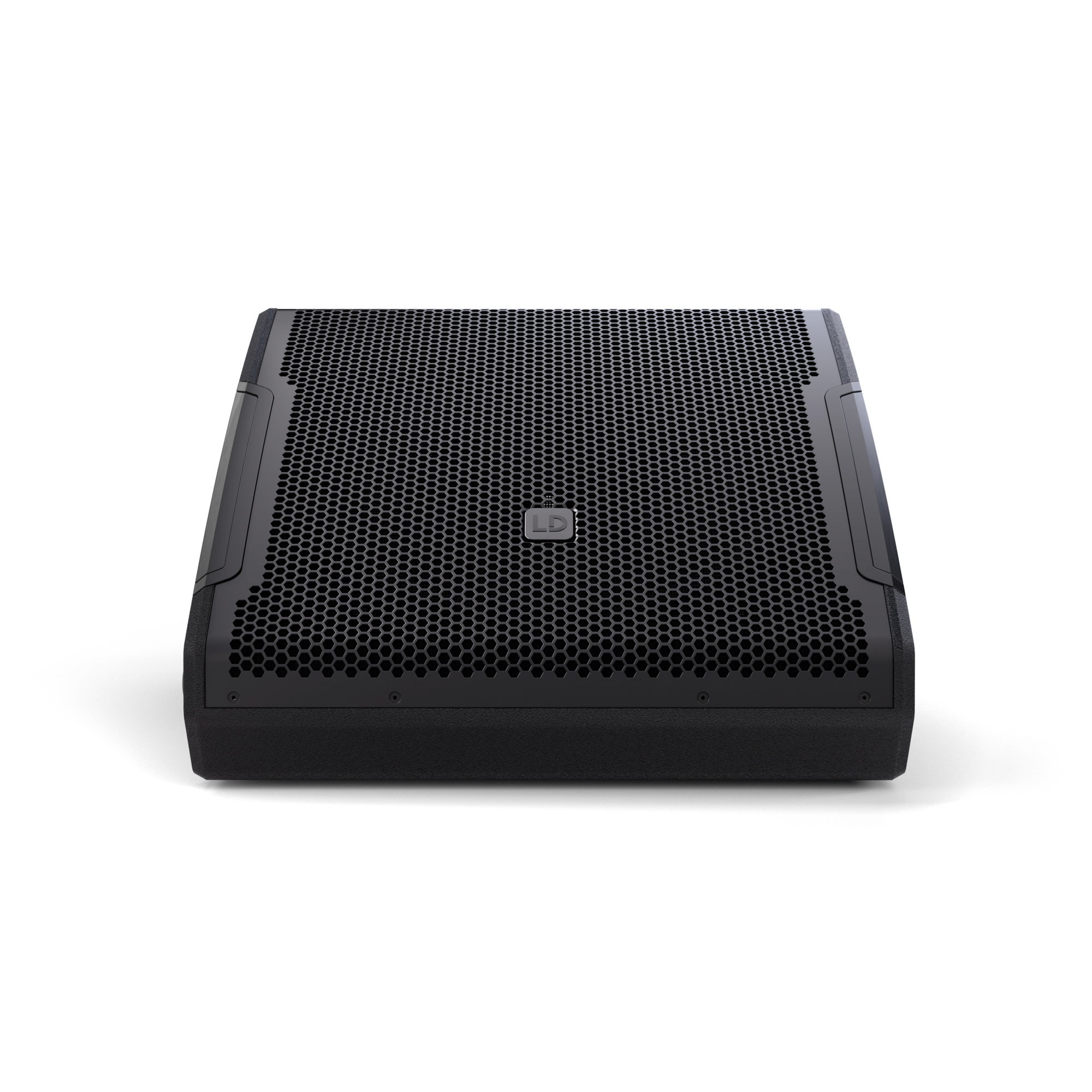

MON 15 A G3
15" powered coaxial stage monitor
$699.99
Backordered – More on the Way!
Product information "MON 15 A G3"

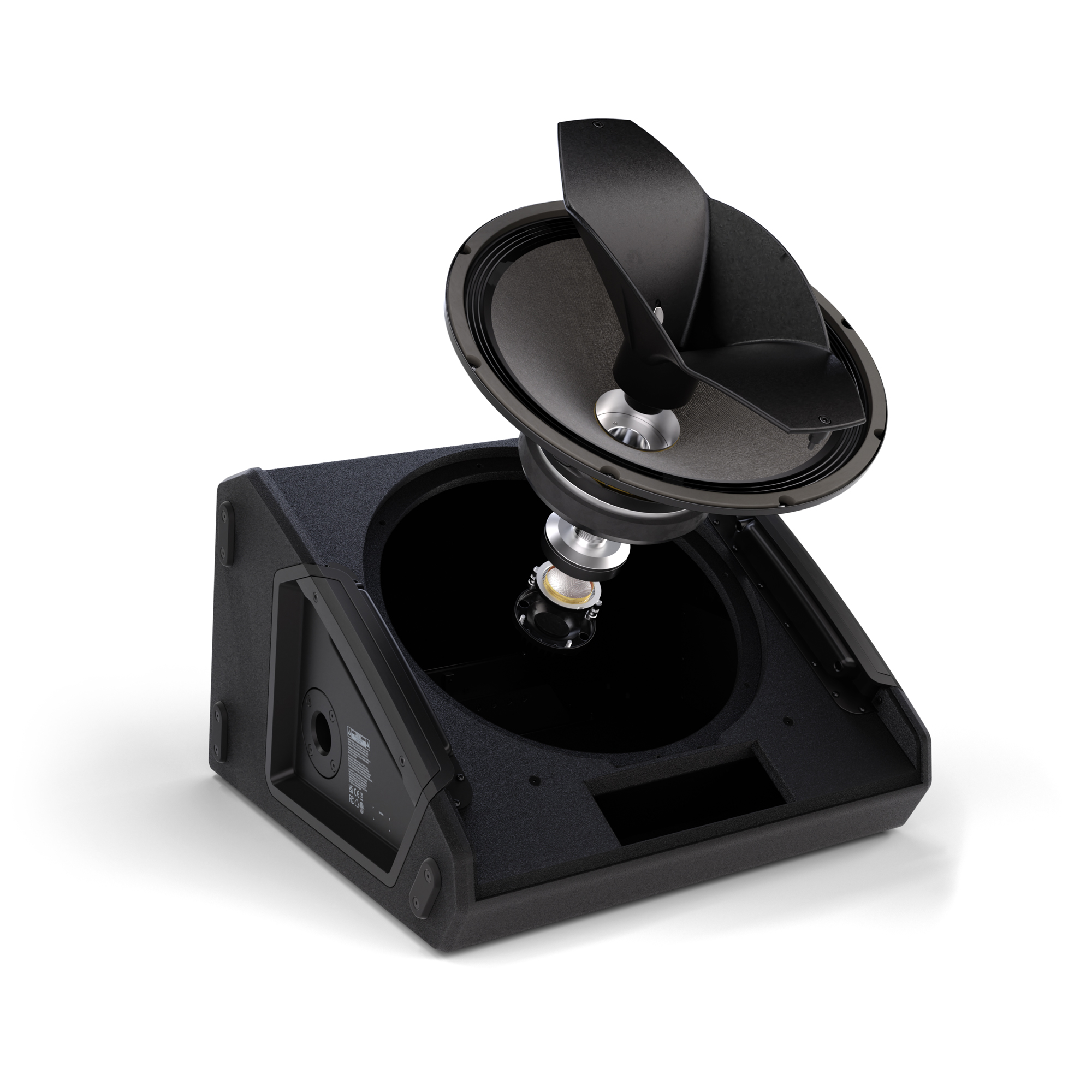

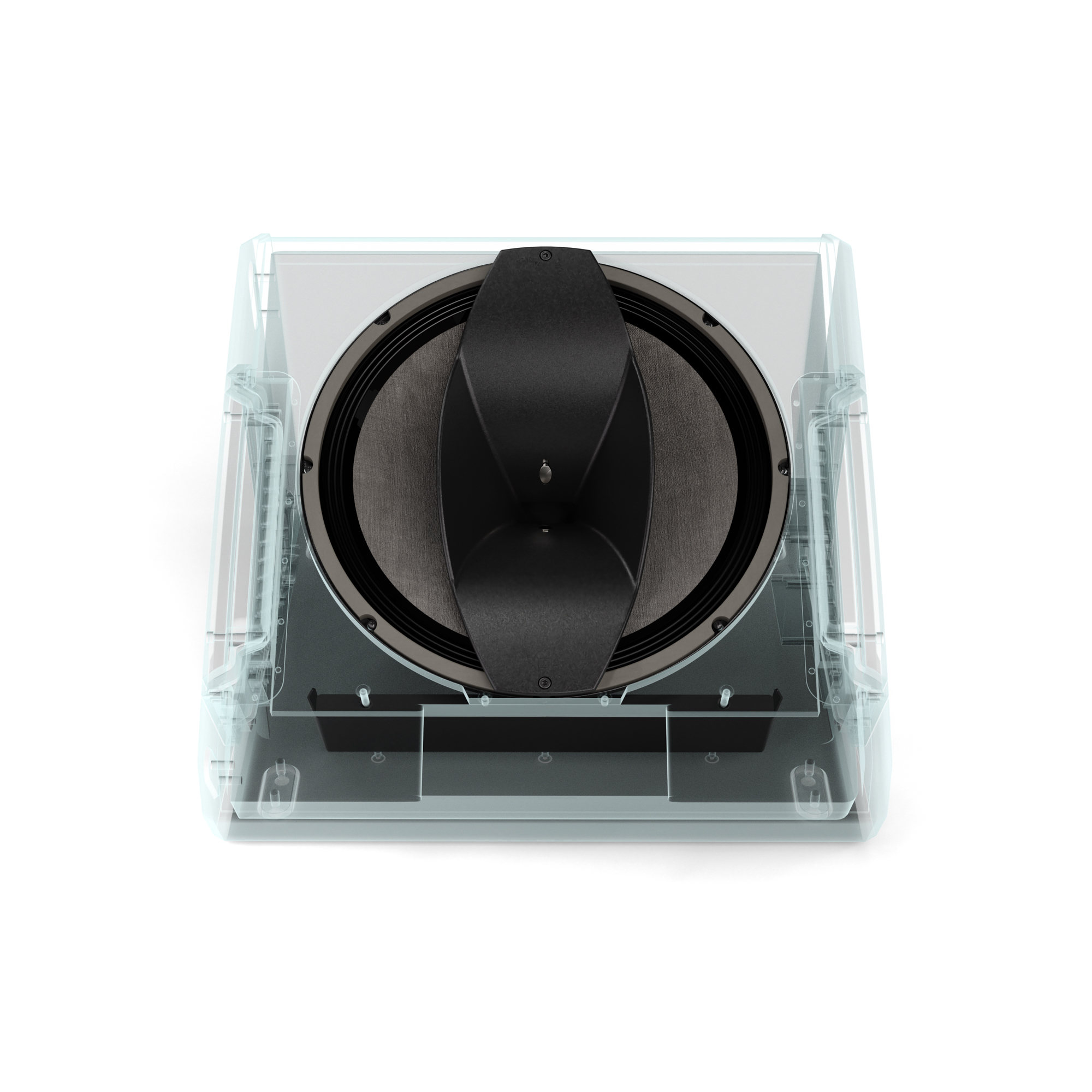

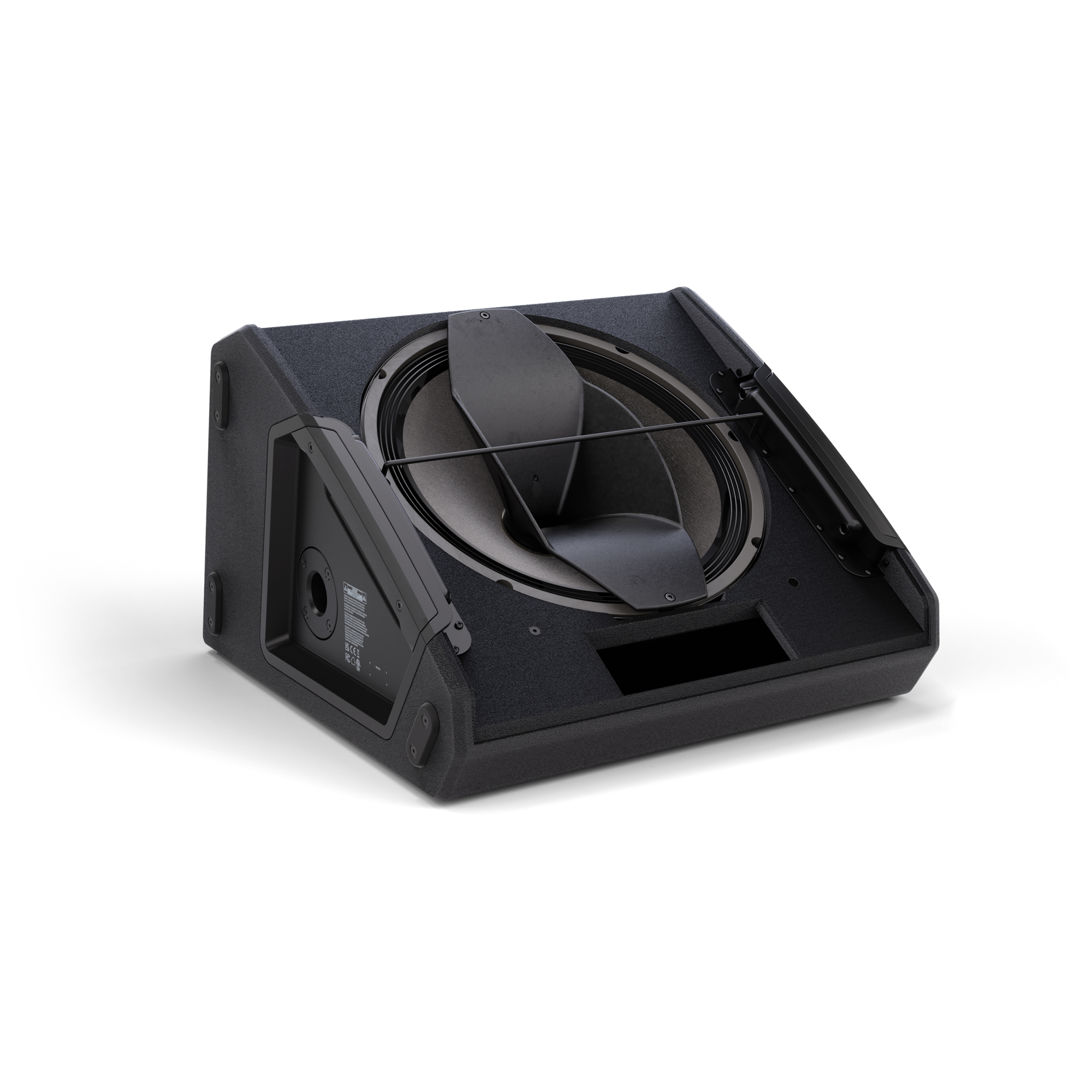

The MON 15 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

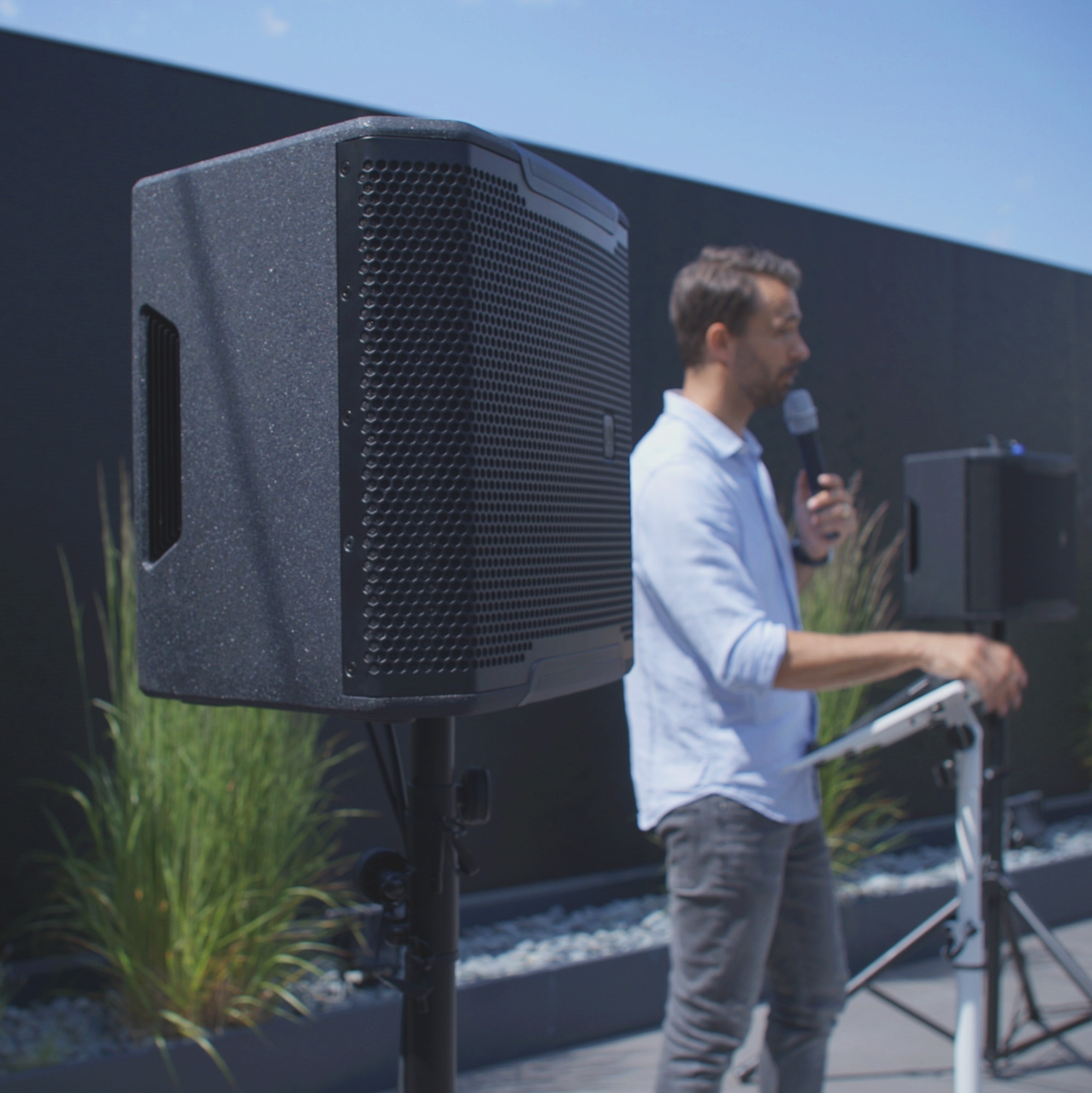

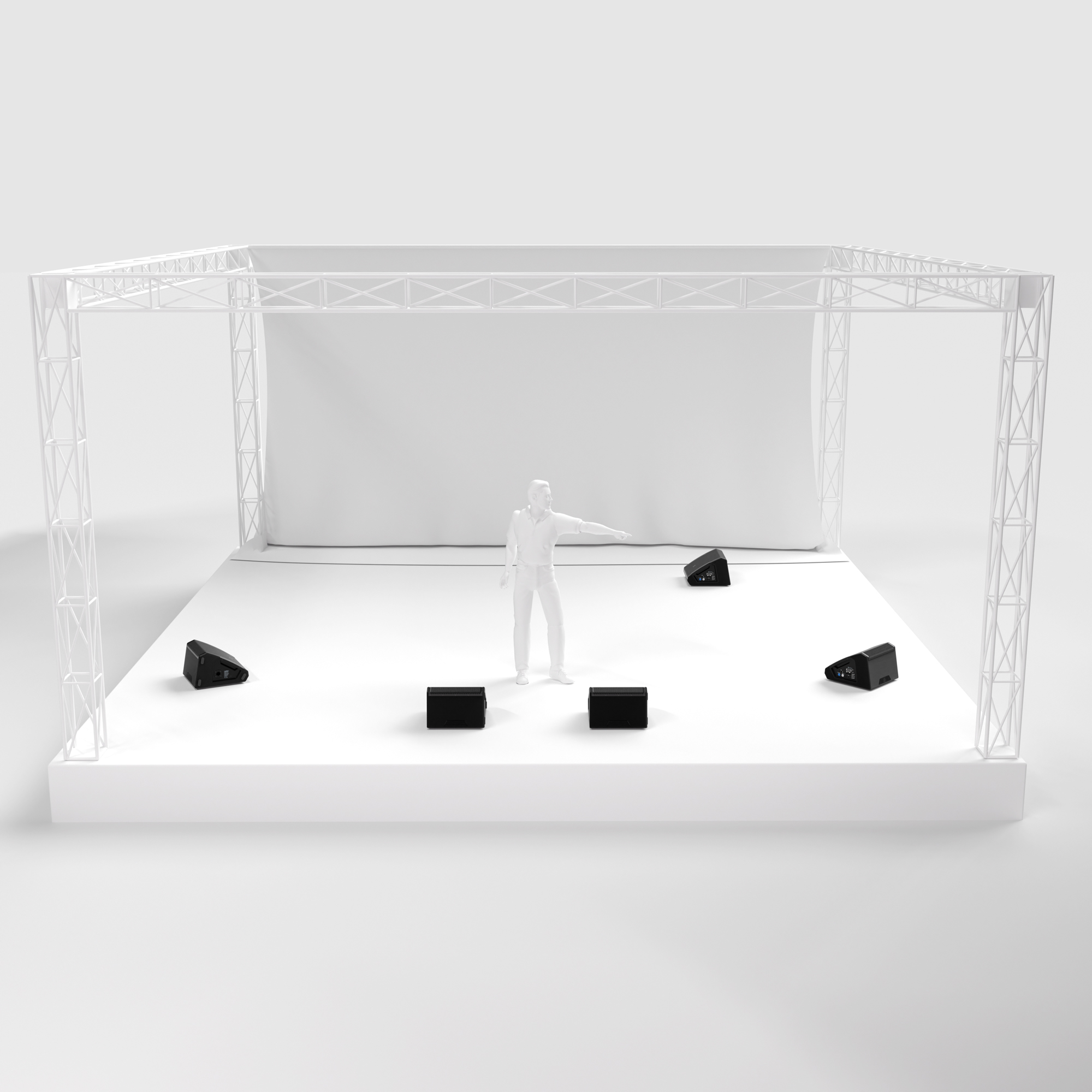

A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

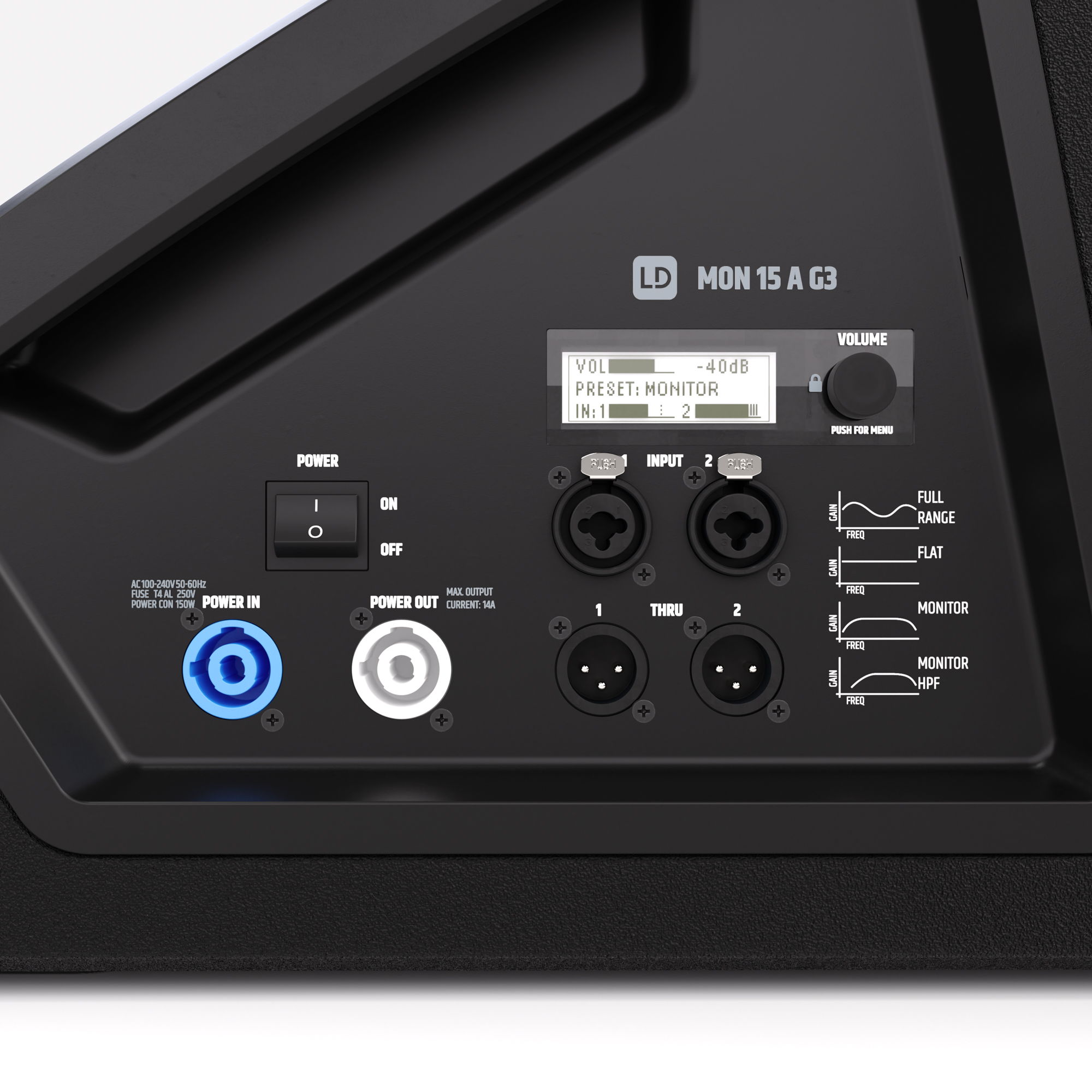

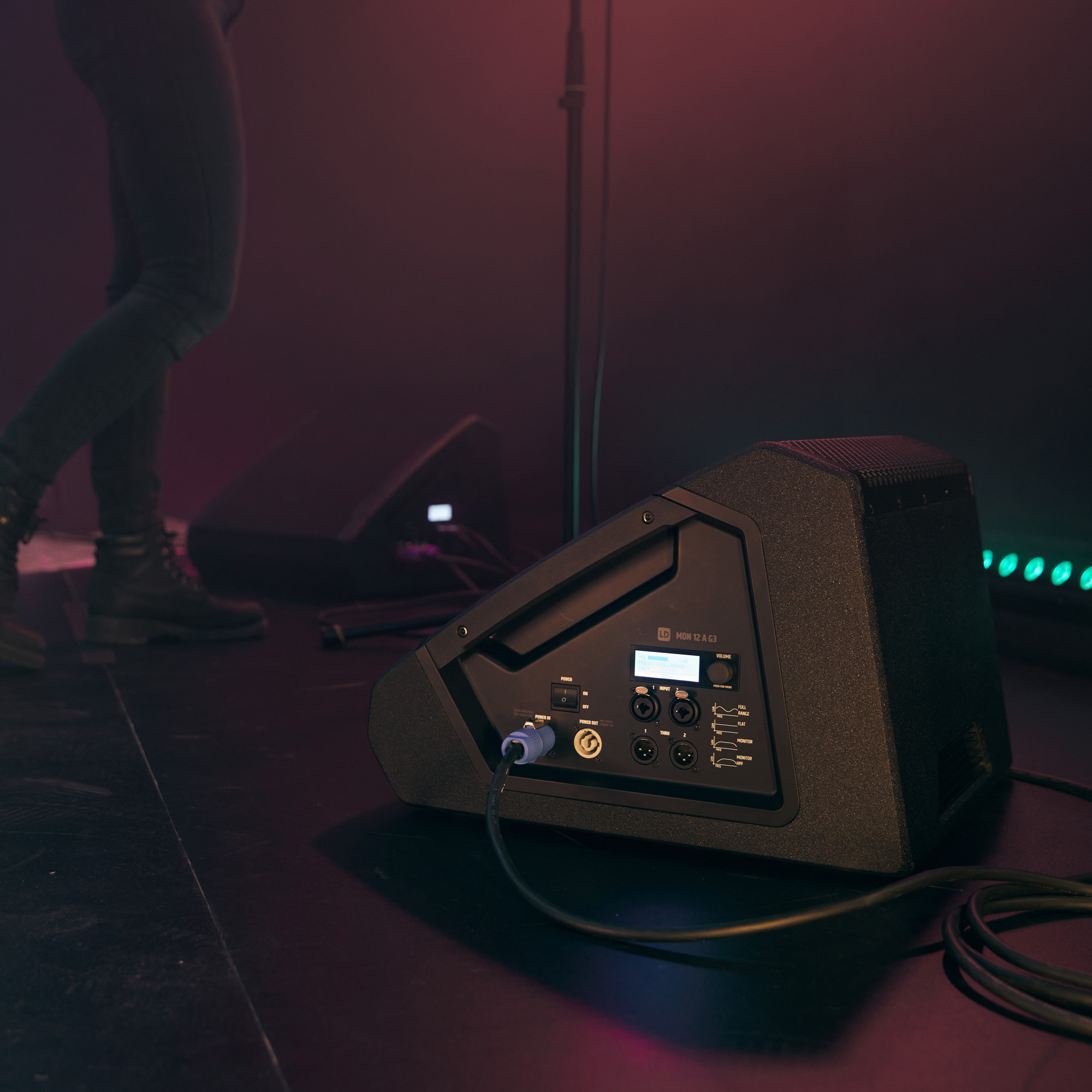

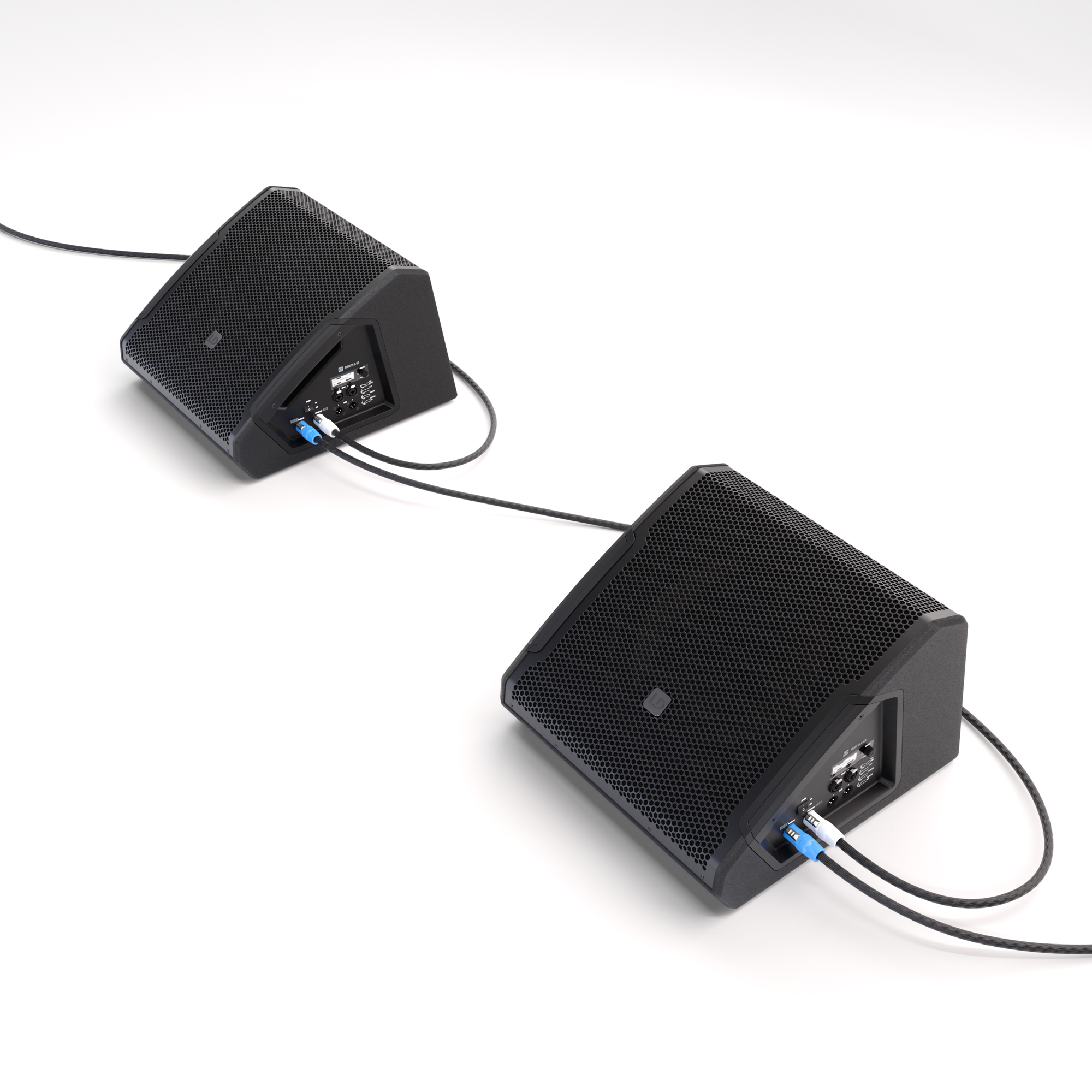

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
| Type: | Active |
|---|---|
| Input connector types: | 6.3 mm Jack TRS female, XLR combo socket |
| Output connector types: | XLR 3-pole female |
| Amp class: | Class D |
| Beam angle: | Hor.: 50° / Vert.:90° |
| Speaker system: | 2-way coaxial system |
| Protection features: | Overload, Multiband Limiter, Overvoltage, Overheating |
| RMS output power: | 300 W |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 129 dB |
| Monitor angle: | 33 ° |
| Peak output power: | 1200 W |
| Colour: | Black |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 122 dB |
| Number of inputs: | 2 |
| Frequency response (-3 dB, rel. Avg): | 58 - 18000 Hz |
| Frequency response (-10 dB, rel. Avg): | 48 - 20000 Hz |
| Crossover frequency: | 1300 Hz |
| Number of outputs: | 2 |
| Number of line inputs: | 2 |
|---|
| Line outputs connector type: | XLR 3-pole female |
|---|---|
| Number of line outputs: | 2 |
| Audio processing: | Delay Line, 3 band EQ (High, Mid, Low), Presets, Notch filter |
|---|---|
| Mixer: | 1 |
| Outer diameter: | 15 in |
|---|---|
| Manufacturer: | Custom-made |
| Size: | 15 " |
| Magnet: | Ferrite |
| Voice coil: | 3 " |
| Manufacturer: | Custom-made |
|---|---|
| Outer diameter: | 15 in |
| Magnet: | Ferrite |
| Voice coil: | 1.75 " |
|---|---|
| Outlet diameter: | 1 in |
| Driver size: | 0.04 in |
| Manufacturer: | Custom-made |
| Magnet: | Ferrite |
| Rated power: | 150 W |
|---|---|
| Mains fuse: | T4AL/250 V |
| Power supply type: | External switched-mode power supply (SMPS) |
| Operation voltage: | 100 V AC - 230 V AC / 50 - 60 Hz |
| Mains connector: | Mains socket indoor power in male & powerCON® |

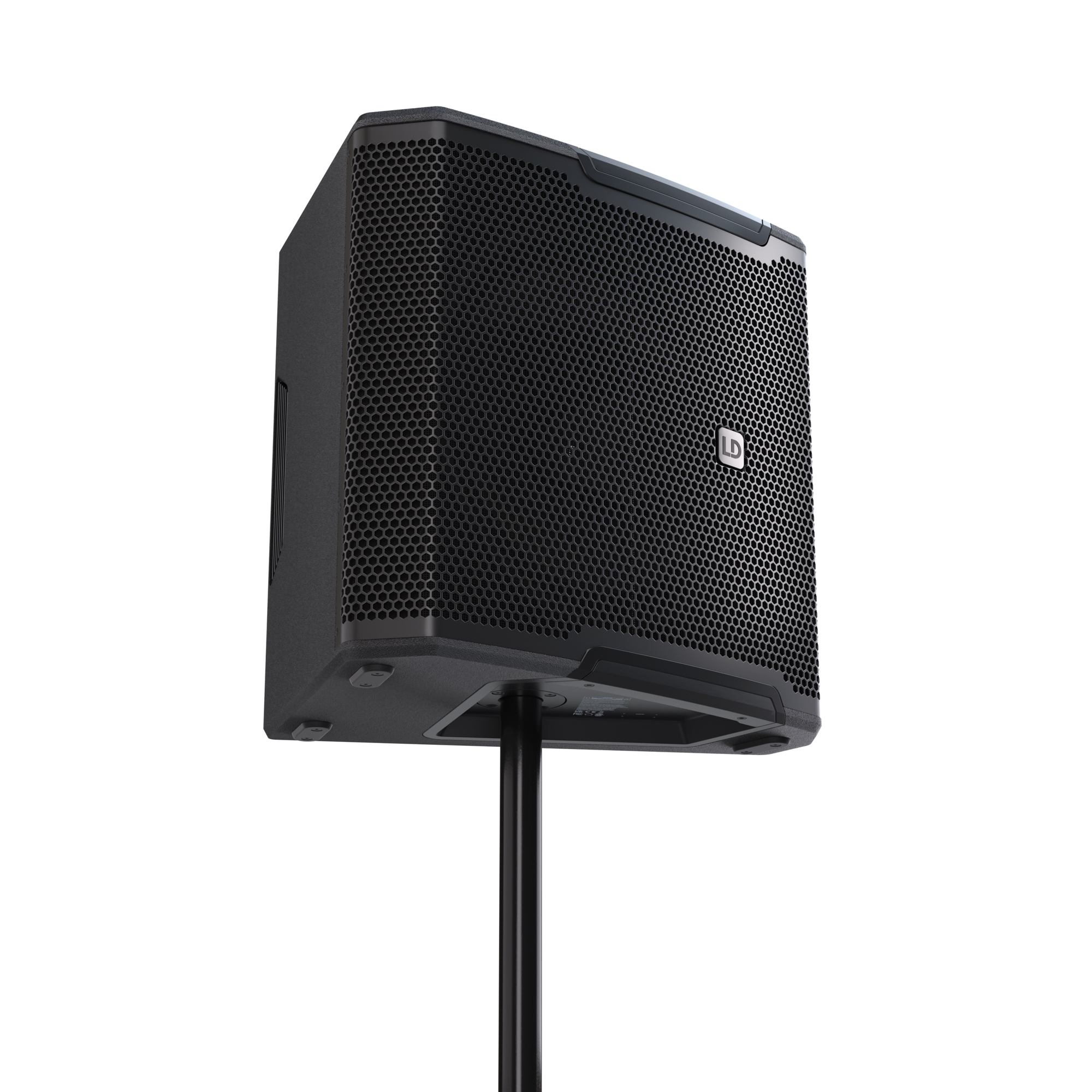

| Flange: | 36 mm (0°/5°) |
|---|---|
| Number of handles: | 2 |
| Design: | Bass reflex |
| Front grille material: | Aluminium |
| Cabinet material: | Birch multiplex, Medium-density fibreboard MDF |
| Material thickness: | 0.59 in |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Width: | 19.88 in |
|---|---|
| Weight: | 51.04 lbs |
| Height: | 13.39 in |
| Depth: | 20.35 in |
| Included accessories: | Mains cable |
|---|
Login
accessories

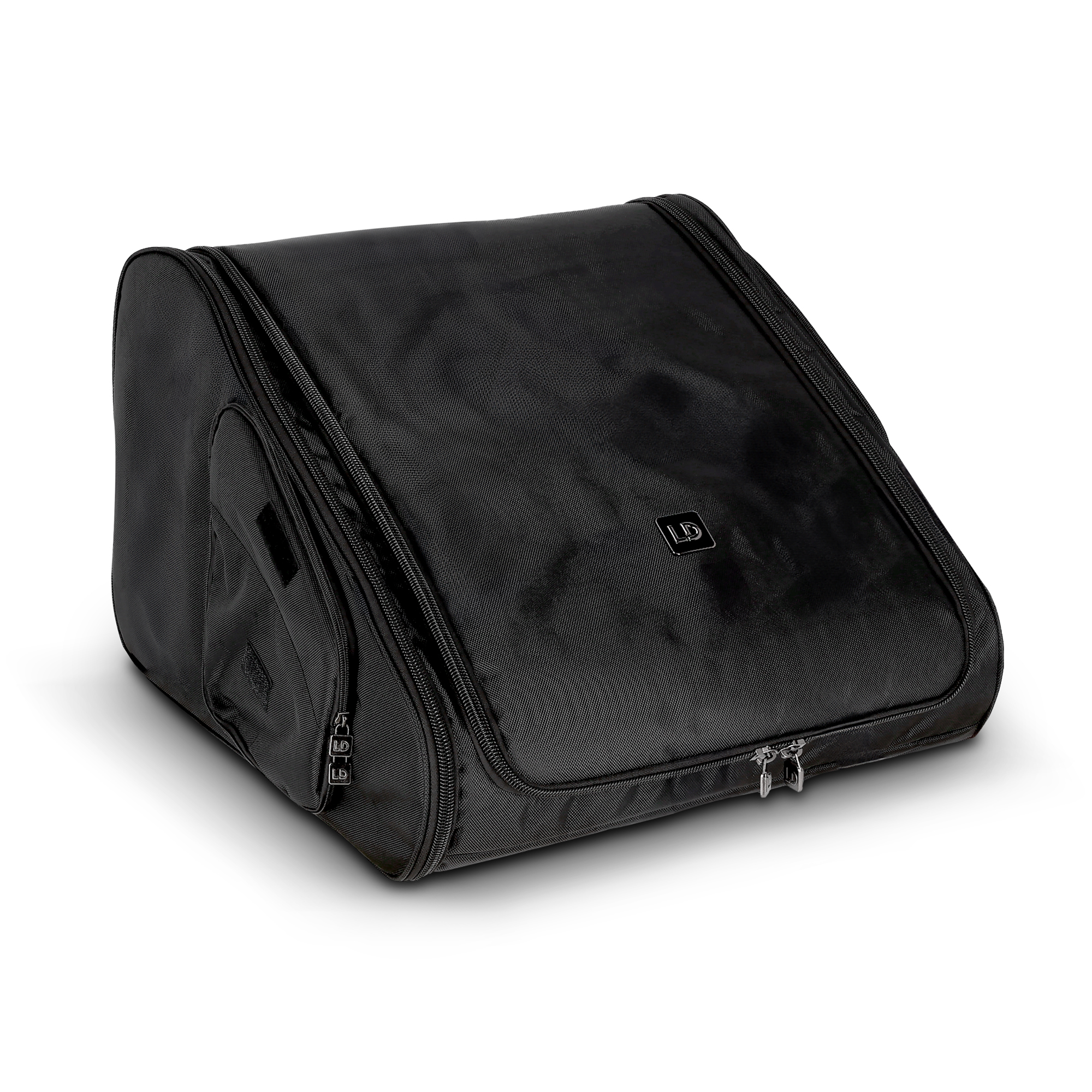

With the padded protective cover made of durable and water-repellent 1680D nylon, the MON 15 A G3 monitor is optimally protected against weather influences and other impacts. The 8 mm thickly padded protective cover can be easily slipped over the monitor standing on its side due to the large side zipper opening. The crossing of the internal Velcro straps ensures a secure fit in the protective cover.The large roll-up front opening and side flaps allow full use of the monitor with the protective cover in place. The cutouts for handles, control panel, connections, speaker stand flange, and heat sink each have their own flap. These flaps are closed with a zipper and can be kept open using Velcro to optimally protect the monitor while still allowing it to be operated.
