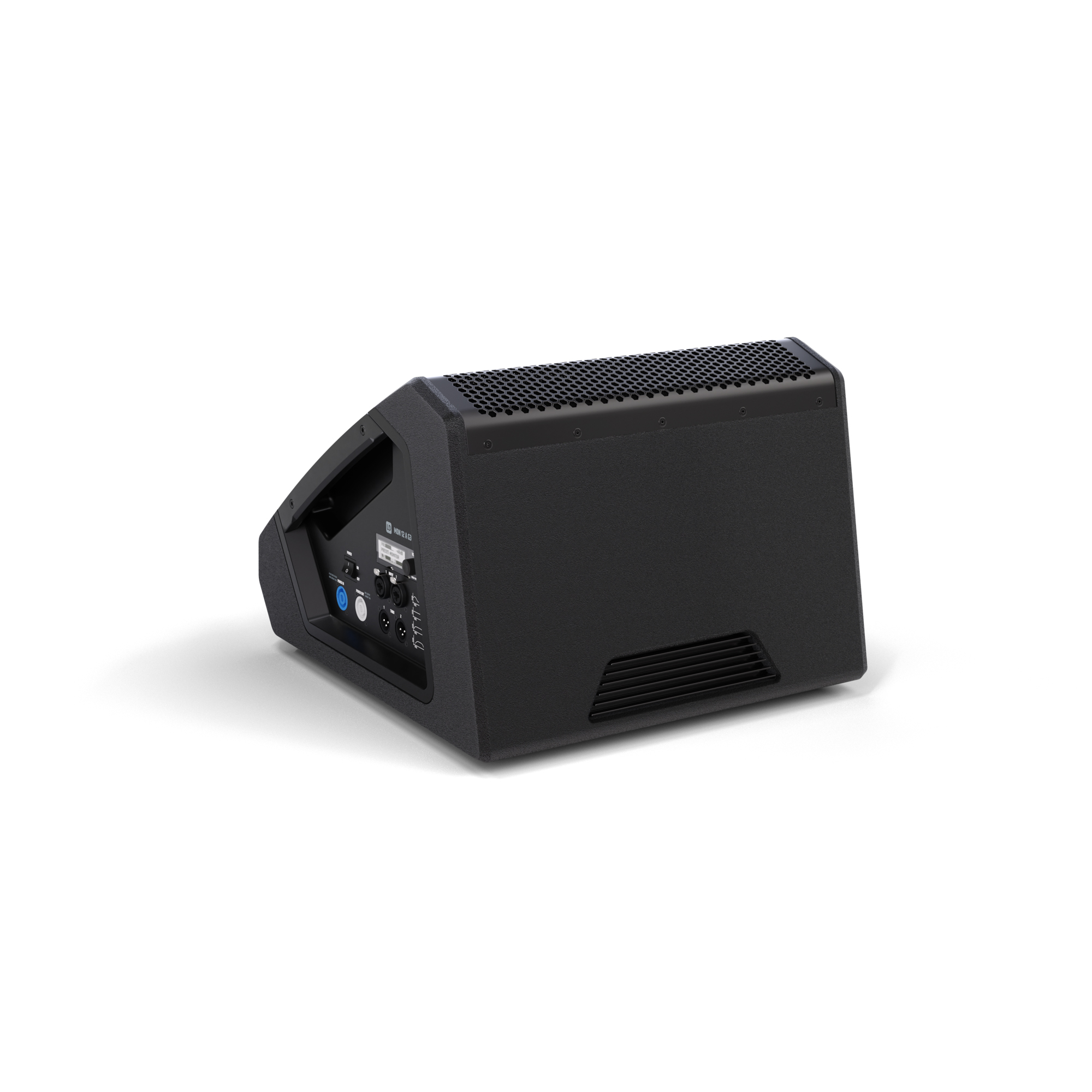

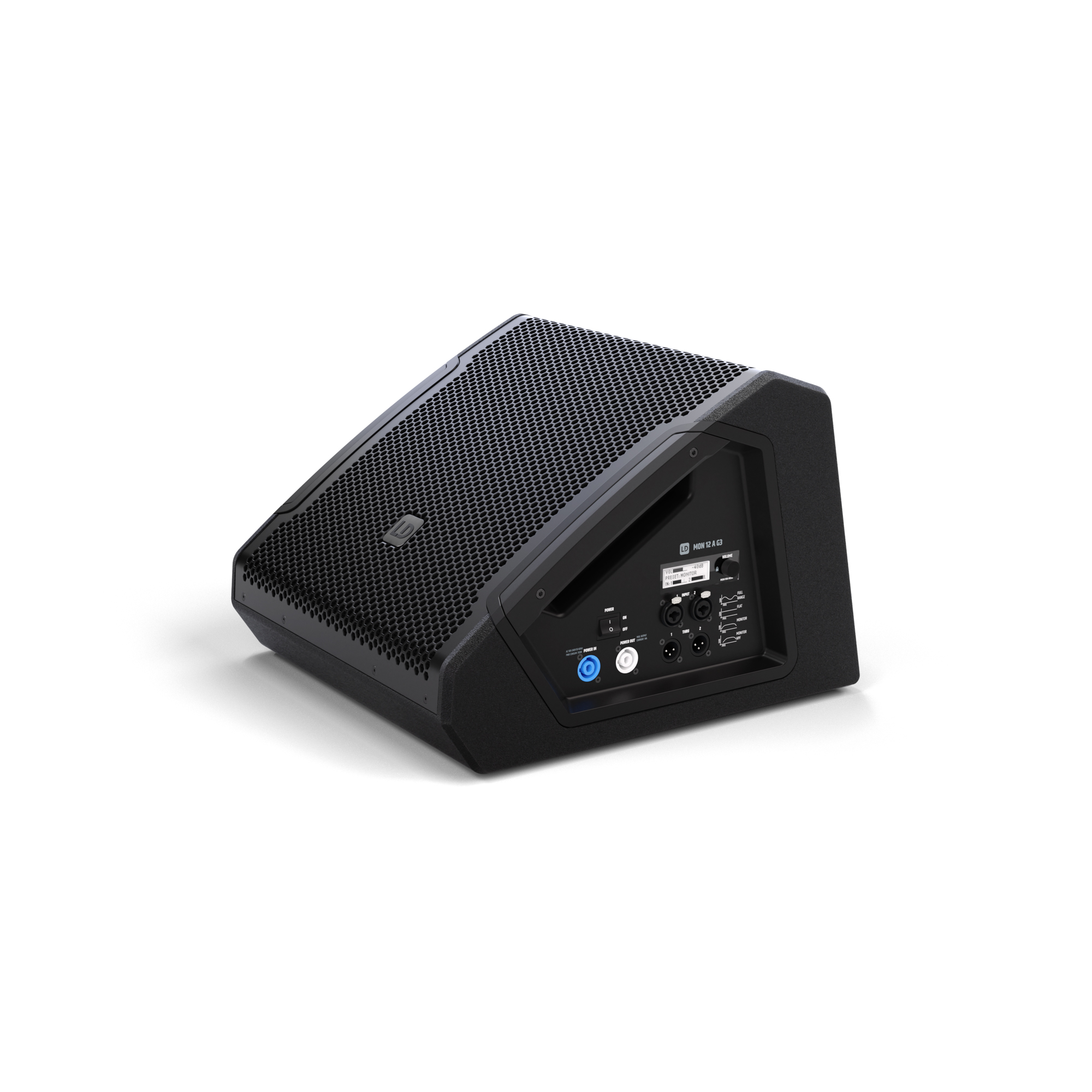

Product information "MON 12 A G3"

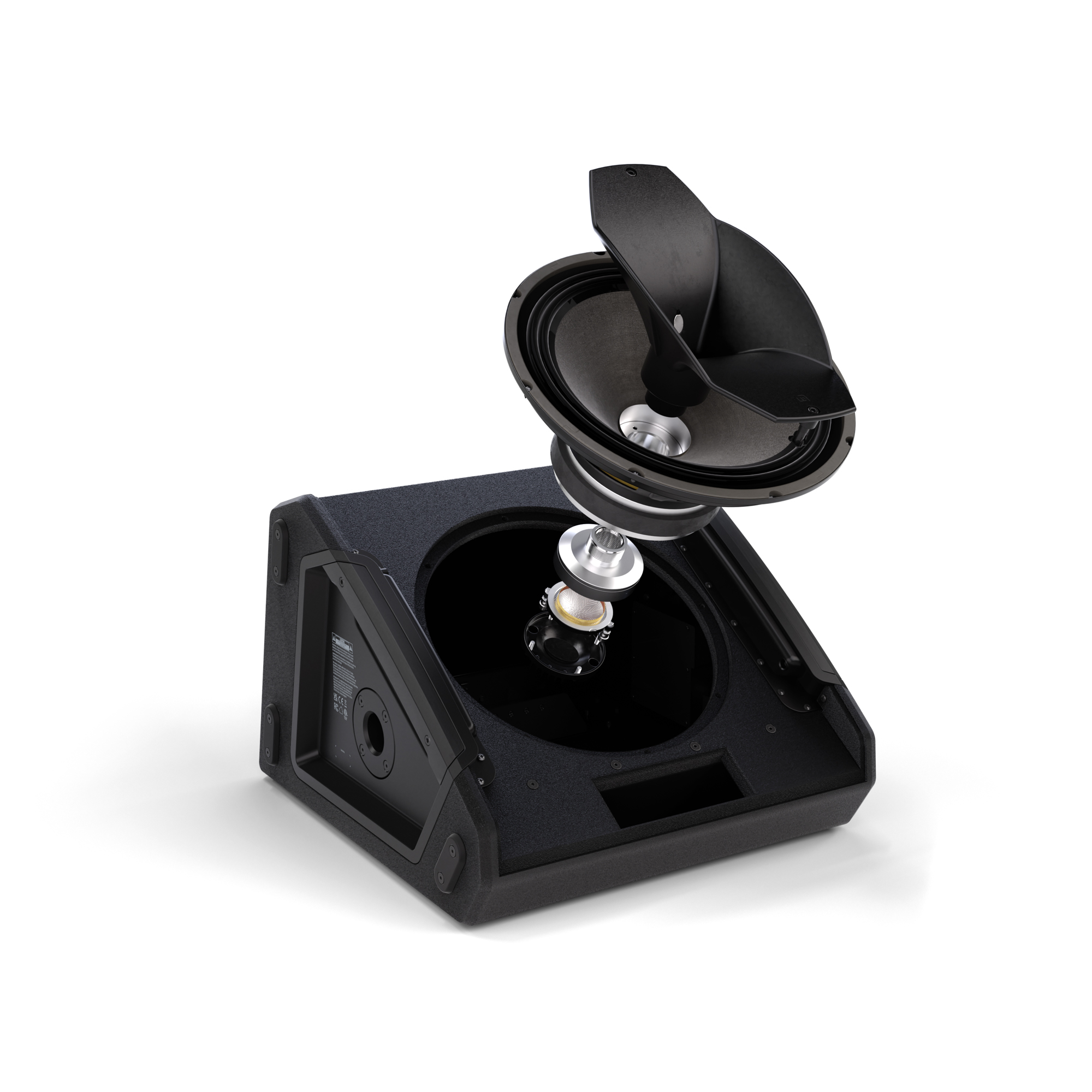

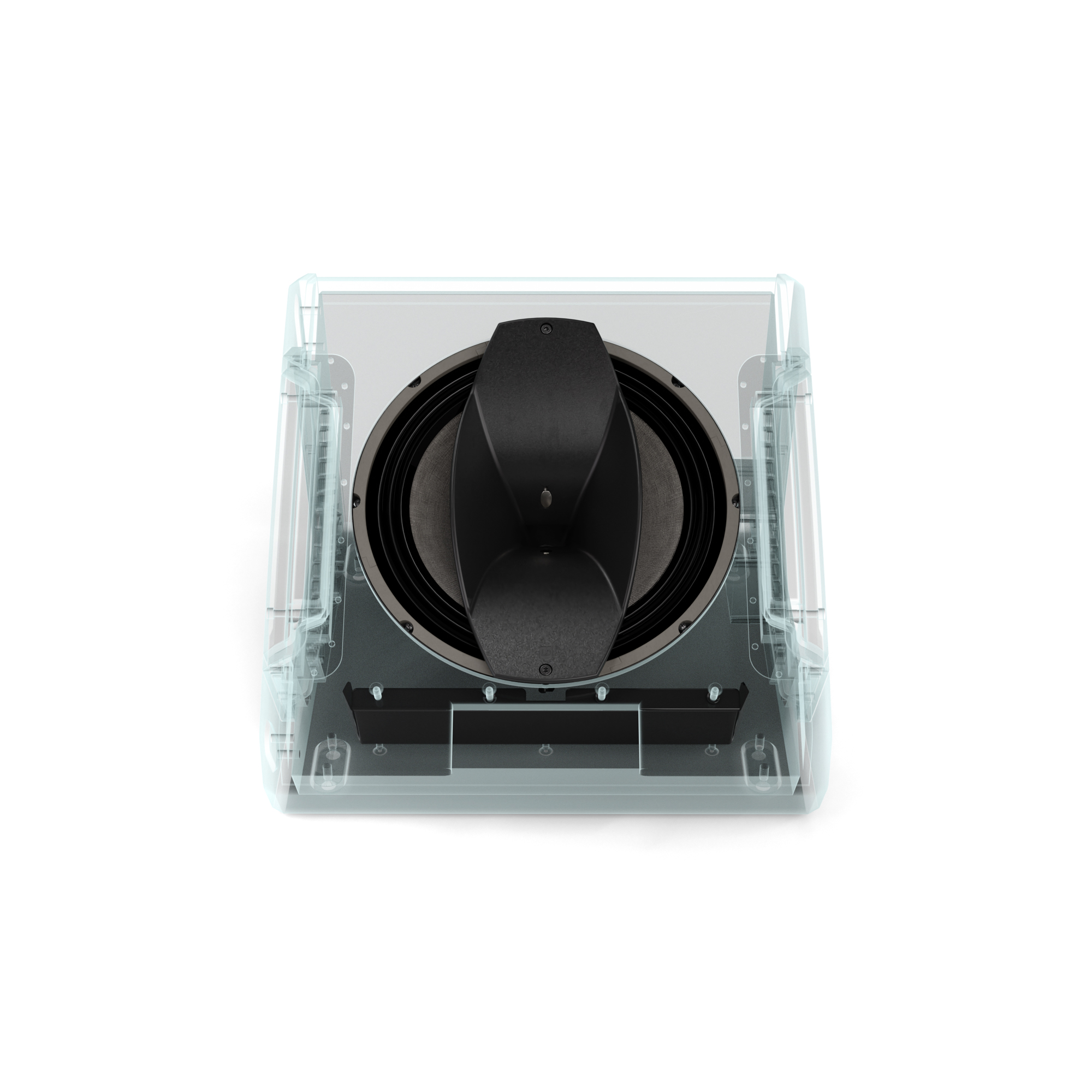

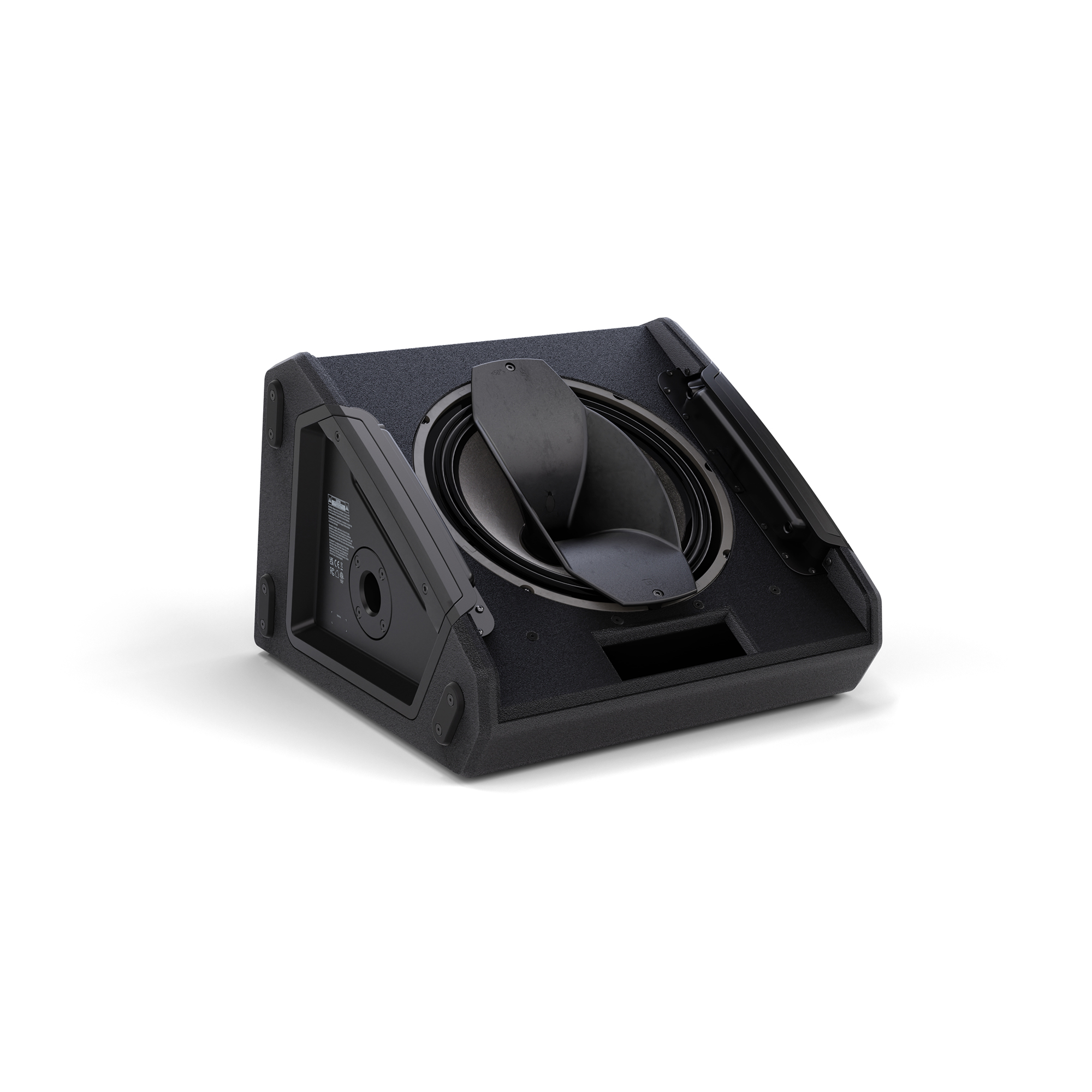

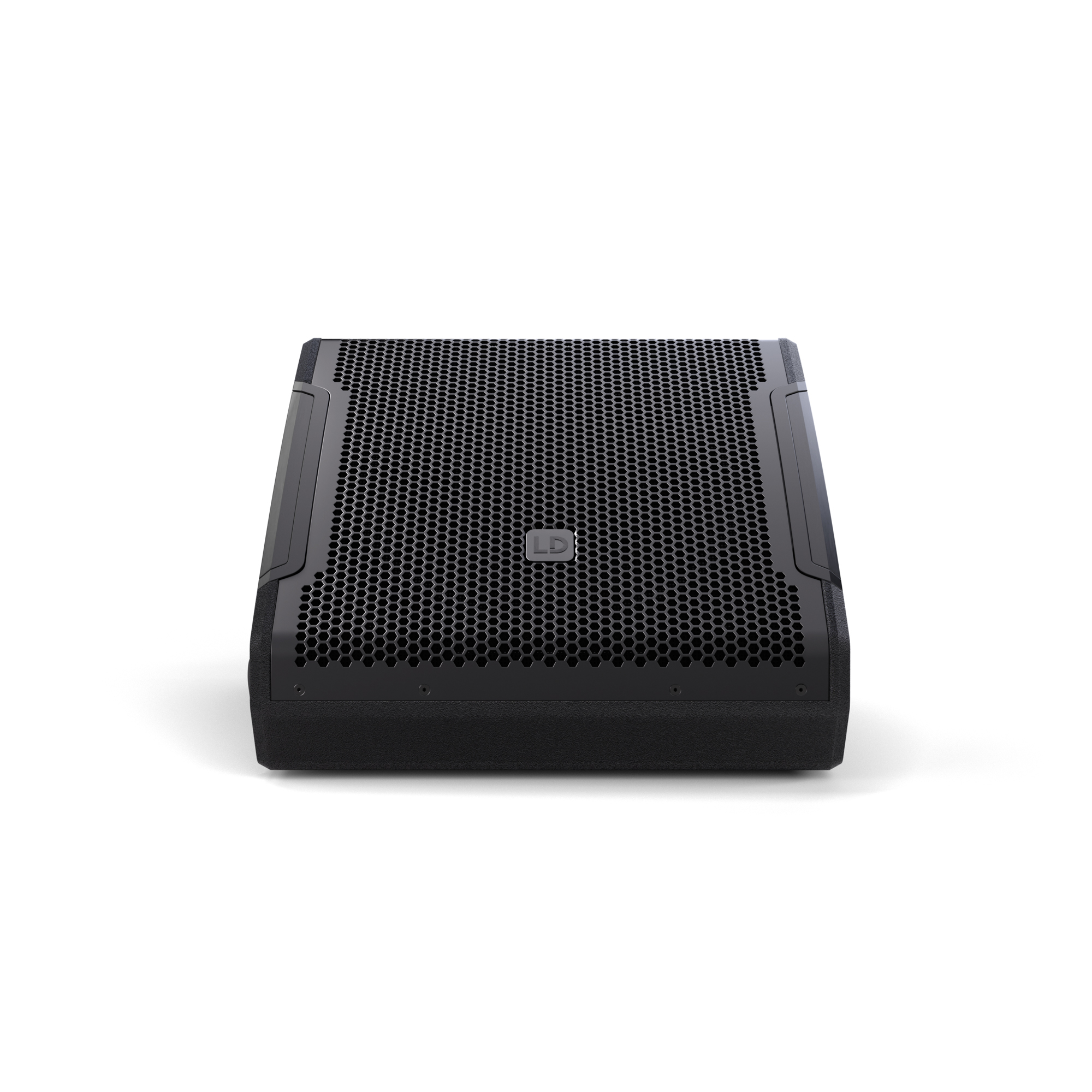

The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

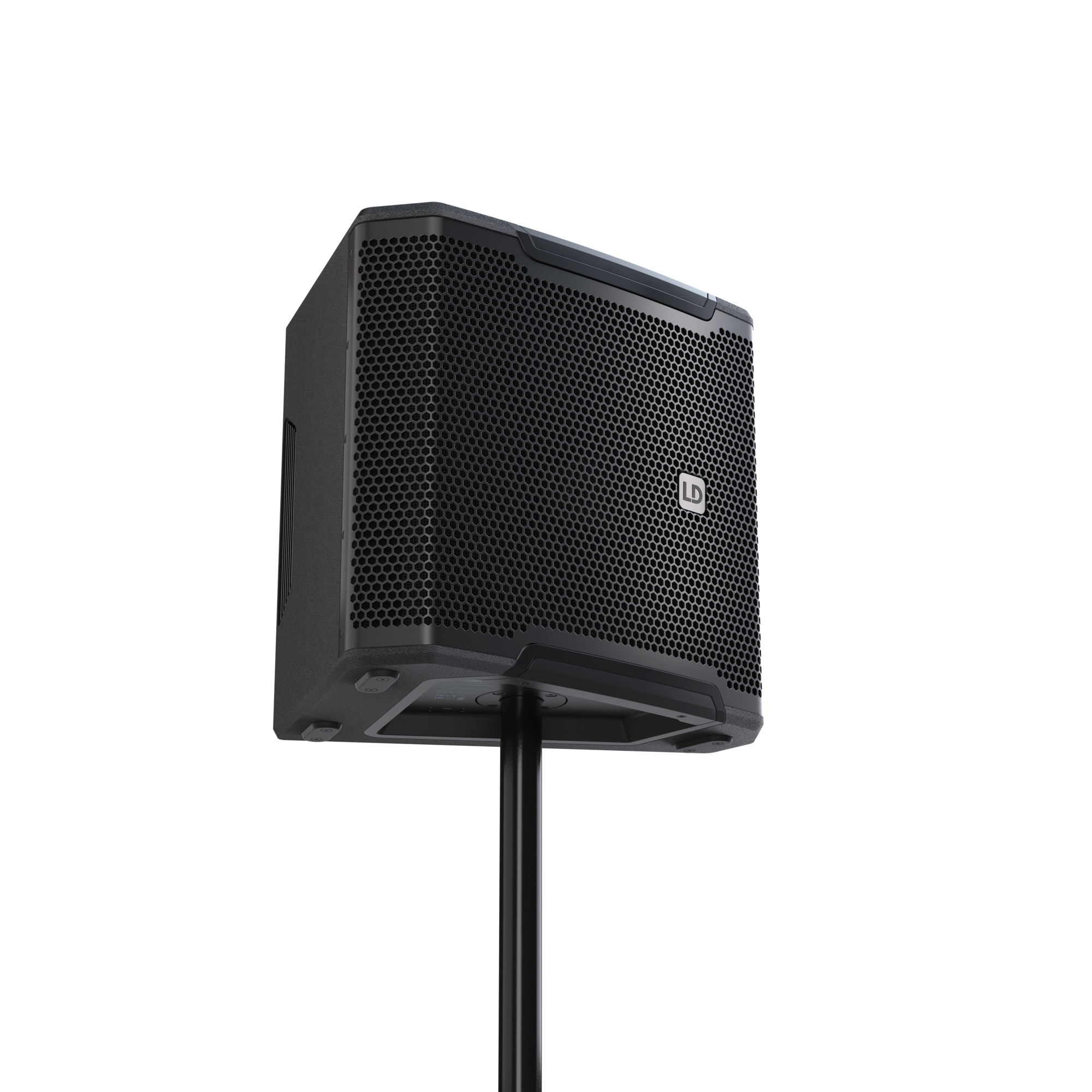

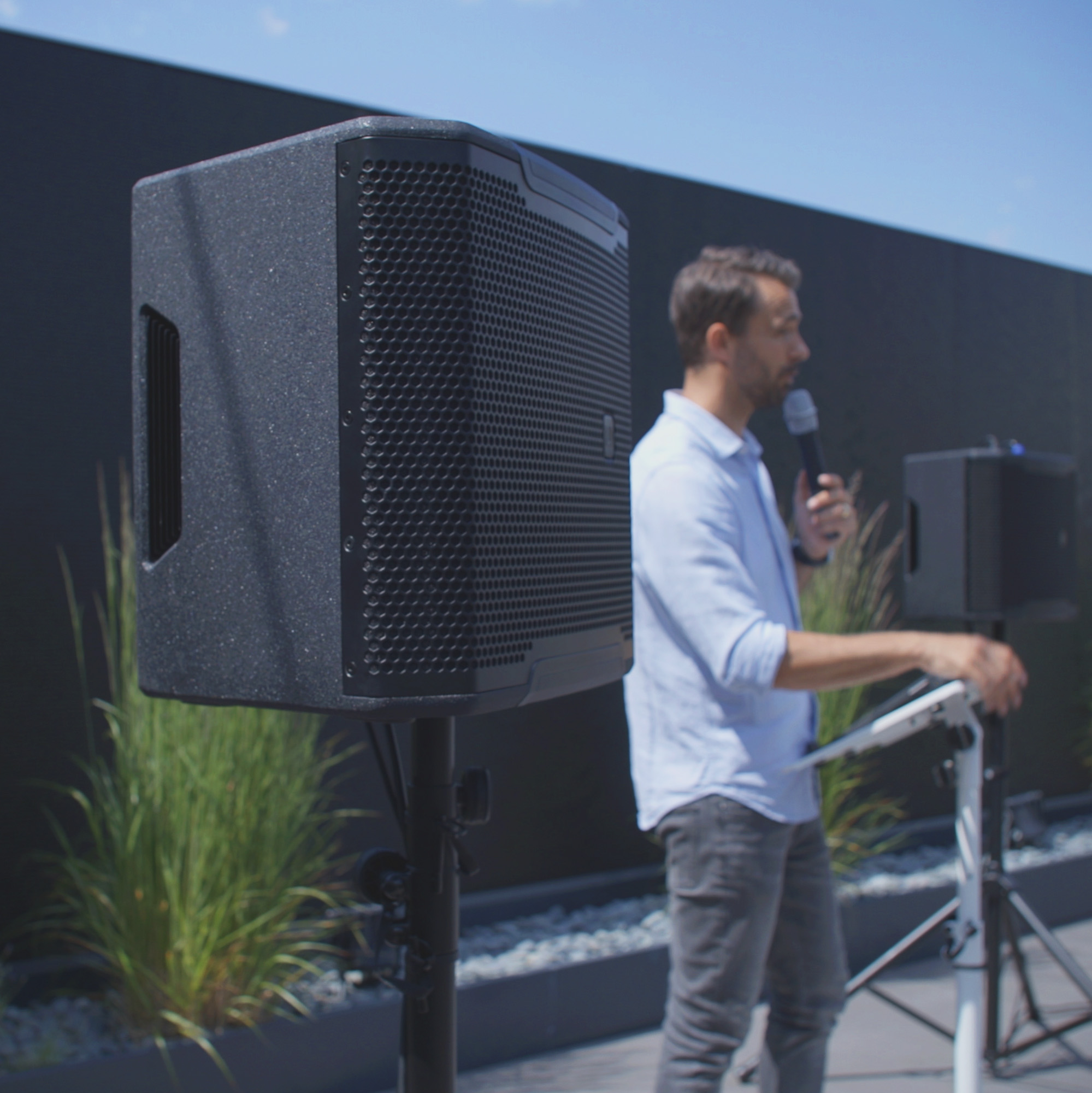

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

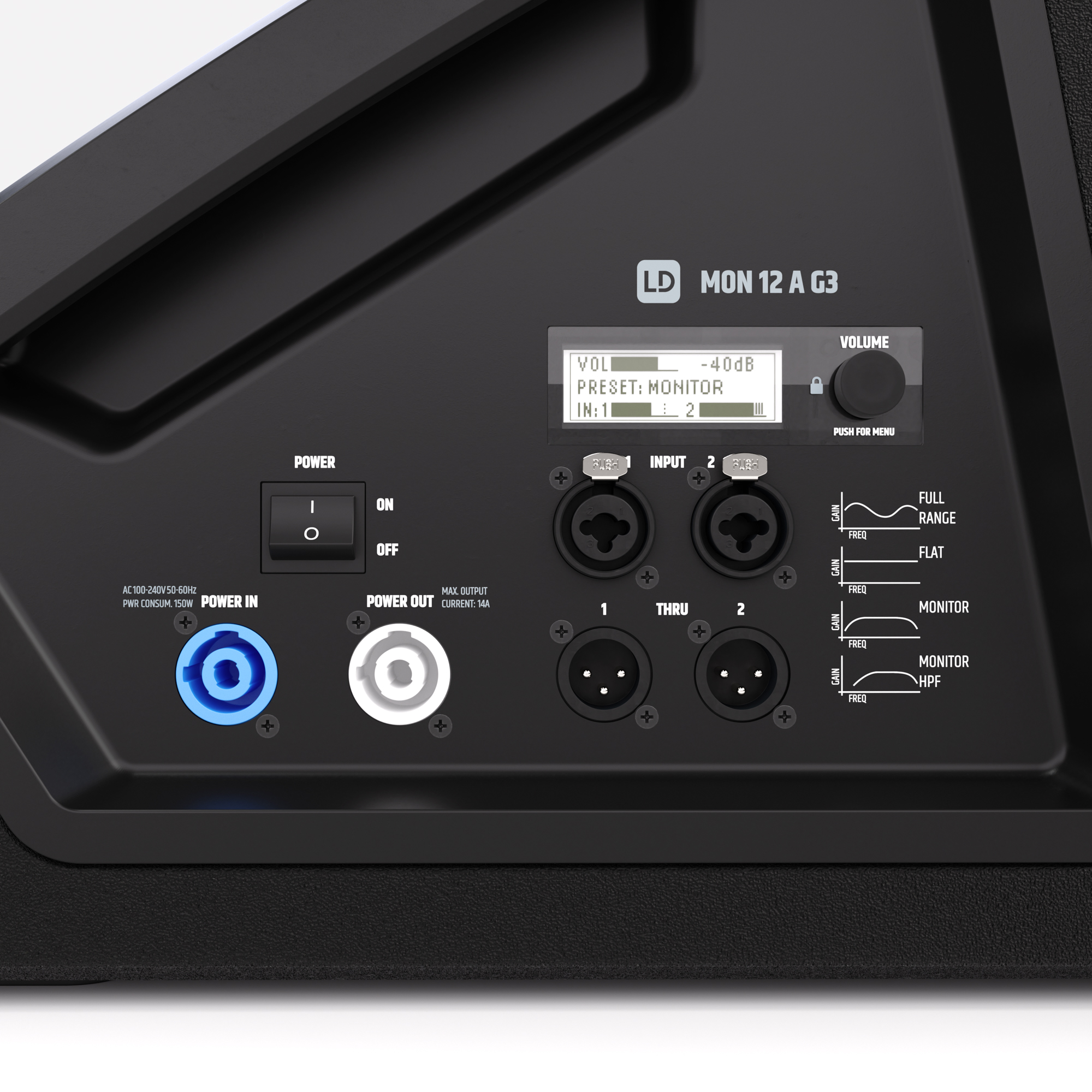

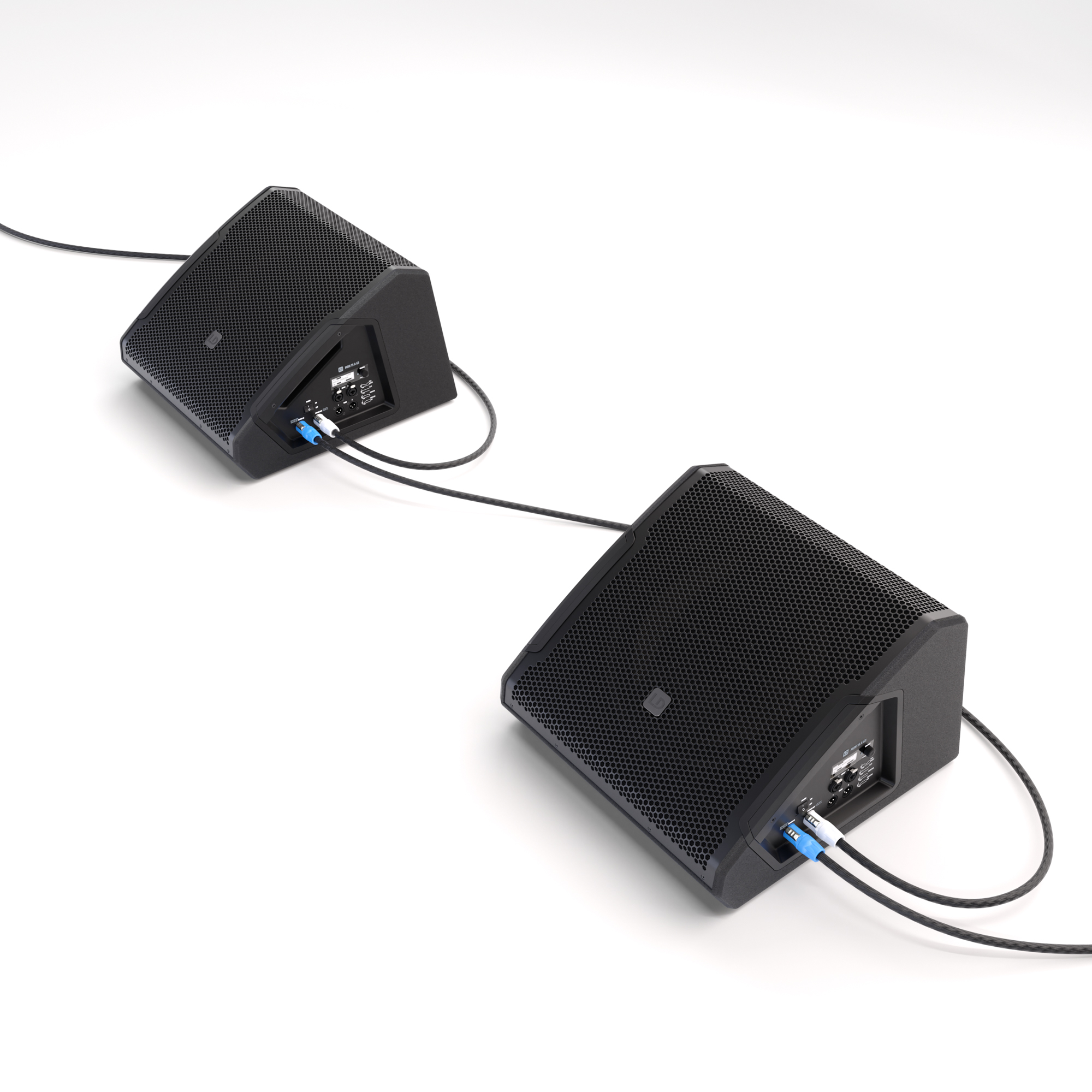

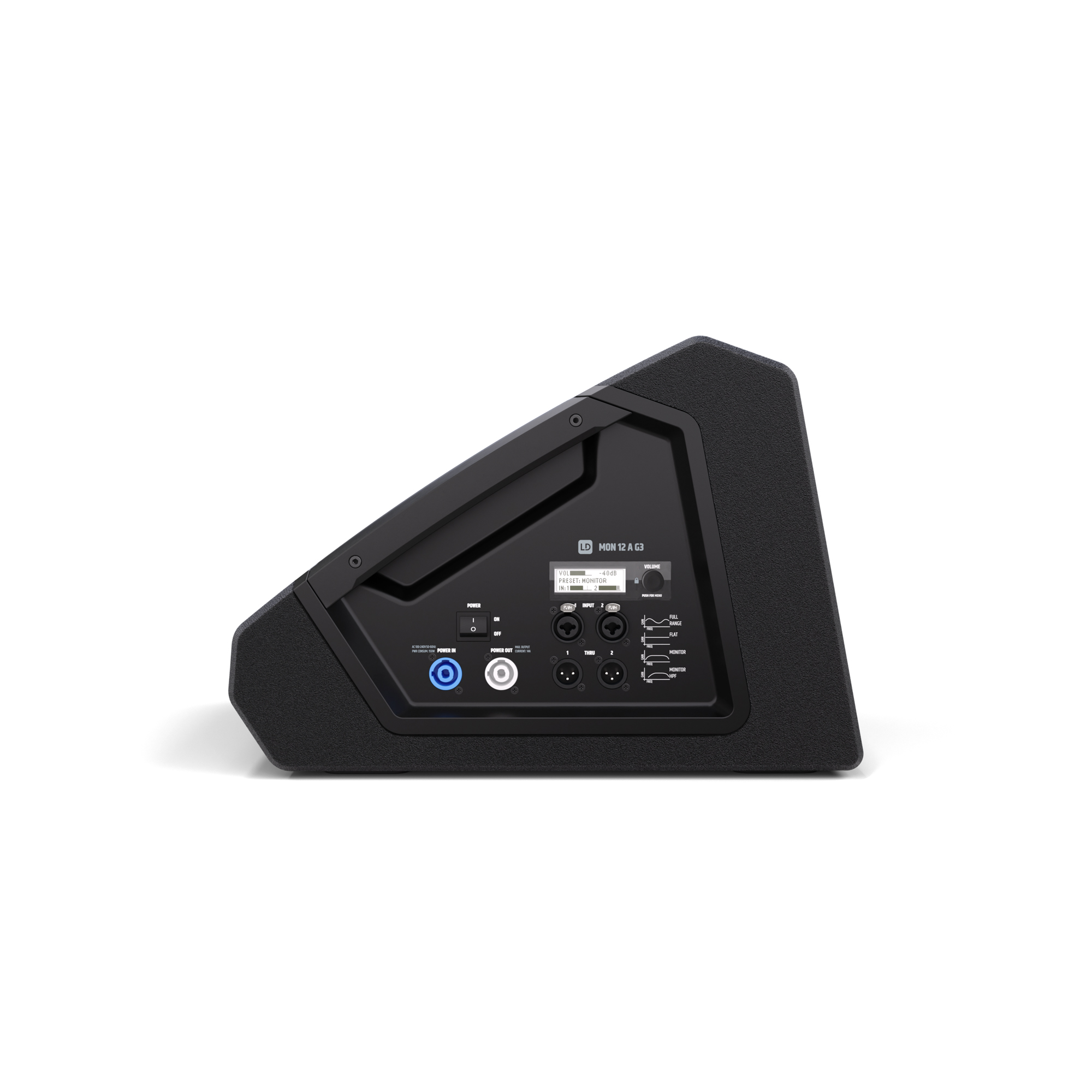

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
| Type: | Active |
|---|---|
| Input connector types: | 6.3 mm Jack TRS female, XLR combo socket |
| Output connector types: | XLR 3-pole female |
| Frequency response (-3 dB, rel. Avg): | 68 - 18000 Hz |
| Frequency response (-10 dB, rel. Avg): | 55 - 20000 Hz |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 120 dB |
| Amp class: | Class D |
| Beam angle: | Hor.: 50° / Vert.:90° |
| Speaker system: | 2-way coaxial system |
| Protection features: | Overload, Multiband Limiter, Overvoltage, Overheating |
| RMS output power: | 300 W |
| Monitor angle: | 33 ° |
| Peak output power: | 1200 W |
| Colour: | Black |
| Crossover frequency: | 1400 Hz |
| Number of inputs: | 2 |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 127 dB |
| Number of outputs: | 2 |
| Line-In connector type: | XLR combo socket, 6.3 mm Jack TRS female |
|---|---|
| Number of line inputs: | 2 |
| Audio processing: | Delay Line, 3 band EQ (High, Mid, Low), Presets, Notch filter |
|---|
| Manufacturer: | Custom Made |
|---|---|
| Size: | 12 " |
| Magnet: | Ferrite |
| Voice coil: | 2.5 " |
| Magnet: | Ferrite |
|---|
| Manufacturer: | Custom Made |
|---|---|
| Voice coil: | 1.75 " |
| Driver size: | 0.04 in |
| Magnet: | Ferrite |
| Rated power: | 150 W |
|---|---|
| Mains fuse: | T4AL/250 V |
| Power supply type: | External switched-mode power supply (SMPS) |
| Operation voltage: | 100 V AC - 230 V AC / 50 - 60 Hz |
| Mains connector: | Mains socket indoor power in male & powerCON® |
| Flange: | 36 mm (0°/5°) |
|---|---|
| Number of handles: | 2 |
| Design: | Bass reflex |
| Front grille material: | Aluminium |
| Cabinet material: | Birch multiplex, Medium-density fibreboard MDF |
| Material thickness: | 0.59 in |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Width: | 16.73 in |
|---|---|
| Depth: | 17.83 in |
| Height: | 12.4 in |
| Weight: | 38.36 lbs |
| Included accessories: | Mains cable |
|---|
