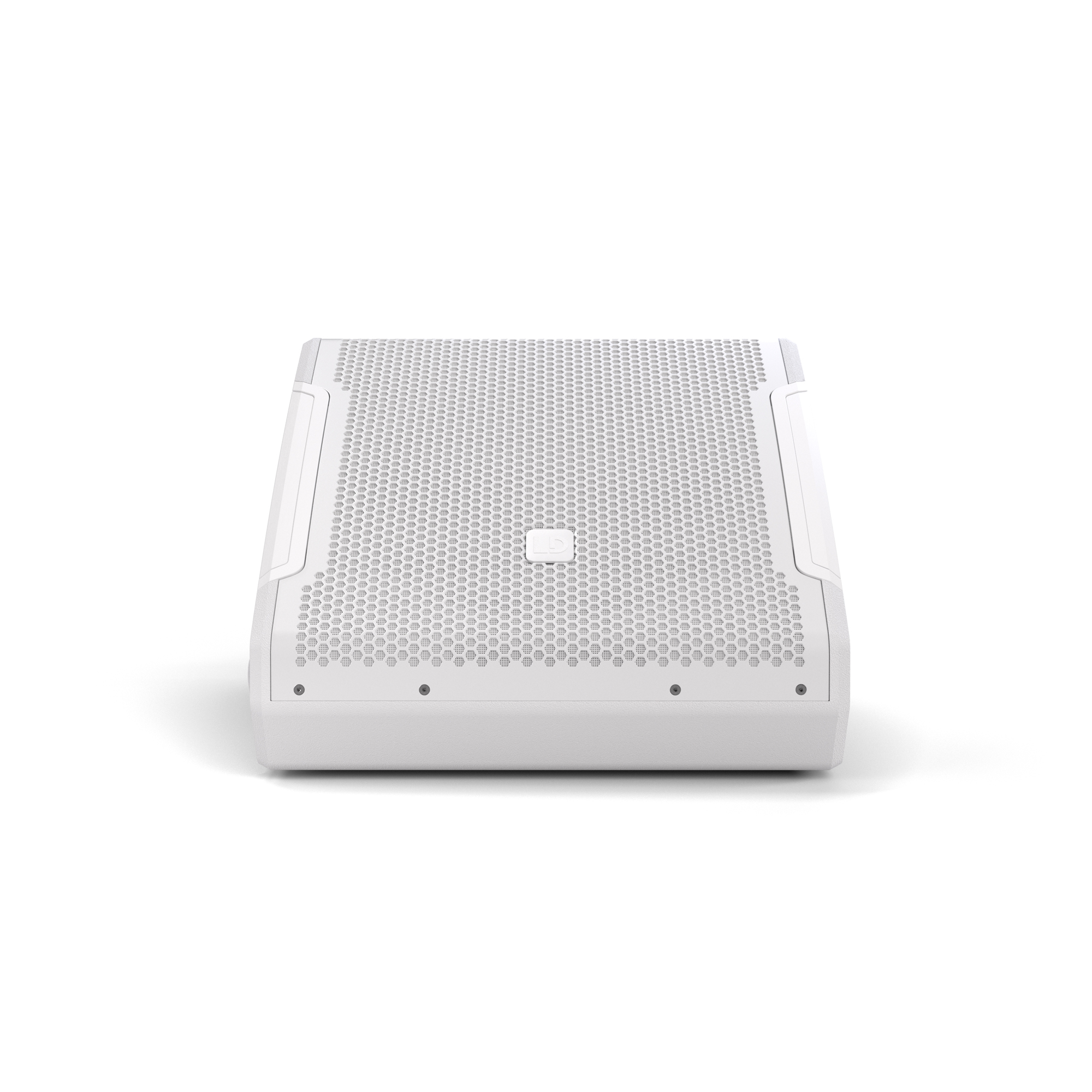

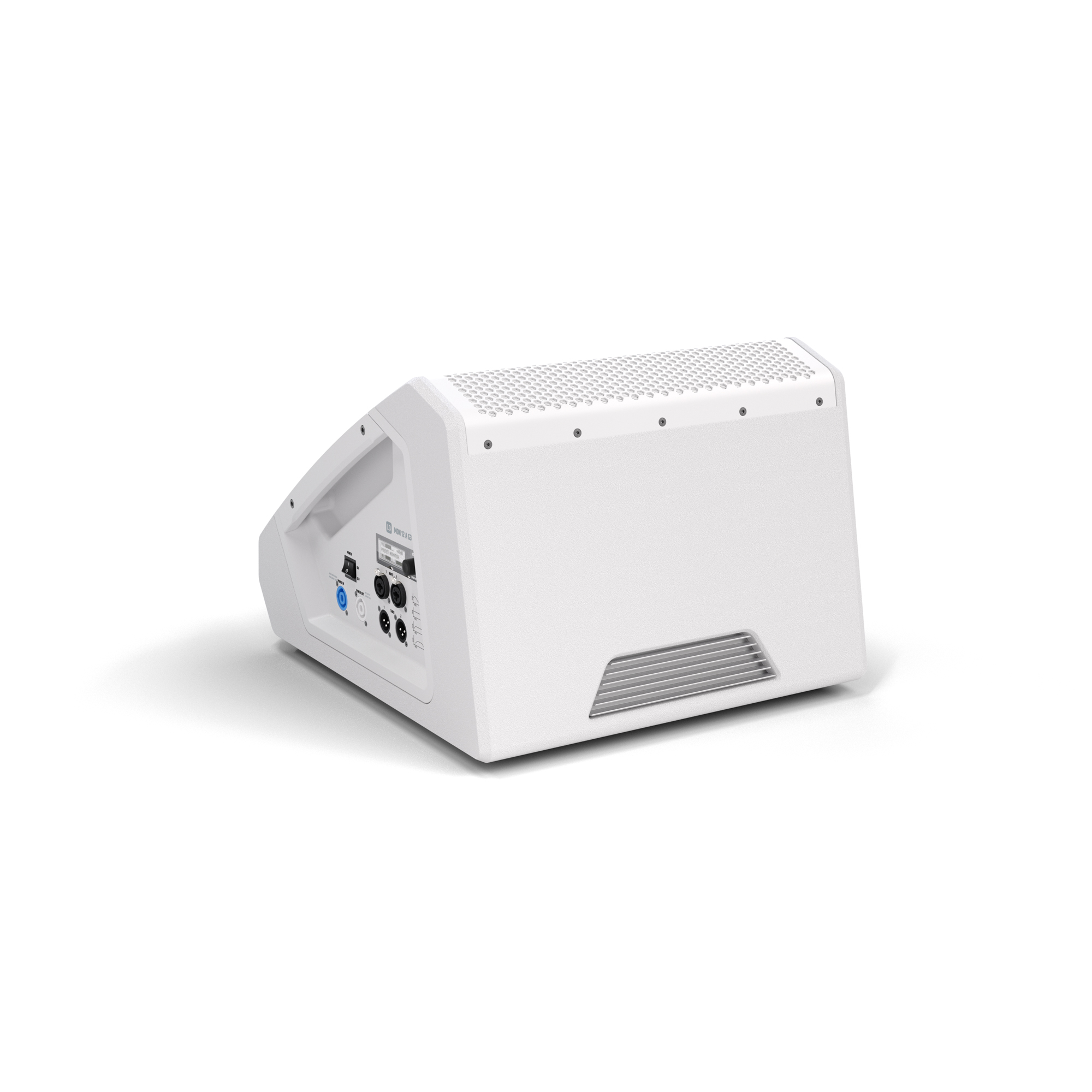

MON 12 A G3 W
12" powered coaxial stage monitor, white
$589.99
Backordered – More on the Way!
Product information "MON 12 A G3 W"

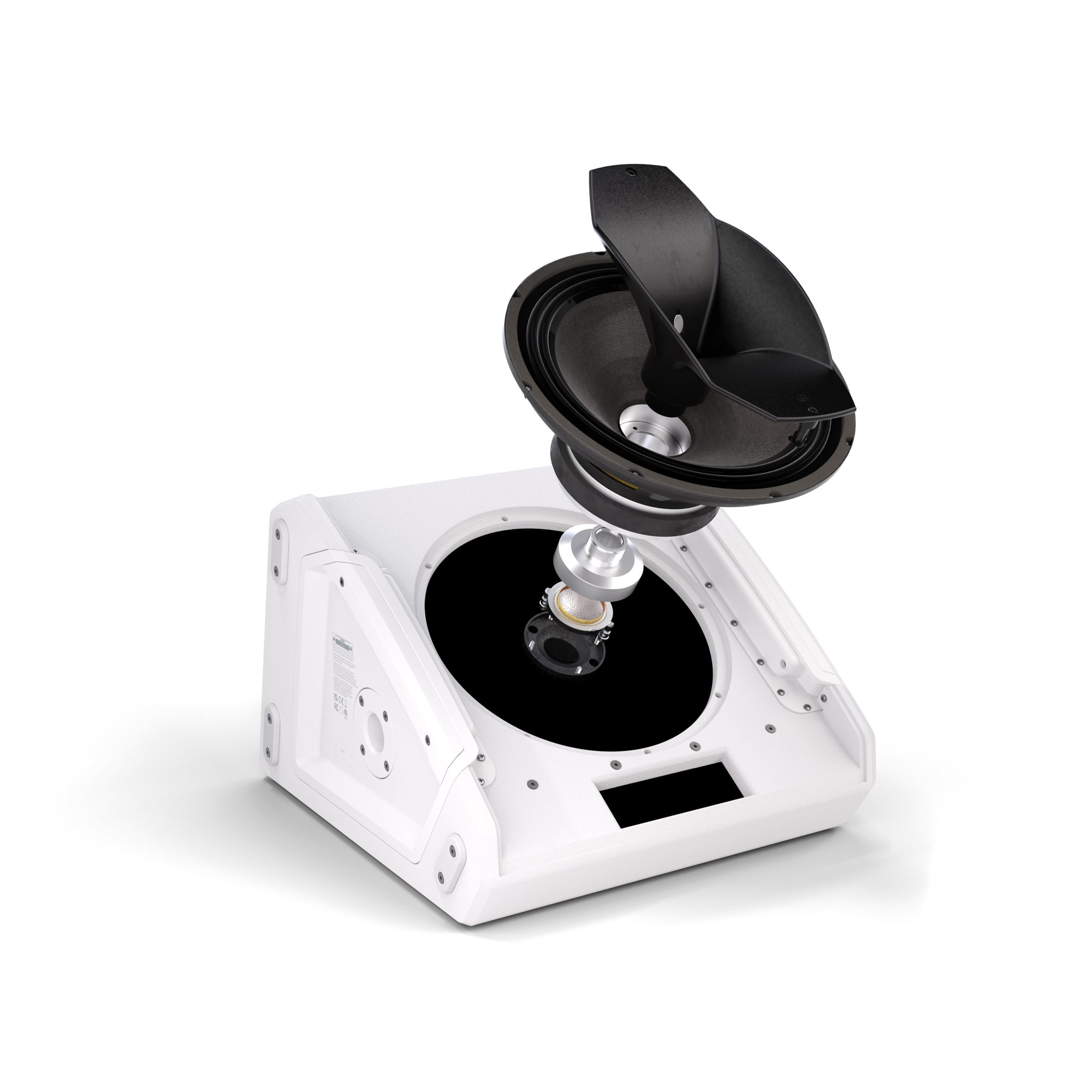

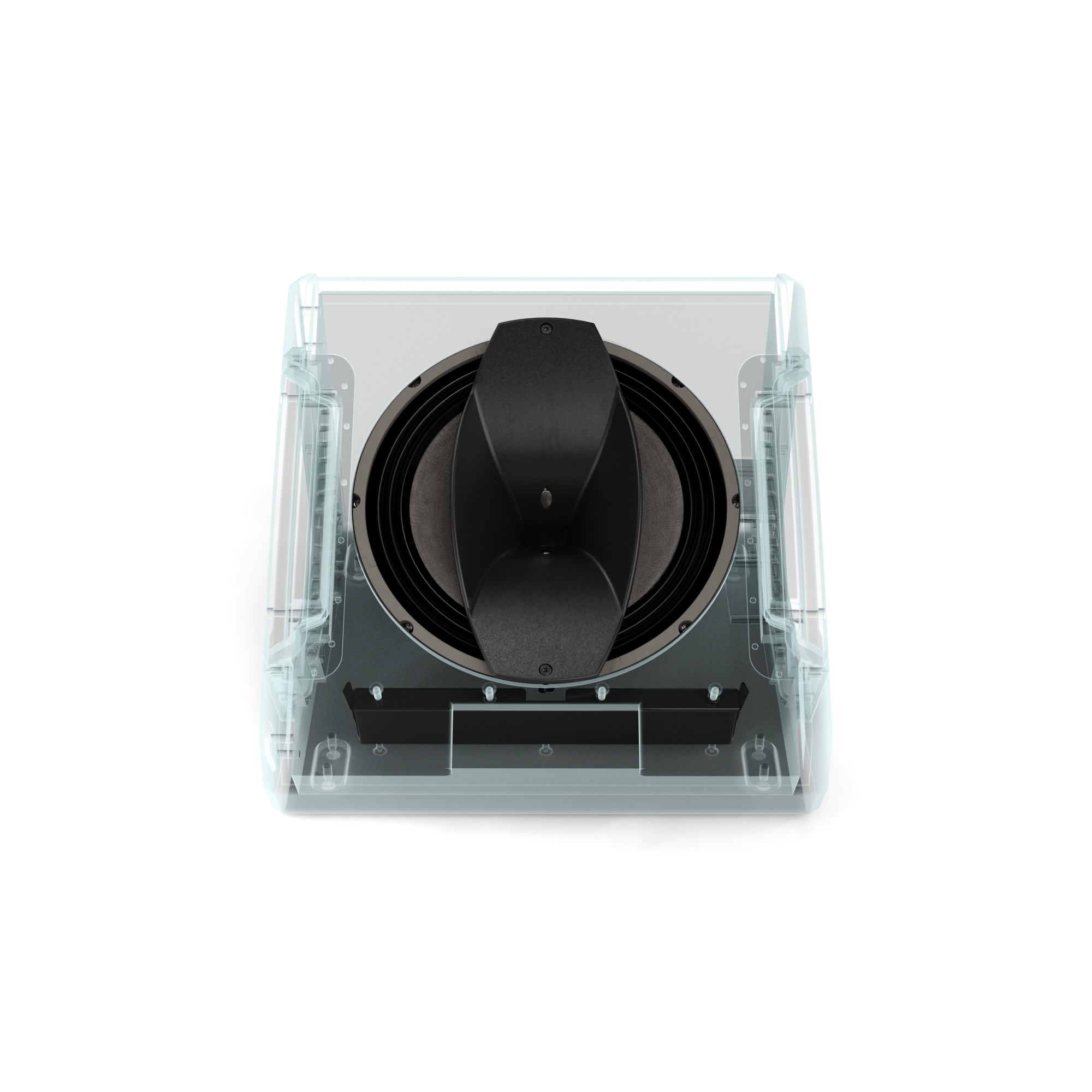

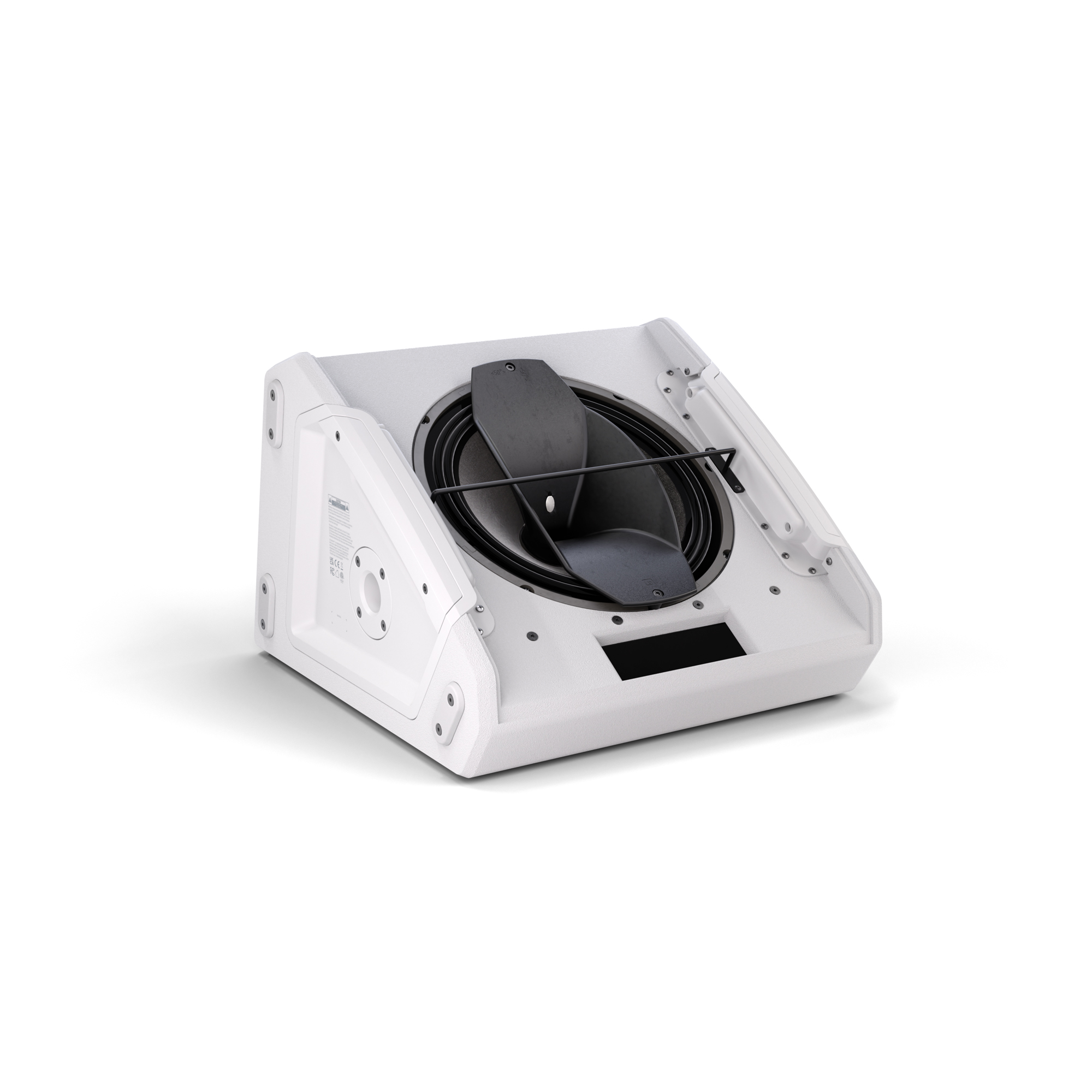

The MON 12 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

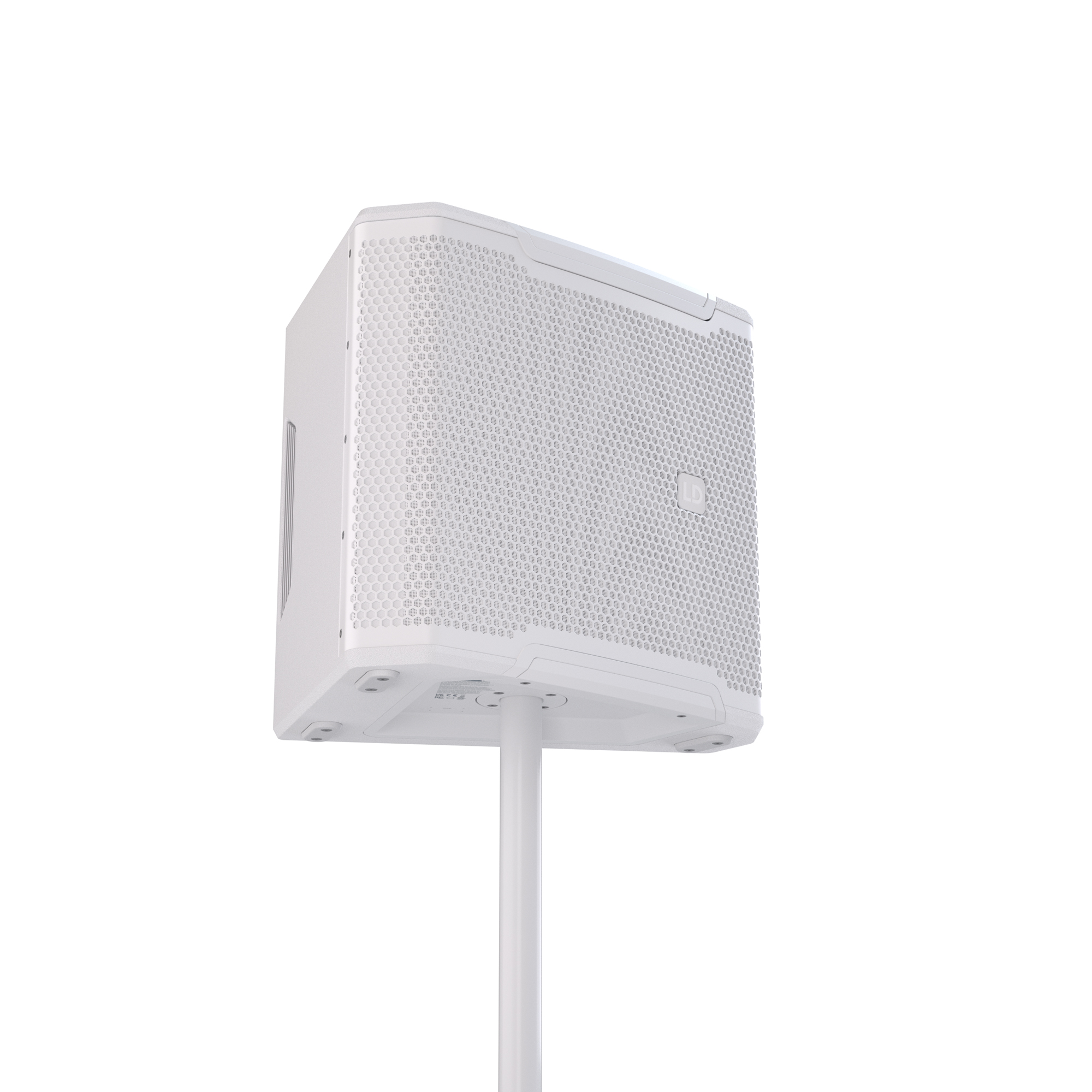

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 W brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

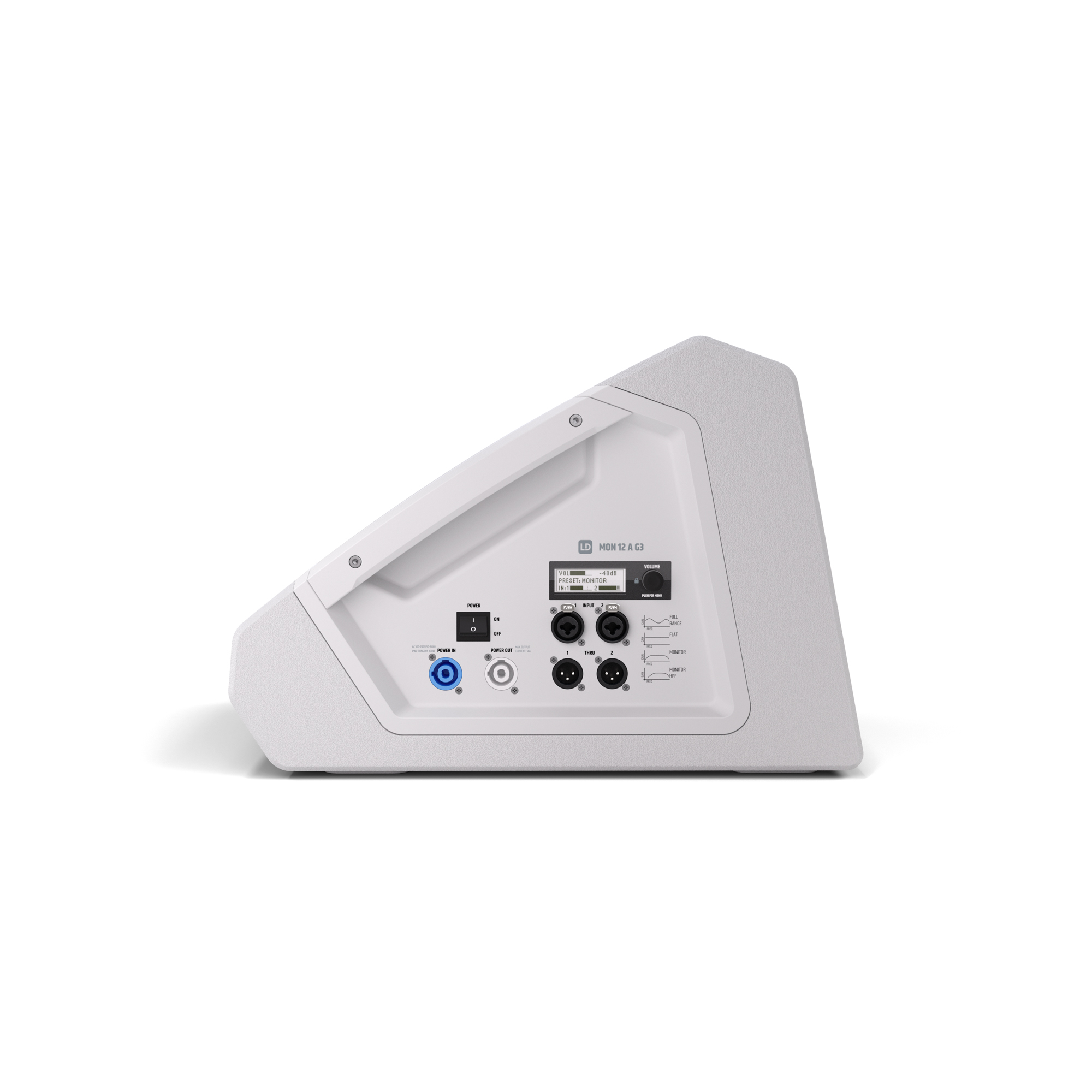

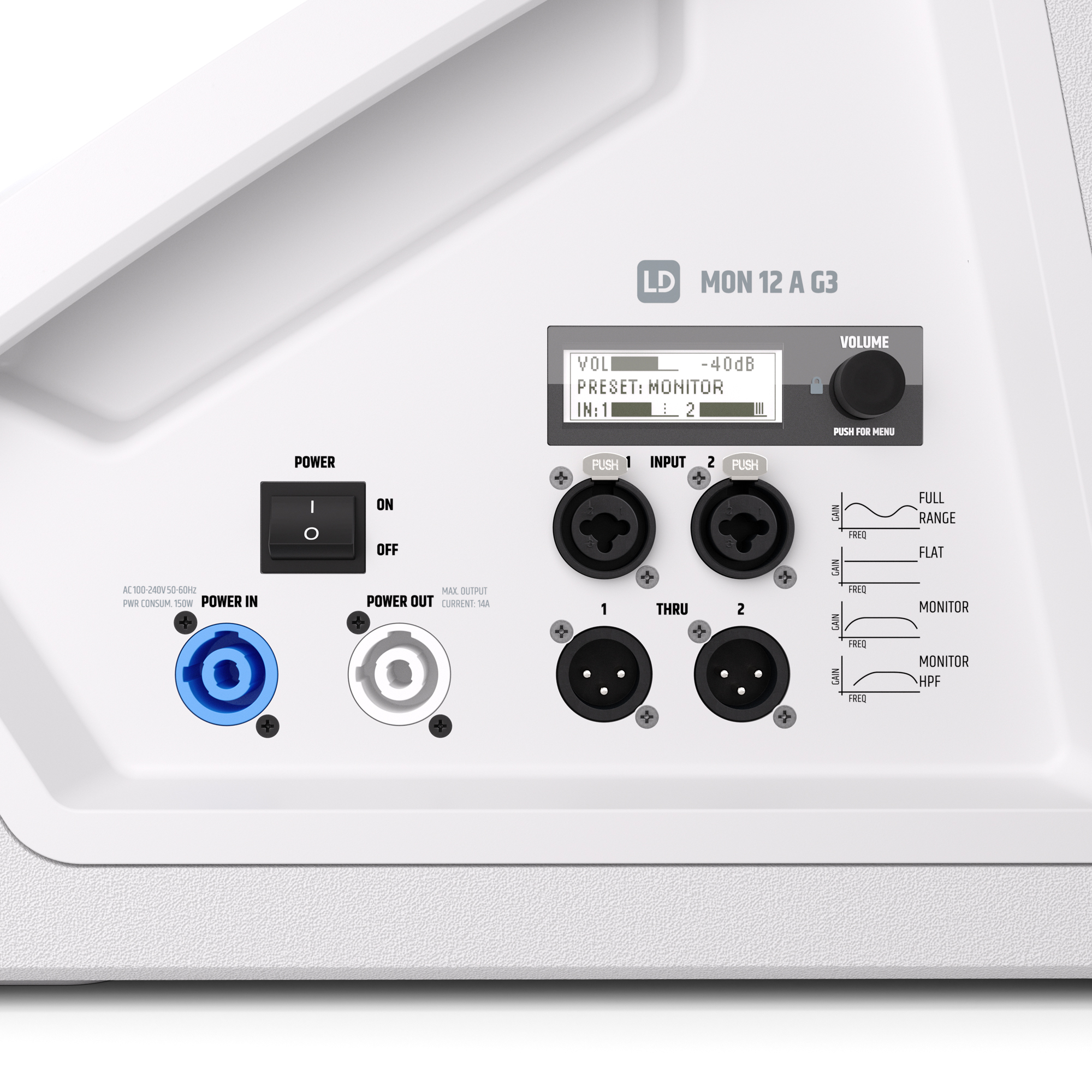

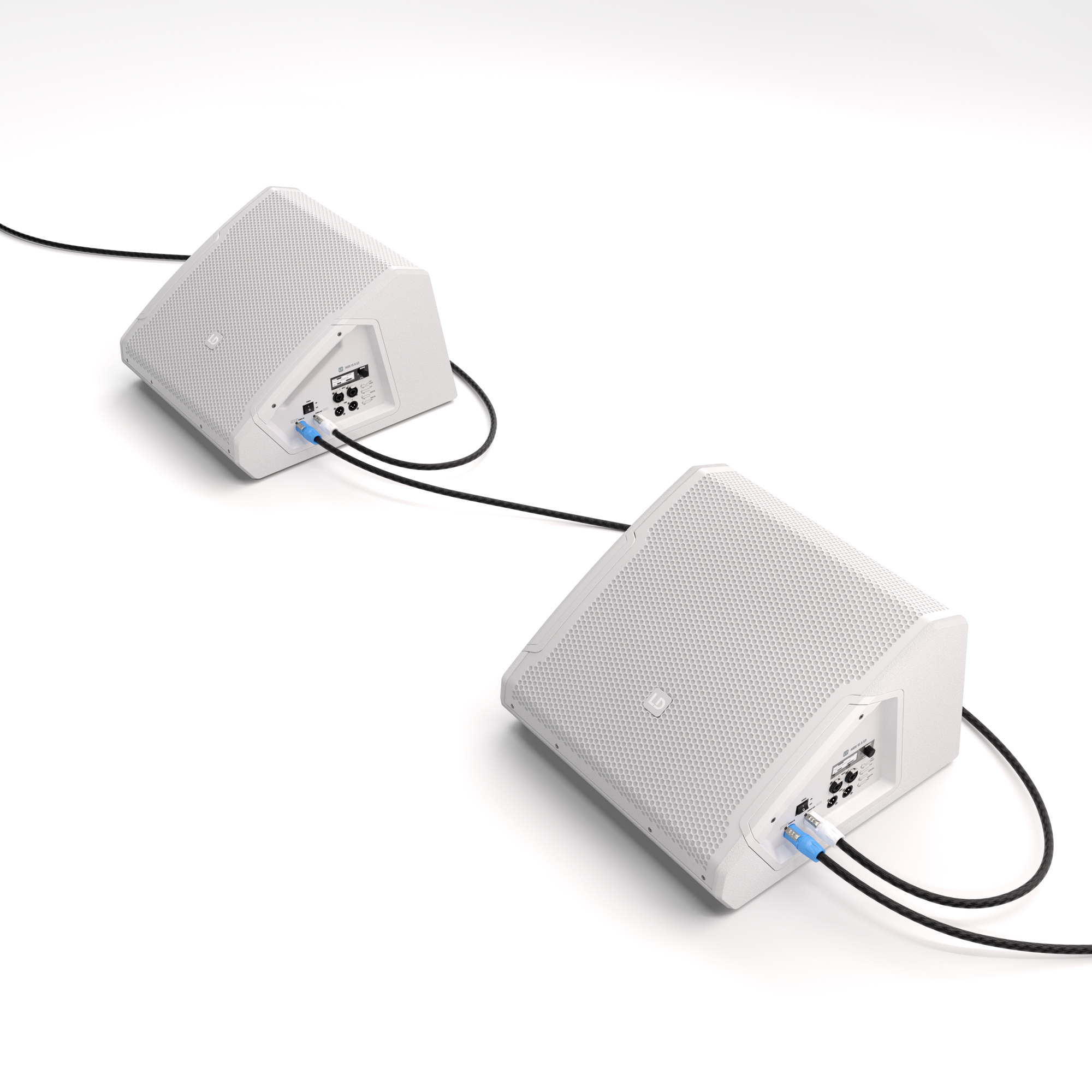

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
| Input connector types: | 6.3 mm Jack TRS female |
|---|
| Depth: | 17.83 in |
|---|---|
| Number of handles: | 2 |
| Monitor angle: | 33 ° |
| Power supply type: | External switched-mode power supply (SMPS) |
| Number of line outputs: | 2 |
| Audio processing: | 3 band EQ (High, Mid, Low), Presets, Delay Line, Notch filter |
| Mains connector: | Mains socket indoor power in male & powerCON® |
| Protection features: | Overload, Overvoltage, Multiband Limiter, Overheating |
| Number of inputs: | 2 |
| Line outputs connector type: | XLR 3-pole female |
| Height: | 12.4 in |
| Voice coil: | 1.75 " |
| Peak output power: | 1200 W |
| Output connector types: | XLR 3-pole female |
| Width: | 16.73 in |
| Voice coil: | 2.5 " |
| Number of line inputs: | 2 |
| Magnet: | Ferrite |
|---|---|
| Amp class: | Class D |
| Maximum air humidity (non-condensing): | 80 % |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 120 dB |
| Speaker system: | 2-way coaxial system |
| Weight: | 38.36 lbs |
|---|---|
| Type: | Active |
| Frequency response (-3 dB, rel. Avg): | 68 - 18,000 Hz |
|---|---|
| Colour: | White |
| Magnet: | Ferrite |
| Operation voltage: | 100 V AC - 230 V AC / 50 - 60 Hz |
|---|
| Number of outputs: | 2 |
|---|---|
| Mixer: | Yes |
| Rated power: | 150 W |
| Cabinet material: | Birch multiplex, Medium-density fibreboard MDF |
| Flange: | 36 mm (0°/5°) |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 127 dB |
| Crossover frequency: | 1400 Hz |
| Front grille material: | Aluminium |
| Material thickness: | 0.59 in |
| Outlet diameter: | 1 in |
| Frequency response (-10 dB, rel. Avg): | 55 - 20,000 Hz |
|---|---|
| Driver size: | 1 " |
| Design: | Bass reflex |
| Included accessories: | Mains cable |
|---|---|
| Line-In connector type: | 6.3 mm Jack TRS female |
| Ambient temperature: | 0 - 40 °C |
| RMS output power: | 300 W |
| Size: | 12 " |
| Beam angle: | Hor.: 50° / Vert.:90° |
|---|---|
| Mains fuse: | T4AL/250 V |
Login
accessories

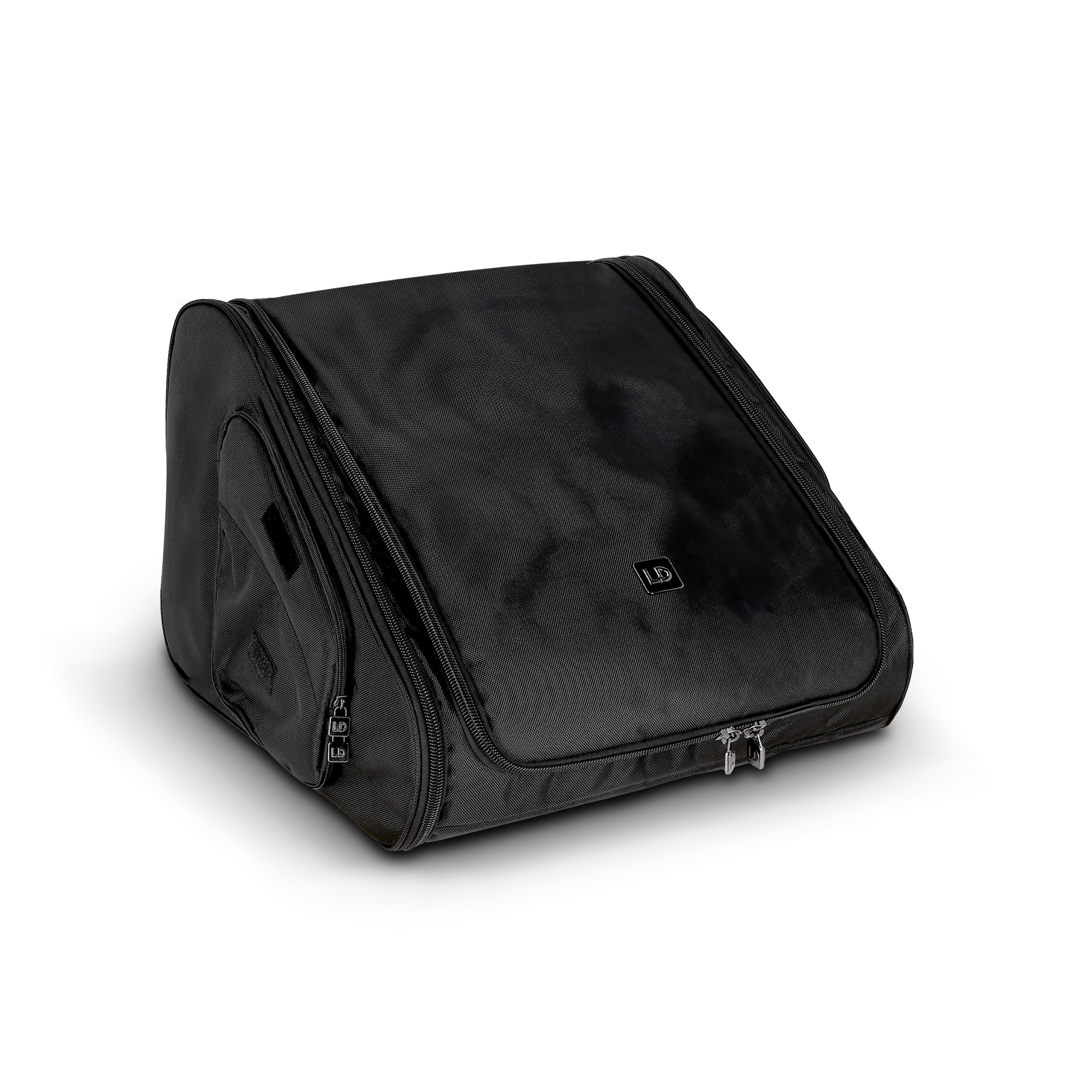

With the padded protective cover made of durable and water-repellent 1680D nylon, the MON 12 A G3 monitor is optimally protected against weather influences and other impacts. The 8 mm thickly padded protective cover can be easily slipped over the monitor standing on its side due to the large side zipper opening. The crossing of the internal Velcro straps ensures a secure fit in the protective cover.The large roll-up front opening and side flaps allow full use of the monitor with the protective cover in place. The cutouts for handles, control panel, connections, speaker stand flange, and heat sink each have their own flap. These flaps are closed with a zipper and can be kept open using Velcro to optimally protect the monitor while still allowing it to be operated.
