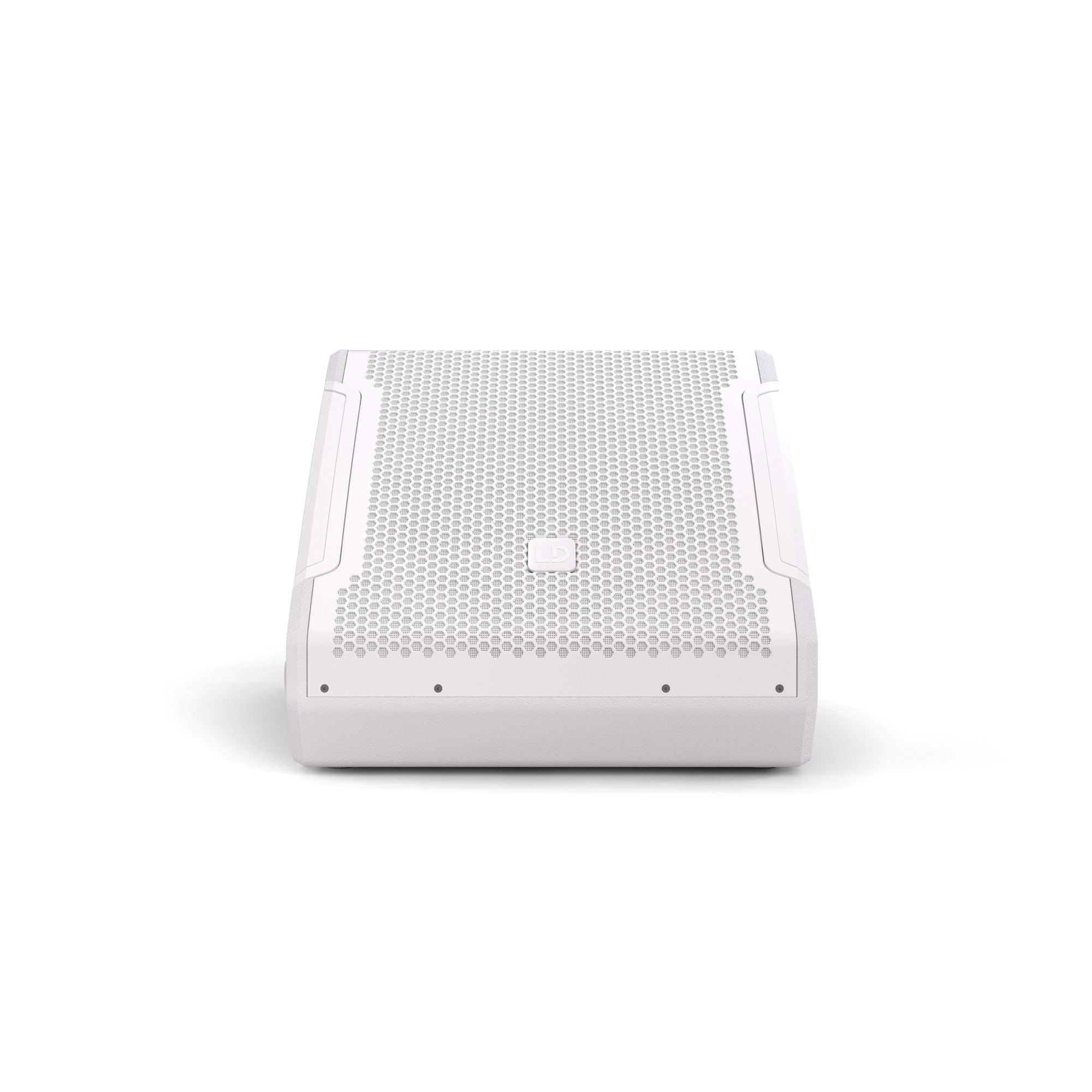

MON 10 A G3 W
10" powered coaxial stage monitor, white
$549.99
Backordered – More on the Way!
Product information "MON 10 A G3 W"

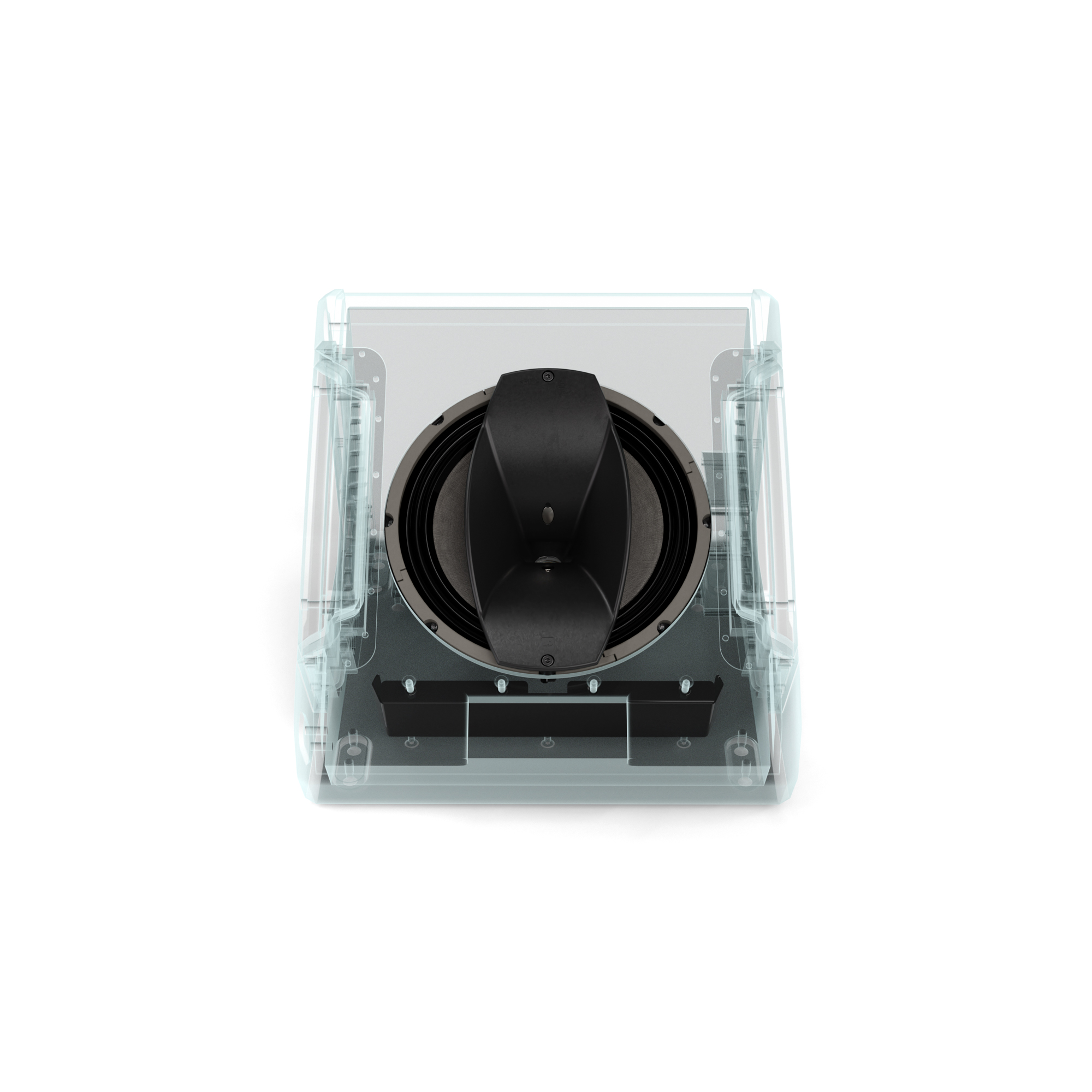

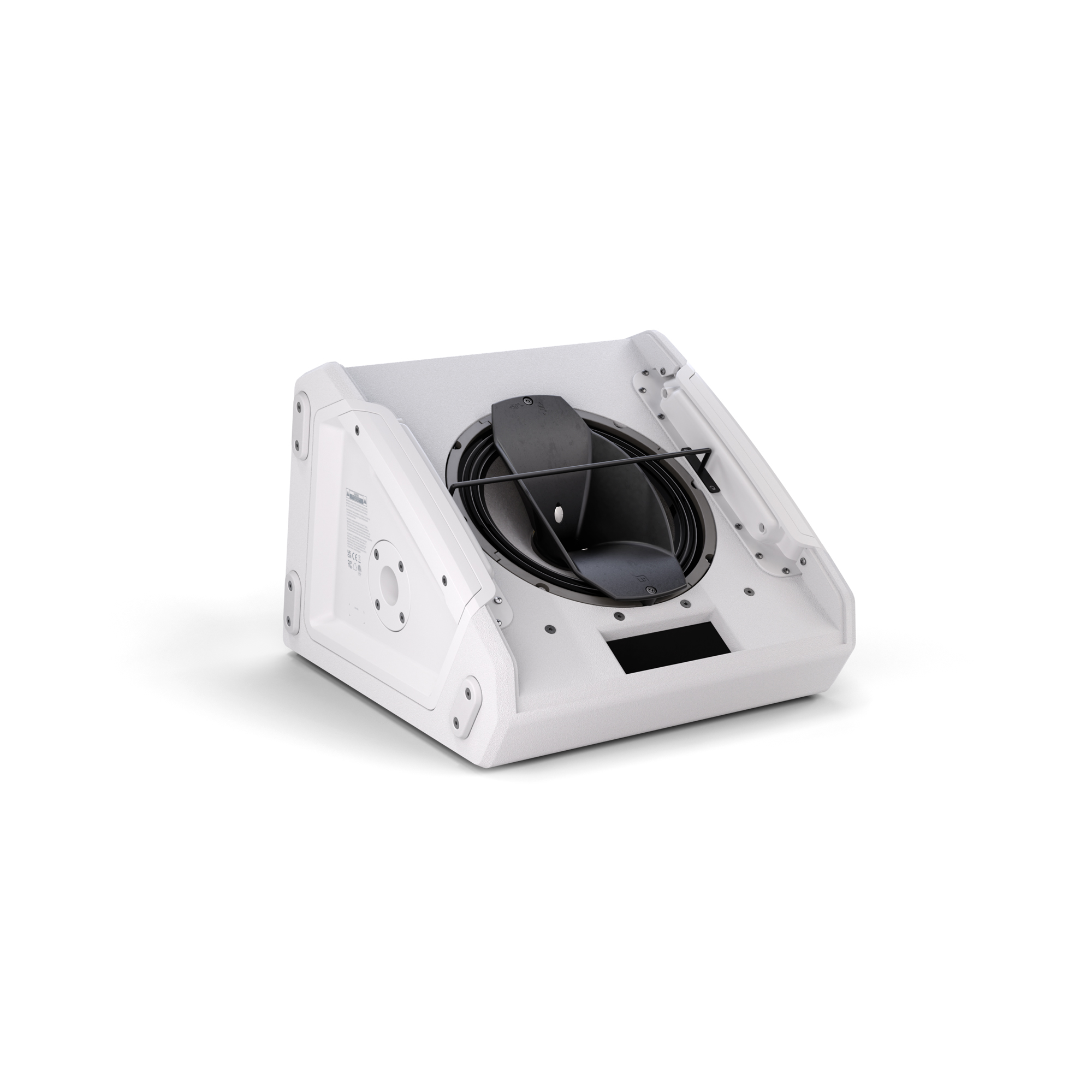

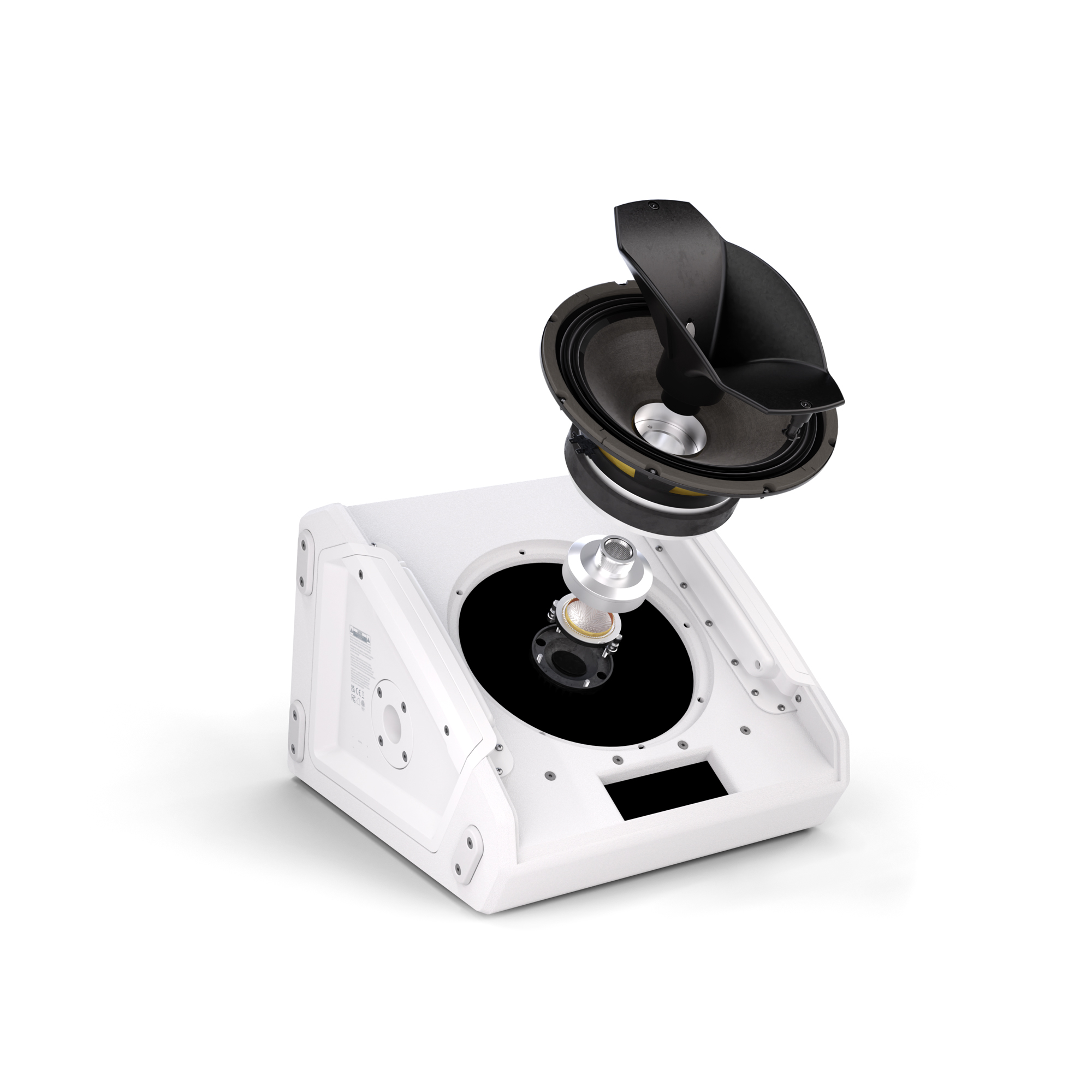

The MON 10 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

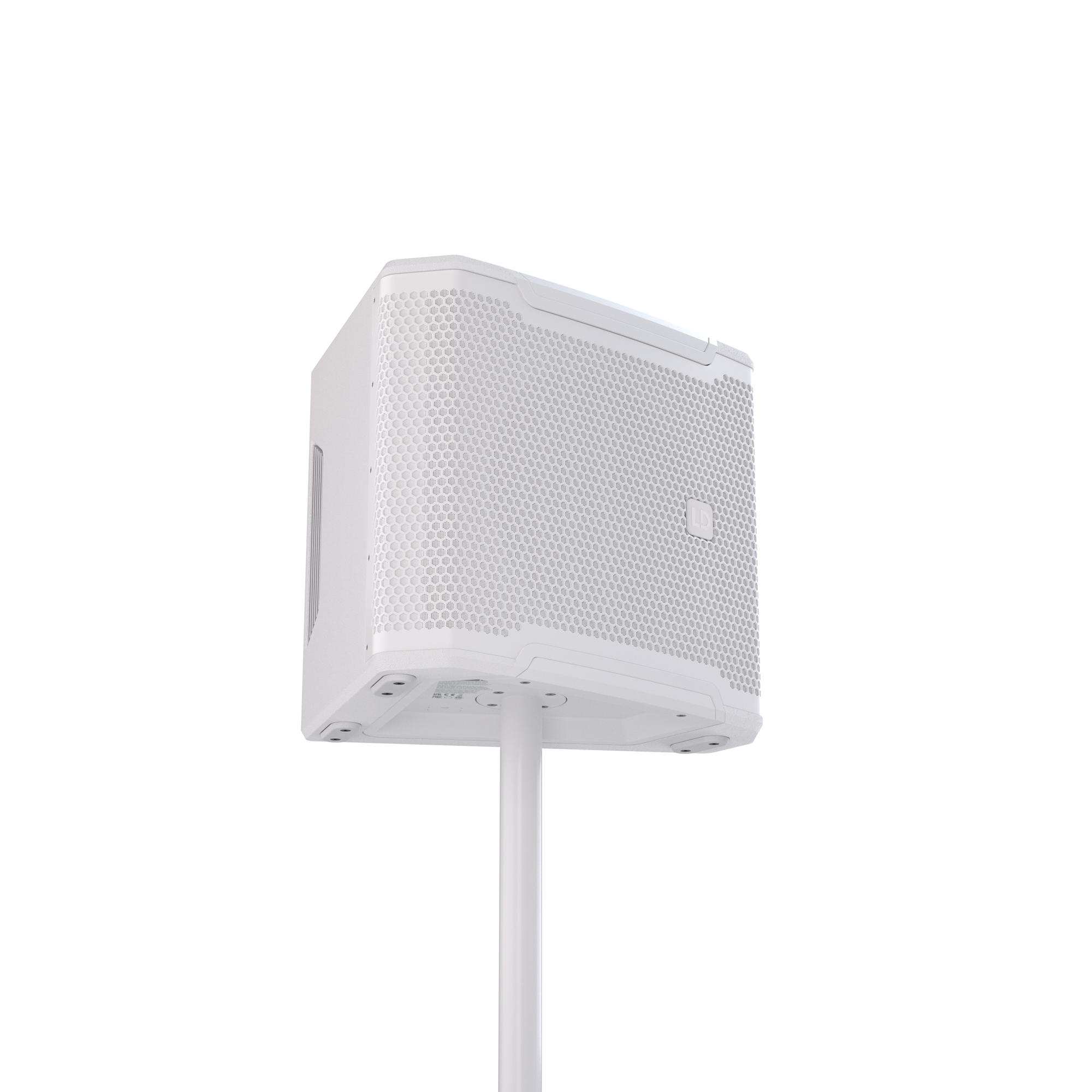

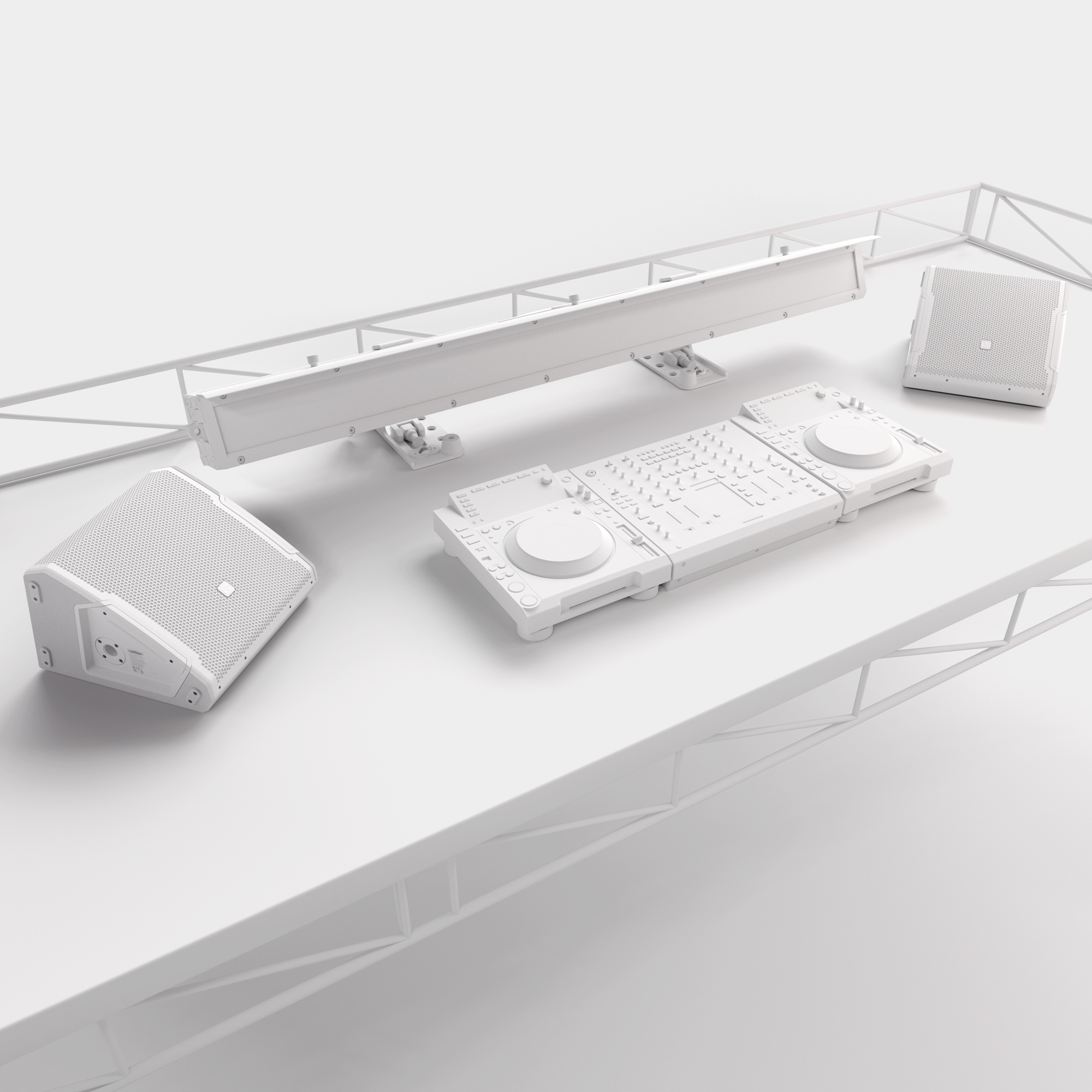

Although it is still very compact and can therefore be integrated inconspicuously into the stage set, the MON 10 A G3 W delivers sufficient sound pressure to assert itself even in louder band situations. The ideal dispersion geometry of 50° x 90° for monitor use and 90° x 50° for FOH use make it a multi-talent that offers the right solution for many different tasks.

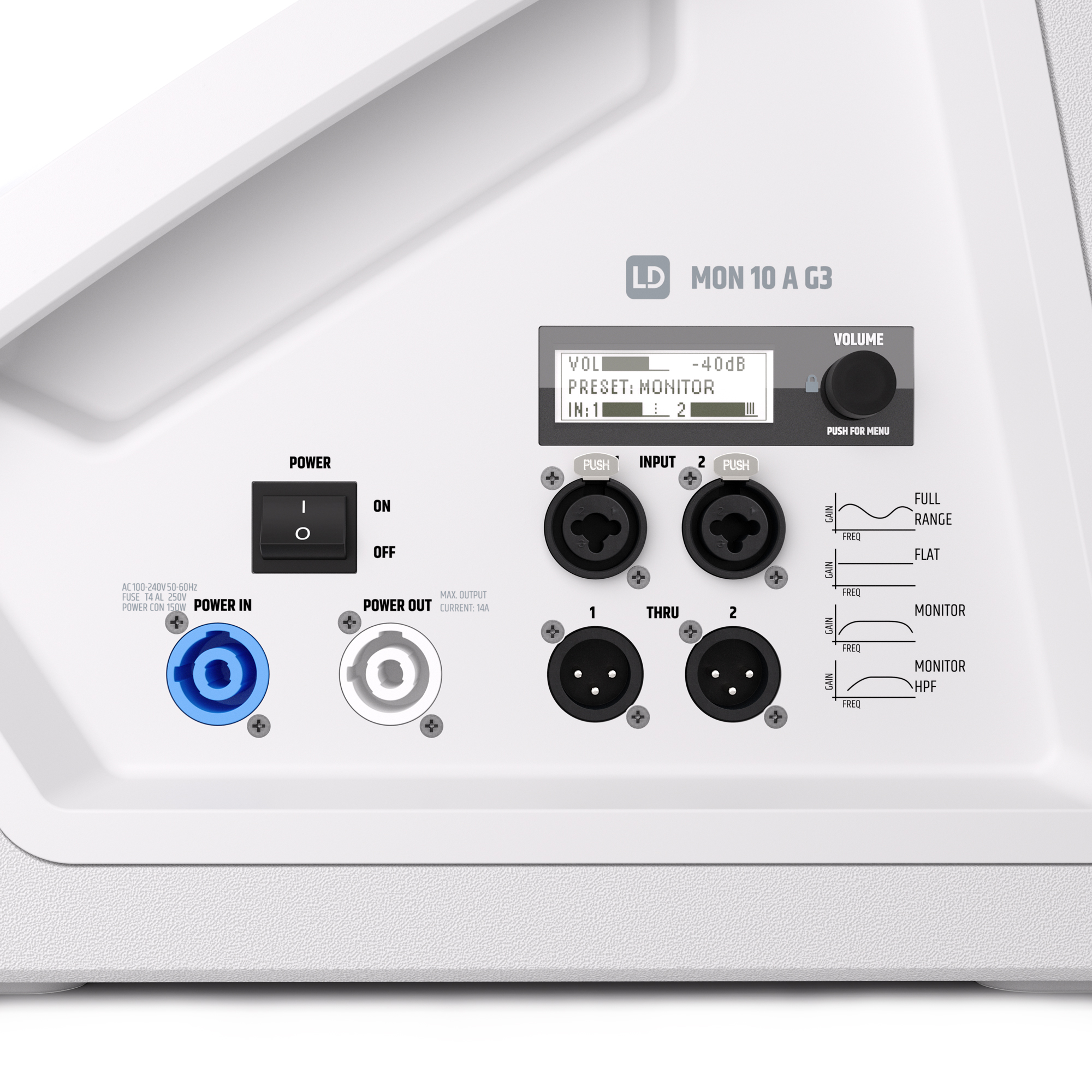

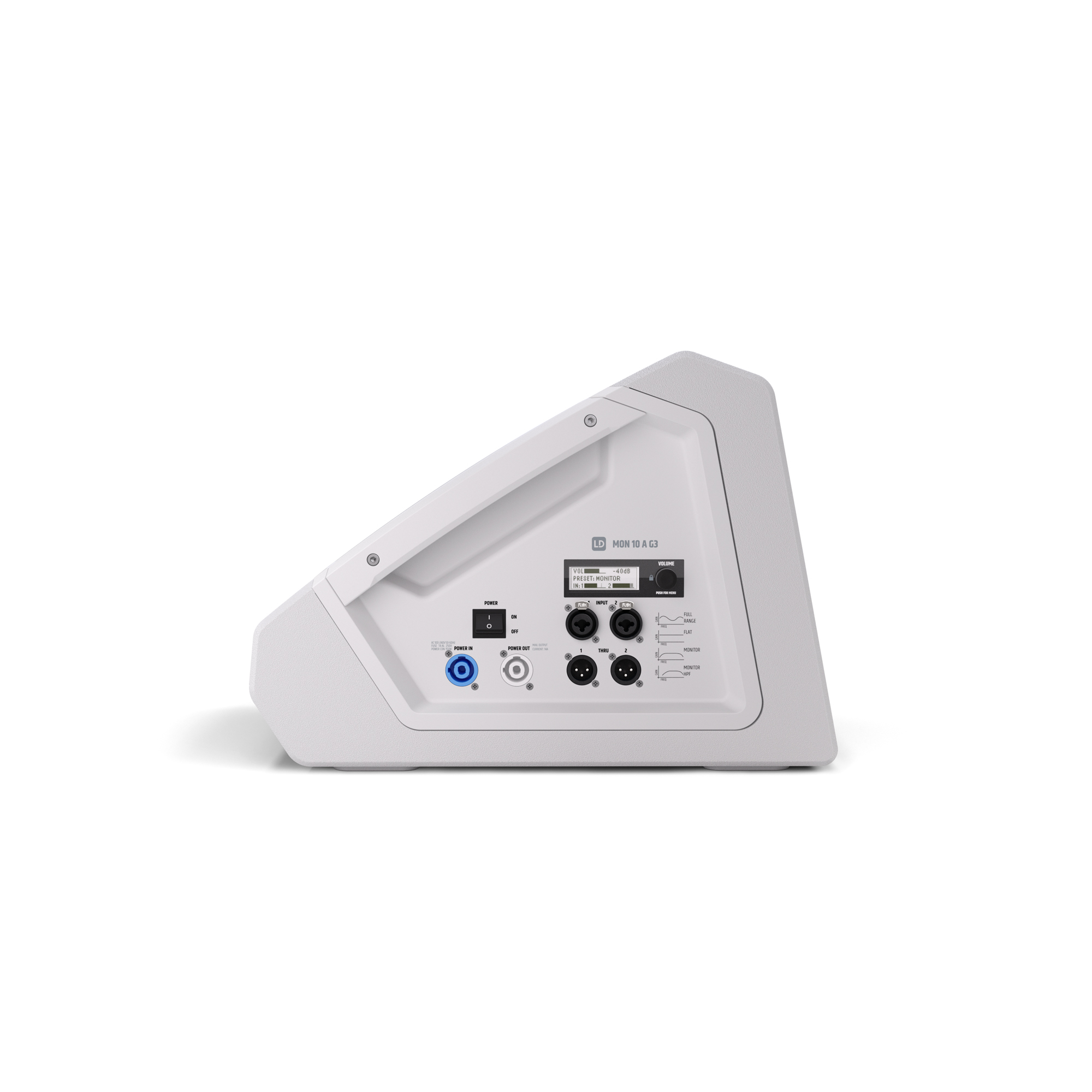

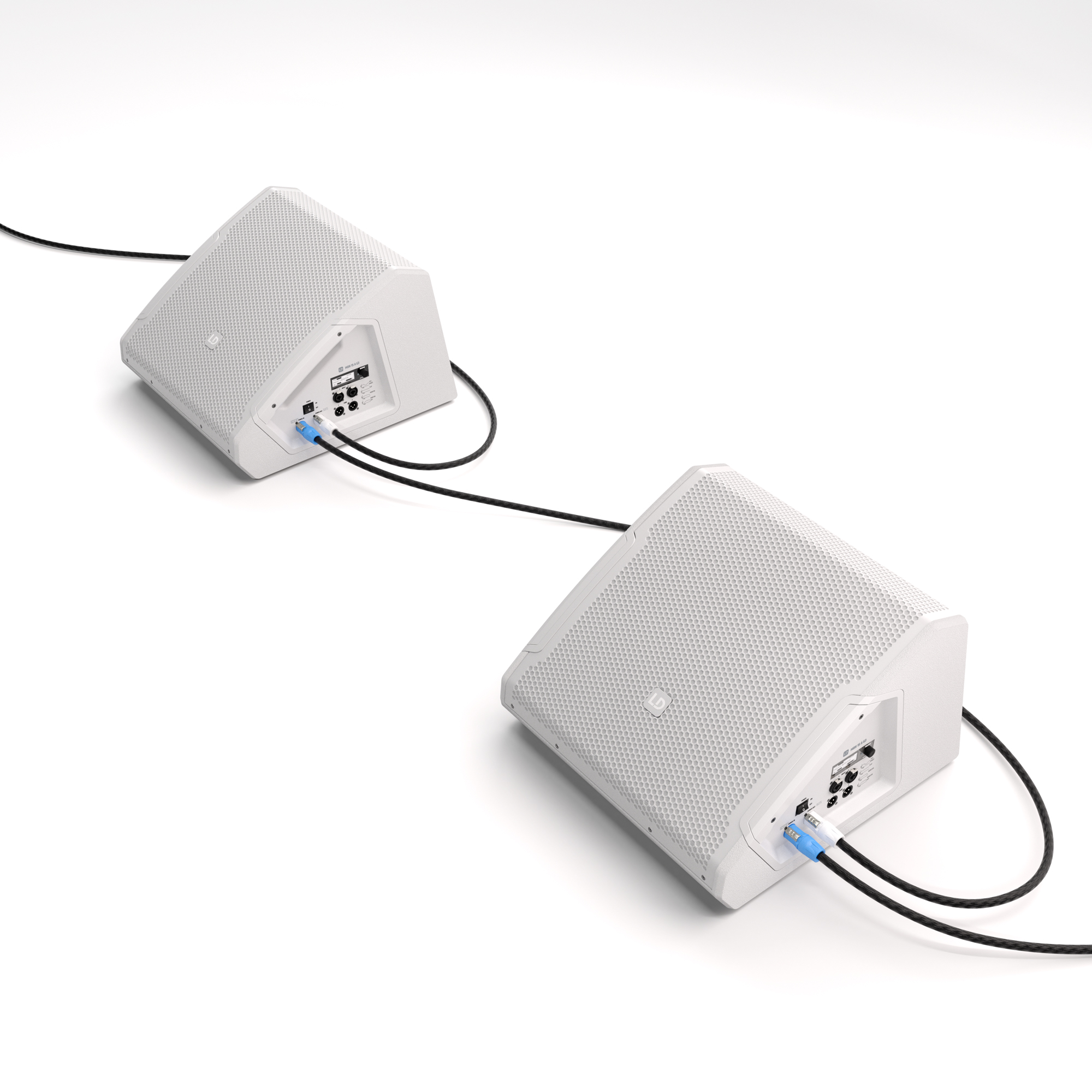

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
| Width: | 14.96 in |
|---|
| Outer diameter: | 10 in |
|---|---|
| Weight: | 33.53 lbs |
| Number of handles: | 2 |
| Monitor angle: | 33 ° |
| Power supply type: | External switched-mode power supply (SMPS) |
| Number of line outputs: | 2 |
| Audio processing: | 3 band EQ (High, Mid, Low), Presets, Delay Line, Notch filter |
| Depth: | 16.77 in |
| Mains connector: | Mains socket indoor power in male & powerCON® |
| Protection features: | Overload, Overvoltage, Multiband Limiter, Overheating |
| Number of inputs: | 2 |
| Line outputs connector type: | XLR 3-pole female |
| Voice coil: | 1.75 " |
| Peak output power: | 1200 W |
| Frequency response: | 58 - 20,000 Hz |
| Voice coil: | 2.5 " |
| Number of line inputs: | 2 |
| Magnet: | Ferrite |
|---|---|
| Amp class: | Class D |
| Maximum air humidity (non-condensing): | 80 % |
| Height: | 12.01 in |
| Speaker system: | 2-way coaxial system |
| Outlet diameter: | 10 in |
|---|---|
| Type: | Active |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %): | 126 dB |
| Storage temperature: | 0 °C |
|---|---|
| Colour: | White |
| Magnet: | Ferrite |
| Operation voltage: | 100 V AC - 230 V AC / 50 - 60 Hz |
|---|
| Frequency response (-10 dB, rel. Avg): | 58 - 20,000 Hz |
|---|---|
| Number of outputs: | 2 |
| Rated power: | 150 W |
| Cabinet material: | Birch multiplex, Medium-density fibreboard MDF |
| Flange: | 36 mm (0°/5°) |
| Crossover frequency: | 1700 Hz |
| Front grille material: | Aluminium |
| Material thickness: | 0.59 in |
| Frequency response (-3 dB, rel. Avg): | 72 - 18,000 Hz |
|---|---|
| Driver size: | 1 " |
| Design: | Bass reflex |
| Included accessories: | Mains cable |
|---|---|
| Line-In connector type: | 6.3 mm Jack TRS female |
| Size: | 10 " |
| Ambient temperature: | 0 - 40 °C |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): | 118 dB |
| RMS output power: | 300 W |
| Beam angle: | Hor.: 50° / Vert.:90° |
|---|---|
| Mains fuse: | T4AL/250 V |
Login
accessories

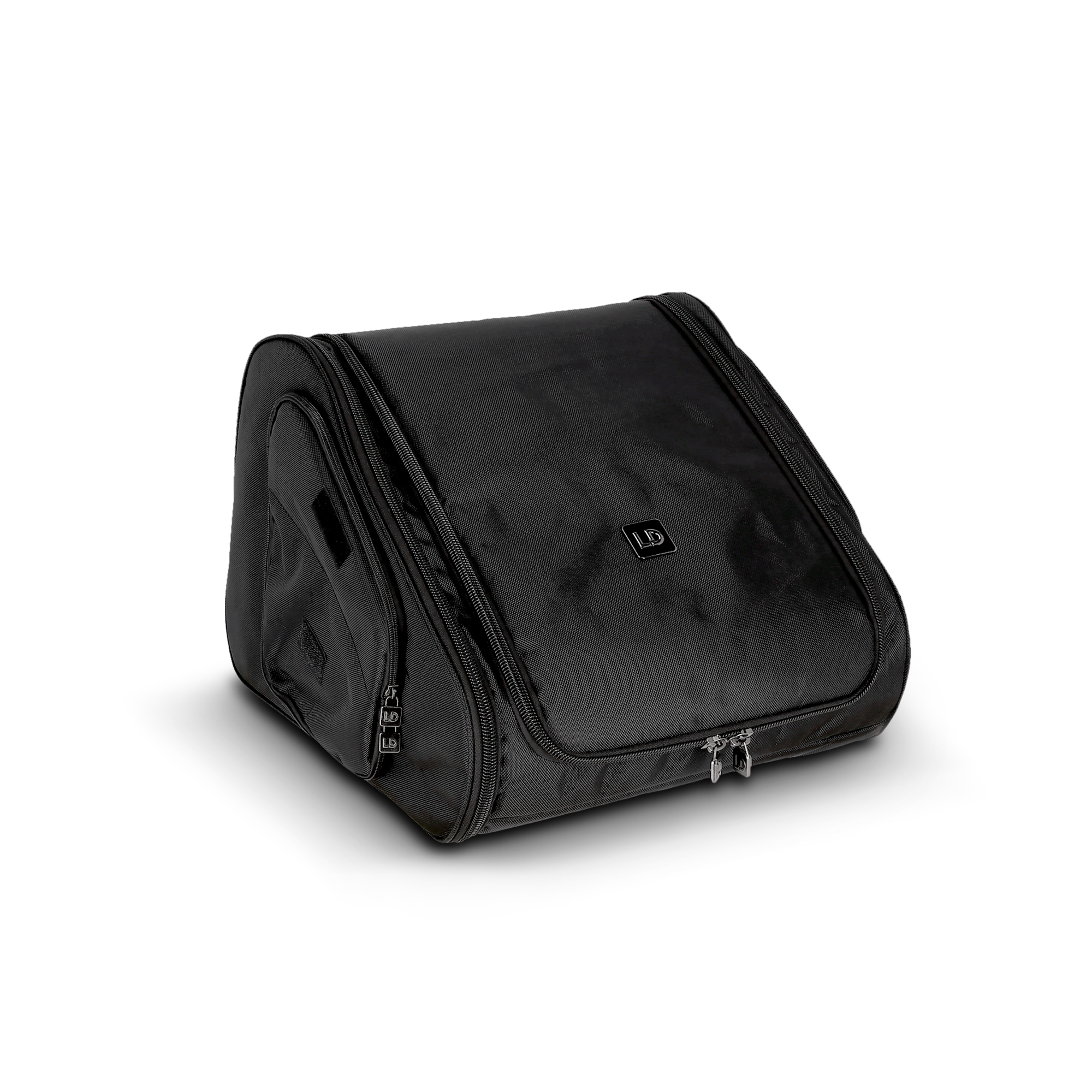

With the padded protective cover made of durable and water-repellent 1680D nylon, the MON 10 A G3 monitor is optimally protected against weather influences and other impacts. The 8 mm thickly padded protective cover can be easily slipped over the monitor standing on its side due to the large side zipper opening. The crossing of the internal Velcro straps ensures a secure fit in the protective cover.The large roll-up front opening and side flaps allow full use of the monitor with the protective cover in place. The cutouts for handles, control panel, connections, speaker stand flange, and heat sink each have their own flap. These flaps are closed with a zipper and can be kept open using Velcro to optimally protect the monitor while still allowing it to be operated.
