MIX 6 A G3
Active 2-Way Loudspeaker with Integrated 4-Channel Mixer
$159.99
Backordered – More on the Way!
Product information "MIX 6 A G3"

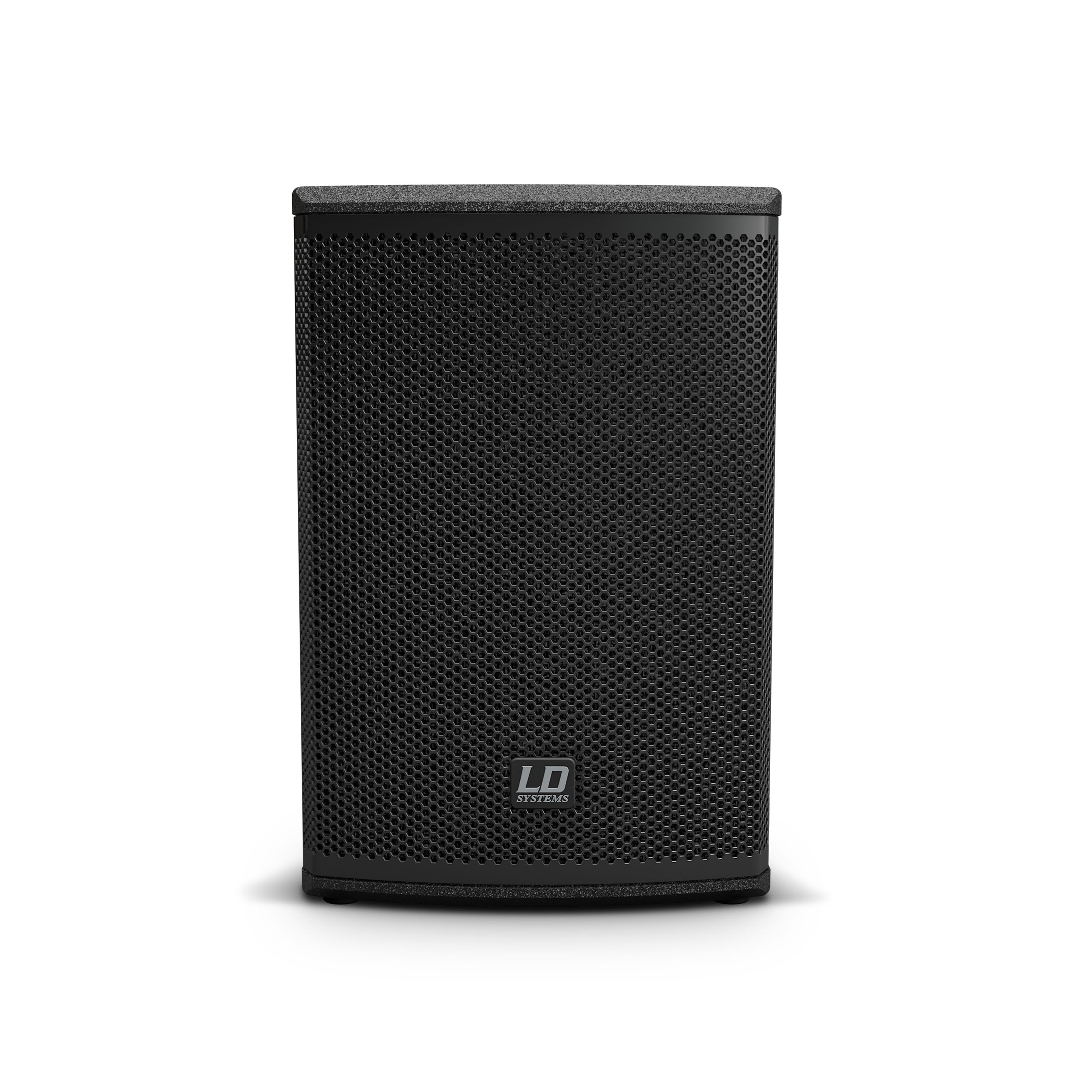

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power. The compact bass reflex loudspeaker features a 6.5" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

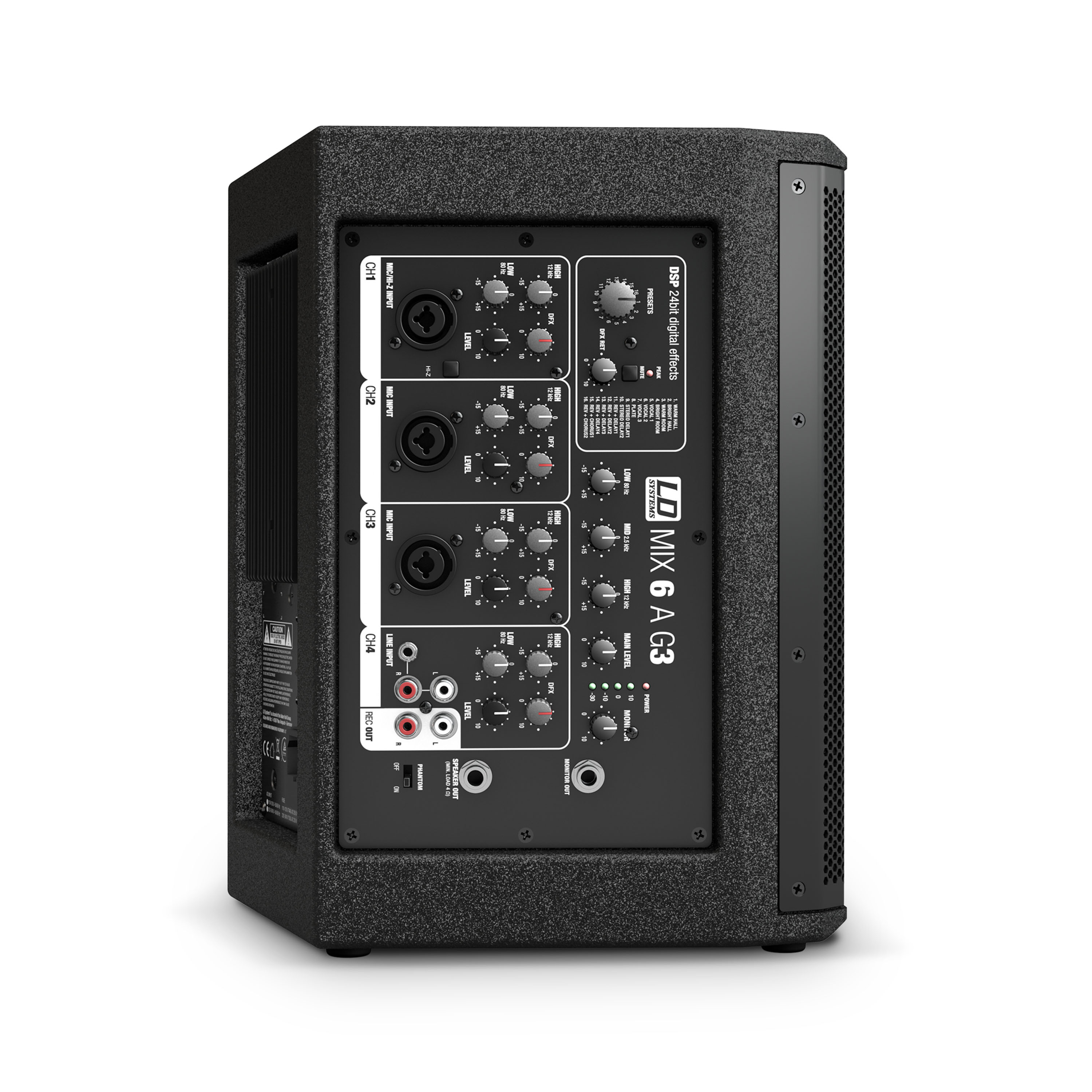

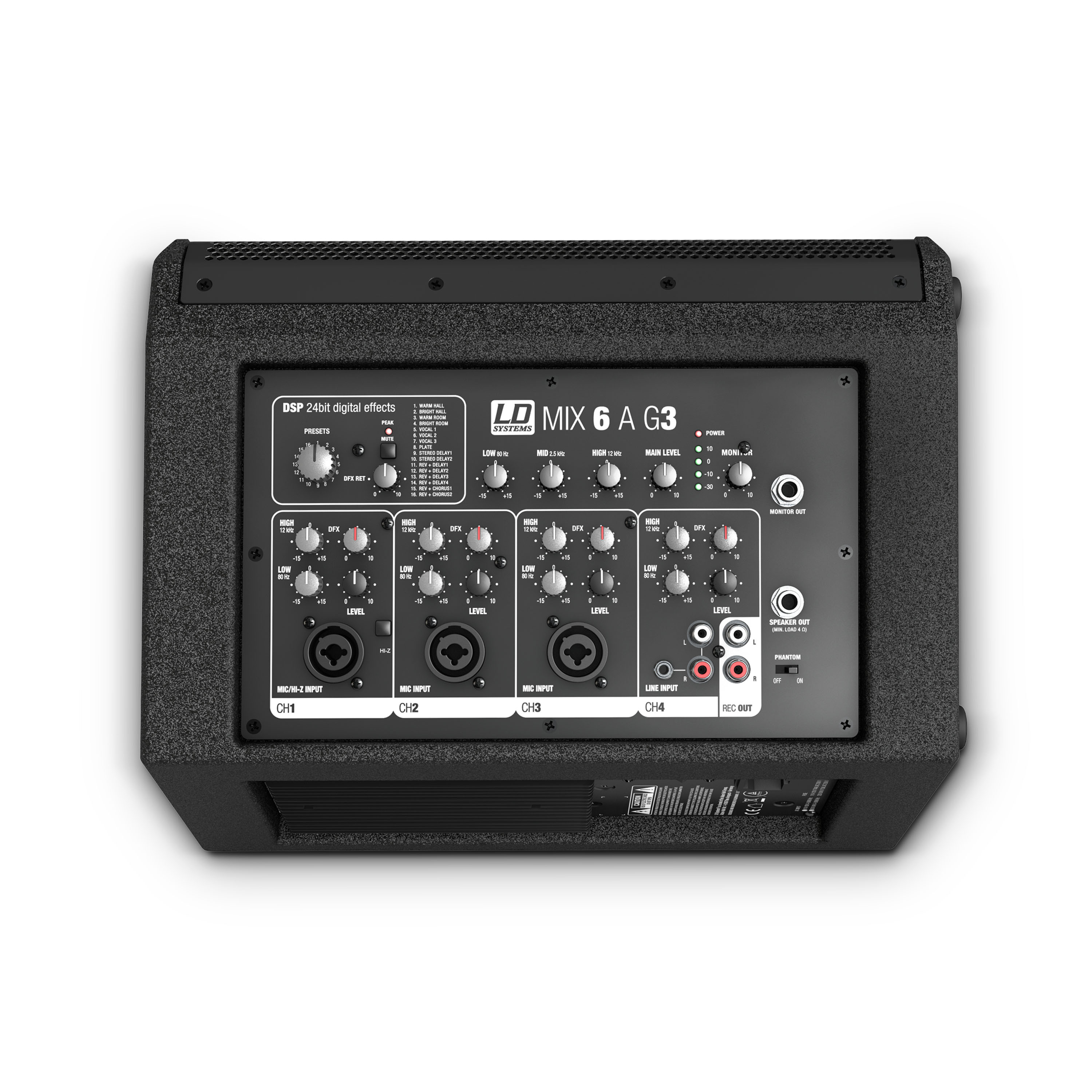

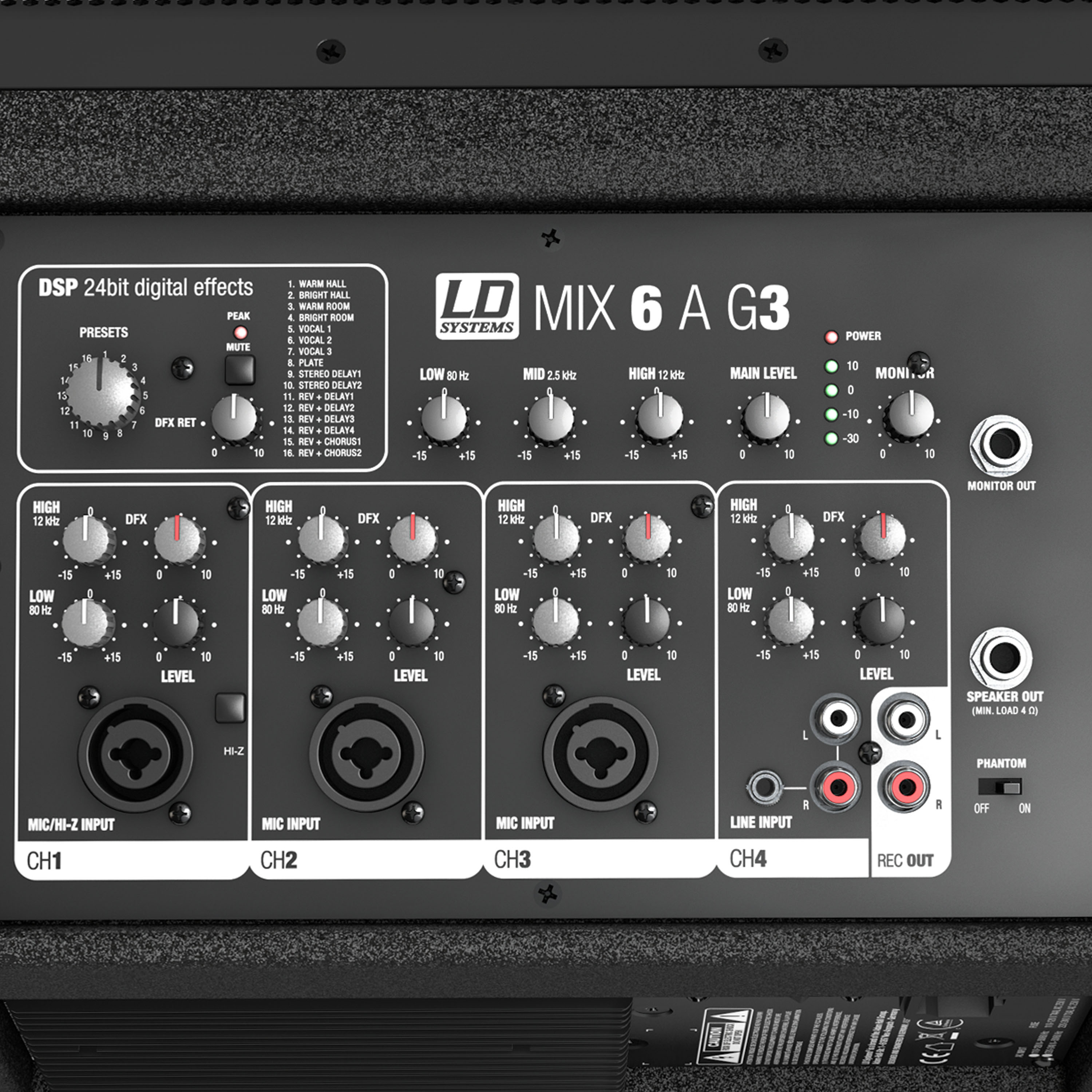

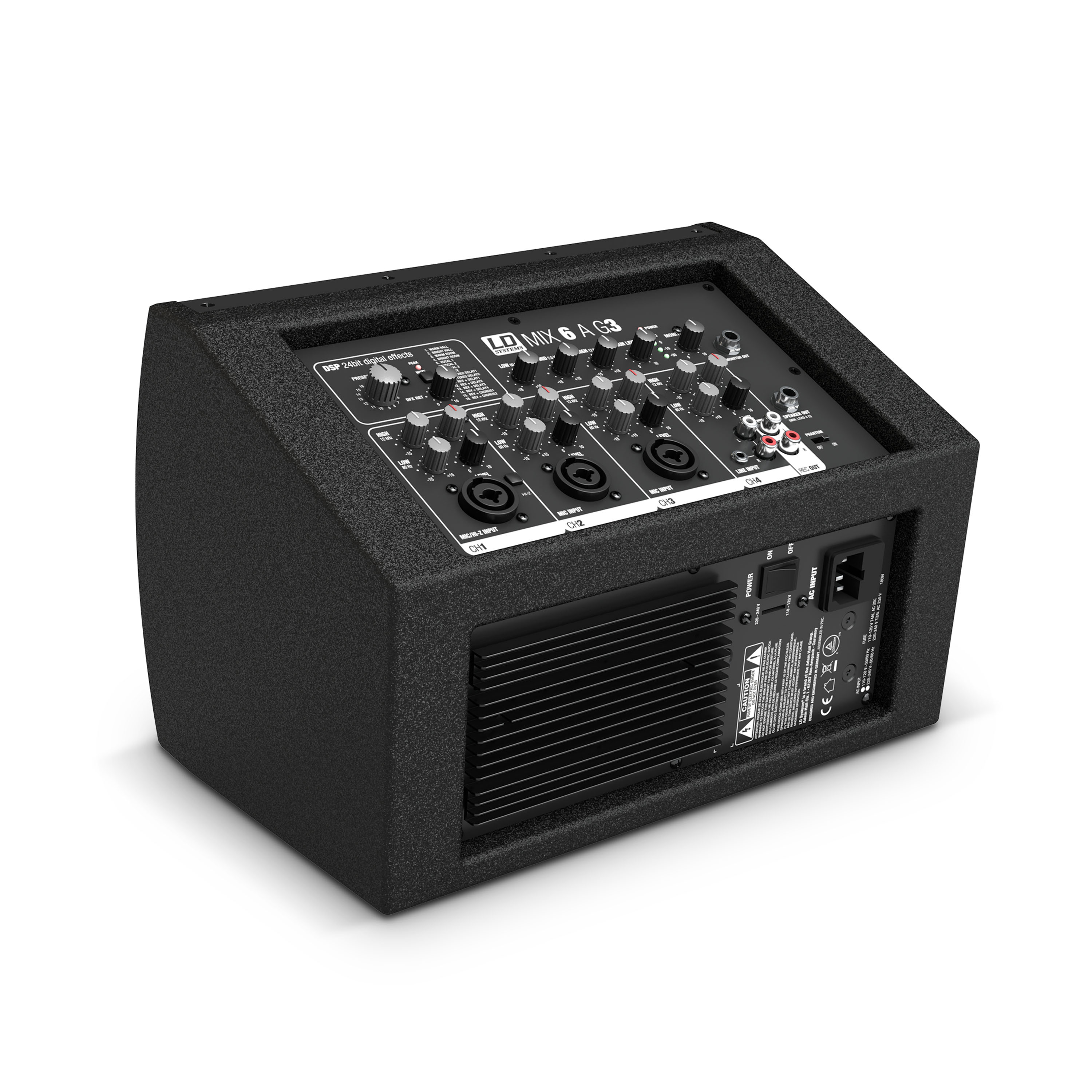

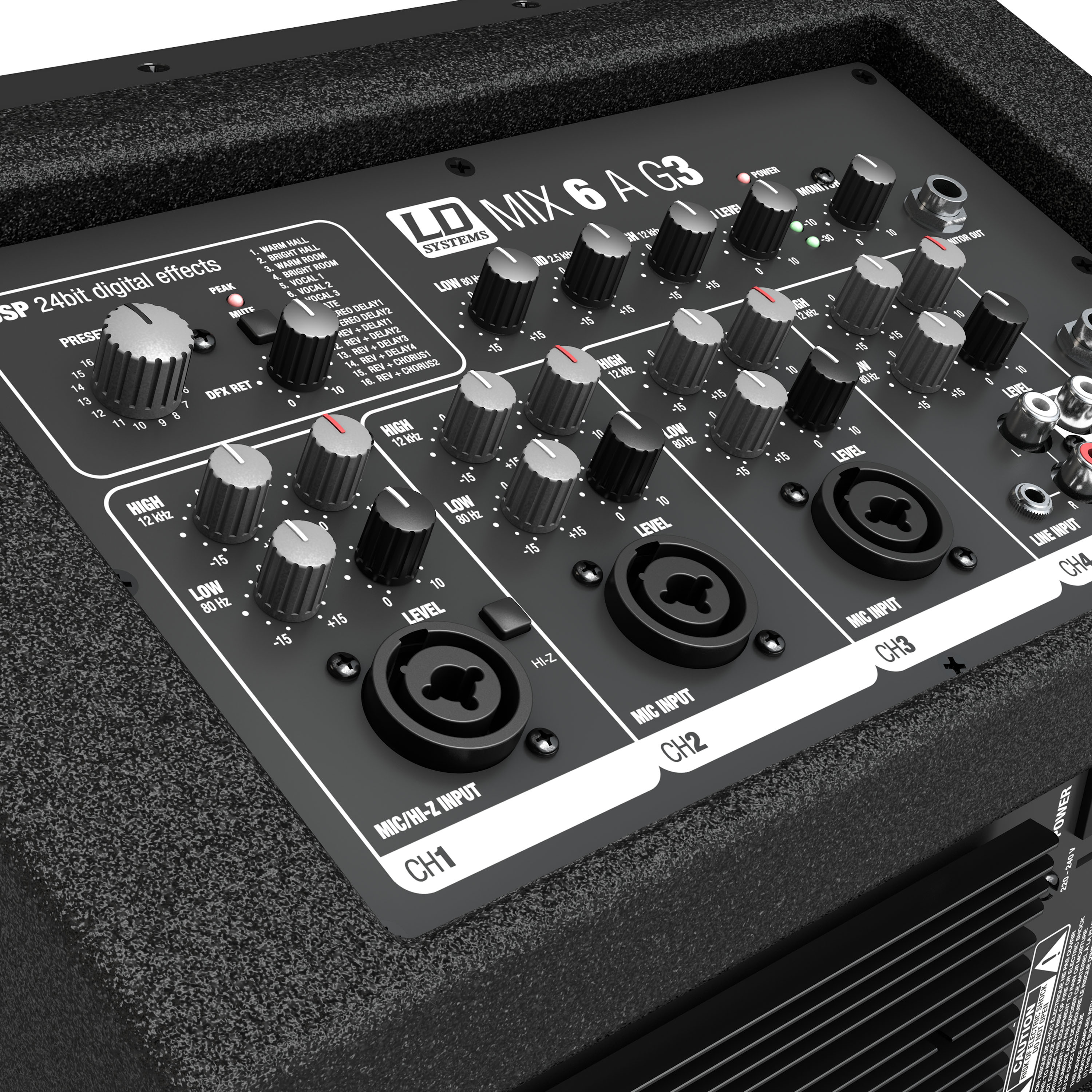

Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.

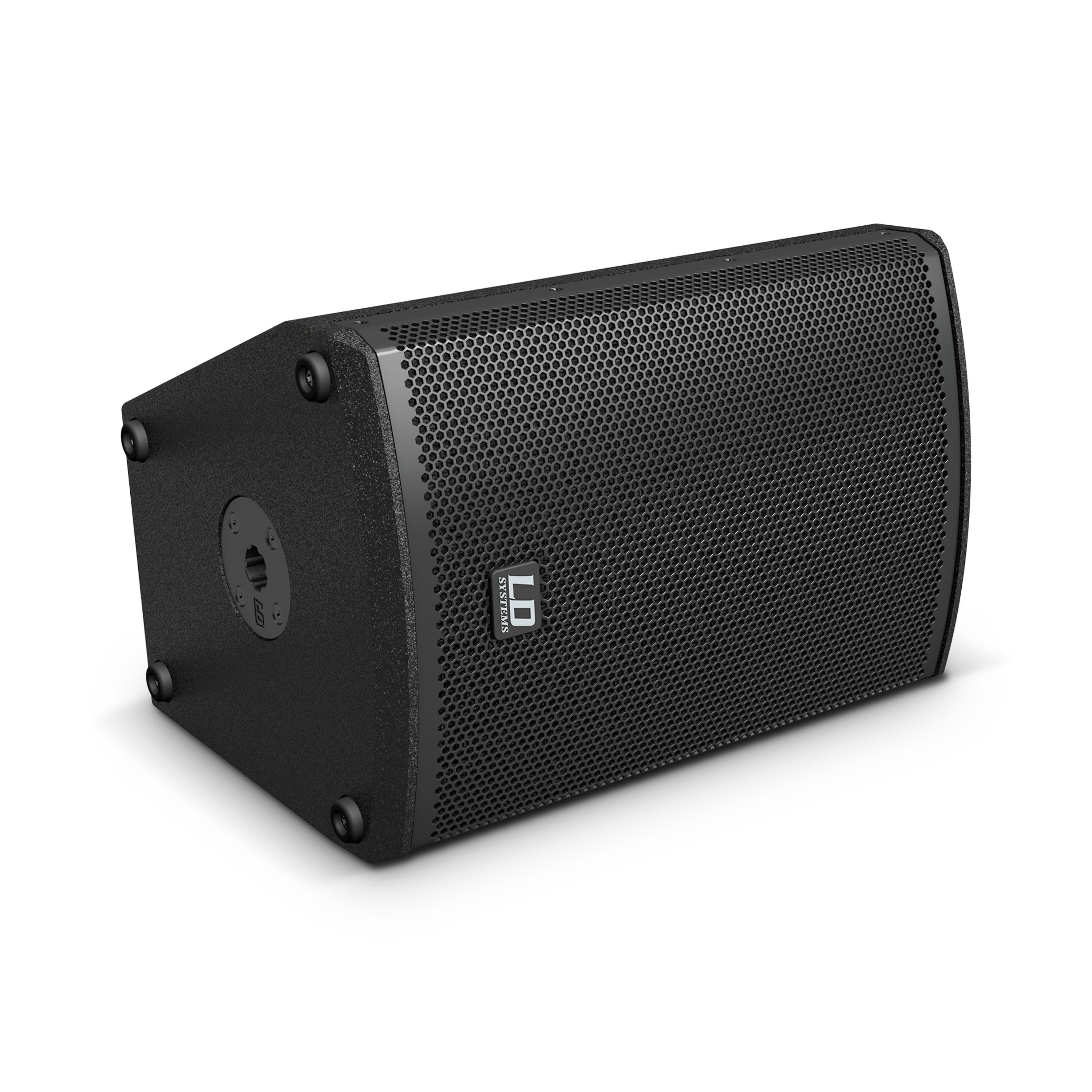

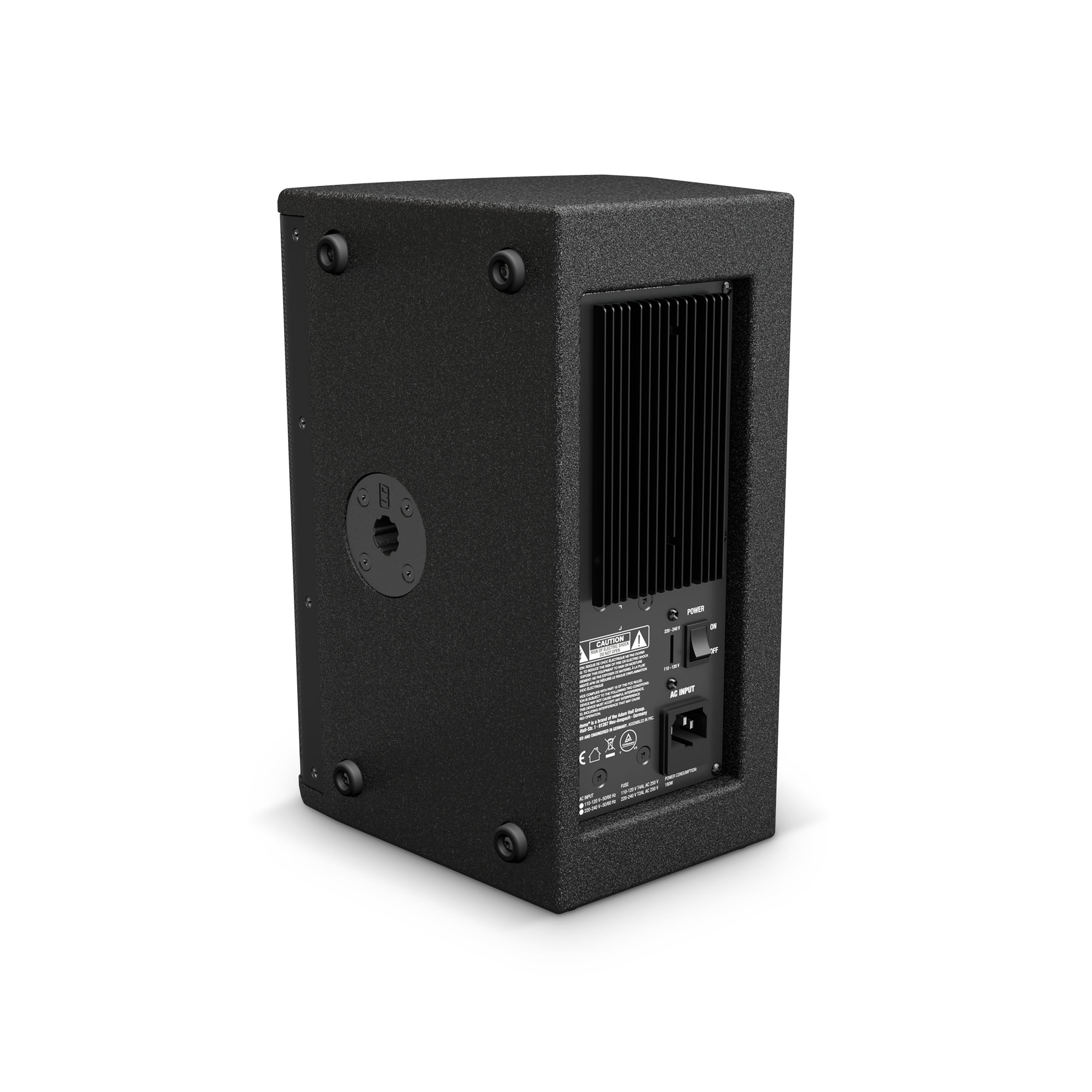

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
| Type: | Active |
|---|---|
| Peak output power: | 560 W |
| Max. SPL peak: | 122 dB |
| Amp class: | Class D |
| Beam angle: | Hor.: 80° / Vert.:70° |
| Number of inputs: | 5 |
| Frequency response: | 80 - 20000 Hz |
| Colour: | Black |
| Speaker system: | 2-way system |
| RMS output power: | 160 W |
| Number of outputs: | 2 |
| Number of microphone inputs: | 3 |
|---|---|
| Line-In connector type: | 2 x RCA female (Stereo) |
| Music inputs connector types: | 3.5 mm Jack TRS female |
| Number of line inputs: | 1 |
| Number of music inputs: | 1 |
| Number of instrument inputs: | 1 |
| Mic-in connector type: | XLR combo socket |
| Inst-in connector type: | XLR combo socket |
| Phantom power: | 15 V |
| Nom. Sensitivity (< 1% THD, 1 kHz, max. gain): | 70 mV |
|---|---|
| Input impedance: | 14 kΩ |
| Input impedance (balanced): | 44 kΩ |
|---|---|
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain): | -5 dBu |
| Number of line outputs: | 1 |
|---|---|
| Speaker output connection type: | 6.3 mm Jack TS female |
| Number of speaker outputs: | 1 |
| Line outputs connector type: | 6.3 mm Jack TS female |
| Mixer channels: | 4 |
|---|---|
| Audio processing: | 2 band EQ (High, Low), Digital effects (DFX) |
| Mixer: | 1 |
| Manufacturer: | Custom Made |
|---|---|
| Size: | 6.5 " |
| Magnet: | Ferrite |
| Manufacturer: | Custom Made |
|---|---|
| Driver size: | 0.04 in |
| Rated power: | 180 W |
|---|---|

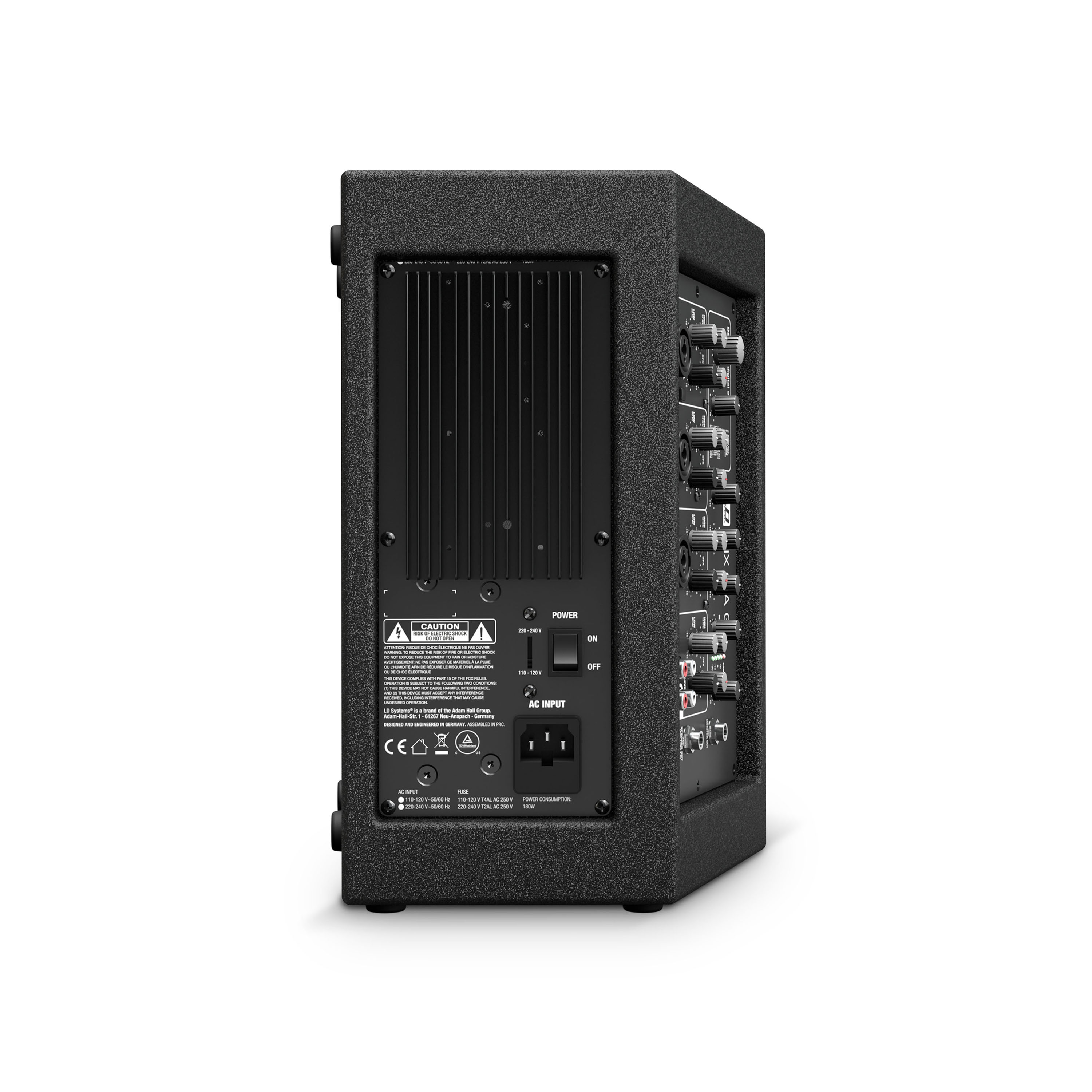

| Mains connector: | IEC C14 plug male |
| Power supply type: | Linear power supply |
| Operation voltage: | 220 V AC - 240 V AC / 50 - 60 Hz, 110 V AC - 120 V AC / 50 - 60 Hz |
| Design: | Bass reflex |
|---|---|
| Flange: | 16 mm flange |
| Cabinet material: | Medium-density fibreboard MDF |
| Weight: | 15.43 lbs |
|---|---|
| Depth: | 8.7 in |
| Height: | 12.72 in |
| Width: | 8.43 in |
| Included accessories: | Mains cable |
|---|
