MINI LUX

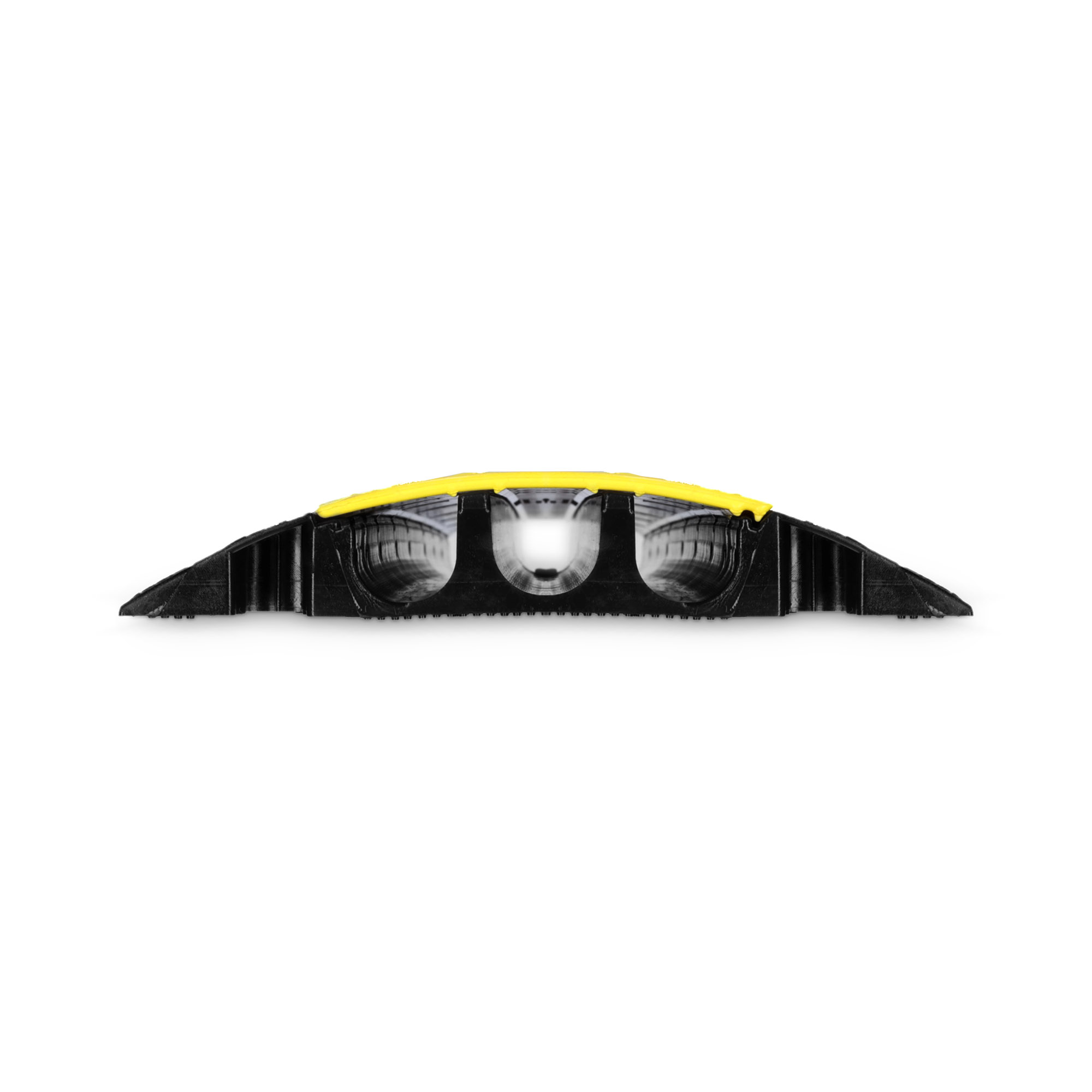

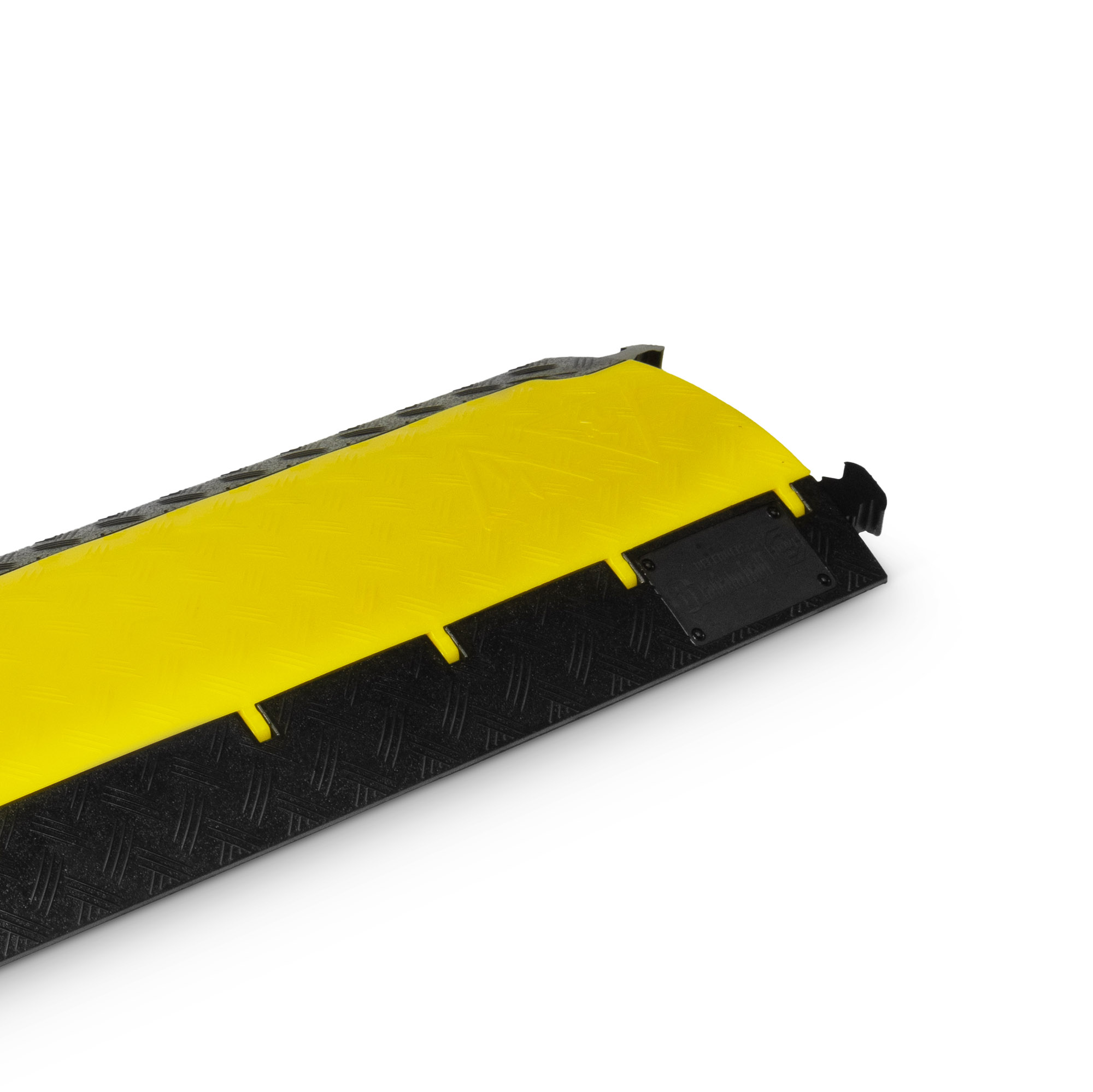

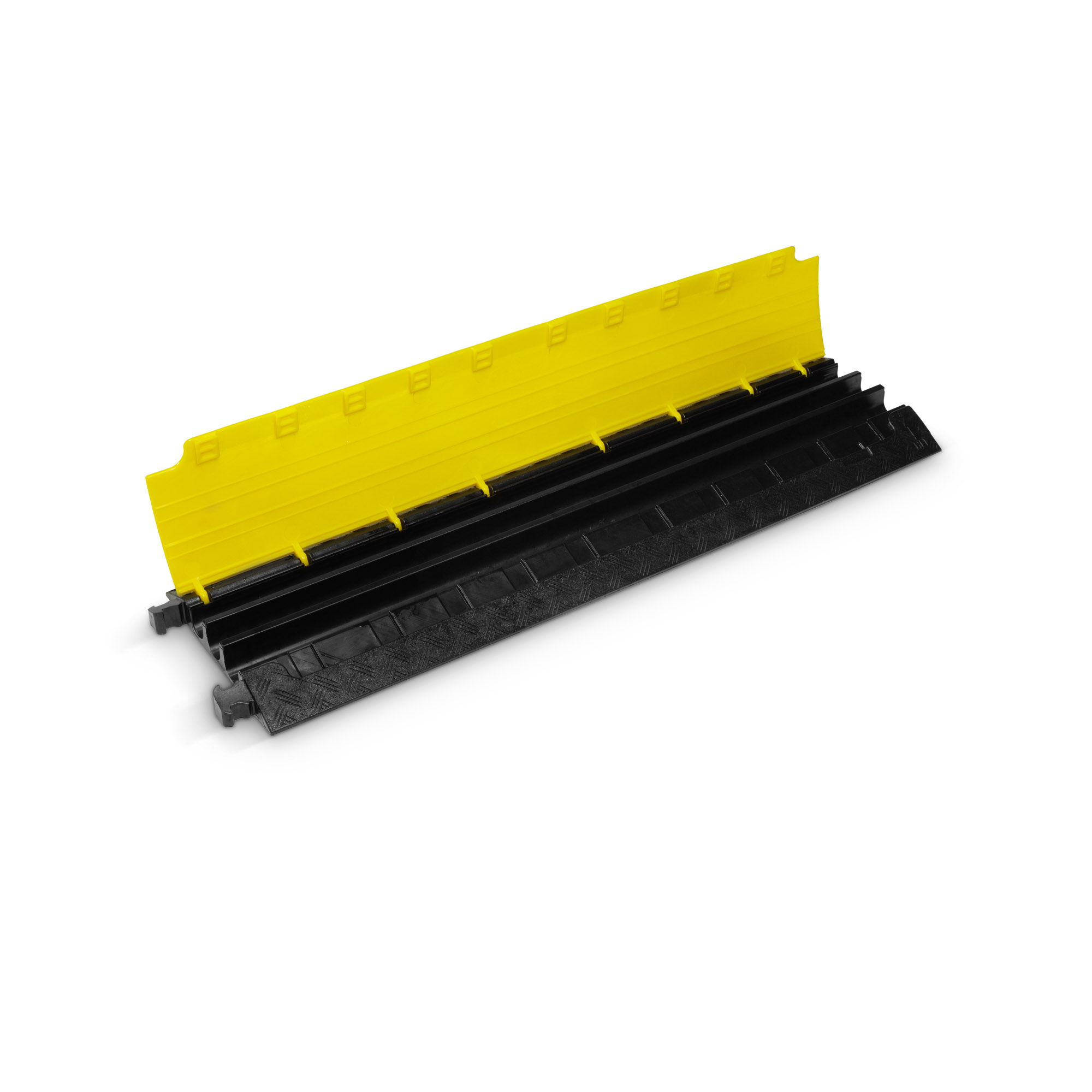

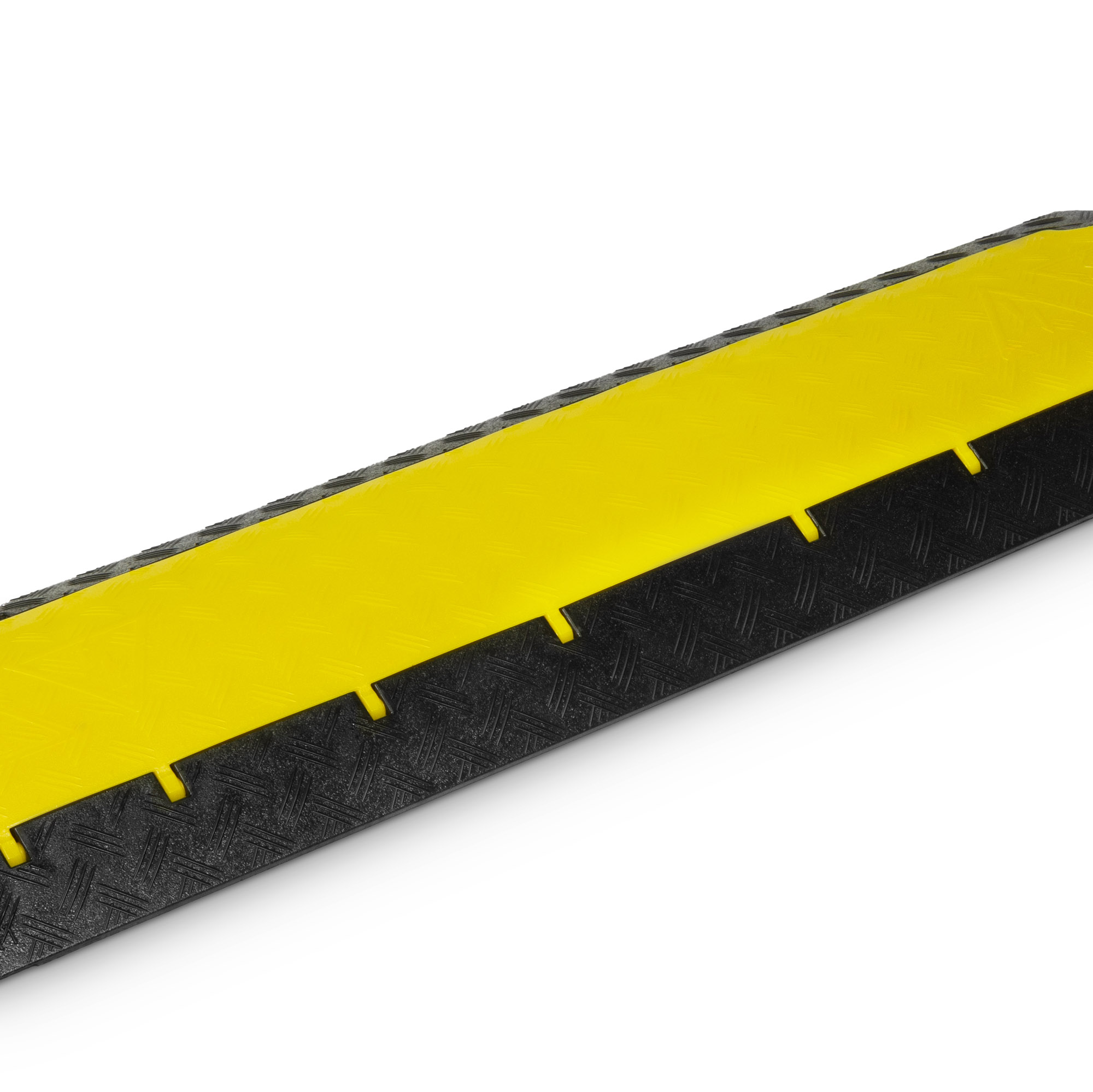

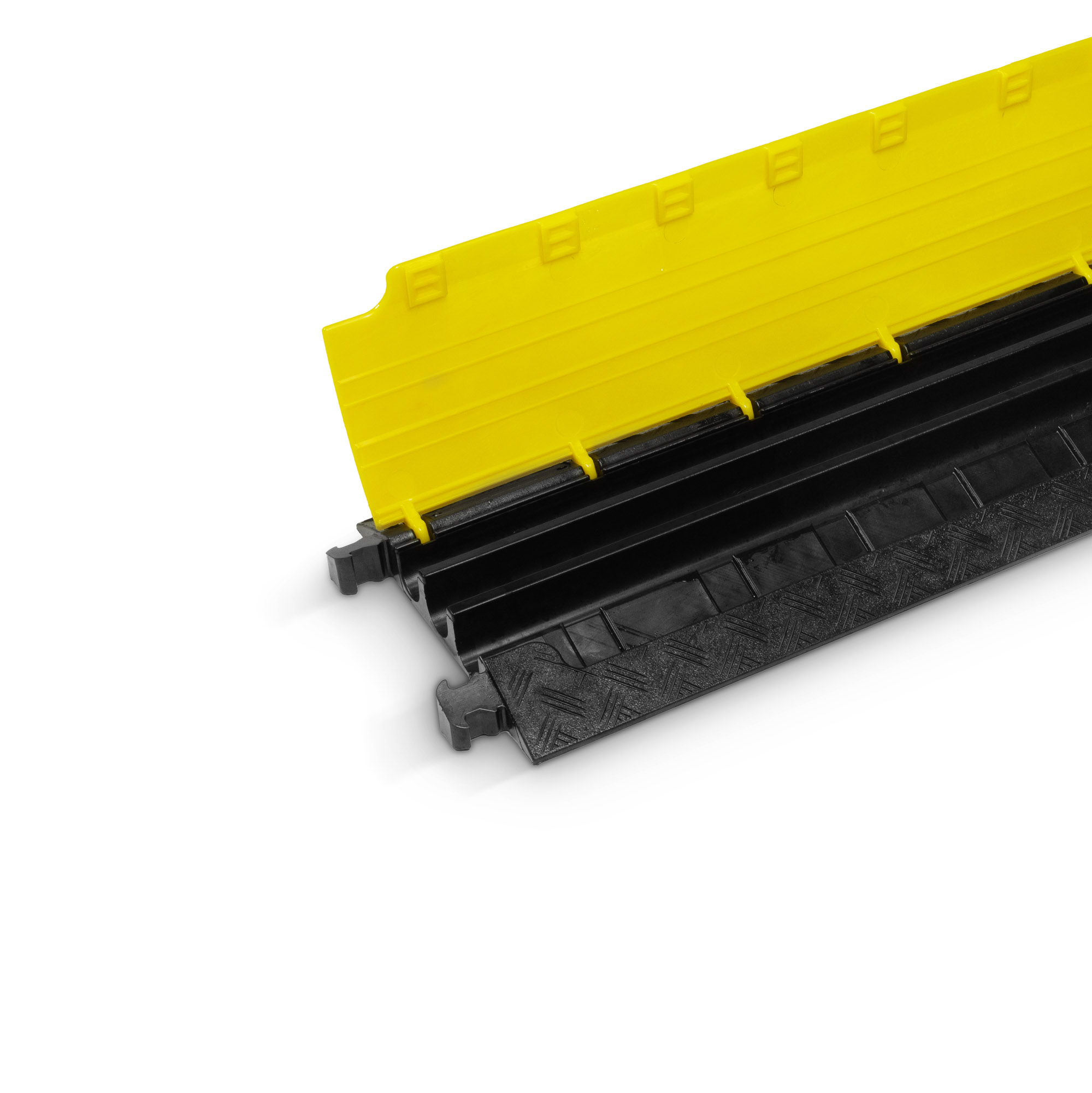

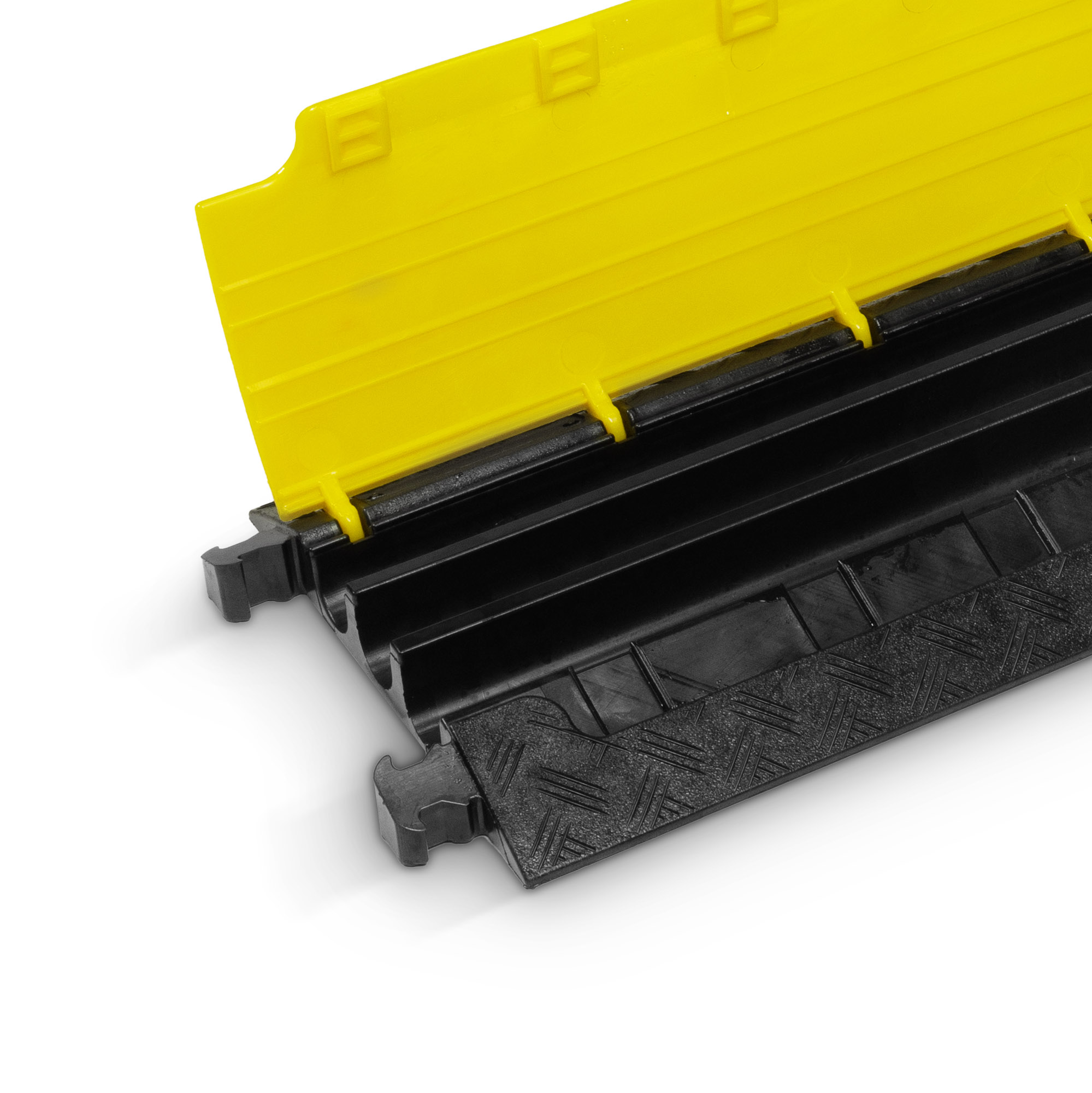

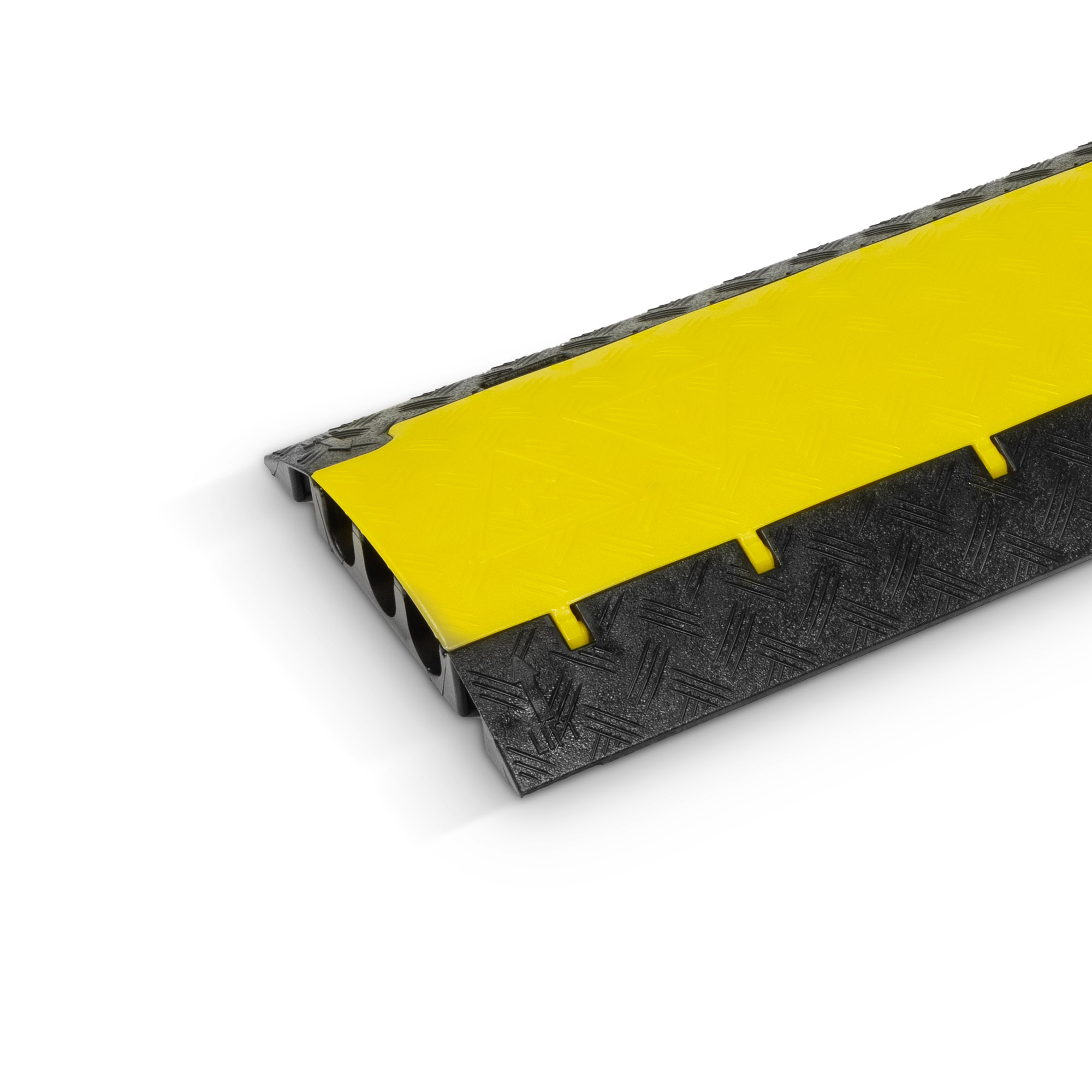

Cable protector 3 channels | translucent | medium duty | height 5cm
$199.99
Backordered – More on the Way!
Product information "MINI LUX"
The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers from the Defender LUX Series have highly transparent, yellow-tinted lids, where LED light tubes can be inserted parallel to cables and other pipes. Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues according to the latest state-of-the-art technology and also ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors. For more information, please refer to our price list for Defender LUX cable crossovers, or contact your Defender representative directly.
Cable Crossover 3 ChannelsThe Defender® MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connection plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm and allow crossing for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used in carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.
Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are especially recommended since the individual LEDs are less visible and this provides for particularly homogeneous lighting. For outdoor use, please mind the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.
Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.
| Maximum load (on 20 x 20 cm): | 2 t |
|---|---|
| Lid colour: | Yellow |
| Chemical resistance: | Oil, Petrol, Solvents (short-term contact) |
| Shape: | Round |
| Load per axle: | 4 t |
| Colour: | Black |
| Surface structure: | Ribbed |
| Material: | TPU (Thermoplastic polyurethane) |
| Hardness range (±4 Shore A): | 88 Shore A |
| Duct length (effective length): | 39.57 in |
|---|---|
| Quantity: | 3 |
| Cable ducts size (W x H): | 35 mm x 30 mm - 35 mm x 35 mm |
| Inflammability (UL 94): | V-2, HB |
|---|---|
| Fire protection class per DIN 4102-1: | B2 |
| Meets CP65: | 1 |
| Ambient temperature: | -30 - 60 °C |
| Meets TSCA: | 1 |
| Fire protection class per EN 13501-1: | E |
| Height: | 1.97 in |
|---|---|
| Length: | 41.14 in |
| Weight: | 12.9 lbs |
| Width: | 11.42 in |
| Certifications: | Germany: TÜV Süd |
|---|
Login
accessories
Small but sturdy. Light, professional and universally useable. The new DEFENDER Mini meets all expectations when it comes to professional cable protection, expanding the DEFENDER series to include a compact, very light (only 5 kg!) cable crossover capable of supporting vehicle traffic. Sporting three cable channels with a channel cross-section of 35 mm and an installation height of 48 mm, this crossover is mainly used indoors, but with a capacity of more than 2 tonnes it can easily withstand road traffic, too. The base of the DEFENDER Mini has a non-slip surface so as to guarantee optimum support on as many different floor types as possible. Like all of the DEFENDER cable crossovers, the DEFENDER Mini is resistant to oil, acids & petrol and has a patented self-cleaning hinged closure. Label your cable crossovers! We are now able to customise all Defender cable crossovers with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area.
3 small cable channels – light and robust The Defender® MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connector plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, so they are suitable for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic. Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.
Defender® Mini 45° curve rightAvailable with a choice of black or yellow lids the Defender® MINI cable protection system is ideal for both indoor and outdoor use. The compact, low profile 3-channel ramp with integrated dog bone connectors features a slip-resistant underside for superior grip on a wide variety of surfaces. Male and female end ramps are available to provide secure and tidy cable entry and exit. With a 2 t per 20 x 20 cm load capacity Defender® MINI protectors support lightweight vehicles, carts and pedestrian traffic. Applications include carnivals, fairs, trade shows, exhibitions, shopping malls, warehouses, stages, studios and broadcasting. Not suitable for road traffic.
Defender Mini 45° curve leftAvailable with a choice of black or yellow lids the Defender® MINI cable protection system is ideal for both indoor and outdoor use. The compact, low profile 3-channel ramp with integrated dog bone connectors features a slip-resistant underside for superior grip on a wide variety of surfaces. Male and female end ramps are available to provide secure and tidy cable entry and exit. With a 2 t per 20 x 20 cm load capacity Defender® MINI protectors support lightweight vehicles, carts and pedestrian traffic. Applications include carnivals, fairs, trade shows, exhibitions, shopping malls, warehouses, stages, studios and broadcasting. Not suitable for road traffic.
3 small cable ducts - Lightweight and robustThe Defender® MINI Cable protector is available with a black or yellow cover and is suitable for both indoor and outdoor use. The flat, compact 3-channel Cable protector with integrated connecting pins and non-slip underside offers optimum grip on a wide variety of floors. Separately available end pieces (male/female) ensure safe, organised cable entry and exit. Defender MINI Cable protectors can withstand a load of 2 tonnes on an area of 20 x 20 cm and allow light vehicles, trolleys and pedestrians to cross. Areas of application include carnival events, trade fairs, exhibitions, shopping centres and warehouses as well as stages, studios and broadcasting stations. Not suitable for road traffic.
3 small cable ducts - Lightweight and robustThe Defender® MINI Cable protector is available with a black or yellow cover and is suitable for both indoor and outdoor use. The flat, compact 3-channel Cable protector with integrated connecting pins and non-slip underside offers optimum grip on a wide variety of floors. Separately available end pieces (male/female) ensure safe, organised cable entry and exit. Defender MINI Cable protectors can withstand a load of 2 tonnes on an area of 20 x 20 cm and allow light vehicles, trolleys and pedestrians to cross. Areas of application include carnival events, trade fairs, exhibitions, shopping centres and warehouses as well as stages, studios and broadcasting stations. Not suitable for road traffic.
