Product information "MIDI C"
5 medium-sized cable ducts - The universal solution for almost all applications
The particularly versatile and safe DEFENDER® MIDI Cable protector features a flat profile, a load capacity of 5 tonnes over an area of 25 x 30 cm, integrated connectors and handles and the option of combining straight elements, 45° curves and end pieces to create a wide variety of continuous cable routes. Five 34 x 36 mm cable ducts allow individual sound, light and power cables to be laid safely. DEFENDER® MIDI Cable protectors are suitable for a wide variety of applications, for example heavy goods traffic, construction sites, warehouses, shopping centres, trade fairs, exhibitions, carnivals, music events and broadcast studios.
| Max. Passing speed: | 7 km/h |
|---|---|
| Lid colour: | Yellow |
| Chemical resistance: | Oil, Petrol, Solvents (short-term contact) |
| Shape: | Round |
| Colour: | Black |
| Surface structure: | Ribbed |
| Material: | TPU (Thermoplastic polyurethane) |
| Hardness range (±4 Shore A): | 88 Shore A |
| Maximum load (on 25 x 30 cm): | 5 t |
| Load per axle: | 10 t |
| Quantity: | 5 |
|---|---|
| Duct length (effective length): | 34.25 in |
| Cable ducts size (W x H): | 34 mm x 36 mm |
| Inflammability (UL 94): | V-2, HB |
|---|---|
| Fire protection class per DIN 4102-1: | B2 |
| Meets CP65: | 1 |
| Ambient temperature: | -30 - 60 °C |
| Meets TSCA: | 1 |
| Fire protection class per EN 13501-1: | E |
| Height: | 2.17 in |
|---|---|

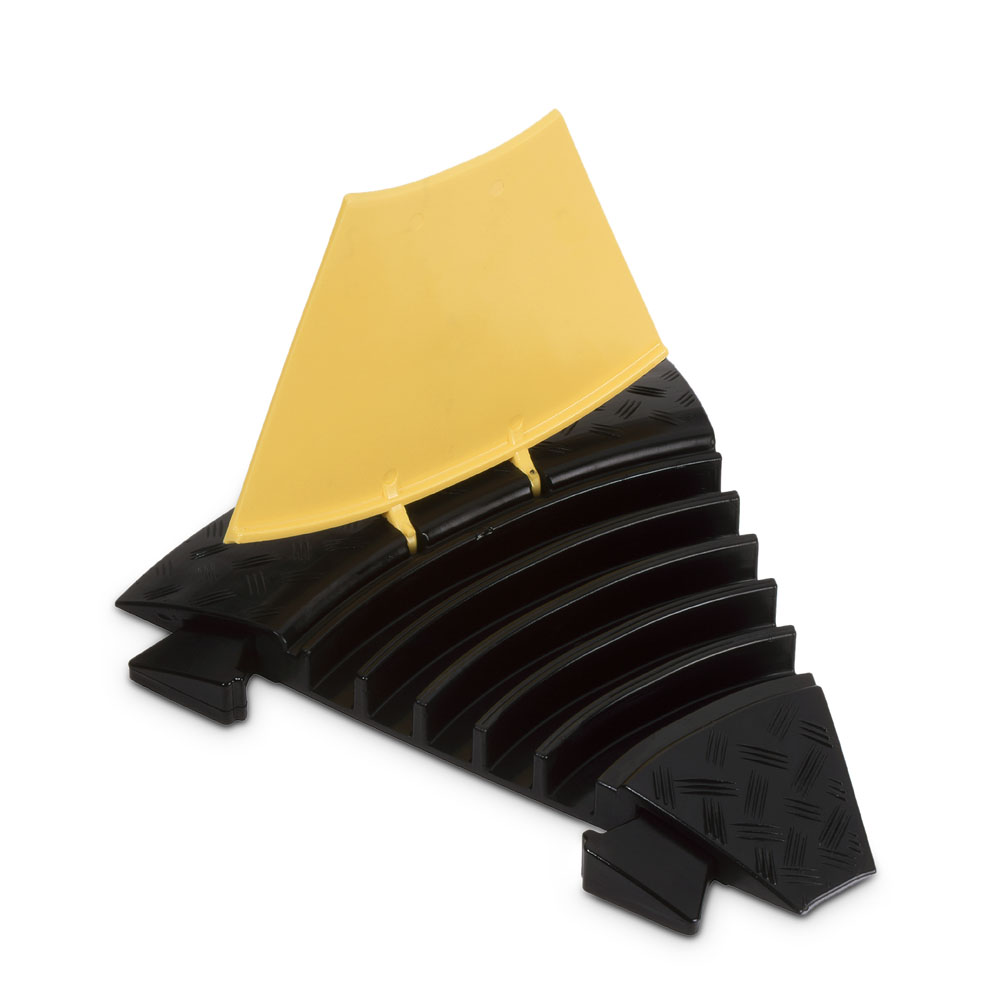

| Curve/Bend: | 45 ° |
| Certifications: | Germany: TÜV Süd |
|---|
