MAUI 5
Ultra-Portable Column PA System with Mixer and Bluetooth
$829.99
Backordered – More on the Way!
Product information "MAUI 5"

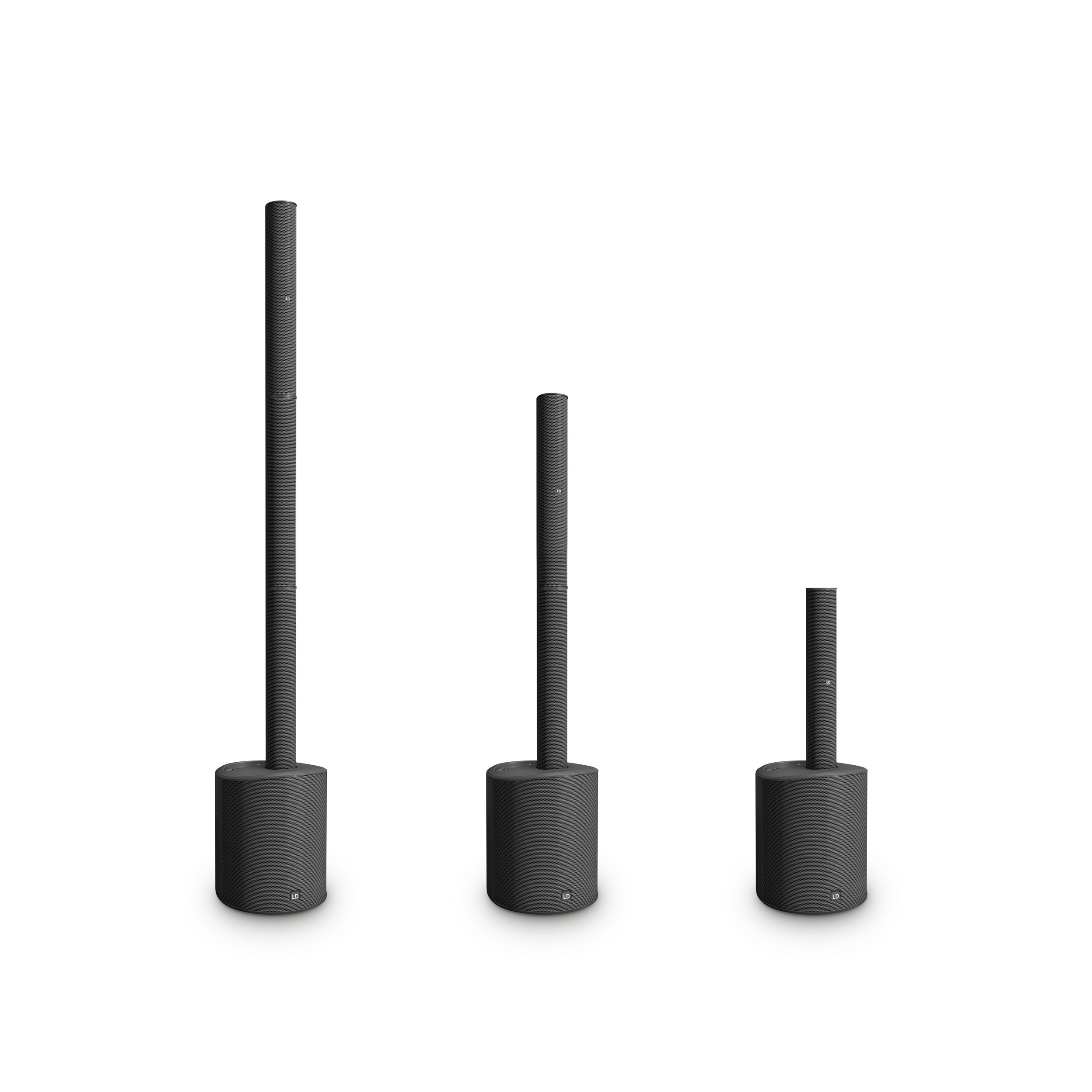

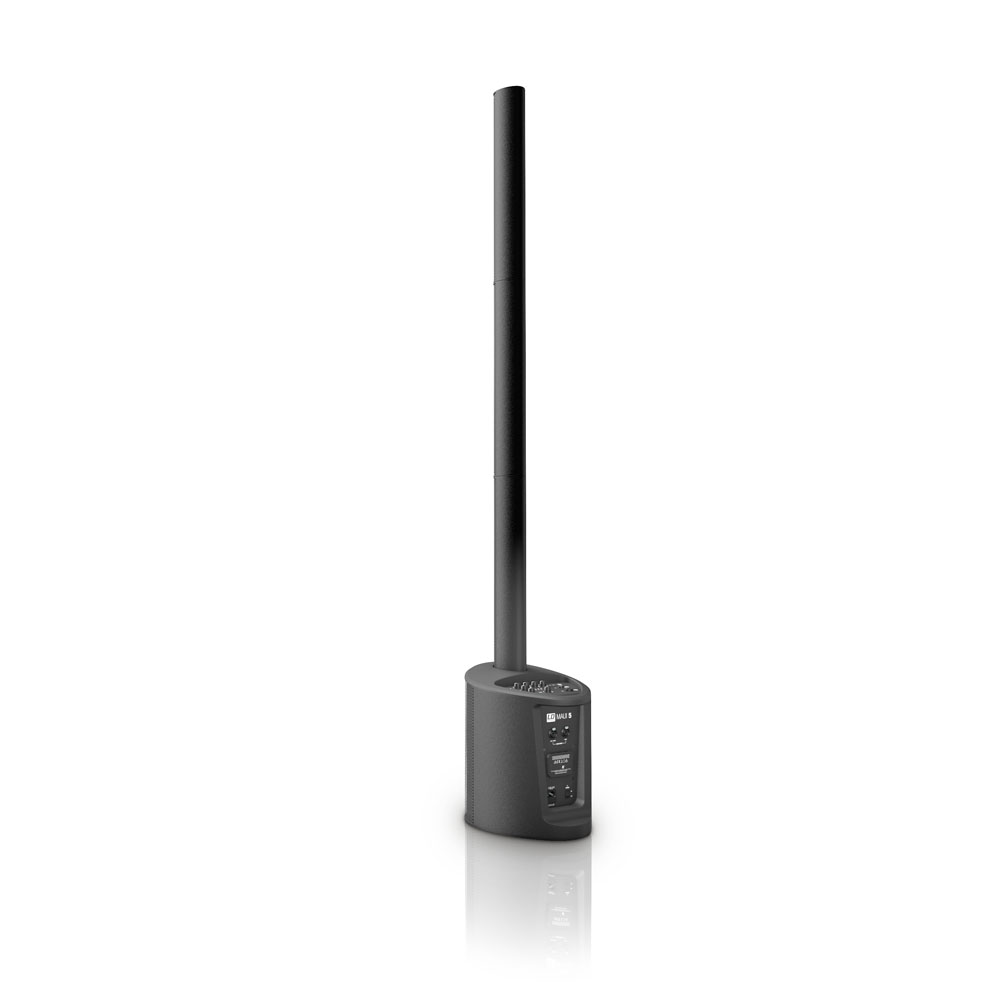

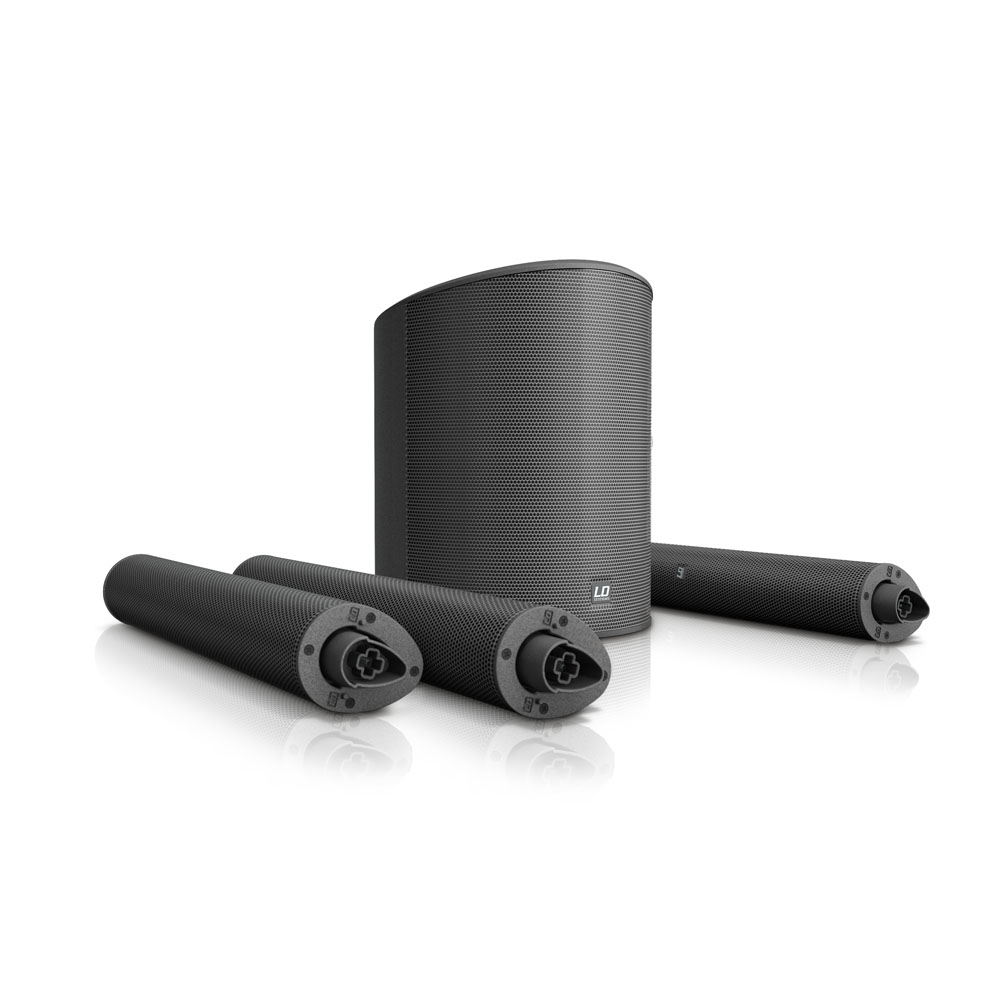

The MAUI 5 is an ultra-compact PA and monitor system in one that comes in at just under 11 kg to supply 800 watts peak performance and a maximum sound pressure of 120 dB. The smallest member of the MAUI family is assembled in a matter of seconds thanks to specially developed multi-pin connectors and only four components. It also boasts extensive sound dispersion and high feedback resistance. The MAUI 5 is easy to carry and fits on any car seat.

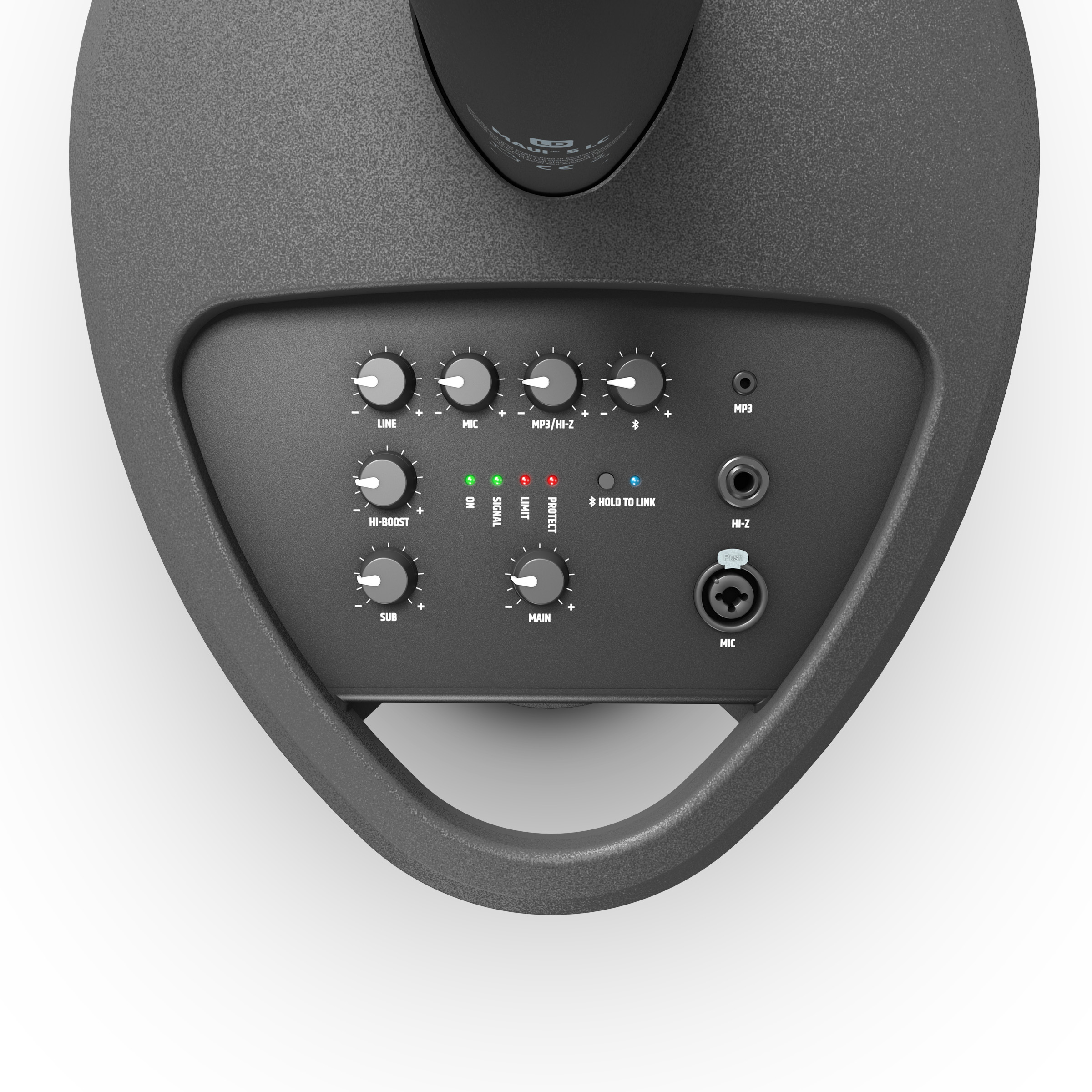

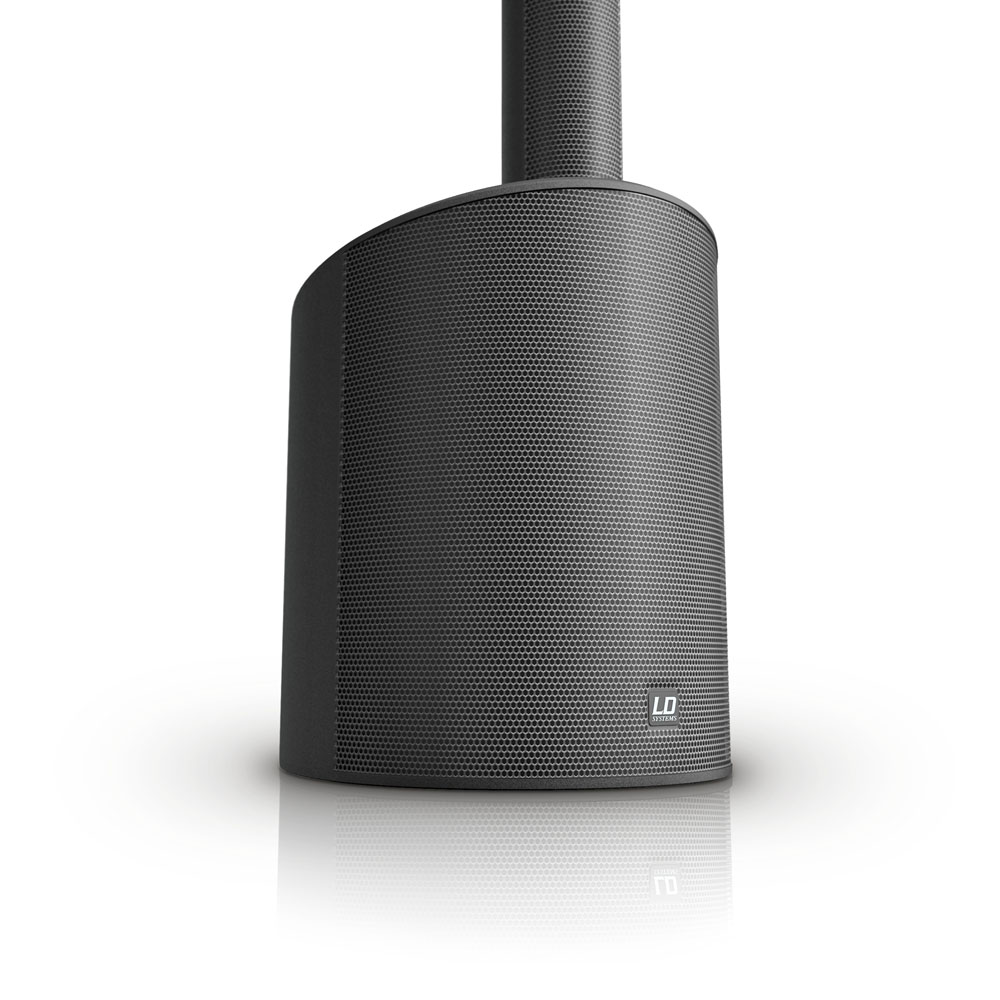

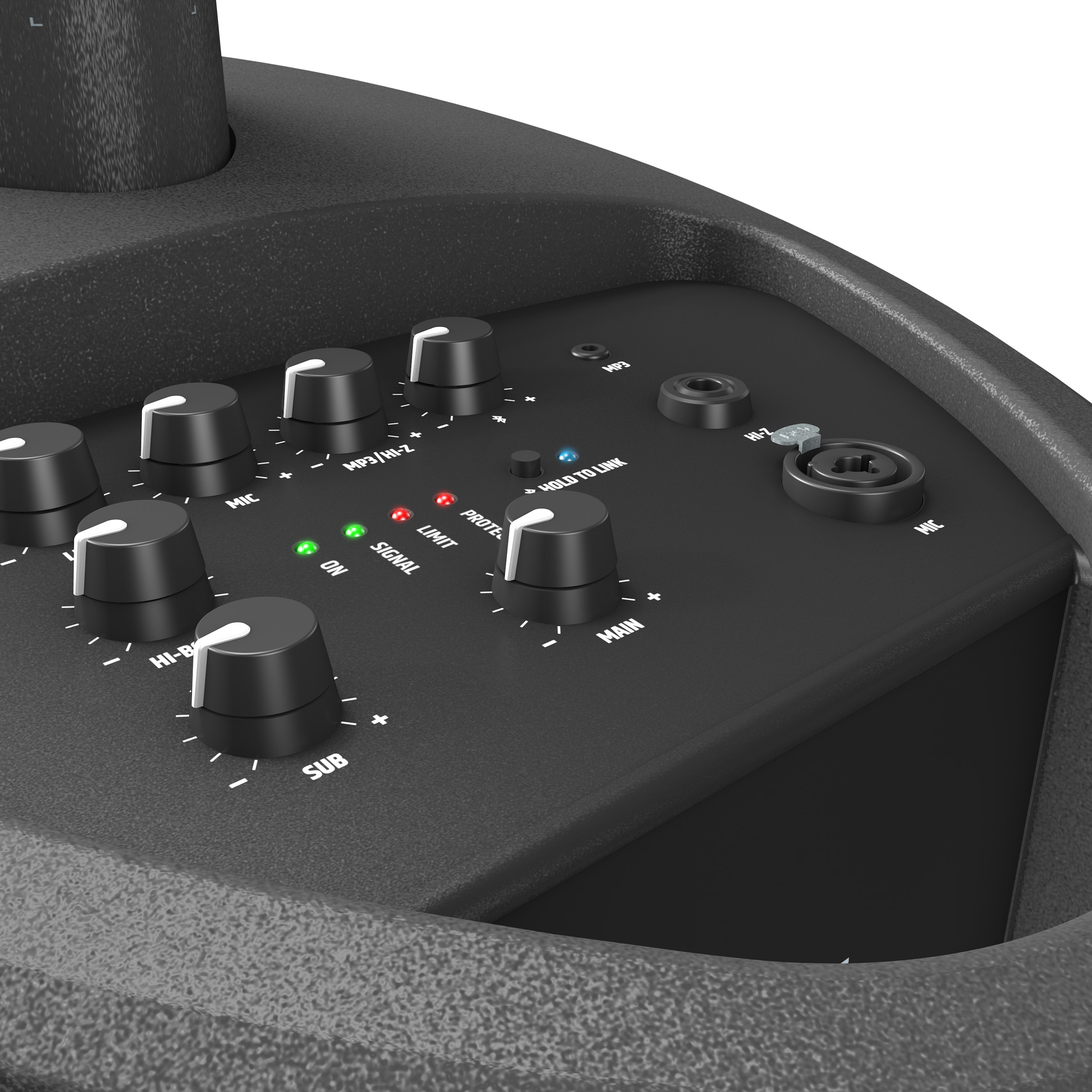

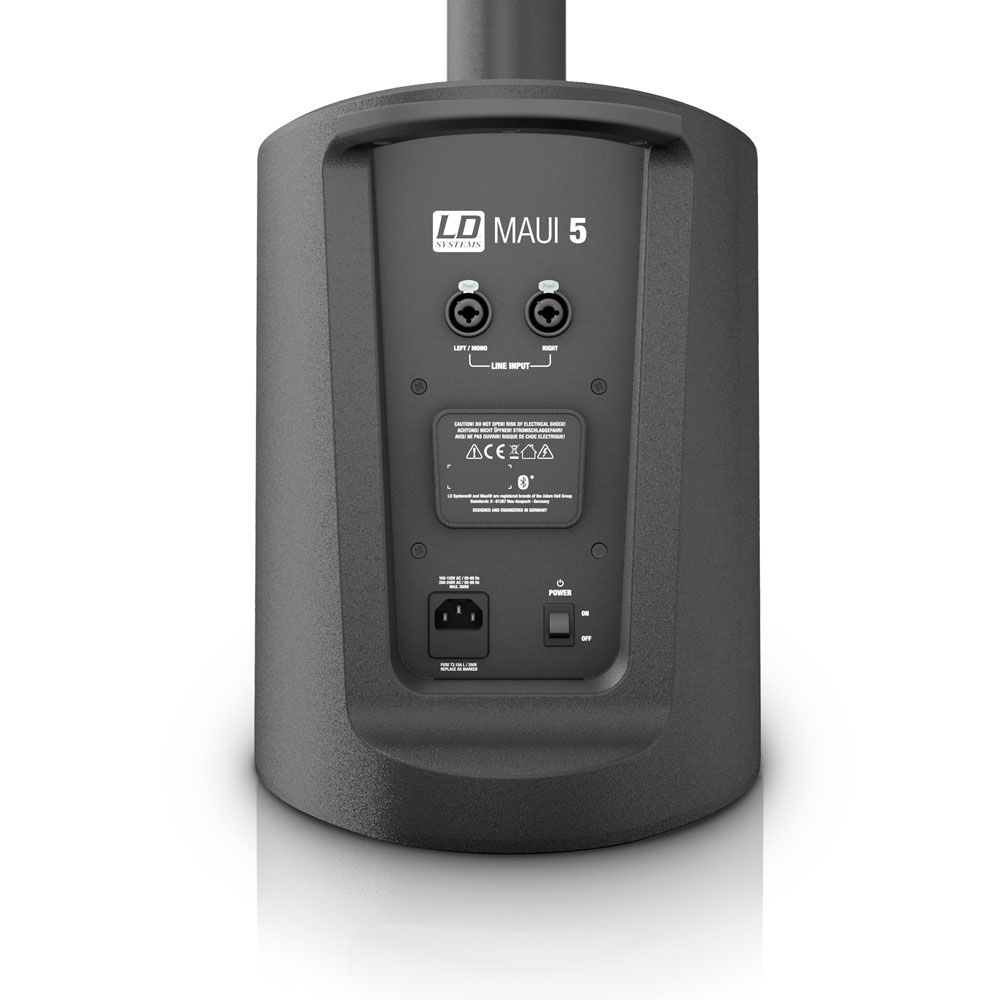

The bass reflex cabinet of the 8" subwoofer base also houses the system’s class-D amplifier unit with protection circuits against overcurrent, overheating and short-circuiting, LD Systems LECC digital signal processing, and a 4-channel mixer. Thanks to built-in Bluetooth© technology for wireless streaming alongside use of the microphone, line and high-impedance inputs, a wide variety of sound sources can be connected to the MAUI 5, including playback devices and instruments, such as keyboards or guitars. Separate level controllers, subwoofer and system volume controllers, and a high-shelf filter for adjusting treble to room acoustics ensure perfectly tuned performances. The MAUI 5 is also available in white (LDMAUI5W).
| Frequency response: | 50 - 20000 Hz |
|---|---|
| Type: | Active |
| Max. SPL peak: | 120 dB |
| Amp class: | Class D |
| Speaker system: | 2-way coaxial system |
| Protection features: | Multiband Limiter, Overvoltage, Overheating, Short circuit |
| Max. SPL average: | 114 dB |
| Beam angle: | Hor.: 120° / Vert.:20° |
| RMS output power: | 200 W |
| Colour: | Black |
| Peak output power: | 800 W |
| Bluetooth® range: | ≤10 m (Class 2) |
|---|---|
| Bluetooth® version: | Bluetooth® 4.2 |
| Supported audio codecs: | SBC |
| Inst-in connector type: | 6.3 mm Jack TS female |
|---|---|
| Line-In connector type: | XLR combo socket |
| Music inputs connector types: | 3.5 mm Jack TRS female |
| Number of music inputs: | 1 |
| Number of instrument inputs: | 1 |
| Number of line inputs: | 2 |
| Number of microphone inputs: | 1 |
| Mic-in connector type: | XLR combo socket |
| AD/DA converter bit depth: | 24 Bit |
|---|---|
| Audio processing: | 3 band EQ (High, Mid, Low) |
| Mixer channels: | 4 |
| Mixer: | 1 |
| DSP model: | LECC |
| AD/DA converter sampling rate: | 48 kHz |
| Manufacturer: | Custom Made |
|---|---|
| Voice coil: | 2 " |
| Size: | 8 " |
| Magnet: | Ferrite |
| Magnet: | Neodymium |
|---|---|
| Quantity: | 4 |
| Voice coil: | 1 " |
| Size: | 3 " |
| Manufacturer: | Custom Made |
| Mains connector: | IEC C14 plug male |
|---|---|
| Operation voltage: | 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz |
| Rated power: | 300 W |
| Power supply type: | Switched-mode power supply (SMPS) |
| Cooling system: | Convection cooling |
|---|
| Chassis material: | ABS |
|---|---|
| Width: | 3.23 in |
| Depth: | 4.13 in |
| Height: | 21.06 in |
| Design: | Closed |
| Design: | Bass reflex |
|---|---|
| Width: | 12.01 in |
| Depth: | 15.55 in |
| Height: | 15.94 in |
| Number of handles: | 1 |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Height: | 78.15 in |
|---|---|
| Weight: | 24.91 lbs |
| Width: | 12.01 in |
| Depth: | 15.55 in |
| Included accessories: | Mains cable |
|---|
Login
accessories

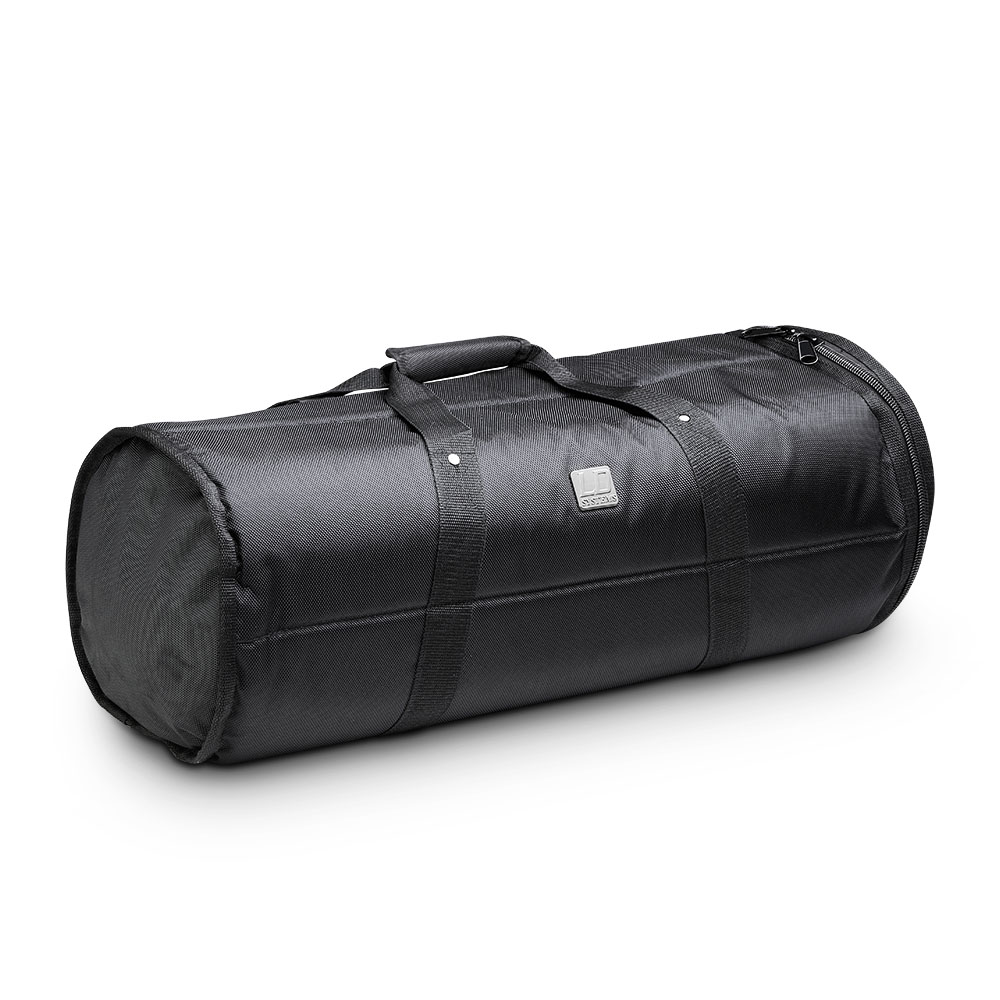

Made of abrasion resistant and water repellent ballistic 1680D nylon, the MAUI 5 column bag is designed for convenient transport and protection. It features a rugged heavy gauge zipper, an accessory compartment for cables etc. and thick 8 mm padding. The bag holds all three MAUI 5 column elements.
For a singer-songwriter performing on stage or giving a concert in a living room, sound is everything.LD Systems FX 300 will blow you away right from the moment you start your show, even if you've had little to no time to carry out a soundcheck. This small yet handy device not only serves as an effect pedal for altering the sound of your voice and instrument but is also an easy-to-use two-channel mixer. Its best feature by far are the pedals that let you control the mute functions with your feet or hand. And if you've got something to say, you can simply mute all effects with the FX MUTE pedal so your voice can be heard loud and clear without any reverb or delay and everyone in the room can understand your message. To prevent the signal of your microphone or instrument from reaching the outputs, all you need to do is tap the MUTE ALL pedal - a lifesaver during breaks or when wrapping up your set.The FX 300 is outfitted with 16 digital effects presets in 16-bit quality, two inputs with a separate gain setting and a balanced and unbalanced output. The +48 V phantom power provided at the microphone input allows condenser microphones to be used in addition to dynamic microphones. The high-impedance, low-noise instrument input is not only great for acoustic or bass guitars but also for all other instruments. Plenty of headroom ensures you no longer have to worry about distorted signals. And with a 9 V battery that lasts up to five hours, LD Systems FX 300 has got you covered even if there's no outlet in sight.

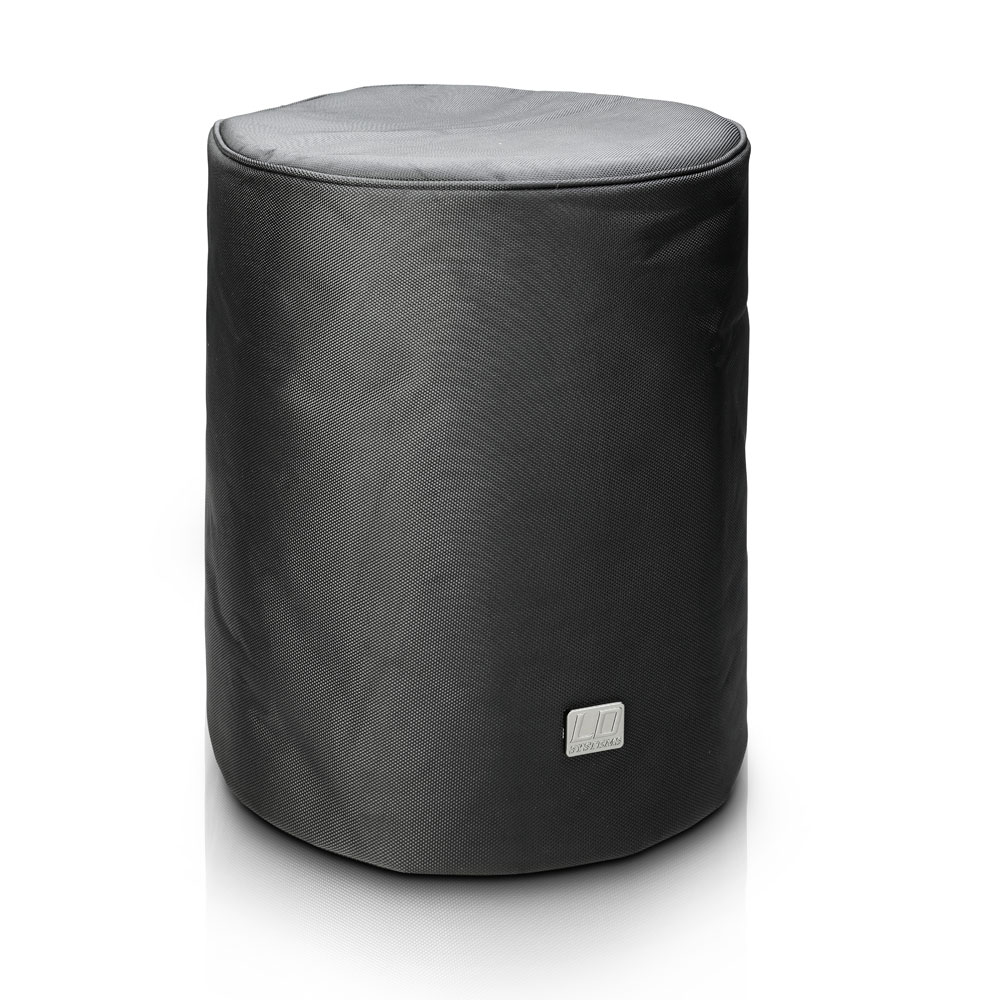

Protective cover for the MAUI 5 subwoofer made of resistant Nylon 1680D with 8 mm padding and rear zip for easy access to the carrying handle.

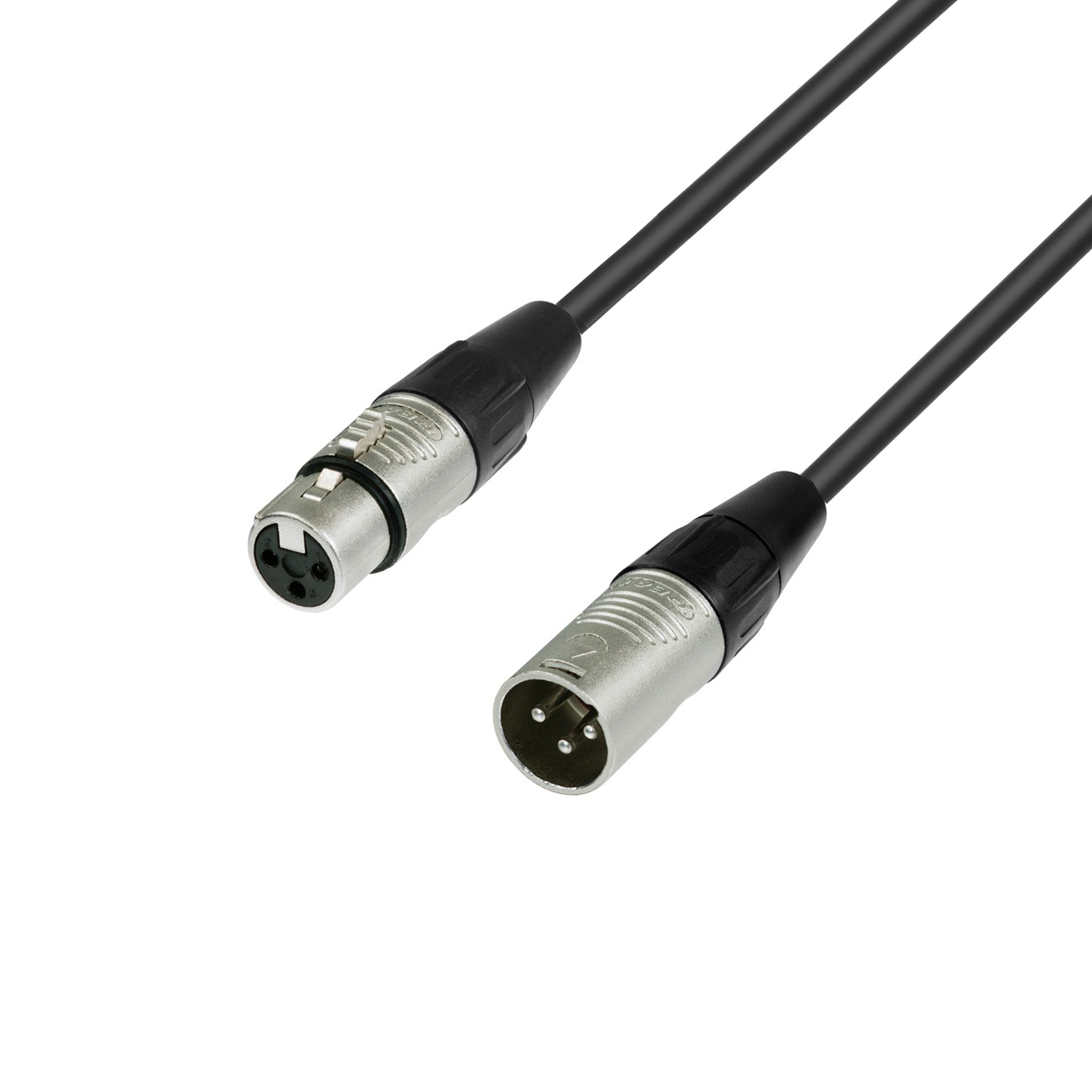

Professional Quality CableFor professional applications on stage, in the studio or in the rehearsal room, professional quality is available with our 4 STAR SERIES. THis cable is completely developed in Germany and therefore meets the relevant requirements for professional use.We focus on durability and reliability, and have therefore developed a line of cables that are not only flexible, but also very robust. We use a special soft-PVC compound for all cables of the 4 STAR SERIES which has very good bending abilities. Of course, the jacket is not the only factor that makes a cable great, so we use a dense copper-spiral shielding, for professional transmission values. All these parts make the cable very flexible.
