Product information "MAUI® 5 GO 100 W"

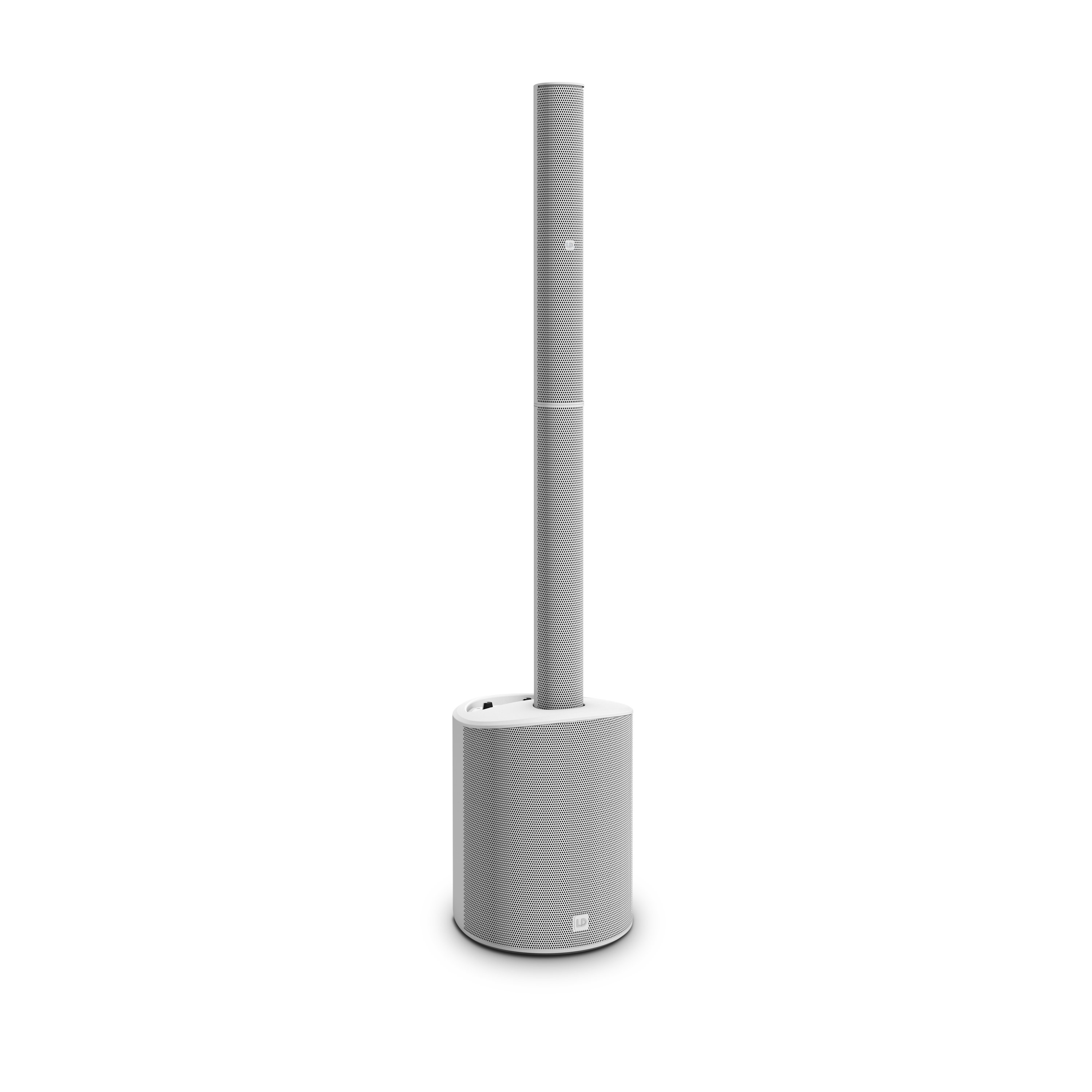

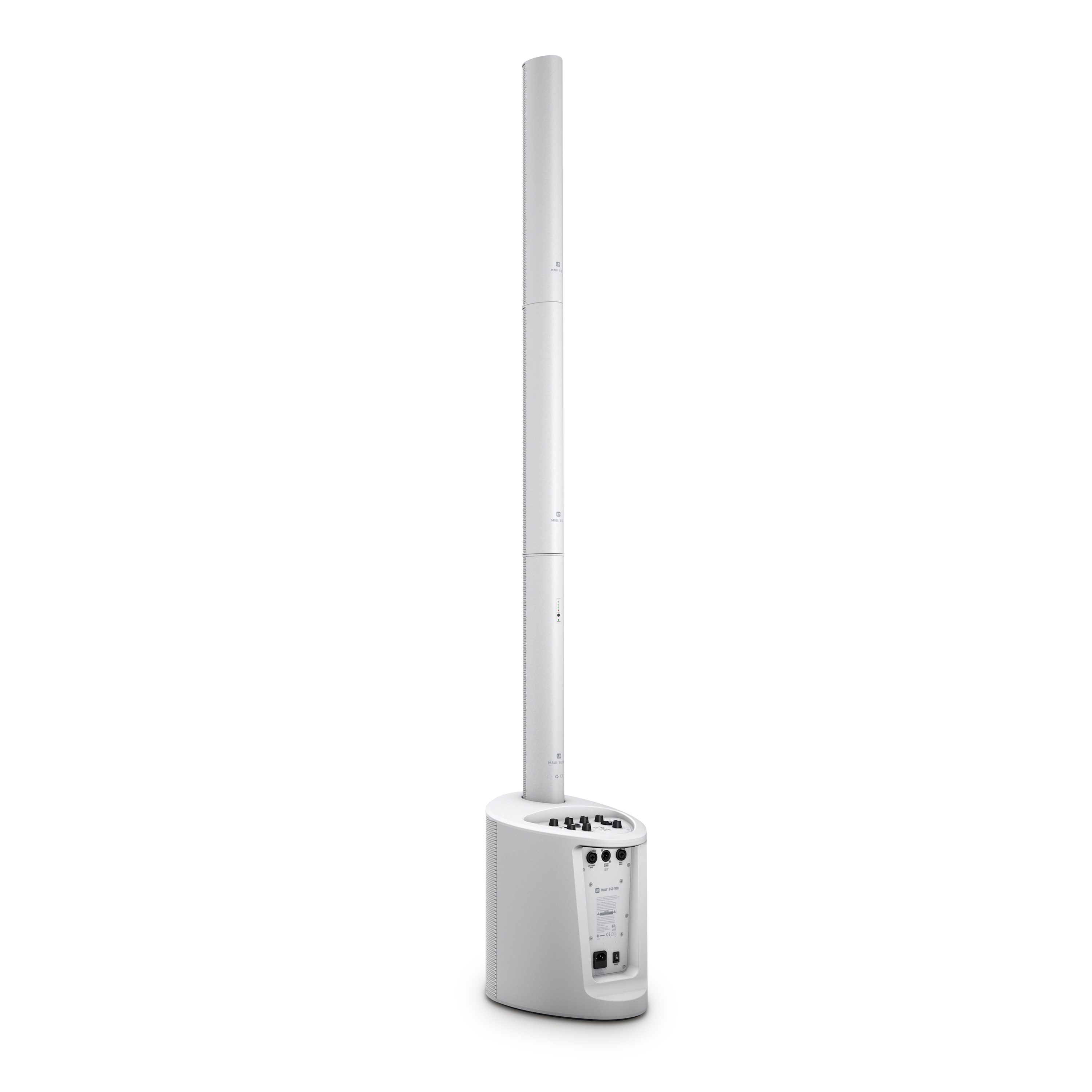

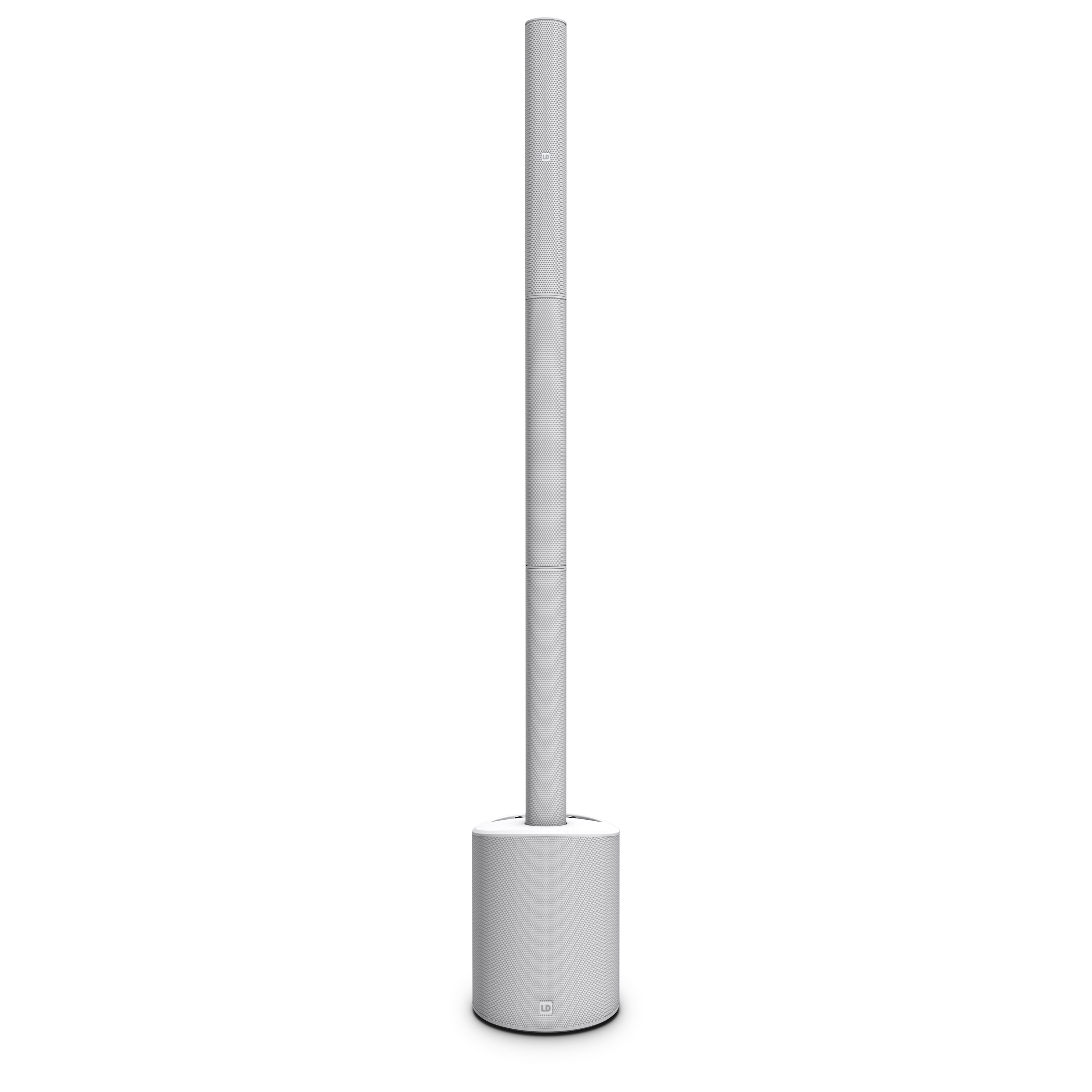

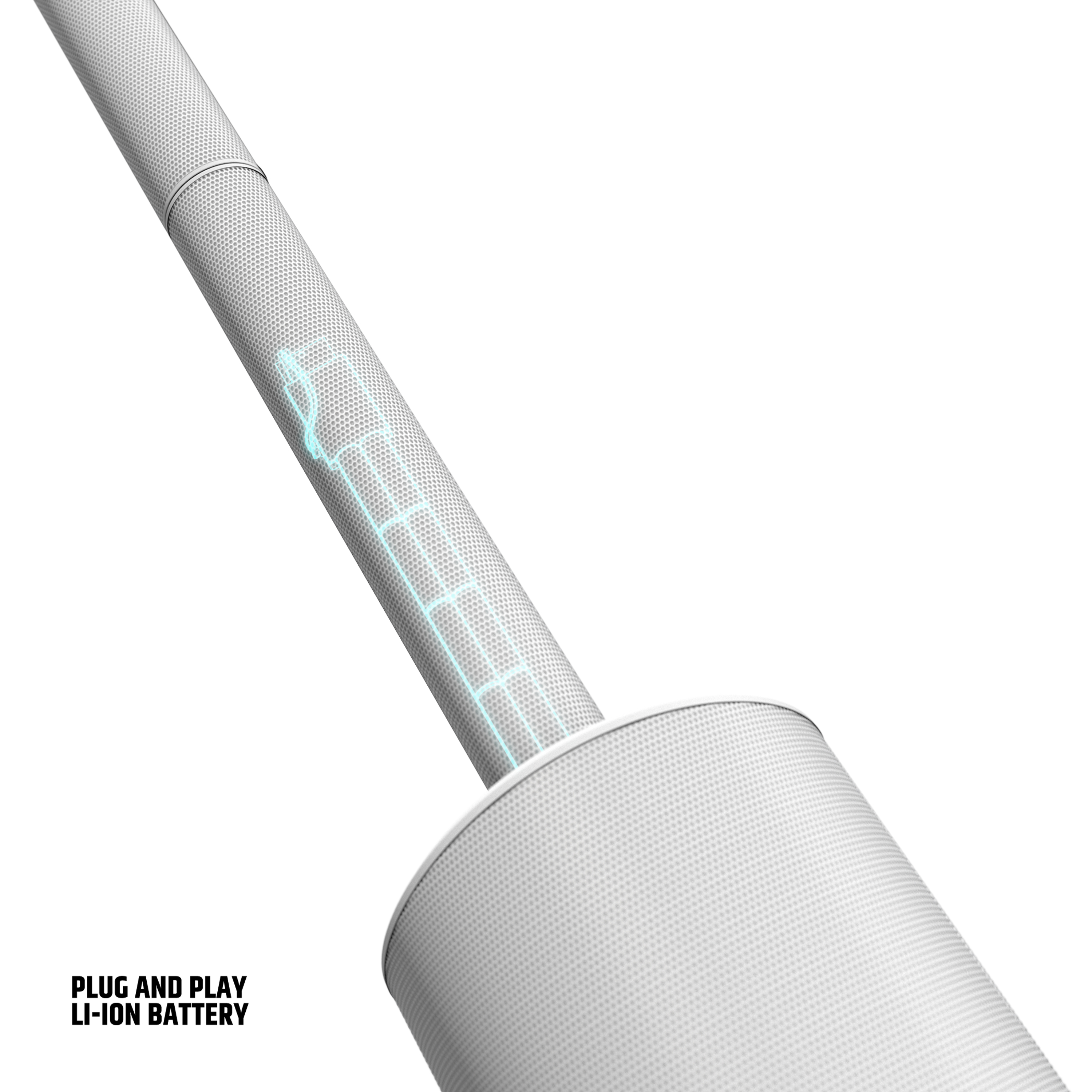

Perfectly equipped throughout, the MAUI® 5 GO 100 is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power to 12 hours operating time. The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth® stereo streaming make the MAUI® 5 GO 100 the ideal ideal system for street musicians or for music and speech reproduction at private and business events and all mains power-free applications.

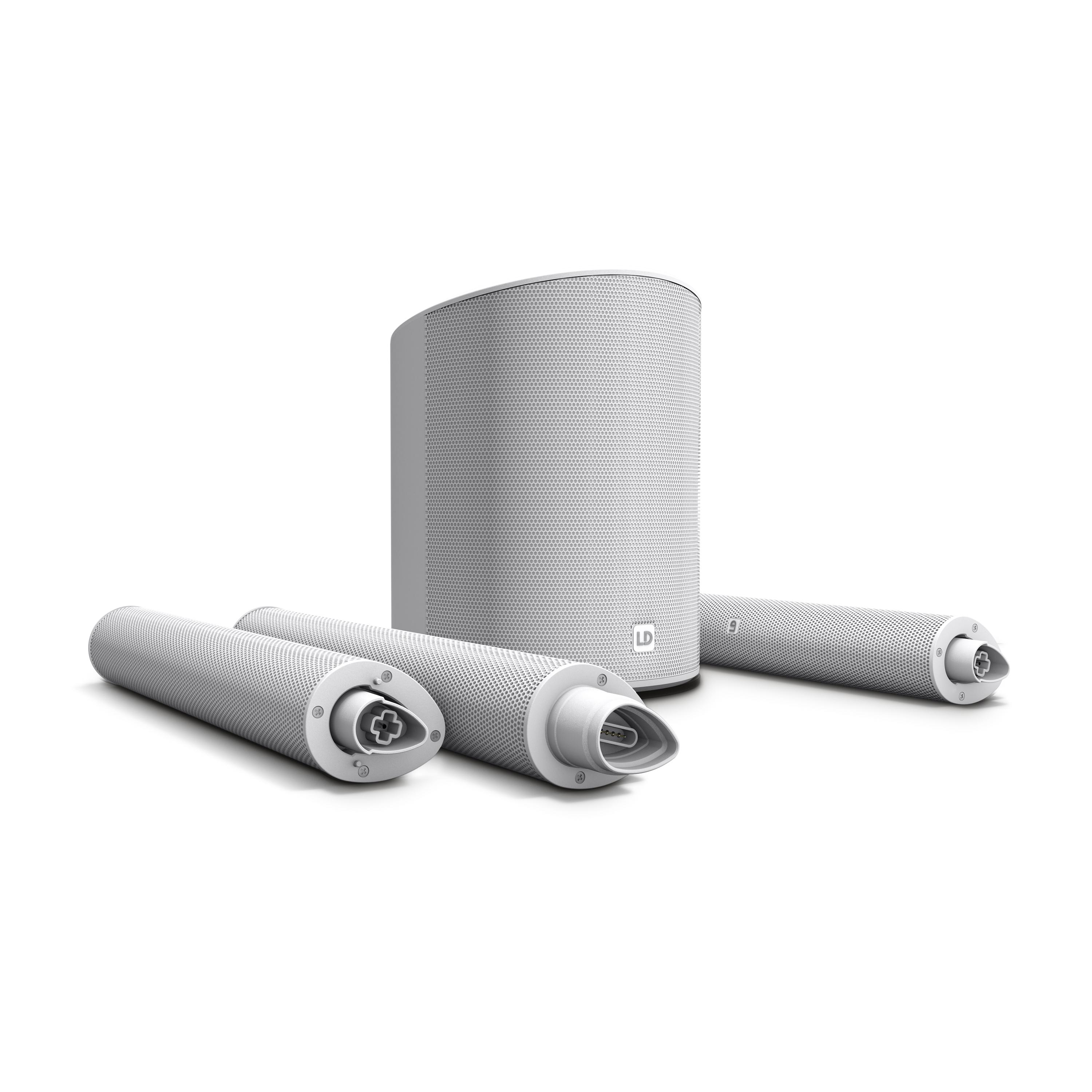

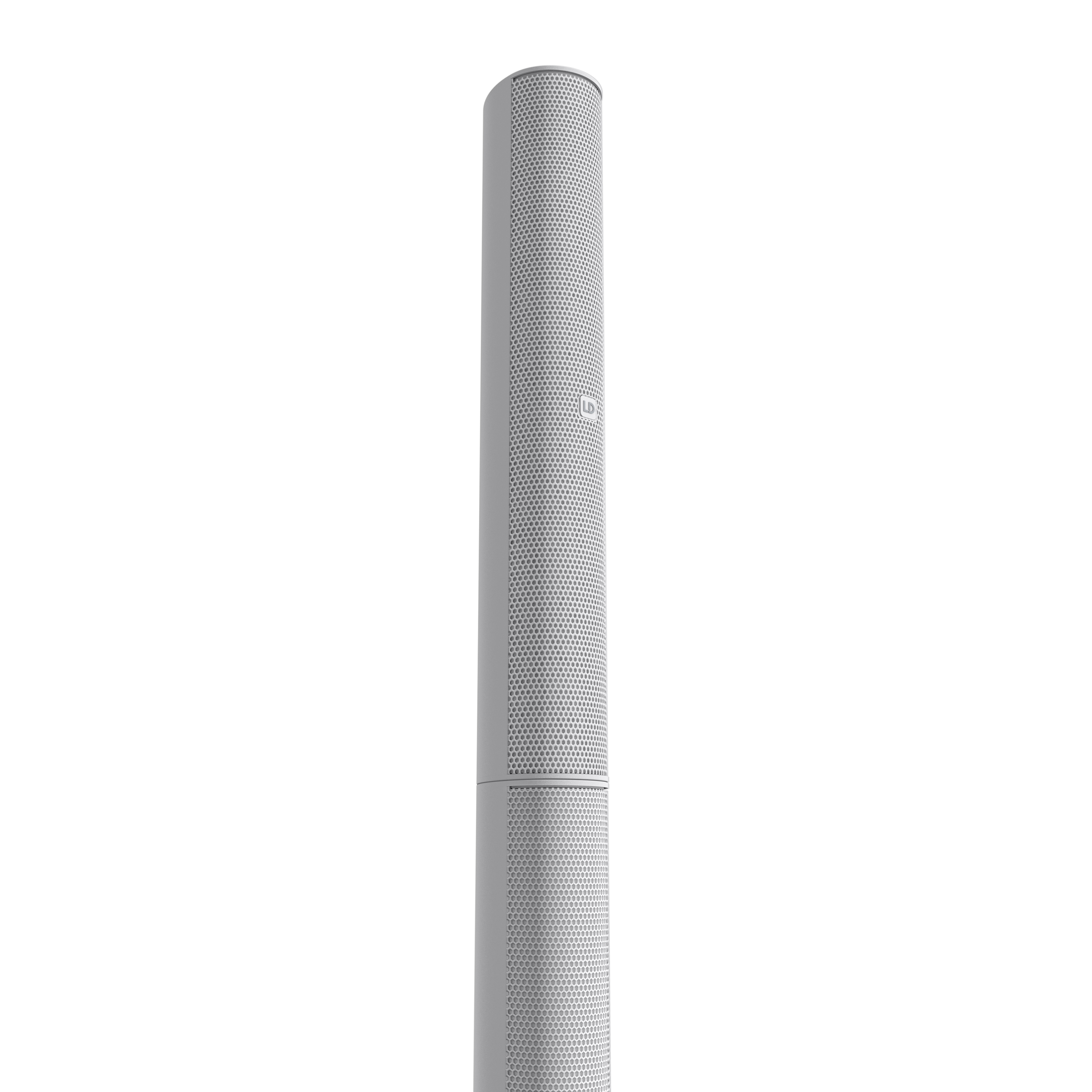

Its superlight weight of just 12. kg makes the four-piece design ultra-easy to transport, and thanks to its special multipin connectors, it is assembled and ready to use in seconds. The line-array arrangement of the drivers achieves an extremely high range. The system’s wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI® 5 GO 100 is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people.

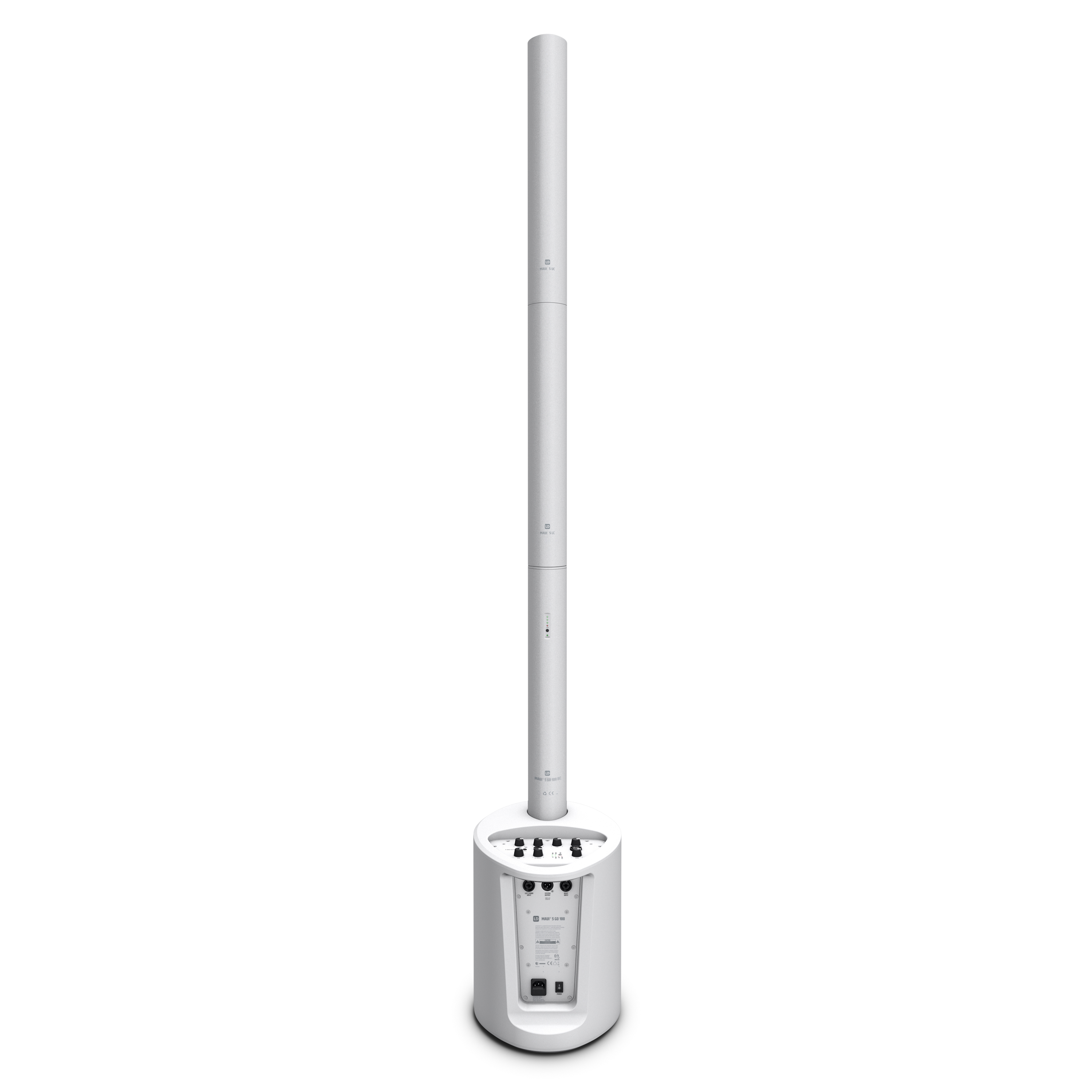

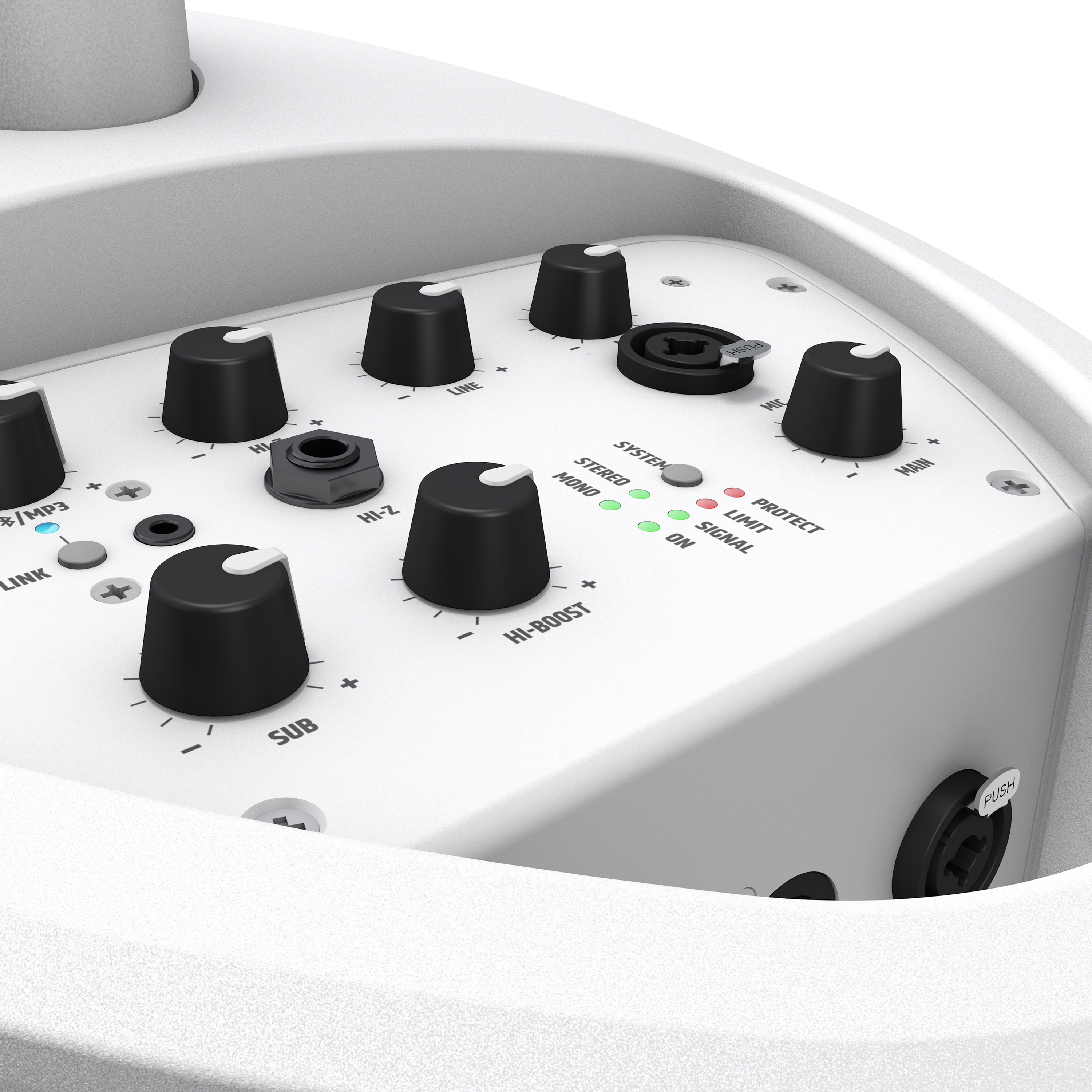

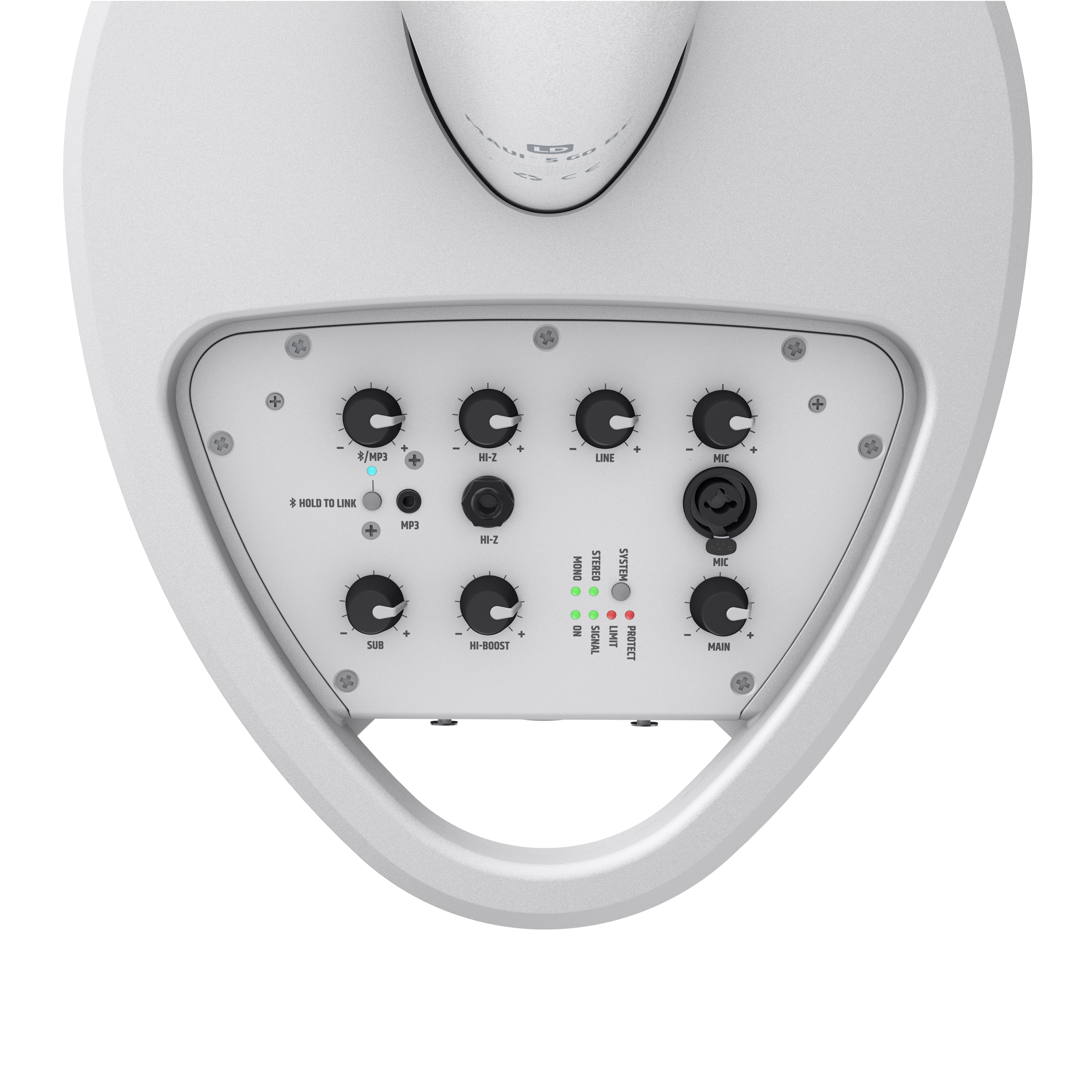

For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover. The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. In addition, LD Systems' Quick-Swap-Technology® enables the immediate, problem-free replacement of the battery element and thus offers the possibility of extending the operating time of the MAUI® 5 GO 100 as desired.

Frequency response: 50 - 20000 Hz
Type: Active

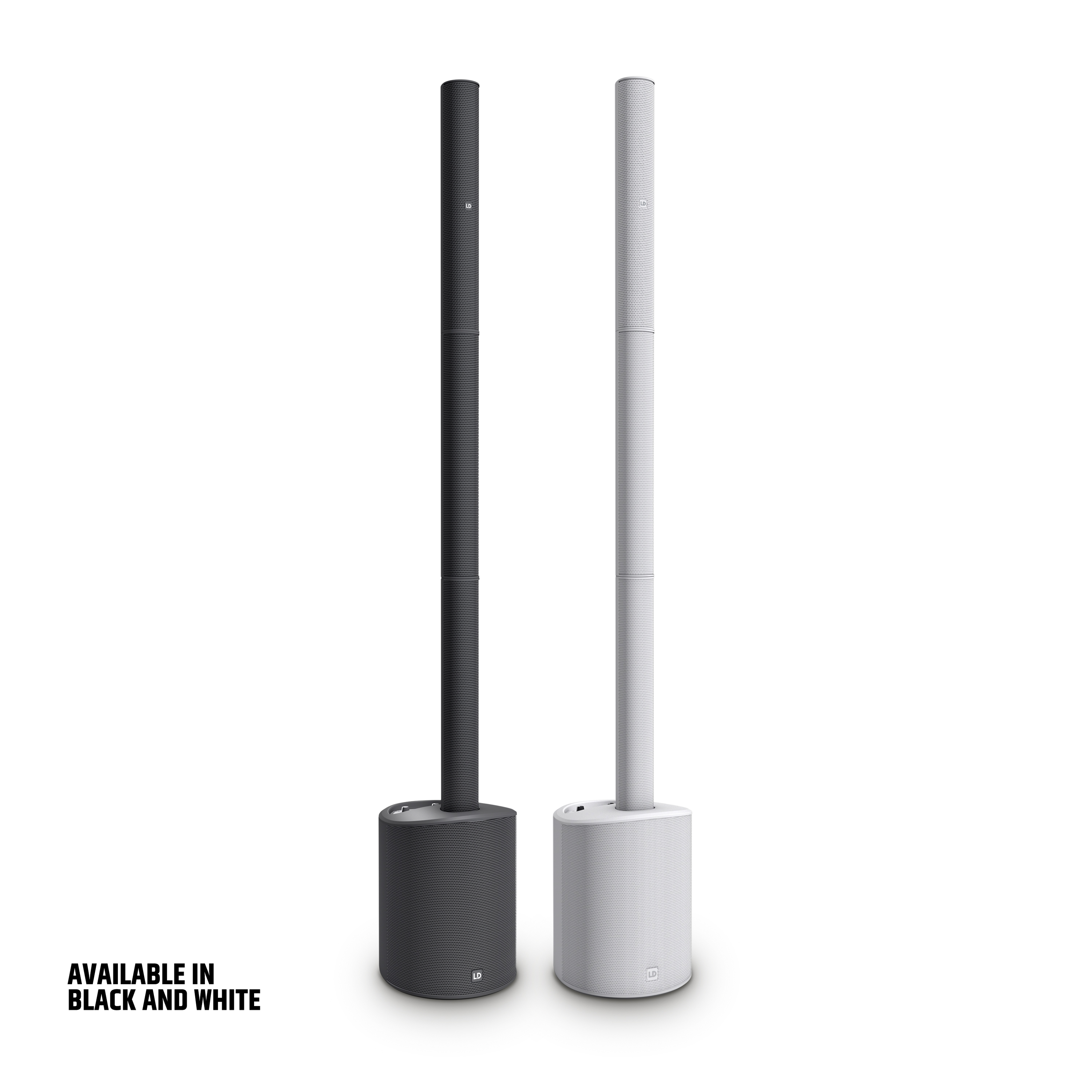

Colour: White
Max. SPL peak: 120 dB
Amp class: Class D
Speaker system: 2-way coaxial system
Protection features: Multiband Limiter, Overvoltage, Overheating, Short circuit
Max. SPL average: 114 dB
Beam angle: Hor.: 120° / Vert.:20°
RMS output power: 200 W
Peak output power: 800 W
Bluetooth® range: ≤10 m (Class 2)
Bluetooth® version: Bluetooth® 4.2
Supported audio codecs: SBC
Inst-in connector type: 6.3 mm Jack TS female
Line-In connector type: XLR combo socket
Music inputs connector types: 3.5 mm Jack TRS female
Number of music inputs: 1
Number of instrument inputs: 1
Number of line inputs: 2
Number of microphone inputs: 1
Mic-in connector type: XLR combo socket
Output signal type: Balanced
Number of speaker outputs: 1
Speaker output connection type: XLR 3-pole male
AD/DA converter bit depth: 24 Bit
Audio processing: 3 band EQ (High, Mid, Low)
Mixer channels: 4
Mixer: 1
DSP model: LECC
AD/DA converter sampling rate: 48 kHz
Manufacturer: Custom Made
Voice coil: 2 "
Size: 8 "
Magnet: Ferrite
Magnet: Neodymium
Quantity: 4
Voice coil: 1 "
Size: 3 "
Manufacturer: Custom Made

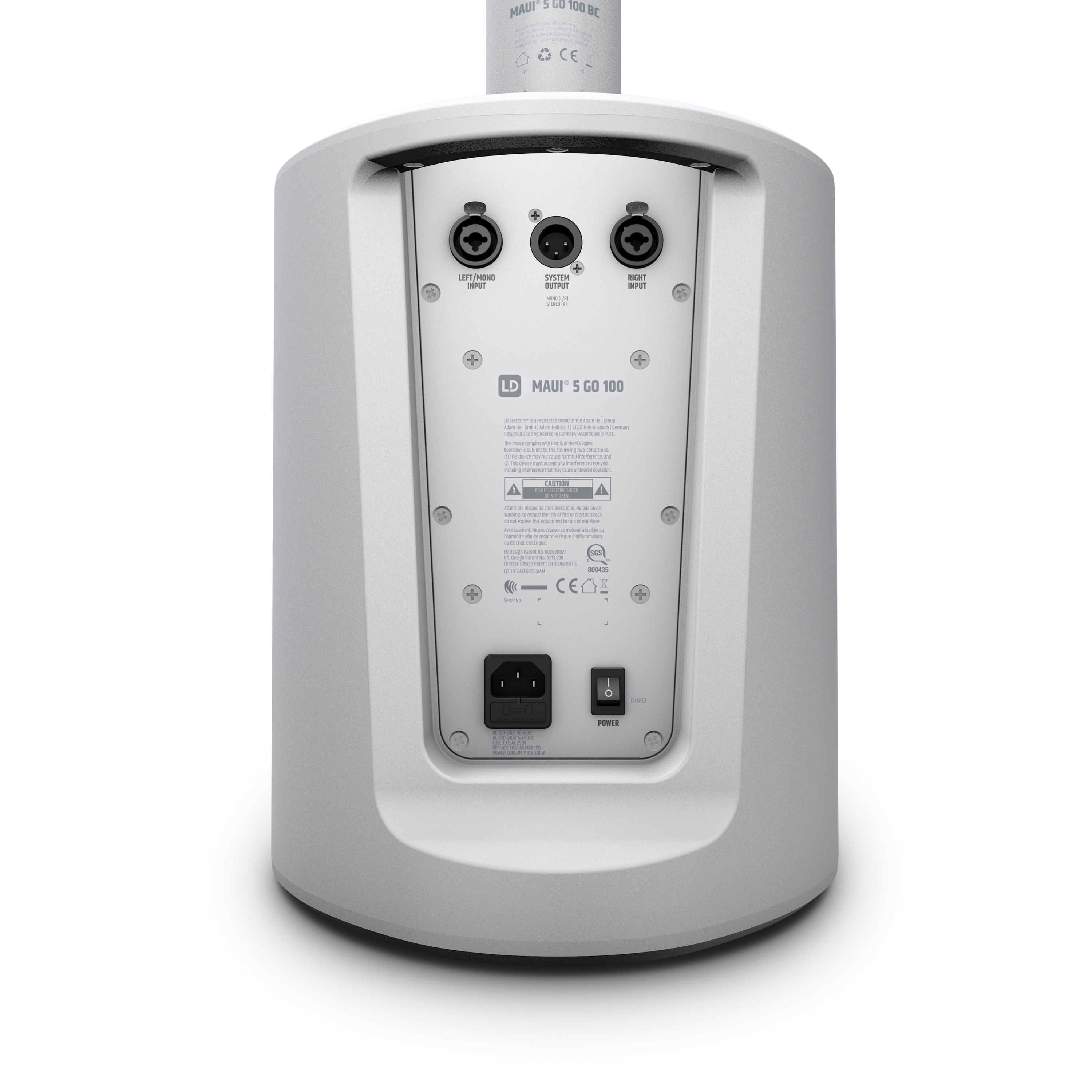

Mains connector: IEC C14 plug male
Operation voltage: 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz
Rated power: 300 W
Mains fuse: T3.15AL/250 V
Fuse replacement: Possible from the outside without opening
Power supply type: Switched-mode power supply (SMPS)
Operating voltage: 28.8 - 28.8 V

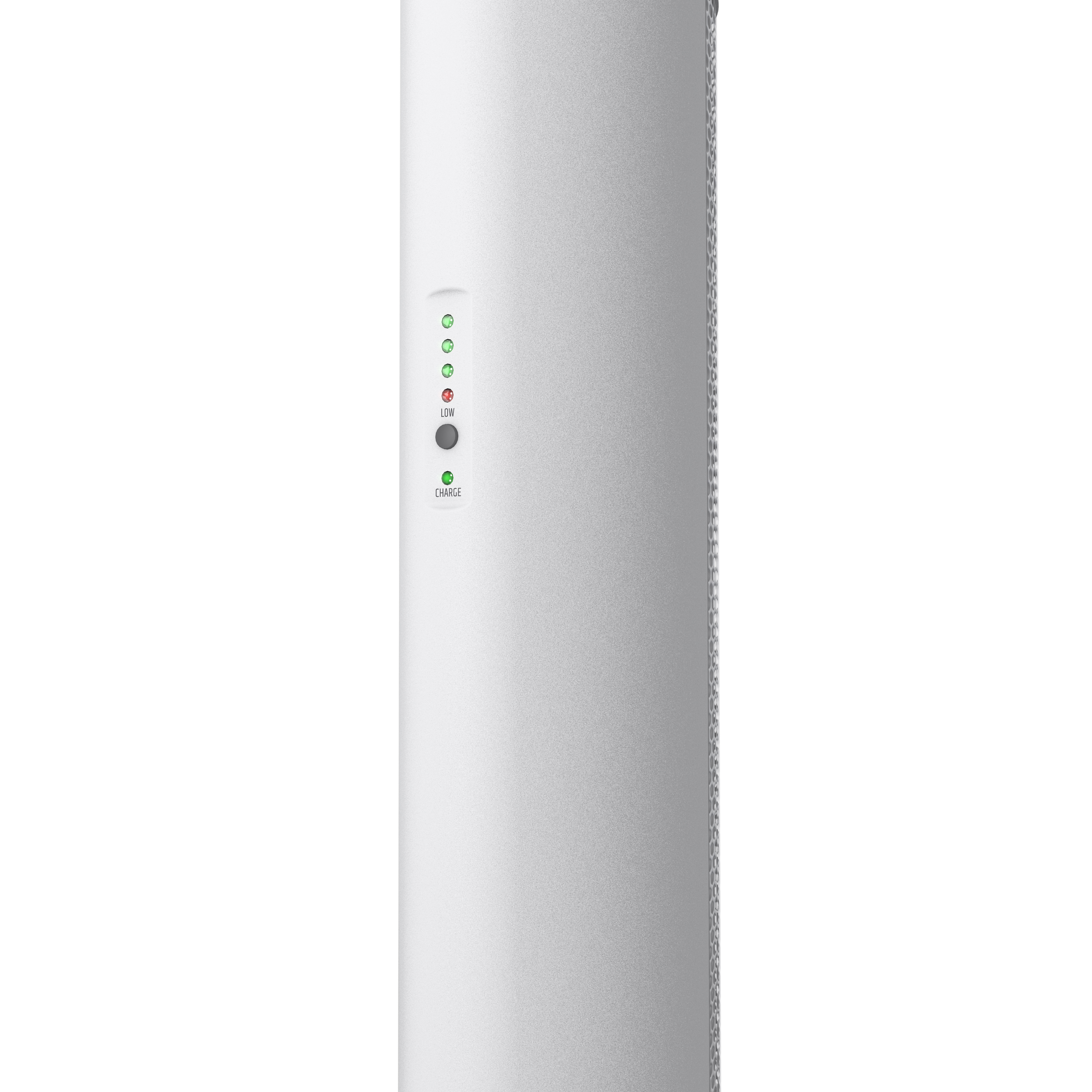

Battery capacity: 3200 mAh
Exchangeable: Yes
Battery life: 4 h (DJ Mode) - 12 h (Lounge)
Charging time (80 %): 1.5 h
Charging time (100 %): 2 h
Cell technology: Lithium-ion (Li-Ion)
Design: Bass reflex
Front grille material: Aluminium
Cabinet material: ABS
Cooling system: Convection cooling
Chassis material: ABS
Width: 3.23 in
Weight: 7.72 lbs
Depth: 4.13 in
Height: 21.06 in
Design: Closed
Design: Bass reflex
Width: 12.01 in
Depth: 15.55 in
Height: 15.94 in
Weight: 19.62 lbs
Number of handles: 1
Maximum air humidity (non-condensing): 80 %
Ambient temperature: 0 - 40 °C
Height: 78.15 in
Weight: 27.34 lbs
Width: 12.01 in
Depth: 15.55 in
Included accessories: Mains cable
