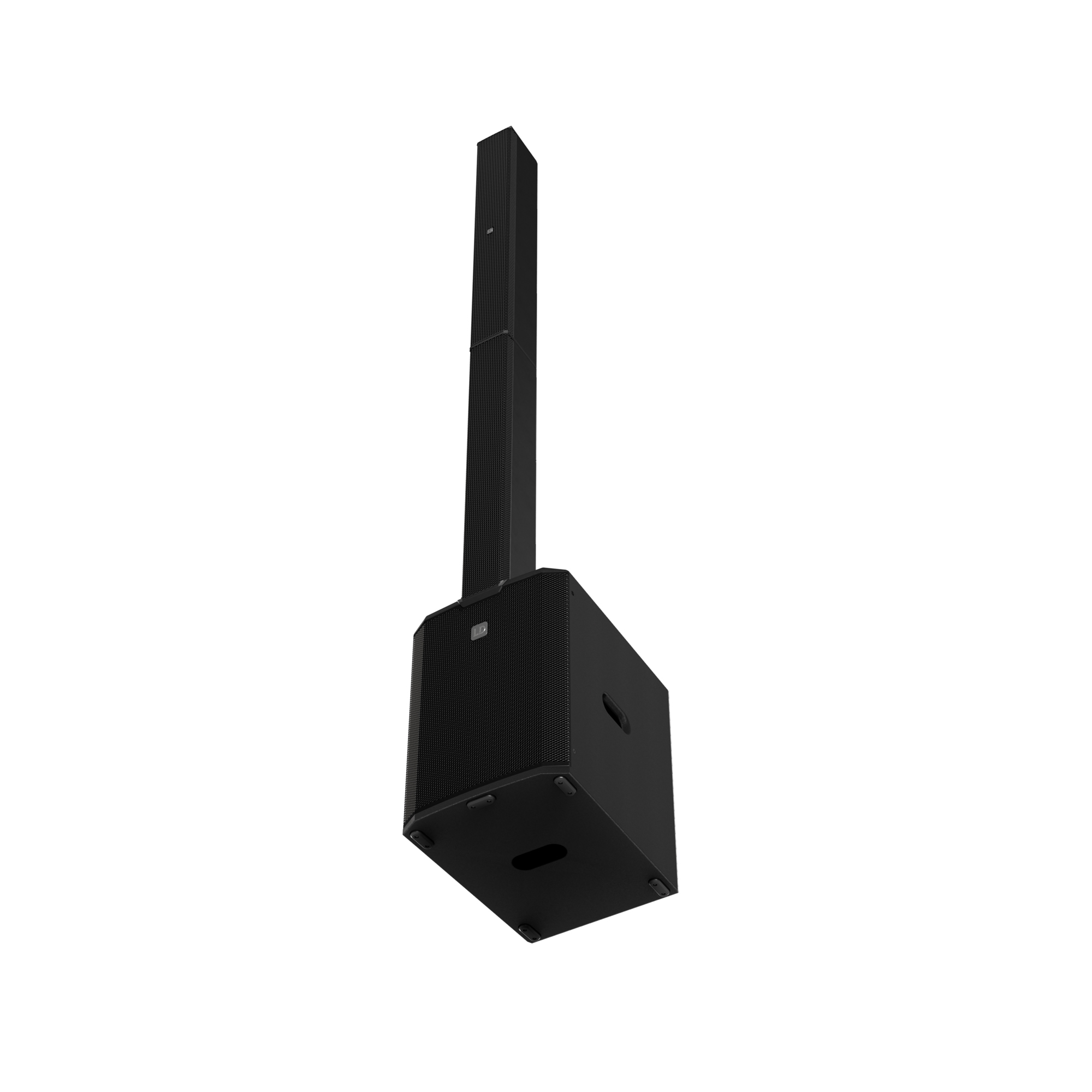

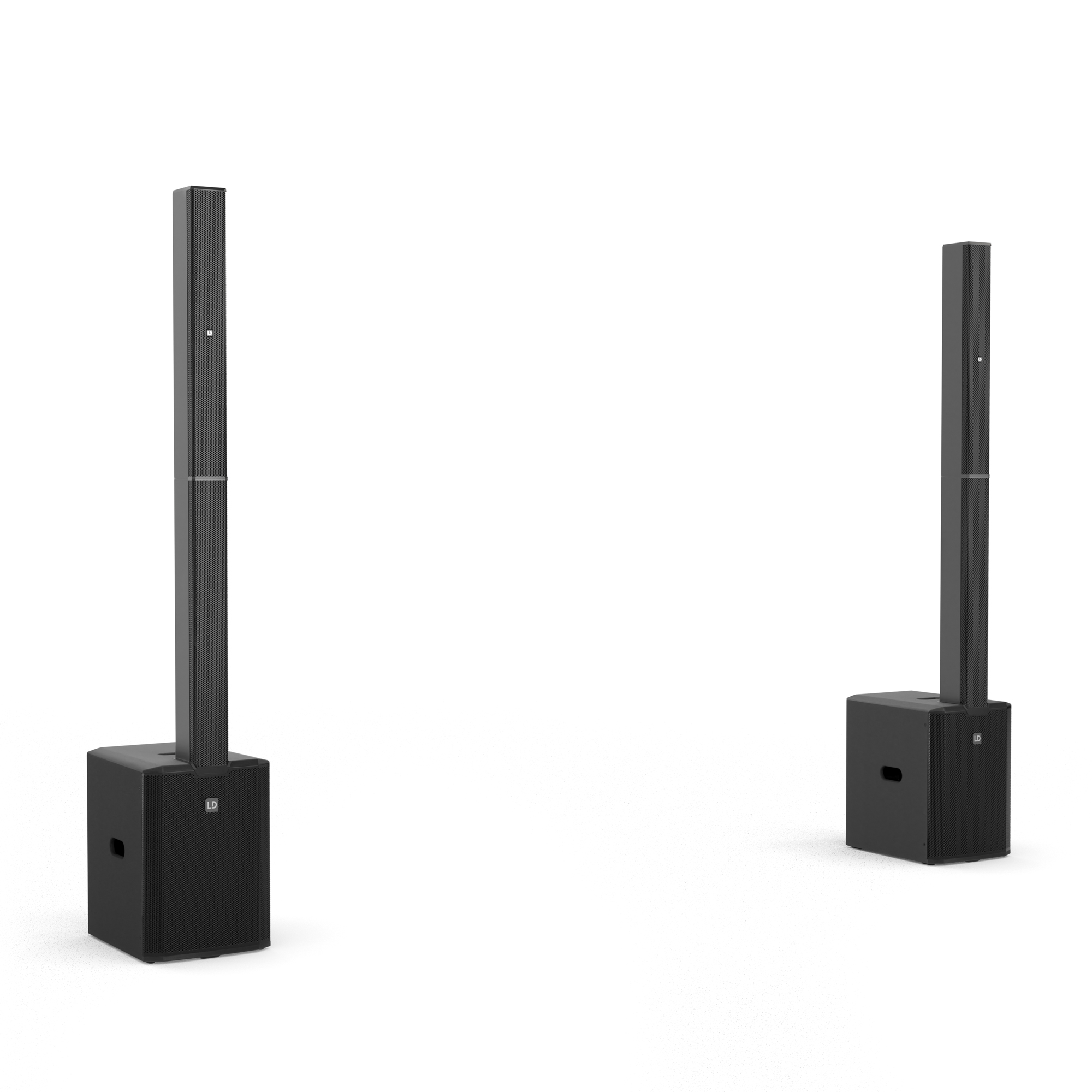

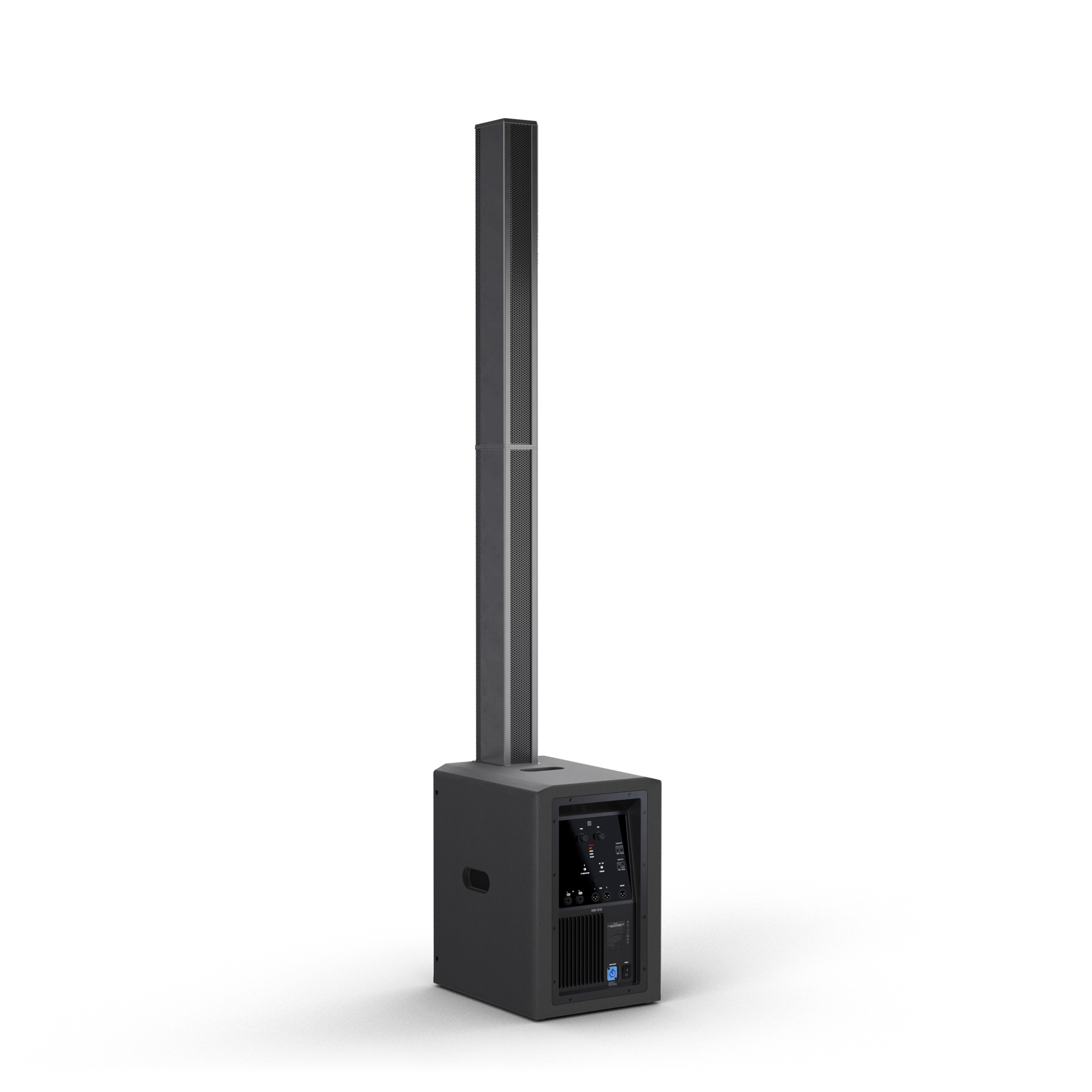

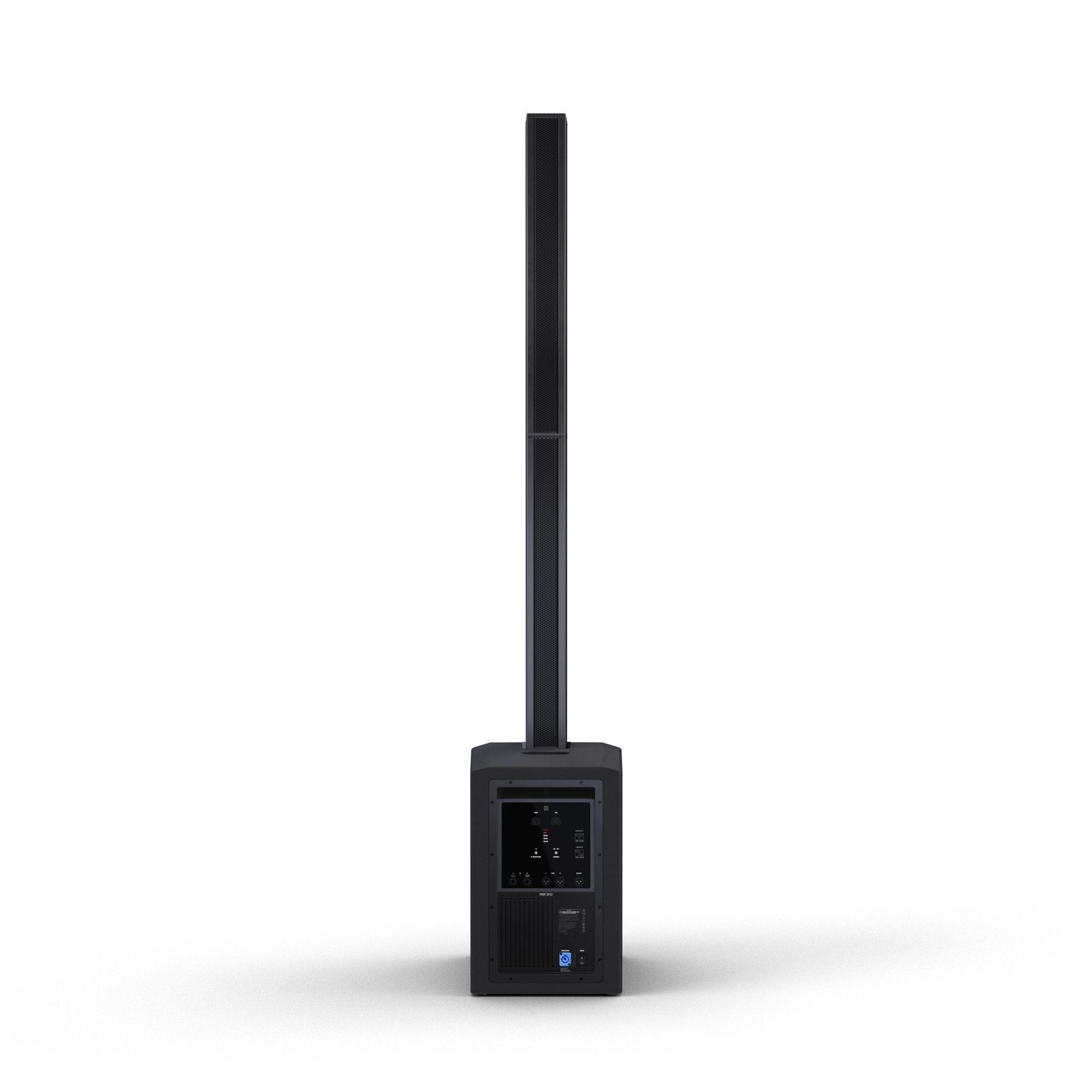

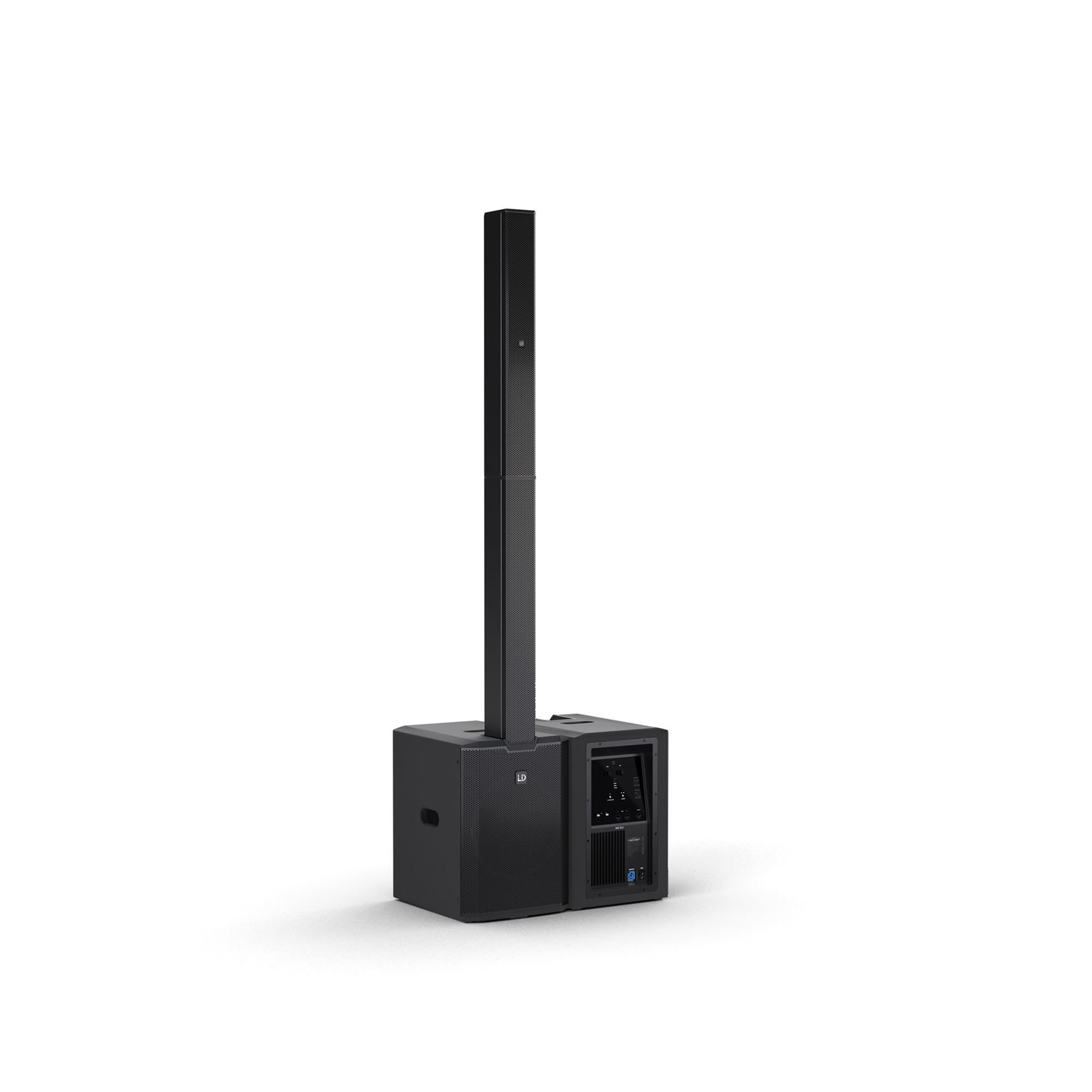

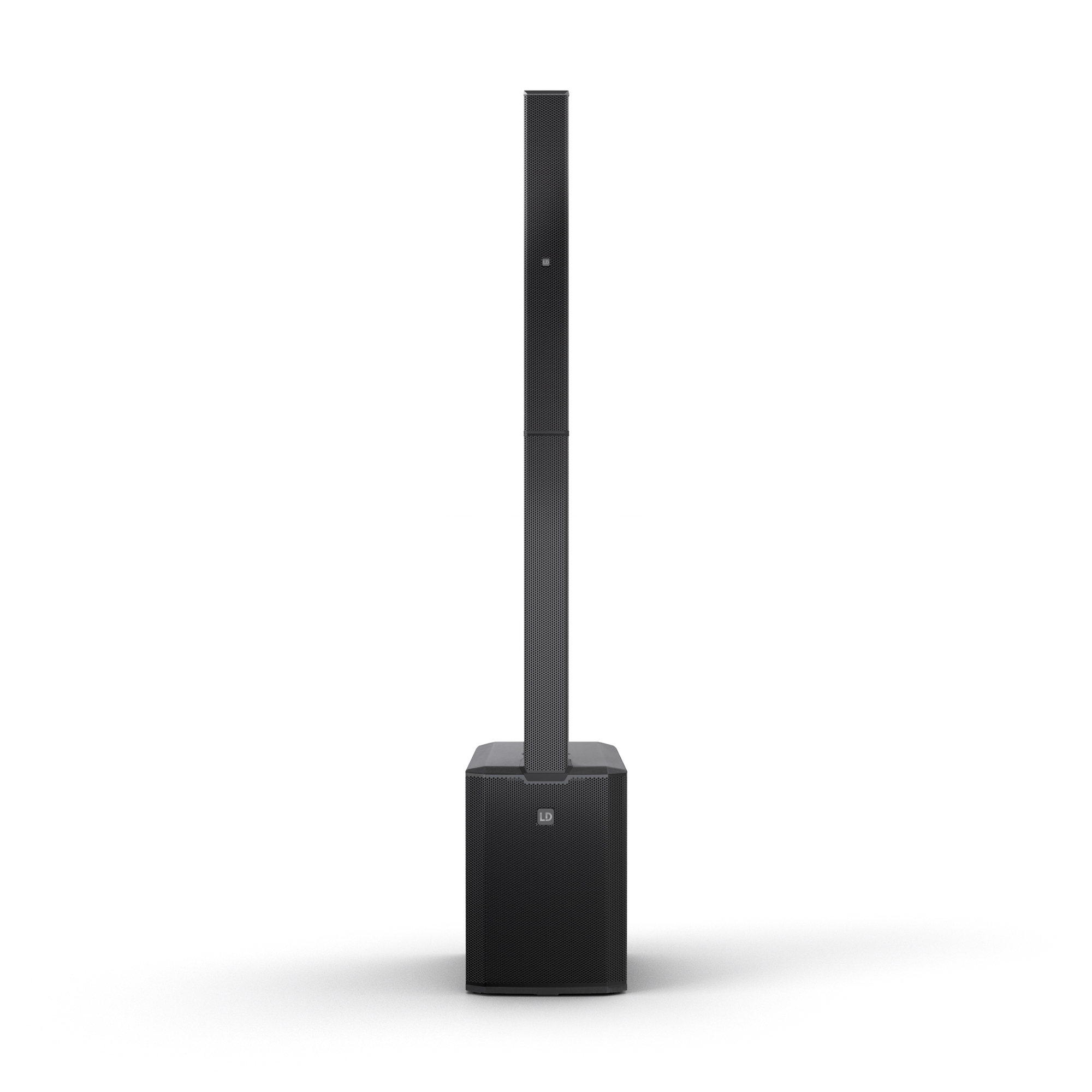

MAUI® 28 G3
Compact cardioid column PA system, black
$1,699.99
Backordered – More on the Way!
Product information "MAUI® 28 G3"
Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!
The MAUI 28 G3 delivers a huge, powerful and precise sound featuring 1,030 W RMS power (2,060 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

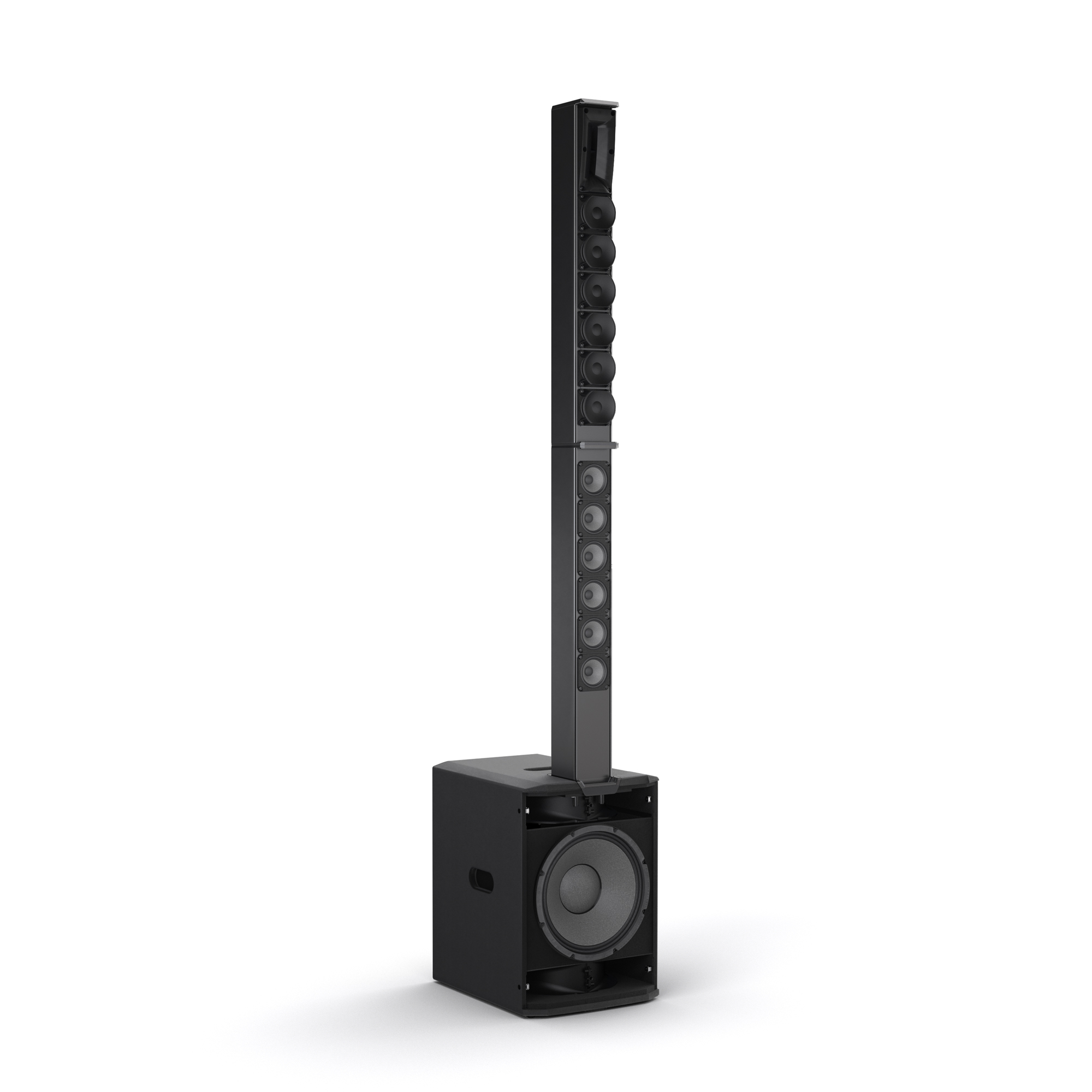

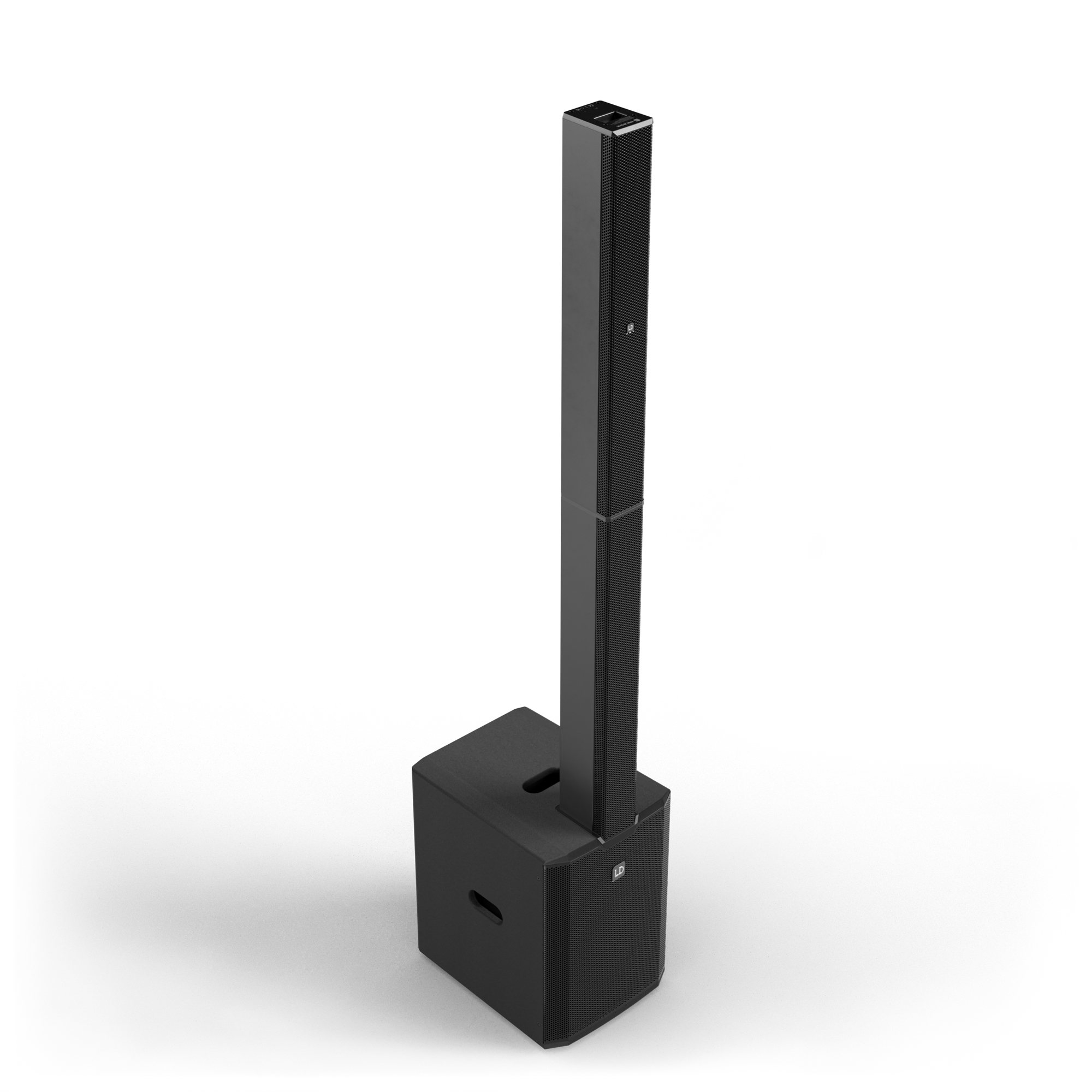

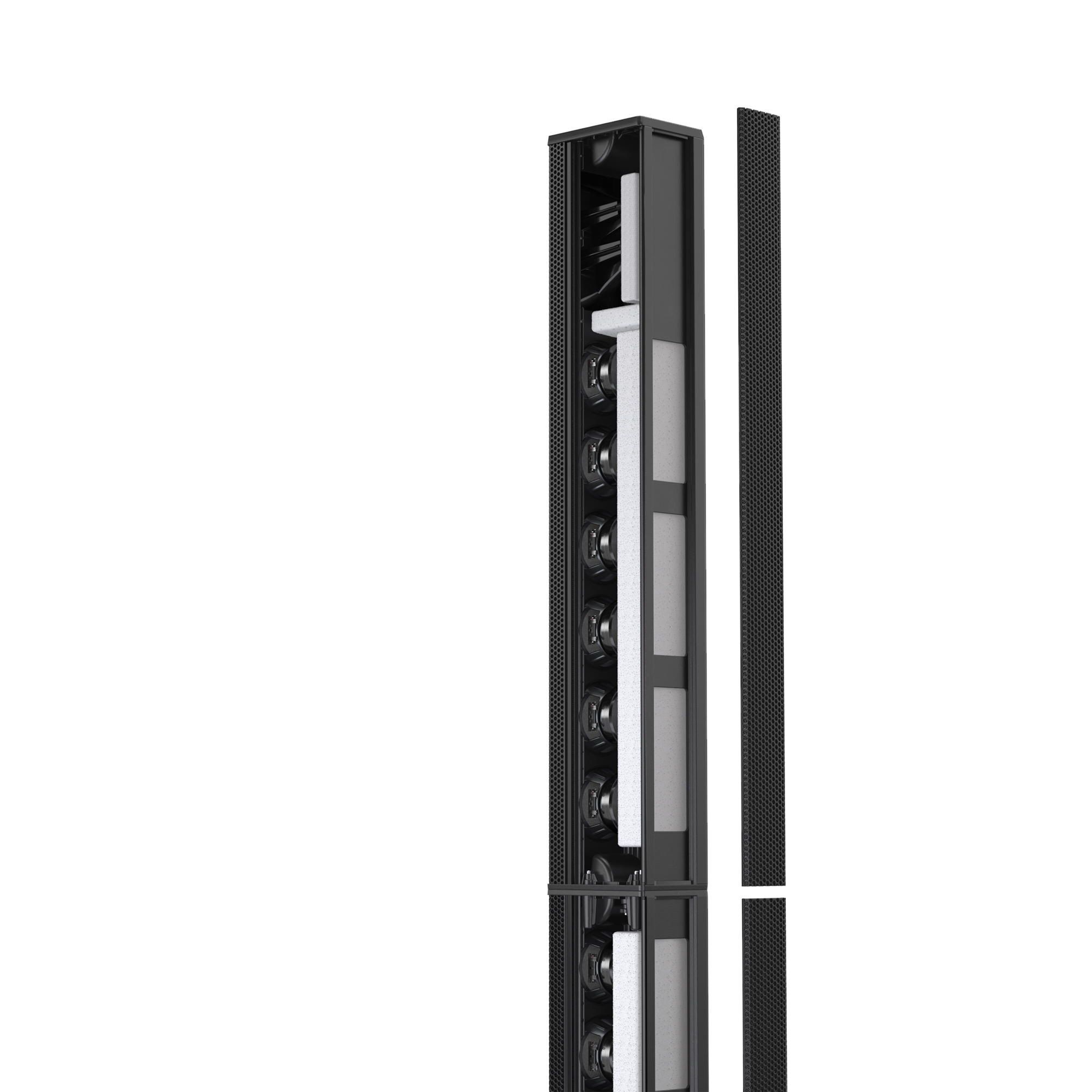

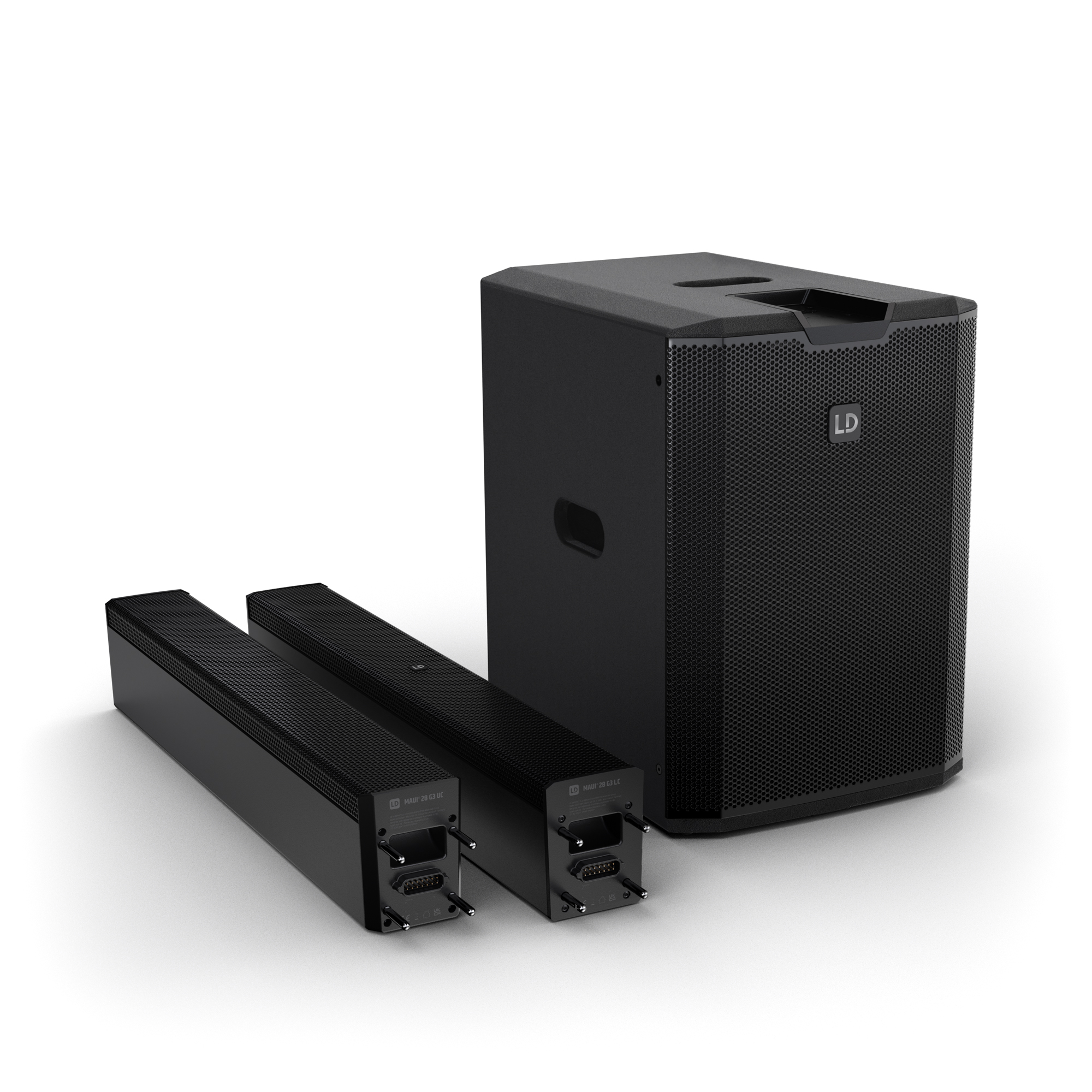

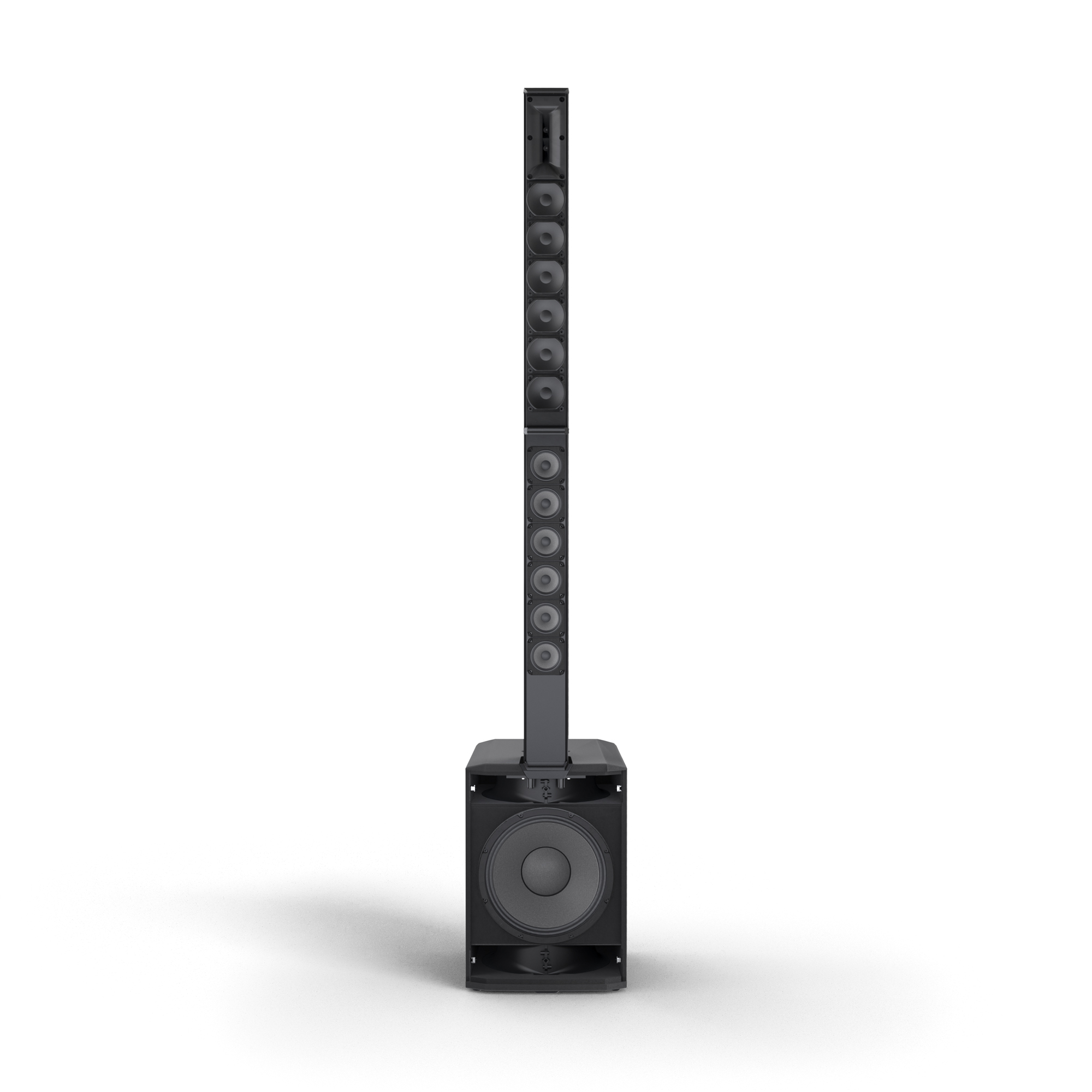

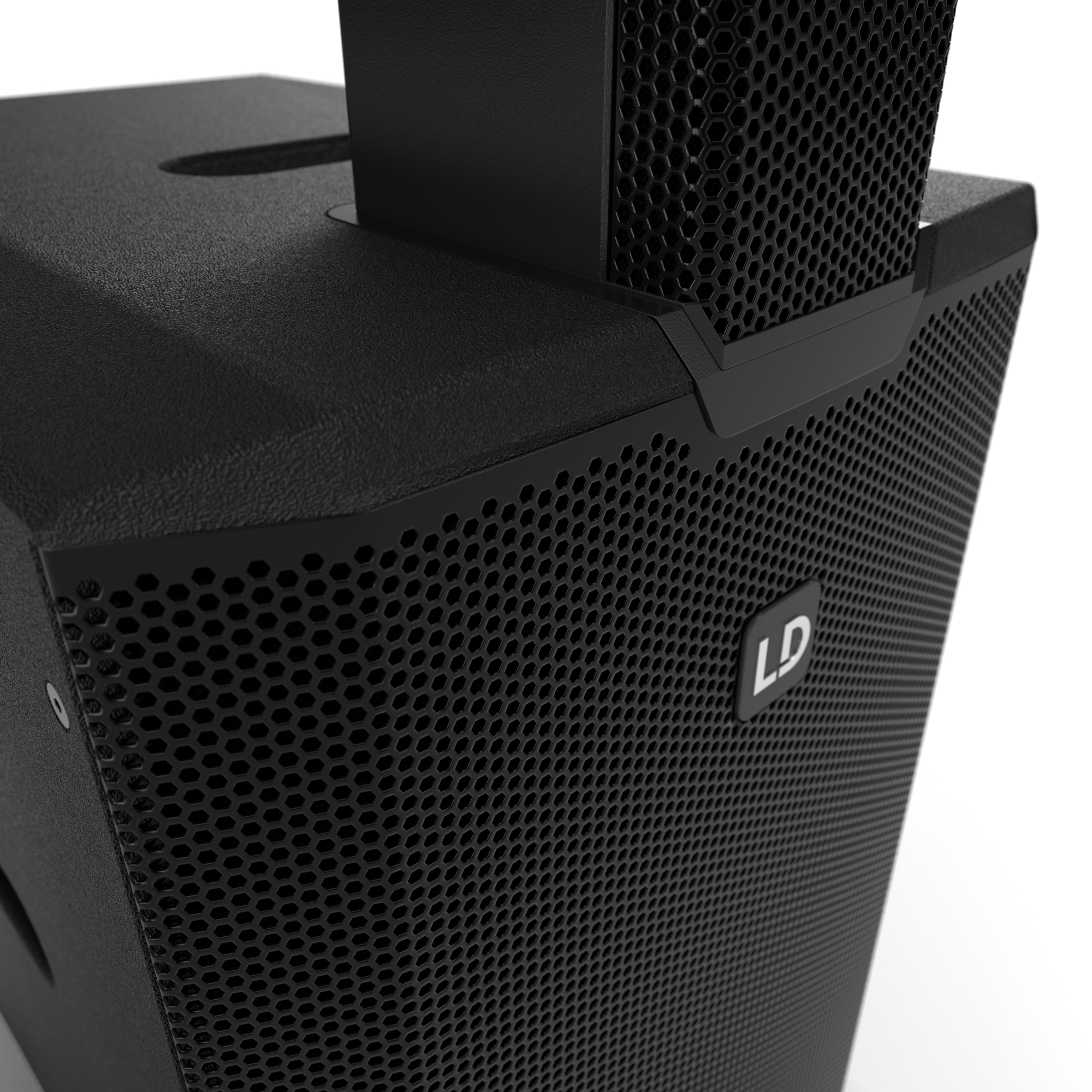

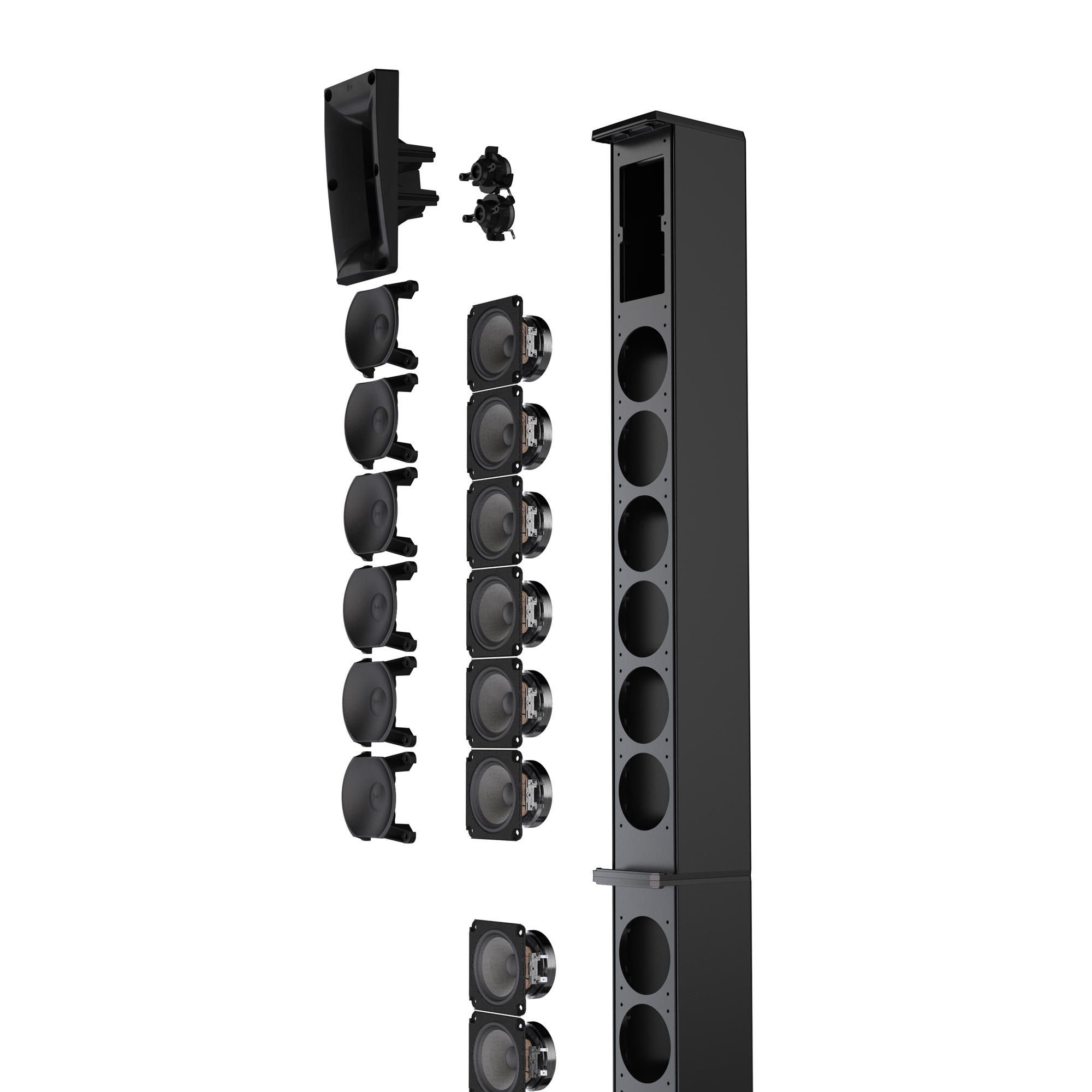

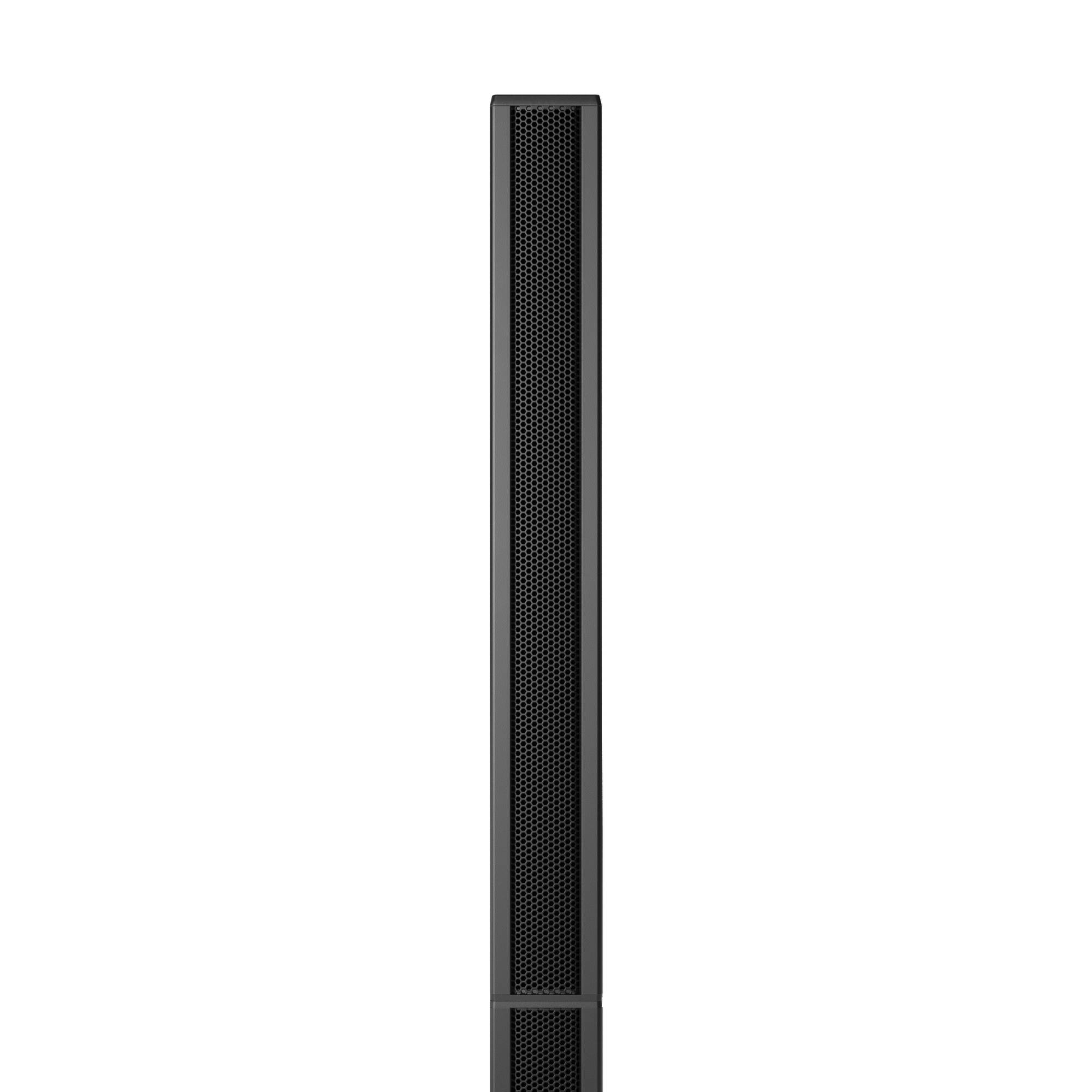

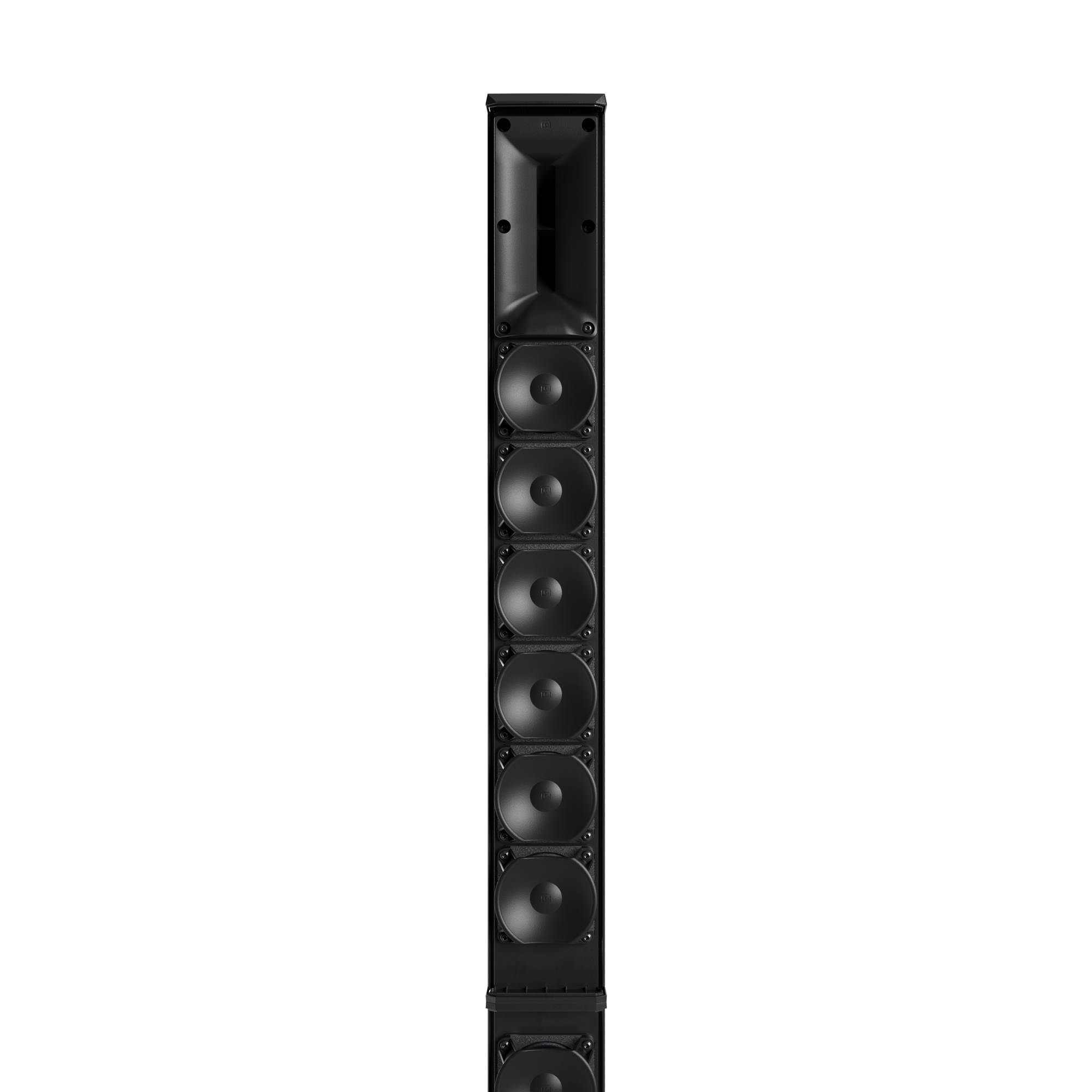

With its sleek and elegant design, the MAUI 28 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimised waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

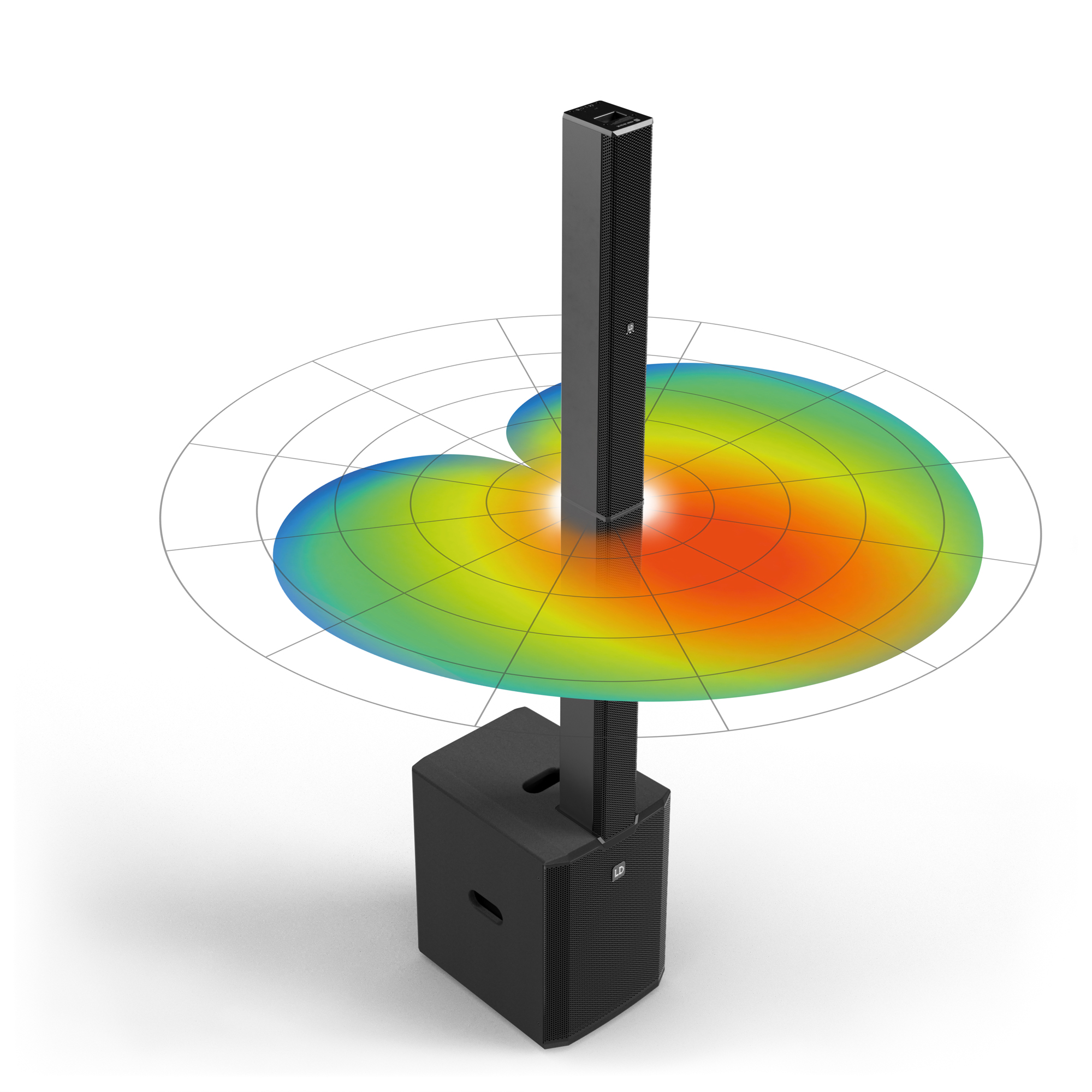

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The columns of the MAUI 28 G3 are designed as cardioid speakers. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound.

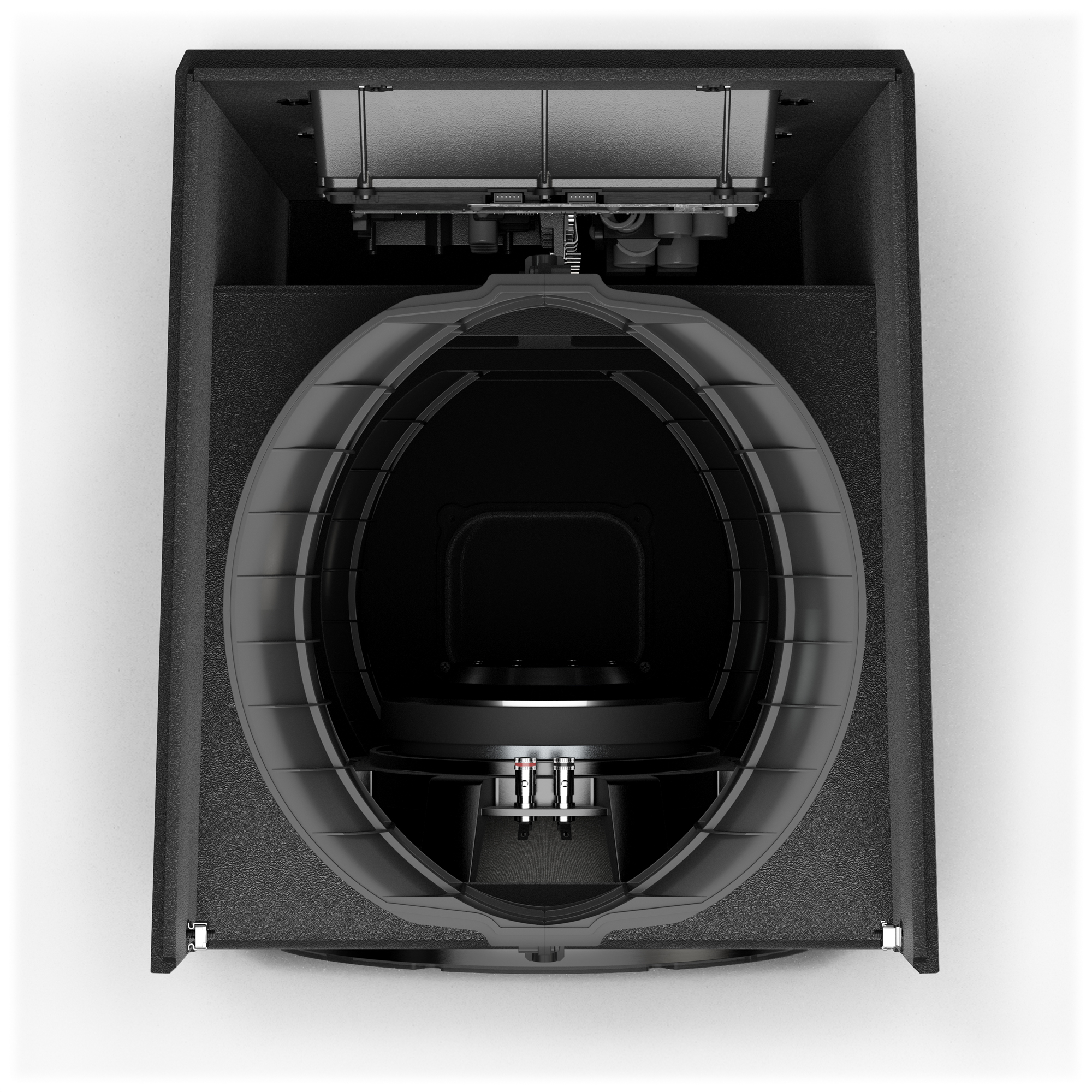

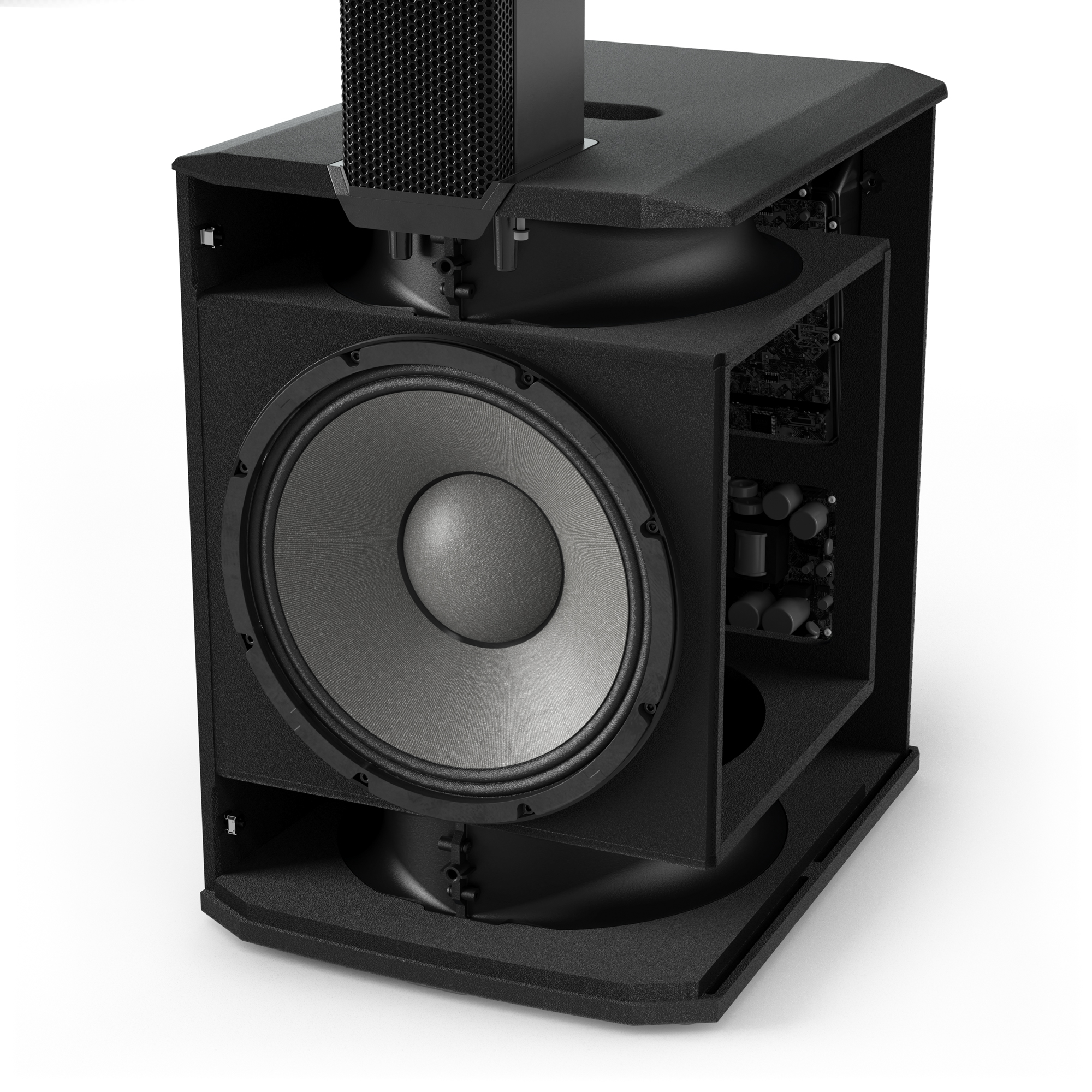

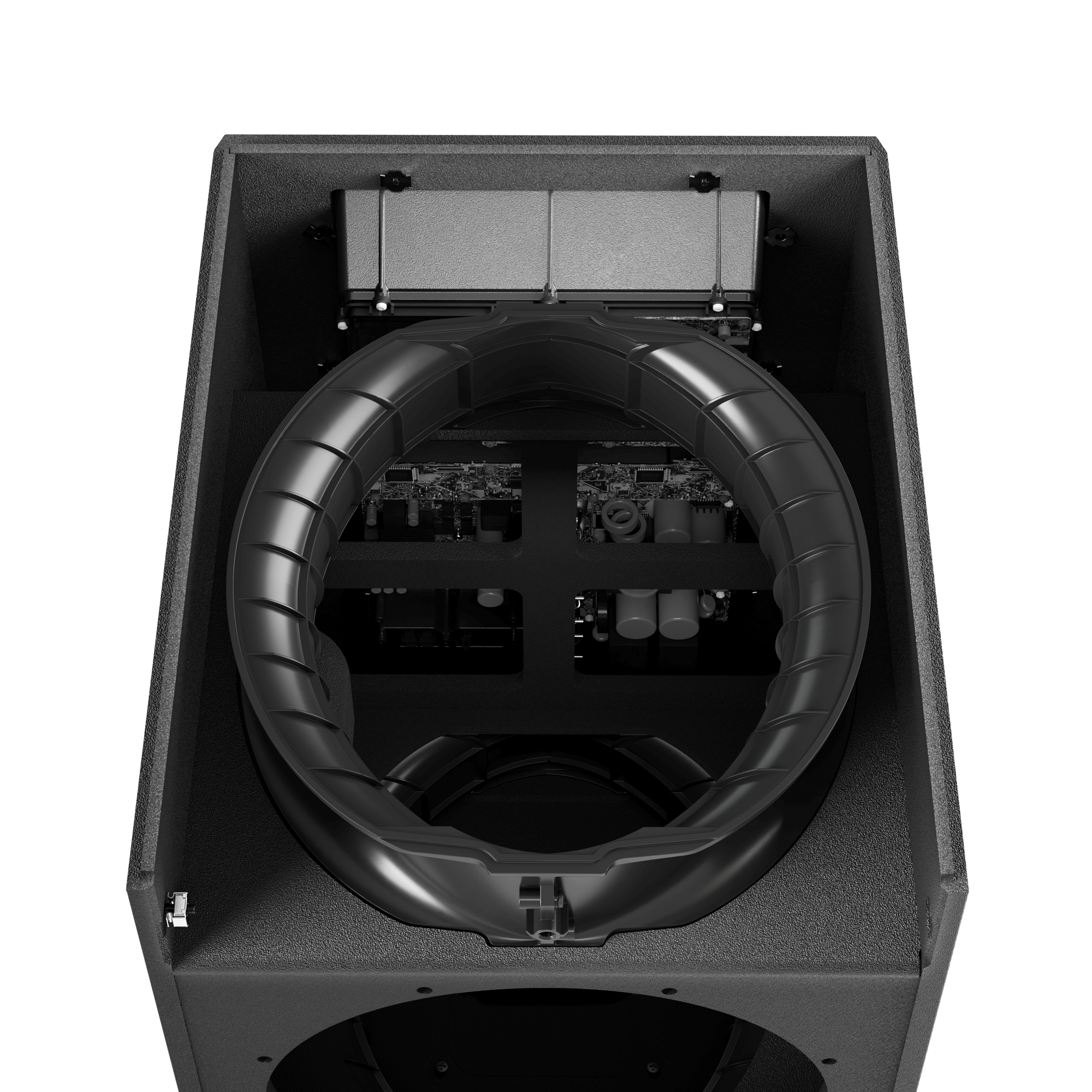

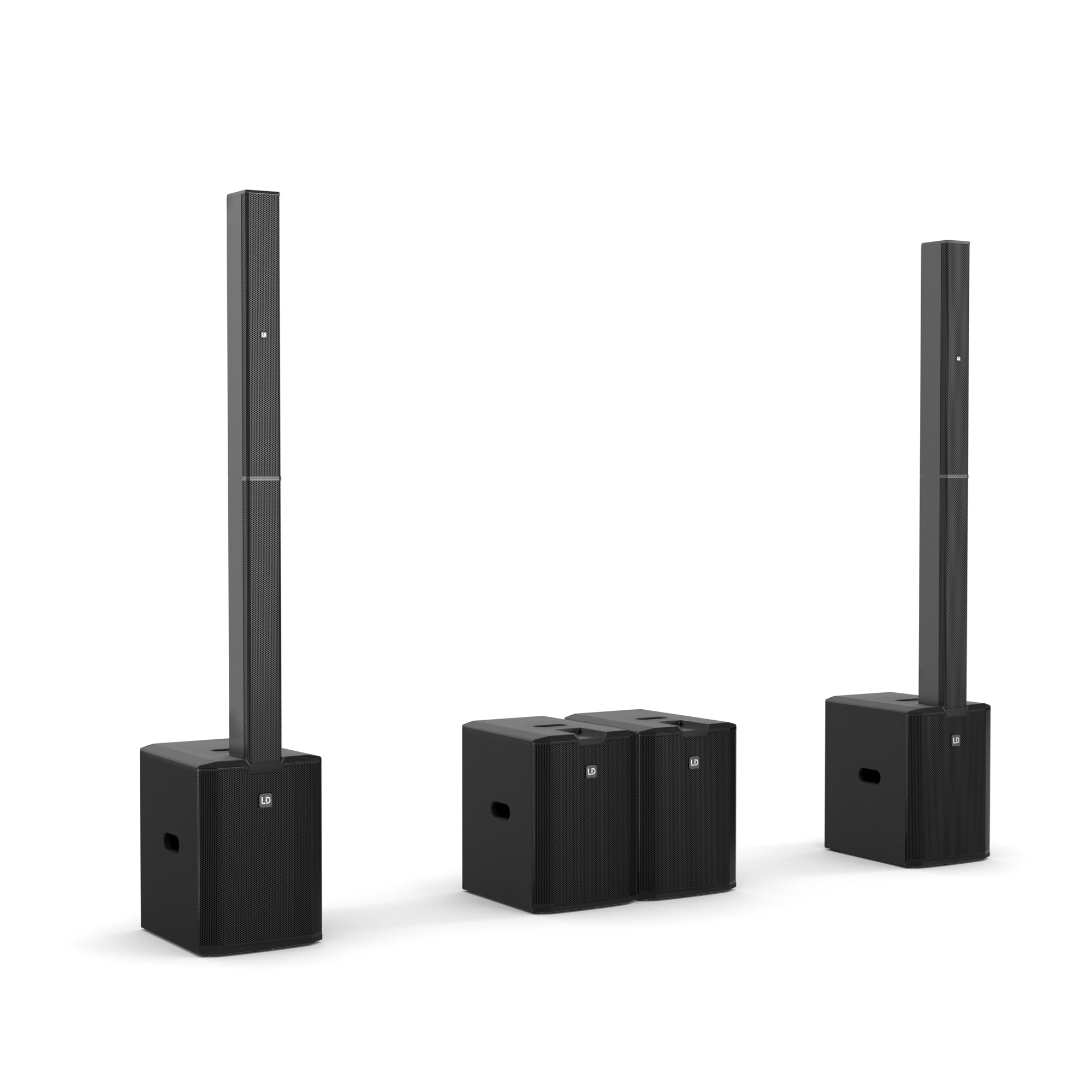

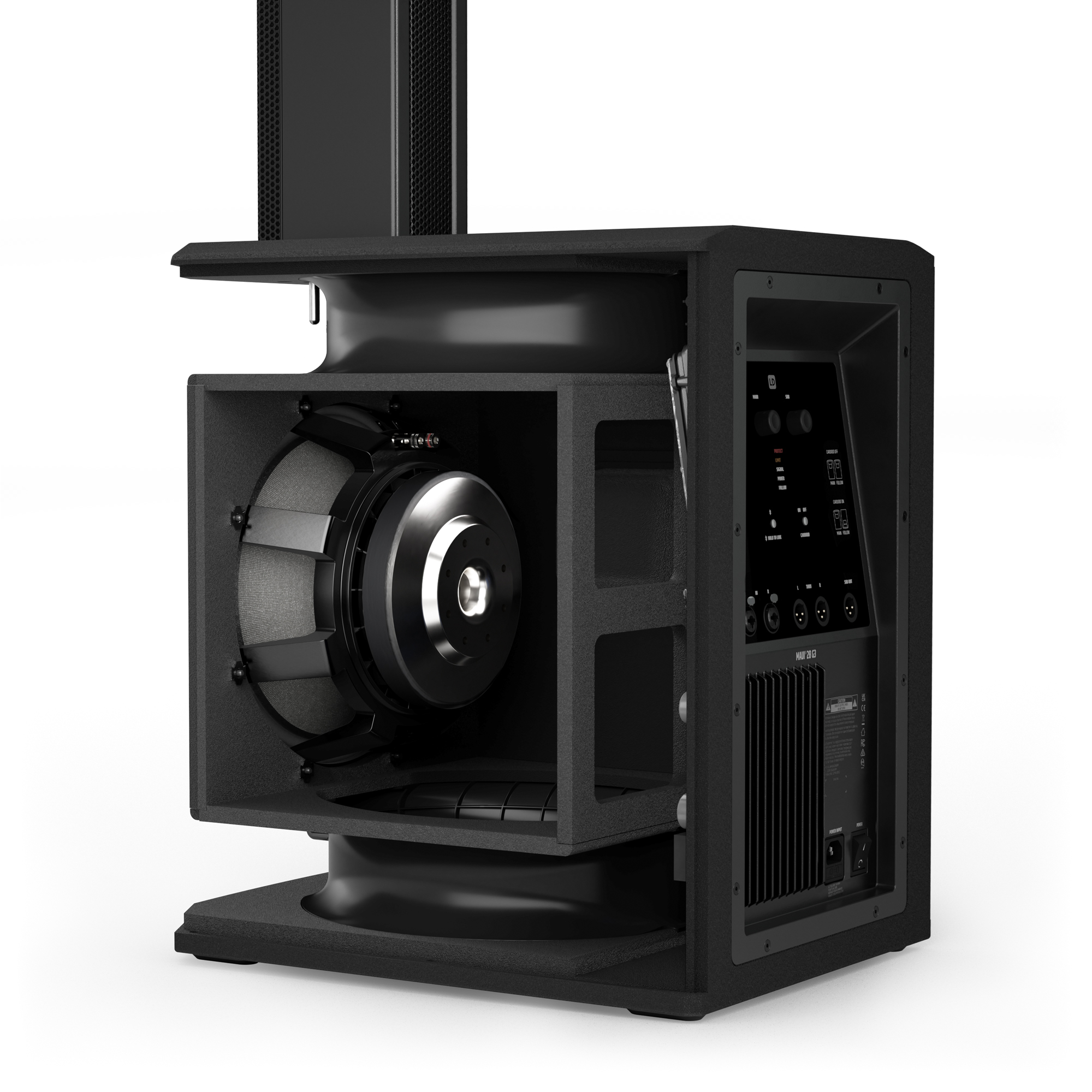

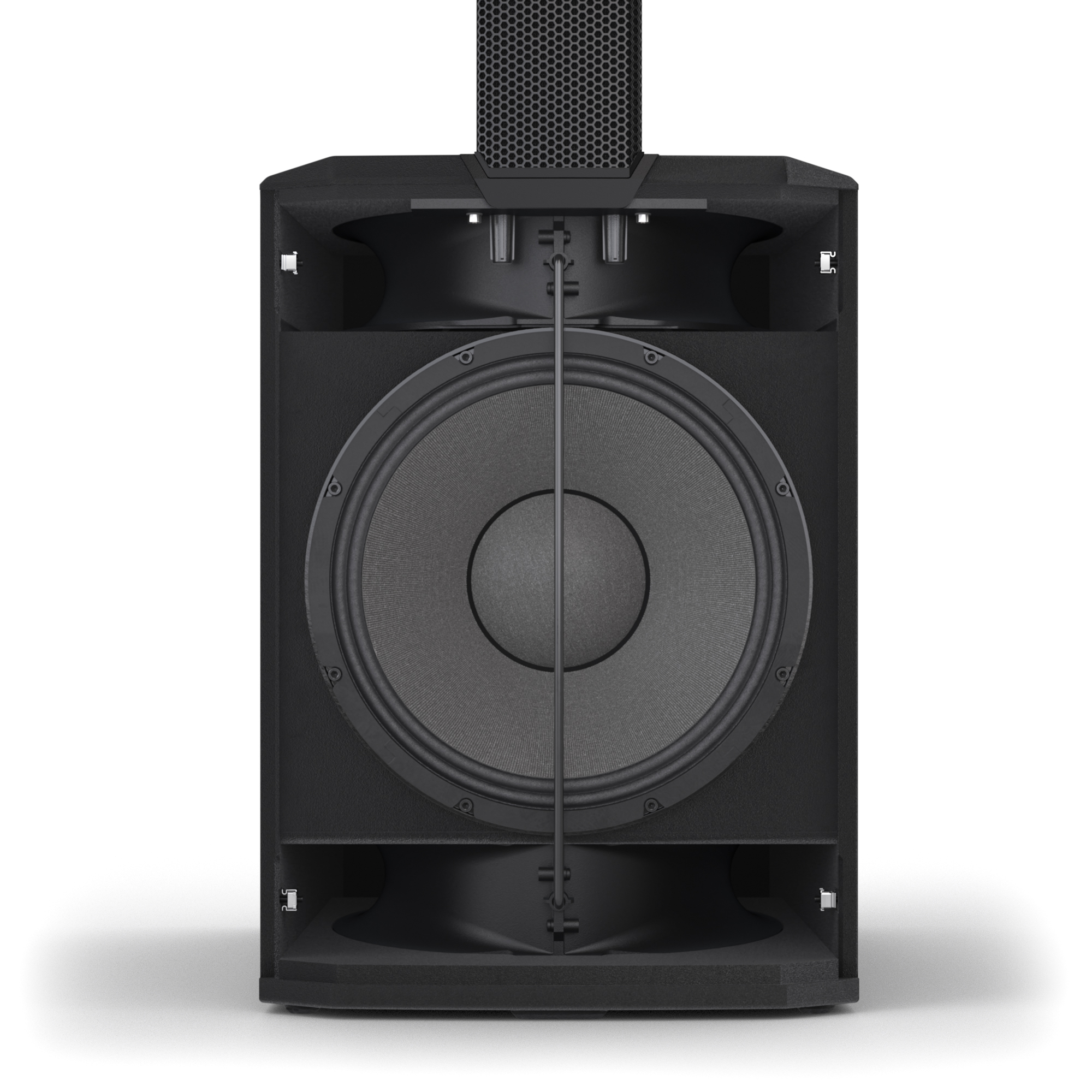

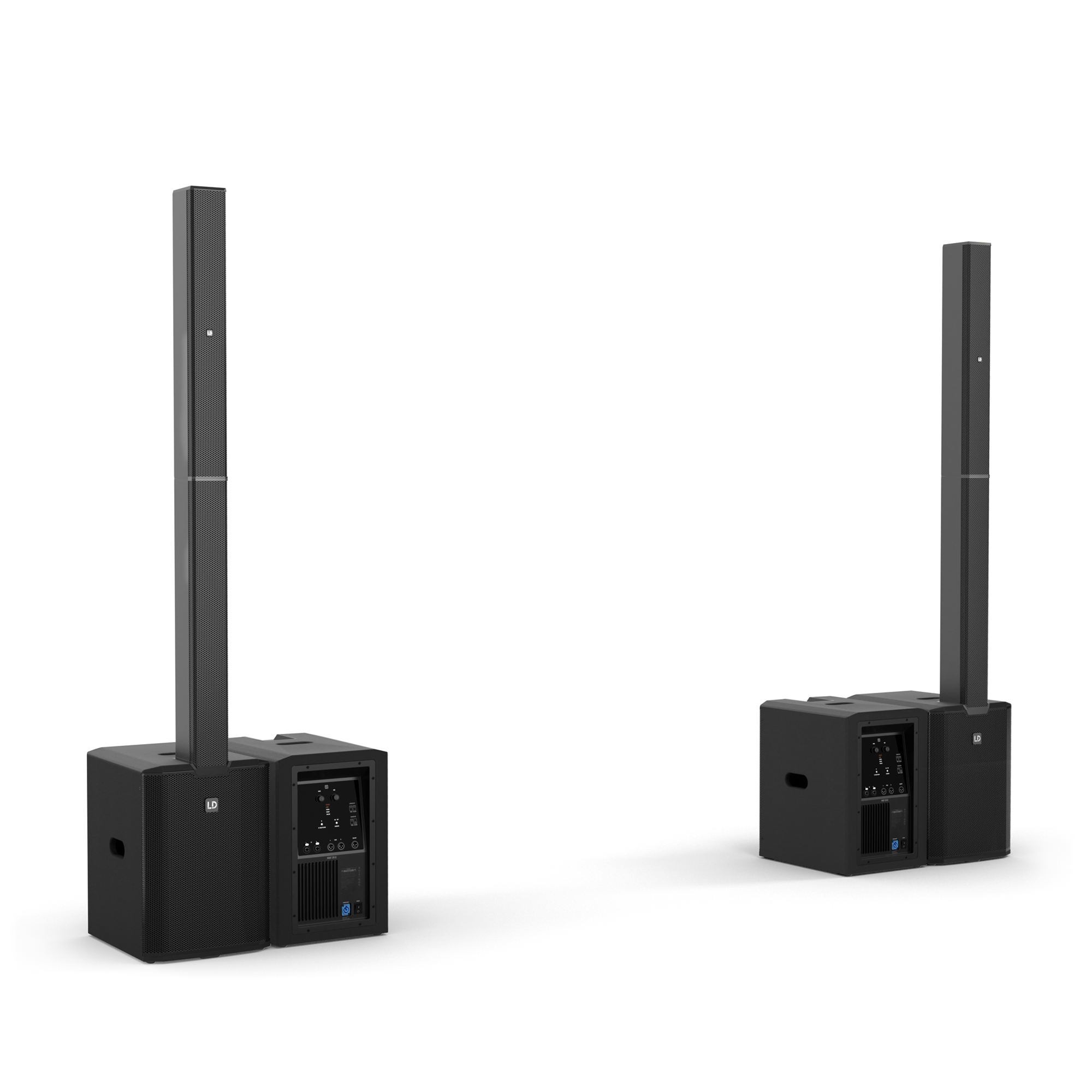

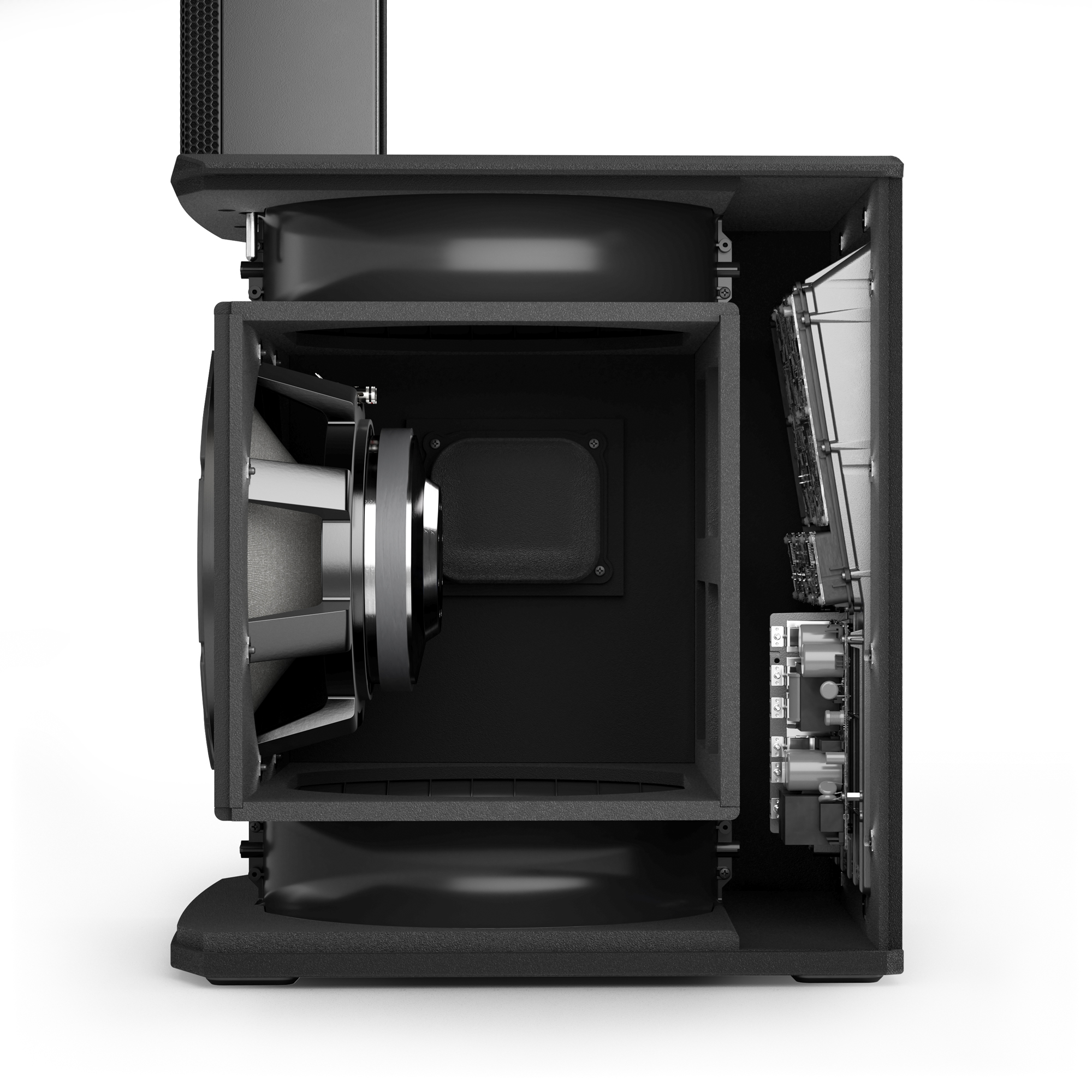

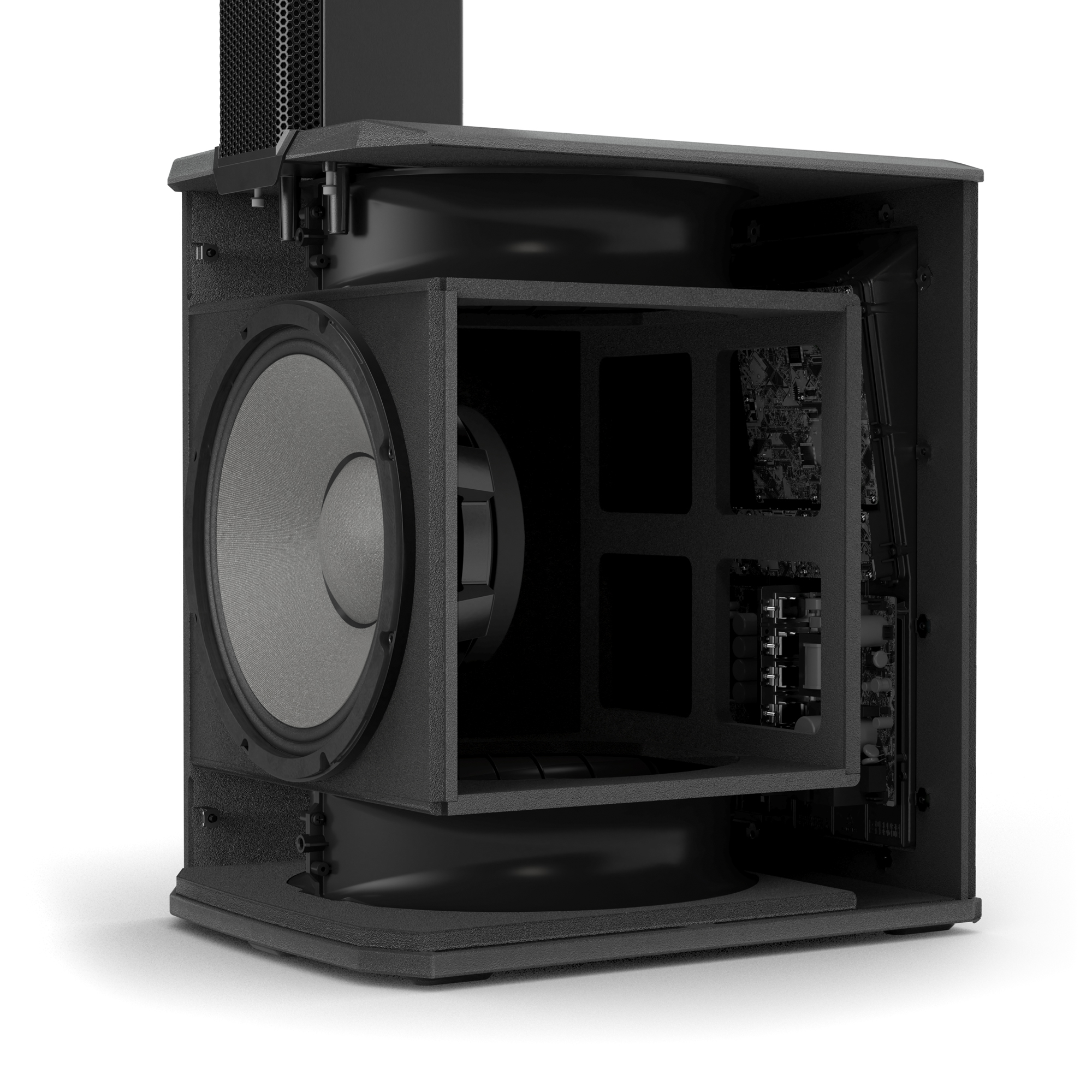

Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 subwoofer delivers a clear, tight and punchy low end down to 37 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

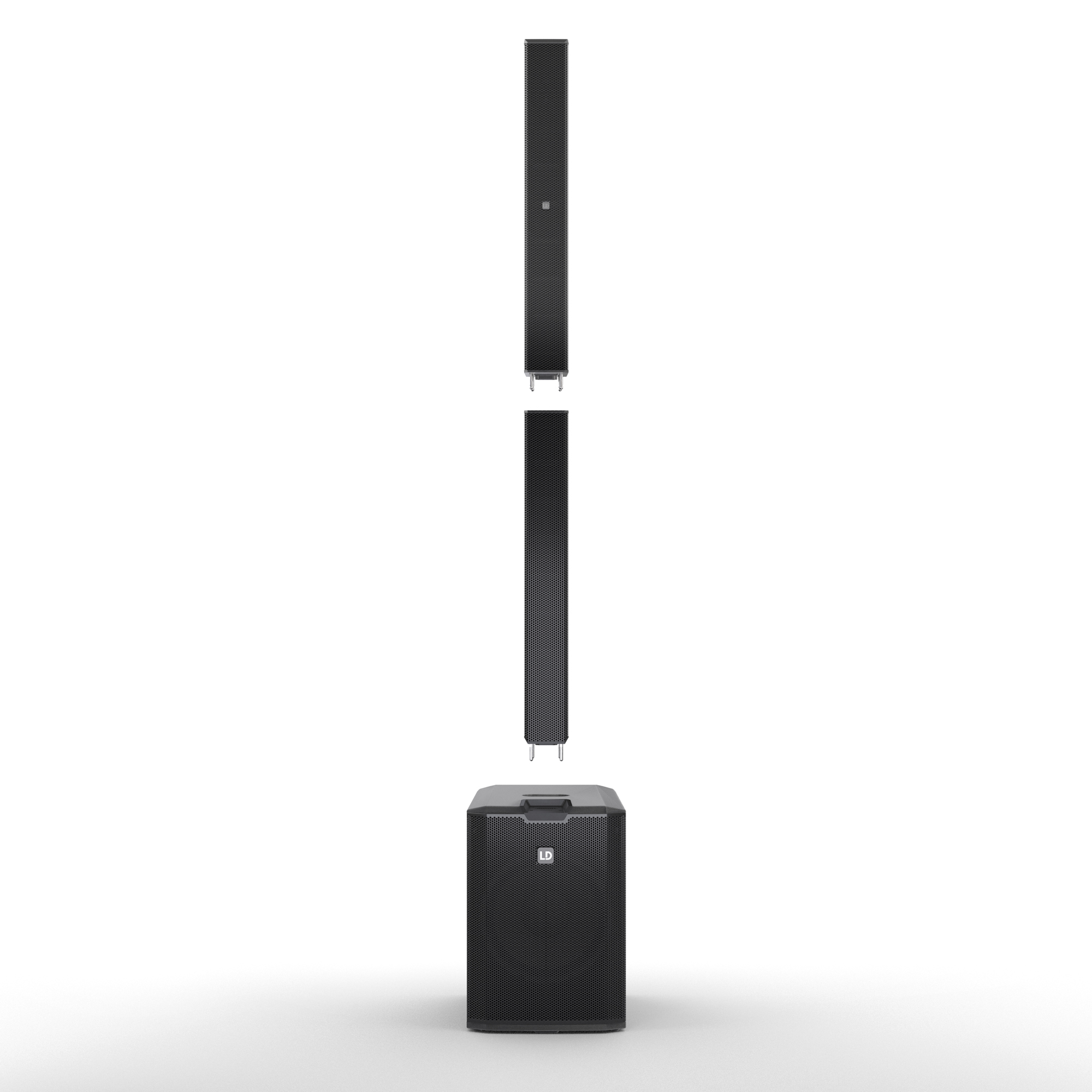

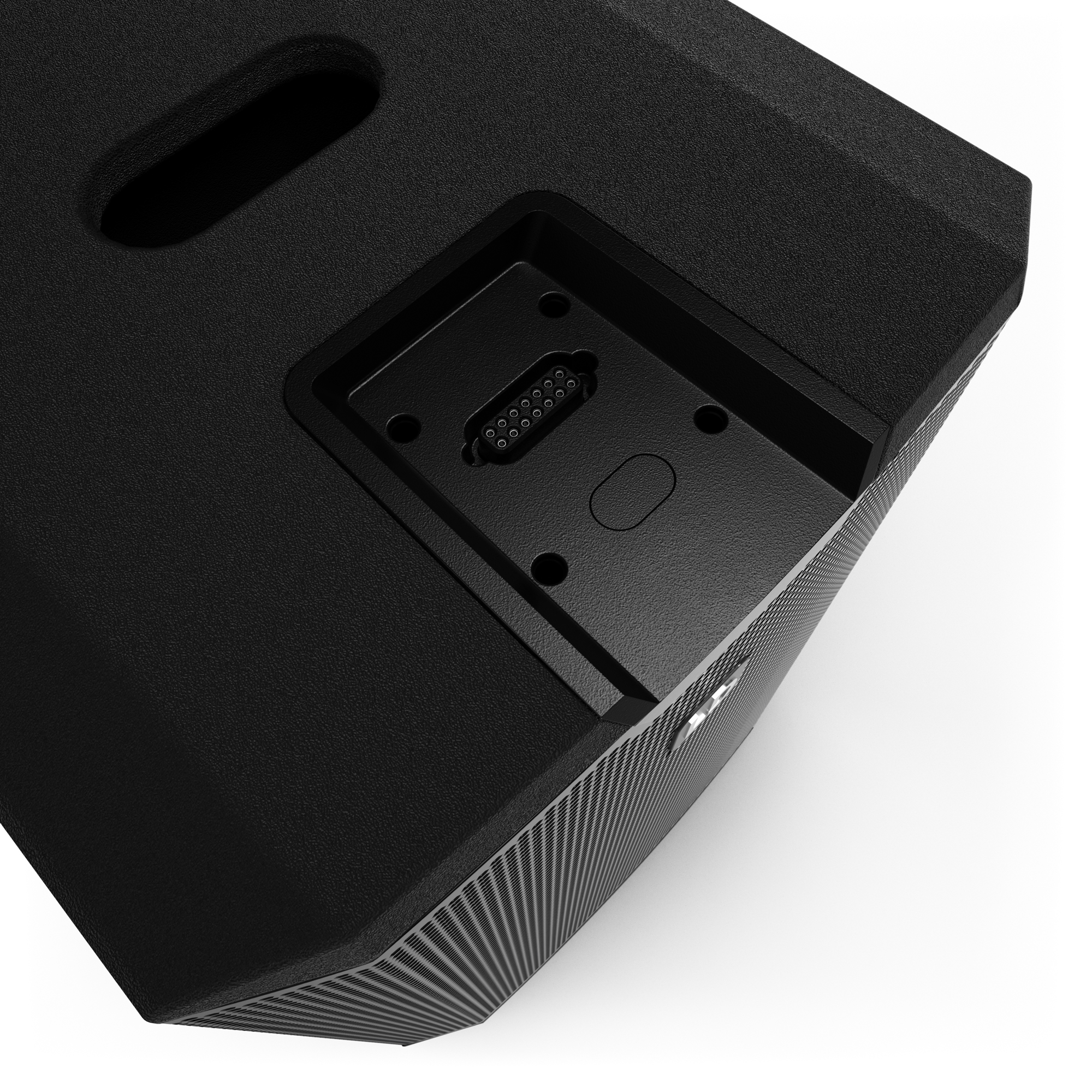

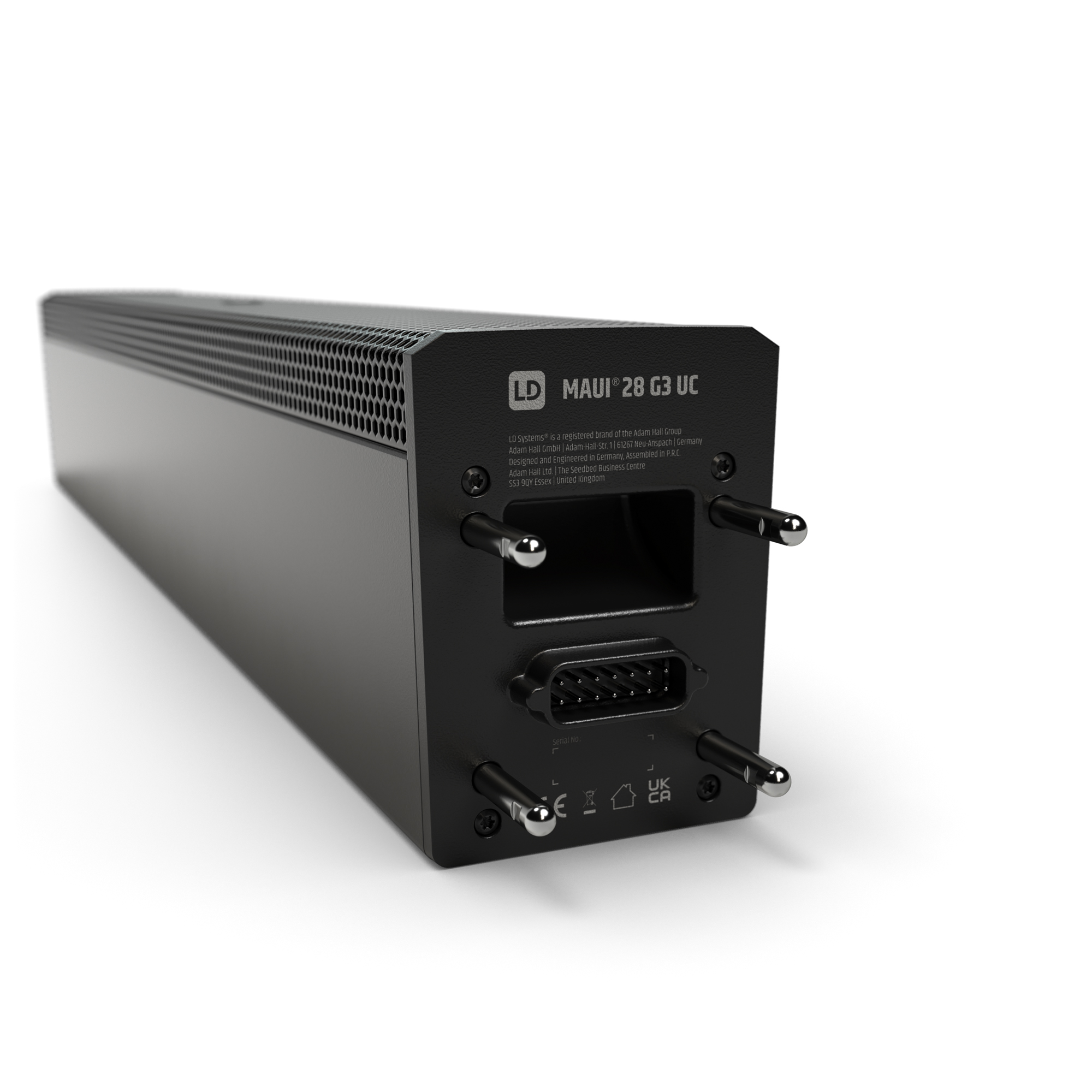

The MAUI 28 G3 is a real sound machine, yet also convinces with its sophisticated features in the day-to-day life of DJs, musicians and technicians. Thanks to Bluetooth 5.0, the column PA becomes even more versatile. Transport is as easy as usual, while the enhanced, hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...
| Type: | Active |
|---|---|
| Peak output power: | 2060 W |
| Frequency response (-10 dB, rel. Avg): | 37 - 20000 Hz |

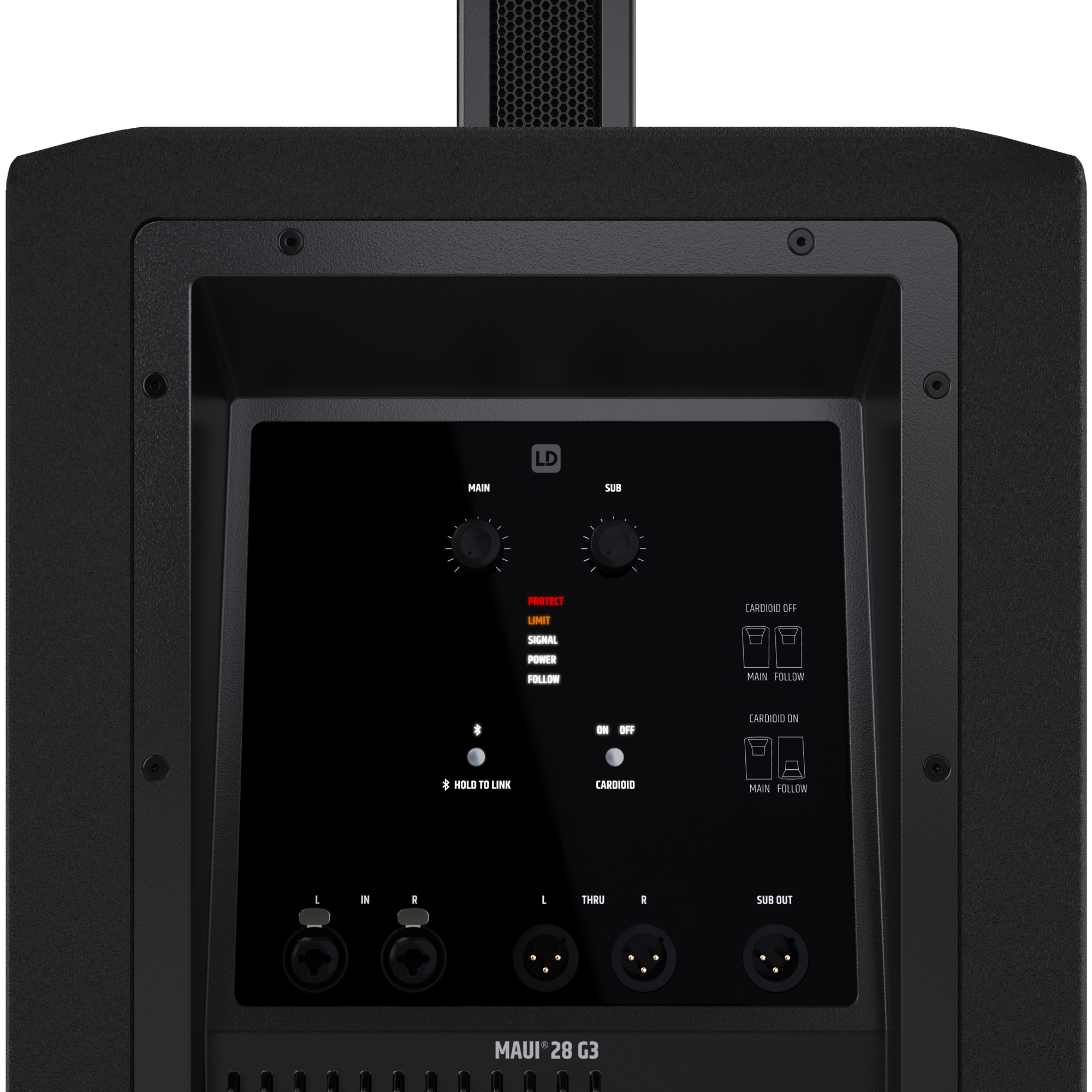

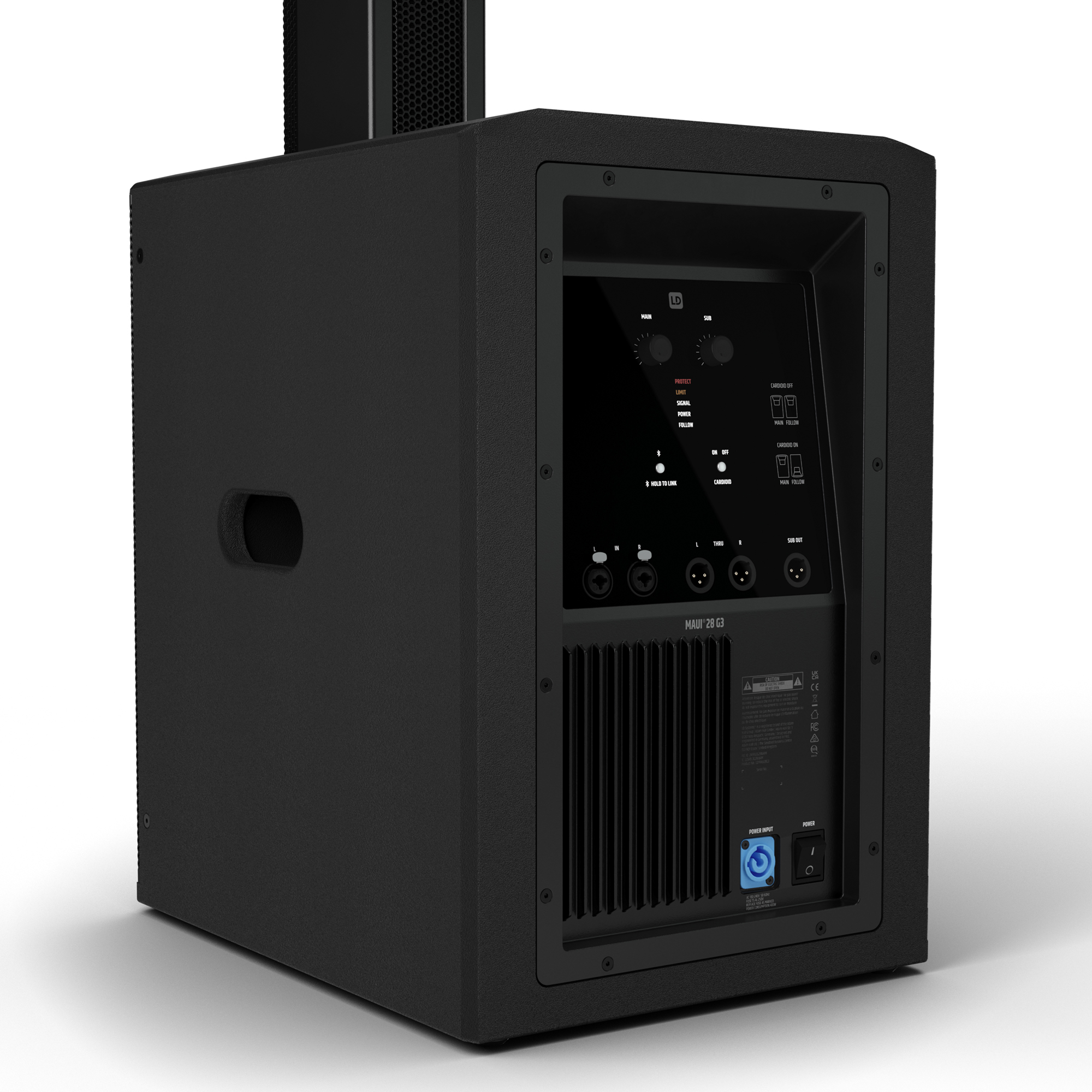

| Input connector types: | XLR combo socket |
| Amp class: | Class D |
| Output connector types: | XLR 3-pole male |
| Protection features: | Multiband Limiter, Overheating, Short circuit |
| RMS output power: | 1030 W |

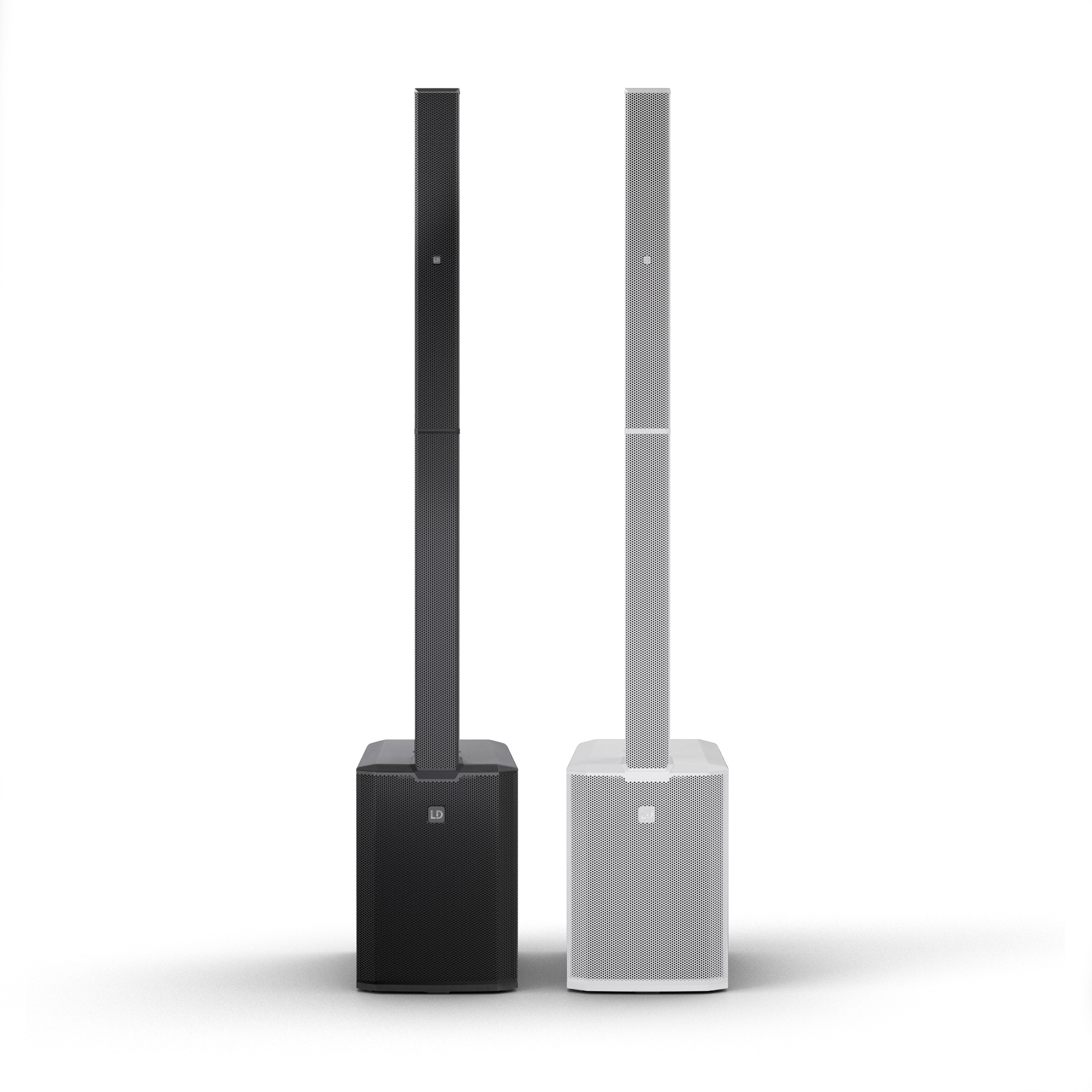

| Colour: | Black |
| Number of inputs: | 2 |
| Number of outputs: | 3 |
| Beam angle: | Hor.: 120° / Vert.:30° |
| Max. SPL peak: | 127 dB |
| Bluetooth® version: | Bluetooth® 5.0 |
|---|---|
| Supported audio codecs: | AAC, SBC |
| Line outputs connector type: | XLR 3-pole male |
|---|---|
| Number of speaker outputs: | 1 |
| Speaker output connection type: | XLR 3-pole male |
| Number of line outputs: | 2 |
| AD/DA converter bit depth: | 24 Bit |
|---|---|
| AD/DA converter sampling rate: | 48 kHz |
| Manufacturer: | Custom Made |
|---|---|
| Size: | 12 " |
| Magnet: | Ferrite |
| Voice coil: | 3 " |
| Quantity: | 12 |
|---|---|
| Magnet: | Ferrite |
| Manufacturer: | Custom Made |
| Voice coil: | 0.75 " |
| Size: | 3.5 " |
| Manufacturer: | Custom Made |
|---|---|
| Driver size: | 0.04 in |
| Voice coil: | 0.04 in |
| Magnet: | Neodymium |
| Quantity: | 2 |
| Rated power: | 400 W |
|---|---|
| Mains connectior model name: | powerCON® |
| Operation voltage: | 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz |
| Mains connector: | Mains socket indoor power in male & powerCON® |
| Power supply type: | Switched-mode power supply (SMPS) |
| Design: | Bass reflex |
|---|---|

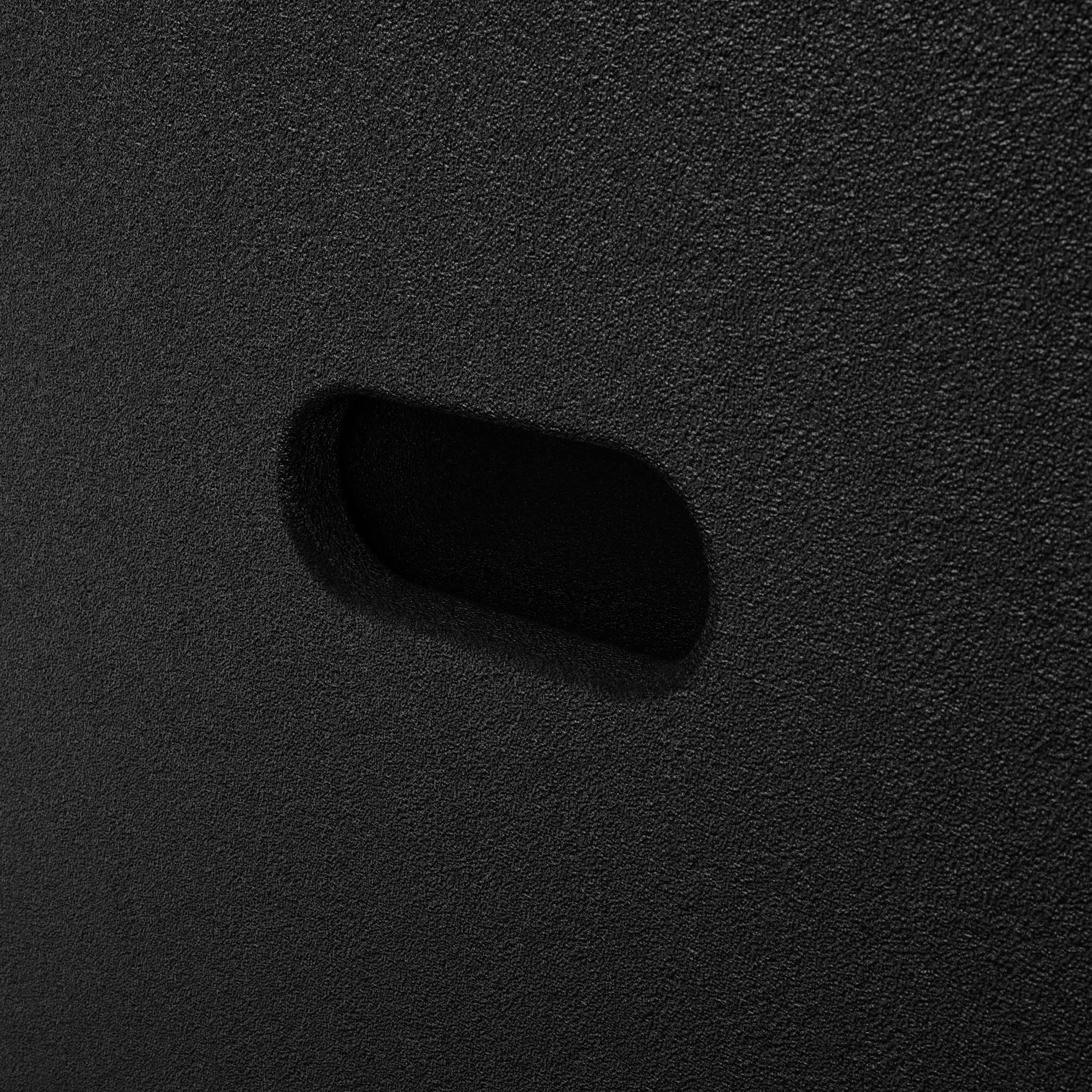

| Number of handles: | 4 |
| Front grille material: | Aluminium |
| Cabinet material: | Multiplex |
| Material thickness: | 0.59 in |
| Cooling system: | Convection cooling |
|---|
| Design: | Cardioid |
|---|---|
| Weight: | 27.78 lbs |
| Depth: | 5.31 in |
| Width: | 4.06 in |
| Height: | 60.63 in |
| Front grille material: | Aluminium |
| Chassis material: | Aluminium |
| Material thickness: | 0.59 in |
|---|---|
| Height: | 20.75 in |
| Design: | Bass reflex |
| Surface coating: | Polyurea |
| Weight: | 50.27 lbs |
| Depth: | 18.58 in |
| Width: | 14.57 in |
| Front grille material: | Aluminium |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Weight: | 78.04 lbs |
|---|---|
| Height: | 80.79 in |
| Width: | 14.57 in |
| Depth: | 18.58 in |
| Included accessories: | Mains cable |
|---|
Login
1 review
27 March 2026 15:05
Great clarity and wonderful bass!
Super sound! Clear, crisp and warm with good low end with just the one sub. I may order another sub for band usage but the 1 sub is very good! 5 stars!
accessories
The magnetic subwoofer protective cap is a practical accessory for your MAUI 44 G2, MAUI 11 G3, and MAUI 28 G3 column speakers. It has been specially designed to cover the subwoofer/column connection plate when you want to operate the subwoofer without the column, as a follower subwoofer. The cap is precision-engineered and easily attaches thanks to an integrated magnet. This protects the connection plate from dust and dirt while maintaining a tidy appearance.

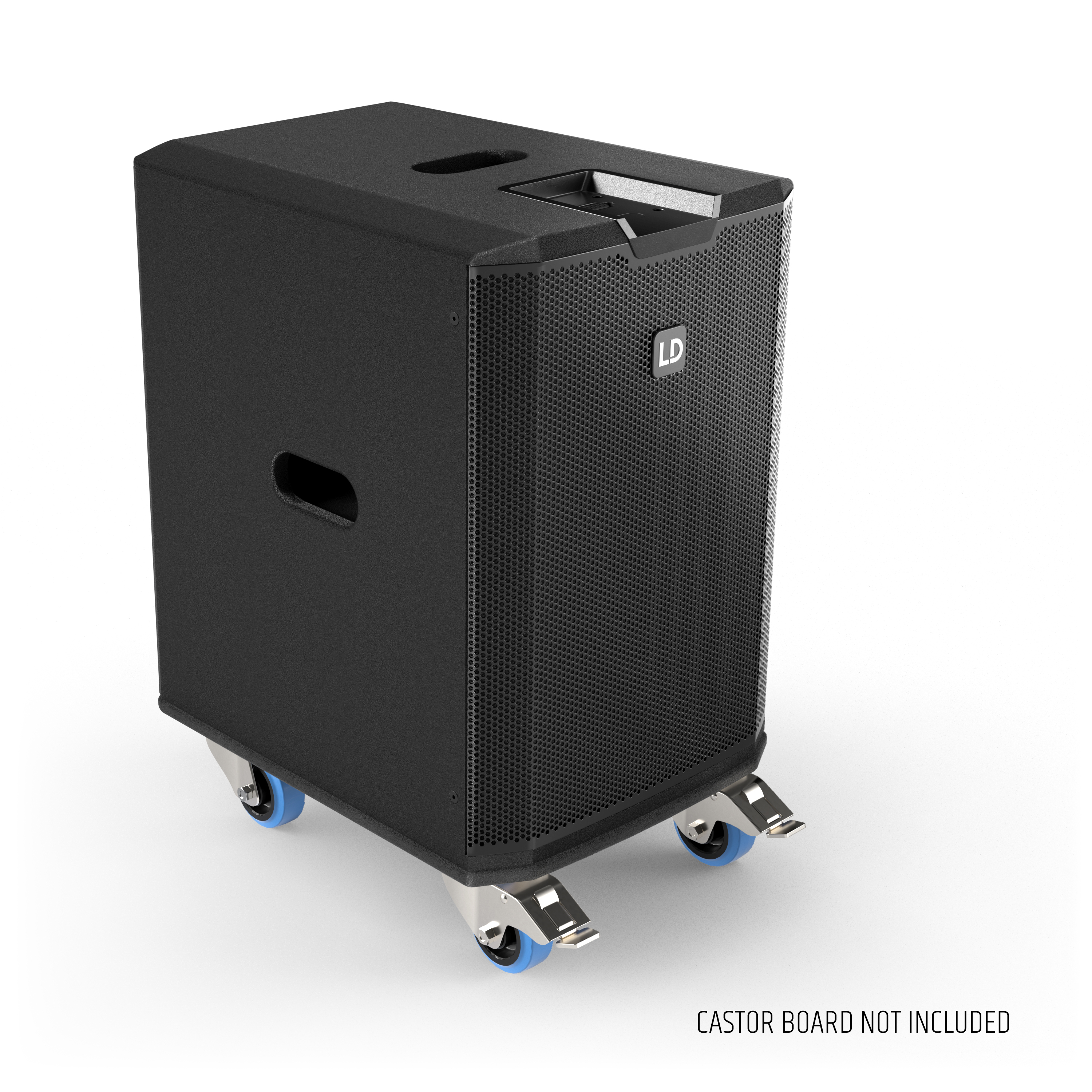

This castor board is made of 15 mm multiplex, which is extremely resistant and durable due to a polyurea coating. It is specially designed for the MAUI 28 G3 subwoofer. Four 80 mm heavy-duty swivel castors, two of which have locking brakes, make it easy to move the subwoofer.
The safest and easiest way to transport your MAUI® 28 G3 columns.This padded bag with smooth zip is made of durable and water-repellent nylon 1680D.Inside, an 8 mm thick padding between the columns protects against scratches. Additional protection is provided by the rubber feet on the bottom of the bag. Two included foam caps fit perfectly on the multipin contacts to protect them from damage and ensure a secure fit in the bag.The bag has two handles that can be connected by a velcro fastener with padding to form a carrying handle. The adjustable shoulder strap with shoulder pad, is ideal for carrying the columns and having your hands free for other equipment.

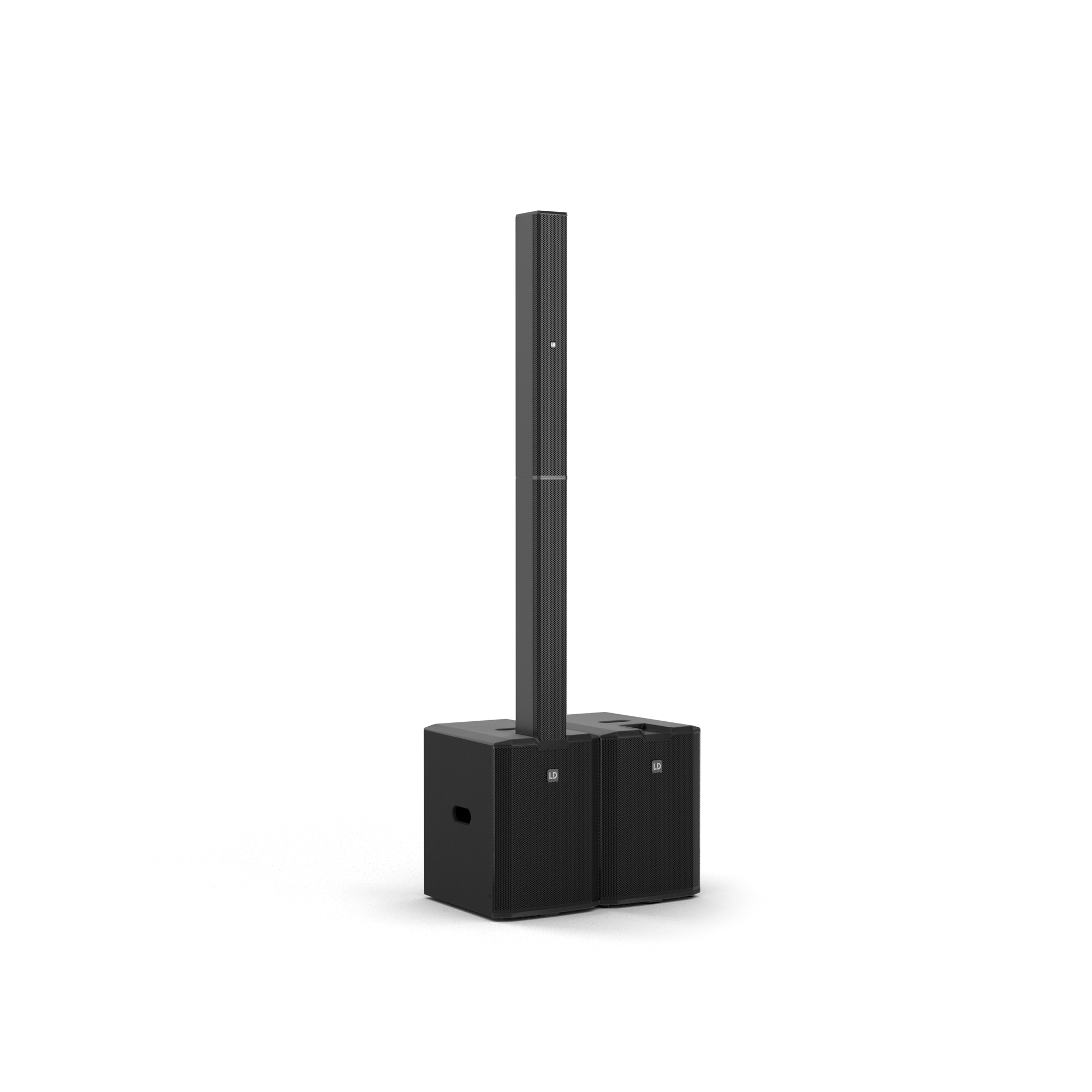

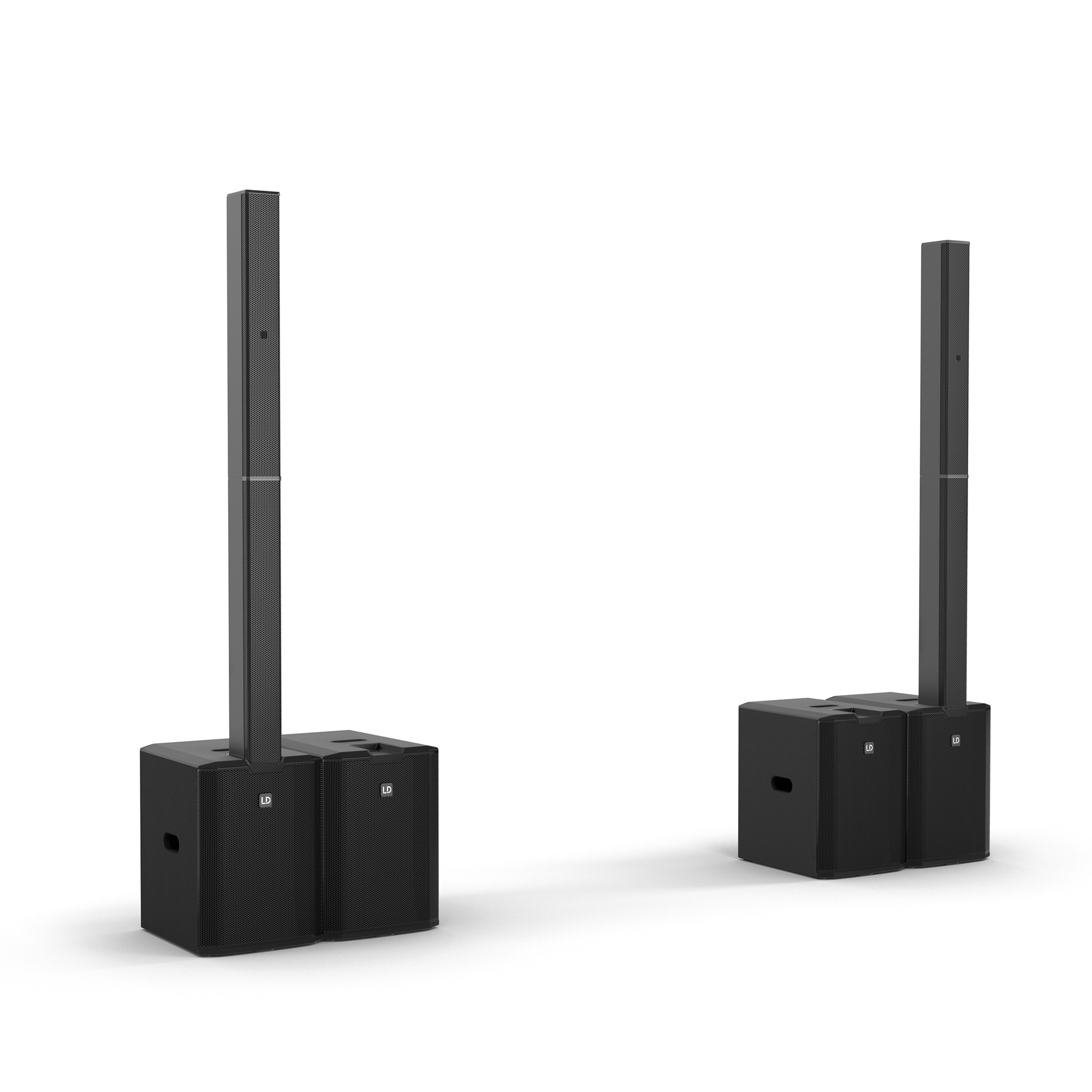

Crisper and more powerful bass with additional LD MAUI 28 G3 SUB subwoofer.With the MAUI 28 G3 SUB subwoofer, you extend the cardioid characteristics of our professional column speaker series right into the bass range.What does this mean?Simply position the SUB next to your MAUI® 28 G3 facing the rear direction, switch on the Cardioid preset and you will have a quieter and controlled Low-End on the back while still keeping the punch on the front. Low-End frequencies on the back of the system will be dampened by -15 dB. For extra Bass, keep the SUB in the same direction as your MAUI® 28 G3 and switch off the Cardioid preset.Setting up the SUB with your MAUI® 28 G3 is straight forward and fast. Thanks to its automatic set-up detection system the SUB immediately switches to FOLLOWER mode as long as no column is attached.Also recommendable is the protection cover and castor board to make transportation easy and keep the SUB as long as possible free of any touring-damage.The MAUI® 28 G3 SUB Wfeatures the same design construction as the MAUI® 28 G3 W subwoofer and will be the perfect addition to get your Low-End in control.
With the padded protective cover made of durable and water-repellent 1680D nylon, the MAUI 28 G3 subwoofer is optimally protected from the weather and other influences. The 8 mm thick lined protective cover can be easily slipped over the standing subwoofer and, together with the optional MAUI 28 G3 CB castor board, offers comprehensive protection from all sides. The reinforced cut-outs including Velcro flap on the sides and top allow the subwoofer to be gripped and transported even with protection.For stowing accessories such as mains and XLR cables, the protective cover has an external pocket.
The magnetic subwoofer protective cap is a practical accessory for your MAUI 44 G2 W, MAUI 11 G3 W, and MAUI 28 G3 W column speakers. It has been specially designed to cover the subwoofer/column connection plate when you want to operate the subwoofer without the column, as a follower subwoofer. The cap is precision-engineered and easily attaches thanks to an integrated magnet. This protects the connection plate from dust and dirt while maintaining a tidy appearance.
