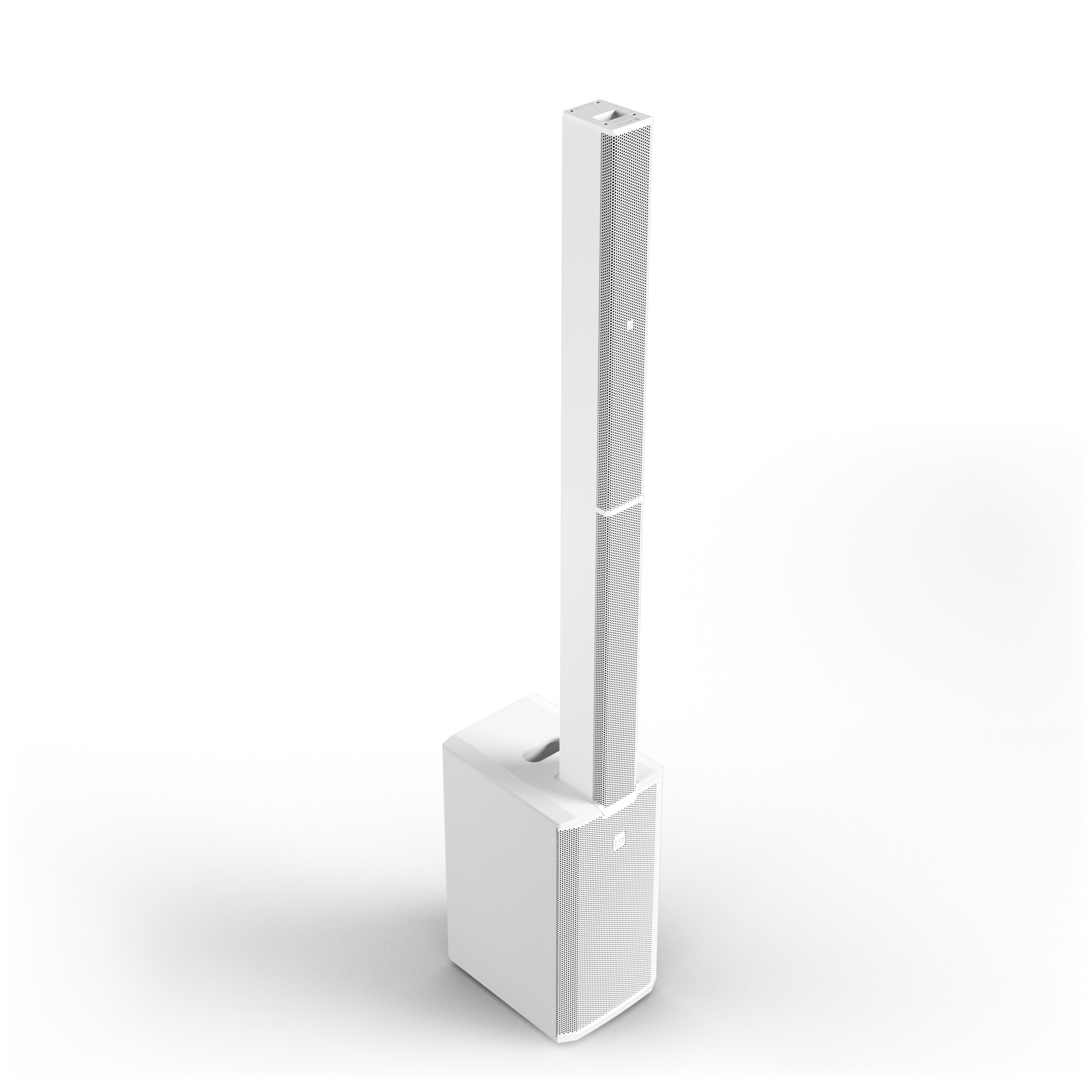

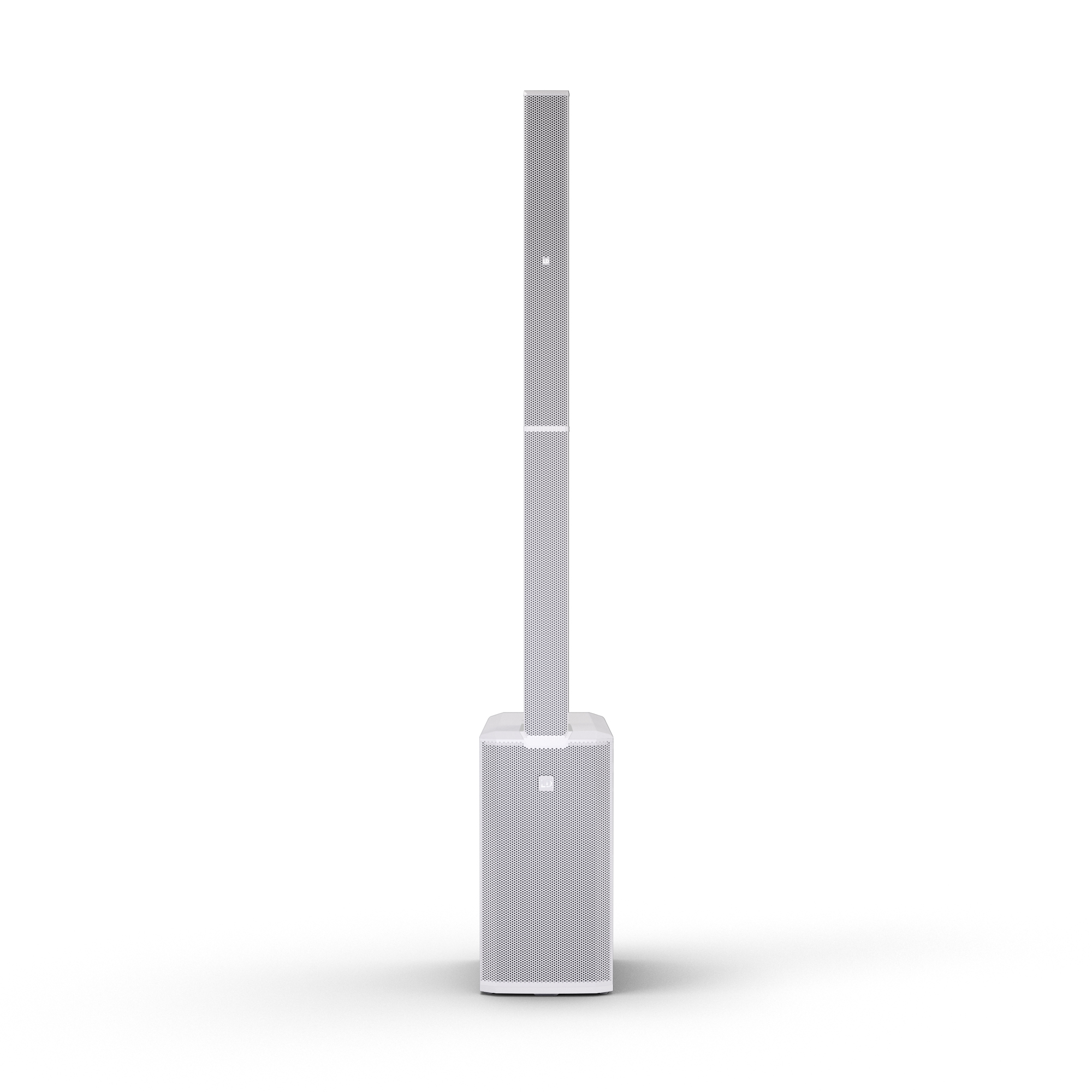

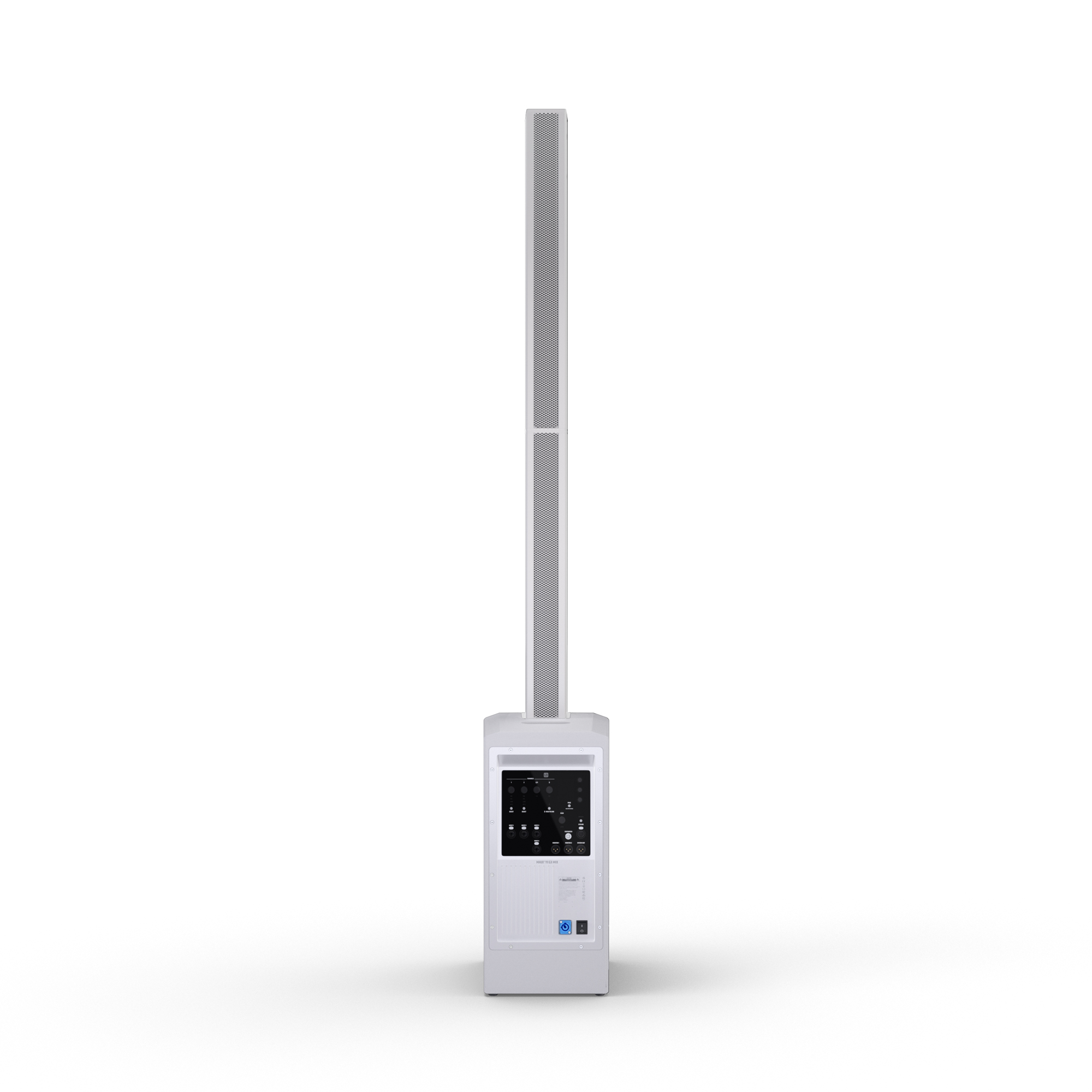

MAUI® 11 G3 MIX W
Portable cardioid column PA system with digital mixer, white
$1,859.99
Backordered – More on the Way!
Product information "MAUI® 11 G3 MIX W"
Compact, powerful and easy to use – a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI Series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you’re all set!

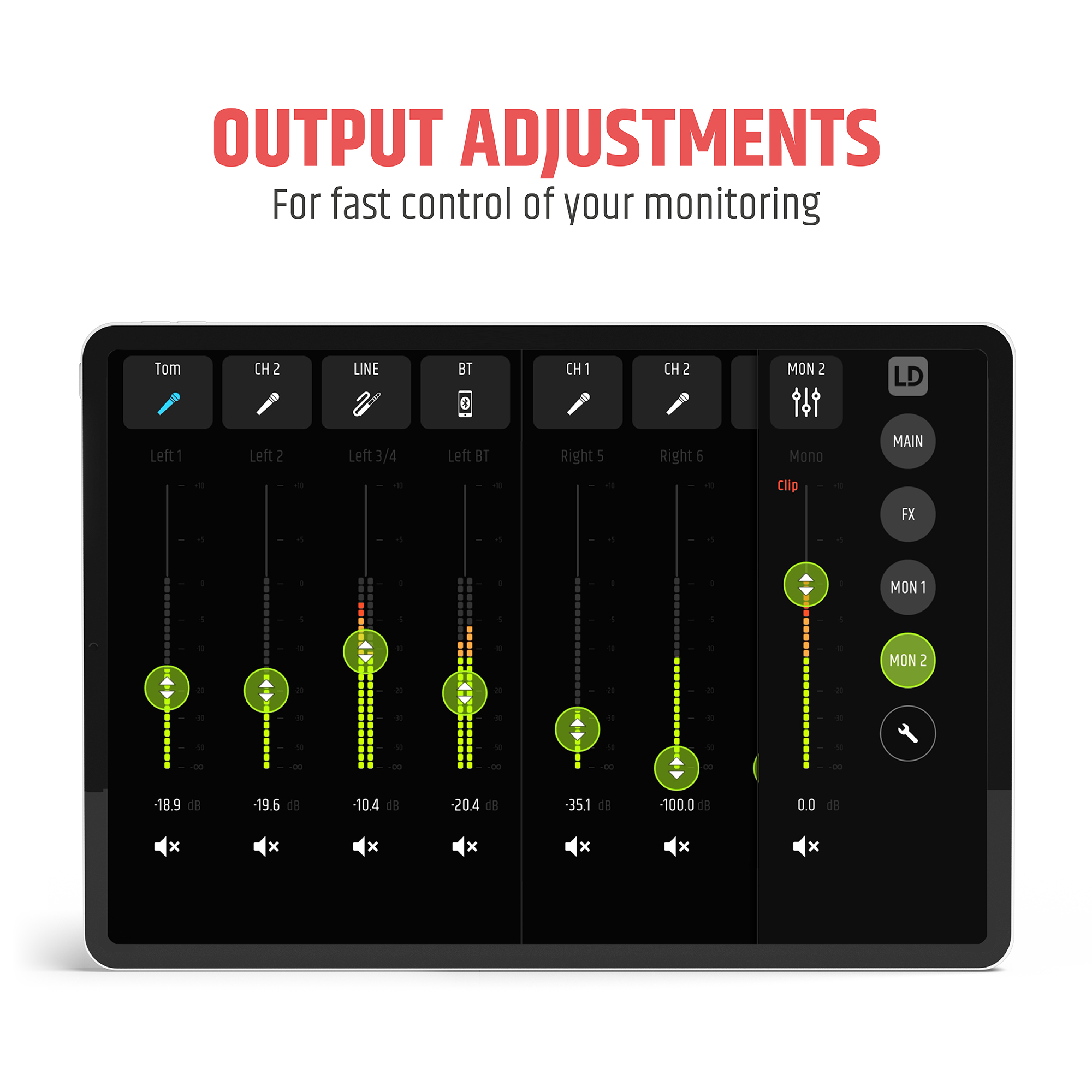

This applies in particular to the MAUI G3 MIX versions, which feature integrated digital 6-channel mixers. All components are integrated and perfectly matched: mixer, effects, dynamics processing, DSP controller, power amplifiers, and speakers. Wireless remote control via a free MAUI app (available on iOS or Android smartphones and tablets) is also included.
The MAUI 11 G3 MIX delivers a huge, powerful, and precise sound with 730 W RMS power (1,460 Wpeak). It is suitable for various applications, for example as a main PA for singer-songwriters and small bands, a sound system for mobile DJs and formations, or a public address system at weddings, corporate events, and more.

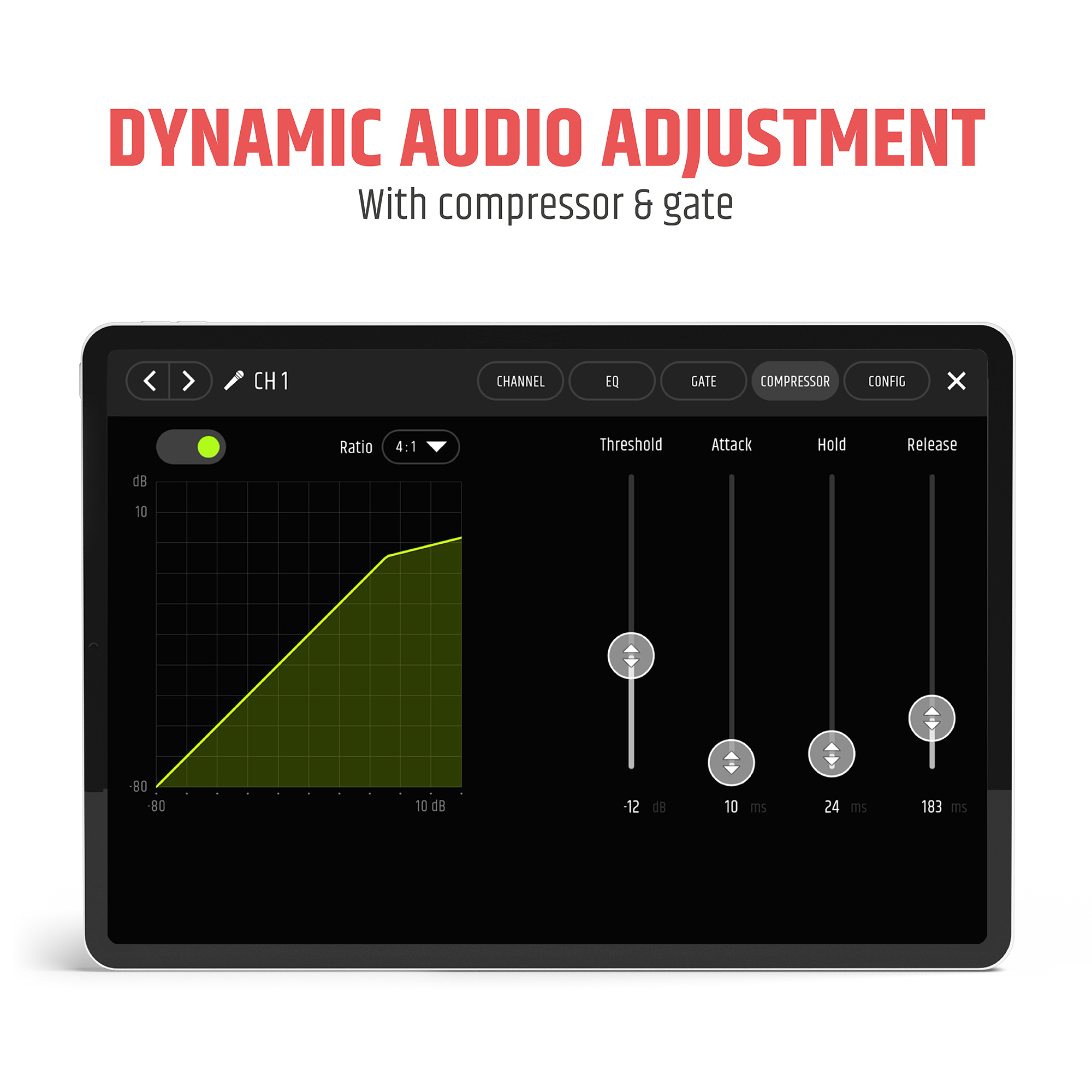

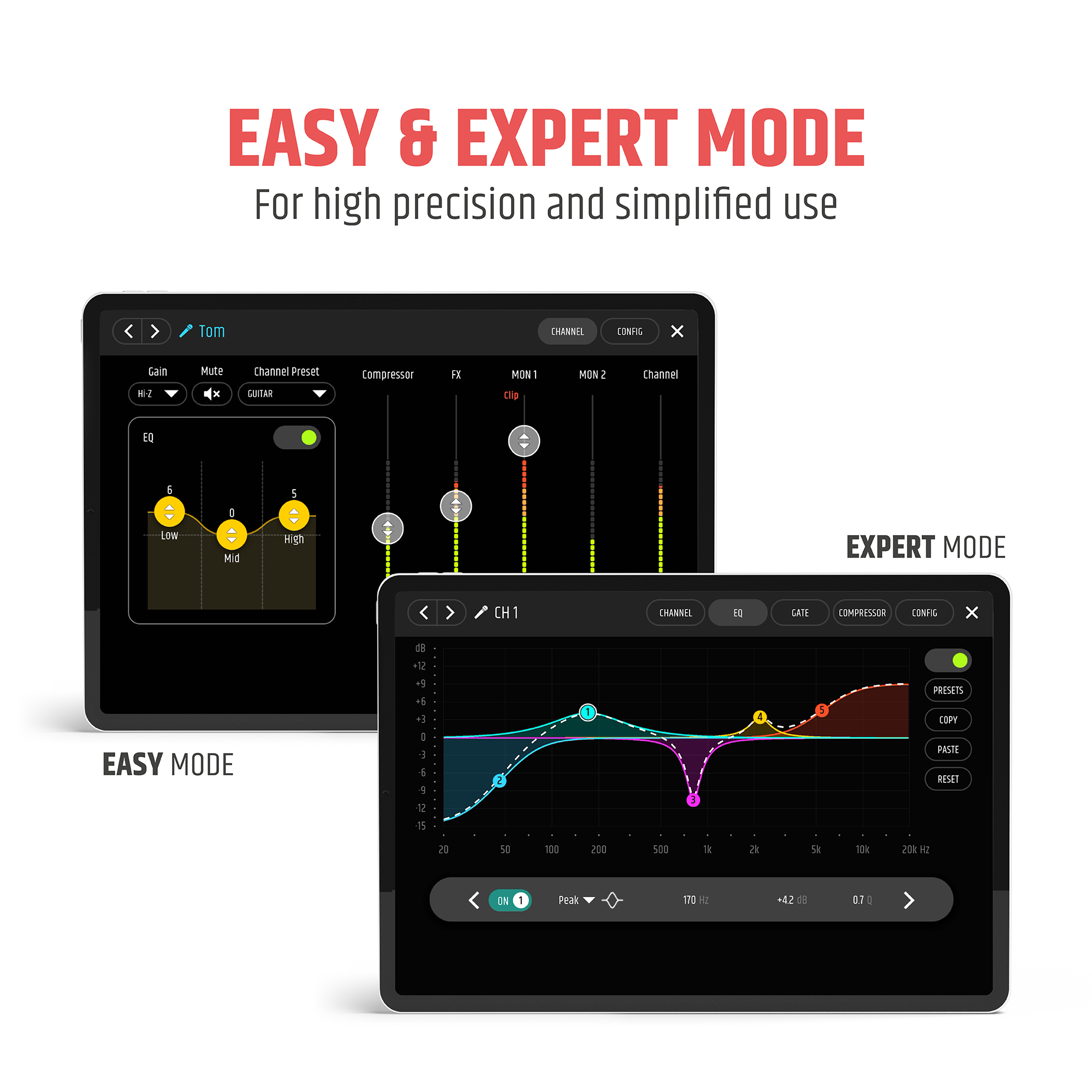

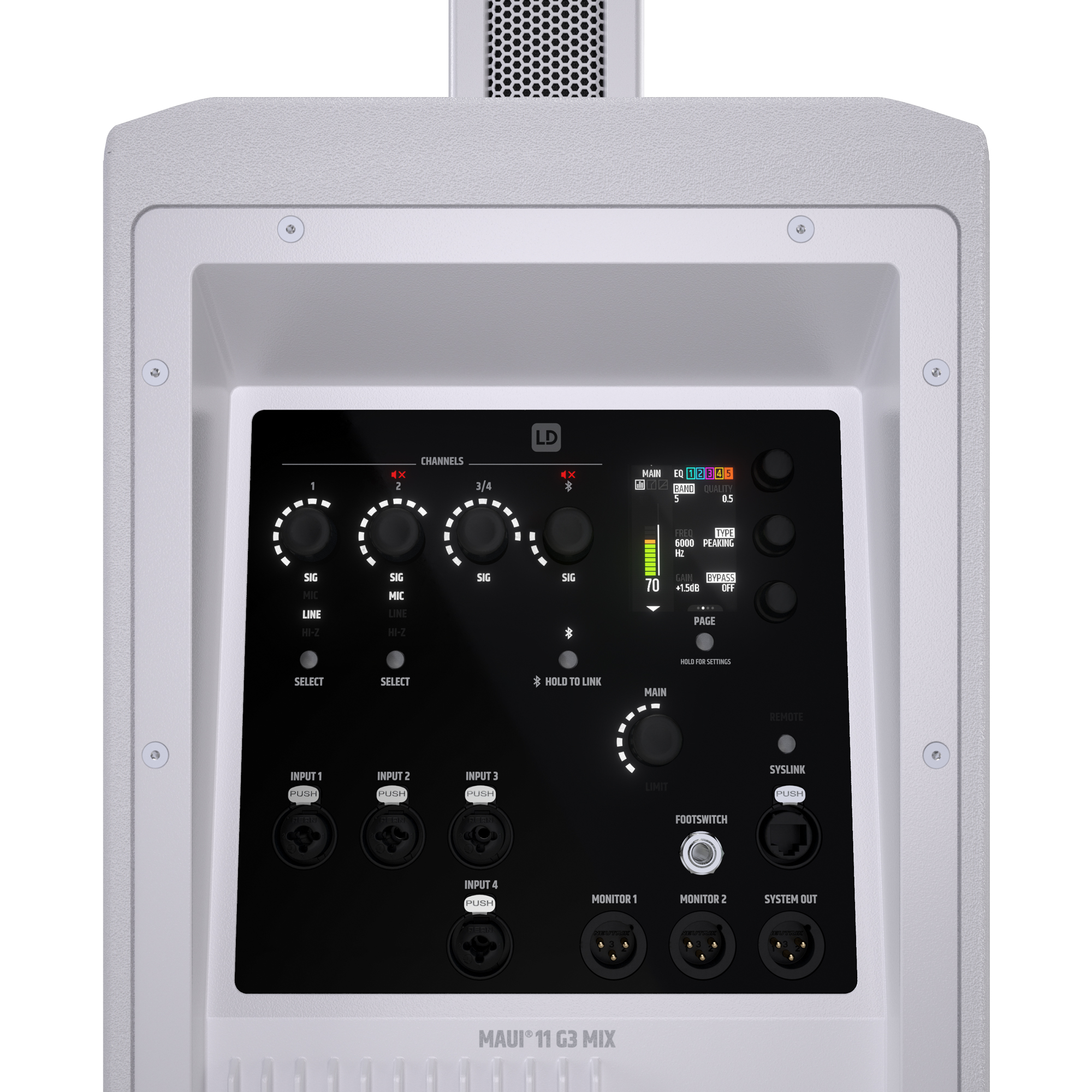

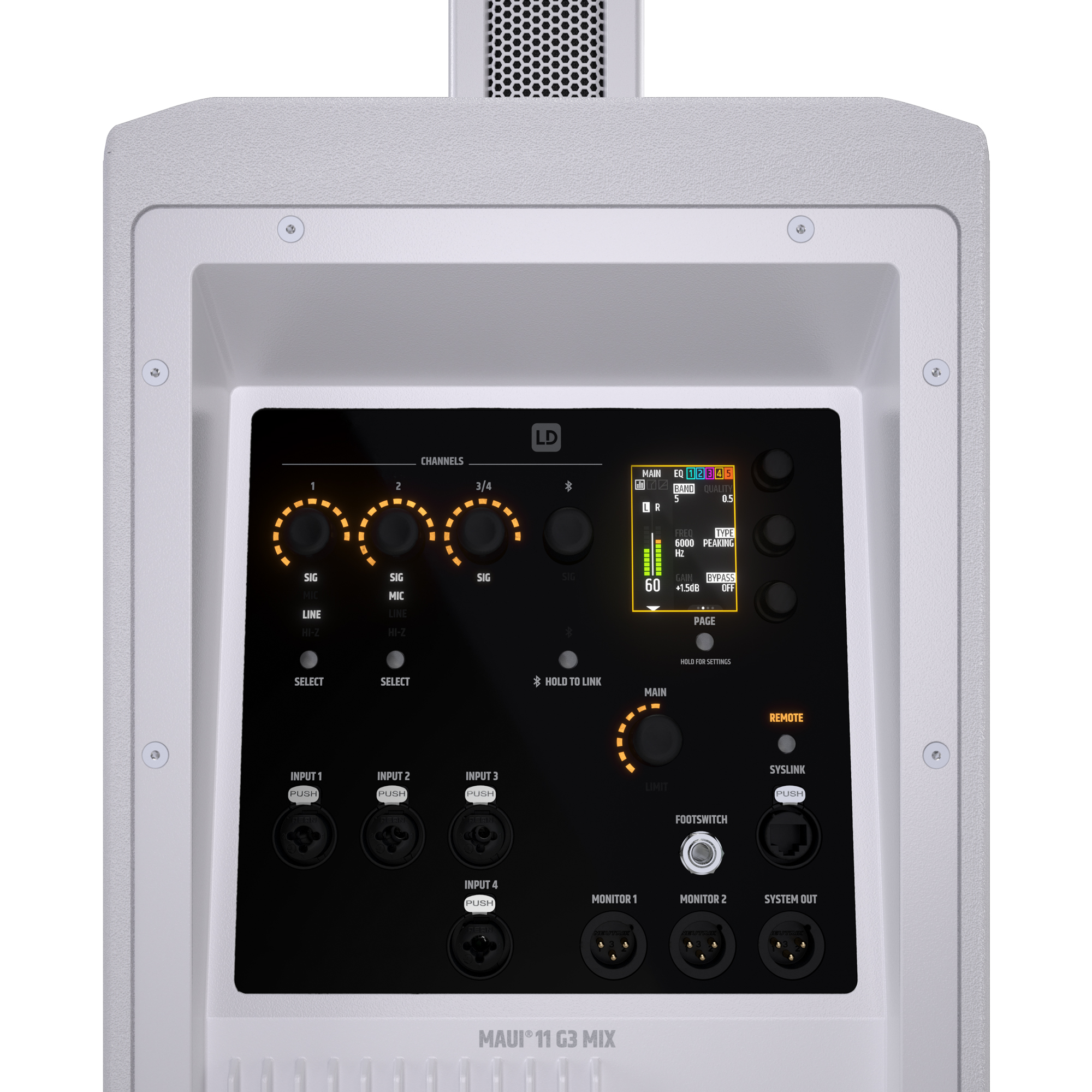

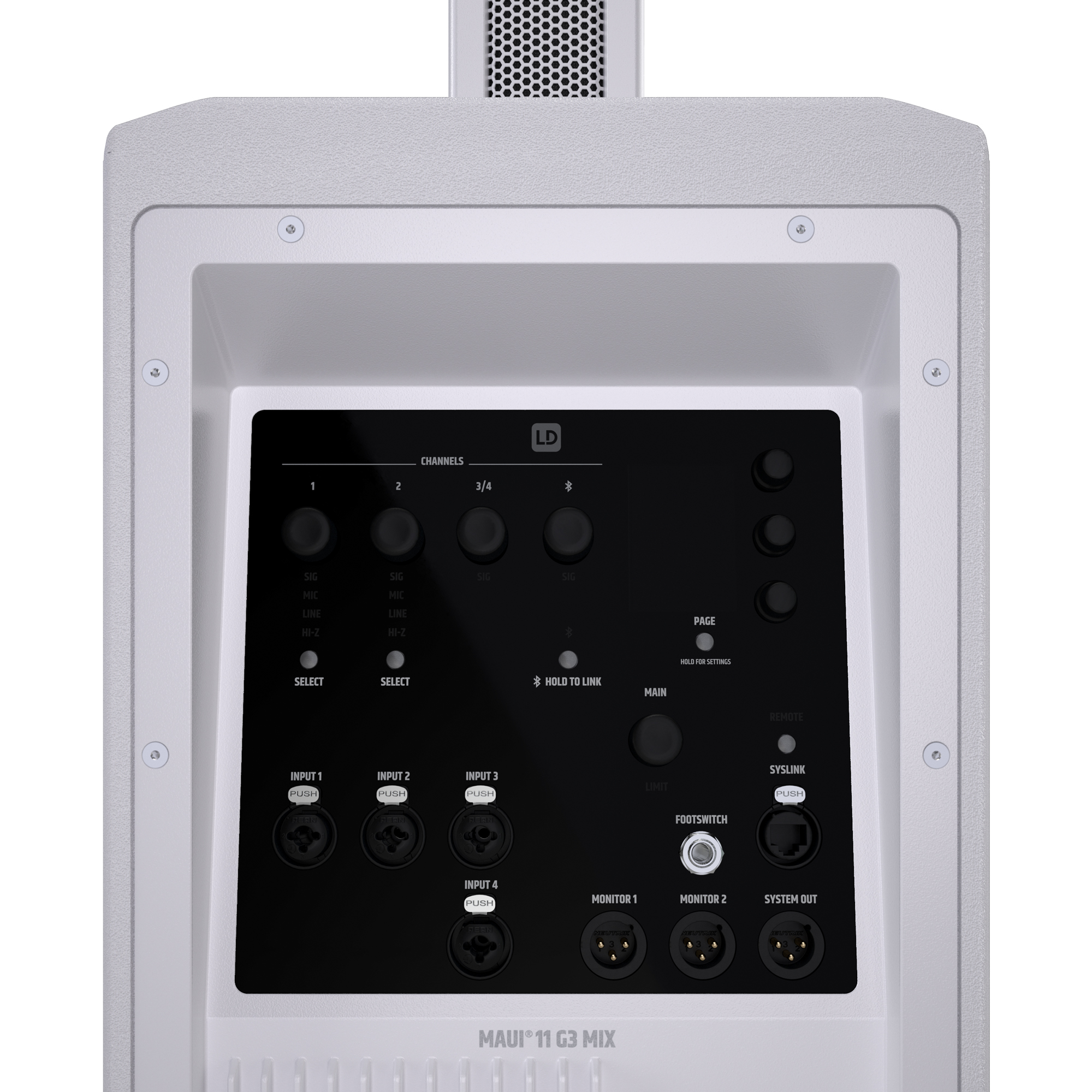

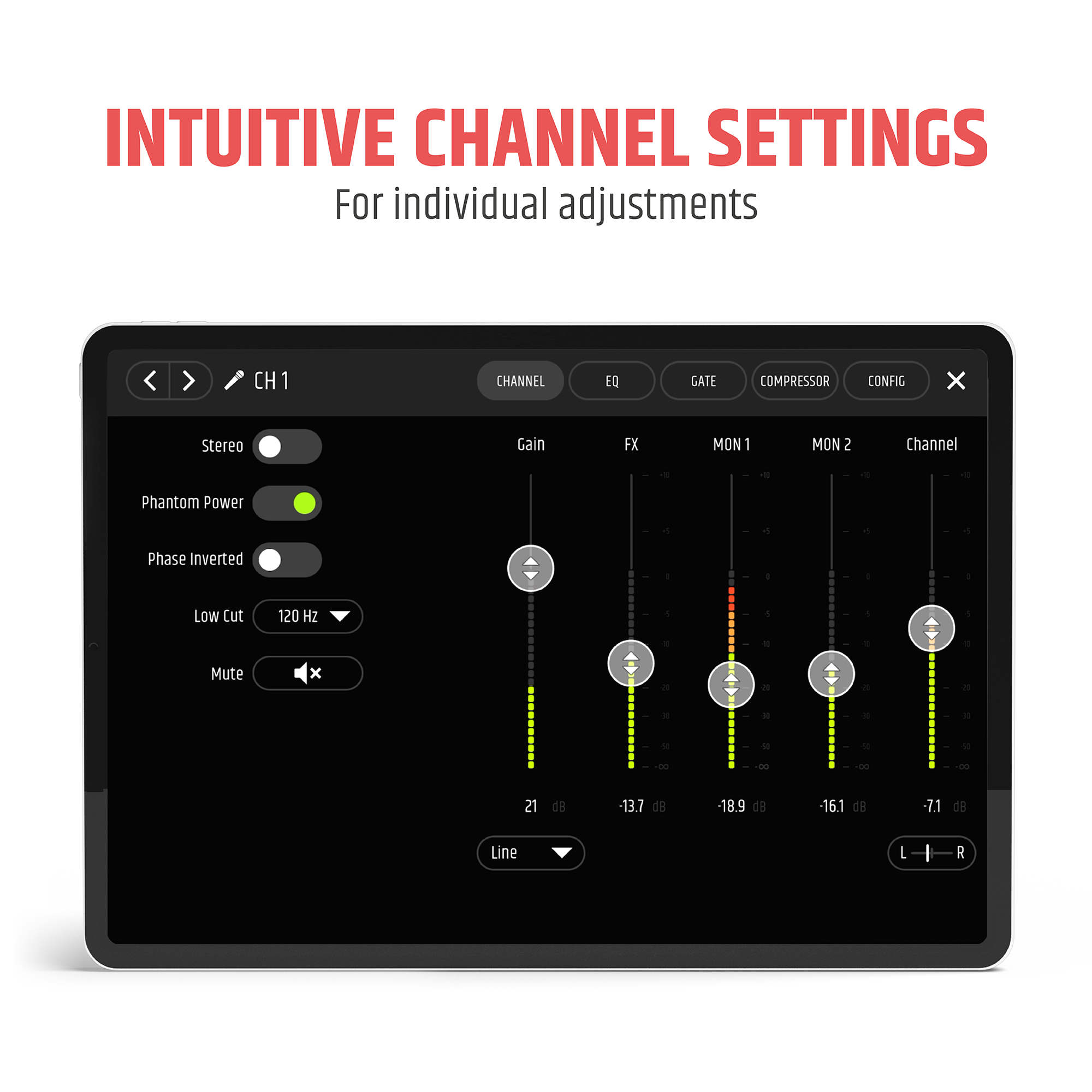

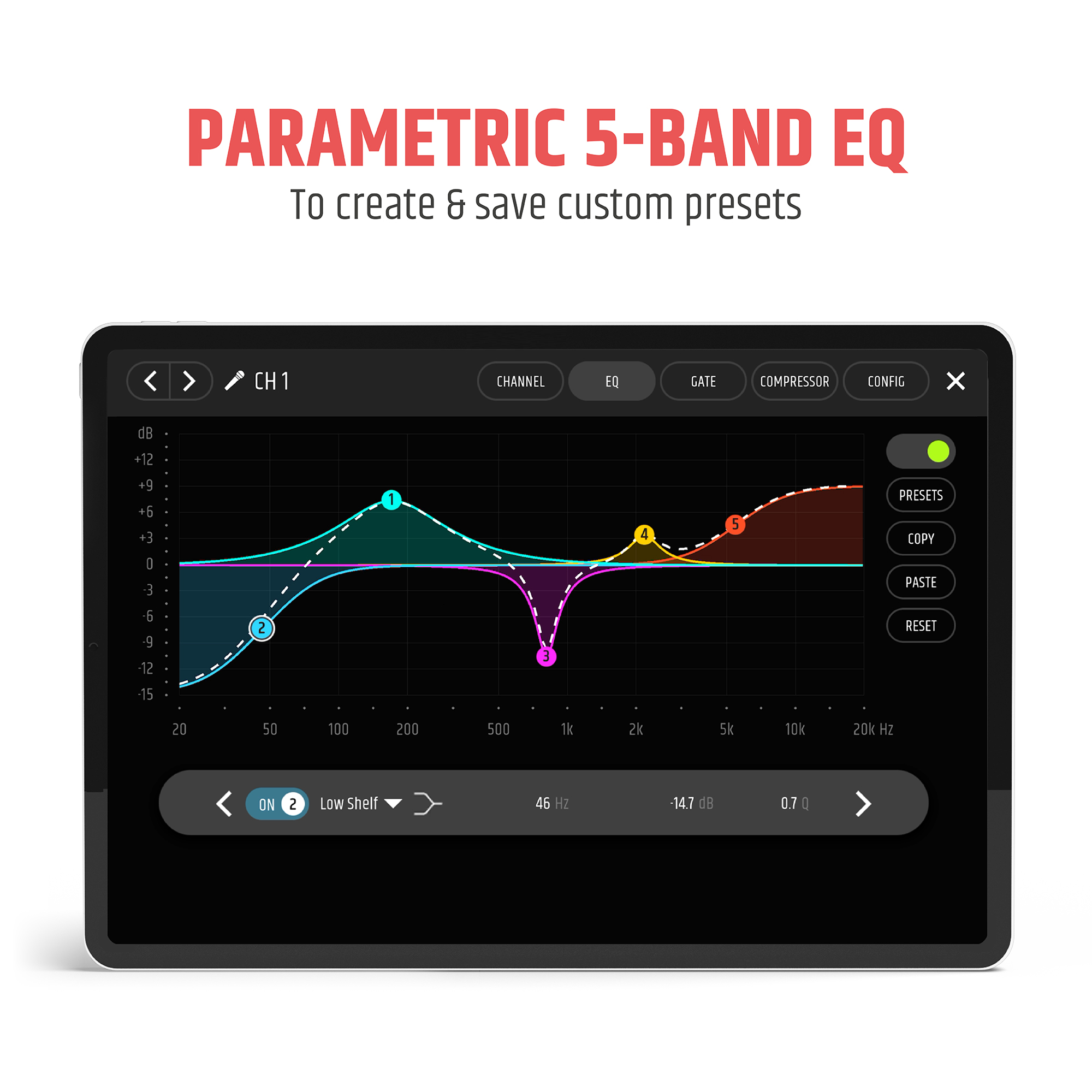

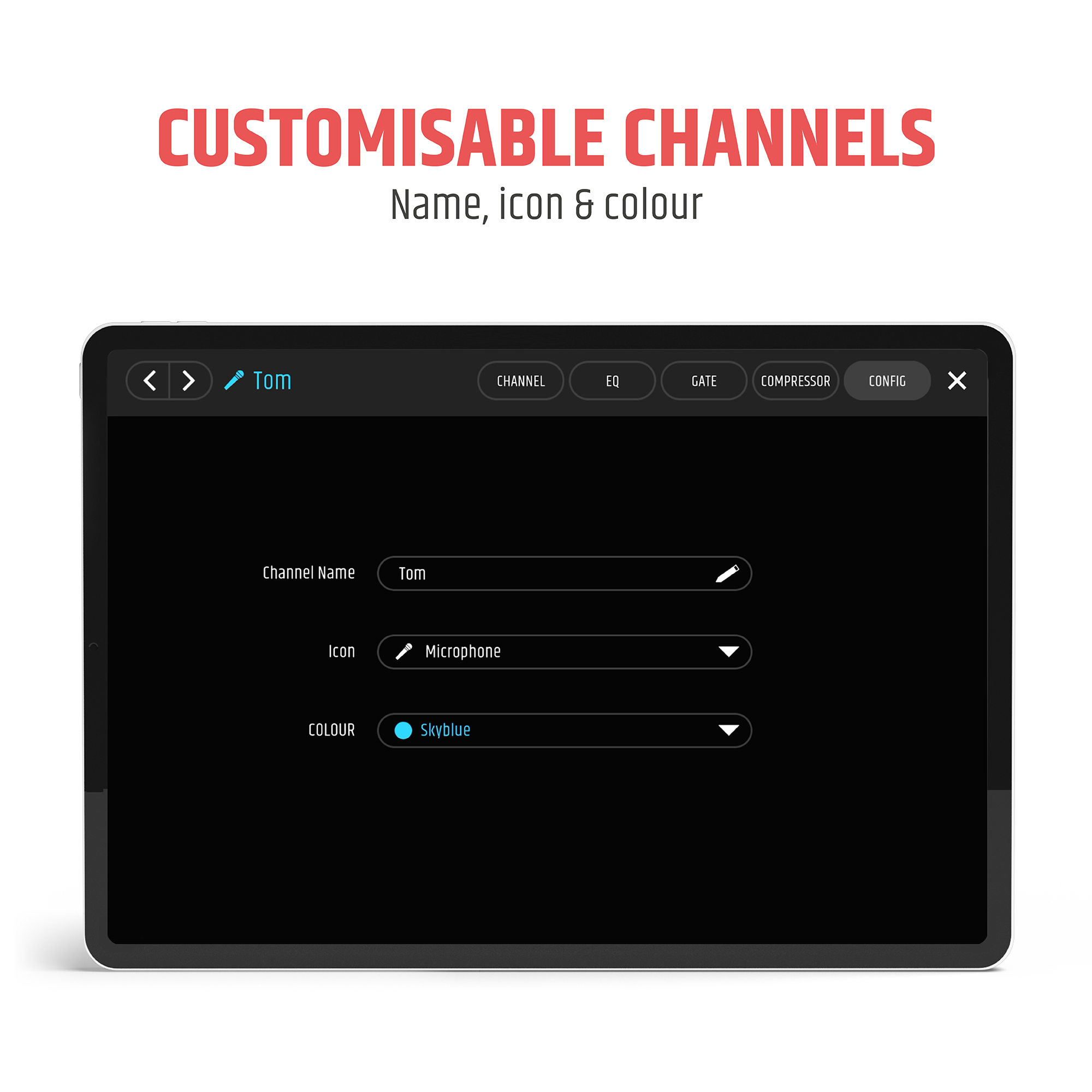

The built-in 6-channel mixer adjusts to the user's preferences through the Easy and Expert Modes. Users can choose between intuitive 3-band EQs or more advanced 5-way full parametric control. A comprehensive effects section provides the full range of reverb, delay and dynamics processing options. Users can wirelessly control all mixer and effects settings through the app.

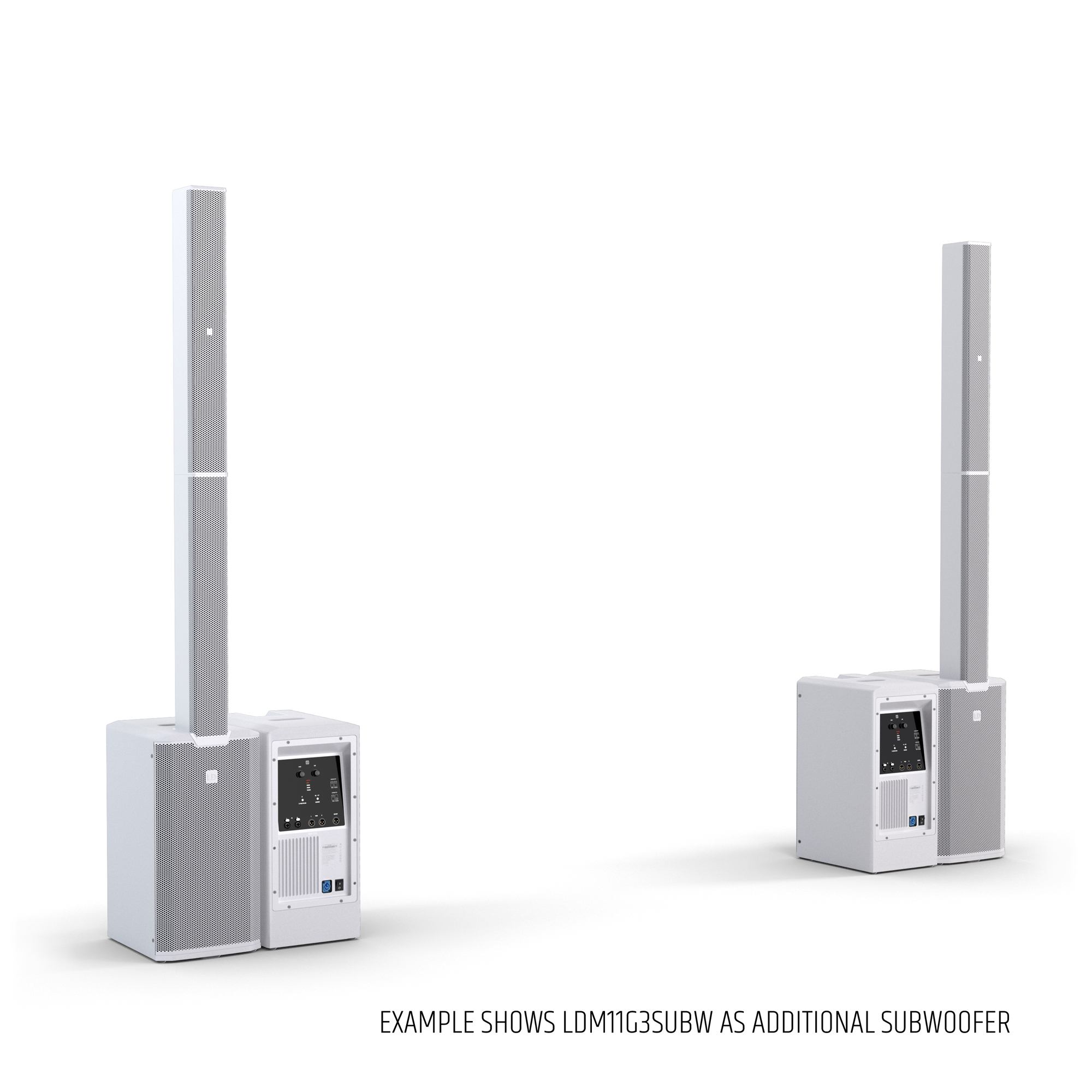

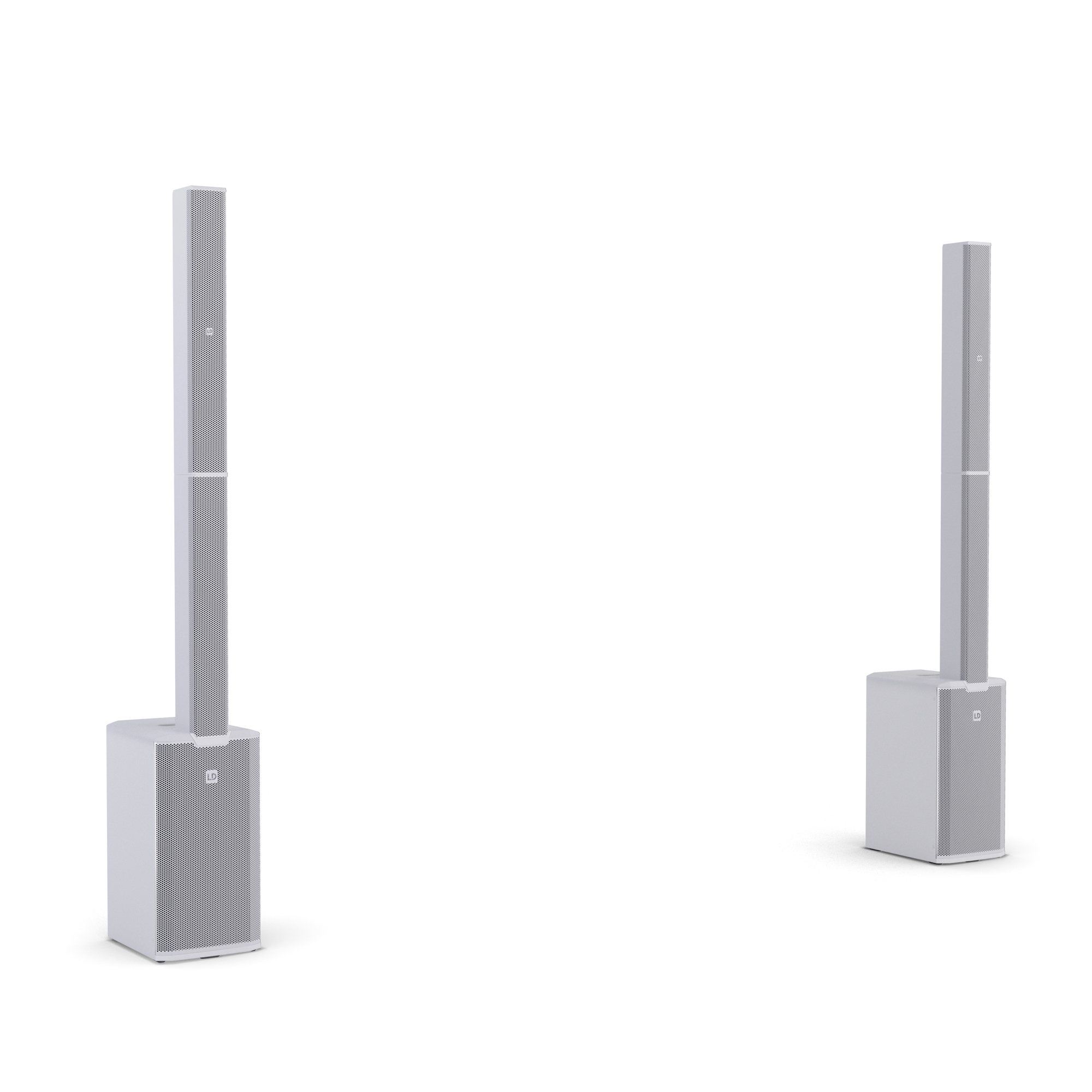

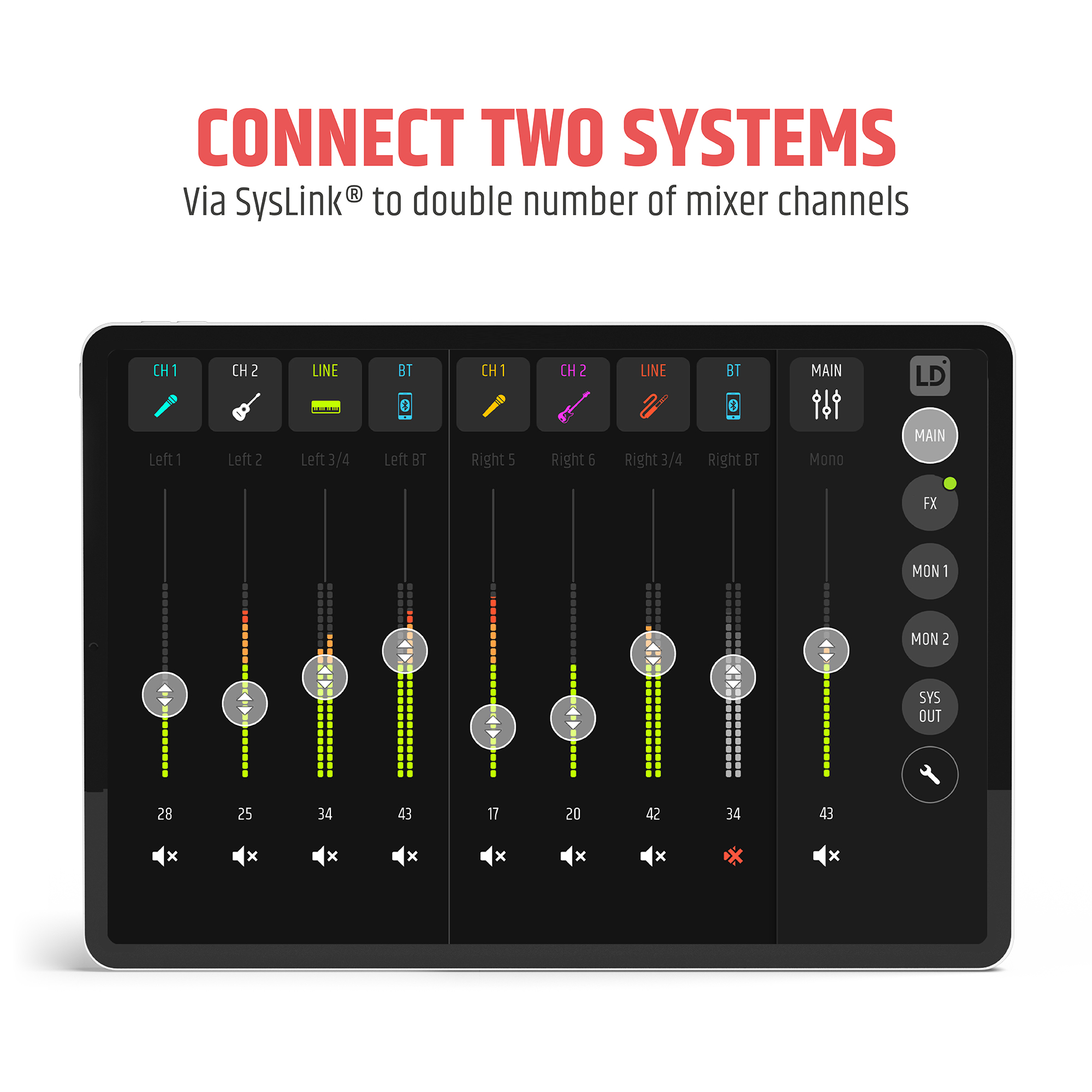

For stereo applications, two MAUI 11 G3 MIX units can be linked via SysLink®. In this setting, twice the number of mixer channels are available, and with the REMOTE button, all channels can even be controlled from one system.

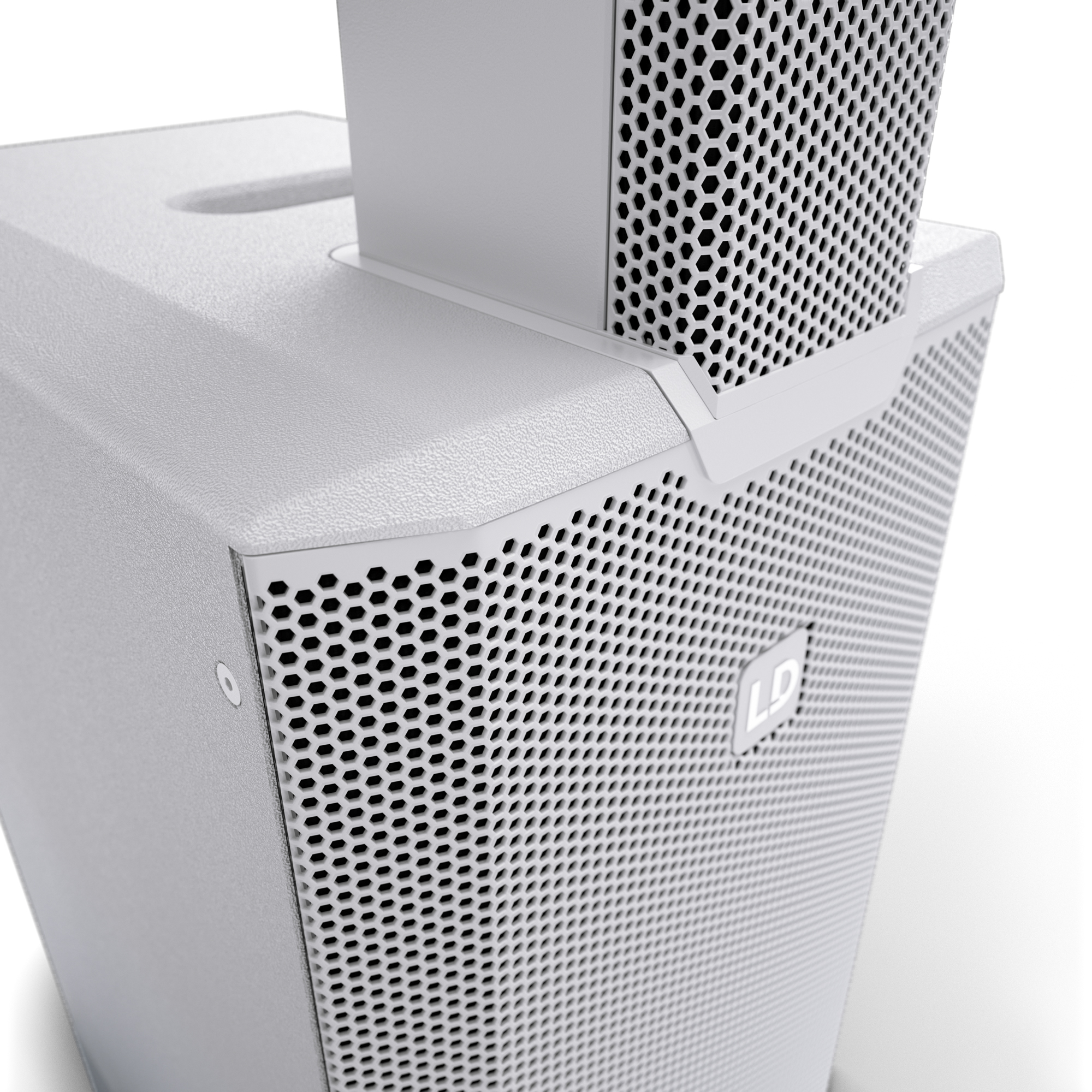

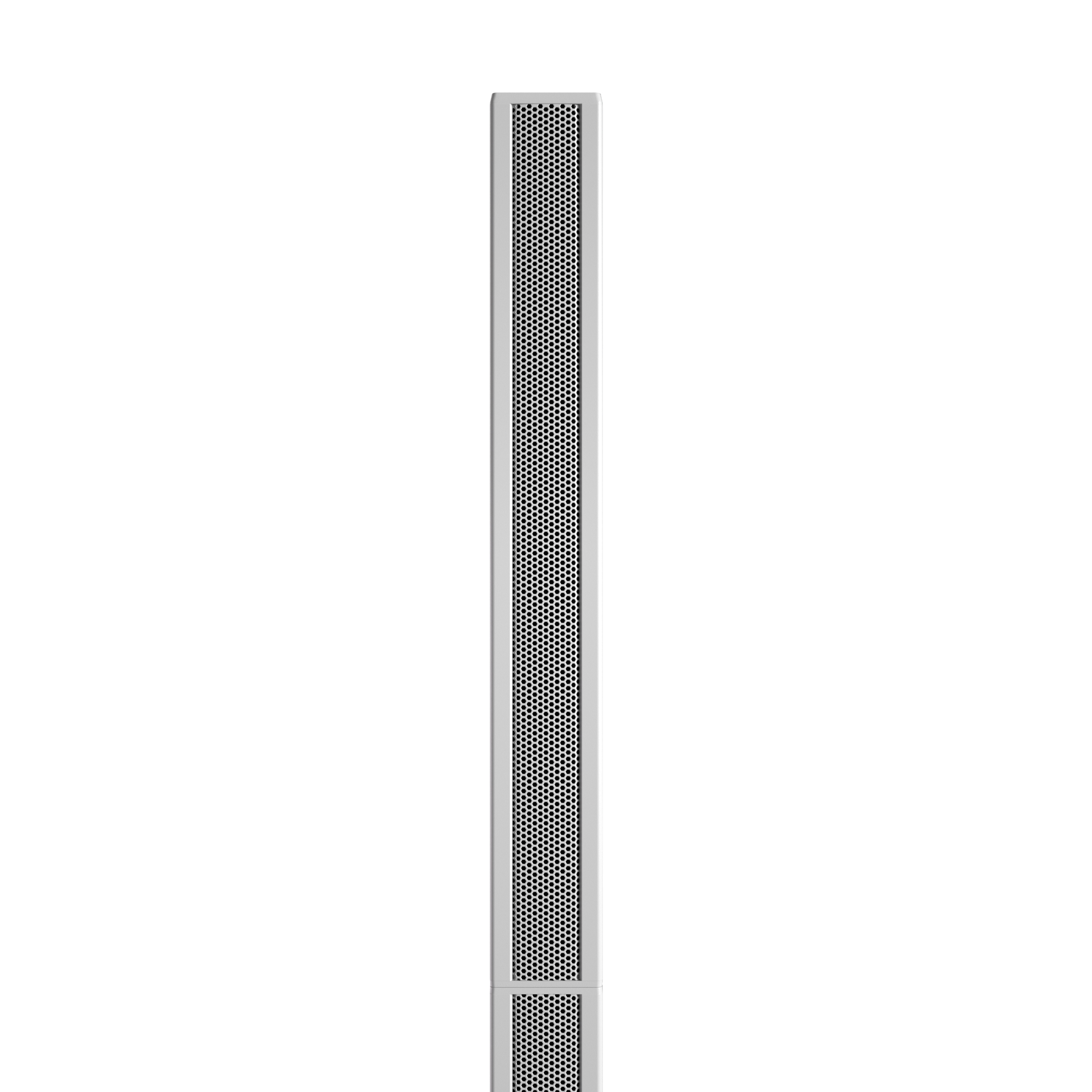

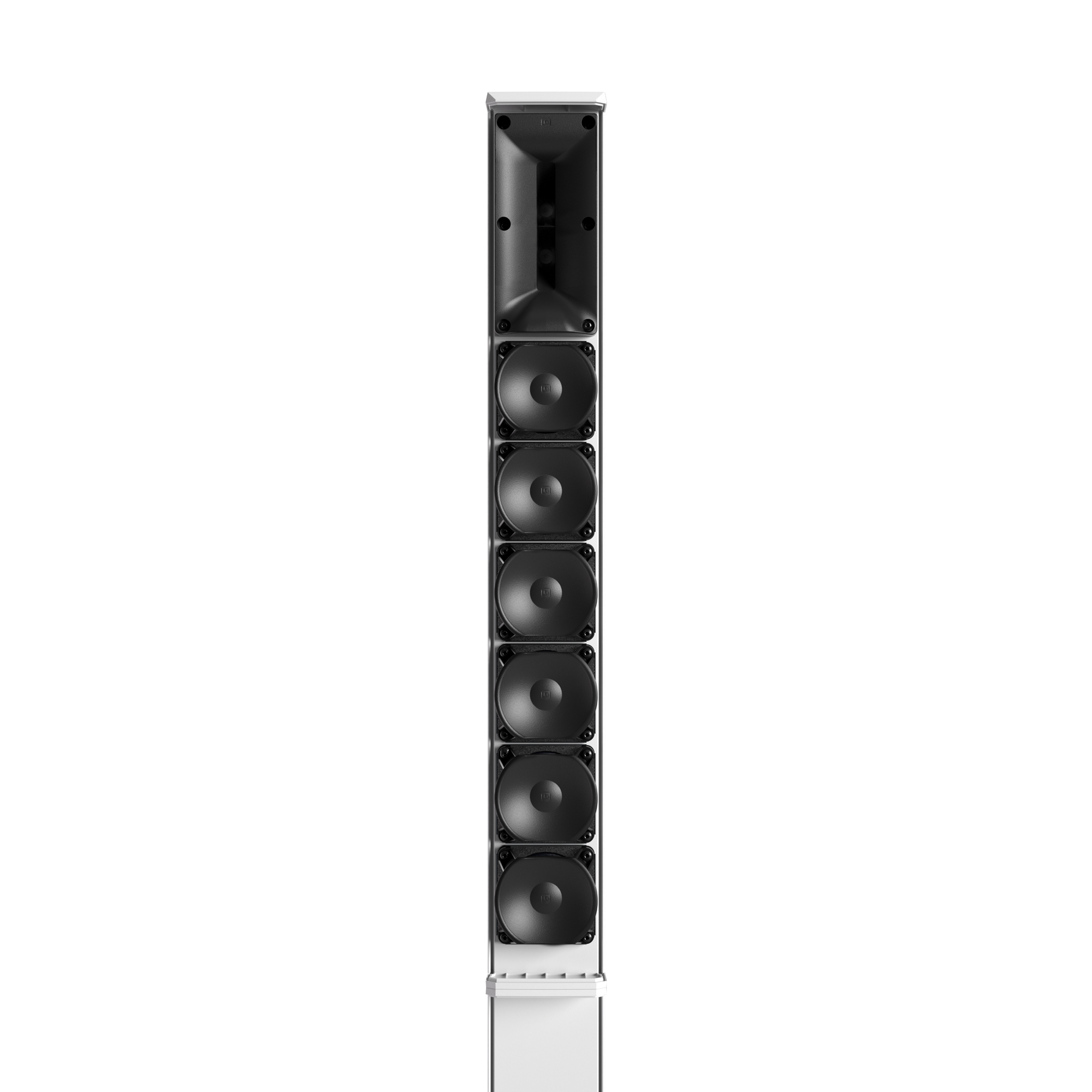

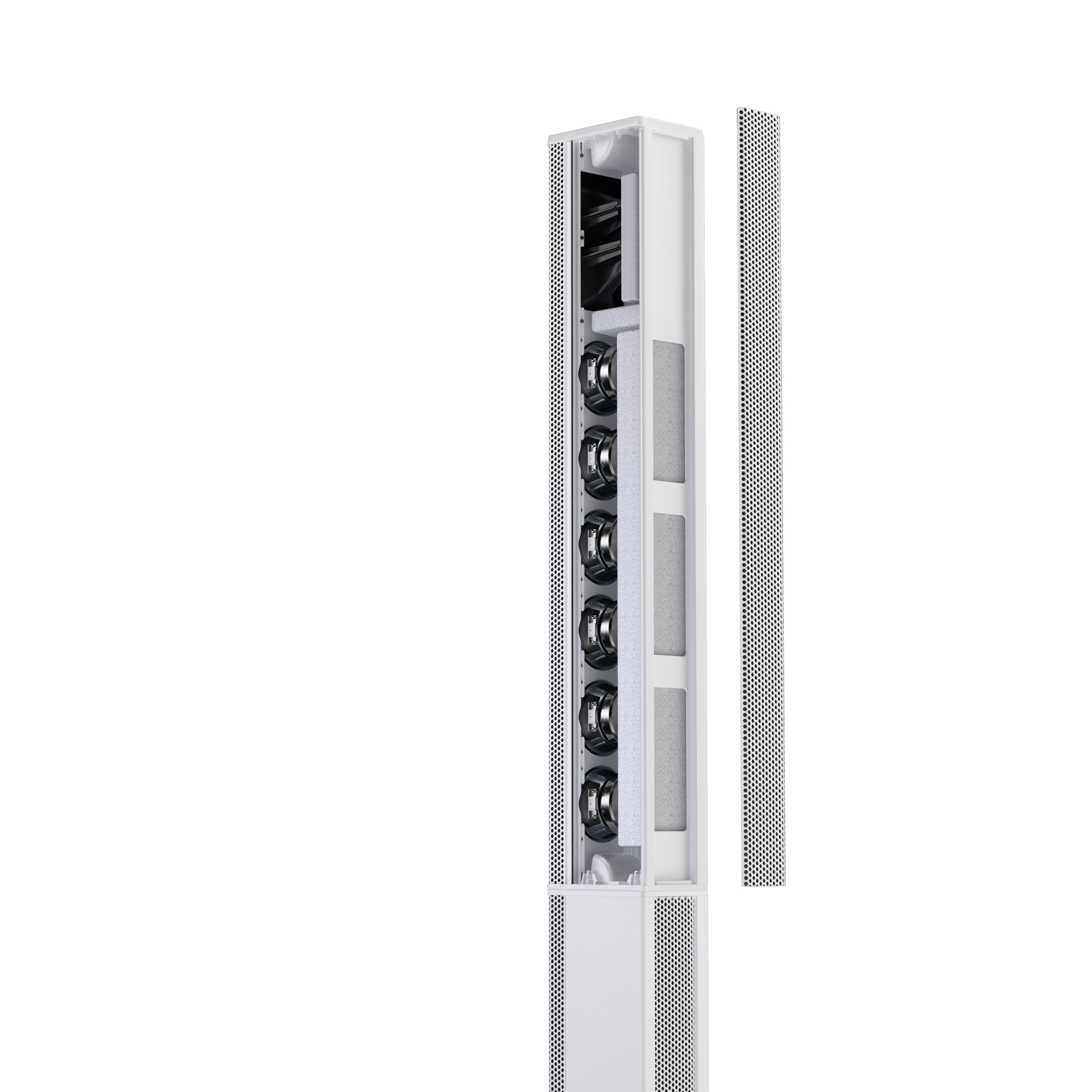

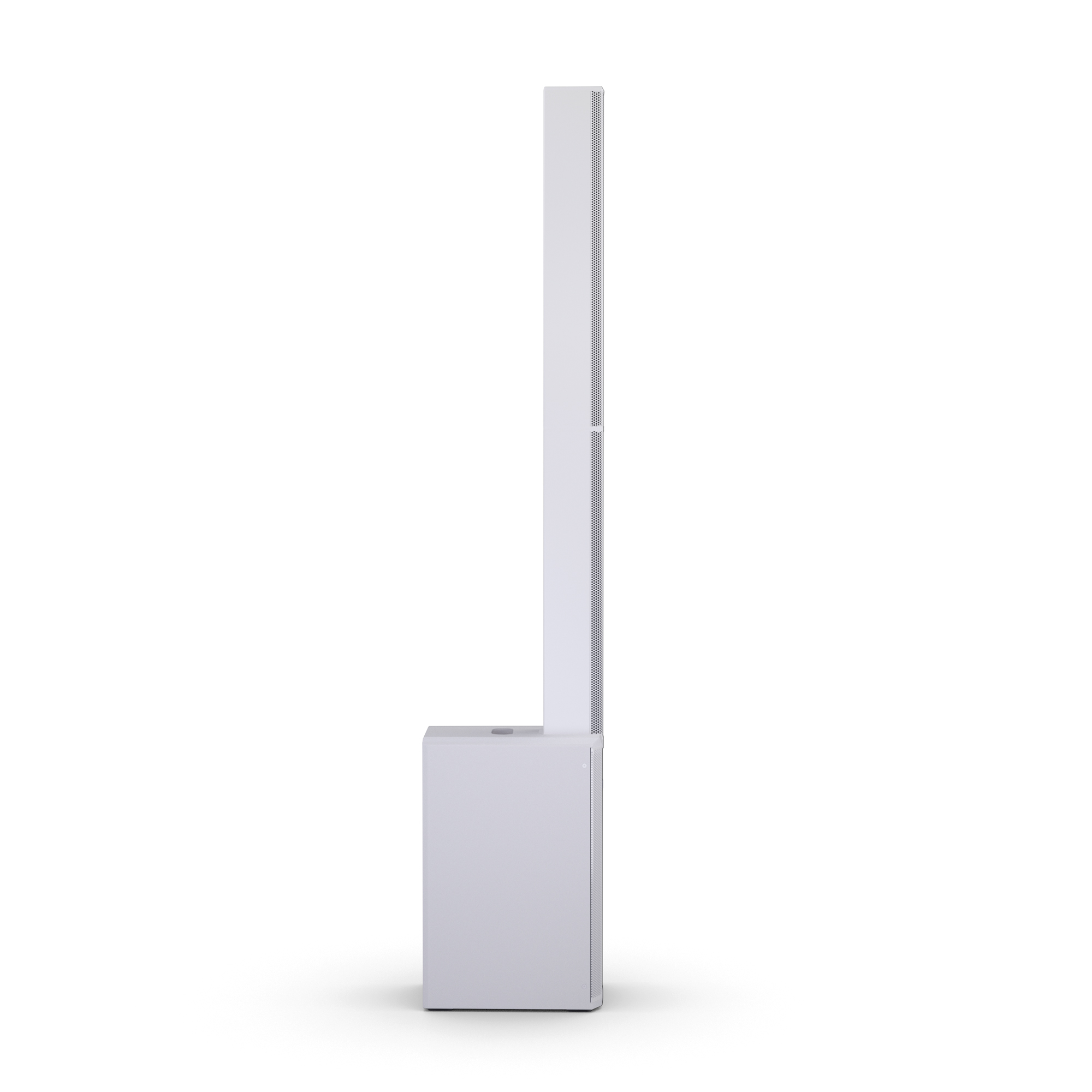

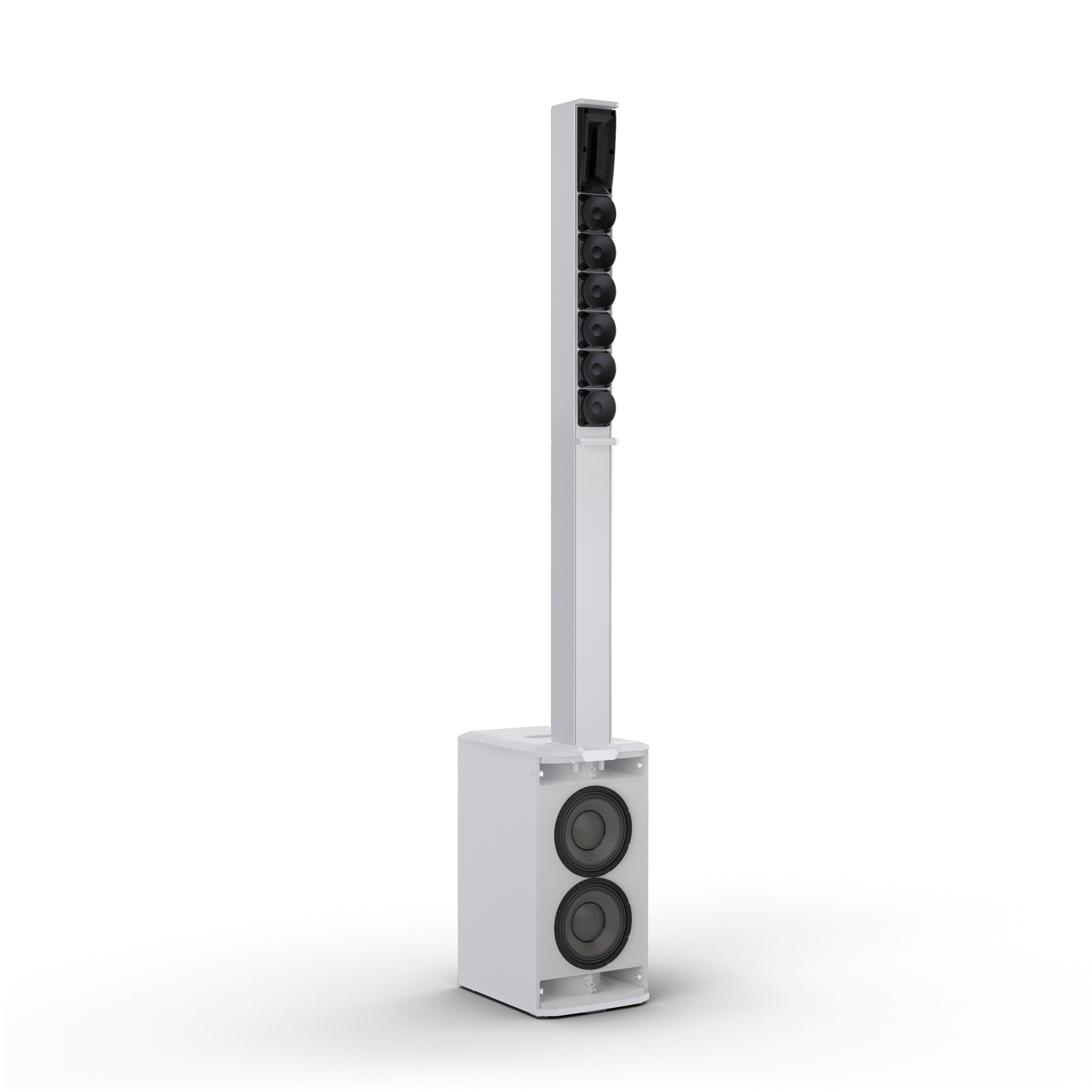

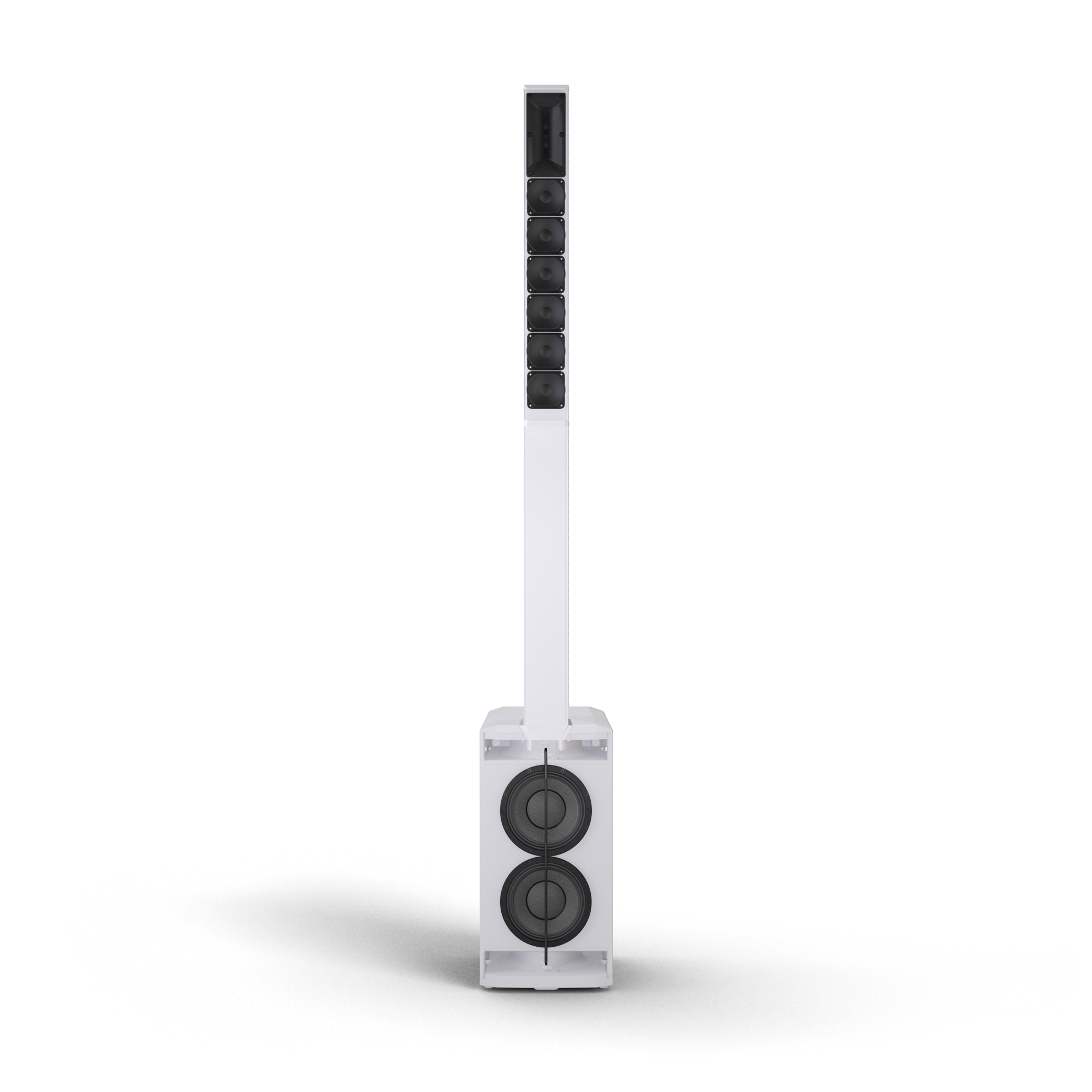

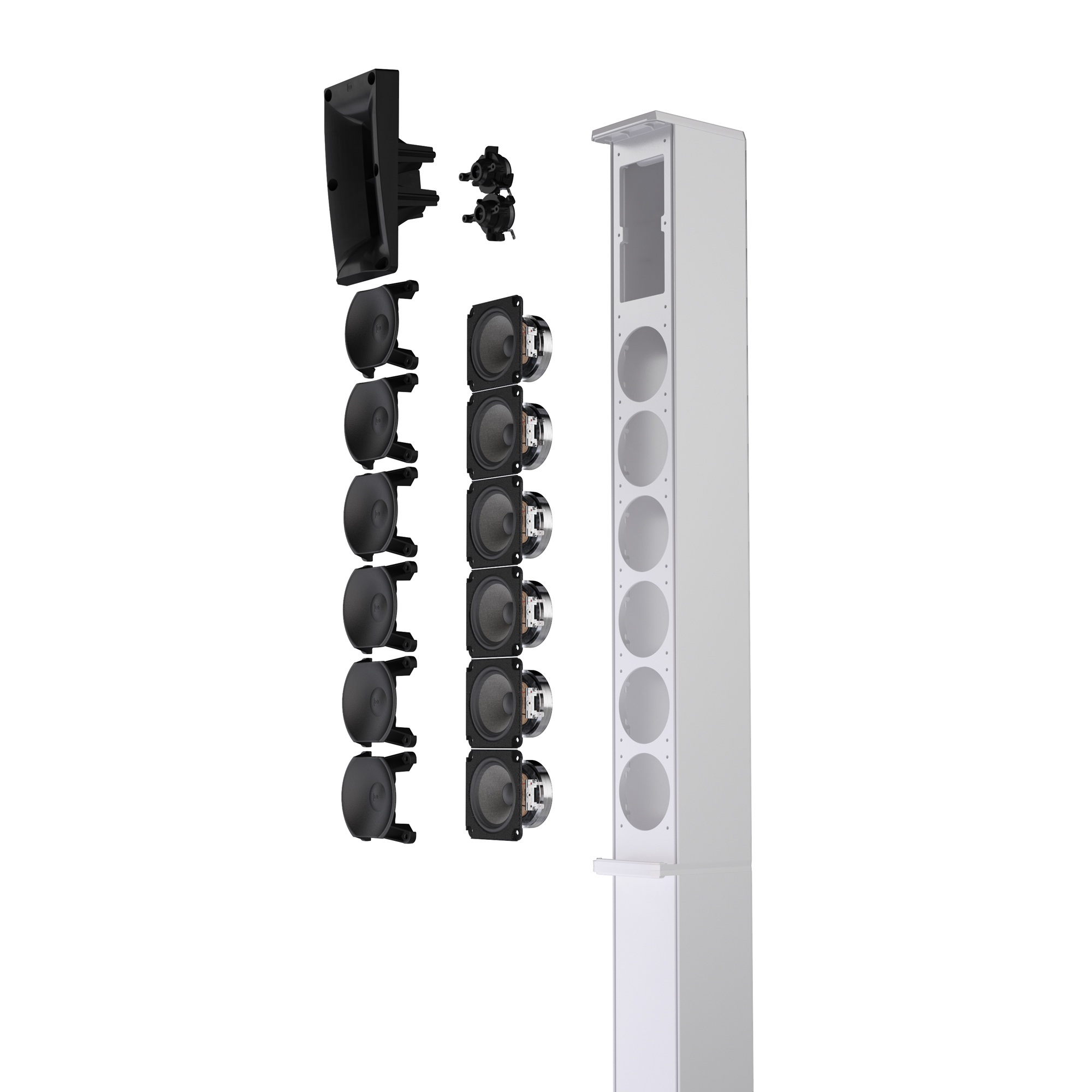

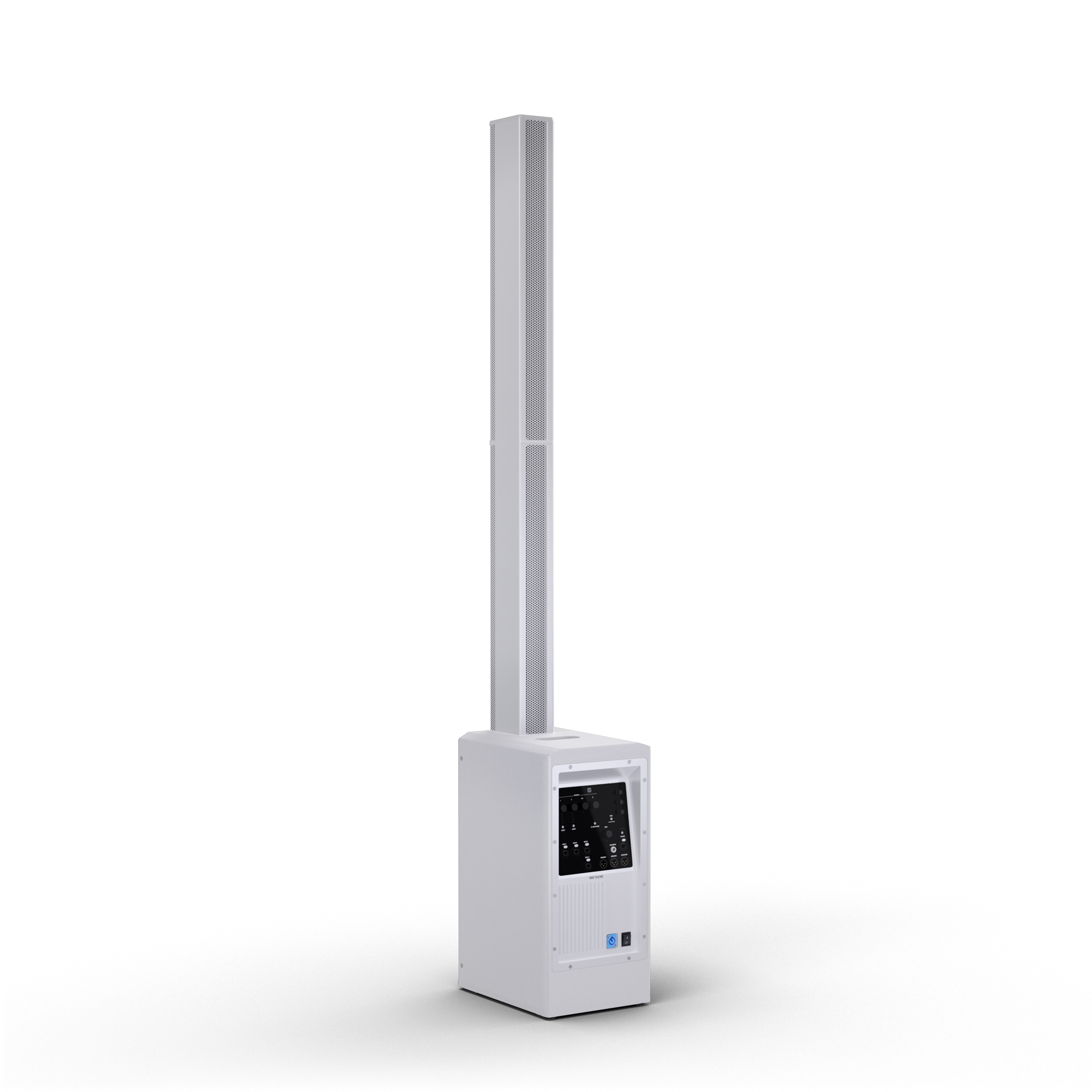

With its sleek and elegant design, the MAUI 11 G3 MIX looks extremely appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide – in front of the tweeters – carries the high frequencies right to the back of the audience areas.
The LD Systems engineers also took great care with the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field.

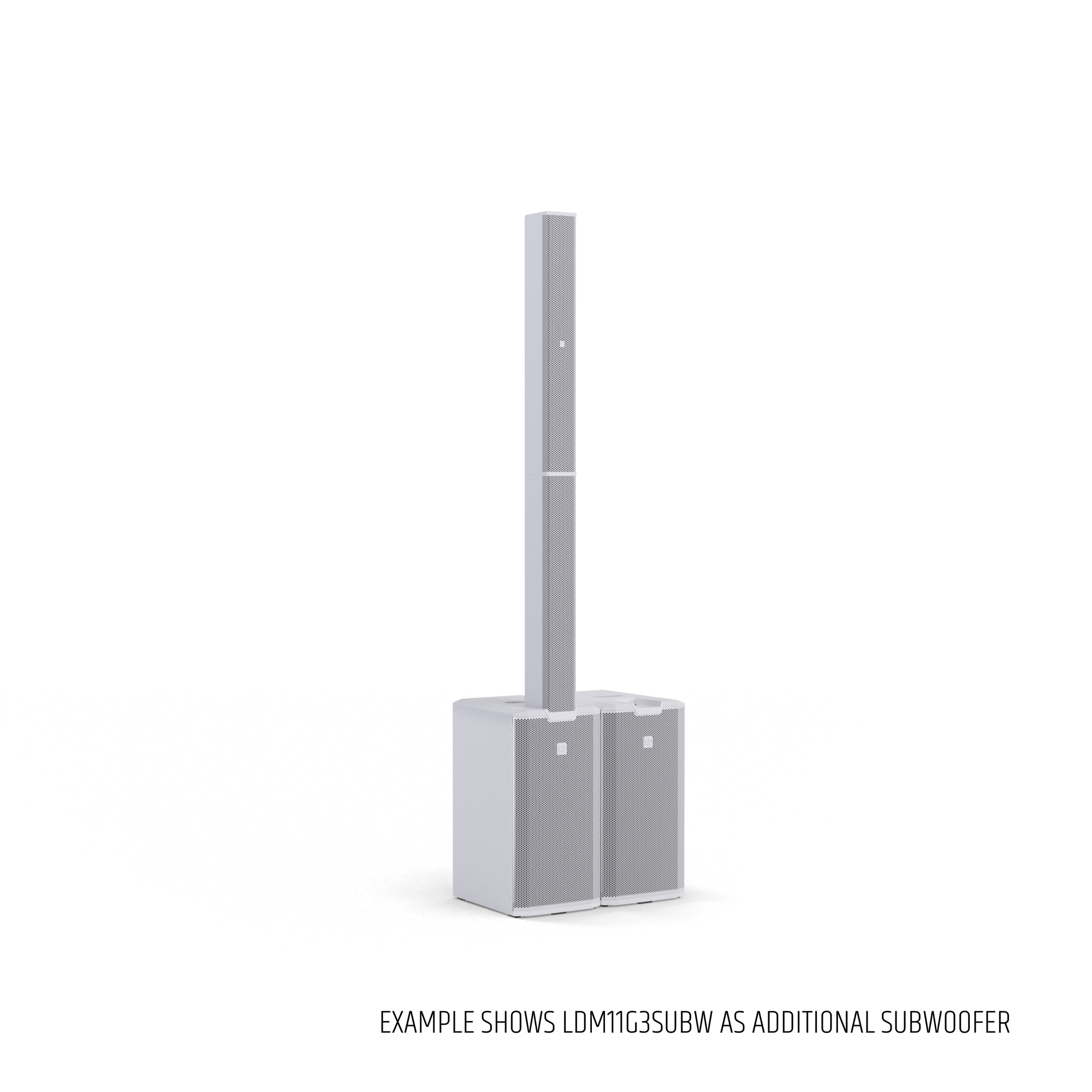

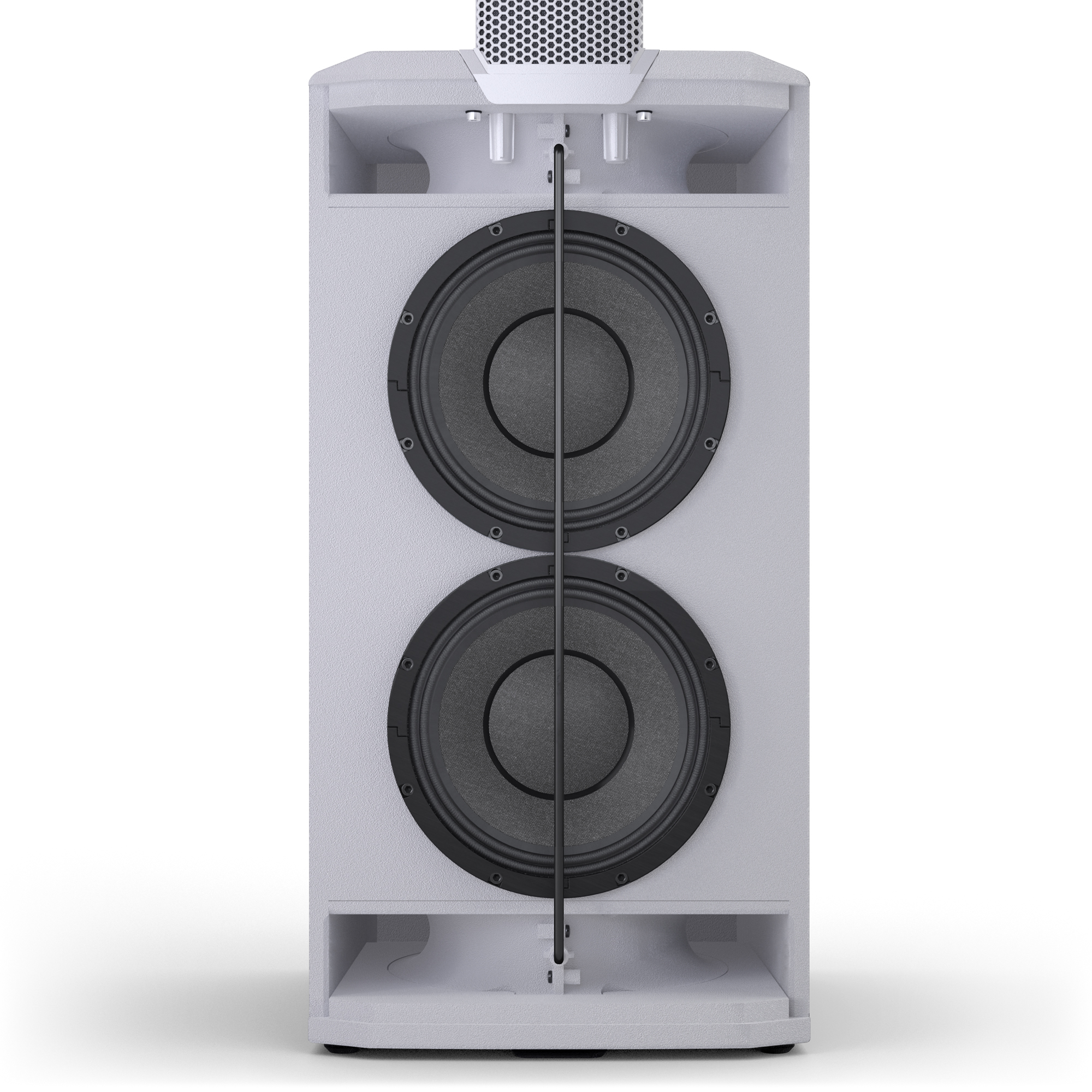

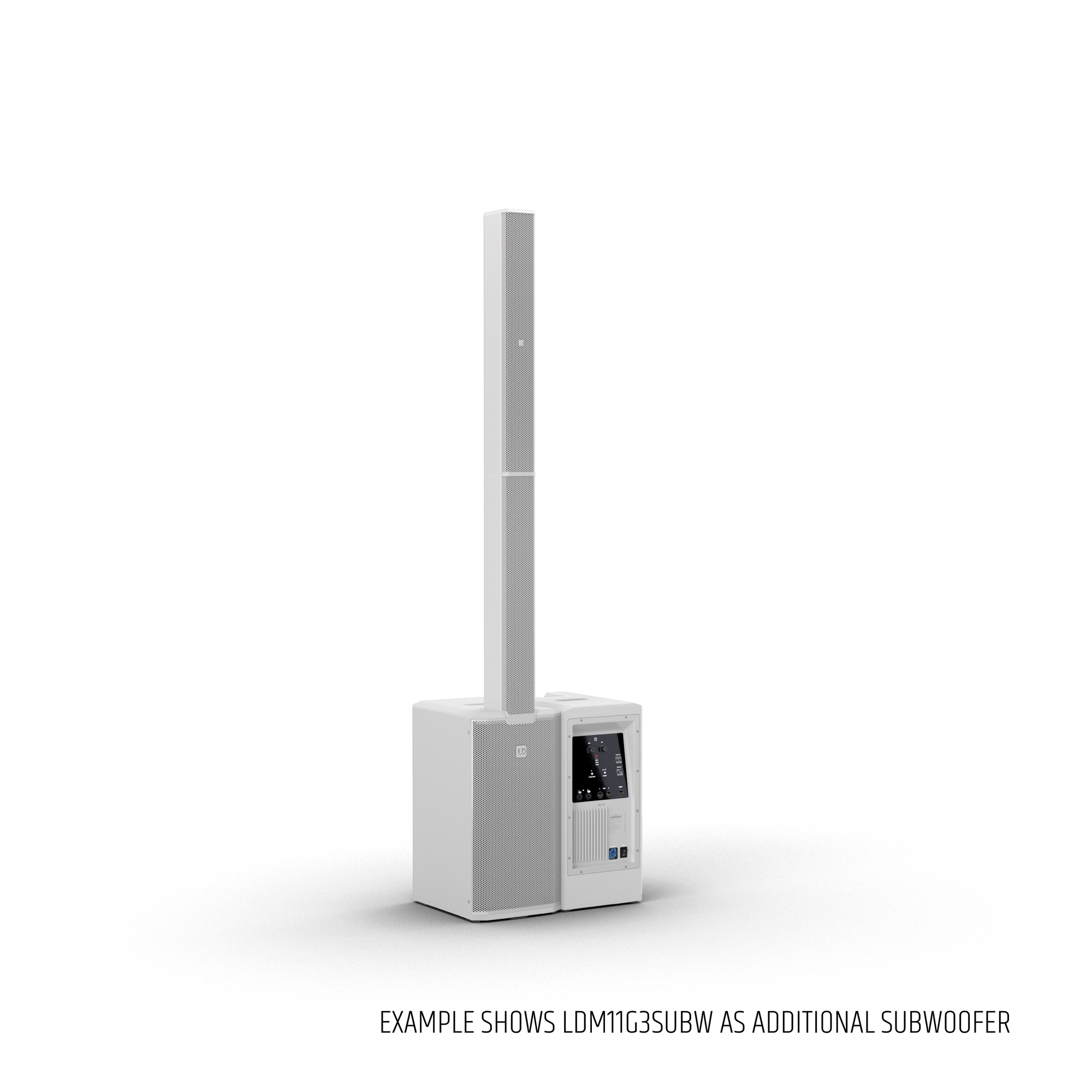

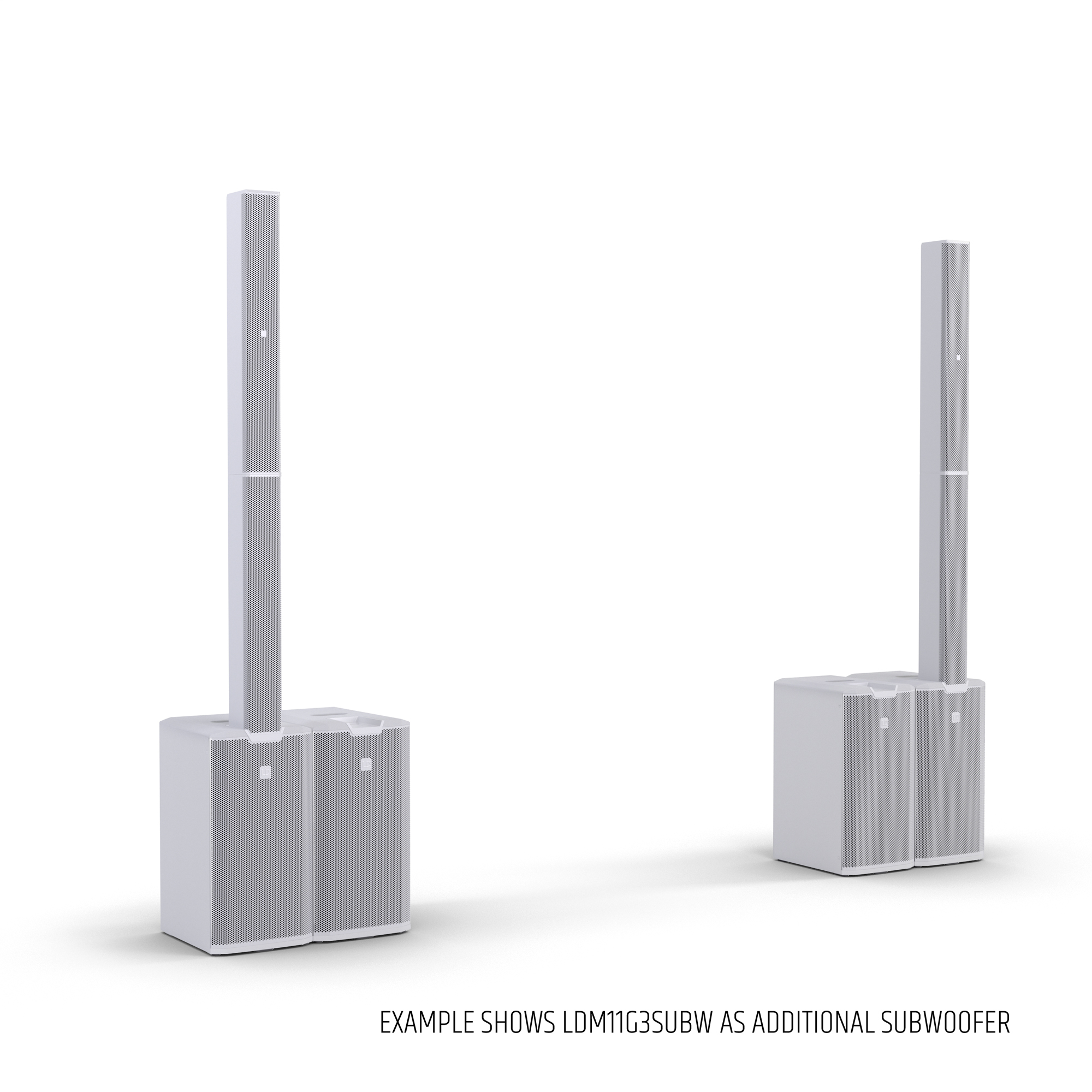

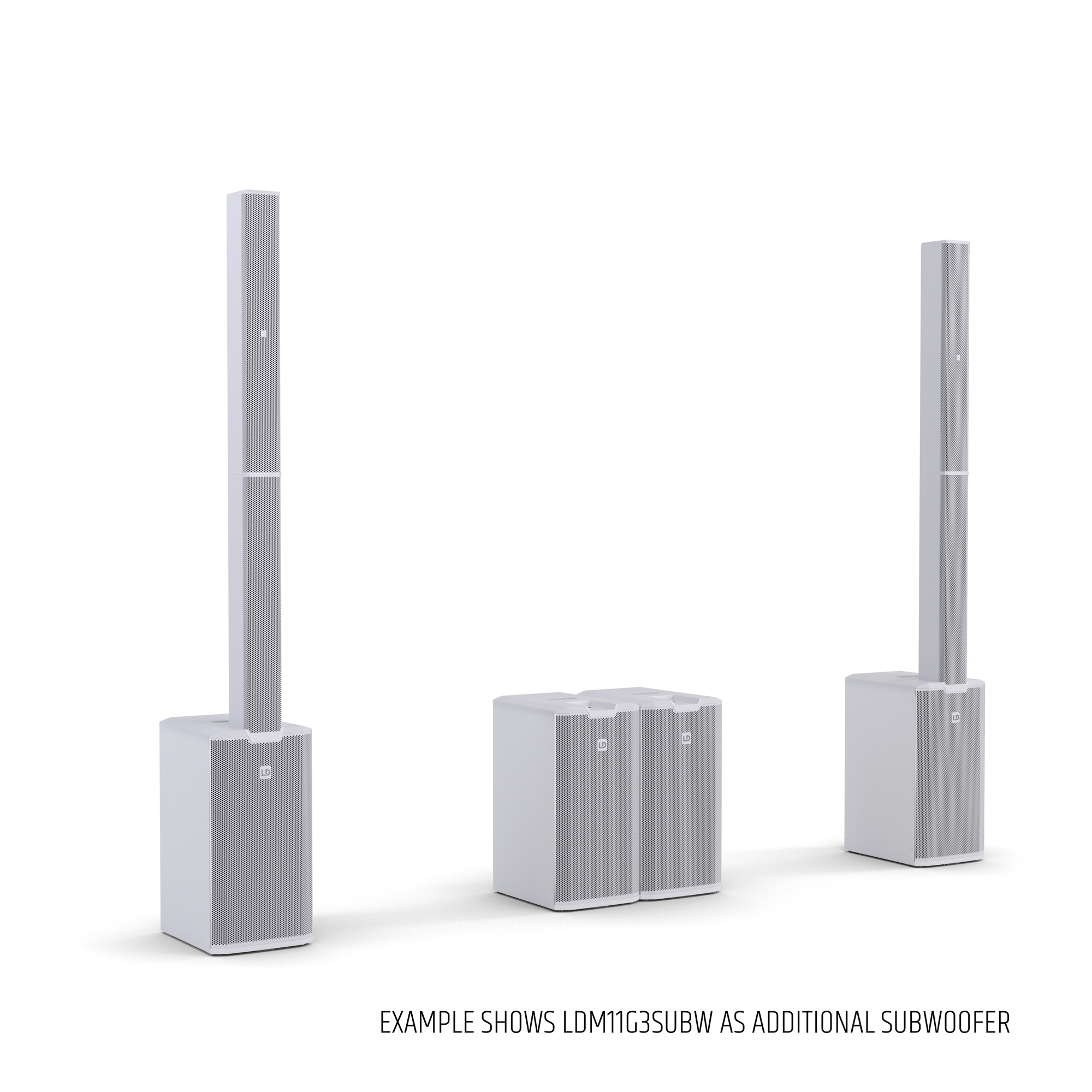

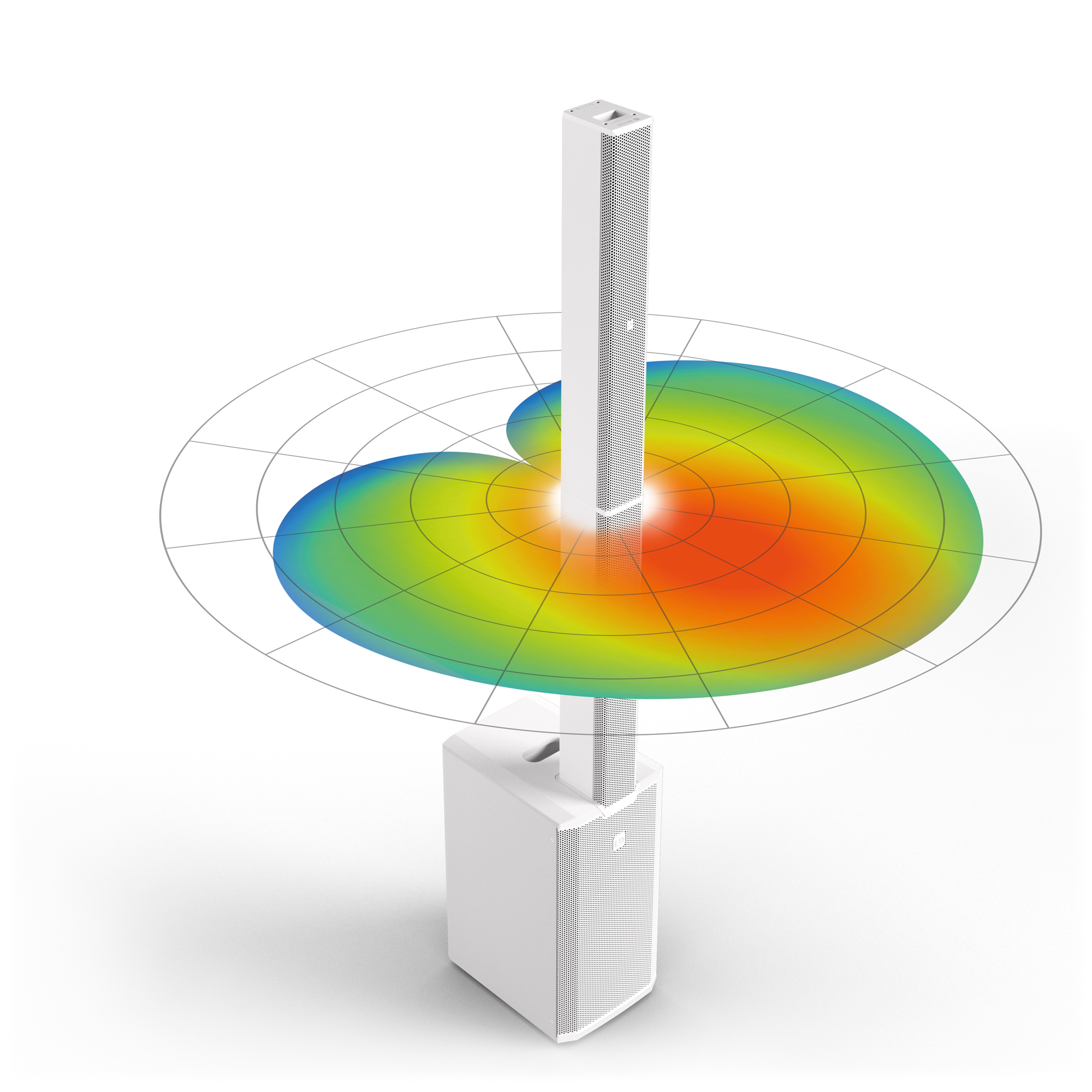

The MAUI 11 G3 MIX columns are designed as cardioid units. This allows for controlled low mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 MIX subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased by up to 6 dB, and it can also be driven in cardioid configuration at the push of a button (Cardioid preset). In addition, the subwoofer’s ultra-durable polyurea coating easily withstands even the toughest demands of life on the road.

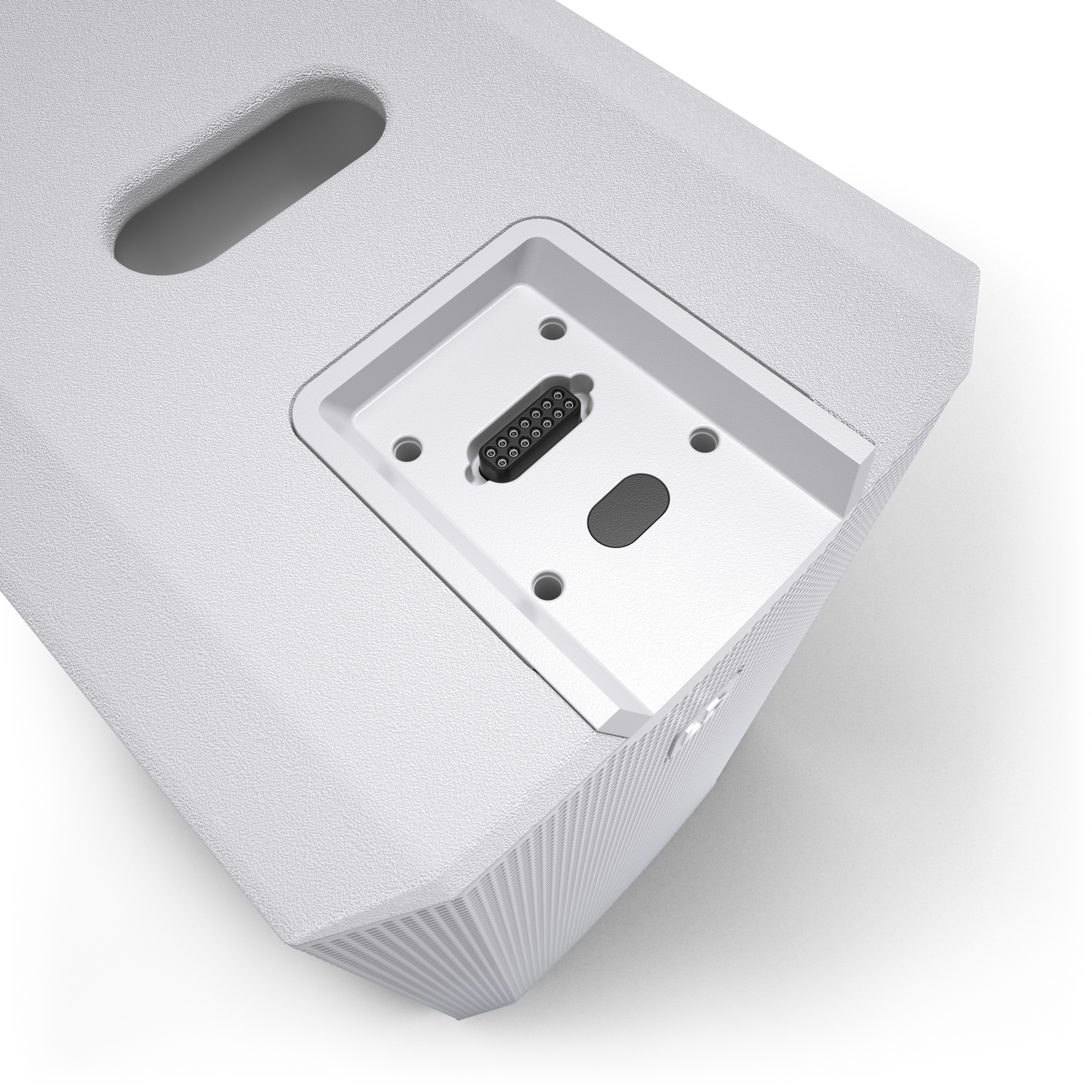

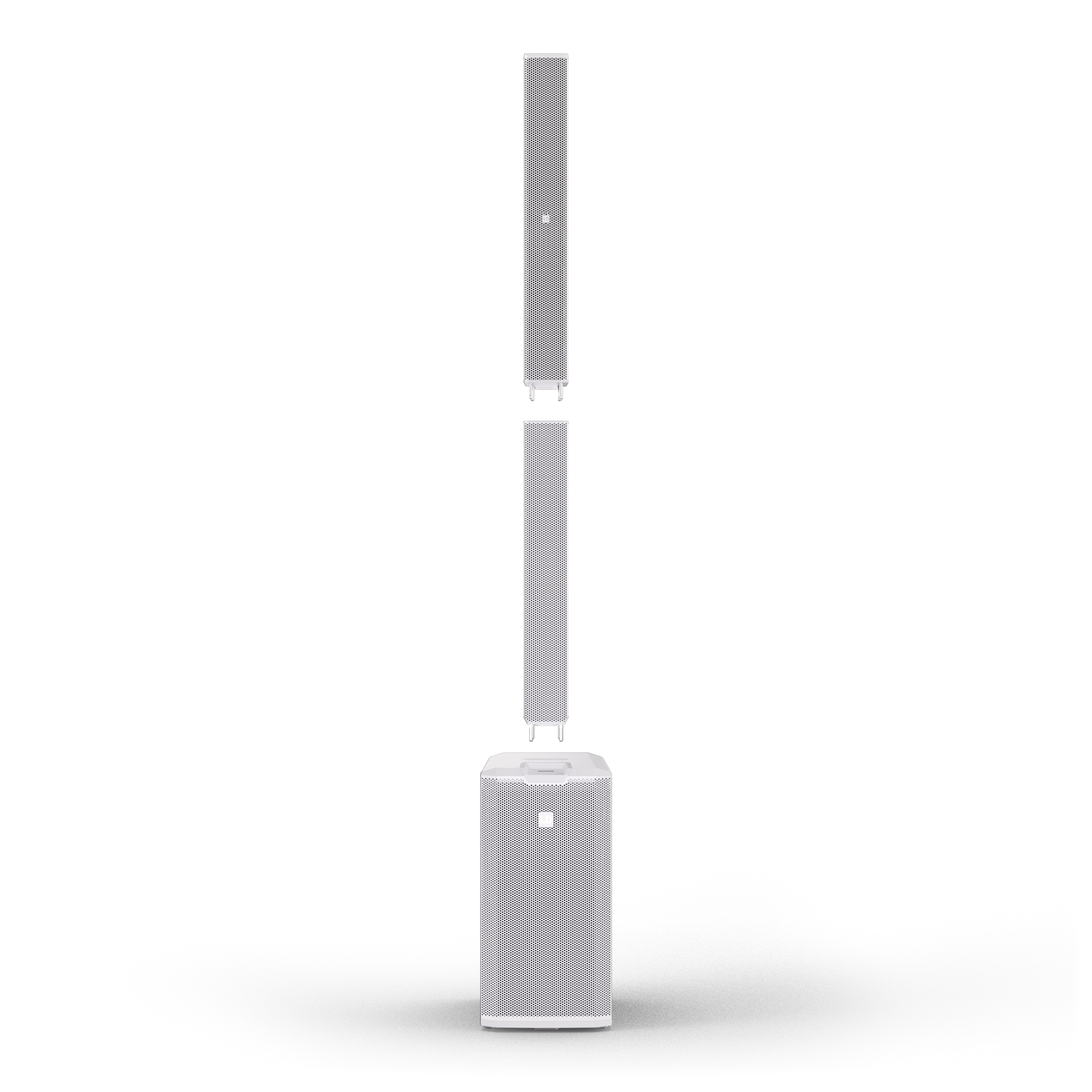

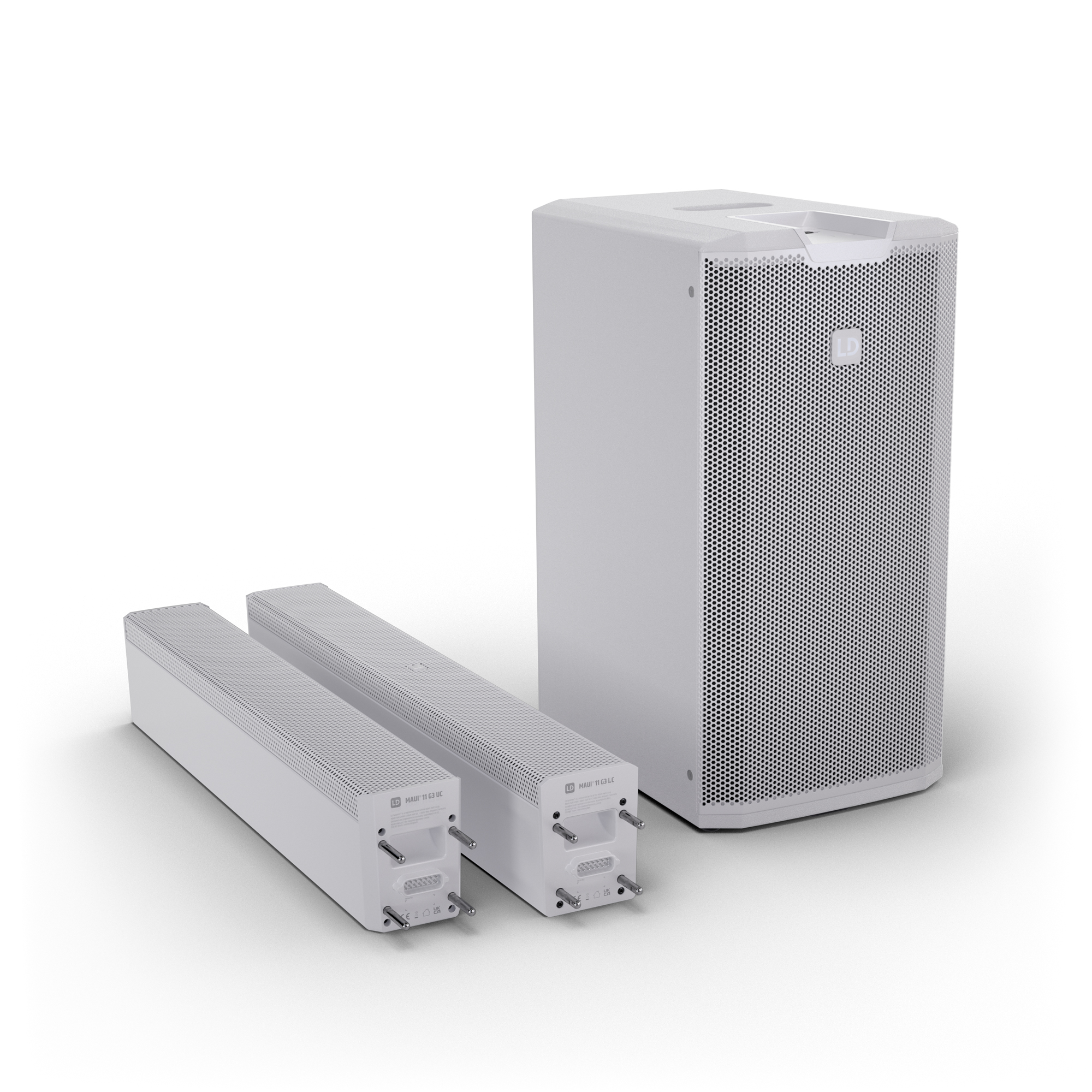

The MAUI 11 G3 MIX is a real sound machine, yet will impress solo entertainers, singer/songwriters or small bands daily with its smart features. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There’s nothing that can knock the MAUI off its feet so easily...
| Output connector types: | RJ-45 socket, XLR 3-pole male, 6.3 mm Jack TRS female |
|---|---|
| Type: | Active |
| Colour: | White |
| Input connector types: | XLR combo socket |
| Amp class: | Class D |
| Protection features: | Multiband Limiter, Overheating, Short circuit |
| Speaker system: | 3-way system |
| Peak output power: | 1460 W |
| Number of outputs: | 5 |
| Number of inputs: | 4 |
| Beam angle: | Hor.: 120° / Vert.:30° |
| RMS output power: | 730 W |
| Frequency response (-10 dB, rel. Avg): | 39 - 20000 Hz |
| Max. SPL peak: | 125 dB |
| Receiver (client): | 1 |
|---|---|
| Bluetooth® version: | Bluetooth® 4.2 |
| Supported audio codecs: | SBC |
| Features: | True Wireless Stereo |
| Number of speaker outputs: | 1 |
|---|---|
| Speaker output connection type: | XLR 3-pole male |
| Mixer channels: | 6 |
|---|---|
| Audio processing: | Dynamics, 3 band EQ (High, Mid, Low), Fully parametric 5-band EQ, Presets, Reverb |
| AD/DA converter bit depth: | 24 Bit |
| Mixer: | 1 |
| AD/DA converter sampling rate: | 48 kHz |
| Manufacturer: | Custom Made |
|---|---|
| Quantity: | 2 |
| Voice coil: | 2 " |
| Size: | 8 " |
| Magnet: | Ferrite |
| Magnet: | Ferrite |
|---|---|
| Manufacturer: | Custom Made |
| Voice coil: | 0.75 " |
| Size: | 3.5 " |
| Quantity: | 6 |
| Manufacturer: | Custom Made |
|---|---|
| Driver size: | 0.04 in |
| Voice coil: | 0.04 in |
| Magnet: | Neodymium |
| Quantity: | 2 |
| Mains connectior model name: | PowerCon |
|---|---|
| Rated power: | 300 W |
| Mains fuse: | T3.15AL/250 V |
| Mains connector: | Mains socket indoor power in male & powerCON® |
| Operation voltage: | 220 V AC - 240 V AC / 50 - 60 Hz, 110 V AC - 120 V AC / 50 - 60 Hz |
| Power supply type: | Switched-mode power supply (SMPS) |
| Design: | Bass reflex |
|---|---|
| Front grille material: | Aluminium |
| Cabinet material: | Aluminium, Birch multiplex |
| Number of handles: | 1 |
| Material thickness: | 0.59 in |
| Cooling system: | Convection cooling |
|---|
| Design: | Cardioid |
|---|---|
| Depth: | 5.31 in |
| Height: | 57.48 in |
| Weight: | 22.49 lbs |
| Width: | 4.06 in |
| Front grille material: | Aluminium |
| Chassis material: | Aluminium |
| Weight: | 46.96 lbs |
|---|---|
| Material thickness: | 0.59 in |
| Design: | Bass reflex |
| Surface coating: | Polyurea |
| Width: | 12.01 in |
| Depth: | 15.87 in |
| Front grille material: | Aluminium |
| Height: | 23.9 in |
| Number of handles: | 1 |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Height: | 80.79 in |
|---|---|
| Depth: | 15.87 in |
| Width: | 12.01 in |
| Weight: | 67.68 lbs |
| Included accessories: | Mains cable |
|---|
