MAILA SUB 15
15" Powered Bass Reflex PA Subwoofer
$2,599.00
Backordered – More on the Way!
Product information "MAILA SUB 15"

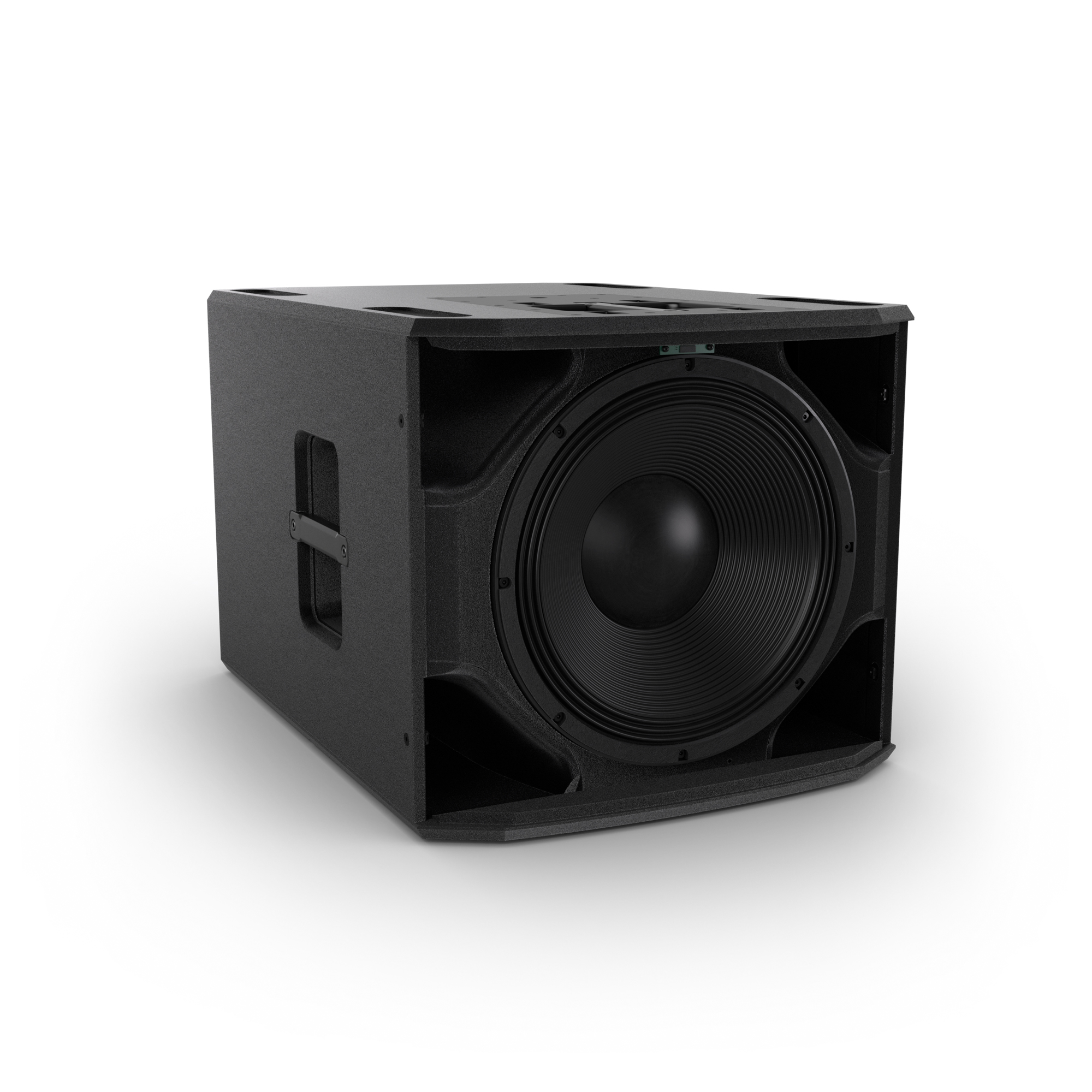

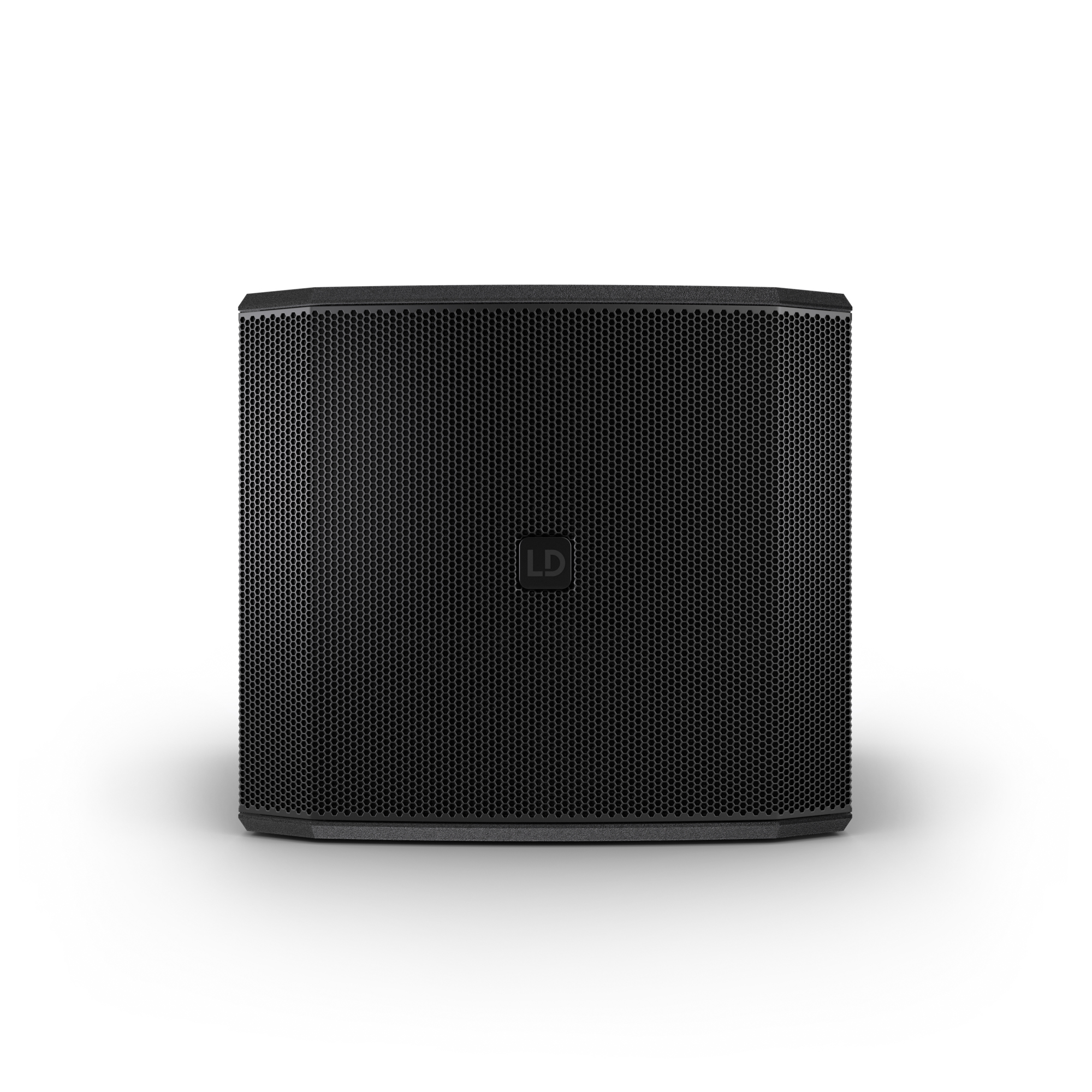

MAILA SUB 15 is the compact, low-frequency option within the active MAILA system, delivering strong bass extension in a compact housing. The 1.25 kW 1 × 15" bass reflex subwoofer, with its SysCore® DSP delivers controlled low-end with the punch and definition required for modern live sound.

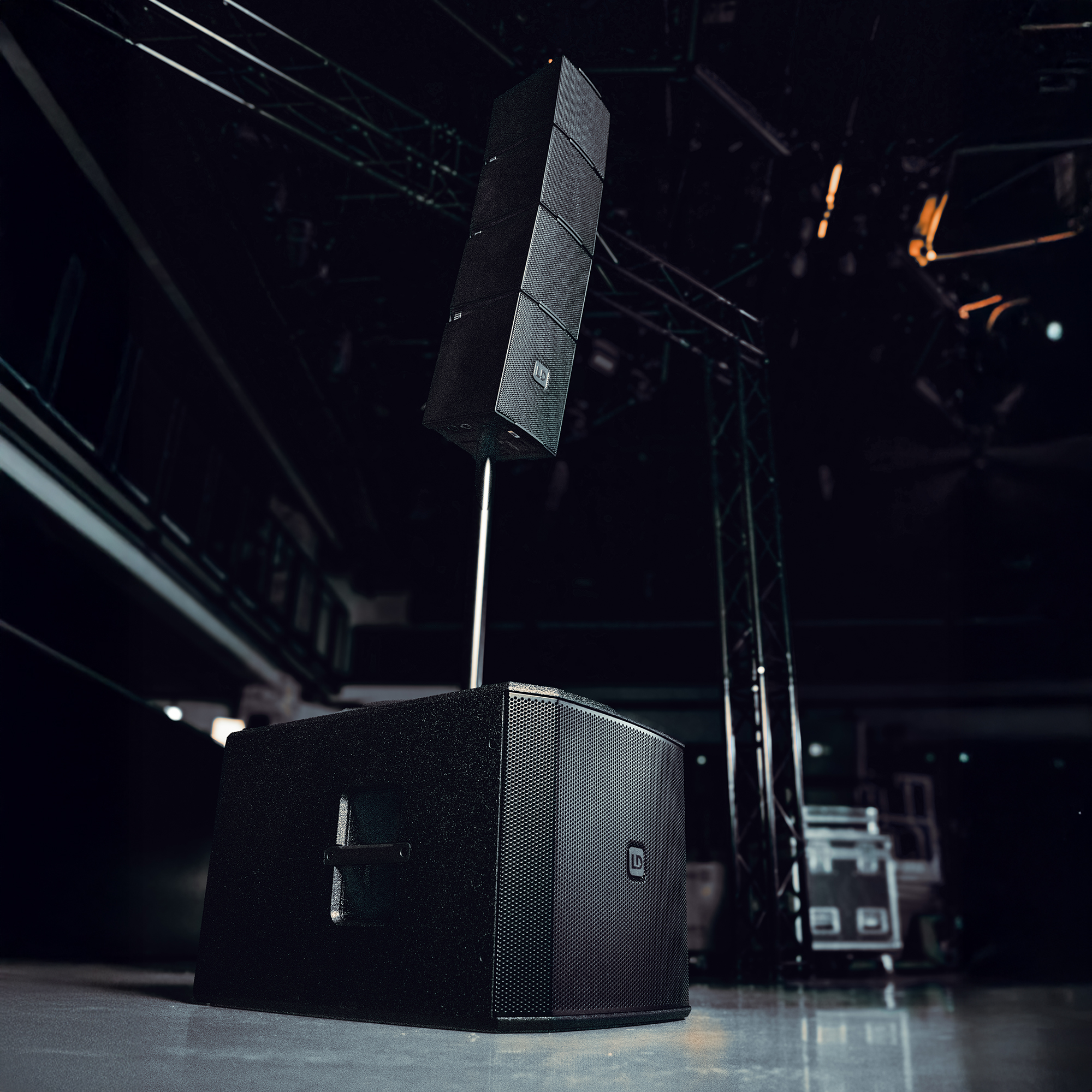

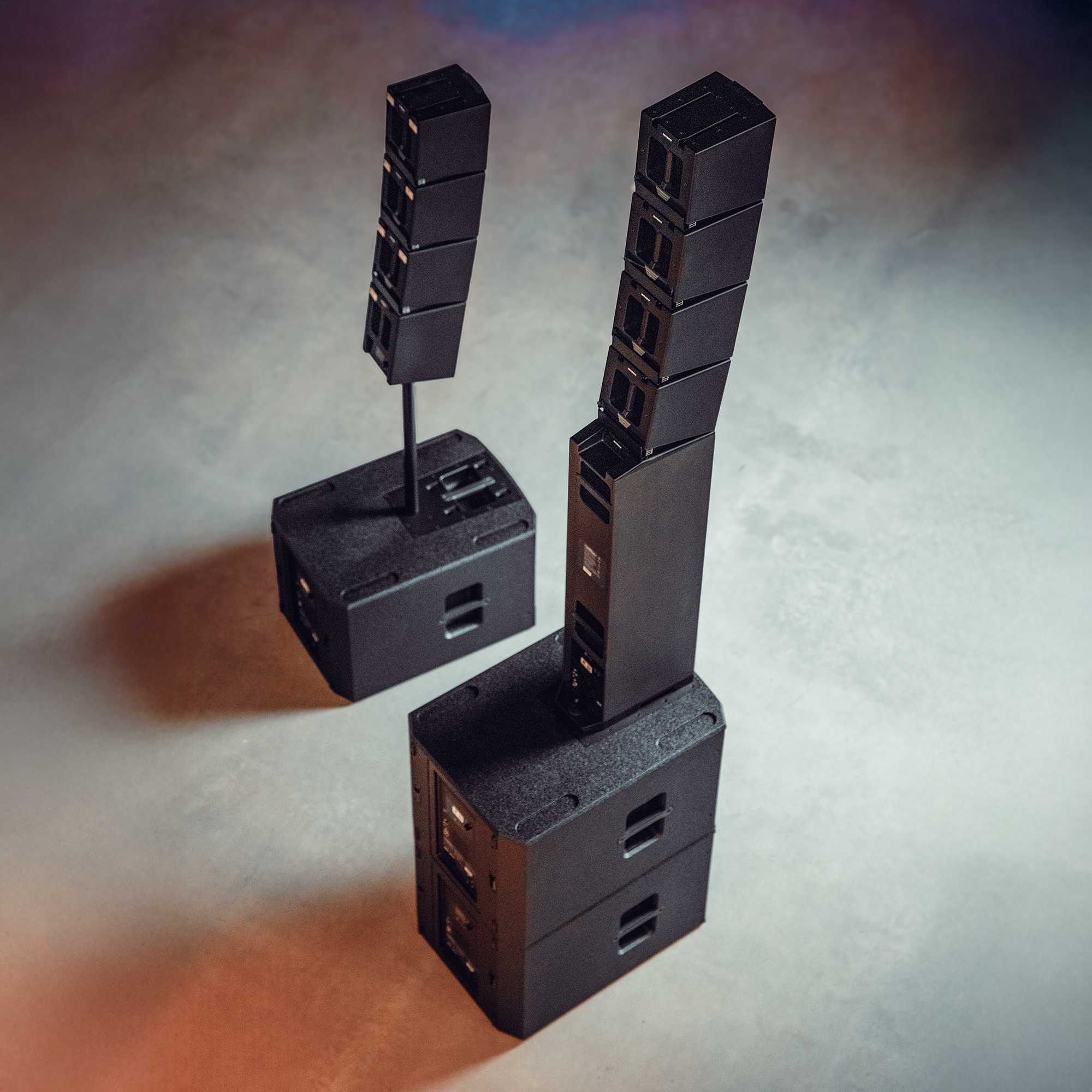

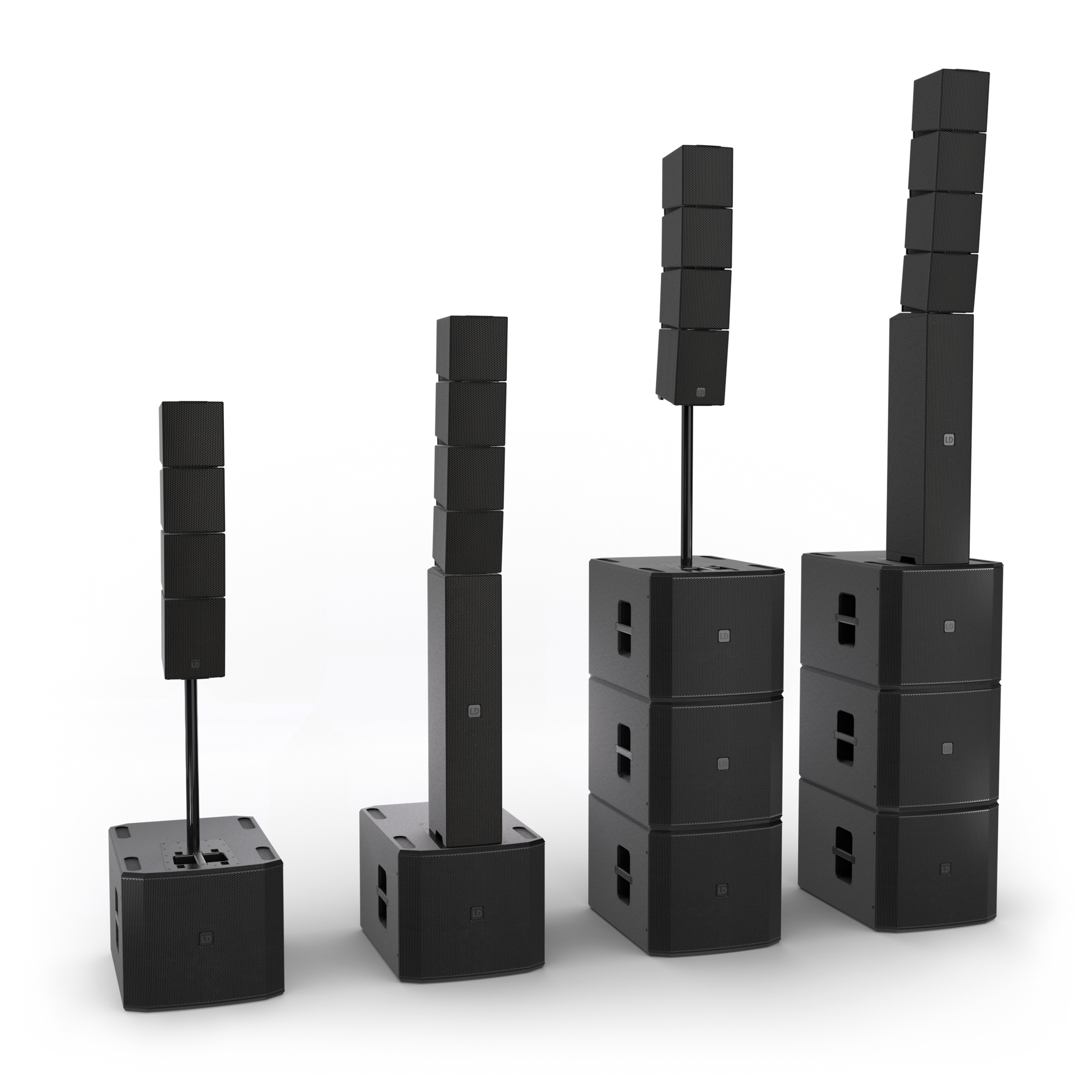

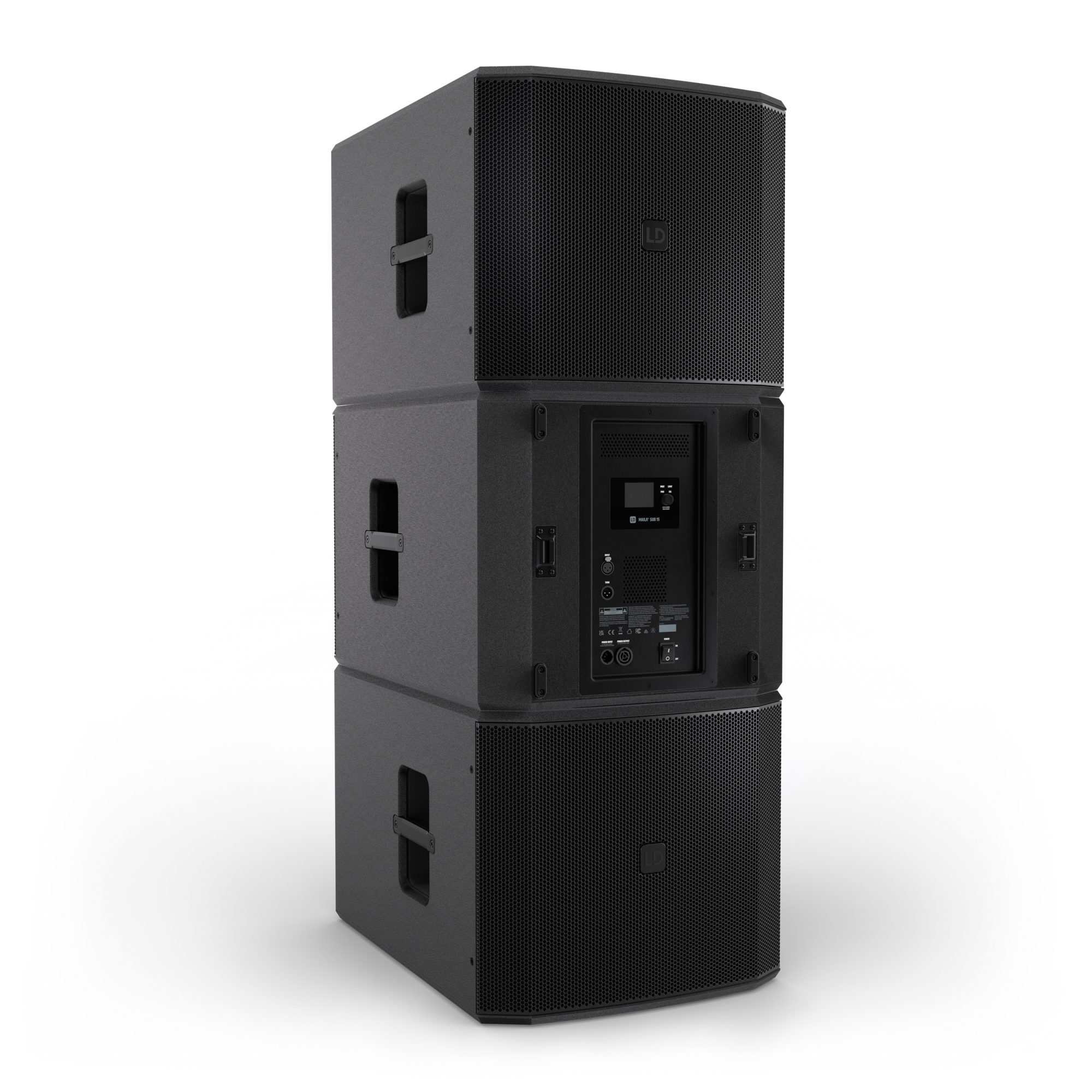

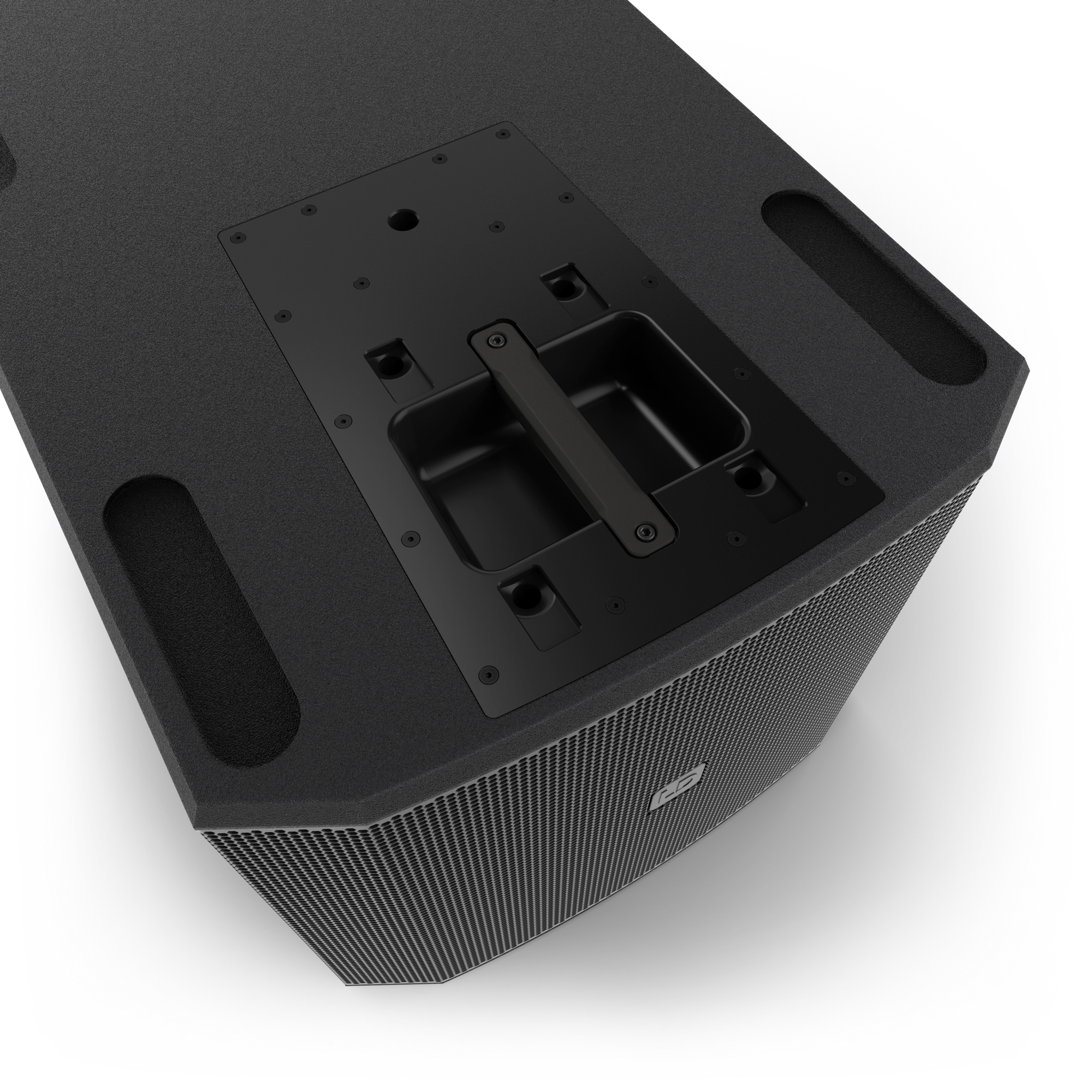

SUB 15 supports ground stacks of up to three units. The docking plate on the top side allows a M20 speaker pole or a MAILA COL to be mounted directly onto the subwoofer.
The free MAILA app (iPadOS) connects via LogoLink® wirelessly to the subwooder, for quick setup, control and updates. Once connected, the app recognises the available MAILA components and enables the system to be set up quickly and easily. The wireless LogoLink® antennas are invisibly integrated into the LD logo of the MAILA SUB 15.
Built in a rugged wooden cabinet with a durable touring-grade polyurea coating, MAILA SUB 15 is designed to withstand demanding day-to-day use.
| Max. SPL peak (pink noise, halfspace/1 m, CF 4): | 132 dB |
|---|---|
| Amp class: | Class D |

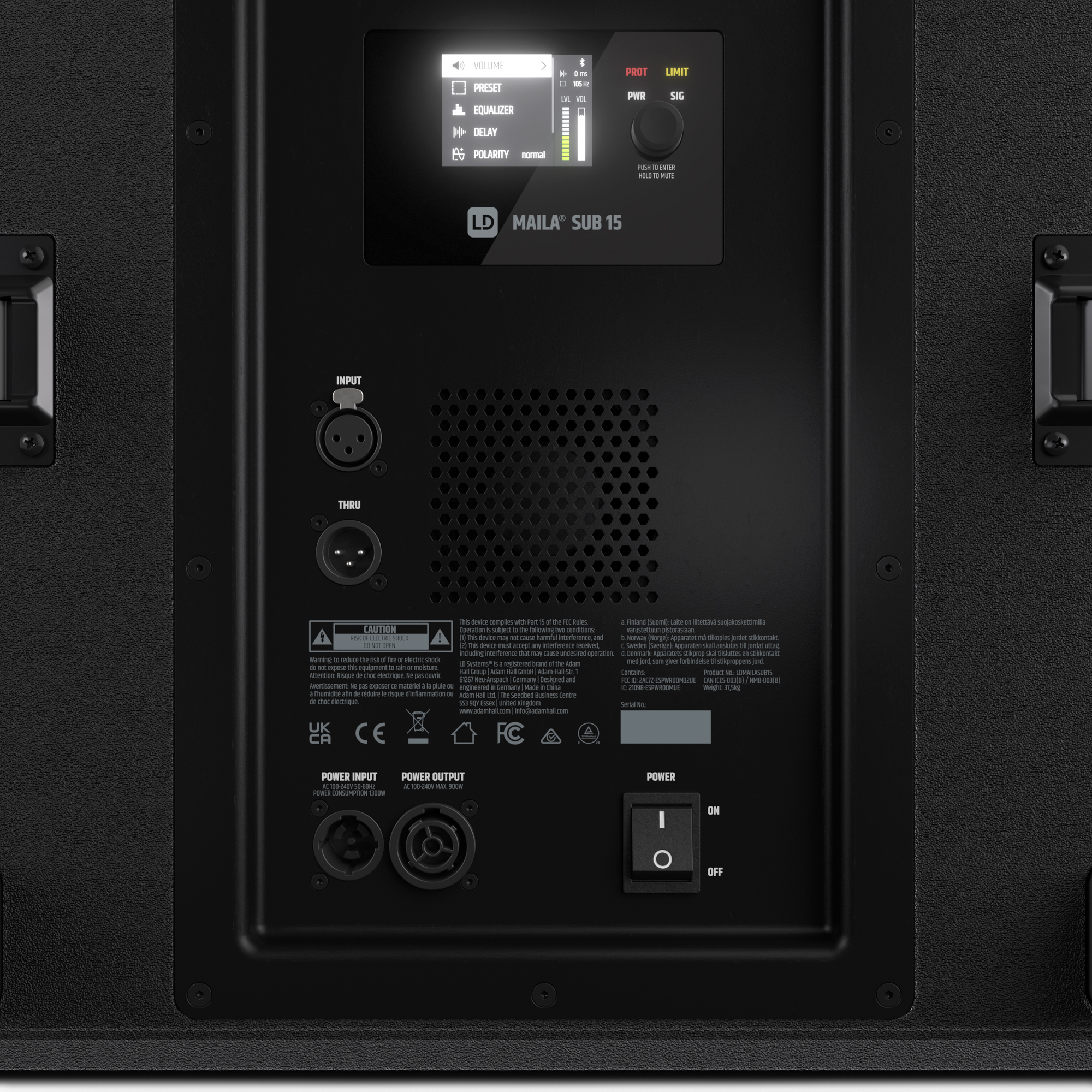

| Output connector types: | XLR 3-pole male |
| Protection features: | Overload, Overheating |
| Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %): | 124 dB |
| Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %): | 126 dB |
| Low frequency limit (-6 dB, rel. Avg.): | 34 Hz |
| Colour: | Black |
| Low frequency limit (-10 dB, rel. Avg.): | 31 Hz |
| Low frequency limit (-3 dB, rel. Avg.): | 37 Hz |
| Number of inputs: | 1 |
| Number of outputs: | 1 |
| Input connector types: | XLR 3-pole female |
| RMS output power: | 1250 W |
| Bluetooth® version: | Bluetooth® 4.2 |
|---|
| Input impedance (balanced): | 20 kΩ |
|---|
| Audio processing: | Fully parametric 10-band EQ, Delay Line, Presets |
|---|---|
| AD/DA converter bit depth: | 24 Bit |
| AD/DA converter sampling rate: | 48 kHz |
| Magnet: | Neodymium |
|---|---|
| Voice coil: | 4 " |
| Size: | 15 " |
| Operation voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
|---|---|
| Rated power: | 750 W |
| Mains connector: | Mains socket indoor power in male & powerCON® |
| Power supply type: | Switched-mode power supply (SMPS) |
| Design: | Bass reflex |
|---|---|
| Front grille material: | Aluminium |
| Cabinet material: | Birch multiplex |
| Number of handles: | 3 |
| Coating: | Polyurea |
| Cooling system: | Convection cooling |
|---|
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Width: | 21.26 in |
|---|---|
| Weight: | 83.78 lbs |
| Depth: | 29.96 in |
| Height: | 18.66 in |
