DAVE 12 G4X
Compact 2.1 powered PA system
$1,499.99
Backordered – More on the Way!
Product information "DAVE 12 G4X"
Whether you're a DJ, a live combo, a solo entertainer or at your next party, you need an all-round PA for everyday live performance that delivers professional sound for a variety of applications. Also on your list of essentials: a wide range of connections and accessory options for fast and flexible on-site setup, and maximum reliability. To put it in a nutshell: your PA has to give its best around the clock.

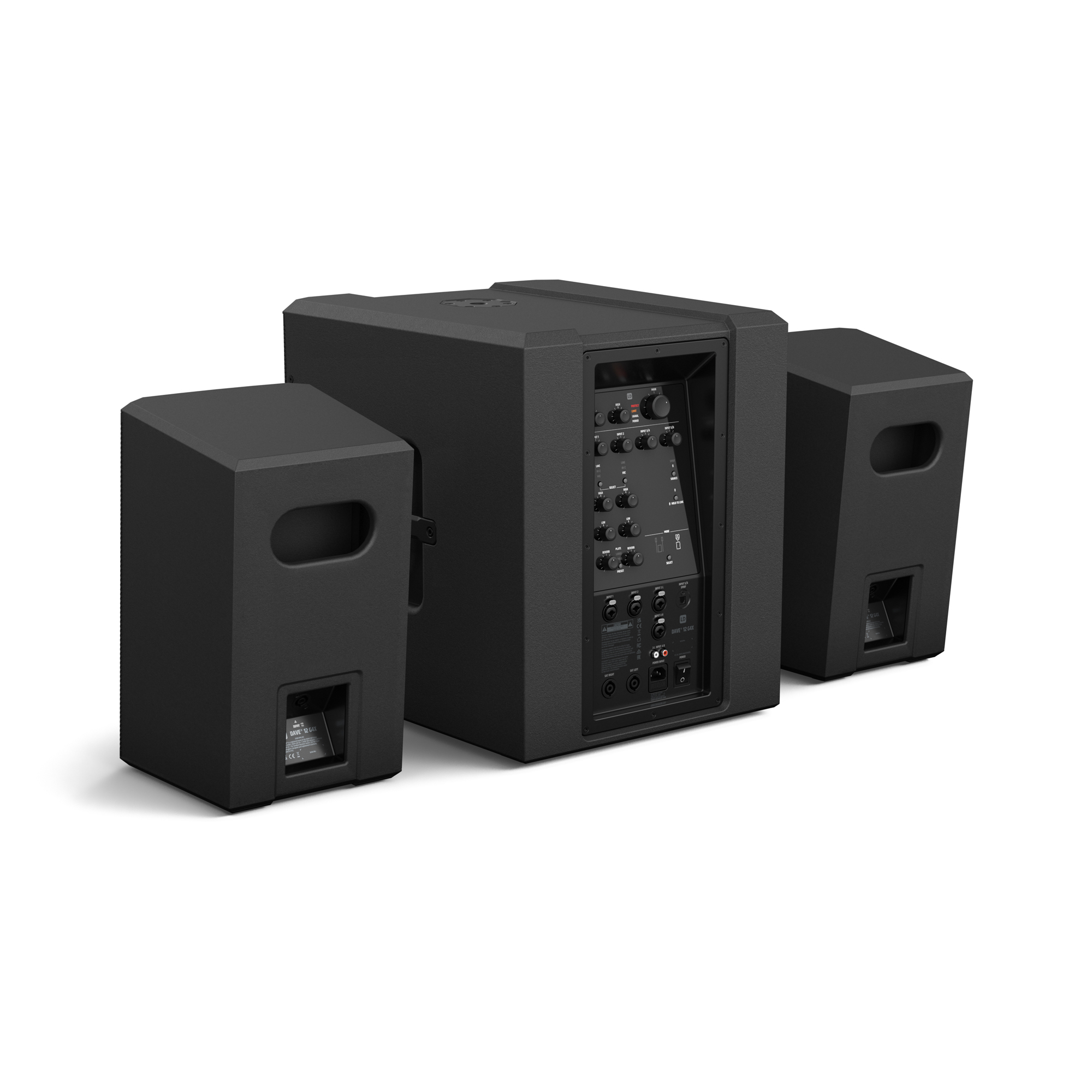

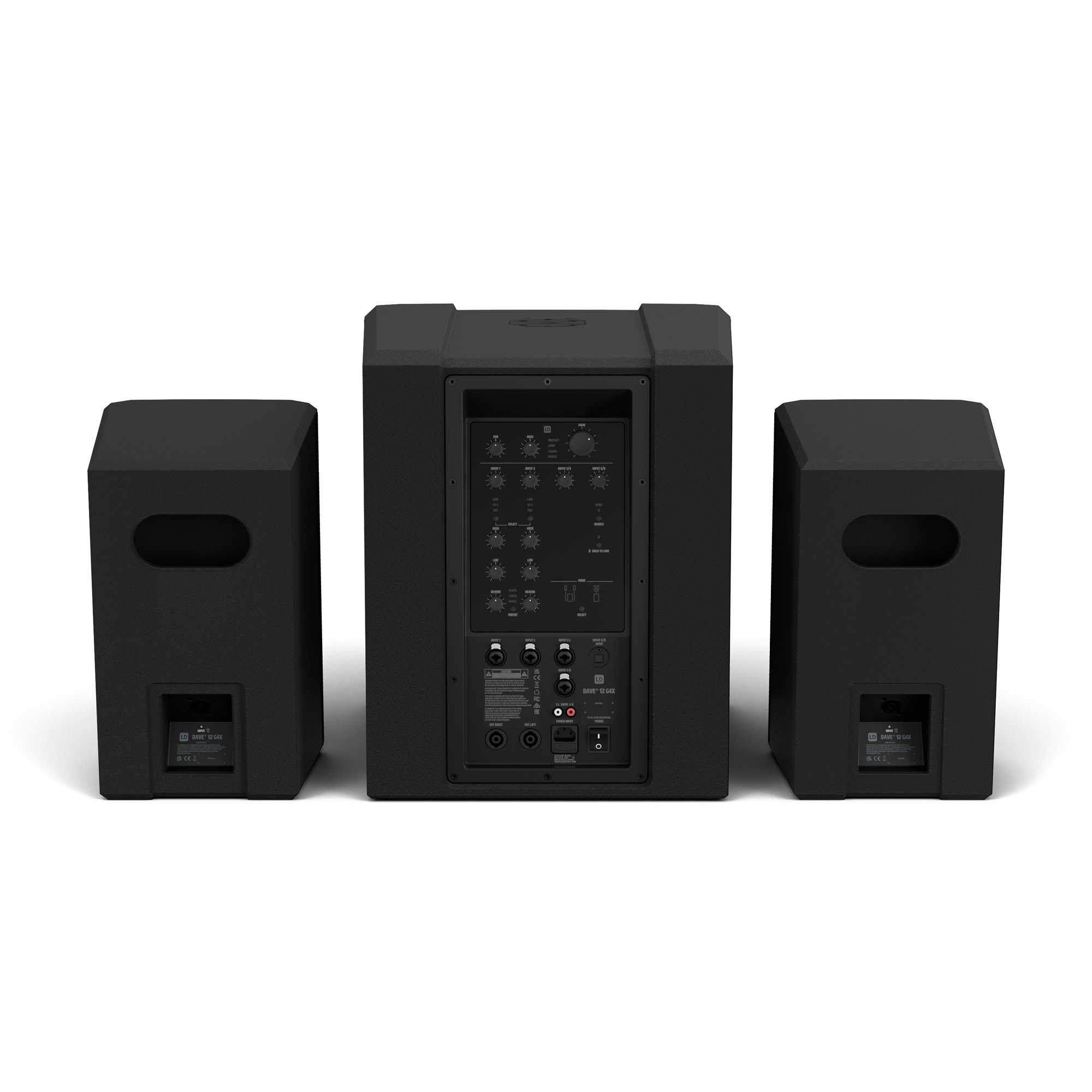

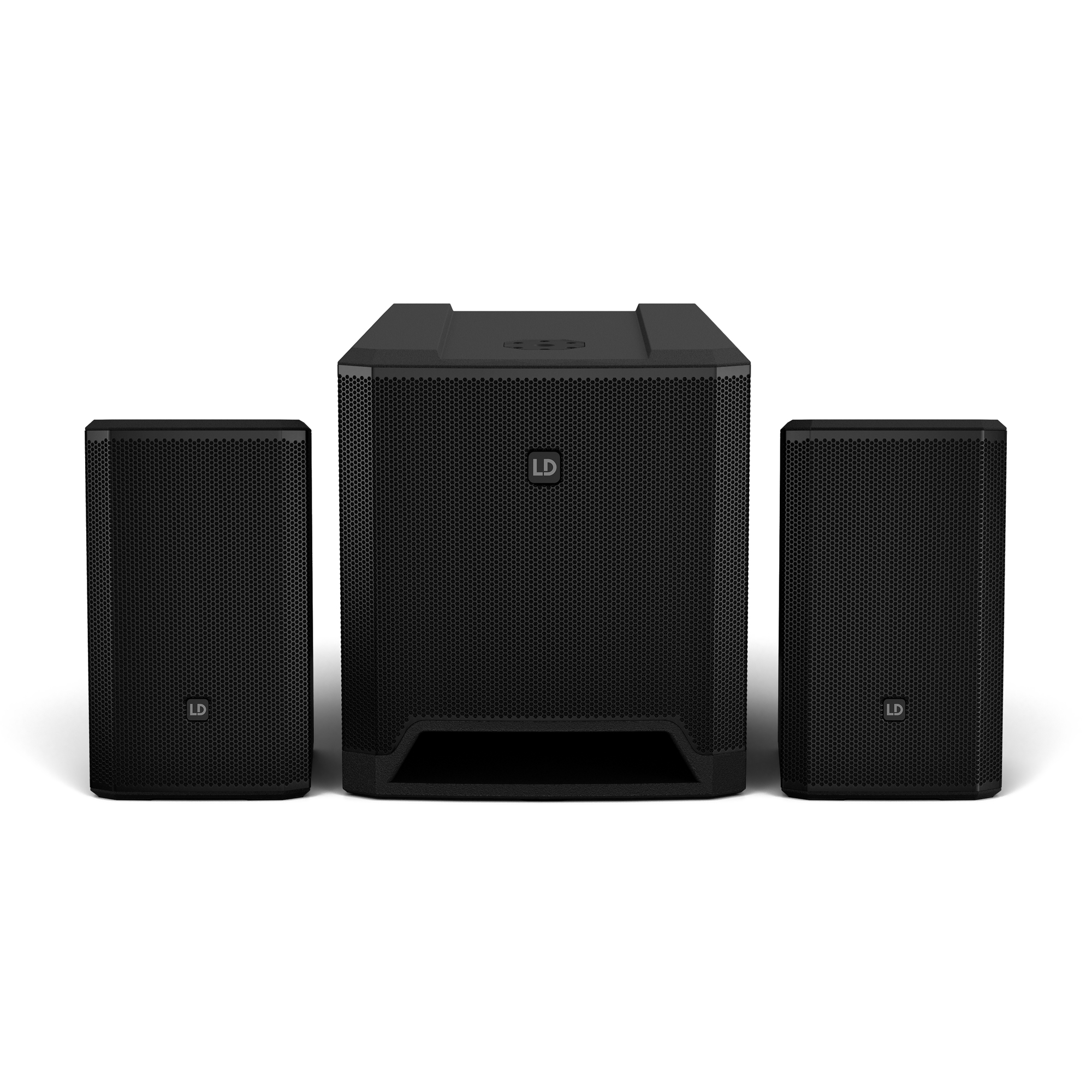

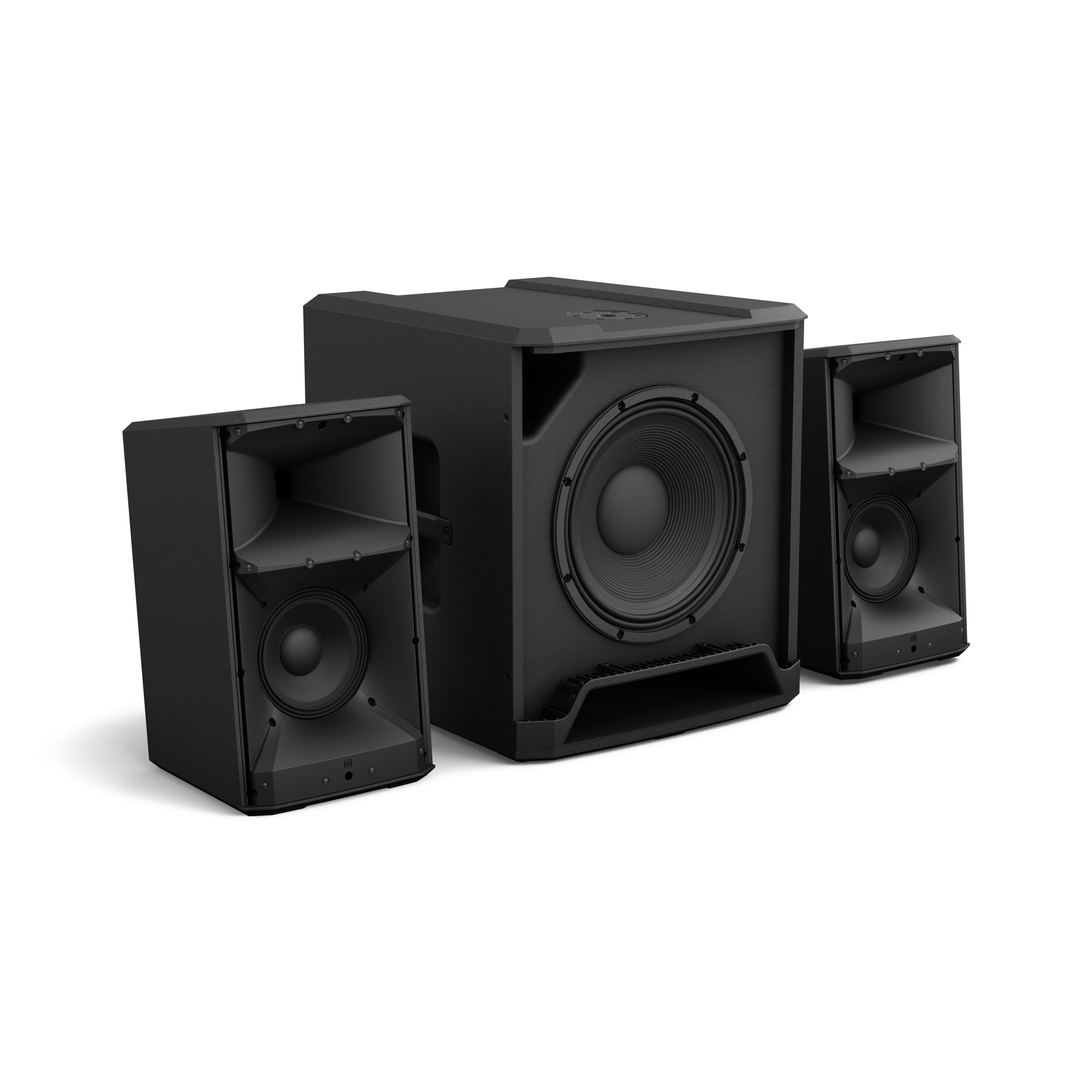

With the DAVE 12 G4X, your search is over. This powered compact PA - which is made up of a 12" subwoofer and two 6.5" satellites (total power: 1460 W peak) - doesn't just deliver a new, modern design with numerous handling optimisations. It also offers an integrated 6-channel mixer with all the important input options you could ever need. This allows you to create a wide variety of setups and combinations of instruments, vocals and audio sources - both wired and wireless - thanks to integrated Bluetooth for easy streaming via a smartphone or tablet.

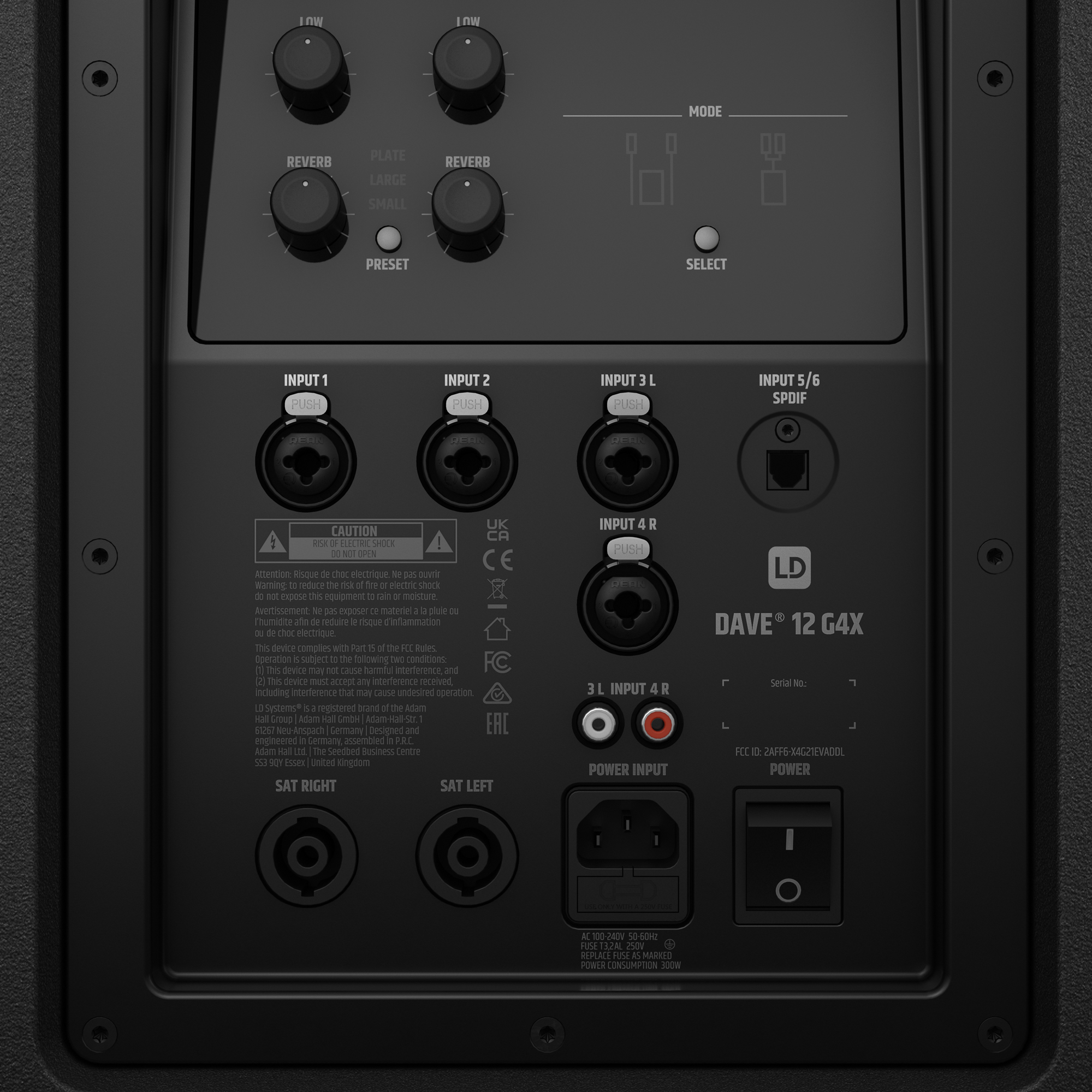

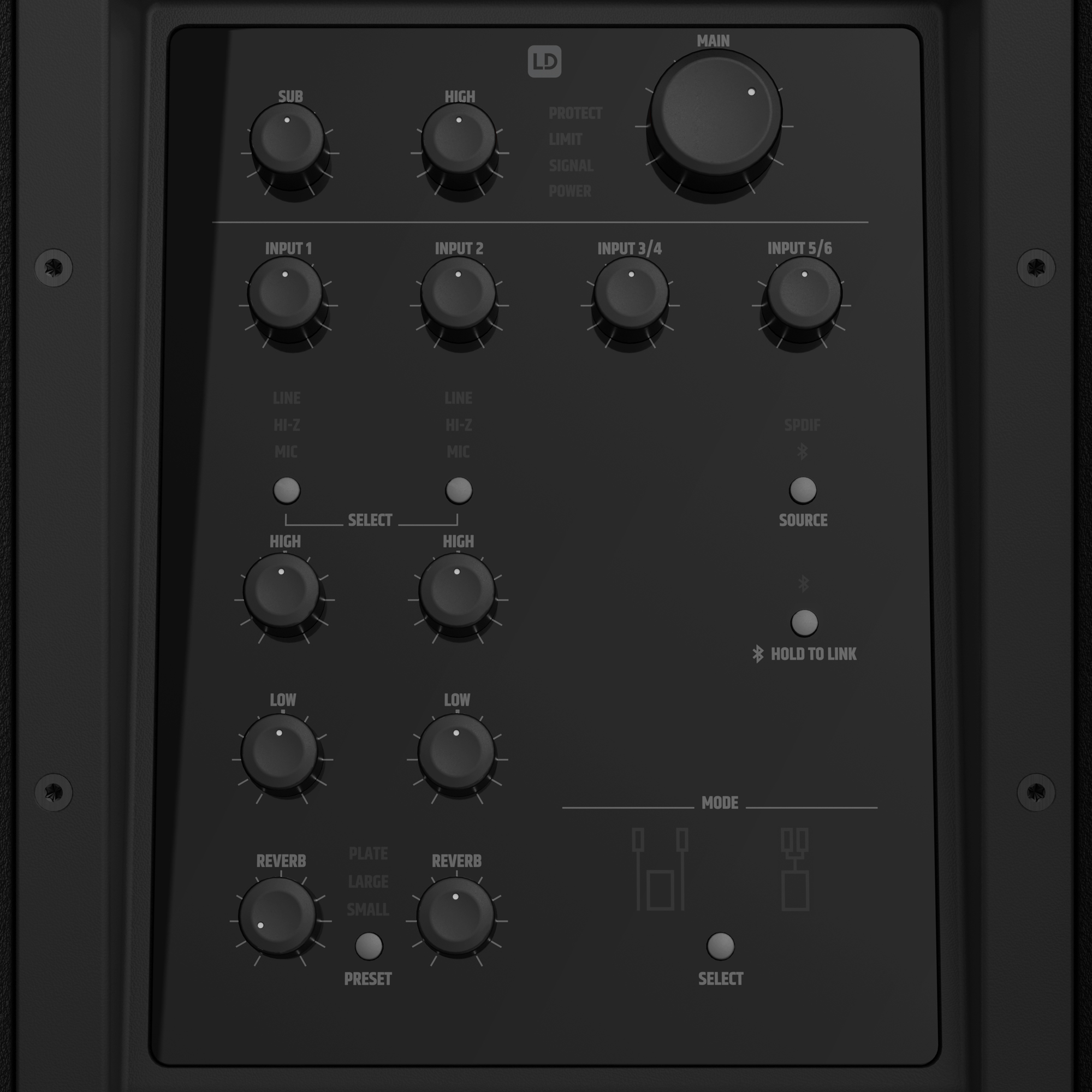

The first two channels of the mixer are designed as channel strips Here, you can connect either a microphone, a high-impedance instrument - such as a guitar and/or bass - or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.
The DAVE 12 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to expand your performance setup with a media player, computer or smartphone, with which you can play and control backing tracks, sound effects or music during your breaks. The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.
Speaking of impressive sound, the DAVE 12 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for a homogeneous and directional dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, colourless sound that brings the DAVE Series to a whole new level. The subwoofer, for example, is equipped with a larger voice coil and an optimised bass reflex system to reduce air flow noise to a minimum.

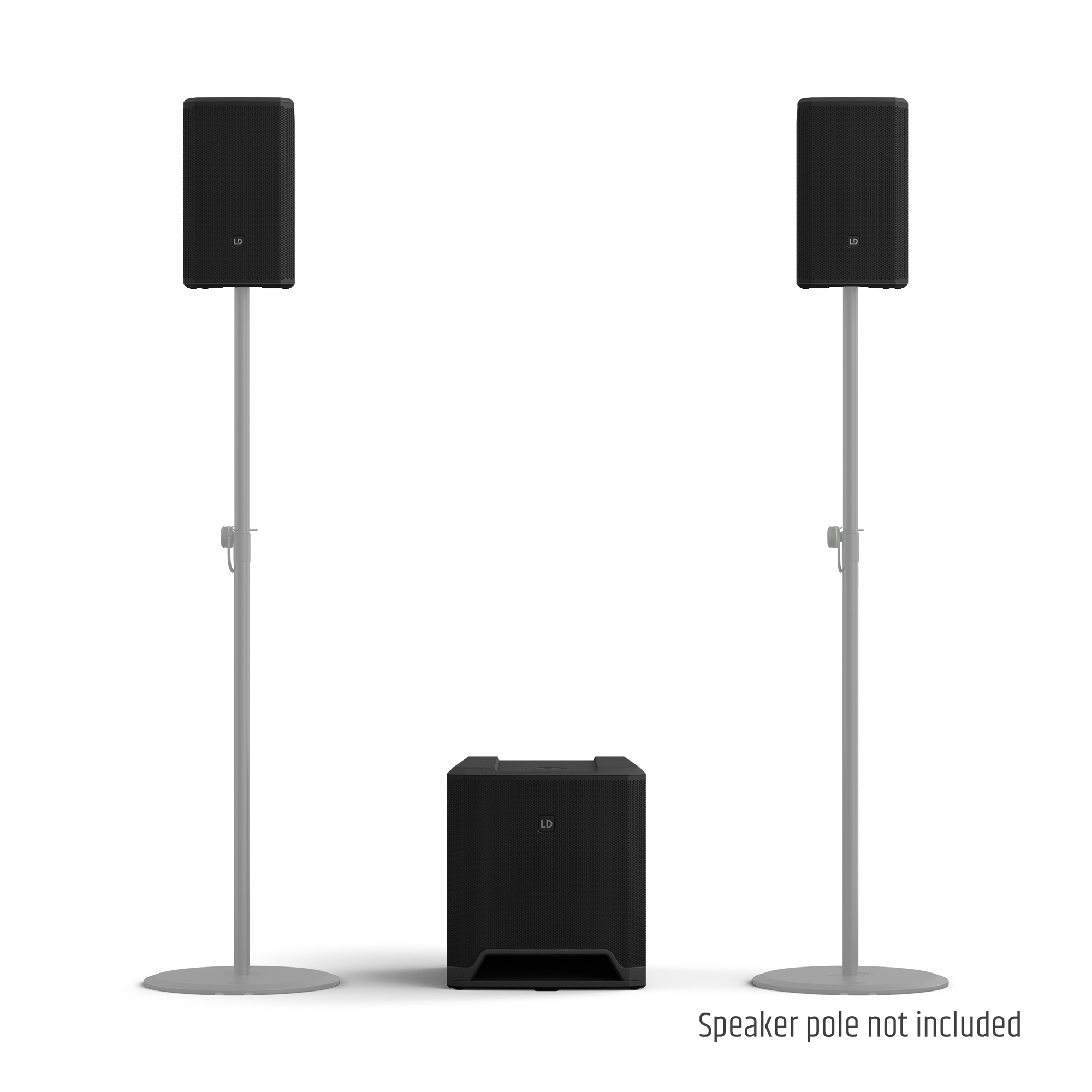

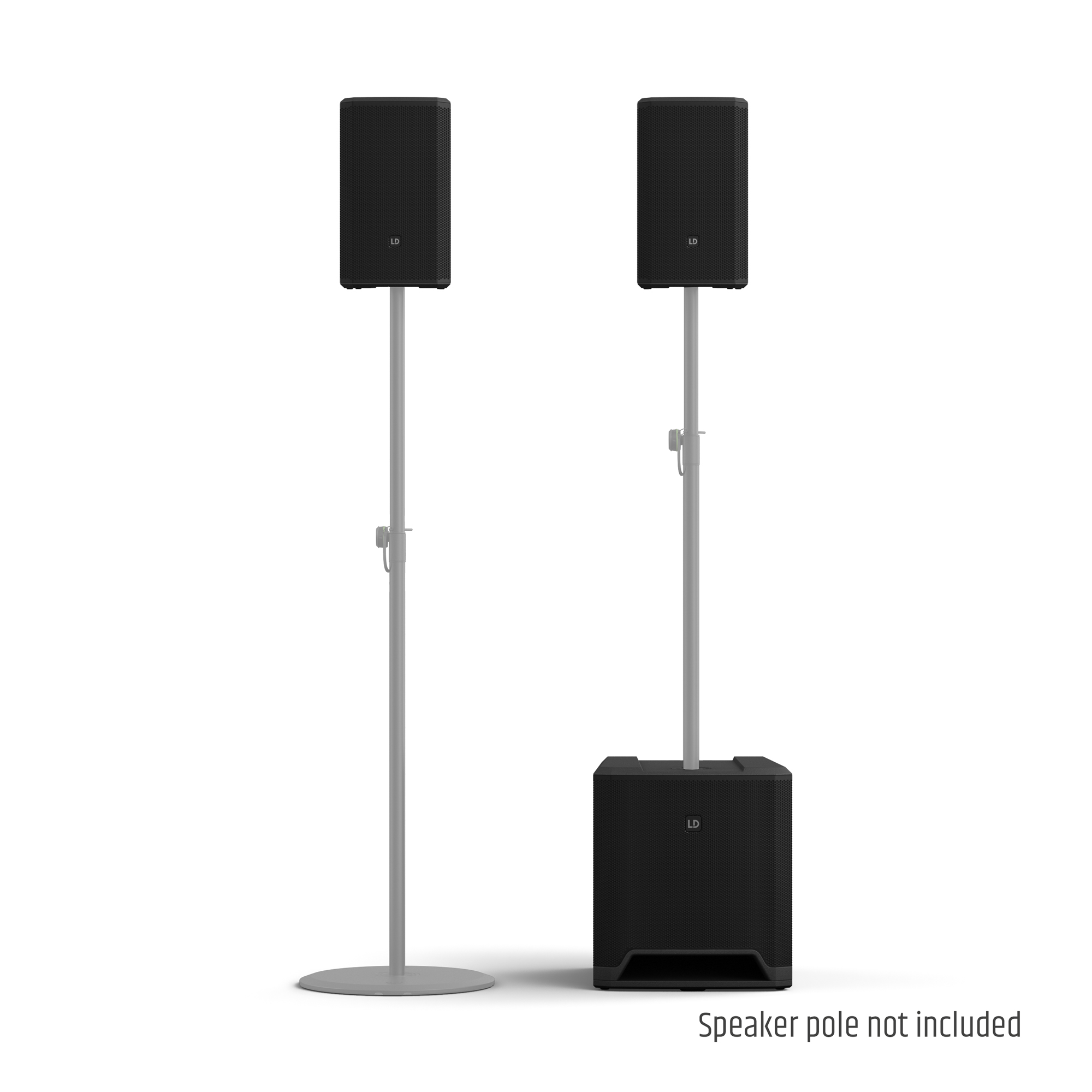

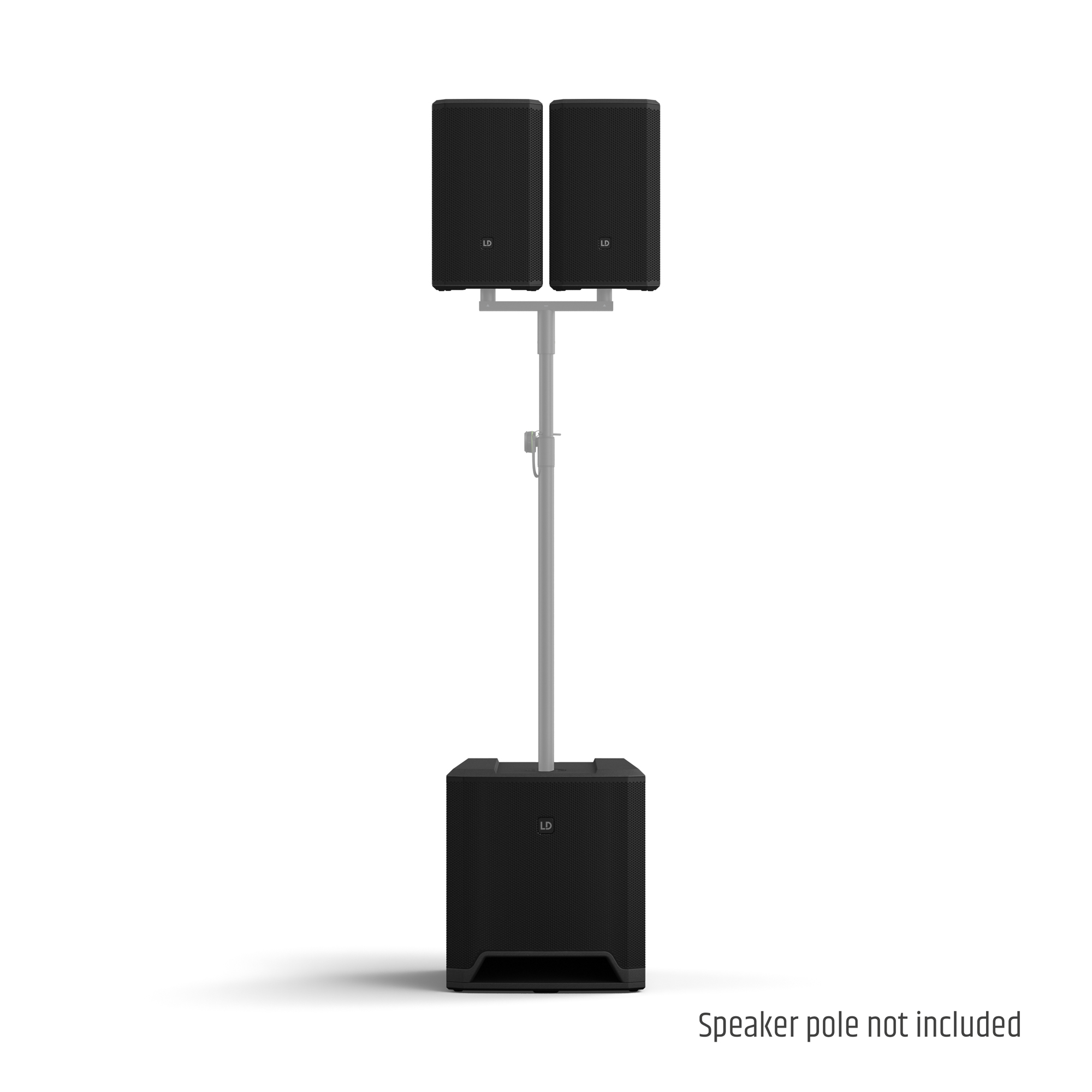

In general, the DAVE 12 G4X is predestined for flexible use. The selectable mode presets (for classic stereo use or set up with two closely spaced satellites on a T-stand above the subwoofer) contribute to this - the DAVE G4X is convincing in terms of sound in all configurations. For example, the Cluster Mode preset allows the interference-free coupling of two satellites by means of a special M/S split and reproduction of the stereo signal for more headroom and directivity.
LD Systems has also thought of all common applications when it comes to accessories. These range from custom-fit bags and a castor board to the T-stand mentioned above.
| Type: | Active |
|---|---|
| Output connector types: | Standard speaker connector 8-pole female & speakON® |
| Max. SPL average: | 120 dB |
| Frequency response (-10 dB, rel. Avg): | 37 - 20000 Hz |
| Input connector types: | XLR combo socket, RCA female, Optical digital socket |
| Beam angle: | Hor.: 90° / Vert.:50° |
| Amp class: | Class D |
| Speaker system: | 3-way system |
| Peak output power: | 1460 W |
| Number of inputs: | 4 |
| Colour: | Black |
| Crossover frequency: | 105 Hz |
| Number of outputs: | 2 |
| RMS output power: | 730 W |
| Max. SPL peak: | 127 dB |
| Bluetooth® version: | Bluetooth® 5.0 |
|---|---|
| Supported audio codecs: | SBC |
| Line-In connector type: | XLR combo socket, RCA female |
|---|---|
| Number of S/PDIF inputs: | 1 |
| Mic/Line-in connector type: | XLR combo socket |
| Number of line inputs: | 2 |
| Number of mic/line inputs: | 2 |
| S/PDIF connection type: | Optical digital socket |
| Input signal type: | Balanced & Unbalanced (parallel) |

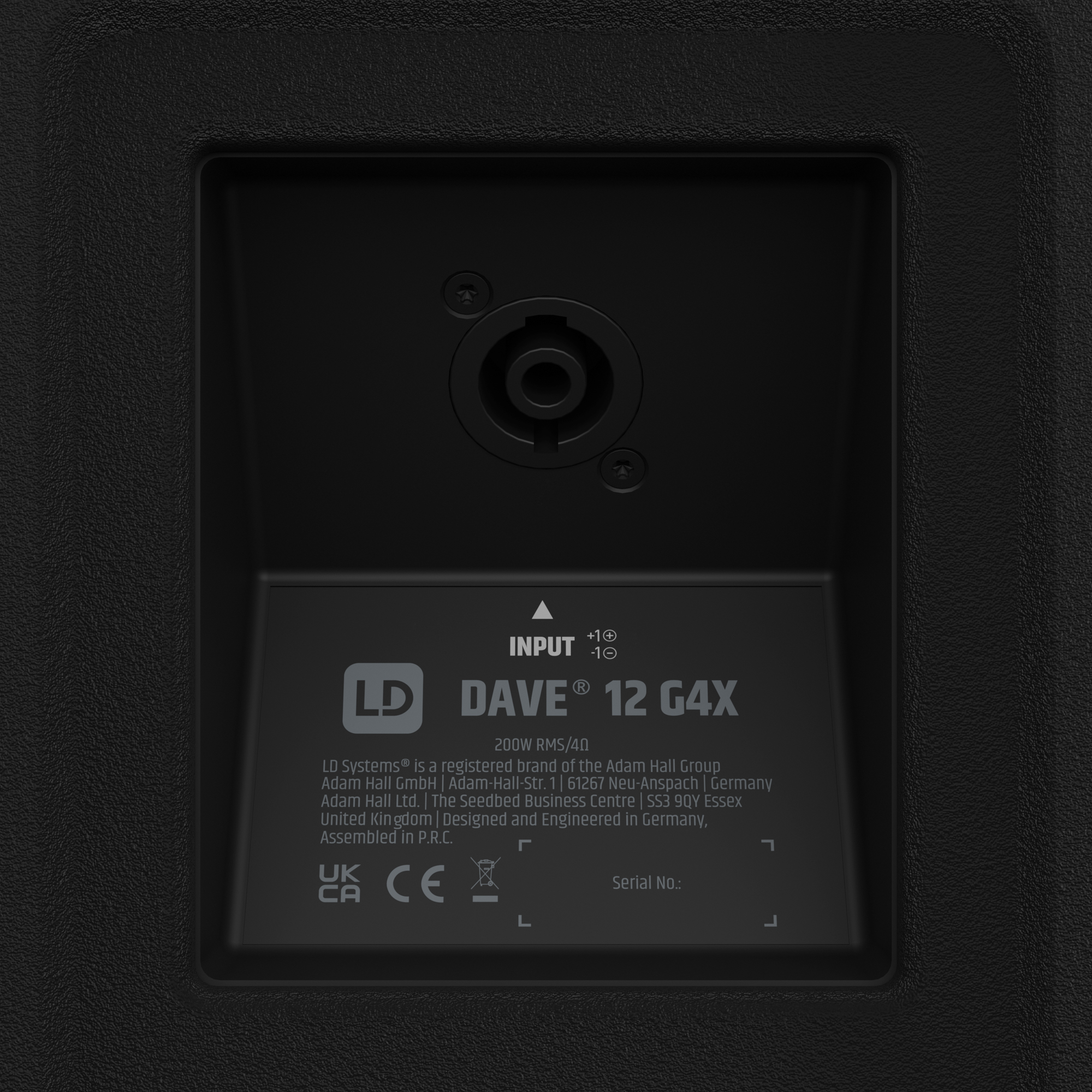

| Number of speaker outputs: | 2 |
|---|---|
| Speaker output connection type: | Standard speaker connector 4-pole female & speakON® |
| Mixer channels: | 6 |
|---|---|
| DSP model: | DynX® DSP (Gen.2) |
| Audio processing: | 2 band EQ (High, Low), Presets, Digital effects (DFX), Reverb |
| Mixer: | 1 |
| Manufacturer: | Custom Made |
|---|---|
| Size: | 12 " |
| Magnet: | Ferrite |
| Voice coil: | 2.5 " |
| Size: | 6.5 " |
|---|---|
| Manufacturer: | Custom Made |
| Voice coil: | 1.5 " |
| Driver size: | 0.5 " |
|---|---|
| Manufacturer: | Custom Made |
| Voice coil: | 0.04 in |
| Magnet: | Neodymium |
| Design: | Compression driver with CD waveguide |
| Mains connector: | IEC C14 plug male |
|---|---|
| Rated power: | 300 W |
| Operation voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
| Cooling system: | Convection cooling |
|---|
| Width: | 9.92 in |
|---|---|
| Weight: | 18.3 lbs |
| Depth: | 9.84 in |

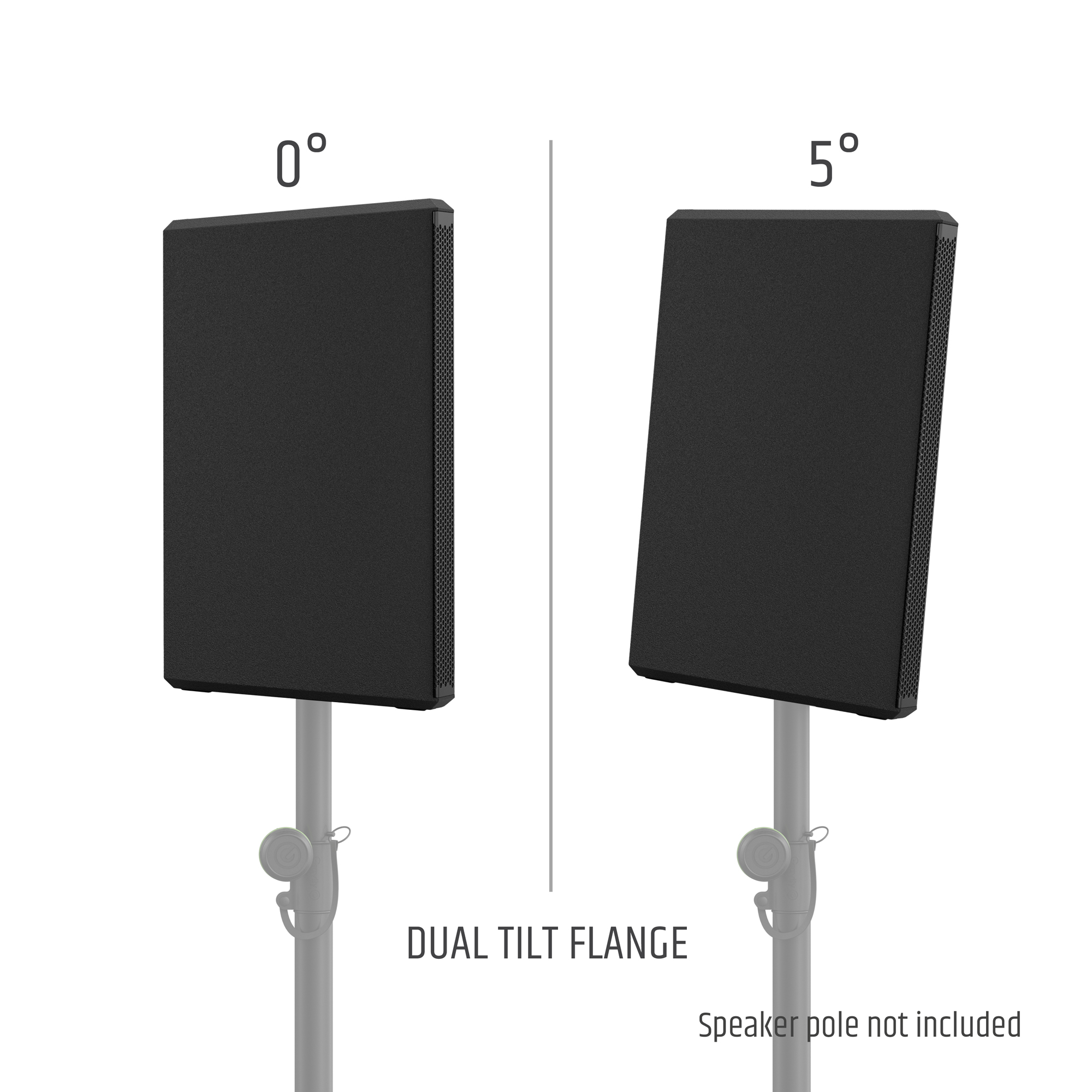

| Flange: | 36 mm (0°/5°) |
| Design: | Bass reflex |
| Housing coating: | Polyurea |
| Height: | 17.13 in |
| Chassis material: | Multiplex 12 mm, Multiplex 15 mm |
| Front grille material: | Aluminium |
| Weight: | 59.75 lbs |
|---|---|
| Design: | Bass reflex |
| Surface coating: | Polyurea |
| Height: | 19.88 in |
| Material: | Multiplex 18 mm, Multiplex 15 mm |
| Front grille material: | Aluminium |
| Width: | 17.72 in |
| Depth: | 20.08 in |
| Number of handles: | 2 |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Weight: | 96.34 lbs |
|---|
| Included accessories: | Mains cable |
|---|
