DAVE 10 G4X
Compact 2.1 powered sound system
$1,199.99
Backordered – More on the Way!
Product information "DAVE 10 G4X"
Whether you're a DJ, a live combo, a solo entertainer or at your next party, you need a sound system that can handle the daily grind of live performance - with professional sound for a variety of applications, with a wide range of connections and accessory options for quick setup on site, and with maximum reliability. In a nutshell, your sound system has to be at its best around the clock.

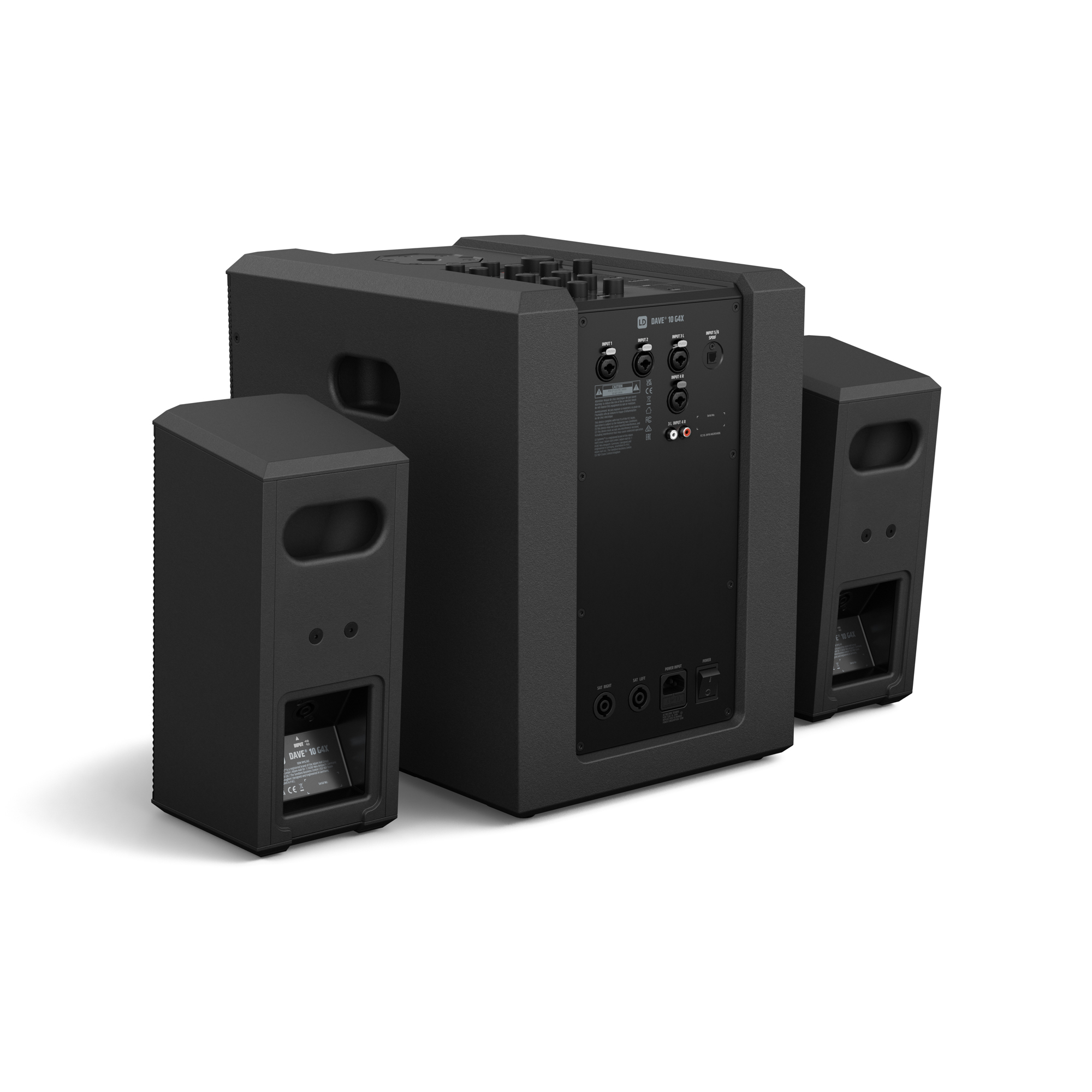

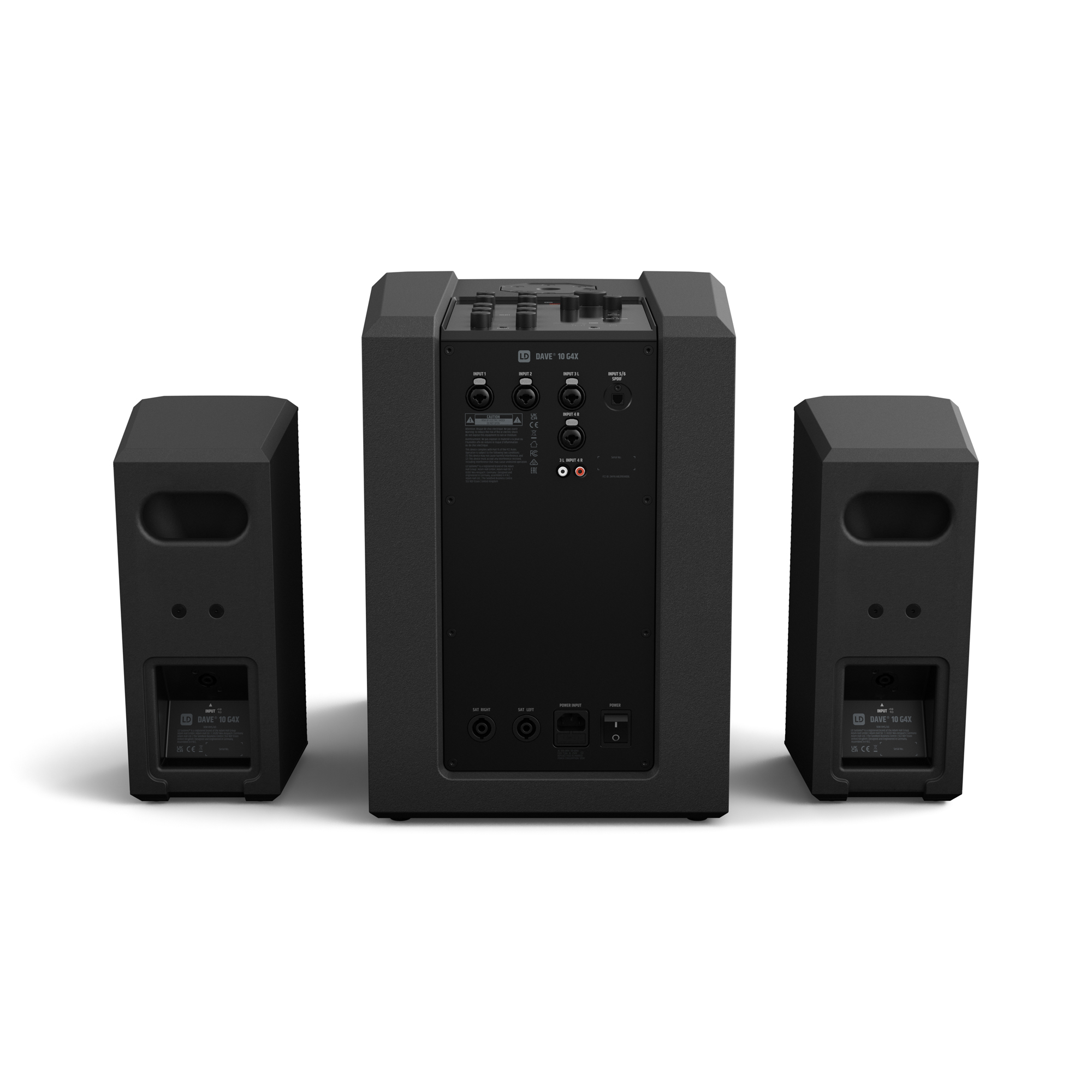

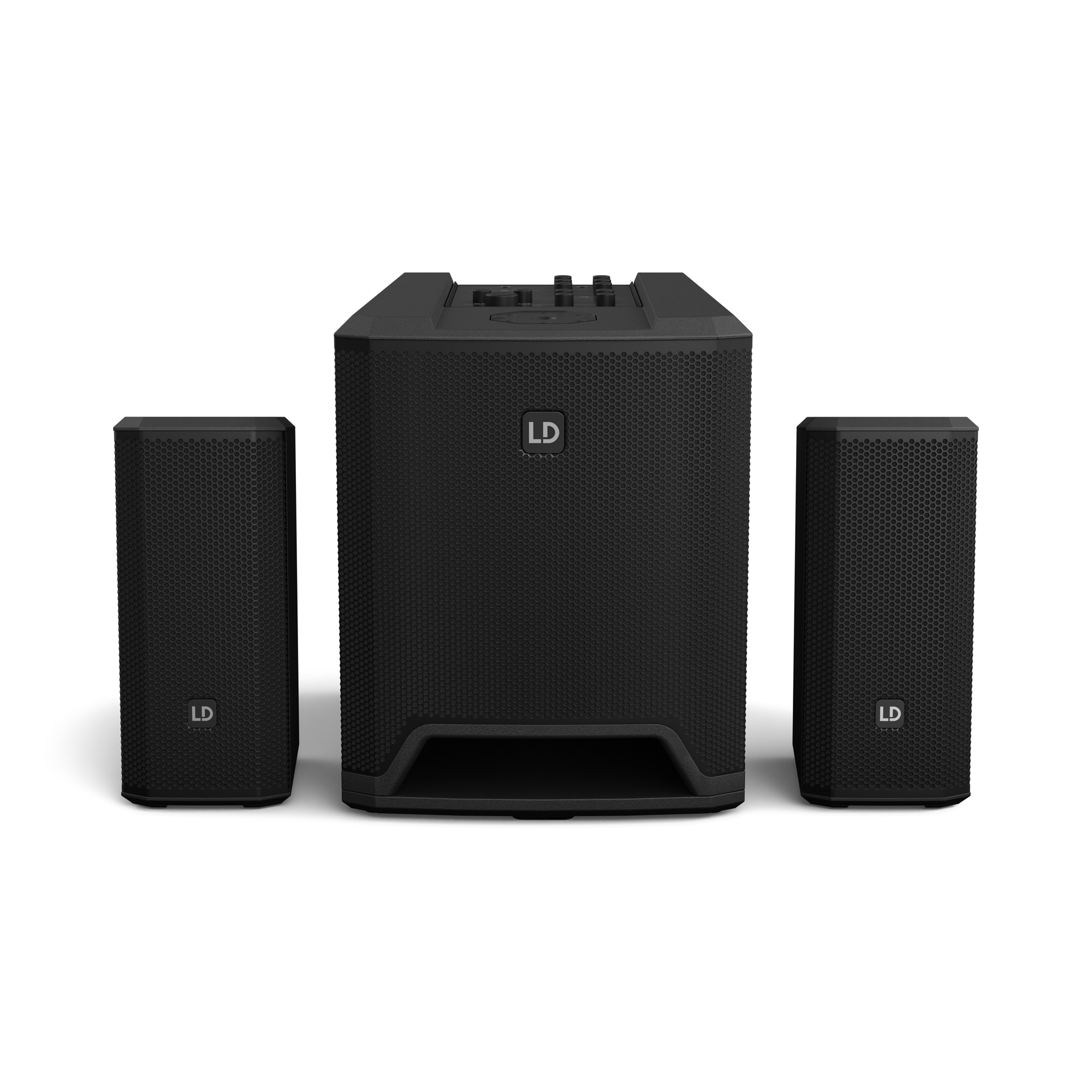

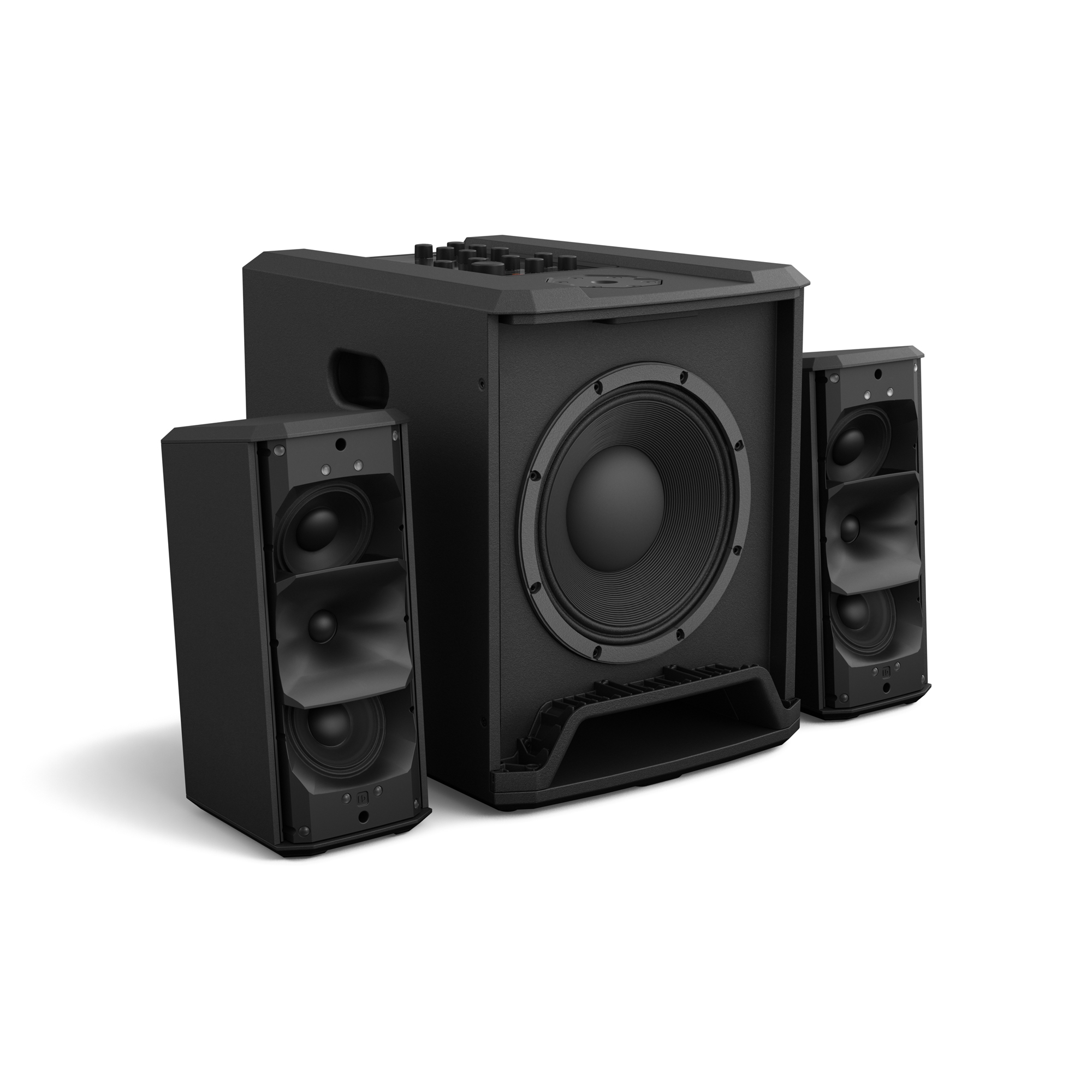

With the DAVE 10 G4X, your search is over. LD Systems has completely redesigned and fine-tuned the powered 2.1 sound system. All you have to do is set up the 10" subwoofer and the two satellites with double 4" speakers (total output: 680 W peak) and connect the equipment - and the sound will amaze you from the very beginning! With the integrated 6-channel mixer, you have all of your microphones, instruments and signals under control - and, thanks to integrated Bluetooth, you can also stream music wirelessly via a smartphone or tablet.

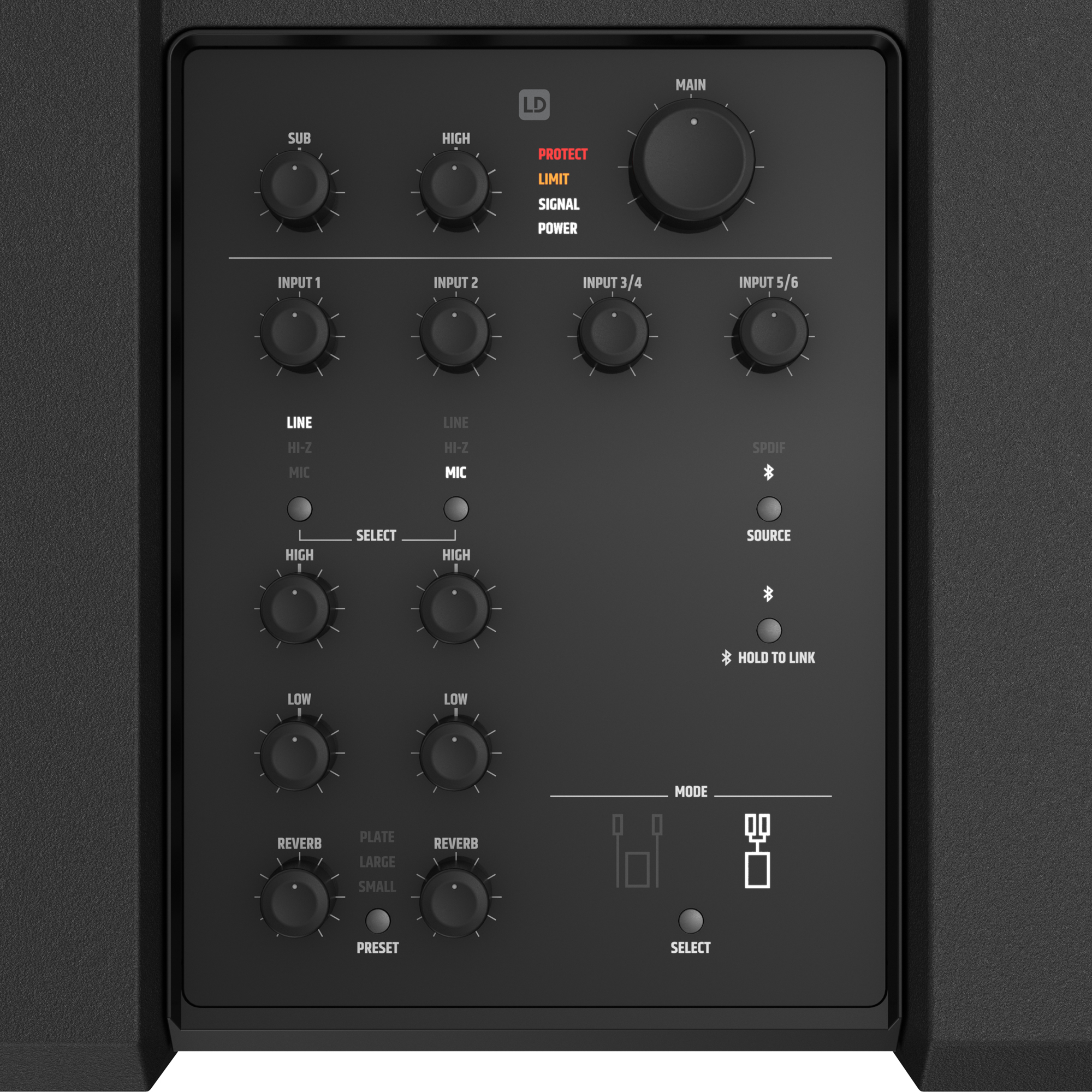

The first two channels of the mixer are designed as channel strips. Here, you can connect either a microphone, a high-impedance instrument - such as a guitar and/or bass - or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.
The DAVE 10 G4X sound system becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to connect a CD player, computer or smartphone. Need some backing tracks or sound effects for your gig, and want to run some music before the concert starts? No problem! The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.
Speaking of impressive sound, the DAVE 10 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when you want to use the sound system for lectures, speeches, or a panel discussion from time to time. The DAVE 10 G4X uses new dome tweeter and waveguides for homogeneous dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, distortion-free sound - but also minimal air flow noise thanks to the optimised bass reflex system in the subwoofer.

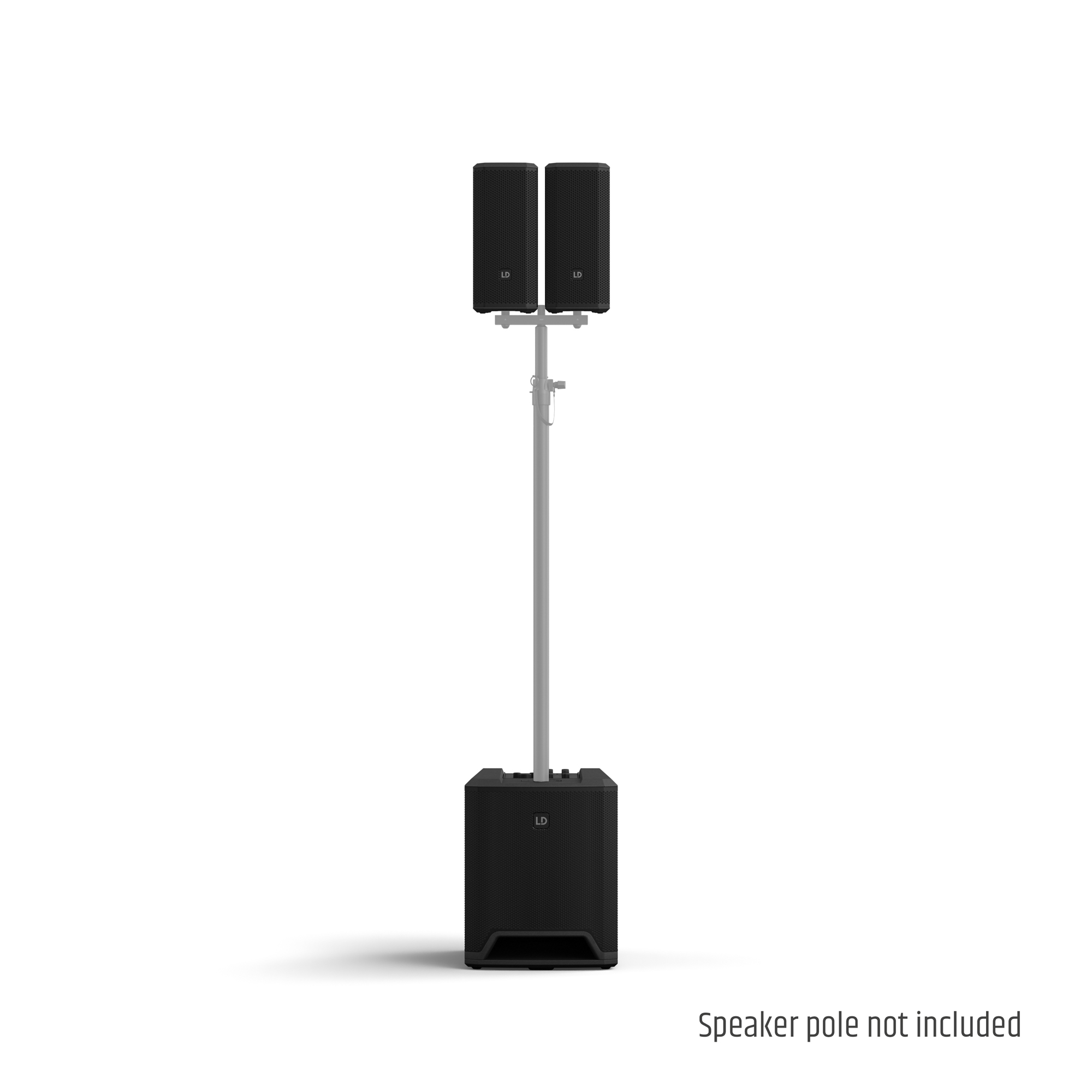

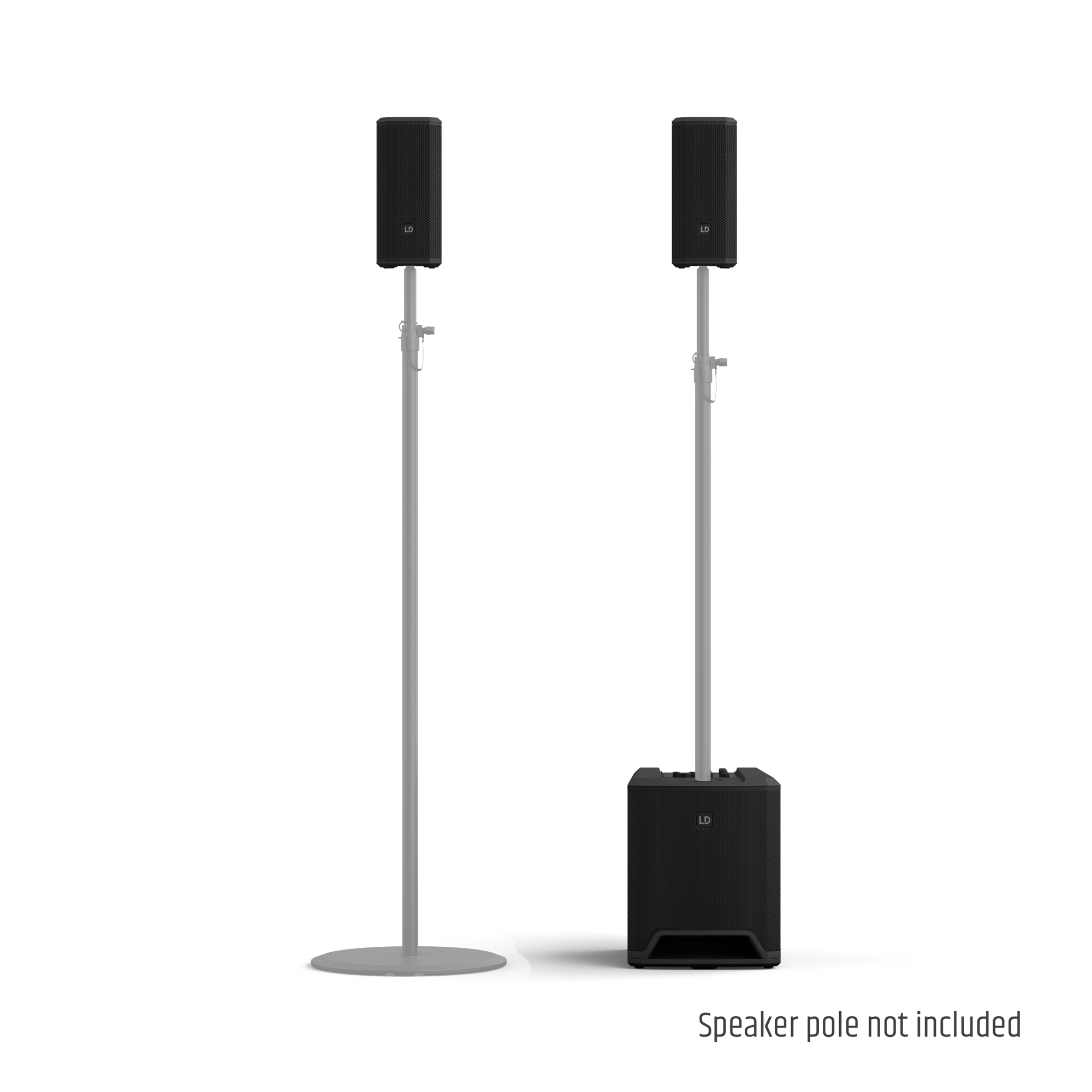

The DAVE 10 G4X sound system is a 2.1 stereo sound system with two selectable stereo presets. Typically, you will place the two satellites to the left and right of the room, or on a stage. The classic stereo preset is intended for this purpose. For a particularly space-saving setup, however, the two satellites can also be mounted on a single T-stand above the subwoofer. Since the satellites are very close together in this case, interference is inevitable. For this purpose, there is a special preset (Cluster Mode) with a special M/S distribution to reproduce the stereo signal without interference. This way, you also get more headroom and directivity.
LD Systems has thought of all common applications when it comes to accessories. These range from transport bags, a trolley and the T-stand mentioned above, a pole-mount stand, or a wall mount for the satellite.
| Type: | Active |
|---|---|

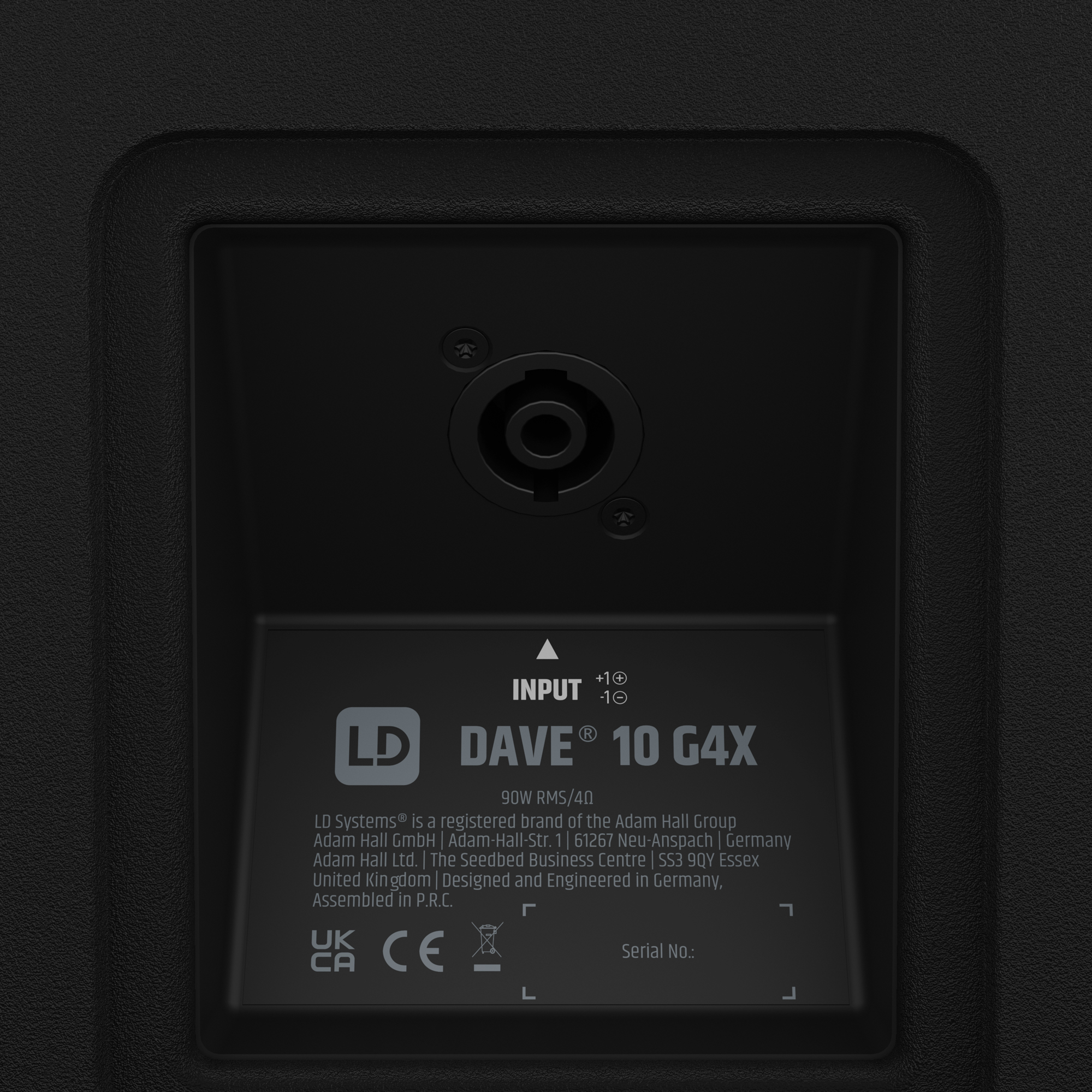

| Output connector types: | Standard speaker connector 8-pole female & speakON® |
| Frequency response (-10 dB, rel. Avg): | 37 - 20000 Hz |

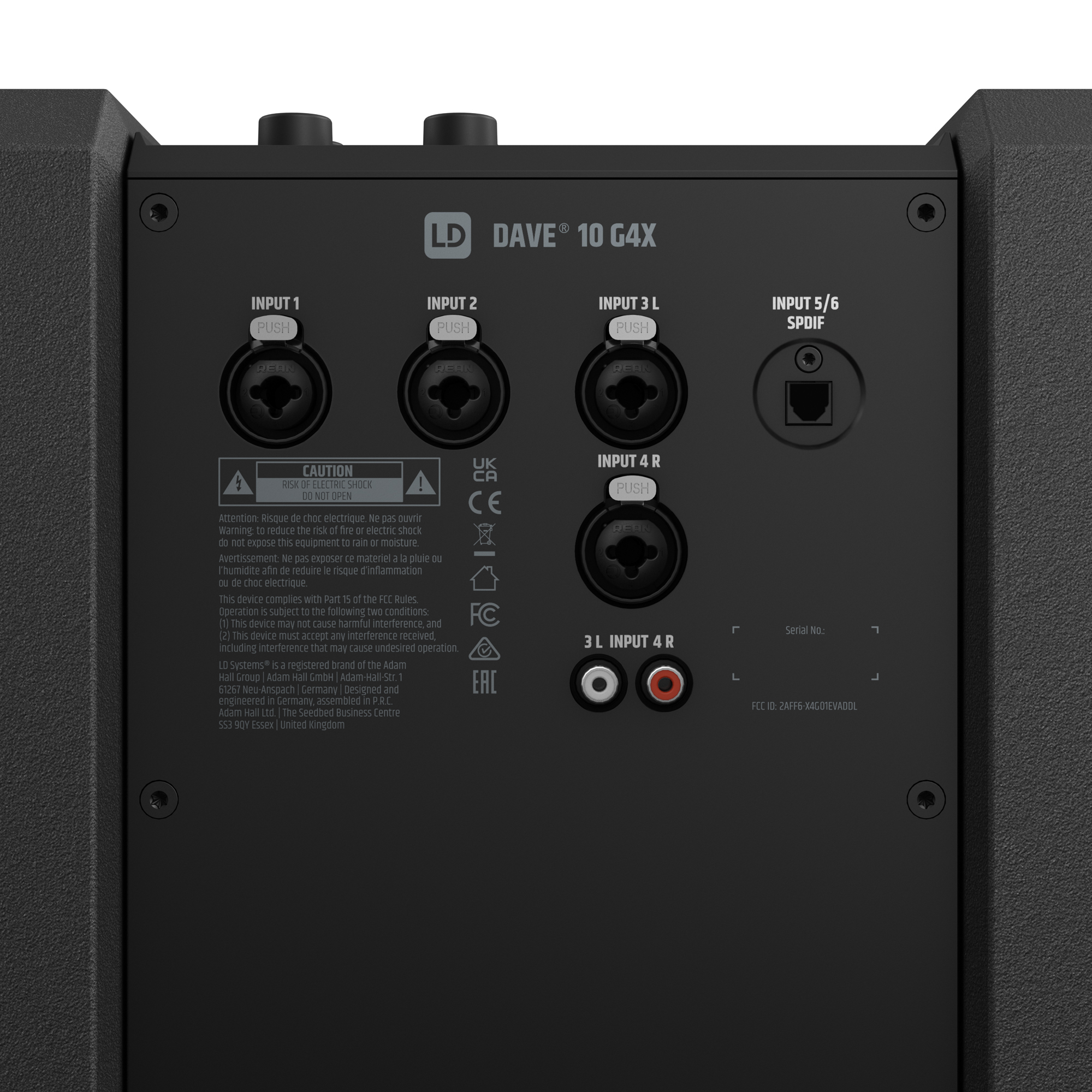

| Input connector types: | XLR combo socket, RCA female, Optical digital socket |
| Max. SPL peak: | 120 dB |
| Amp class: | Class D |
| Protection features: | Overload, Short circuit |
| Beam angle: | Hor.: 100° / Vert.:60° |
| Speaker system: | 3-way system |
| Max. SPL average: | 114 dB |
| Peak output power: | 680 W |
| Crossover frequency: | 110 Hz |
| Number of inputs: | 4 |
| Colour: | Black |
| RMS output power: | 340 W |
| Number of outputs: | 2 |
| Bluetooth® version: | Bluetooth® 5.0 |
|---|---|
| Supported audio codecs: | SBC |
| Line-In connector type: | XLR combo socket, RCA female |
|---|---|
| Number of S/PDIF inputs: | 1 |
| Mic/Line-in connector type: | XLR combo socket |
| Number of line inputs: | 2 |
| Number of mic/line inputs: | 2 |
| S/PDIF connection type: | Optical digital socket |
| Input signal type: | Balanced & Unbalanced (parallel) |
| Number of speaker outputs: | 2 |
|---|---|
| Speaker output connection type: | Standard speaker connector 4-pole female & speakON® |
| Mixer channels: | 6 |
|---|---|
| DSP model: | DynX® DSP (Gen.2) |
| Audio processing: | 2 band EQ (High, Low), Presets, Digital effects (DFX), Reverb |
| Mixer: | 1 |
| Manufacturer: | Custom Made |
|---|---|
| Voice coil: | 2 " |
| Magnet: | Ferrite |
| Size: | 10 " |
| Quantity: | 2 |
|---|---|
| Manufacturer: | Custom Made |
| Size: | 4 " |
| Voice coil: | 1 " |
| Manufacturer: | Custom Made |
|---|---|
| Driver size: | 0.04 in |
| Voice coil: | 0.04 in |
| Magnet: | Neodymium |
| Design: | Compression driver with CD waveguide |
| Mains connector: | IEC C14 plug male |
|---|---|
| Rated power: | 120 W |
| Operation voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
| Cooling system: | Convection cooling |
|---|
| Depth: | 6.69 in |
|---|---|
| Weight: | 8.82 lbs |
| Height: | 13.58 in |

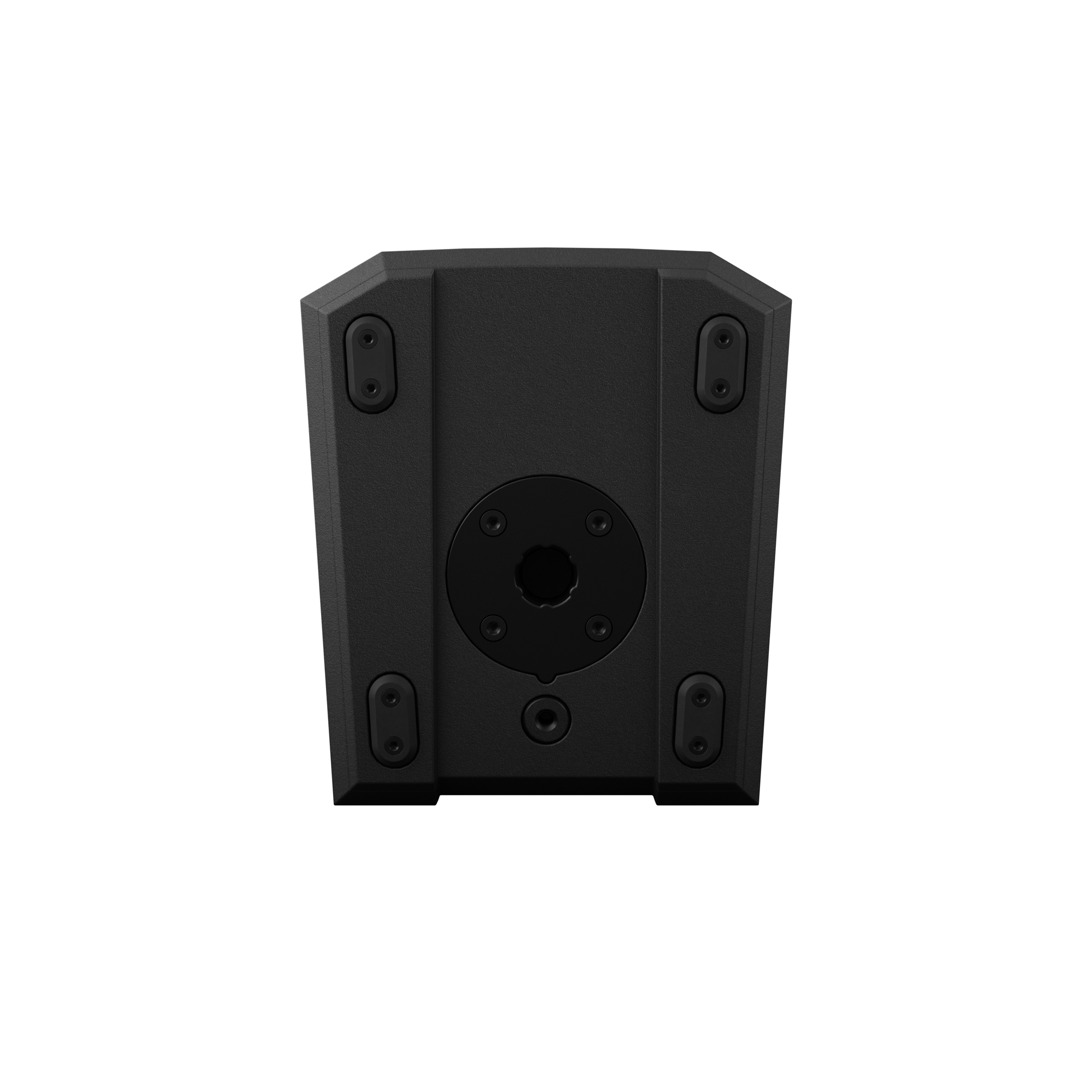

| Flange: | 16 mm star flange |
| Width: | 5.91 in |
| Design: | Bass reflex |
| Housing coating: | Polyurea |
| Chassis material: | Multiplex 12 mm, Multiplex 15 mm |
| Front grille material: | Aluminium |
| Depth: | 17.32 in |
|---|---|
| Weight: | 36.38 lbs |
| Design: | Bass reflex |
| Surface coating: | Polyurea |
| Material: | Multiplex 18 mm, Multiplex 15 mm |
| Front grille material: | Aluminium |
| Width: | 13.78 in |
| Number of handles: | 2 |
| Height: | 17.17 in |
| Maximum air humidity (non-condensing): | 80 % |
|---|---|
| Ambient temperature: | 0 - 40 °C |
| Weight: | 54.01 lbs |
|---|
| Included accessories: | Mains cable |
|---|
Login
accessories
The stable, round CURV 500® SSB speaker stand base made of powder-coated steel with integrated extension offers a strong support for the distance bar of the CURV 500® DB.
Gravity SF CURV M – the perfect sound experience in two moves The aural tapestry of perfect stereo sound can be something truly wonderful. That is, if you know how to do it right! Experts say that the key is to place the tweeters at ear level. So, stands are an excellent choice for smaller speakers. To ensure that your speakers are positioned at the optimal height for creating this perfect combination, we designed the Gravity SF CURV M. The practical adapter is suitable for mounting Curv satellites on 35 mm stand poles, making it a quickly utilisable option for getting the best out of your speakers. The advantage for you: The Gravity SF CURV M lets you upgrade your existing rod attachment in two steps to save you the time and money of getting a new rod attachment. Because we build Gravity adapters to be robust and extremely durable, it makes just as much sense to us to design them to be ergonomic and easy to attach.

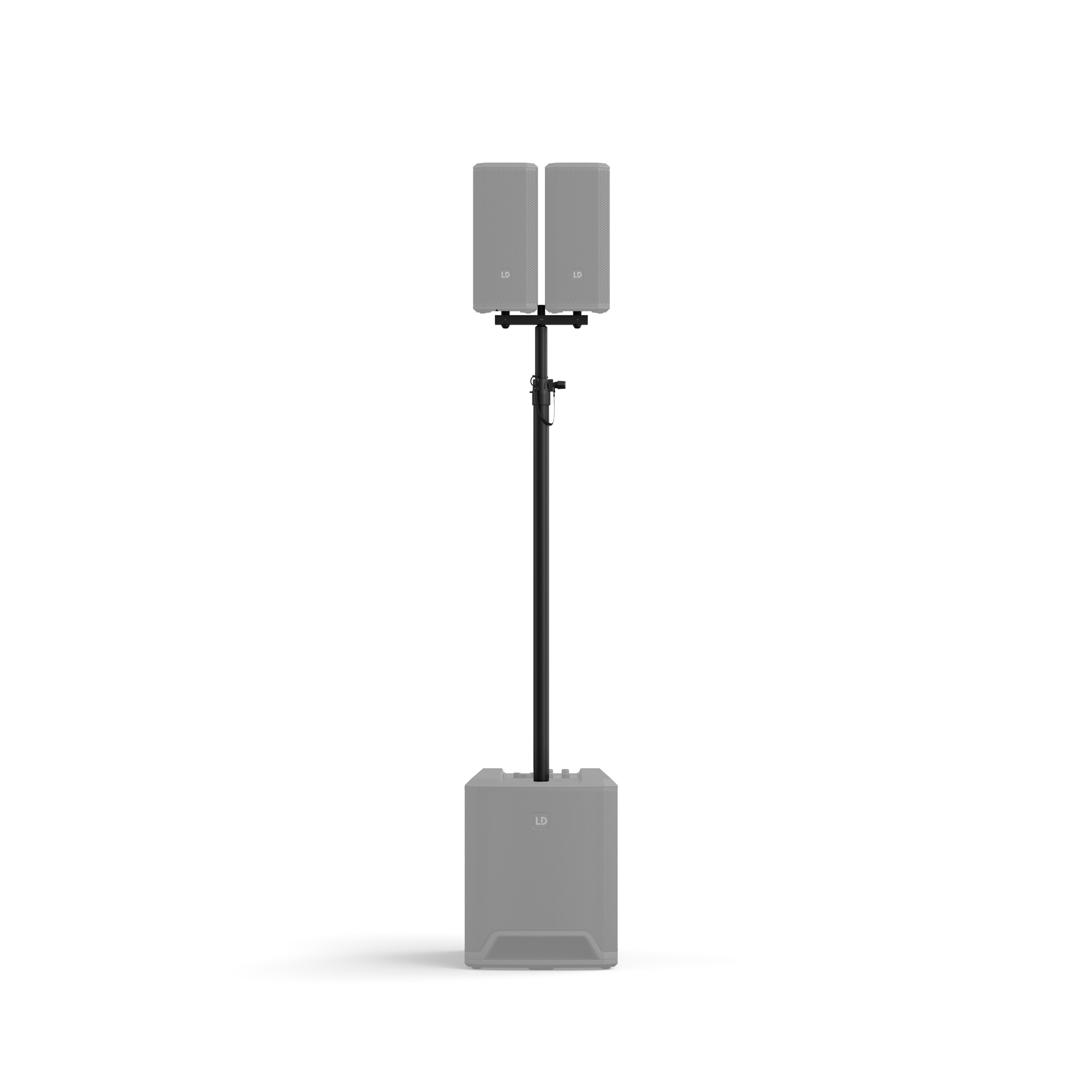

The custom-fit set of distance rod and stand fork, in conjunction with the cluster mode of the DAVE G4X system, enables interference-free clustering of the DAVE 10 G4X satellites.How does it work?For this purpose, there is a special preset (Cluster Mode) with a special M/S distribution to reproduce the stereo signal without interference. This way, you also get more headroom and directivity.The T-Stand allows two DAVE 10 G4X satellites to be mounted close together on to the subwoofer. The speaker pole is made of powder coated steel with an M20 bottom end thread. It features a steel collar with set screw and safety pin for secure height adjustment. With the simple height adjustment, the stand can be quickly and easily set to the desired height, offering a maximum height of 1.45 metres (excl. subwoofer). The base tube can be disassembled for a transport length of 58 cm only.For larger events, the set can also be used to build a larger stereo setup by connecting two DAVE 10 G4X systems in cluster mode through a mixing console.
