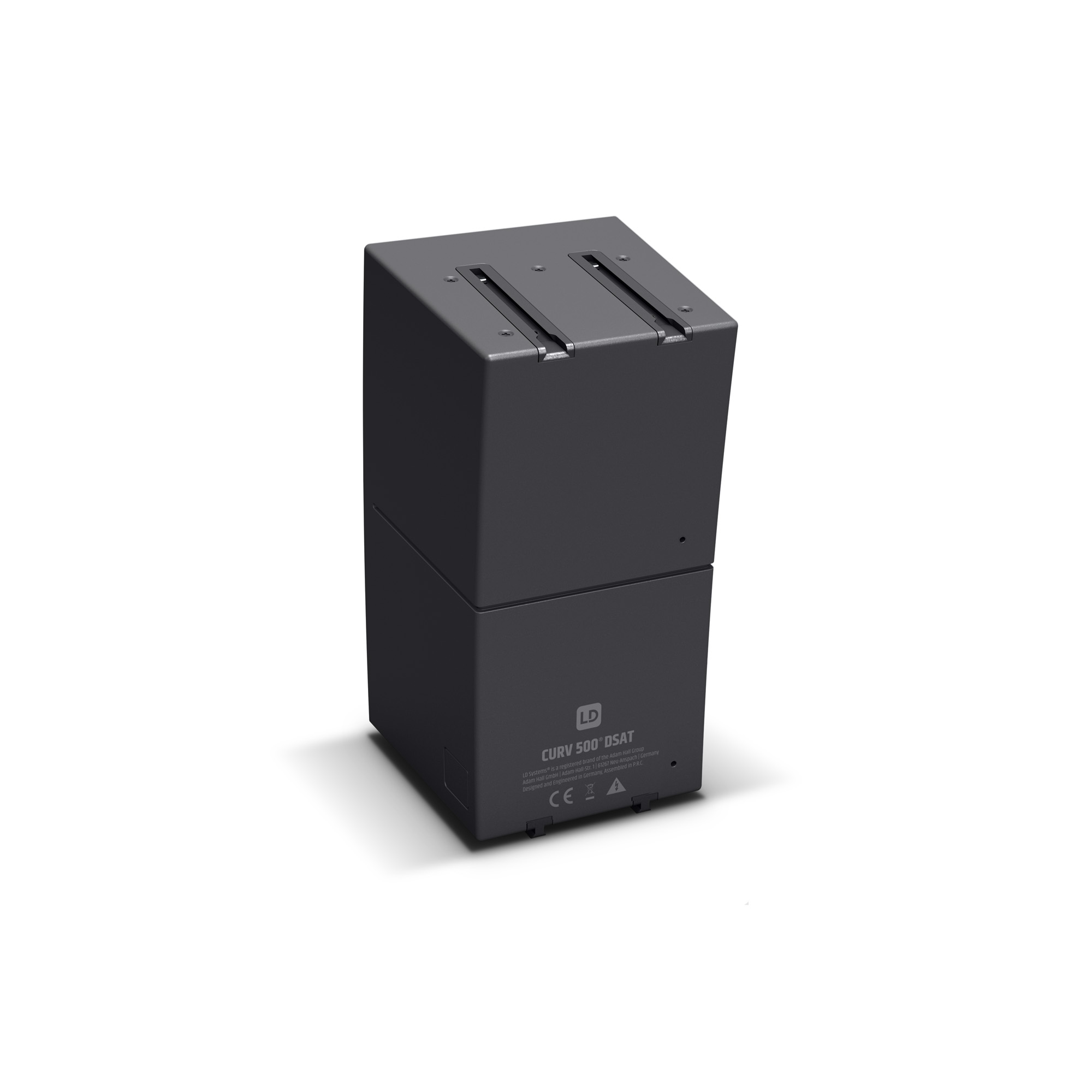

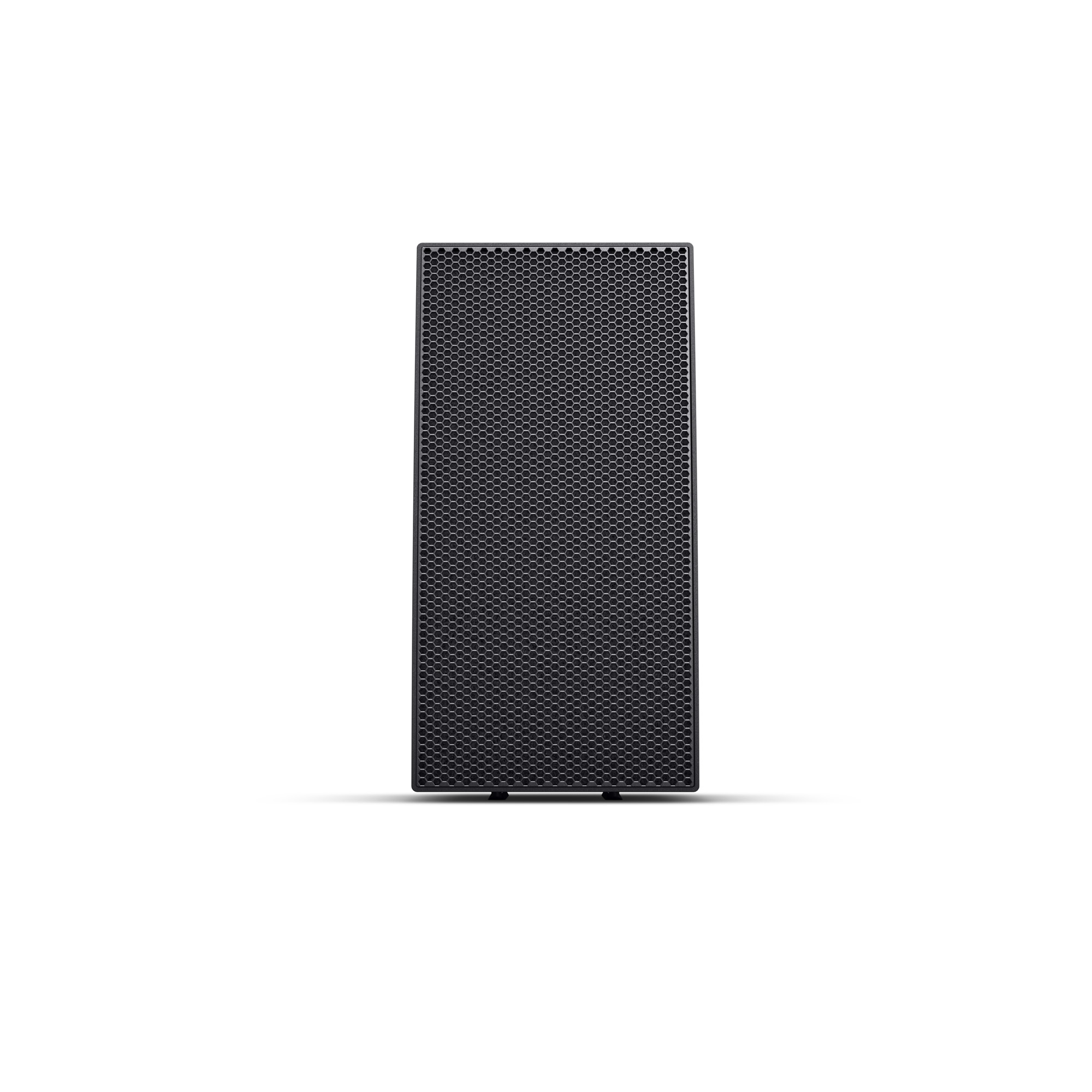

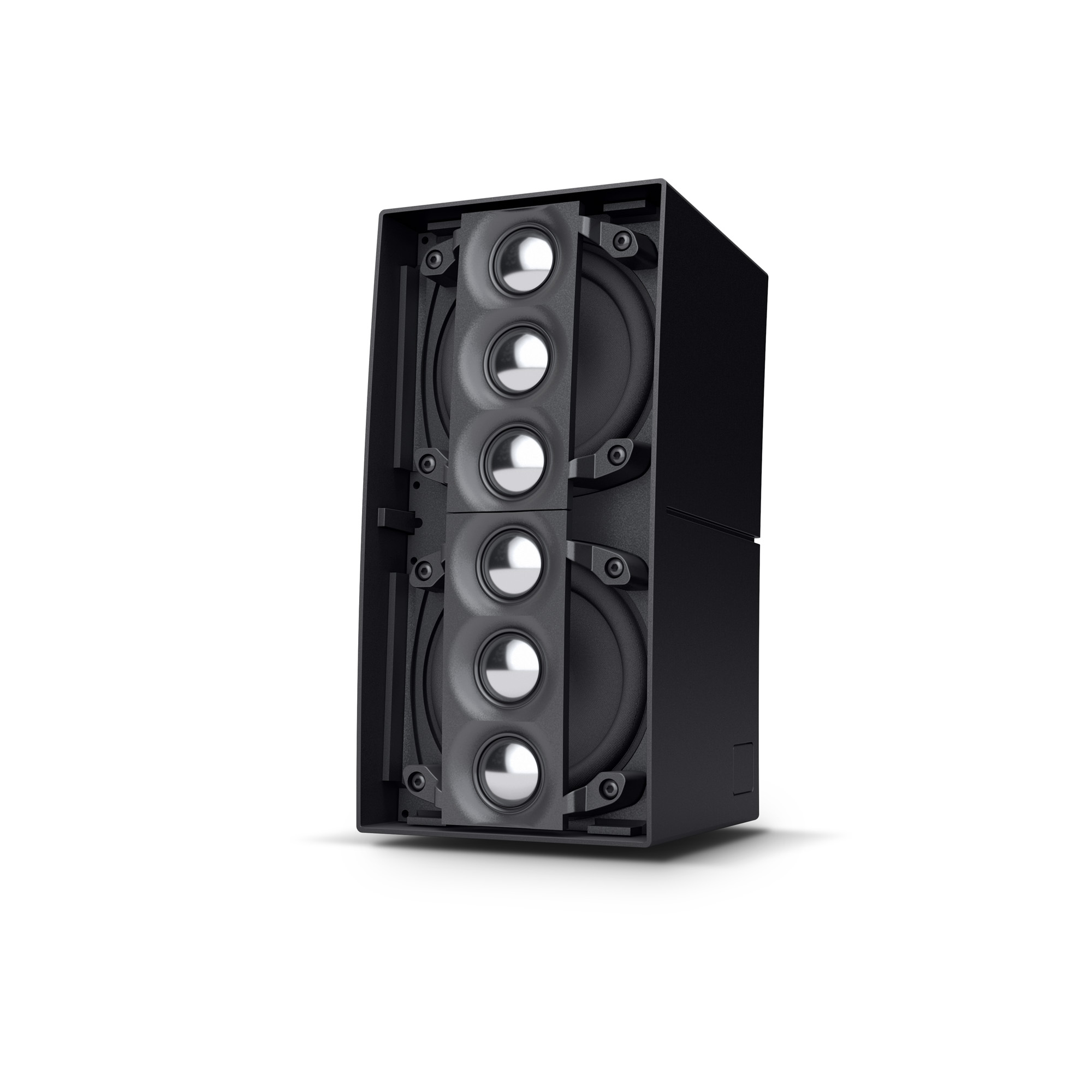

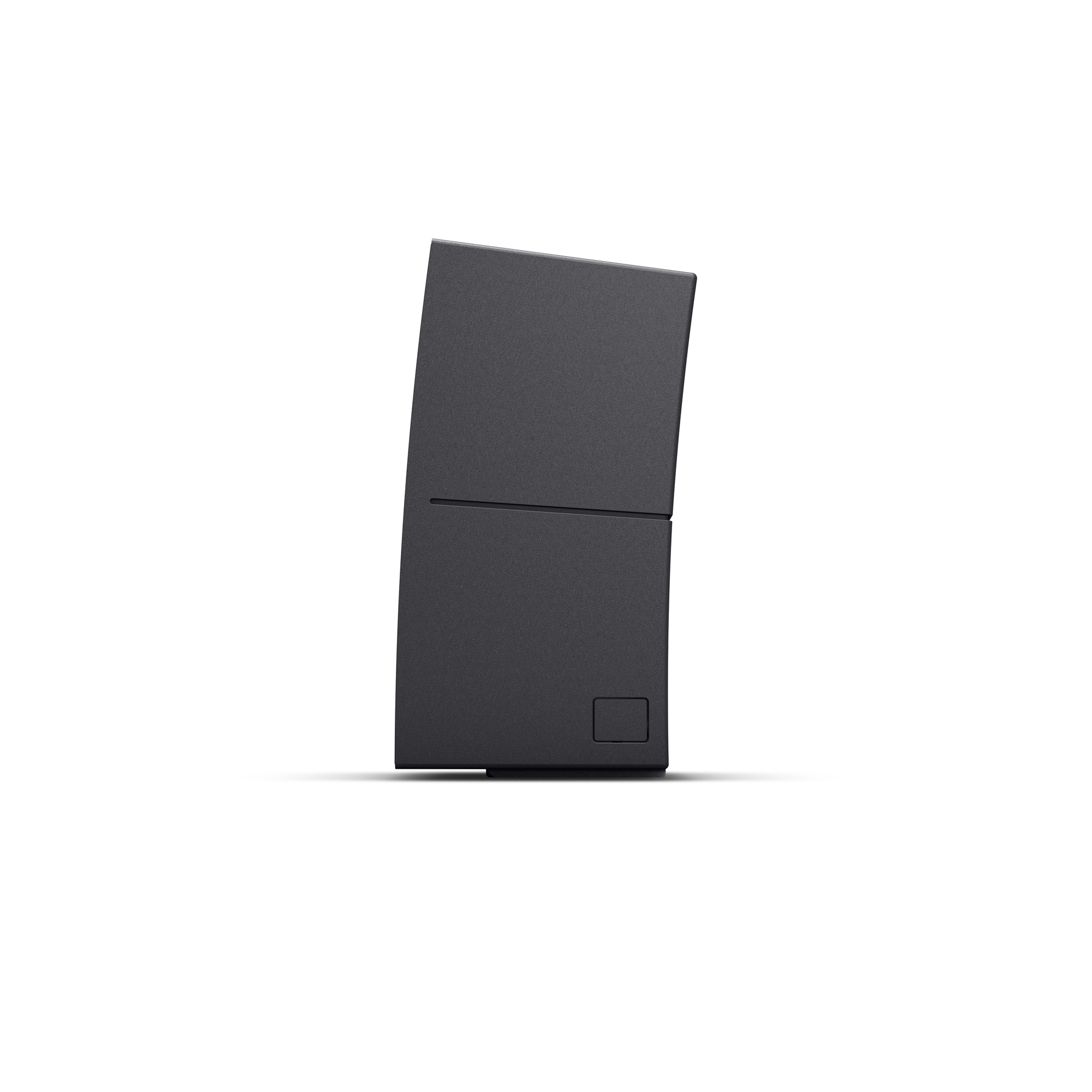

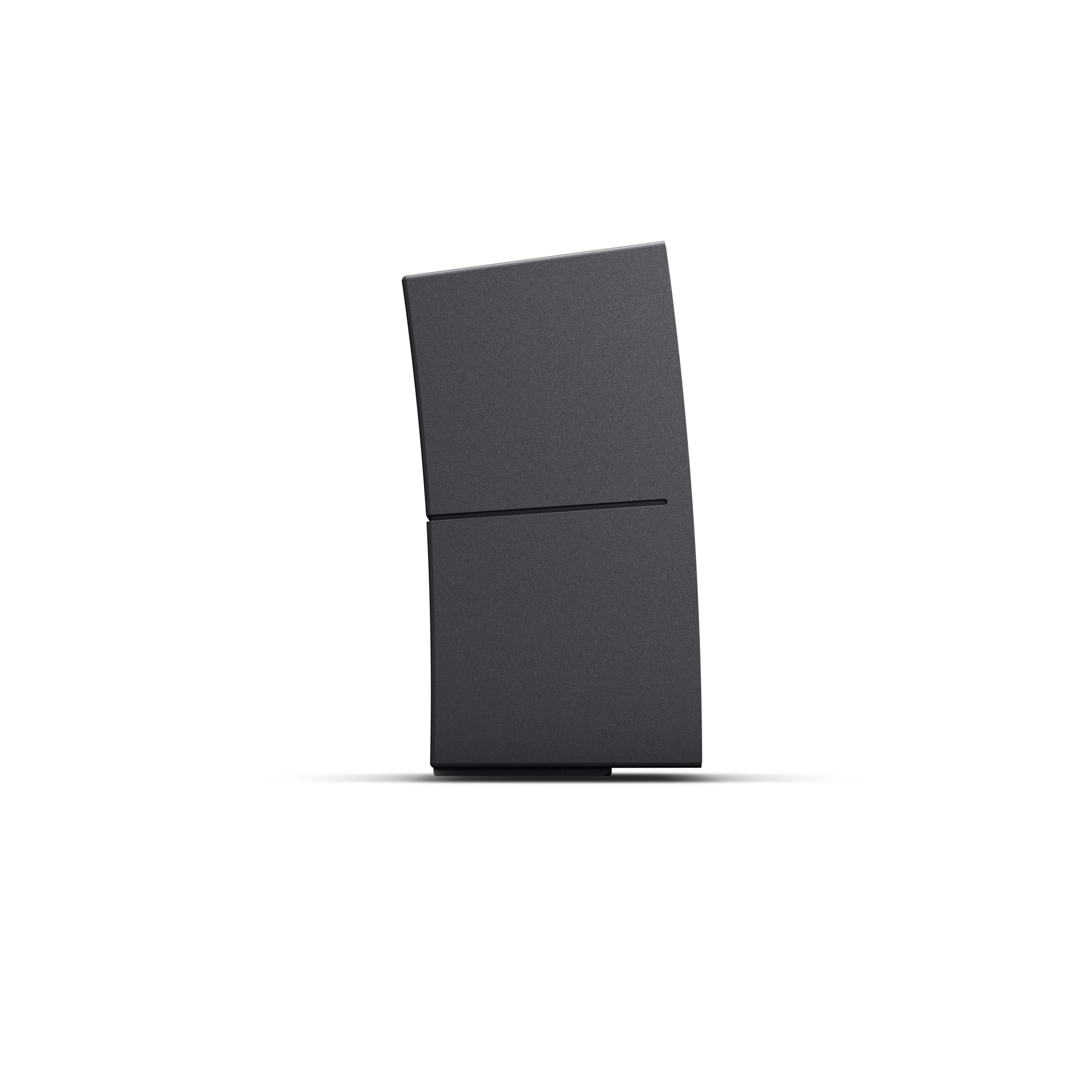

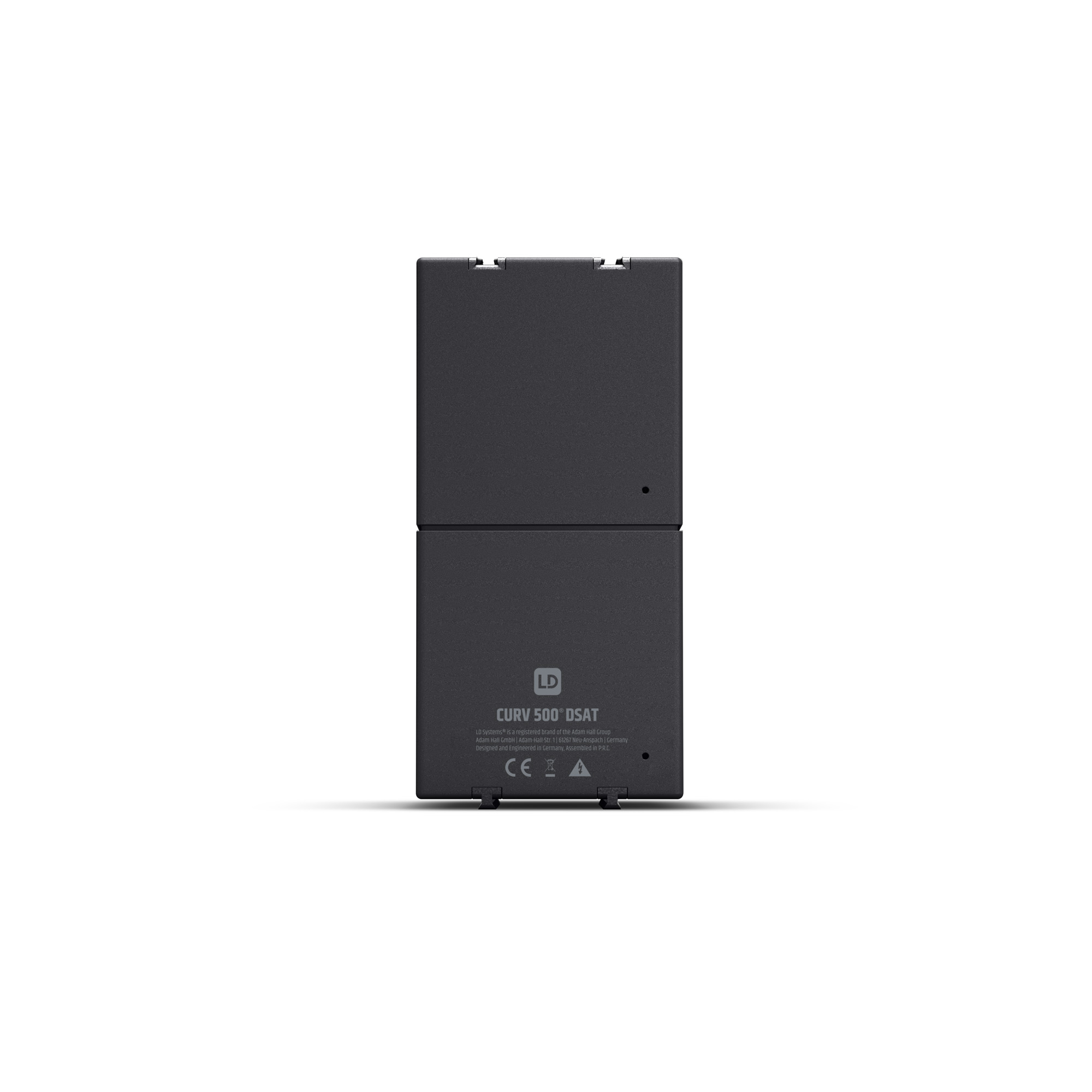

CURV 500 D SAT

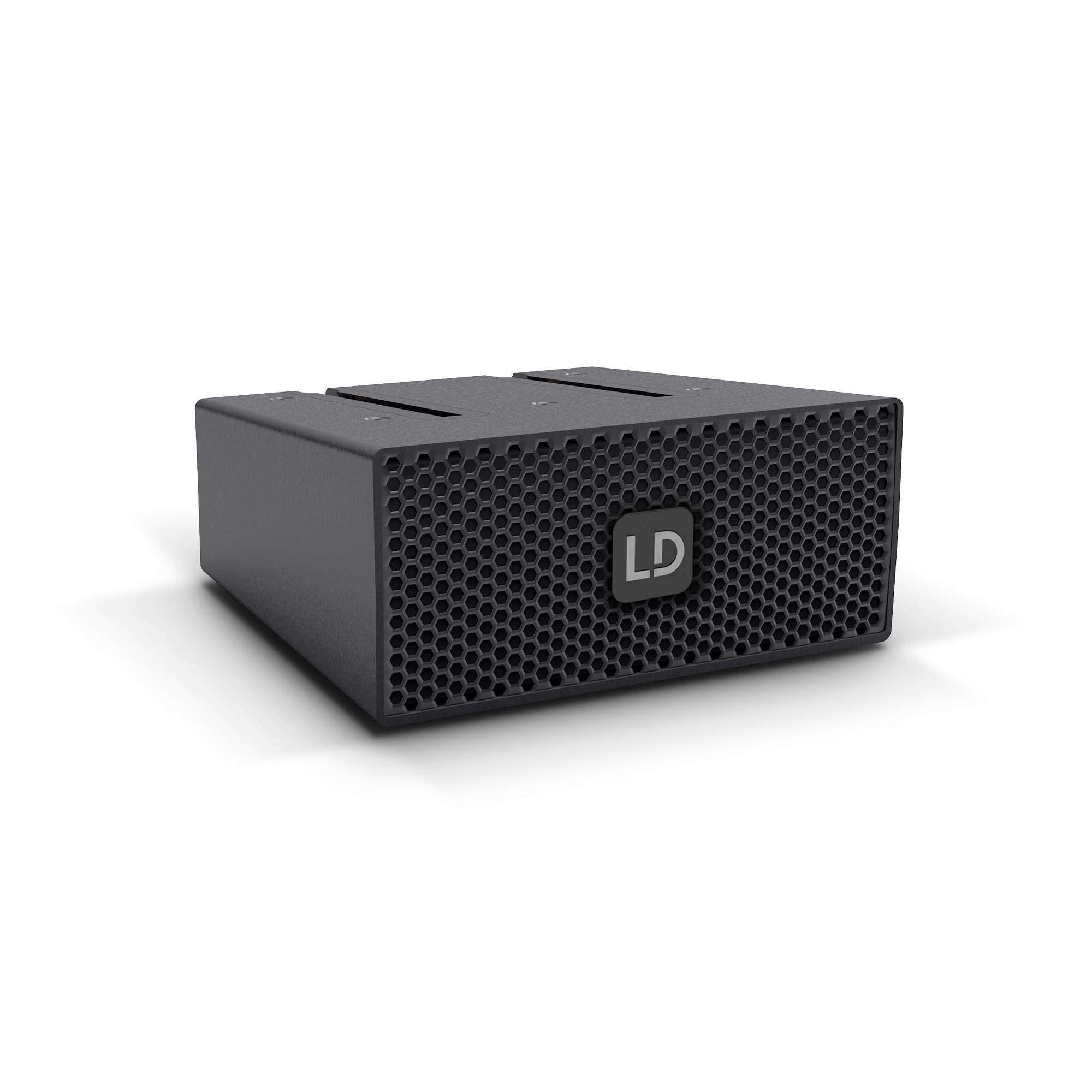

The innovative SmartLink® Adapter is the perfect base for the CURV 500® system. With the patented click mechanism, up to 6 satellites can be connected with each other, without the need for any cables. Two 16 mm flanges allow for different angles on the stand. So, depending on the assembly option, an optimised sound is possible. Four M6 threads for wall mounting, four M3 threads for the ceiling and four rubber feet provide a wide range of possibilities. Thanks to the Speakon-compatible socket and the terminal block, two input variants are available. In case of ceiling mounting, the LD Systems logo simply rotates. The powder-coated cabinet made of die-cast aluminium, with dimensions of 122 x 57 x 122 mm, weighs 0.54 kg.

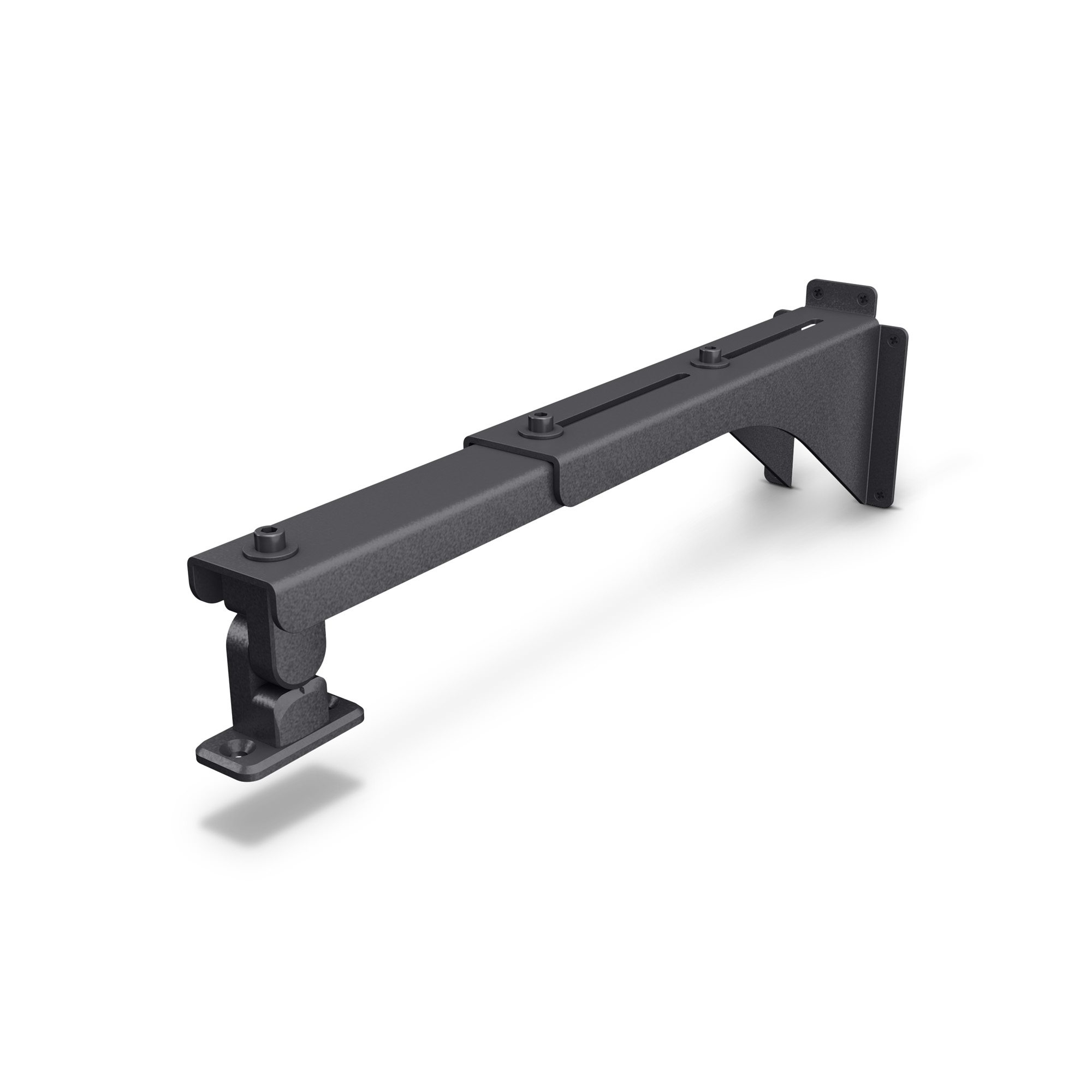

This custom designed CURV 500® wall mount holds up to six standard CURV 500® satellites or three Touring Set duplex satellites attached to the system’s SmartLink adapter. Providing optimum speaker orientation, the adjustable tilt and swivel construction is made of powder coated steel and and aluminium.

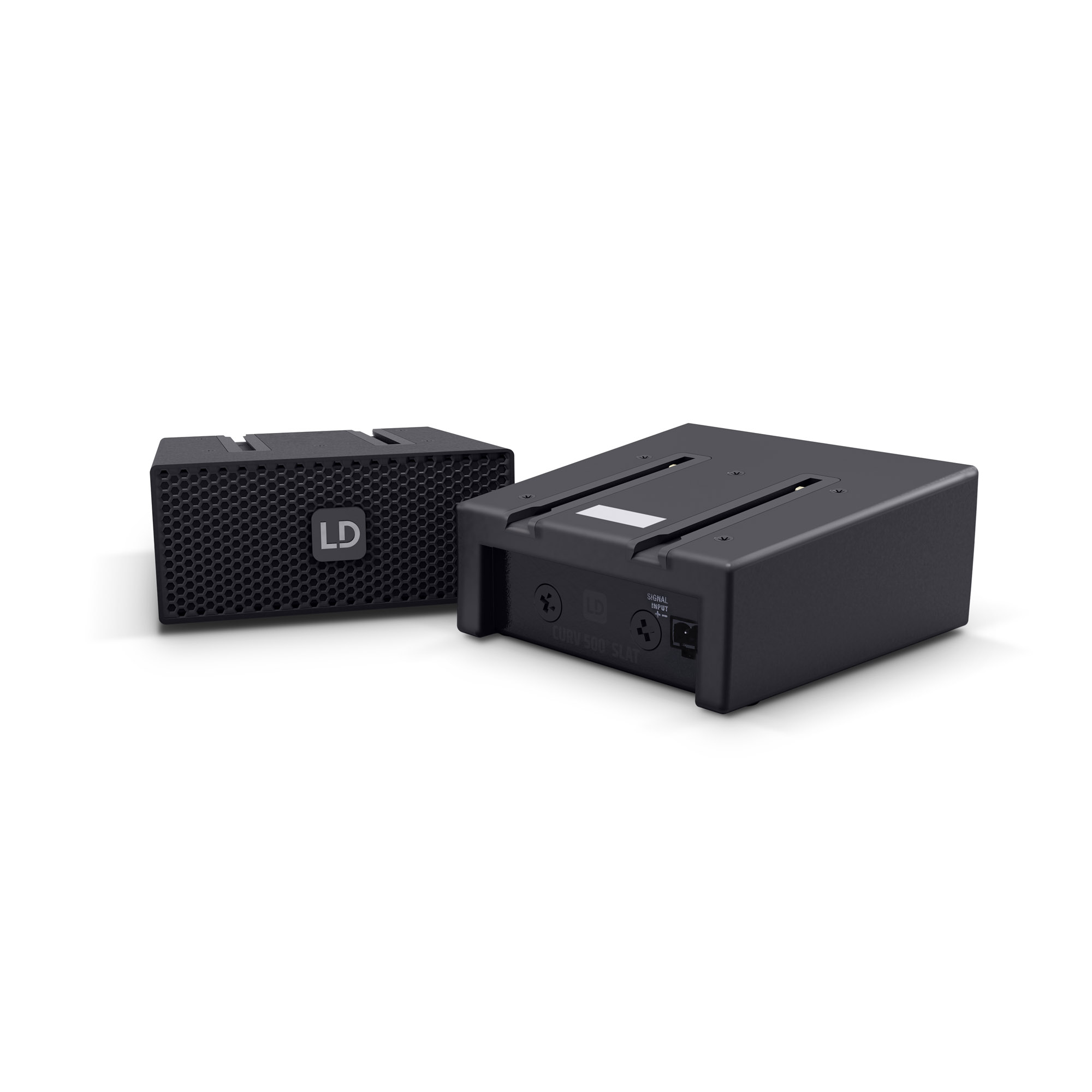

This version of the SmartLink® adapter allows up to 4 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.

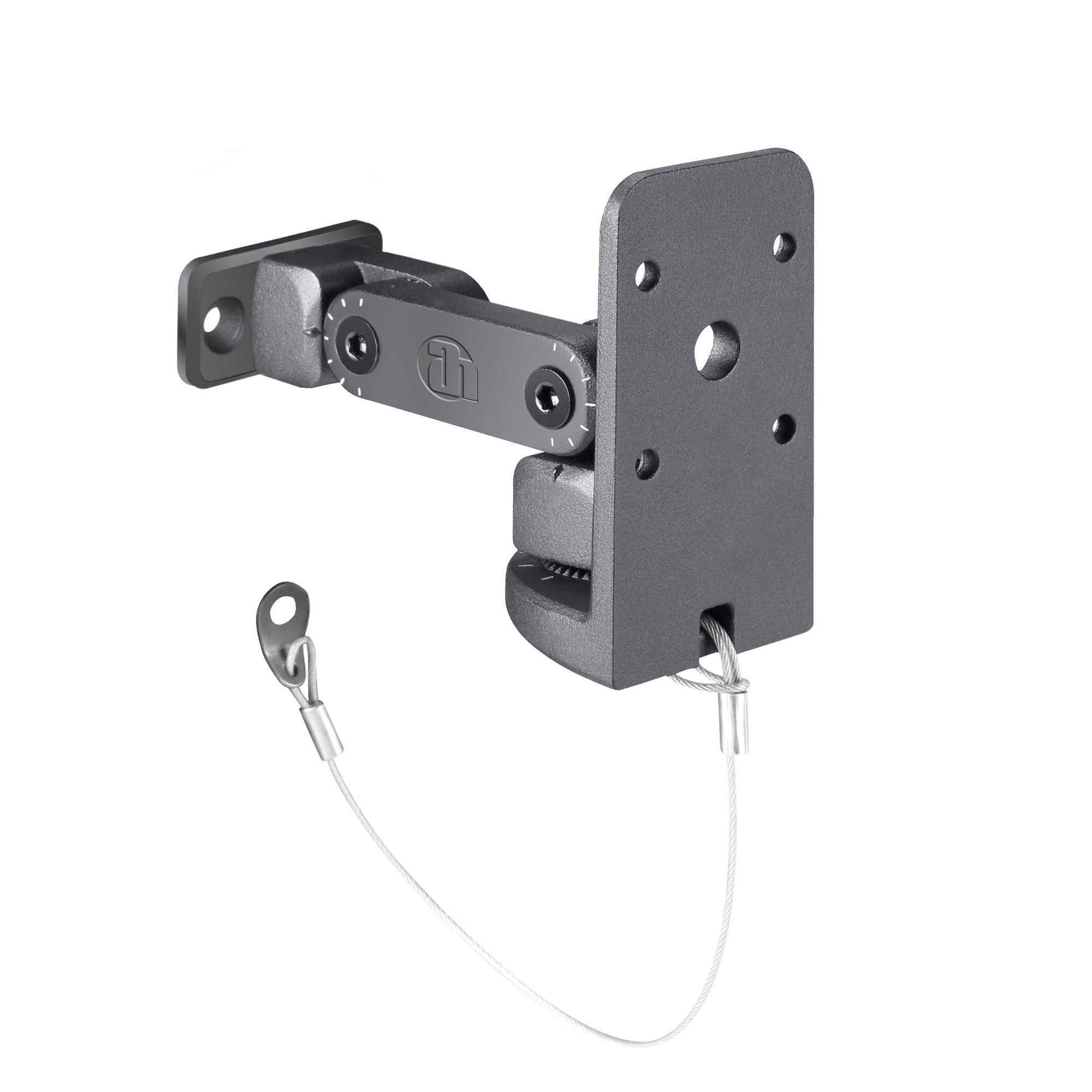

The LD Systems CURV 500® mounting bracket is designed to mate with the CURV 500 SmartLink adapter. It is made of powder coated die cast aluminium, is fully adjustable on all axes and can therefore be individually aligned. It includes a 20 cm steel safety rope to secure the CURV 500® satellites attached to the SmartLink adapter in accordance with BGV C1.Note: Under the statutory provisions (BGV C1 § 7 "Protection against falling objects") speakers must additionally be secured for attachment to a wall bracket by means of a steel rope, for example.

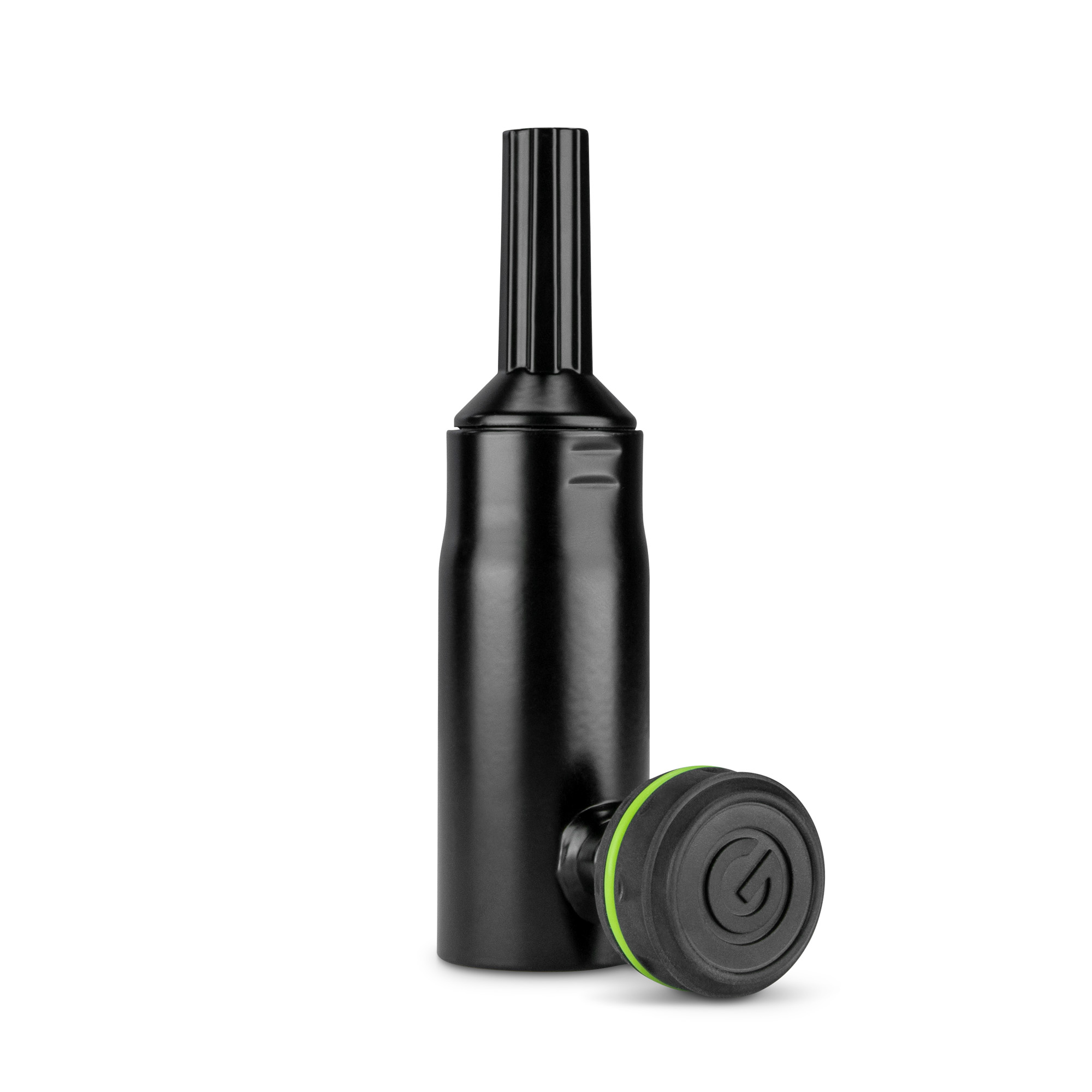

Gravity SF CURV M – the perfect sound experience in two moves The aural tapestry of perfect stereo sound can be something truly wonderful. That is, if you know how to do it right! Experts say that the key is to place the tweeters at ear level. So, stands are an excellent choice for smaller speakers. To ensure that your speakers are positioned at the optimal height for creating this perfect combination, we designed the Gravity SF CURV M. The practical adapter is suitable for mounting Curv satellites on 35 mm stand poles, making it a quickly utilisable option for getting the best out of your speakers. The advantage for you: The Gravity SF CURV M lets you upgrade your existing rod attachment in two steps to save you the time and money of getting a new rod attachment. Because we build Gravity adapters to be robust and extremely durable, it makes just as much sense to us to design them to be ergonomic and easy to attach.

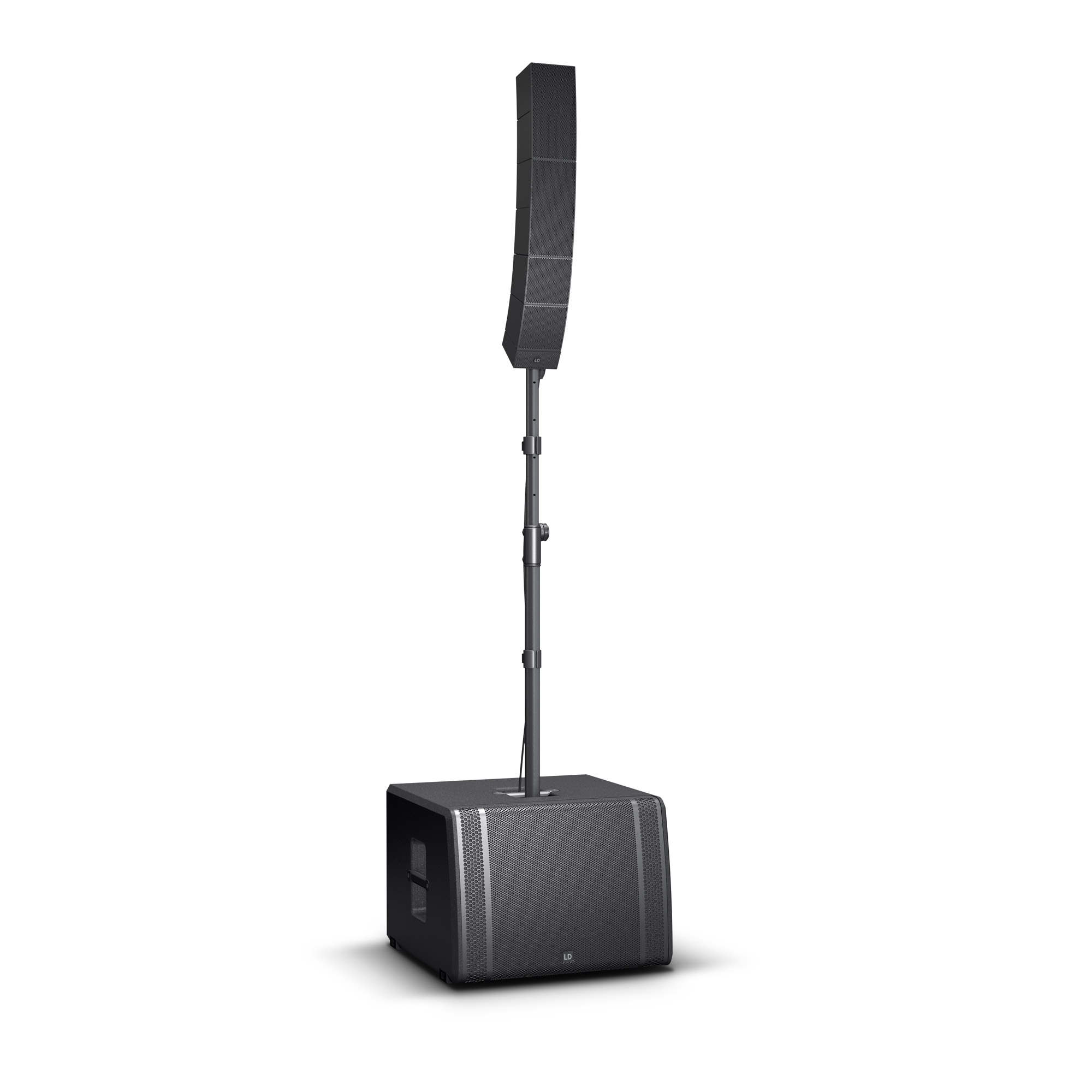

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.
