CURV 500 CMB

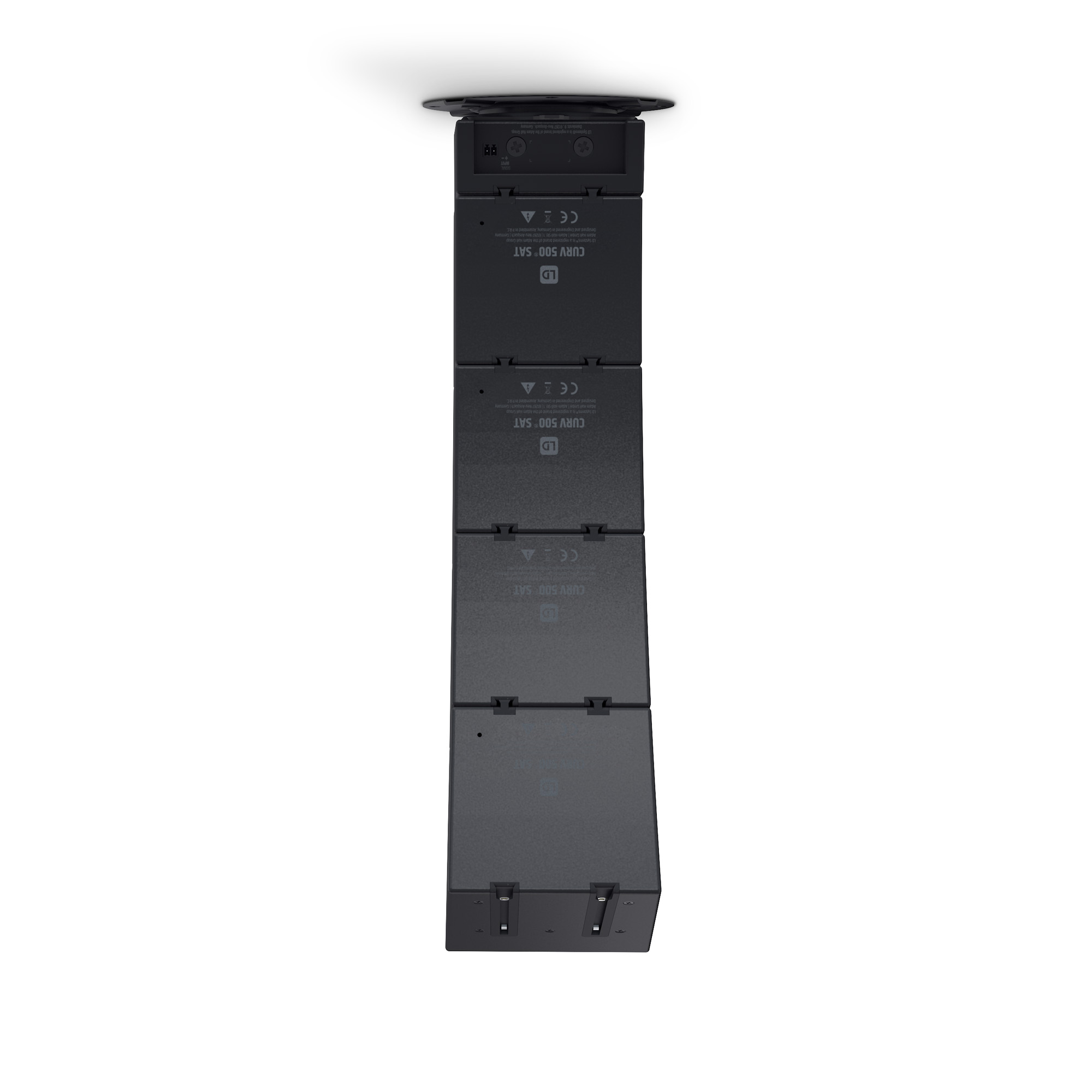

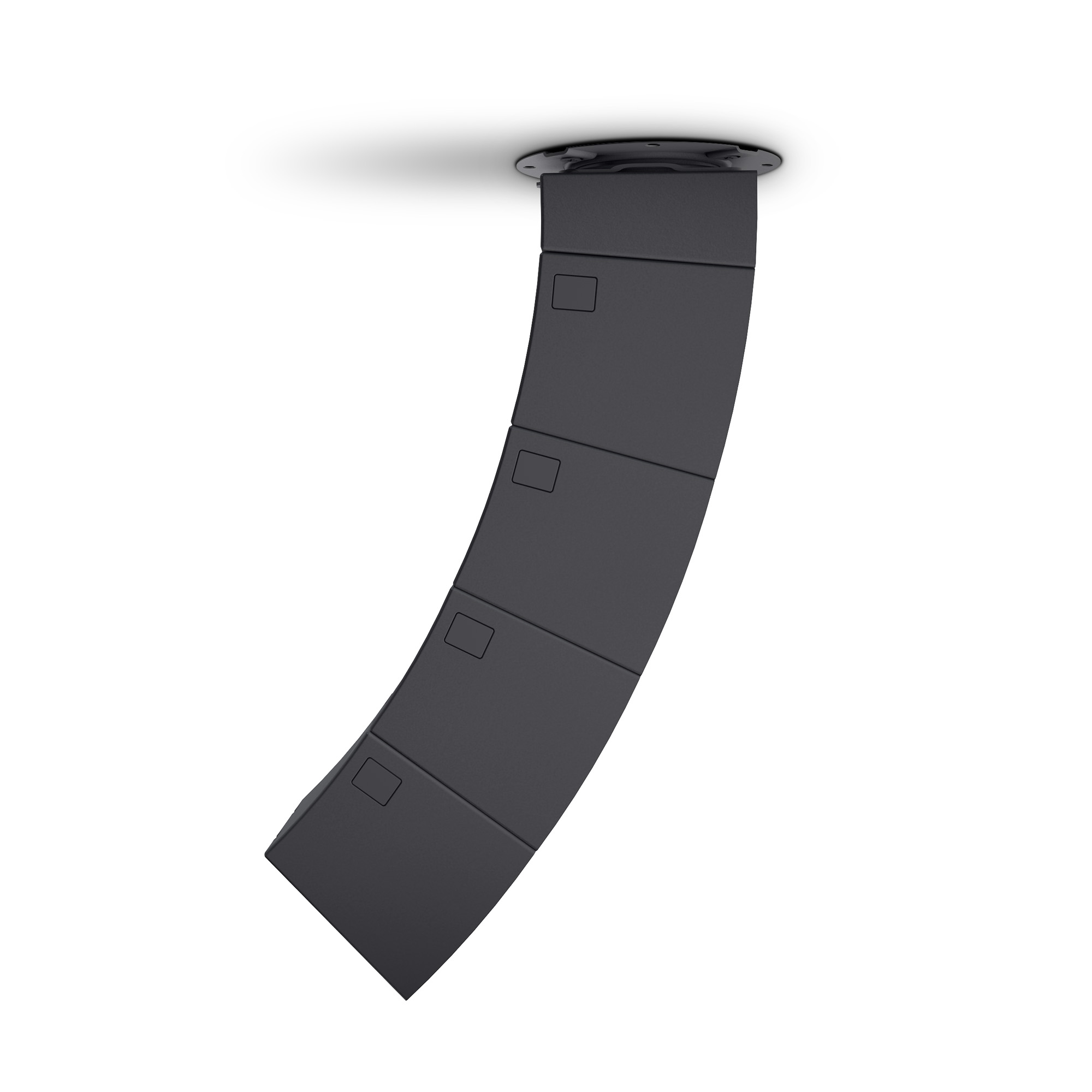

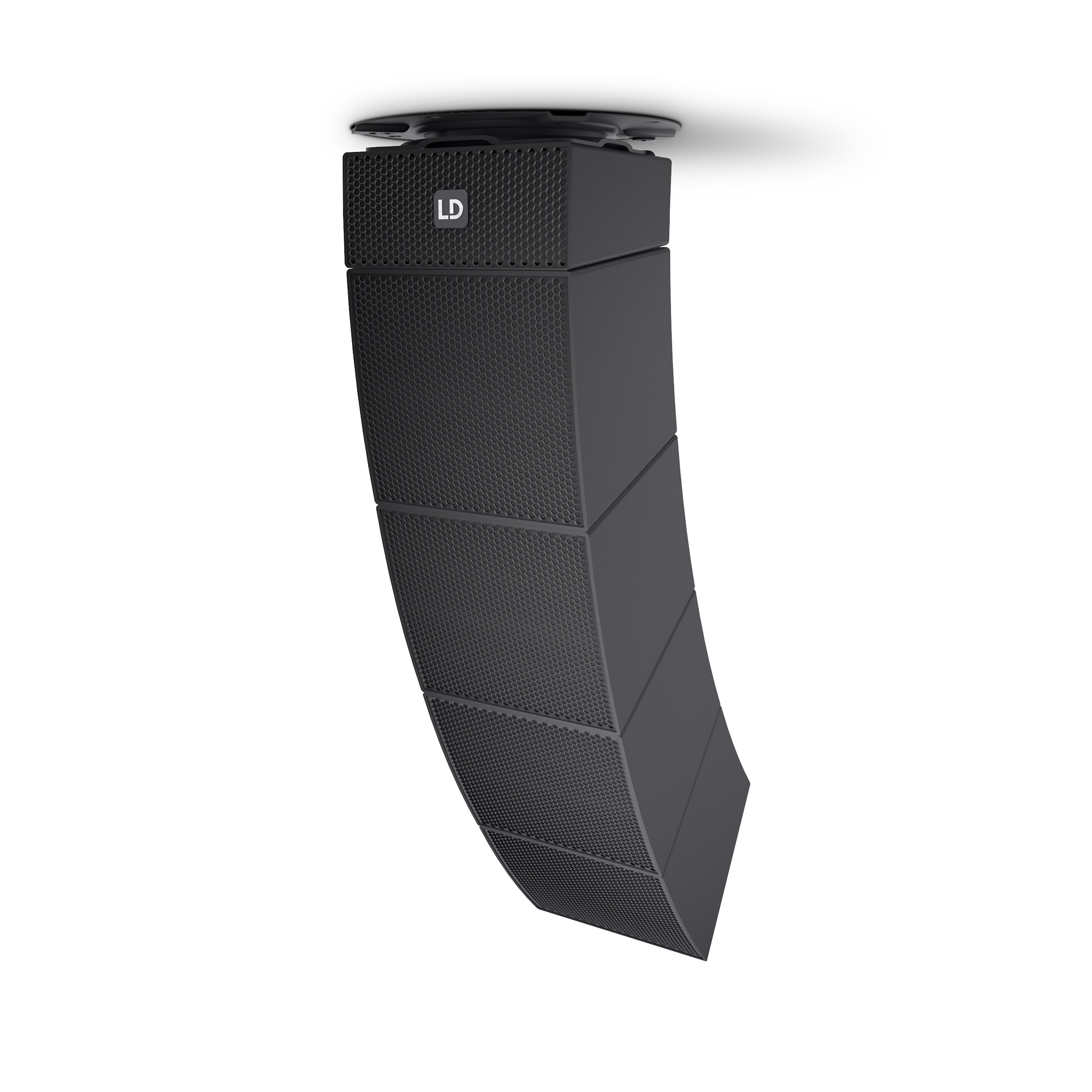

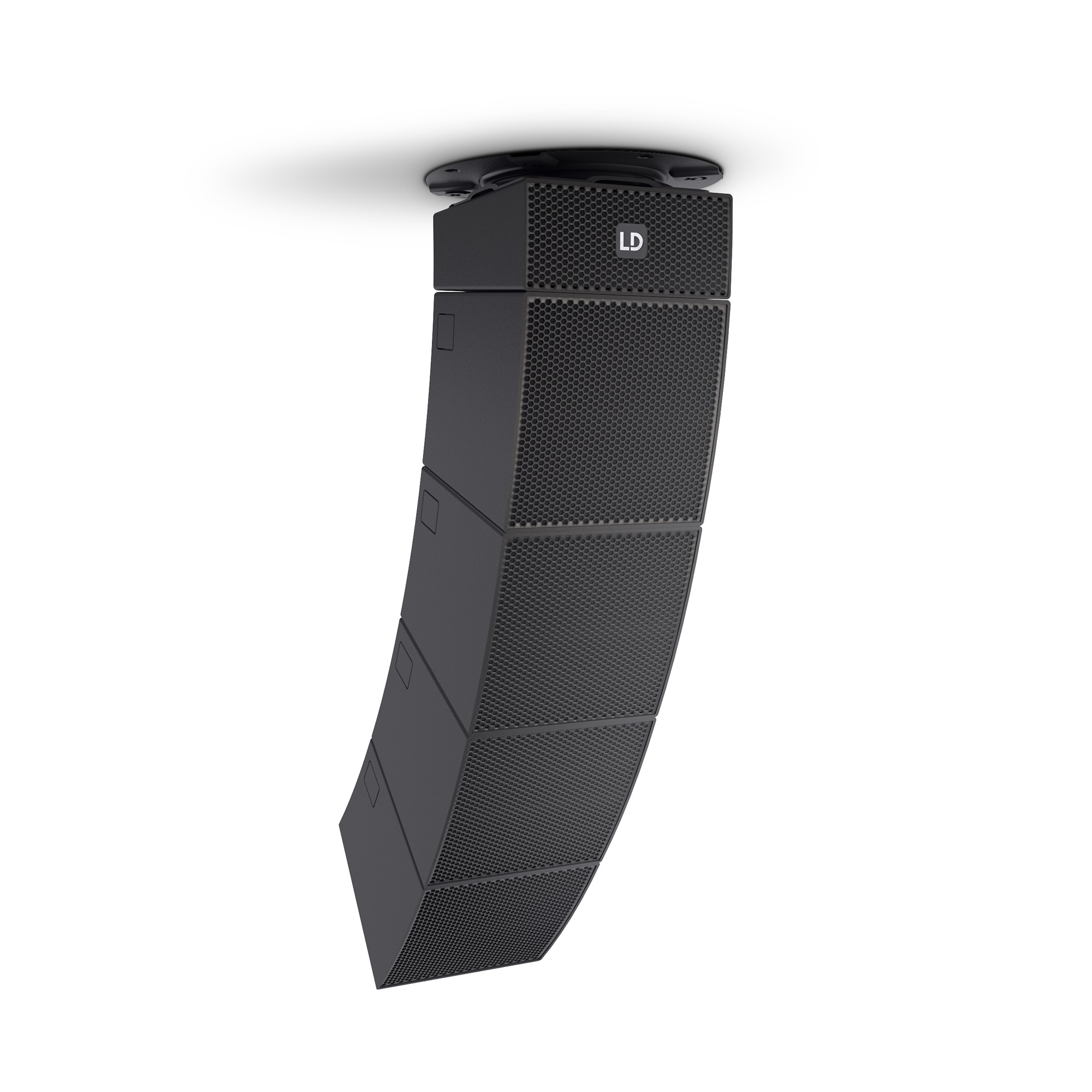

This accessory package is suitable for extension or addition to an existing CURV 500®. The satellites, 12 x 12 cm in size, are made of black die-cast aluminium and produce an excellent sound. This is achieved by their single 4-inch midrange driver and three 1-inch high-frequency drivers. Thanks to the WaveAhead® technology developed by LD Systems, the tweeters are arranged vertically ahead of the high-performance full-range speaker, thus the perfect sound mix and dispersion is achieved. The 110 degrees horizontal dispersion angle is very wide and is limited vertically to 10 degrees per satellite - which reduces reflections on ceilings and floors. A passive crossover at 2500 Hz ensures an optimum allocation of the frequency spectrum. With the patented SmartLink® plug-in mechanism, the system, comprising up to four array satellites, can be assembled without cables in a matter of seconds. Robust metal grilles with acoustic material for rear tensioning protect the drivers of the rugged satellites featuring 16 ohm impedance and a weight of 1.73 kg. The matt-black powder-coated surface is resilient and gives the satellite an elegant look. For fixed installations, there is an M3 screw connection for the safety rope.

The patented CURV 500® AV Set is the perfect fit anywhere music is played: in bars, clubs, studios and even at home as a home entertainment system. Featuring a power of 380 watts RMS and a maximum sound pressure level of 122 dB, the CURV 500® AV Set can remain discreetly in the background, but also provide an impressive rocking performance.The 10" bass-reflex subwoofer with Class D power amplifier represents the core of the CURV 500® AV Set and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo and Speakon-compatible sockets offer extensive connectivity options. Furthermore, the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.The two satellites are operated via SmartLink® adapters. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology; one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.With optional wall and ceiling mounting systems, the satellites can be installed anywhere, where good sound and subtle appearance are required. For even more power, a total of eight array satellites can be operated in stereo mode (max. four on each side).The CURV 500® AV Set includes a subwoofer with a mixer unit, two satellites, two SmartLink® adapters, and two speaker cables.

If more power is required, the patented CURV 500® Power Set can provide a power of 920 watts RMS and a maximum sound pressure of 134 dB. Two subwoofers and eight satellites offer all the advantages of the CURV 500® System and have sufficient power reserves for larger events or applications with high power requirements, especially in the bass range. The compact, transport-friendly CURV 500® is an easily configurable array system with eight interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology, one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics. The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon-compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles. The second subwoofer with its own power amplifier offers identical technical specifications, but does not require any mixer. The CURV 500® Power Set includes two subwoofers, one with a mixer unit, eight satellites, two SmartLink® adapters, two extension tubes and matching speaker cables.
