Cable protector 3 channels | heavy duty | height 7.5cm
$399.99
Backordered – More on the Way!
Product information "3"

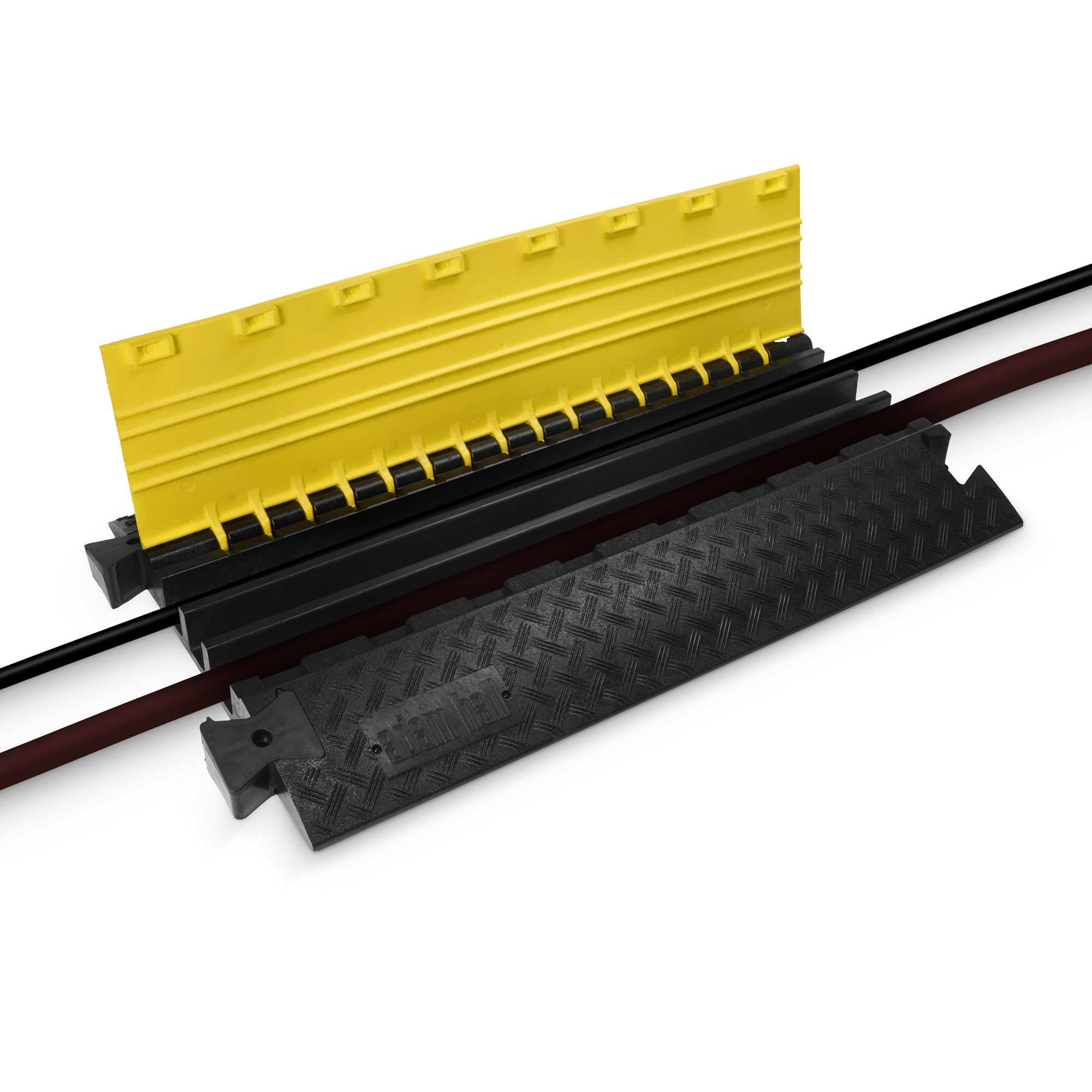

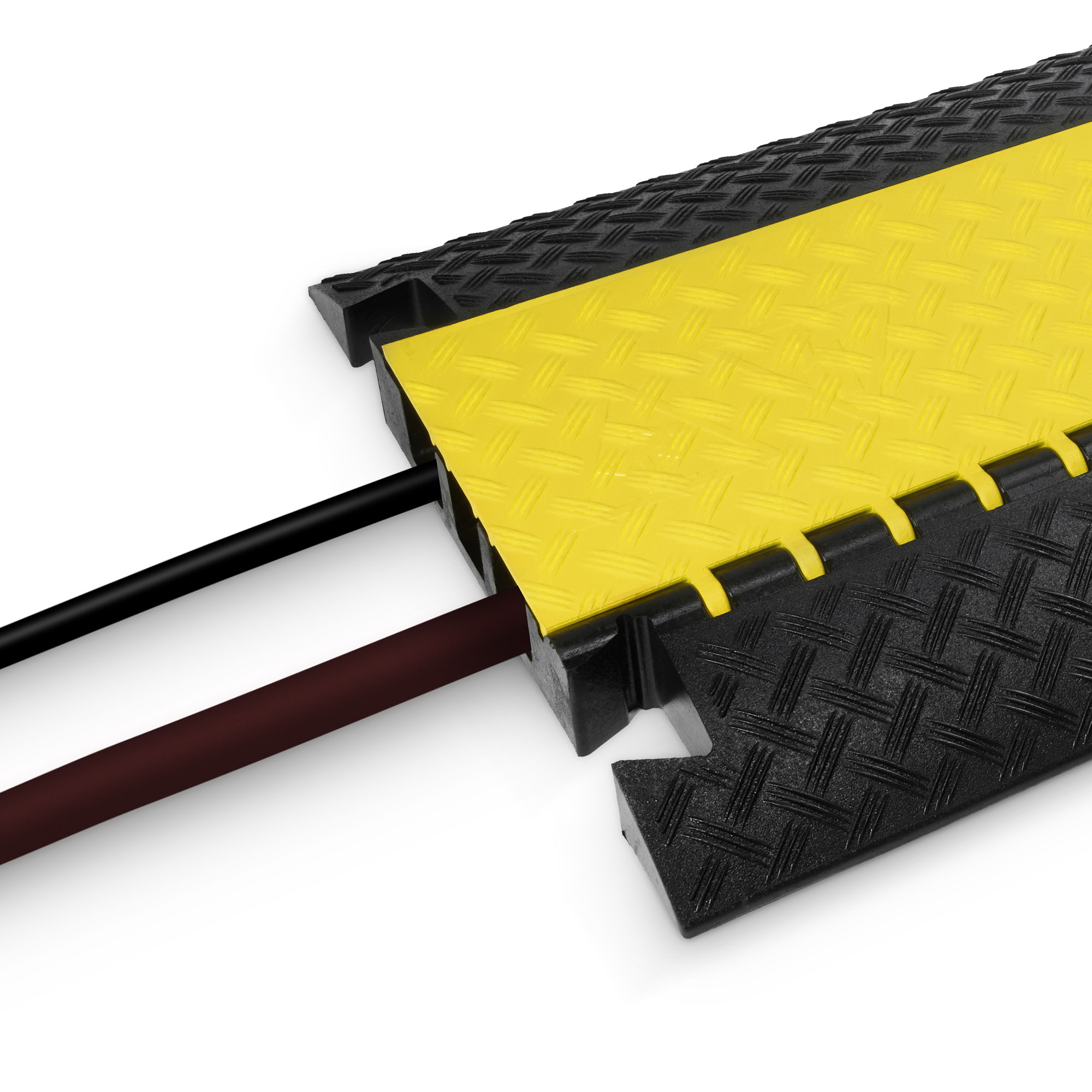

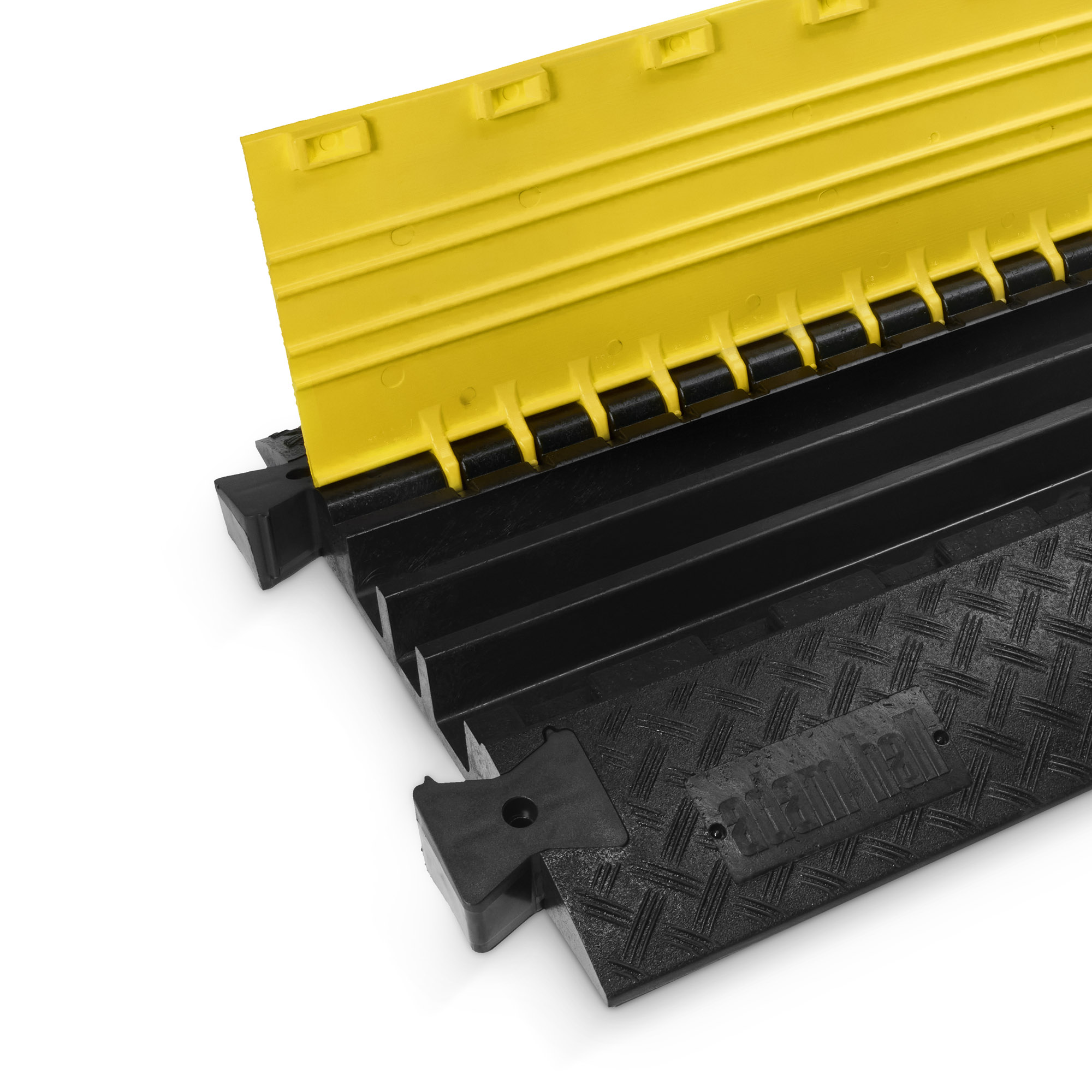

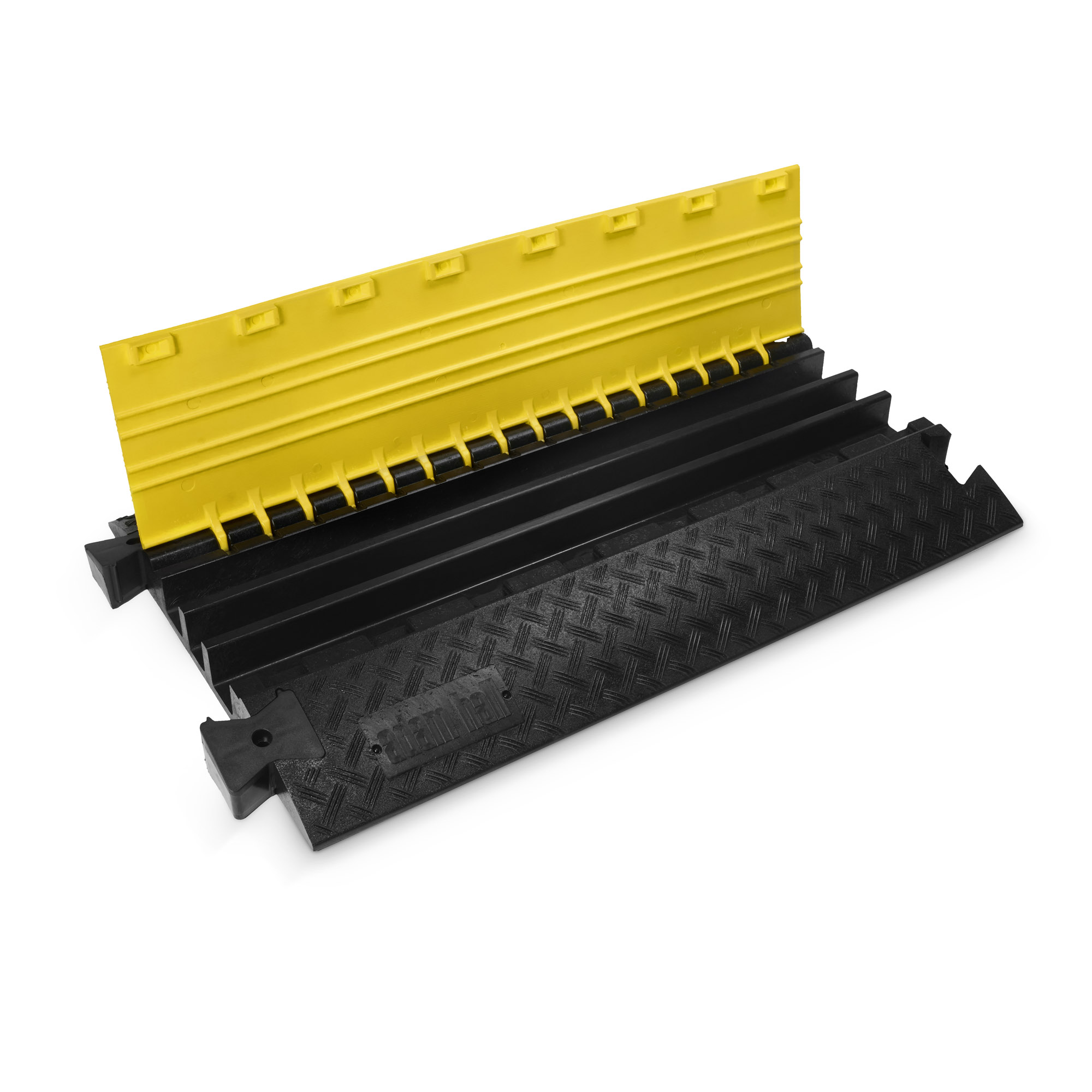

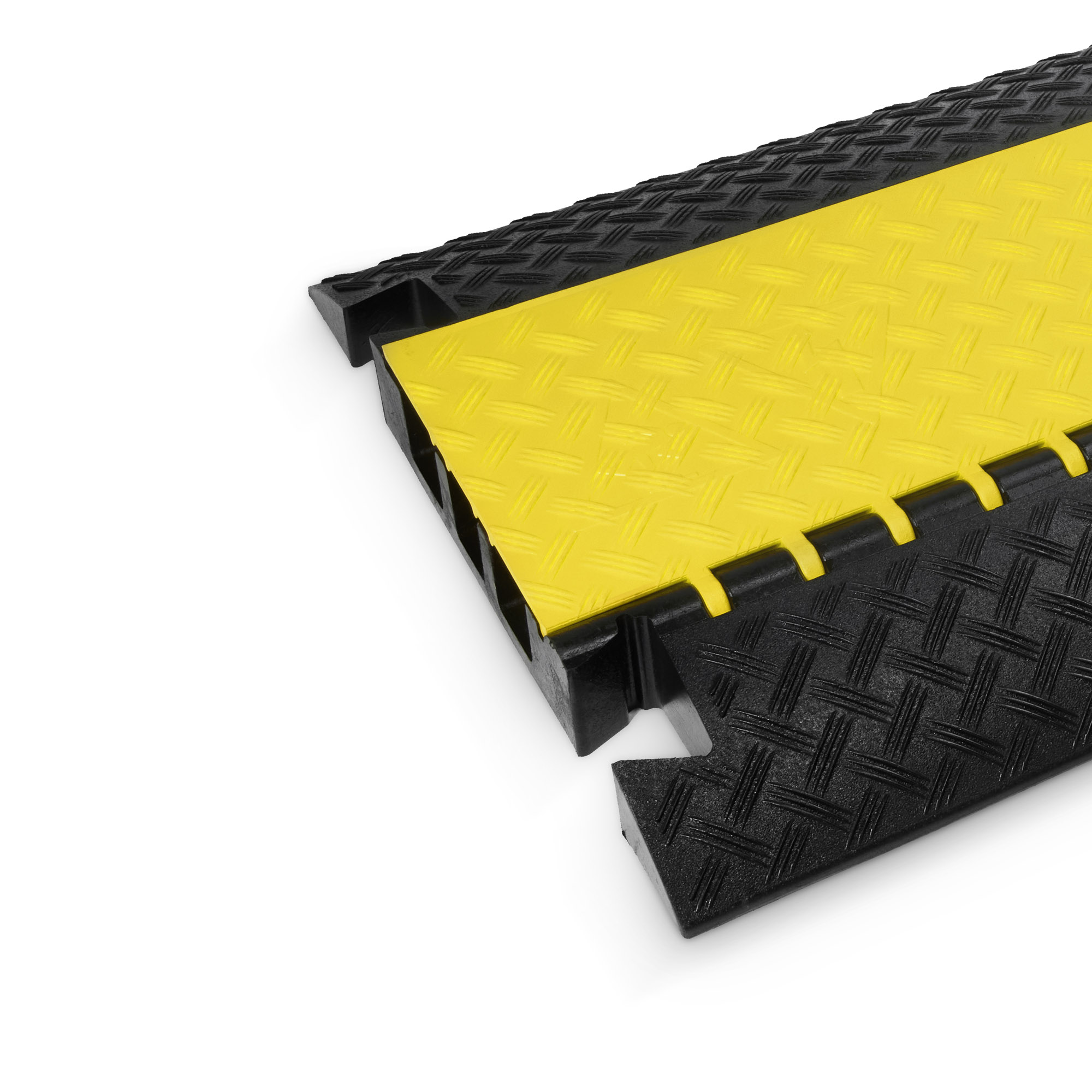

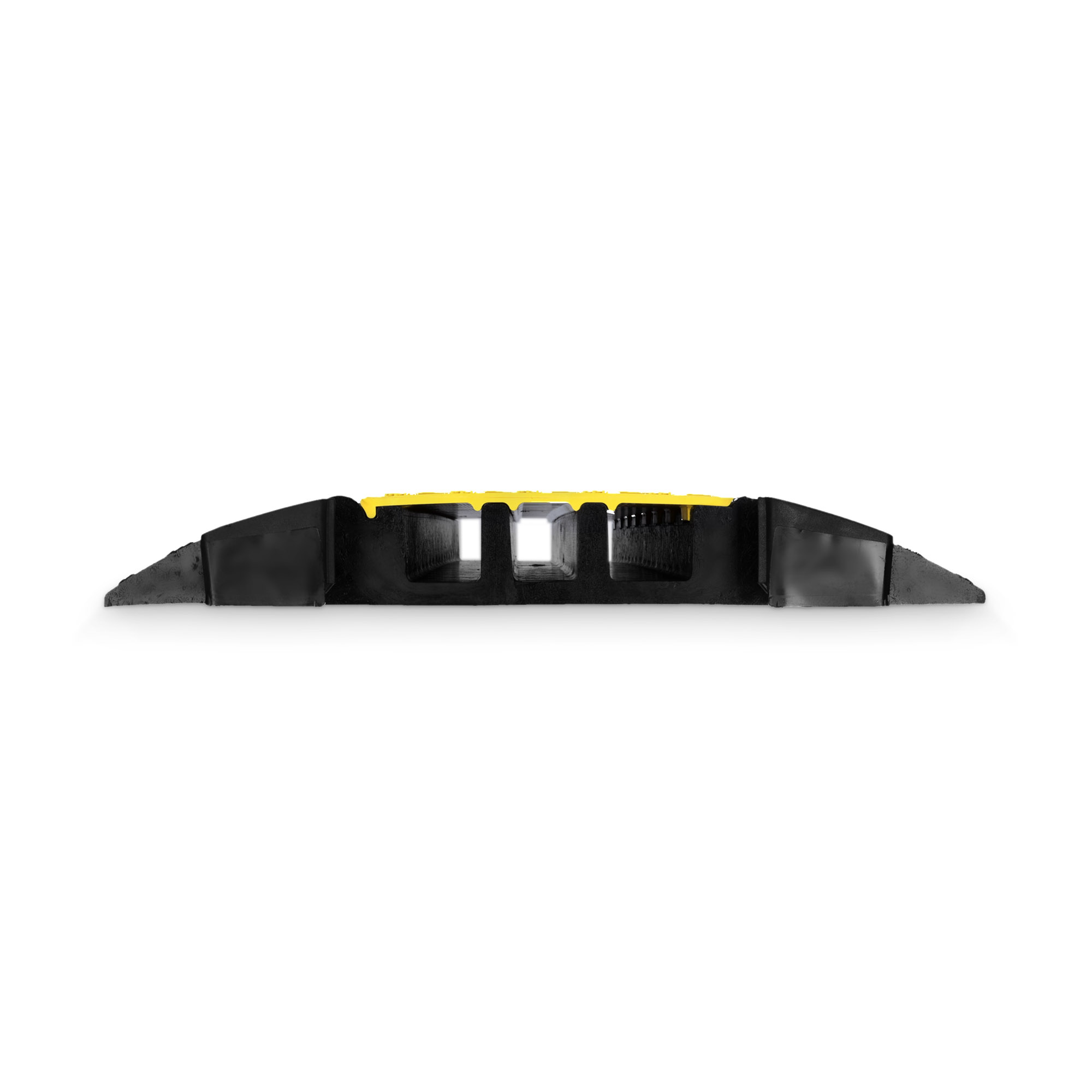

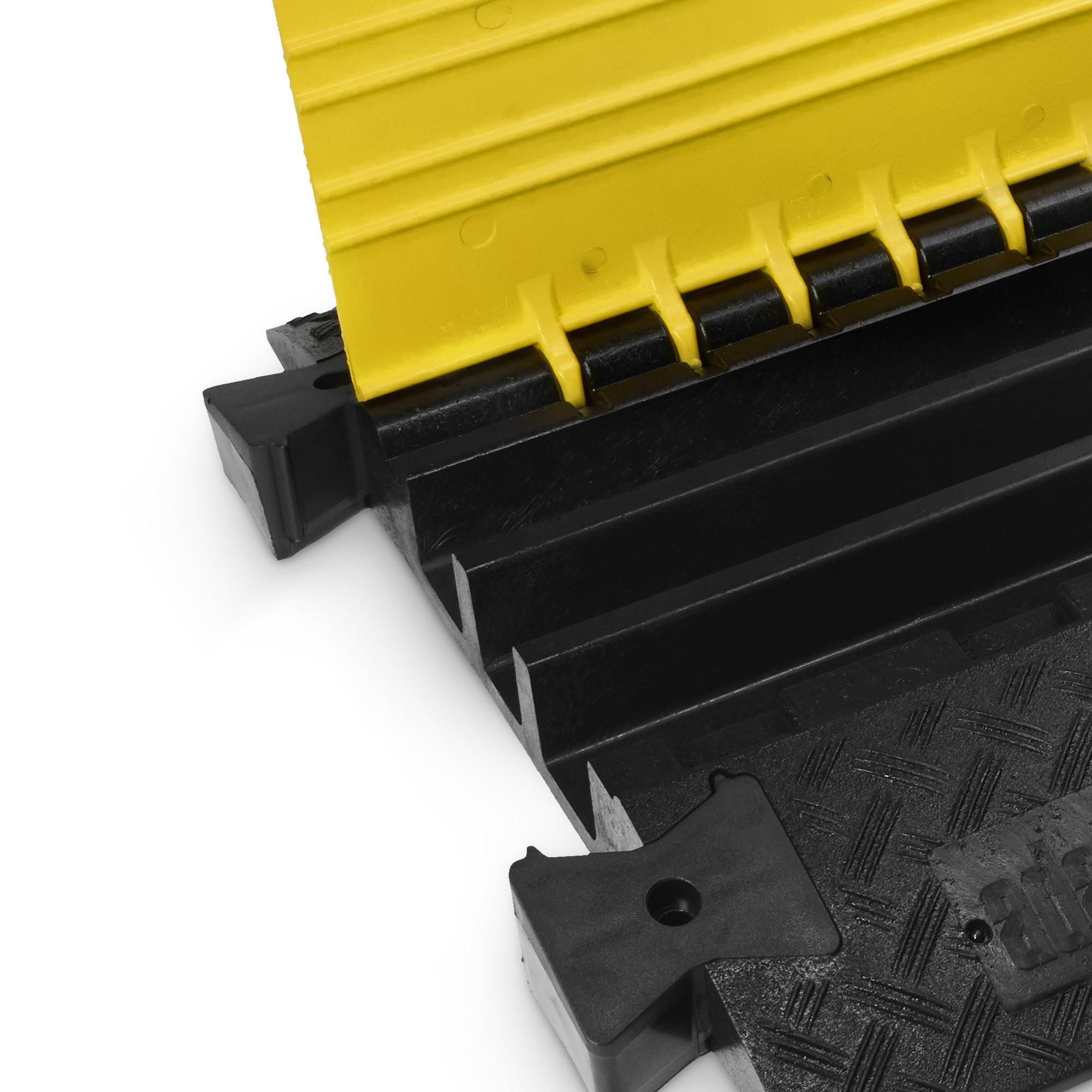

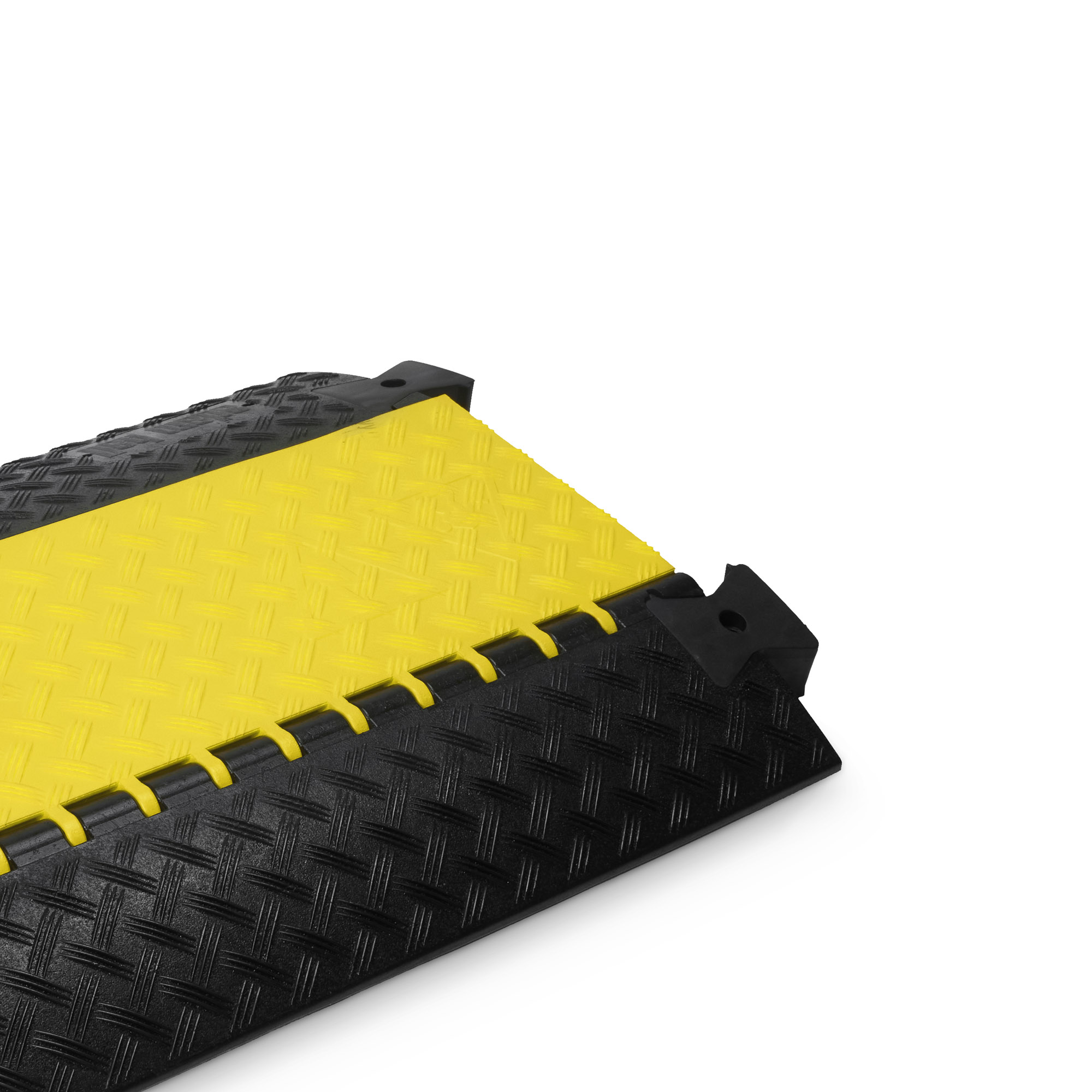

Featuring a 73 mm profile, 45° curve and end ramps with detachable dovetail connectors, the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. With 3 medium large channels, built-in handles for easy portability and a 5 t per 25 x 30 cm load capacity the 73 mm profile Defender® 3 cable protectors are the perfect all-round choice for a wide variety of applications including heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.
Label your cable protector! Customise the Defender cable protector with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool. Feel free to contact us for more information.
| Max. Passing speed: | 7 km/h |
|---|---|
| Lid colour: | Yellow |
| Chemical resistance: | Oil, Petrol, Solvents (short-term contact) |
| Shape: | Round |
| Colour: | Black |

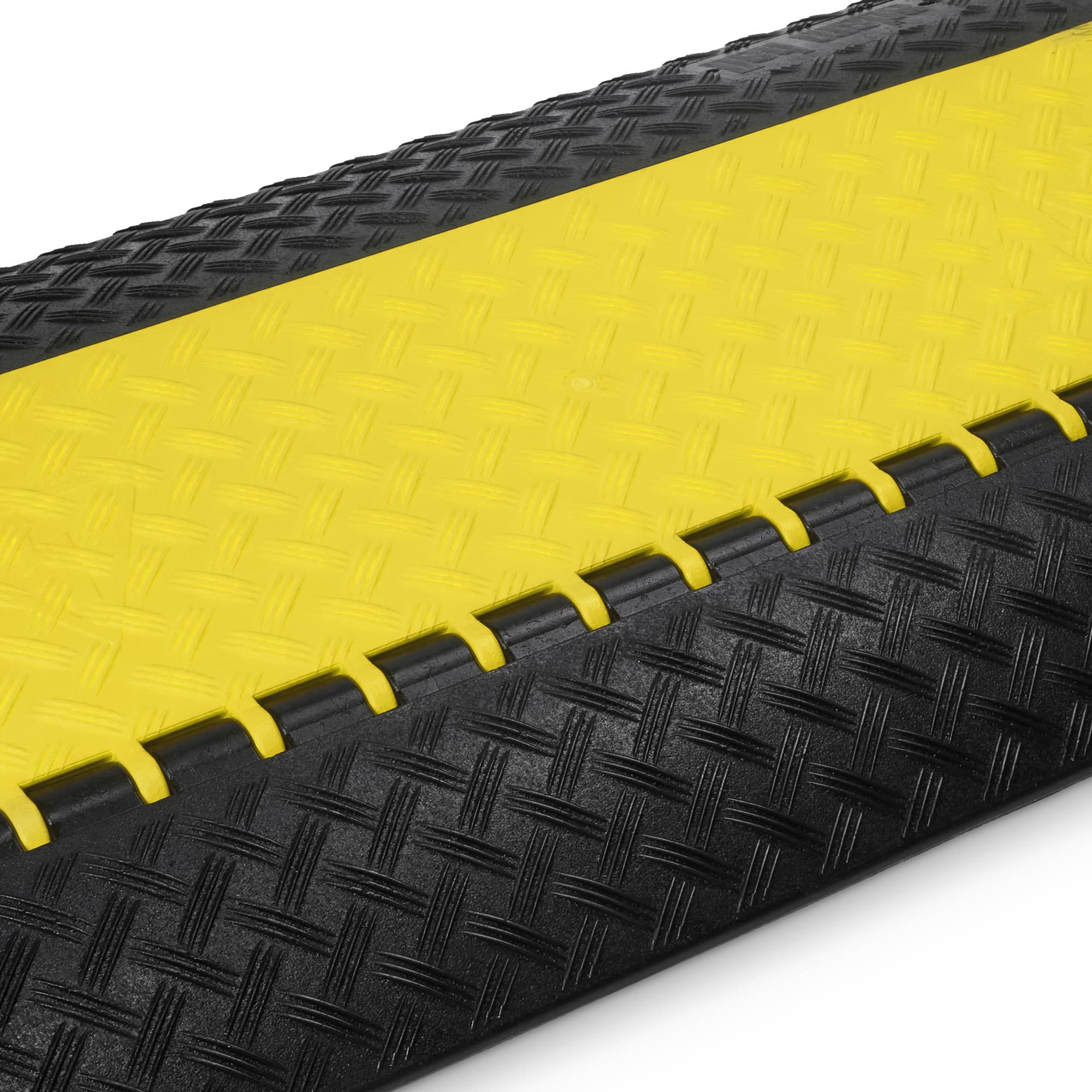

| Surface structure: | Ribbed |
| Material: | TPU (Thermoplastic polyurethane) |
| Hardness range (±4 Shore A): | 88 Shore A |
| Maximum load (on 25 x 30 cm): | 5 t |
| Load per axle: | 10 t |
| Quantity: | 3 |
|---|---|
| Duct length (effective length): | 39.37 in |
| Cable ducts size (W x H): | 45 mm x 50 mm / 52 mm x 49 mm |
| Inflammability (UL 94): | V-2, HB |
|---|---|
| Fire protection class per DIN 4102-1: | B2 |
| Meets CP65: | 1 |
| Ambient temperature: | -30 - 60 °C |
| Meets TSCA: | 1 |
| Fire protection class per EN 13501-1: | E |
| Width: | 23.9 in |
|---|---|
| Height: | 2.95 in |
| Length: | 39.57 in |
| Weight: | 51.81 lbs |
| Certifications: | Germany: TÜV Süd |
|---|
Login
accessories
3 big channels - most popular Featuring a 73 mm profile, 45° curve and end ramps with detachable dovetail connectors, the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. With 3 medium large channels, built-in handles for easy portability and a 5 t per 25 x 30 cm load capacity the 73 mm profile Defender® 3 cable protectors are the perfect all-round choice for a wide variety of applications including heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events. The DEFENDER 3 C 45° curve with connectors is ideal for creating curves with the DEFENDER 3 cable protectors. Label your cable protector! Customise the Defender cable protector with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool. Feel free to contact us for more information.
