Cameo

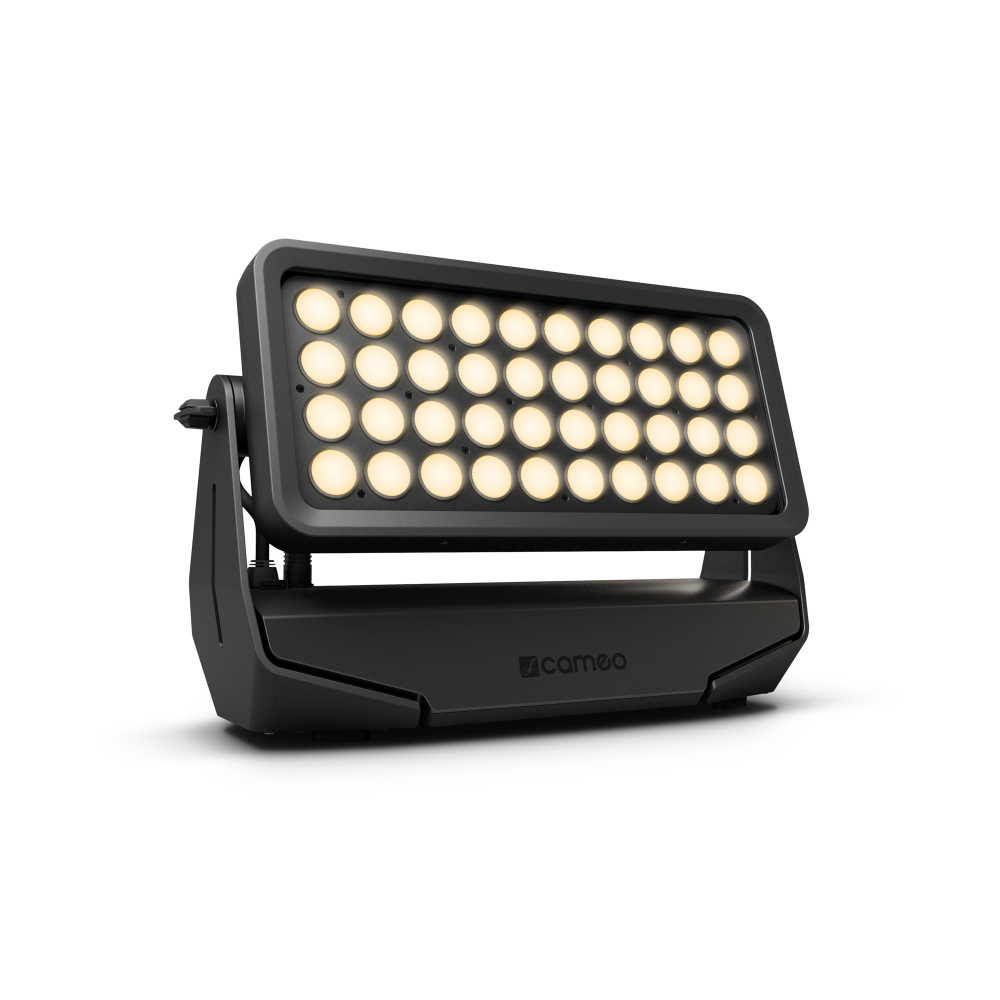

ZENIT® W600 TW

Outdoor LED Wash Light Tunable White Version

ZENIT® W600 TW

Price on request

Item No.:
CLZW600TW
EAN:
4049521707698
Guarantee:
24 Months
Unit:
piece
Series:
  • 40 x 12 W CW/WW LEDs with 31,000 lm luminous flux for intensive "Tunable White" mix

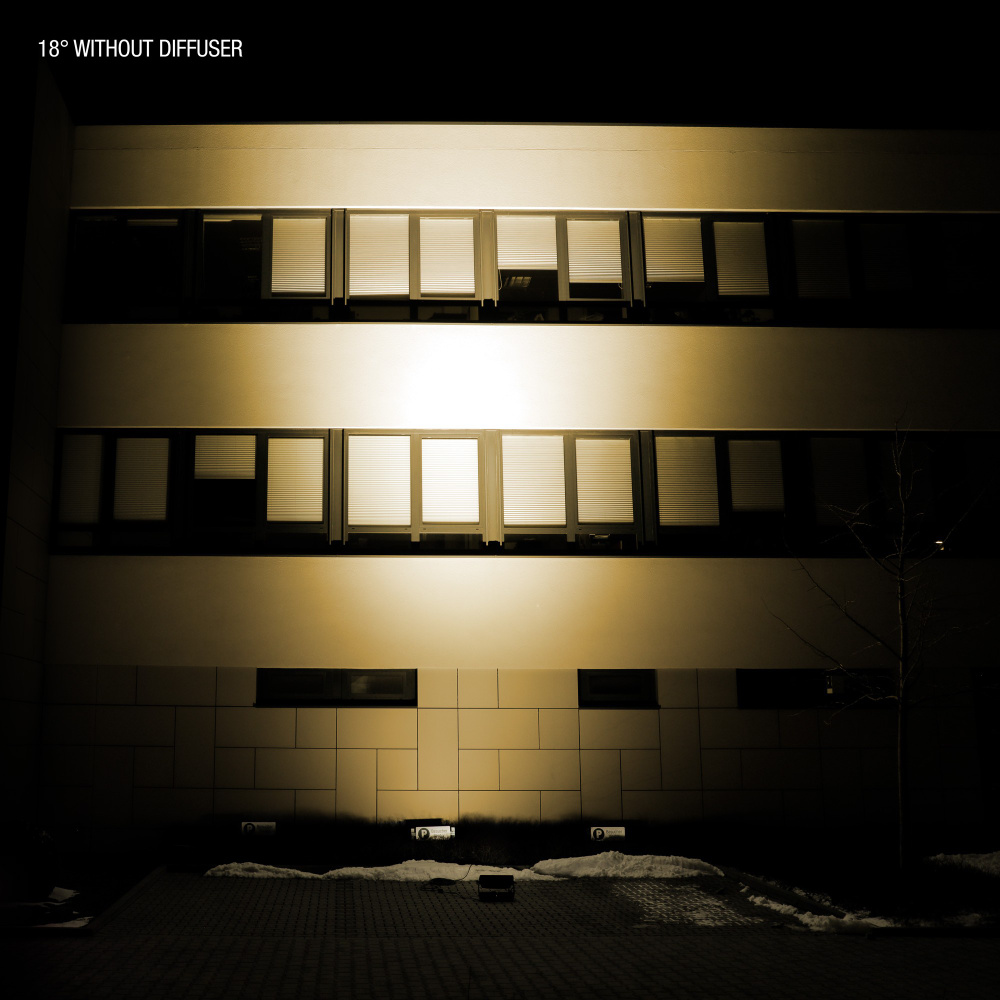

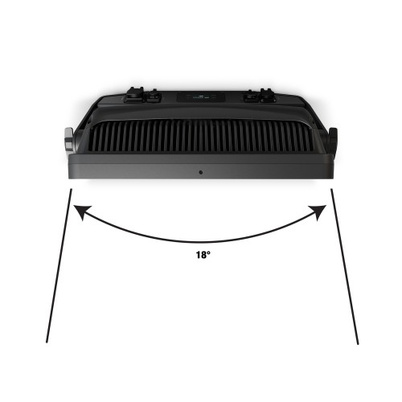

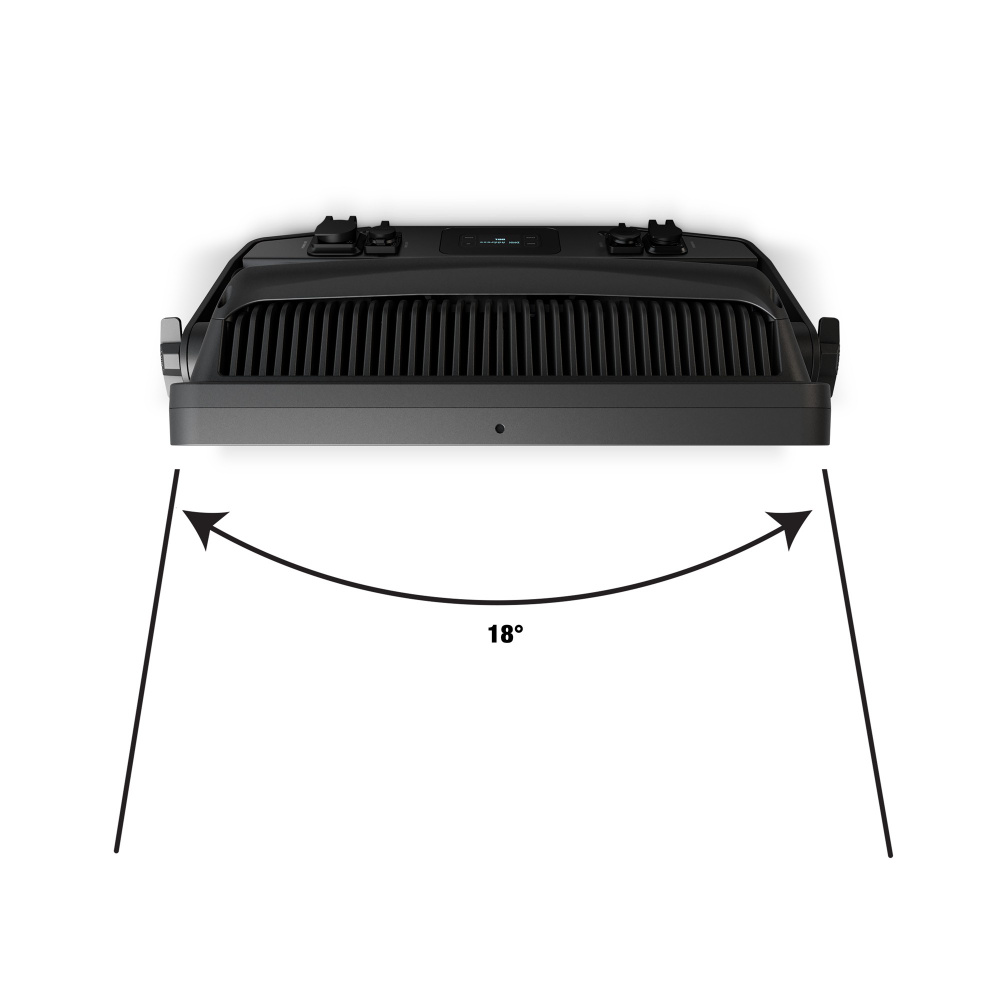

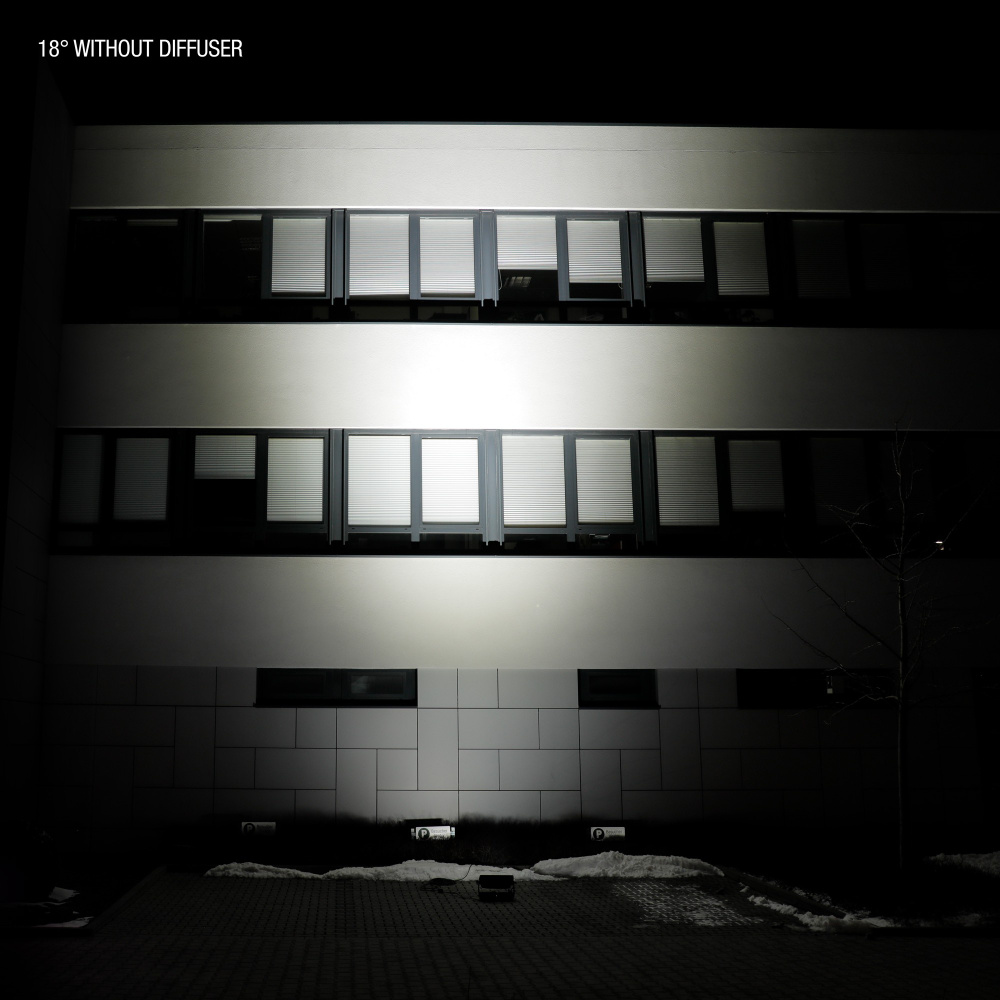

  • 18° beam angle and 35° field angle without diffusion lens

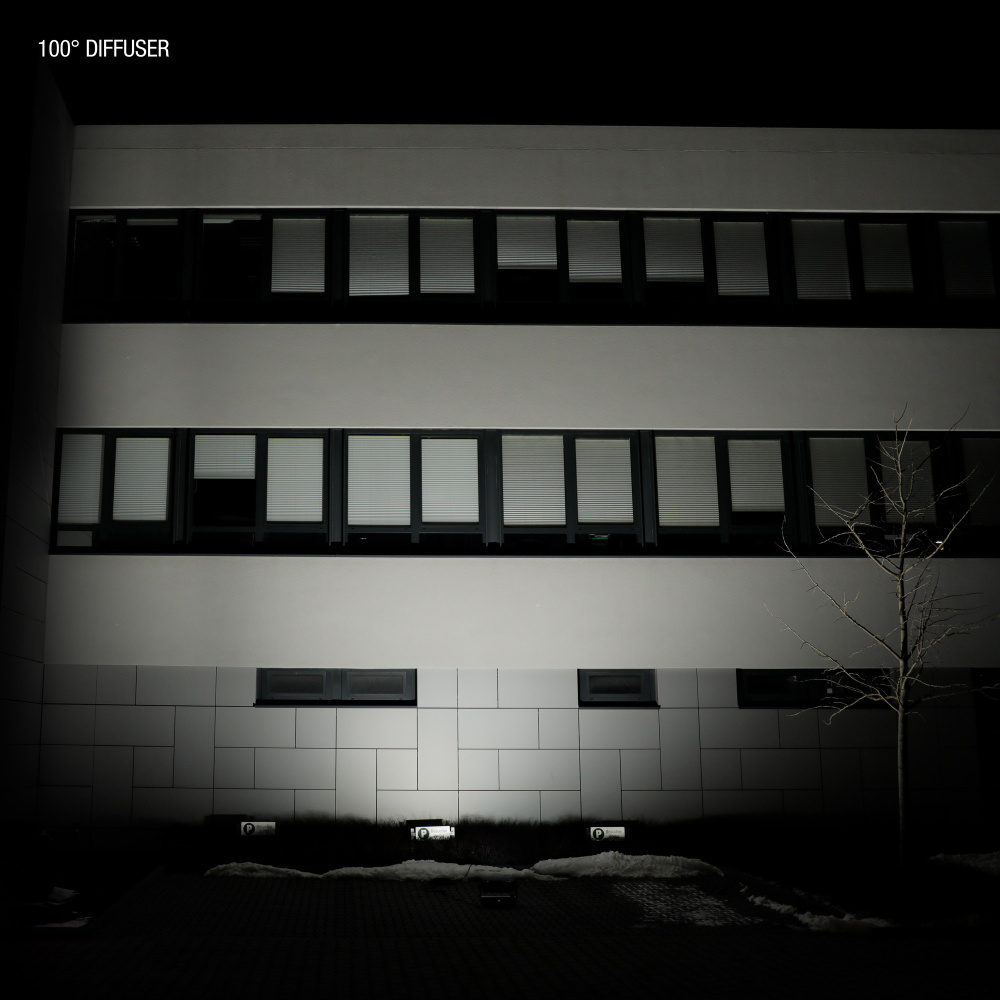

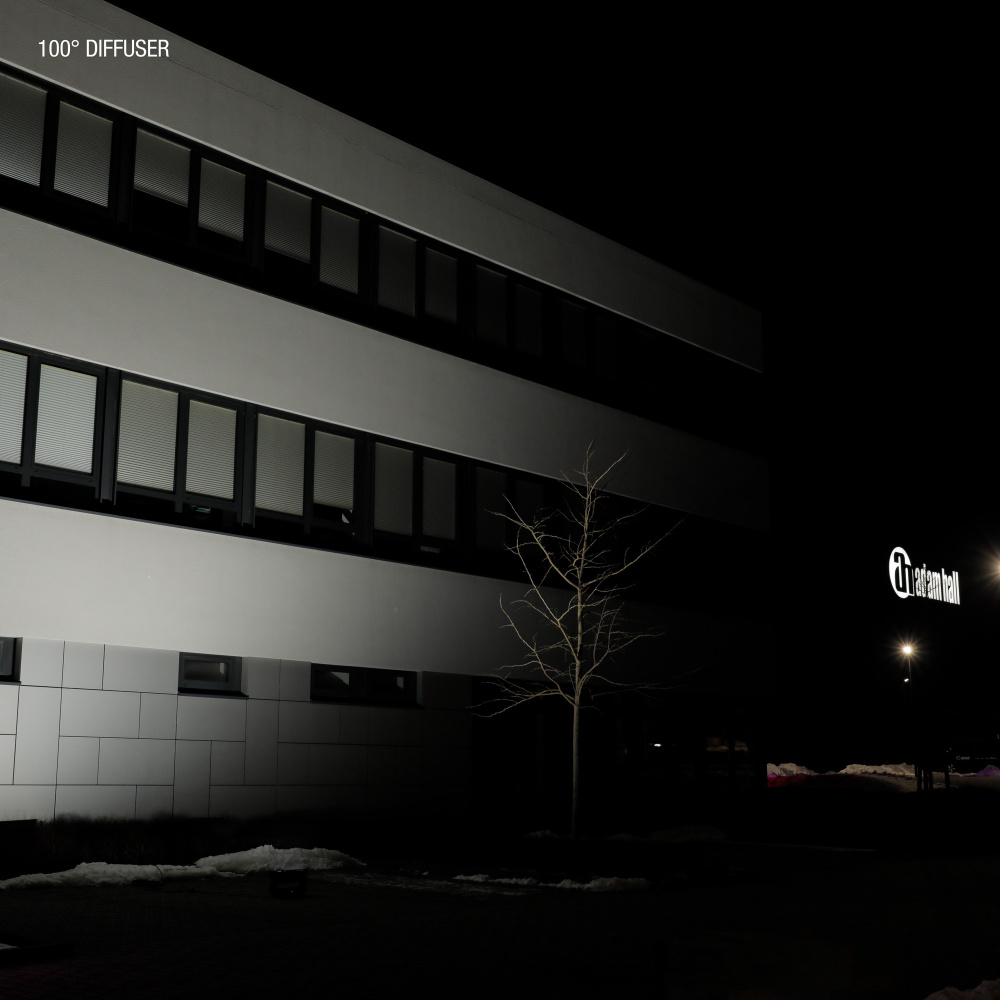

  • SnapMag® filter frames with 25°, 45°, 100°, 60° x 10°, 90° x 10° beam angles available separately
  • Control via DMX, RDM (via DMX) and automated programs

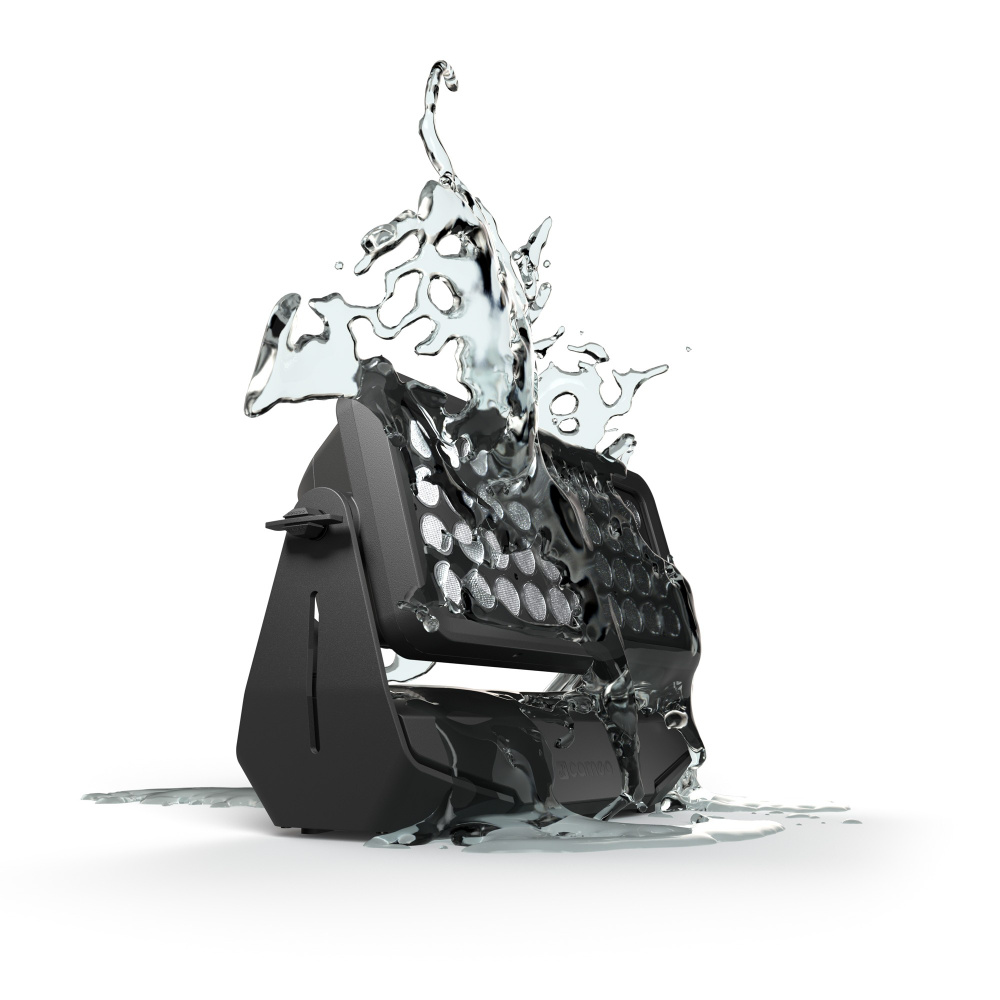

  • IP65 rated for outdoor use
  • Integrated 2.4 GHz W-DMX™ transceiver
  • Wireless master-and-slave operation
  • Temperature-controlled...
Read on
ZENIT® W600 TW
ZENIT® W600 TW
Outdoor LED Wash Light Tunable White Version

Price on request

Specifications

Specifications

General
Product type
LED Outdoor Wash Light
Colour spectrum
Warm White/Cold White
Number of LEDs
40
LED type
12 W, 2in1 SMD with collimator lenses
CRI
93 @ 4000 K
Refresh rate
800 - 25000 Hz, 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable Hz
TILT movement
158° (manuell)
Dispersion
Beam Angle: 18 - Field Angle: 35 °
Lens
PE and tempered glass

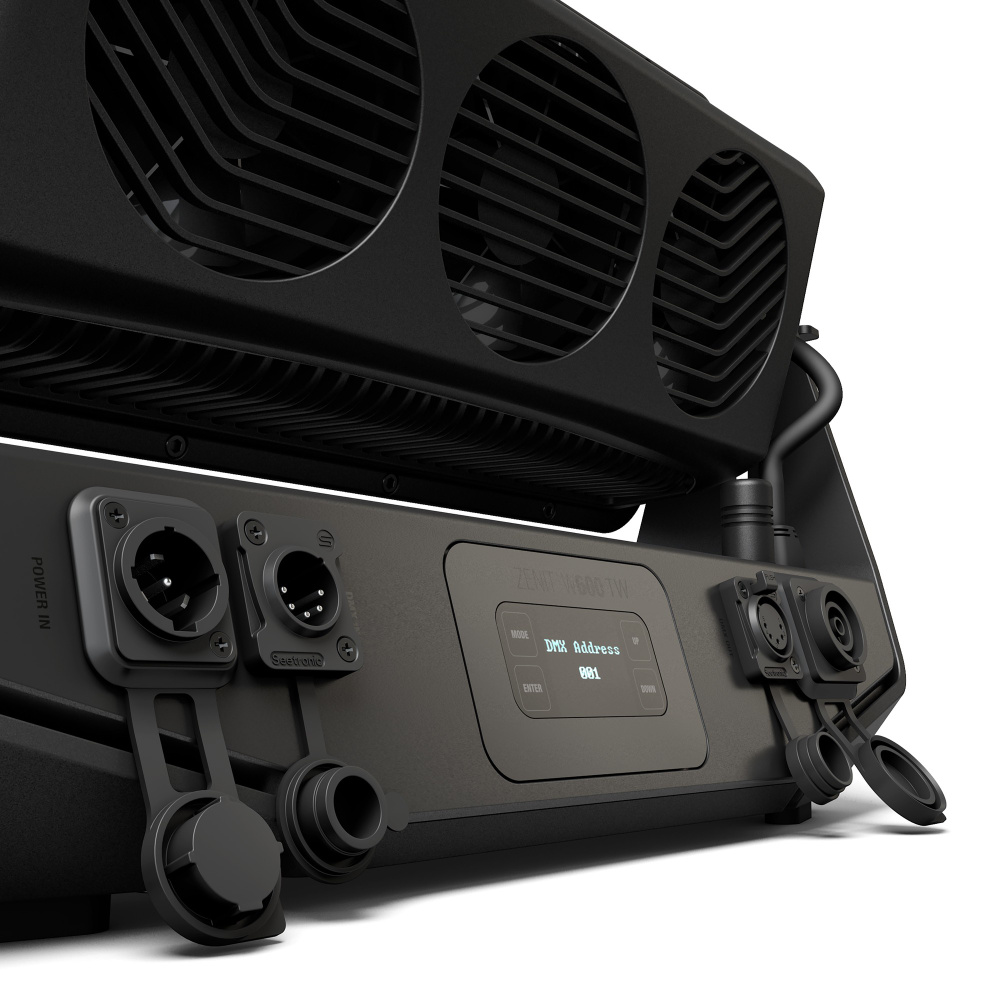

DMX input
XLR 5-pin male IP65
DMX output
XLR 5-pin female IP65
DMX mode
1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 7-channel
DMX Functions
CTC (Colour Temperature Correction), Dimmer, Dimmer Fine, strobe, System settings, Warm White/Cold White
Standalone modes
CTC (Colour Temperature Correction), Dimmer Mode, strobe, Timer, Warm White/Cold White
System settings
Dimmer Curve, Dimmer Response, Display Illumination, DMX Fail, Factory reset, fan, LED PWM Frequency, Rotate display by 180°
Control
DMX512, RDM, W-DMX
Electrical protection class
1

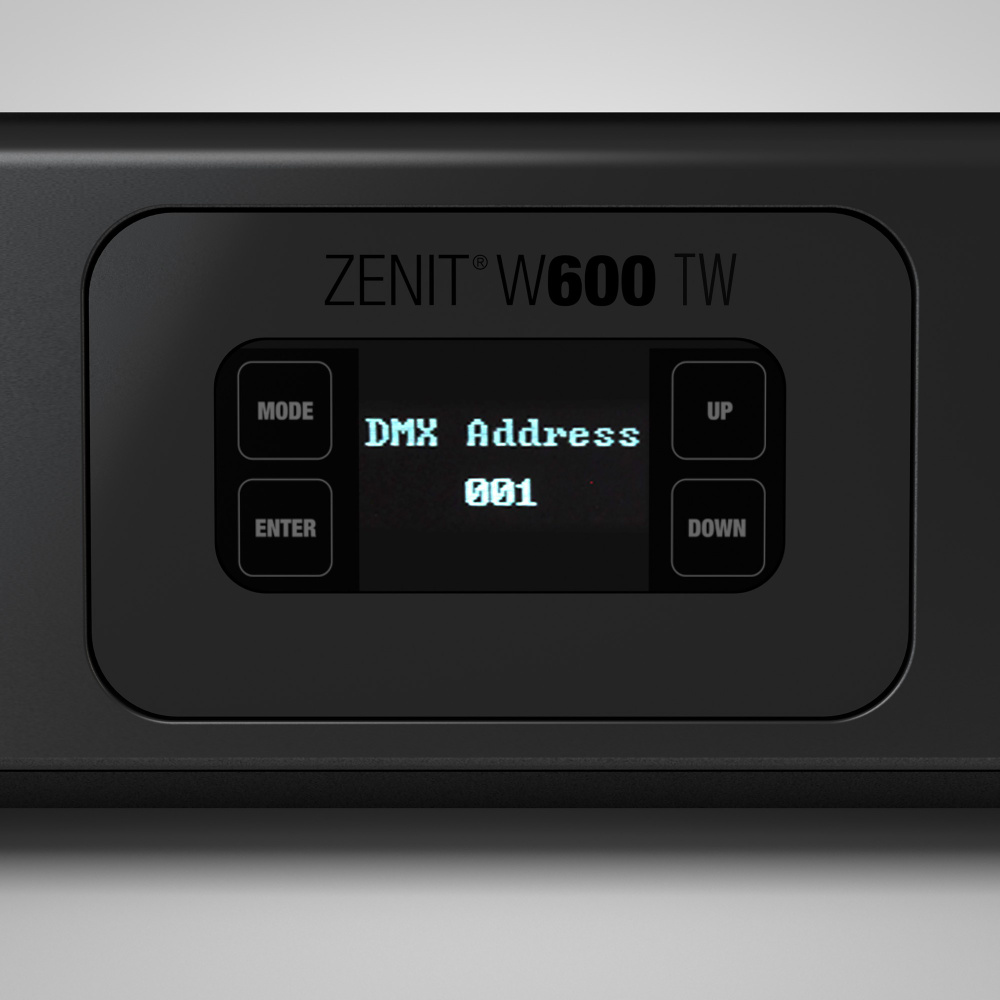

Controls
Down, Enter, Mode, Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
480 W
power factor
0.95 / 120 V, 0.95 / 230 V
Power connector
TrueCon In + Out (Out max. 6A)
Housing material
Die-cast aluminium
Cabinet colour
Black
Protection class IP
IP65
Cooling
fan
Luminous flux
31000 lm
Color temperature
2600 - 6500 K
Ambient temperature (operating)
-15 - 40 °C
Accessories (included)

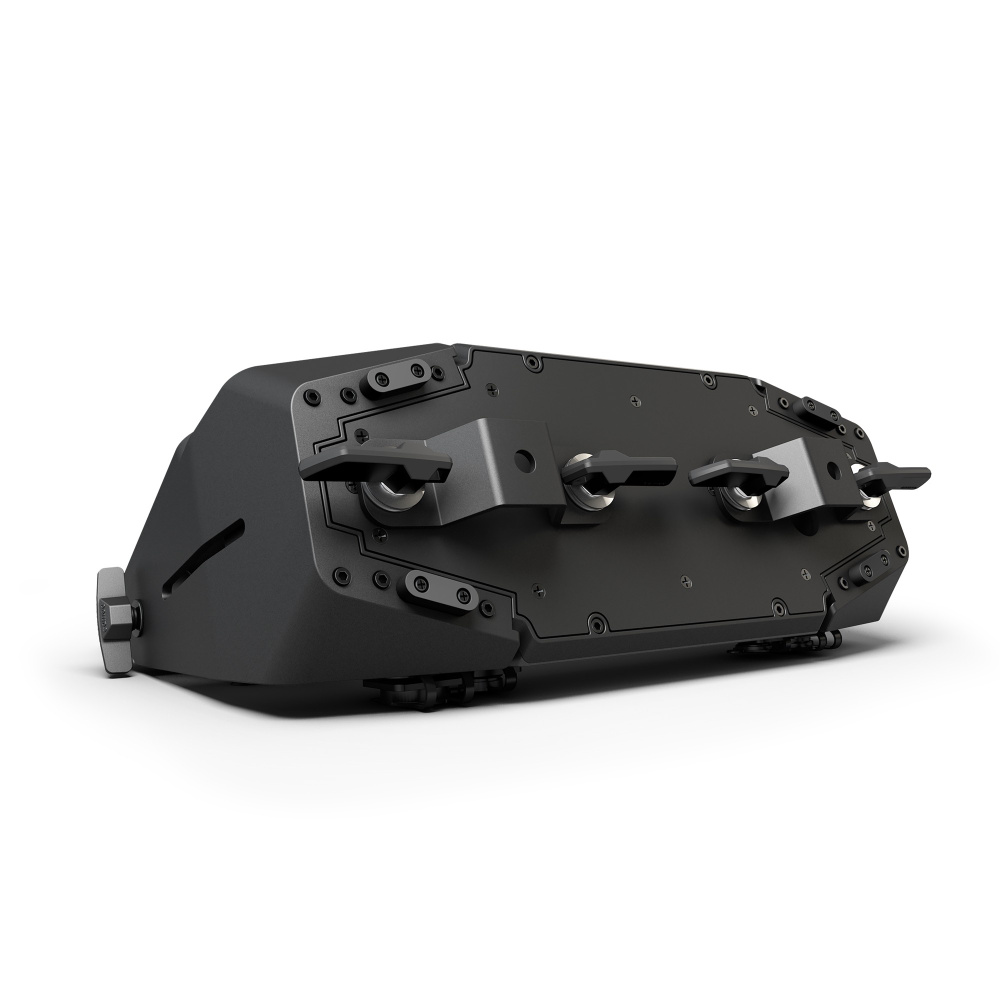

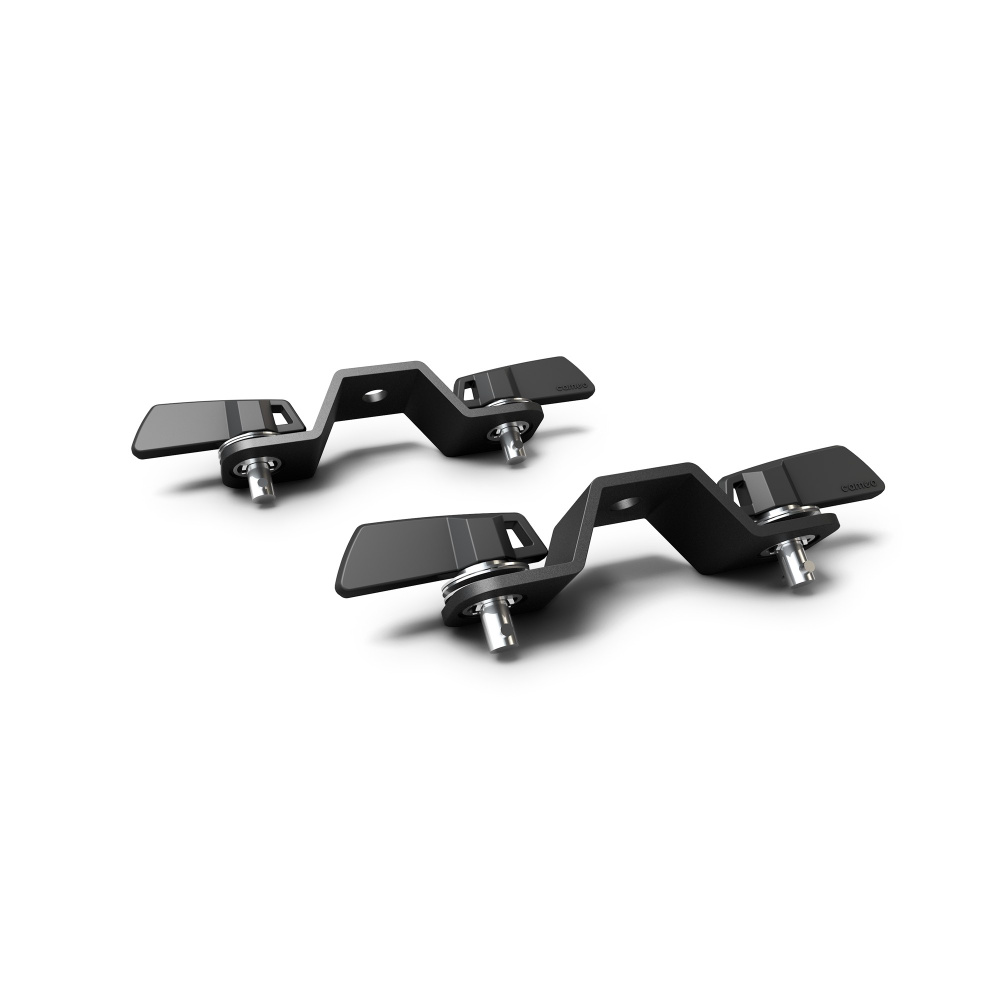

2 x omega mounting, Power cord
Total dimensions
Width
463 mm
Depth
161 mm
Height
291 mm
Weight
13 kg

Description

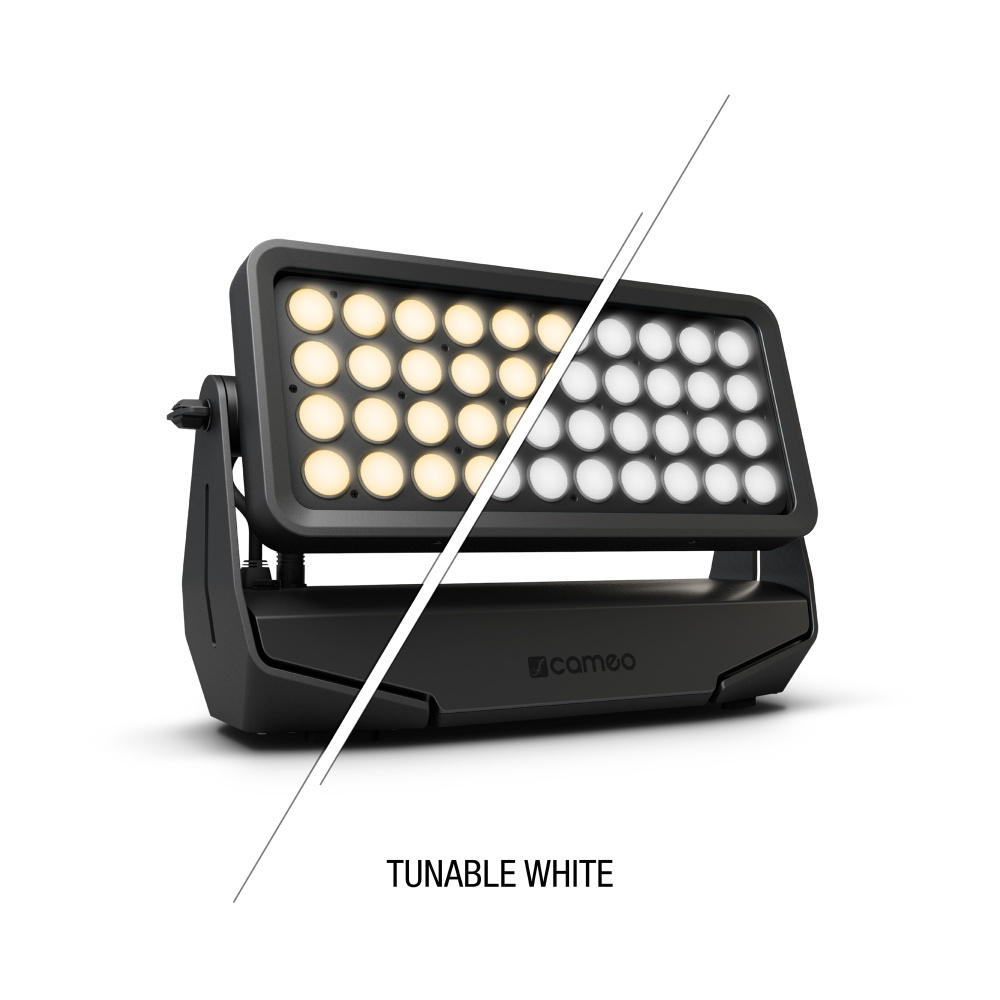

Puts every space in the right light - the Tunable White version of the ZENIT® W600 family projects its up to 31,000 lm light from a total of 40 x 12 watt cool and warm white LEDs powerfully and precisely onto every area, whether in the exhibition hall or at an exhibition. Thanks to 16-bit technology for high-resolution colour mixing and dimming, lighting designers can create powerful white surfaces that range from 2,600 K to 6,500 K in colour temperature. The selectable dimming curves including the optional simulation of the dimming behaviour of a halogen lamp make the ZENIT® W600 TW a versatile tool for atmospheric architectural and stand lighting.

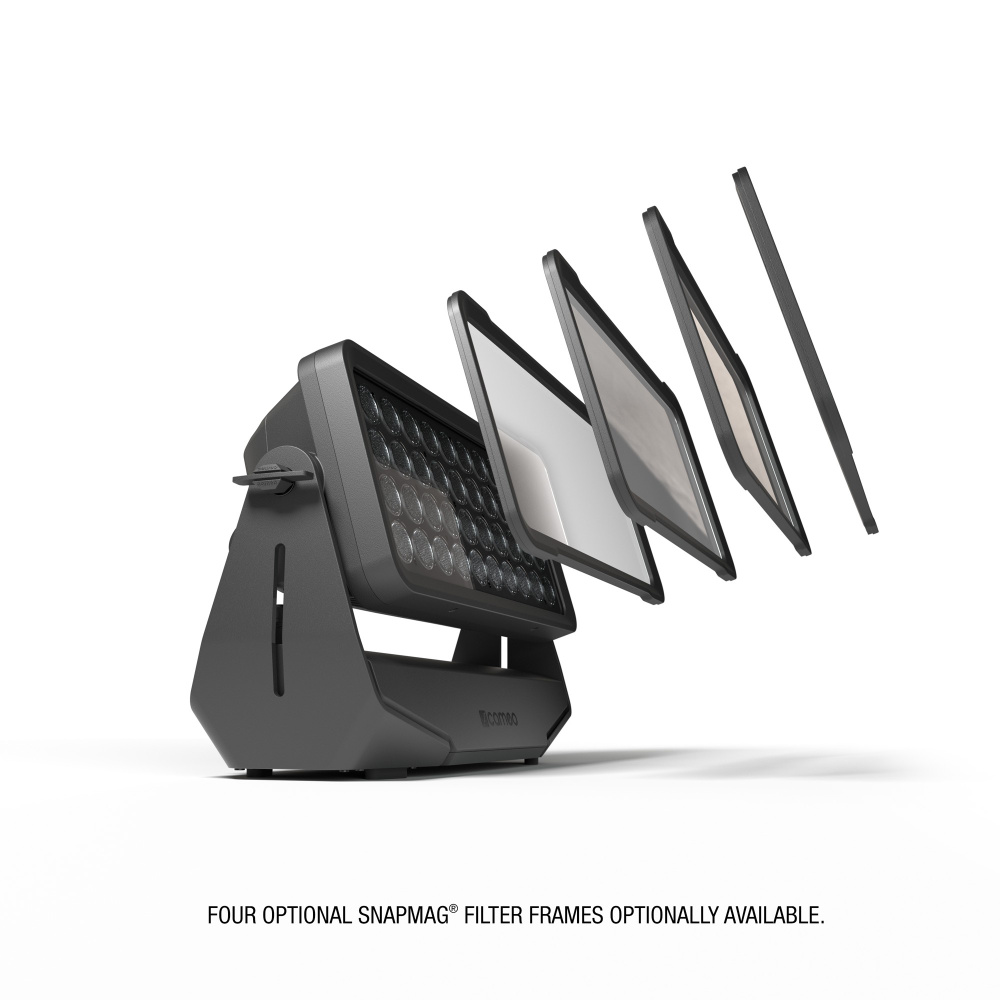

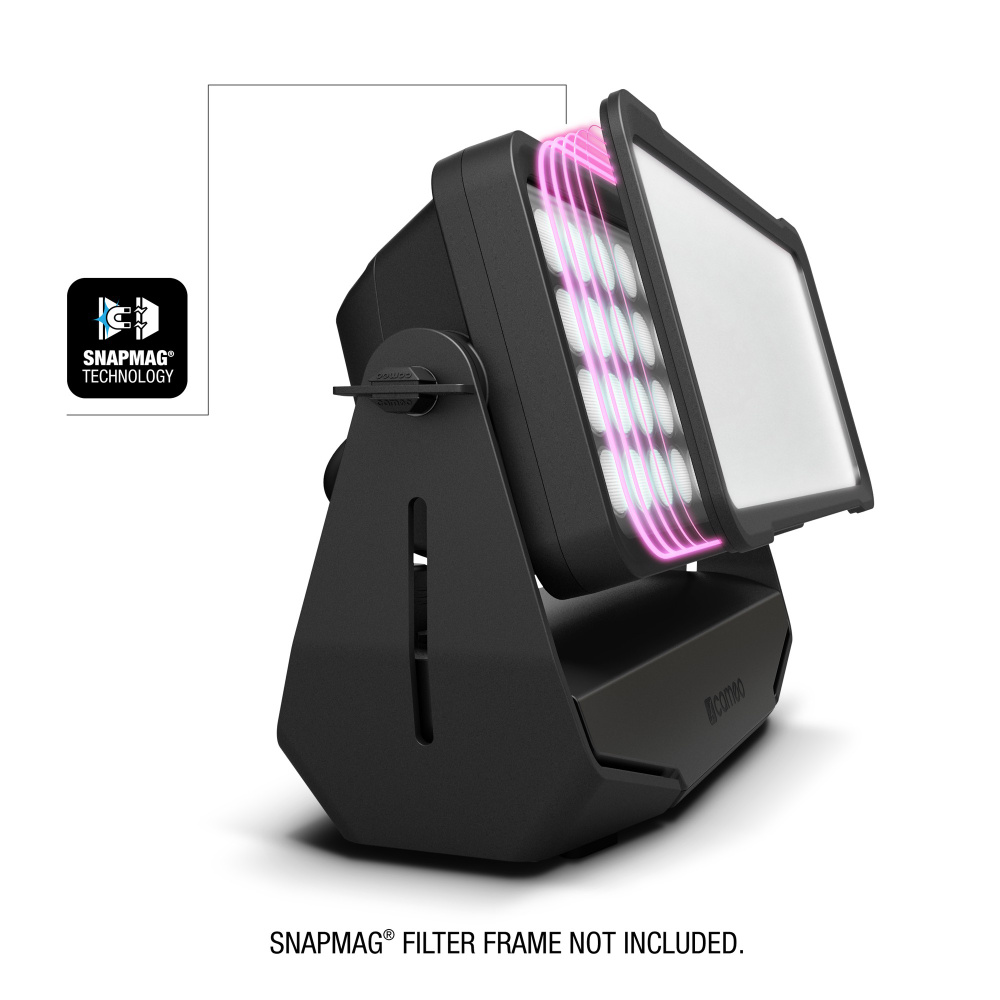

For maximum flexibility, numerous accessories are available for the ZENIT® W600 TW. A variety of symmetrical and asymmetrical SnapMag® filter frames can be selected to achieve the desired beam angle. Filter frames with 25°, 45°, 100° or elliptical 60° x 10° and 90° x 10° beam angles are available and, thanks to the patented SnapMag® technology, mounting is done completely without tools.

The ZENIT® W600 has already proven its quality on live stages, outdoor events and in the TV sector - with the ZENIT® W600 TW, architects, planners, lighting designers and rental service providers who increasingly work in the field of architectural and trade fair lighting now also benefit from the enormous luminous efficacy, quality and reliability of the Tunable White Washlight.

Stories

1. Mar 2023
smARTec invests in Cameo ZENIT® W600 TW – Premiere at Auto Zurich
