LD Systems

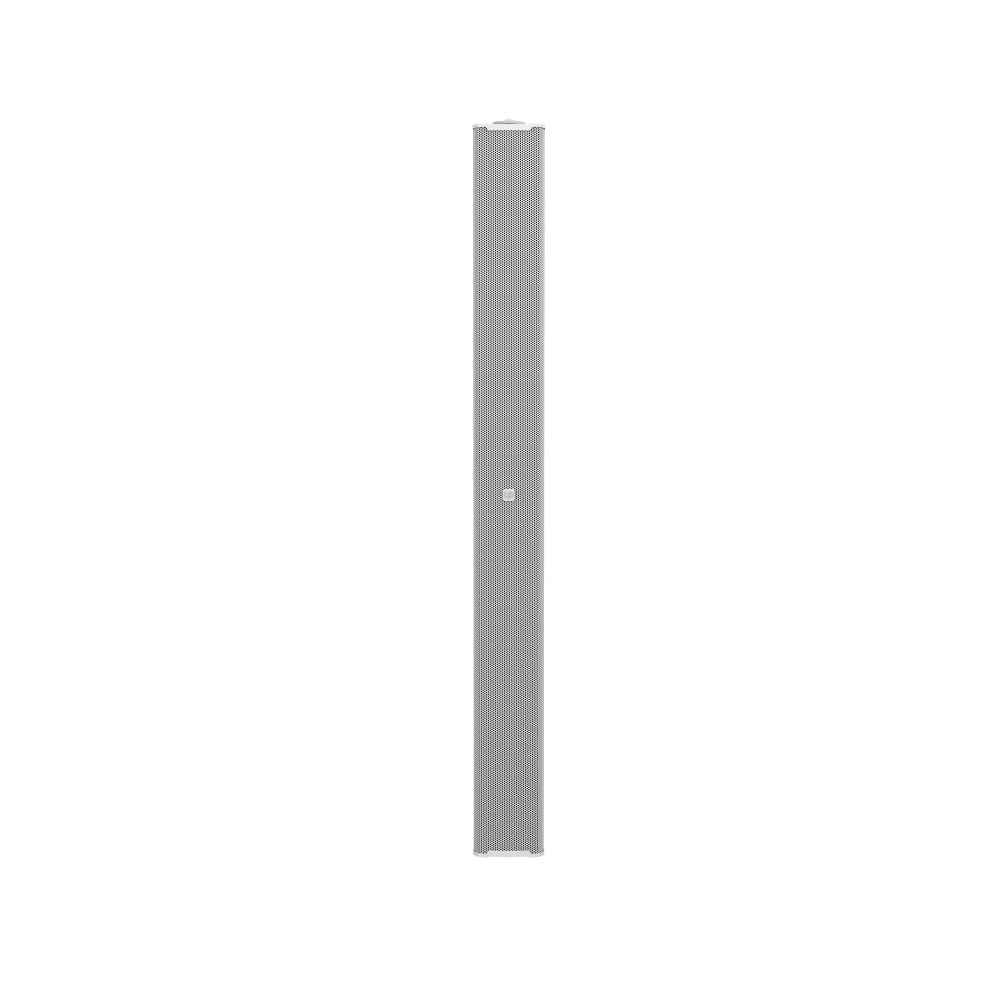

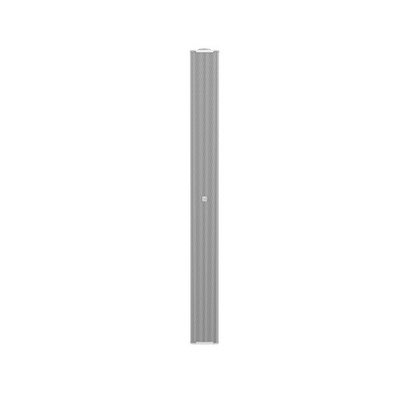

MAUI i1 W

Passive Indoor/Outdoor Installation Column Loudspeaker, White

MAUI i1 W

Price on request

Item No.:
LDMAUII1W
EAN:
4049521462290
Guarantee:
60 Months
Unit:
piece
Series:
  • Surface-mounted passive column Loudspeaker with nine 3" mid-range woofers and two 1" neodymium tweeters
  • BEM-optimized high frequency waveguide for wide horizontal and controlled vertical dispersion
  • 120 W RMS at 8 ohms
  • Input selector switch: 8 ohms (transformer bypass) / 100 V / 70 V
  • 70 V / 100 V power taps: 60 W, 30 W, 15 W, 7.5 W with low saturation transformer
  • IP65 protection class, aluminum speaker grille and weather treated...
Read on
MAUI i1 W
MAUI i1 W
Passive Indoor/Outdoor Installation Column Loudspeaker, White

Price on request

Specifications

Specifications

General
Product type
Installation Loudspeakers
Type
Passive
Low/mid Woofer dimensions
9 x 3 "
Woofer dimensions (mm)
76.2 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
2 x 1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Neodymium
HF driver brand
Custom-made
Dispersion (H x V)
120° x 30 °
Load rating (RMS)
120 W
Peak power
480 W
Frequency response
130 - 19000
Crossover frequency
2500 Hz
SPL (1W/1m)
94 dB
Max. SPL
116 dB
Impedance
8 Ohm
Input selector switch
70 V - 100V - 8 Ohms (transformer bypass)
100V Transformer power taps
60 - 30 - 15 - 7.5 W
70V Transformer power taps
60 - 30 - 15 - 7.5 W
Protection class IP
65
Loudspeaker inputs
1
Speaker input connections
4-pin Euro Terminal Block (Pitch - 5,08 mm)
Cabinet material
Aluminium
Cabinet construction
Closed
Width
85 mm
Height
985 mm
Depth
105 mm
Accessories (included)
U-Bracket for surface mount
Optional accessories
Tilt-and-Swivel Wall Mount: LDMAUII1WMBTW
Weight
8,6 kg

Description

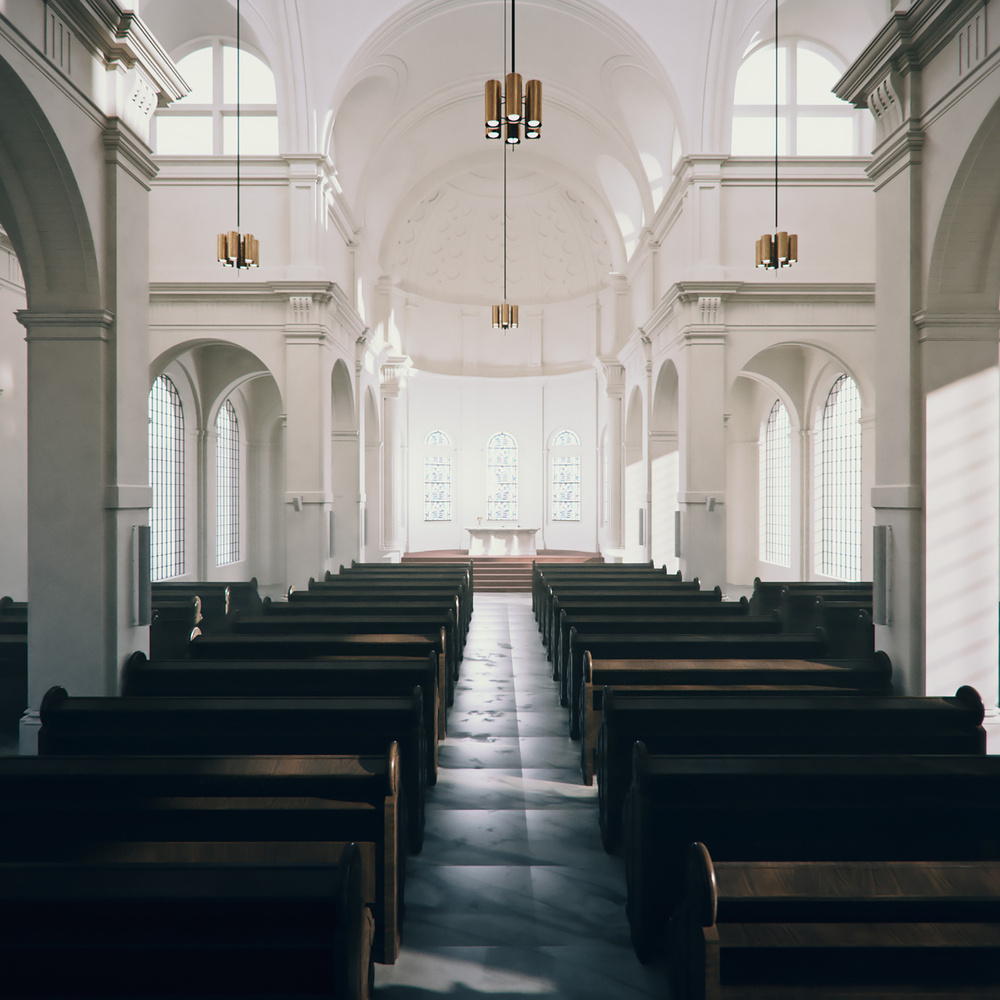

For acoustically challenging interiors where music and speech must be clearly understood, even in the rearmost rows, there is one solution - MAUI® i1 W.

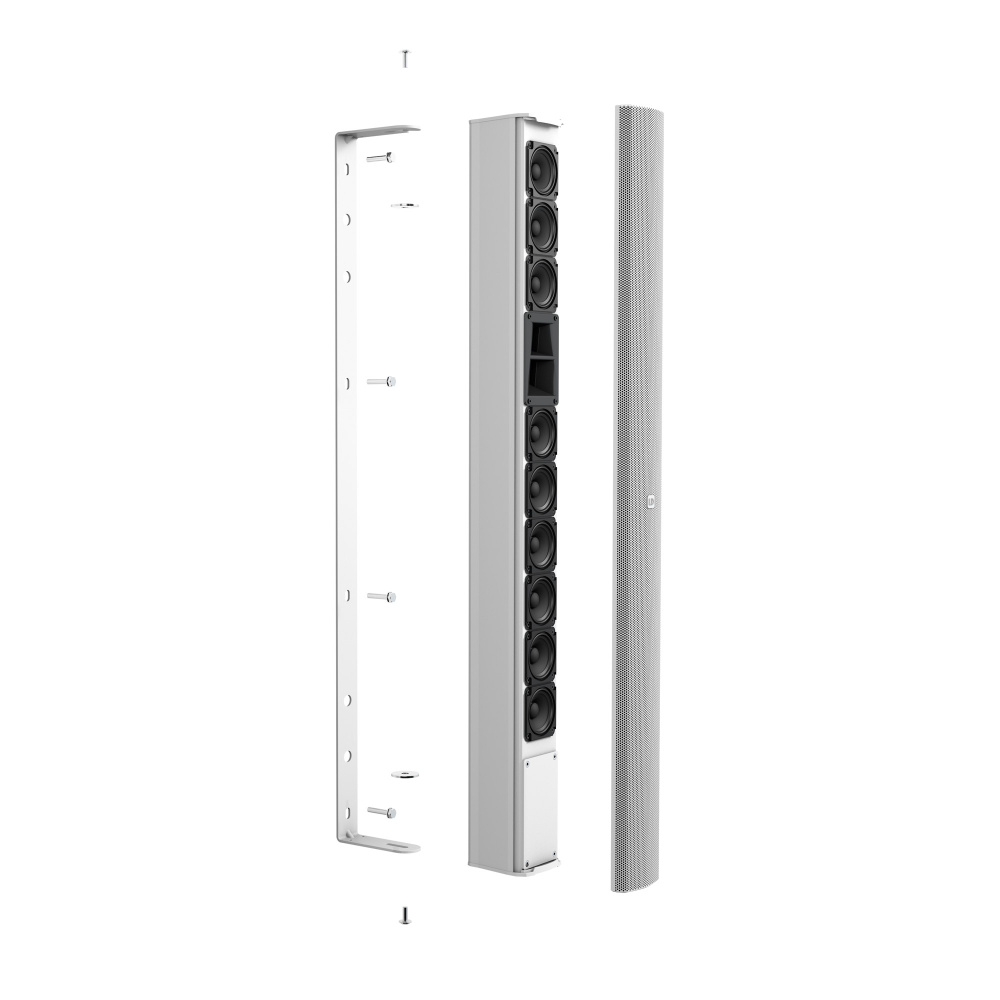

This feature is achieved with nine 3" mid-range drivers, two 1" neodymium high-frequency drivers and a specially developed BEM-optimized Waveguide. This combination avoids unnecessary reflections on the floor and on ceilings by keeping the vertical dispersion as narrow as possible and the horizontal one as wide as possible.

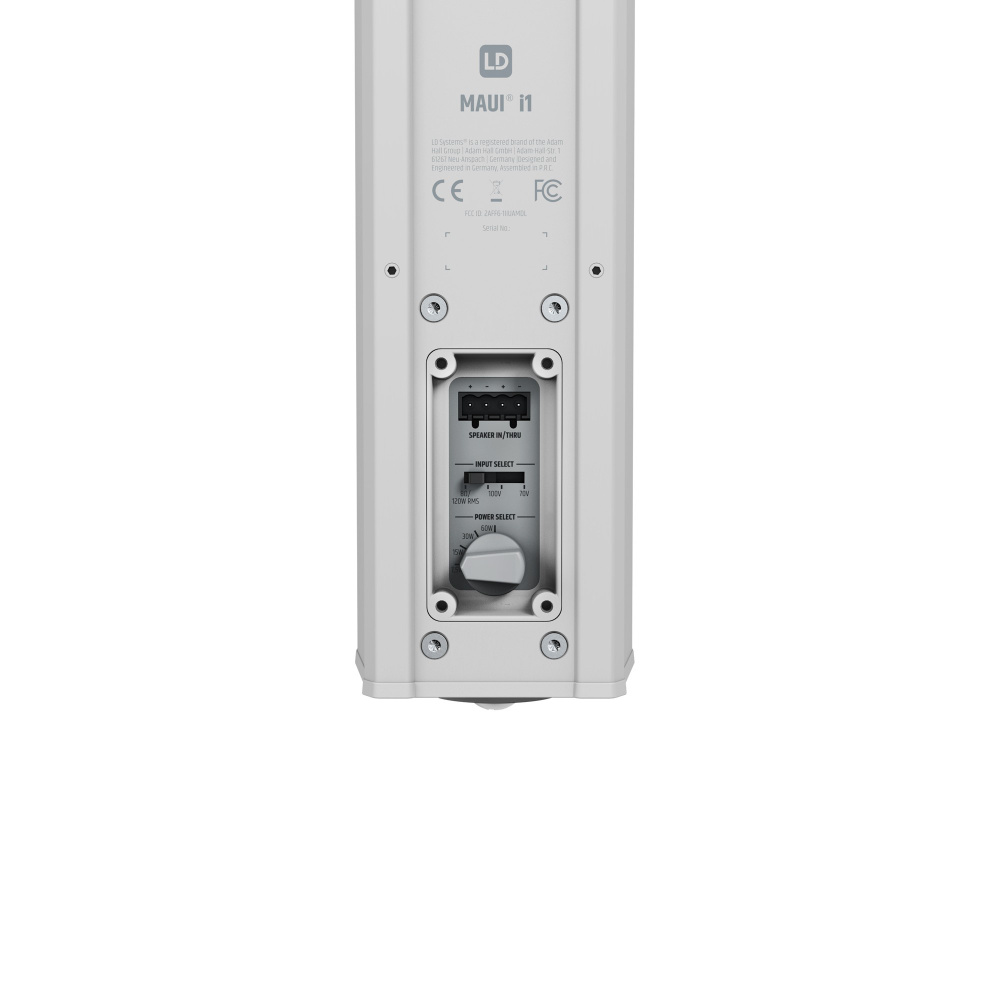

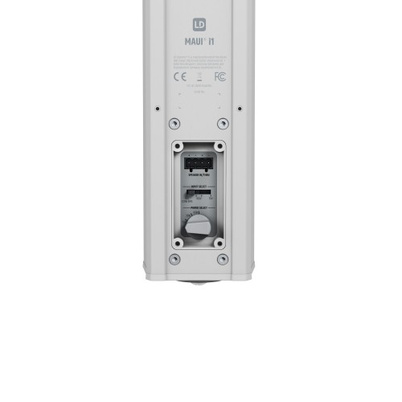

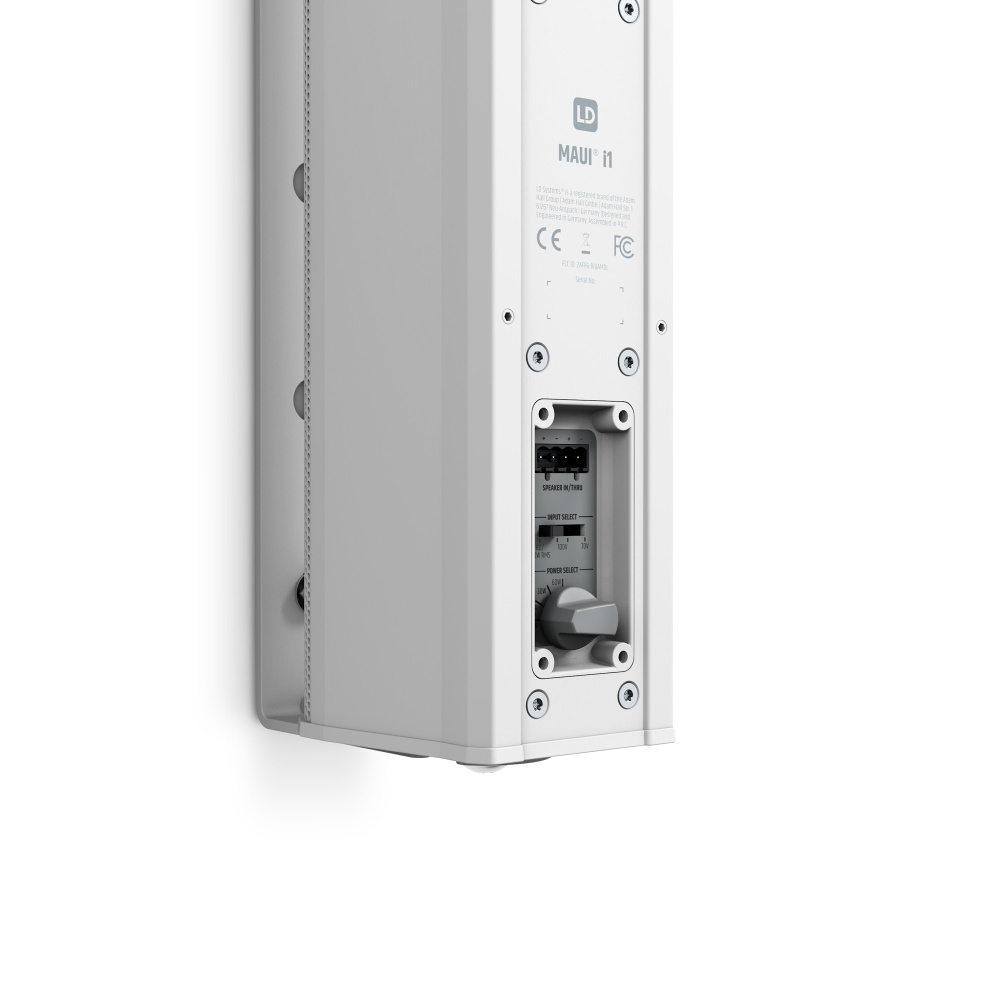

Installers can easily integrate the MAUI® i1 W in any constant-voltage audio system. This is made possible with an 8 Ohm / 70 V / 100 V selector switch. In addition, you can tap the power down to 60 W, 30 W, 15 W and 7.5 W depending on how many speakers you need to run in parallel and for a more efficient performance. At 8 Ohms, you can benefit from the best frequency response and highest 120 W RMS power rating.

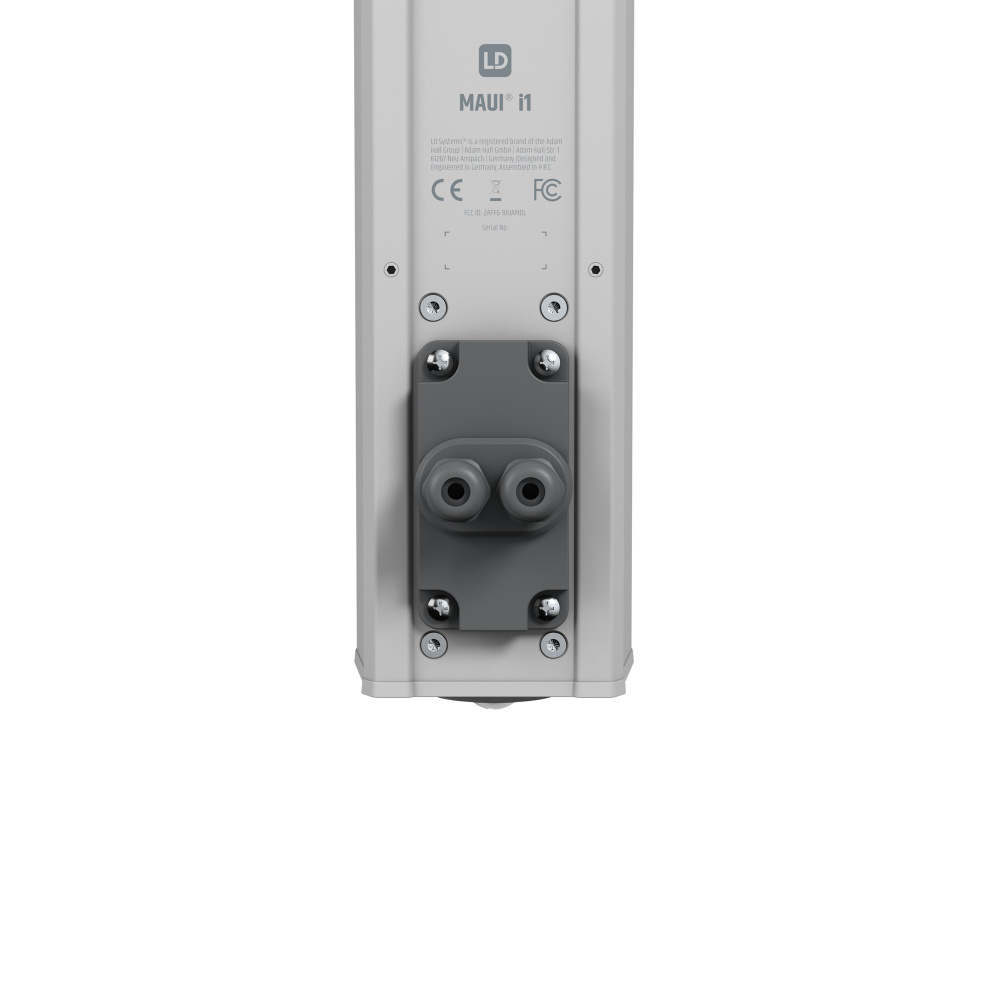

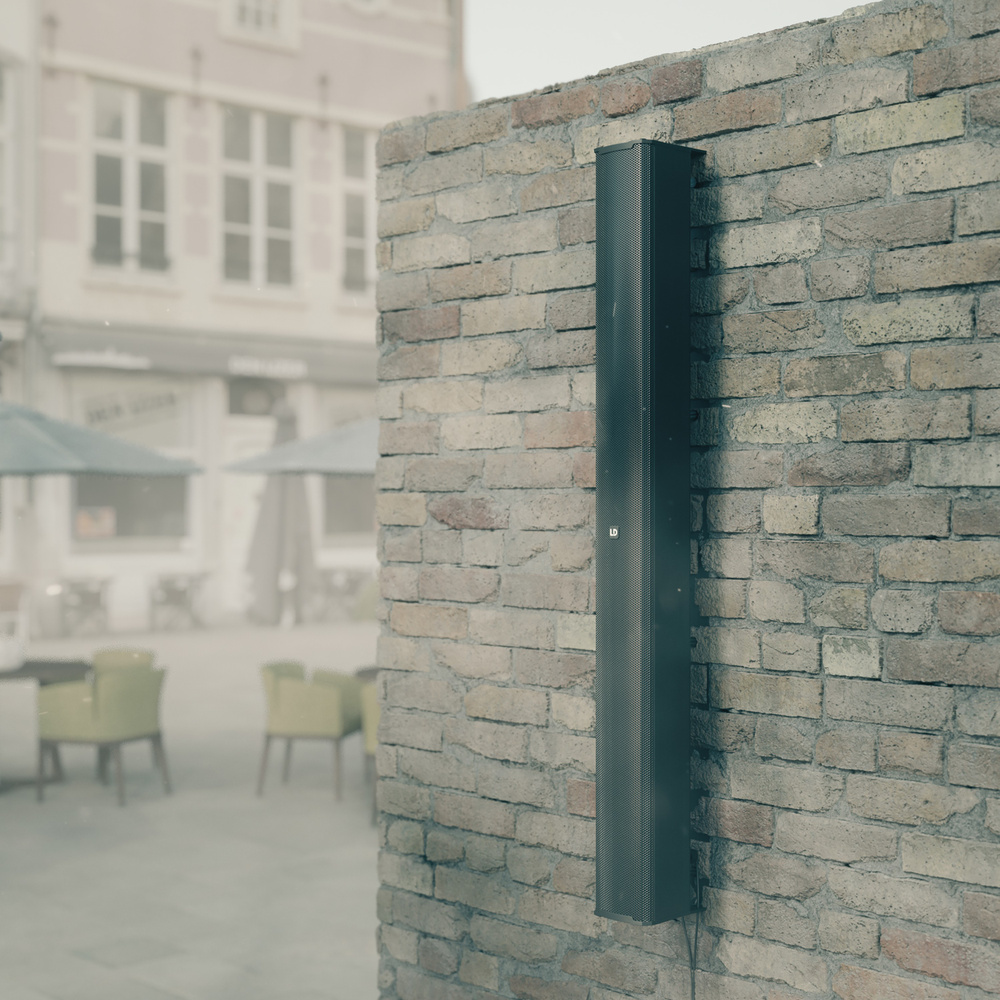

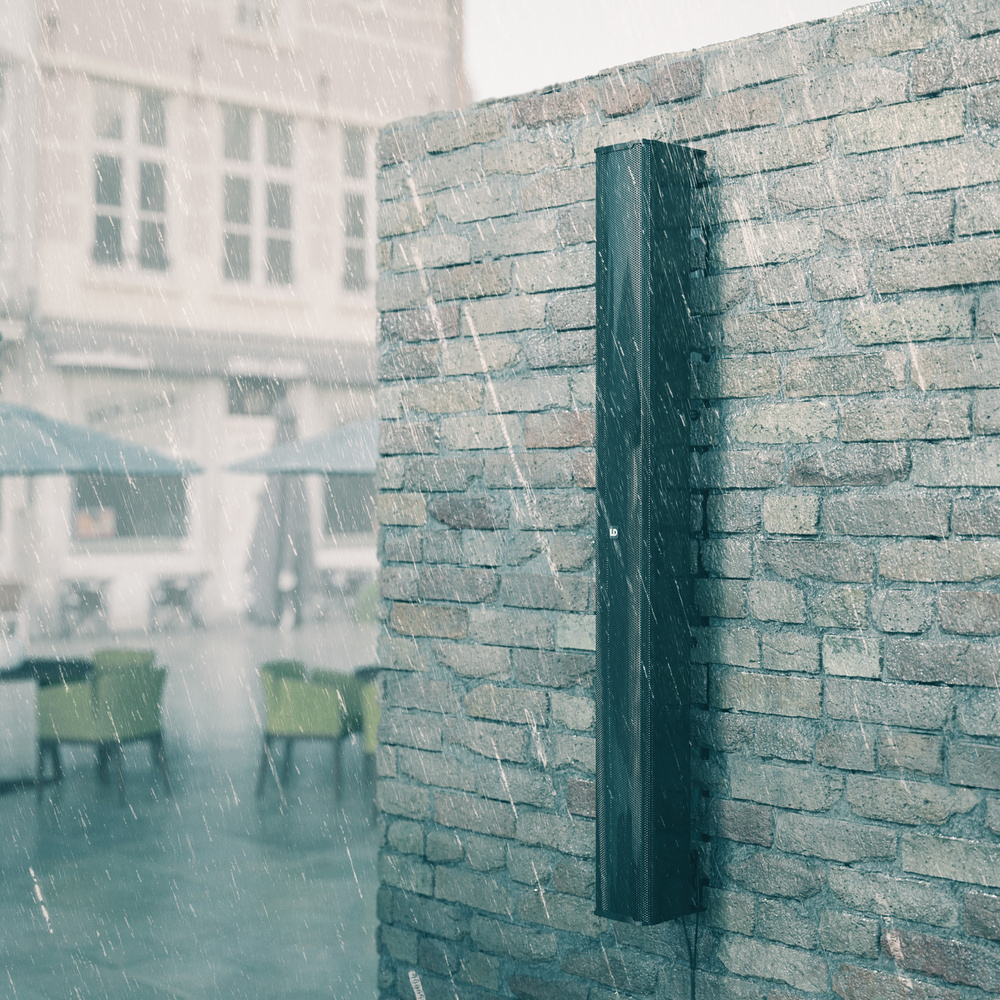

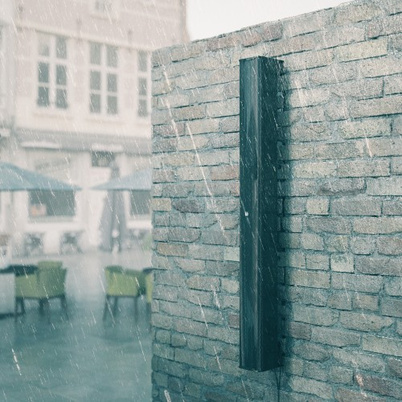

For outdoor use, MAUI® i1 W features weather treated cones, an aluminum loudspeaker grille and a weatherproof cover for the connection panel. That way, no water can enter the panel and your Loudspeaker stays rust free.

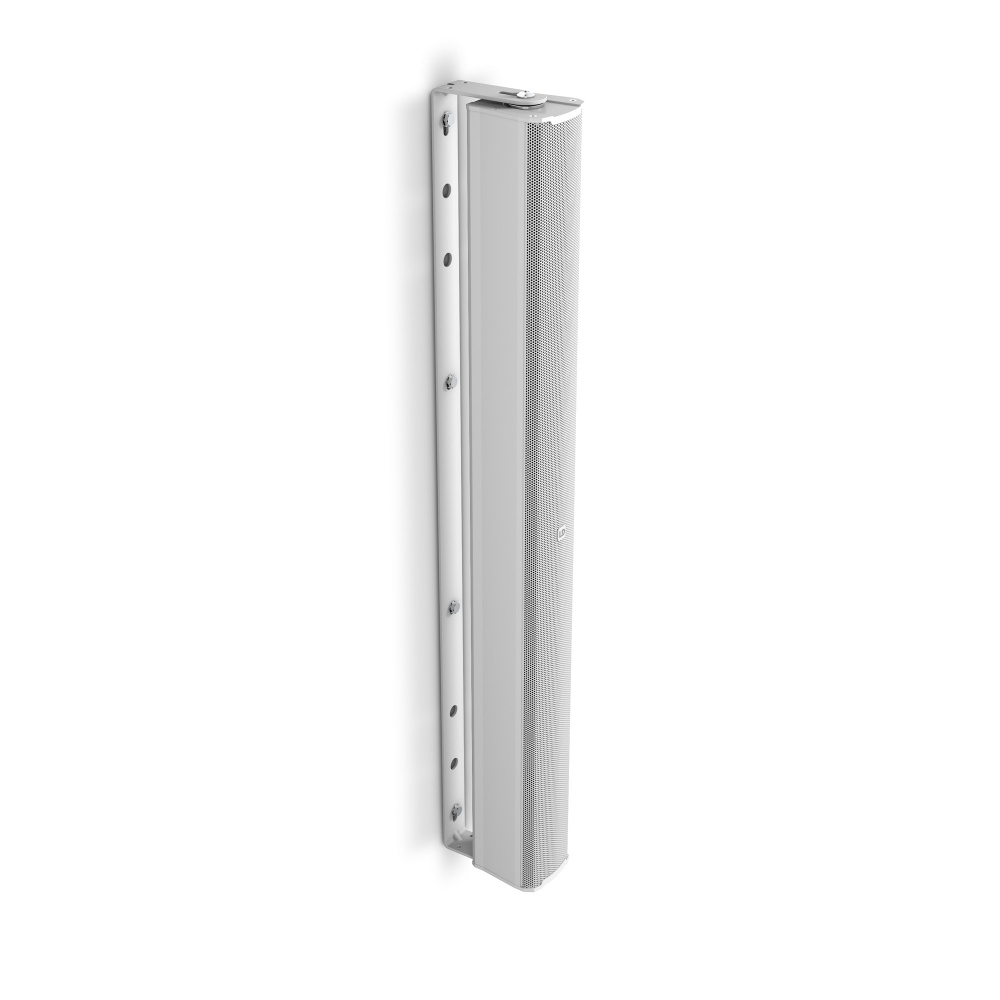

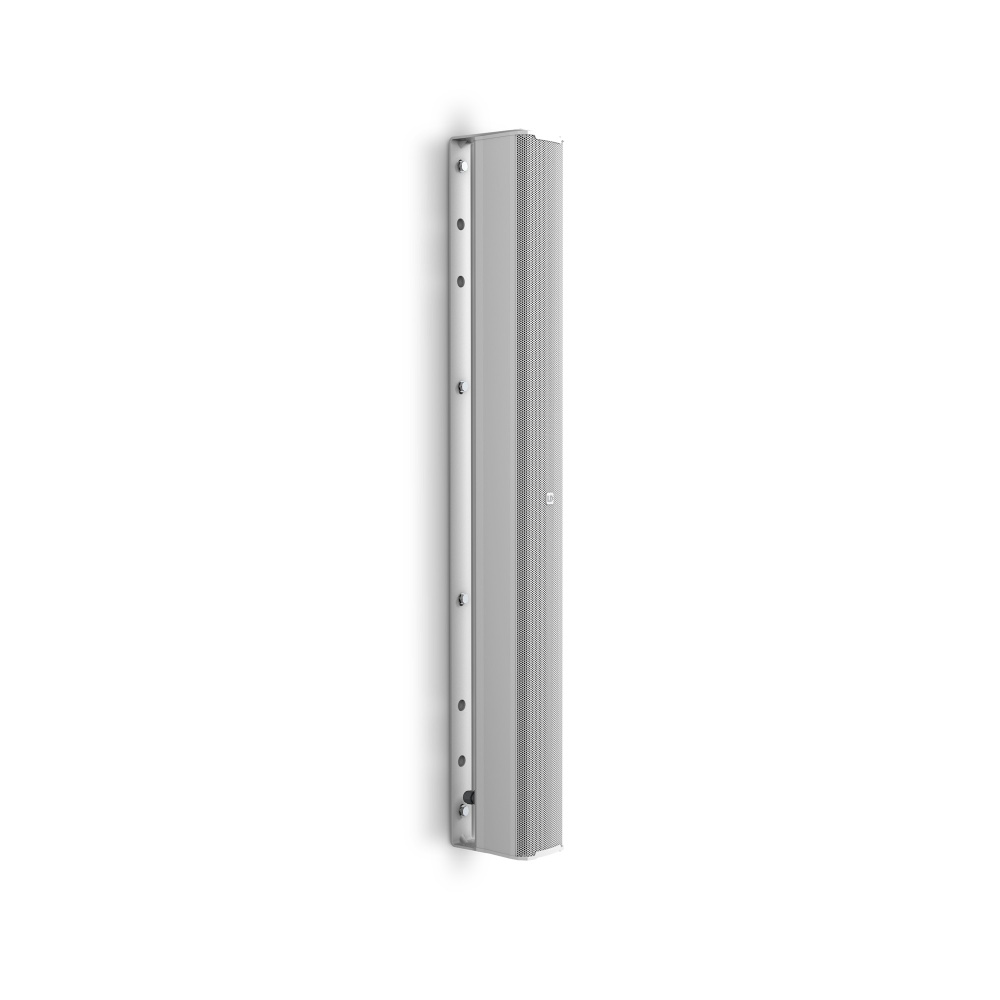

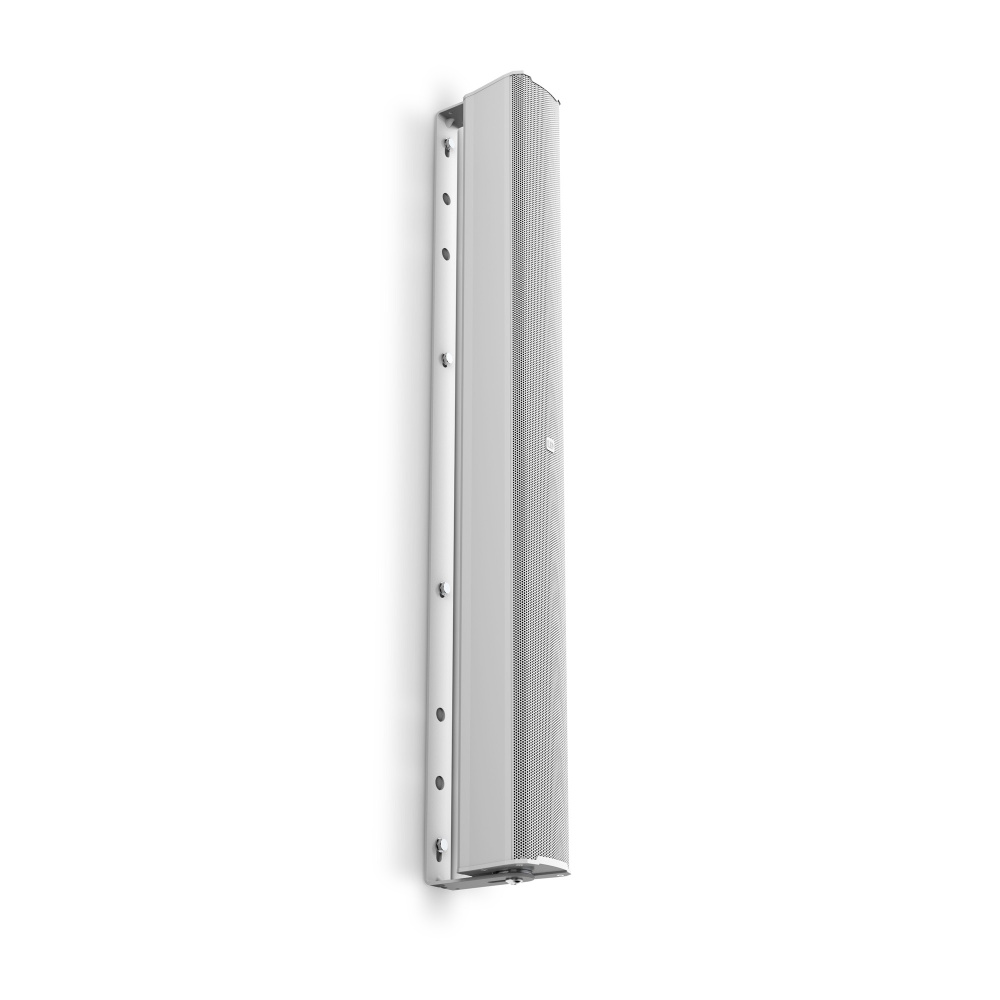

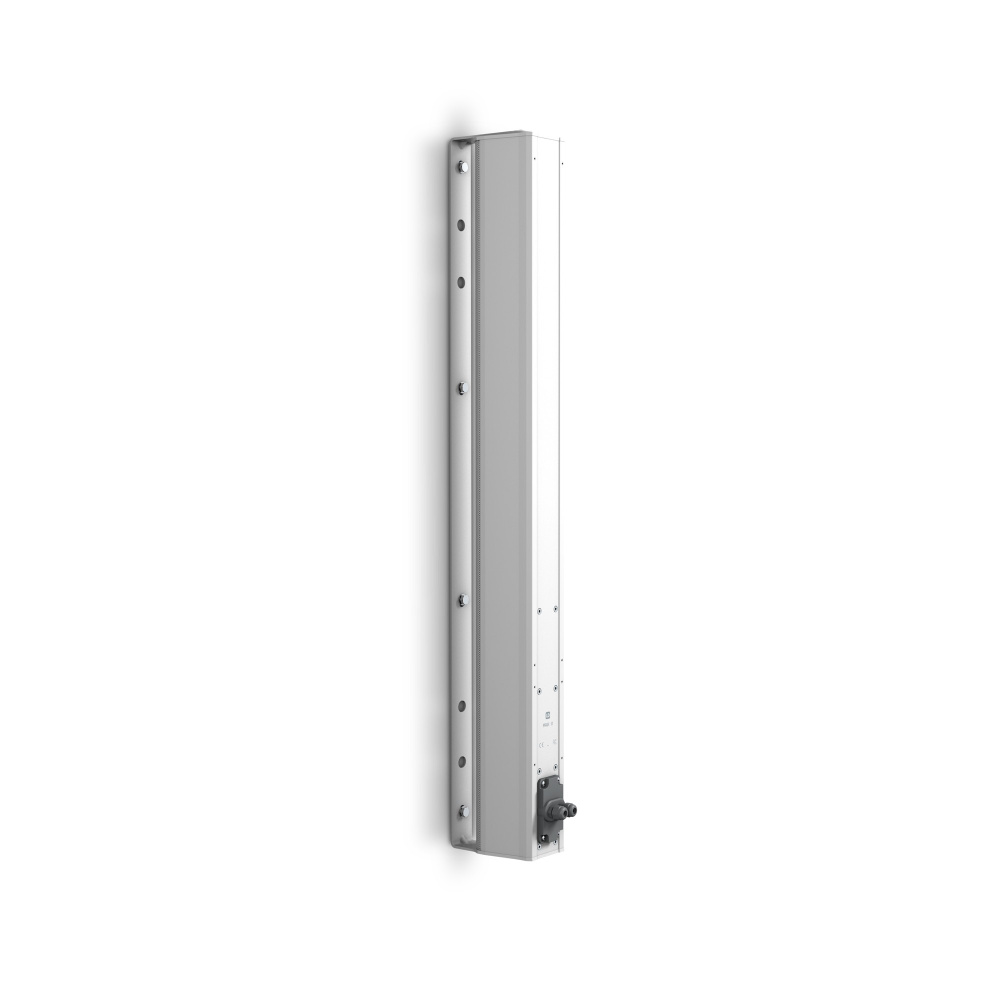

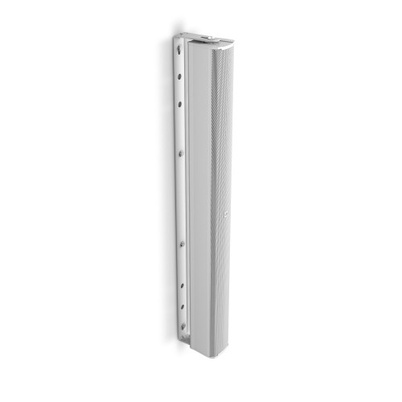

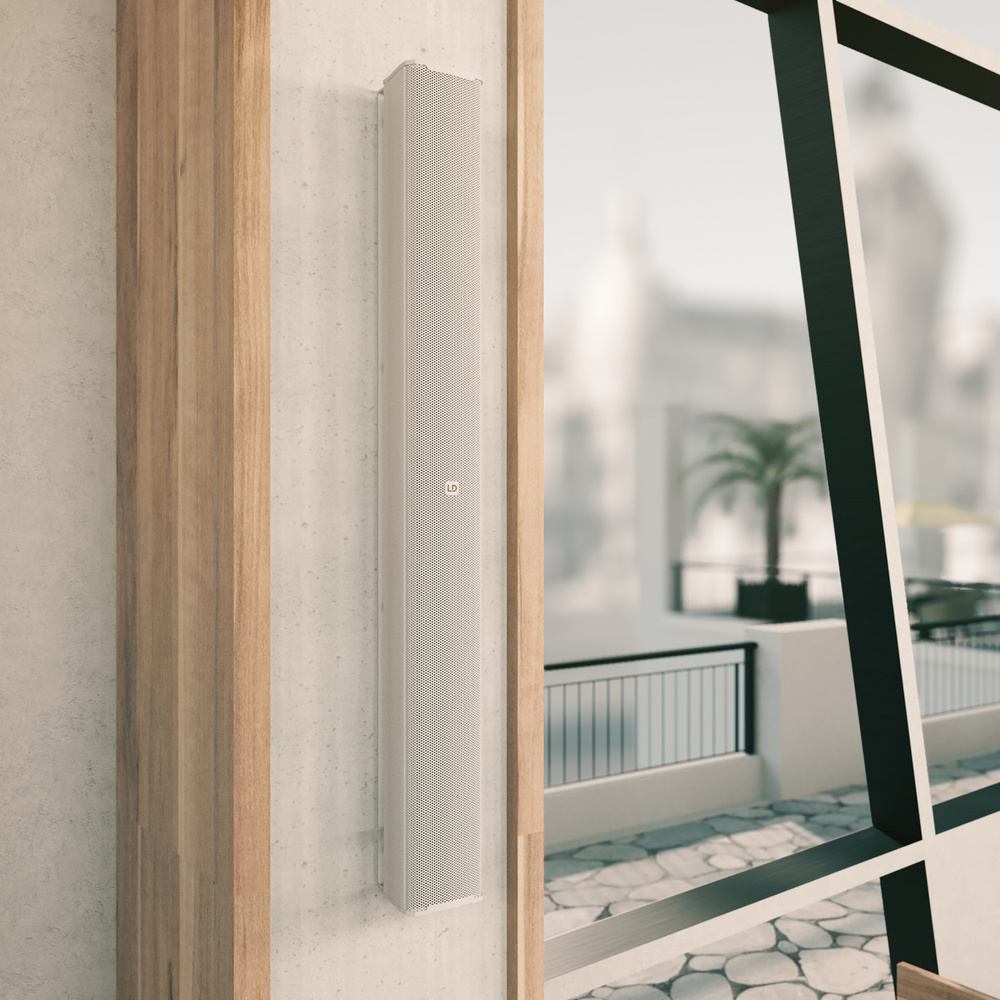

Surface installation is easy with the included U-bracket and with its black or white color selection, the loudspeaker blends unobtrusively and discreetly into almost any location.

The multiple award-winning MAUI® series has been expanded with the completely revised i1 and adapted to the special requirements of indoor and outdoor installations. All of this definitely makes MAUI® i1 the right choice for your demanding fixed installations.
