Cameo
AURO® SPOT 300

LED Moving Head

Archived item
AURO® SPOT 300
Item No.:
CLAS300
EAN:
4049521206146
Guarantee:
24 Months
Unit:
piece
Series:
Archived item: This item is no longer in our product range.
  • RDM enabled moving head
  • Luminous flux 4900 lm
  • High speed 3-phase motors
  • 16-bit resolution
  • Motor focus
  • Automated positioning correction
  • Battery powered display for offline configuration
  • 8 intense colors, white and split colors
  • 2 gobo wheels + open
  • 6 rotating and 8 fixed gobos
  • Rotating gobos replaceable with metal or glas gobos
  • Rotating 3-facet prism
  • Smooth dimming from 100 -...
Read on
AURO® SPOT 300
AURO® SPOT 300
LED Moving Head

RRP 1,360.46 $ / piece

Specifications

Specifications

DMX512
Environment-friendly
LED technology
Master & slave
Music control
Standalone mode
Strobe
RDM
General
Product type
LED Moving Lights
Type
LED Moving Heads
Colour spectrum
8-channel multi colour, Split colours, white
Number of LEDs
1
Color temperature
9300 K
LED type
180 W
Dispersion
12 - 16 °
Number of gobos
14
Gobo Size
22,90 mm
DMX input
XLR 3-pin male, XLR 5-pin male
DMX output
XLR 3-pin female, XLR 5-pin female
DMX mode
15-channel, 24-channel, 5-channel
DMX Functions
Auto programs, Dimmer, Dimmer Curve, Gobo Shake, Gobo Wheel, PAN, TILT
PAN movement
630°
TILT movement
235°
High Speed Strobe
1 - 20 Hz
Standalone modes
Auto run, Show, sound control
Controls
Enter, Mode, Value Down, Value Up
Indicators
colour LC display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
320 W
Power connector
Neutrik PowerCon
Housing material
Metal, Plastic
Cabinet colour
Black
Cooling
temperature-controlled fan
Illuminance
10250lx @ 5m, 28500lx @ 3m
Luminous flux
4900 lm
Width
285 mm
Height
480 mm
Depth
180 mm
Weight
8,6 kg

Description

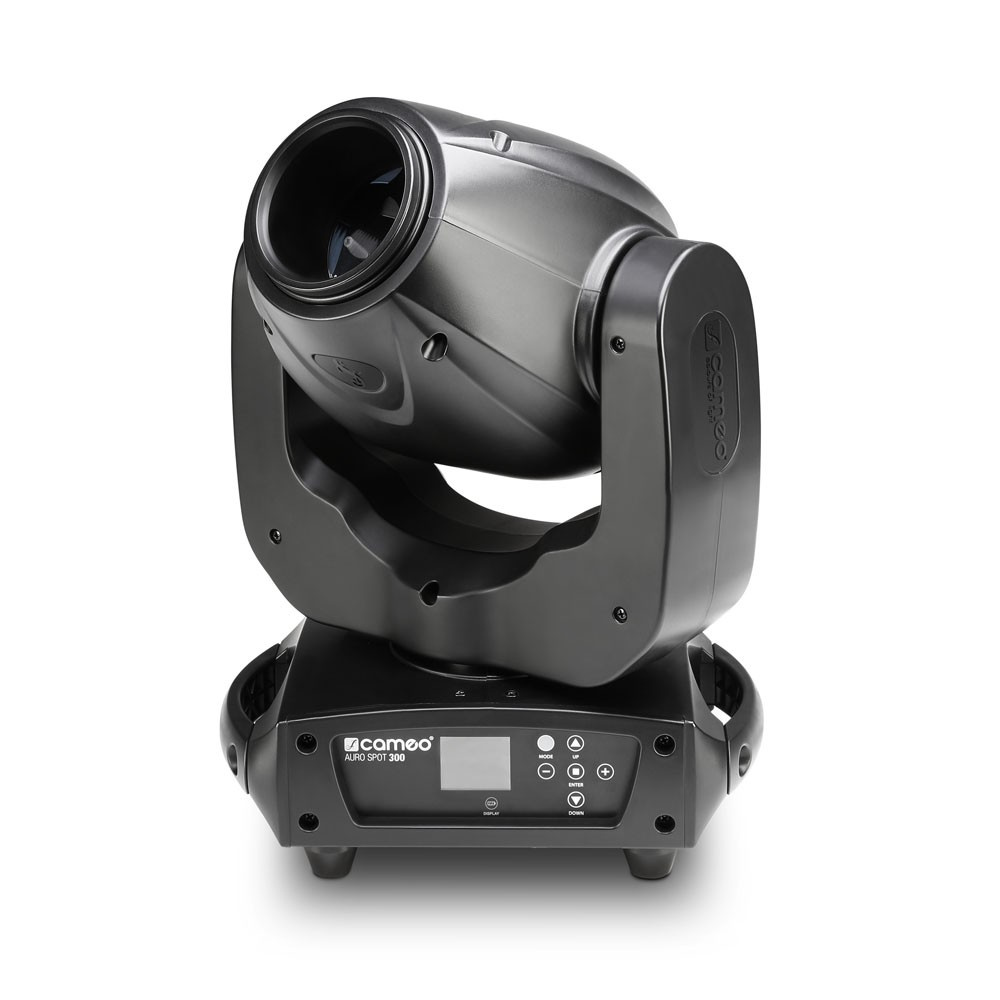

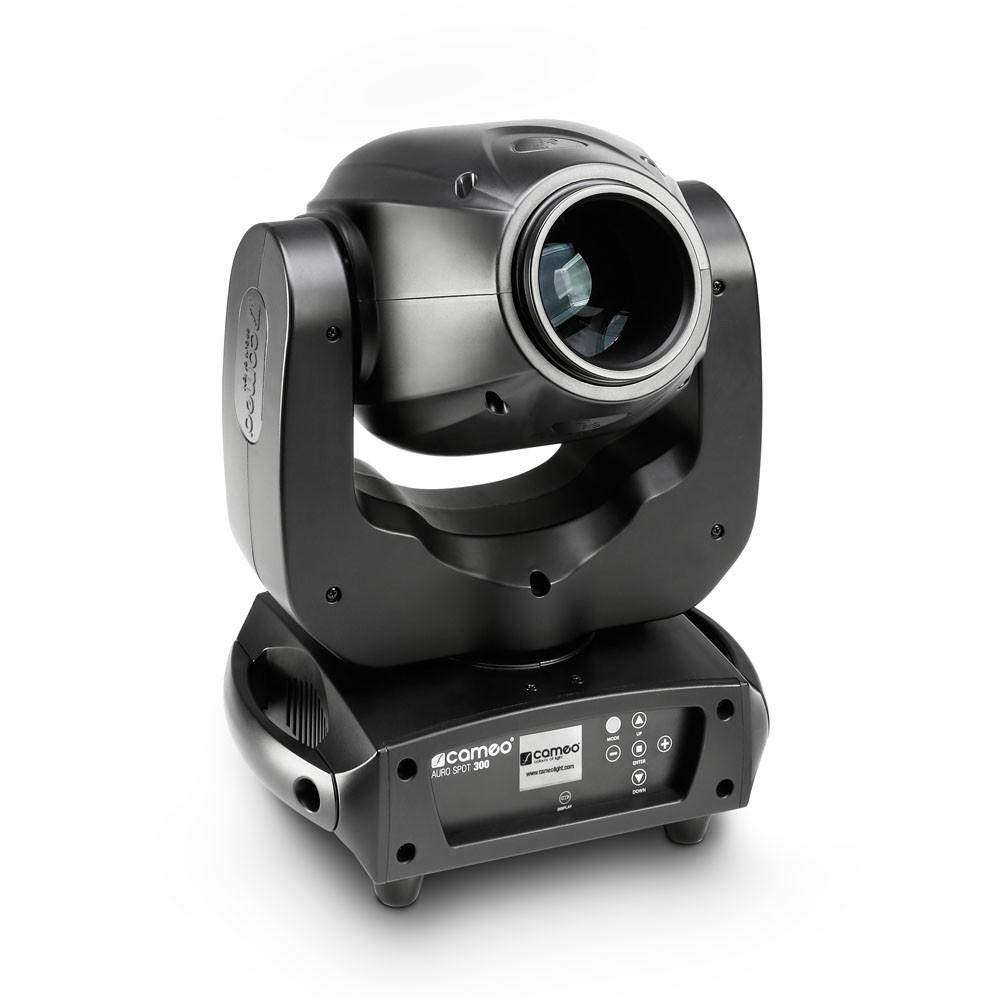

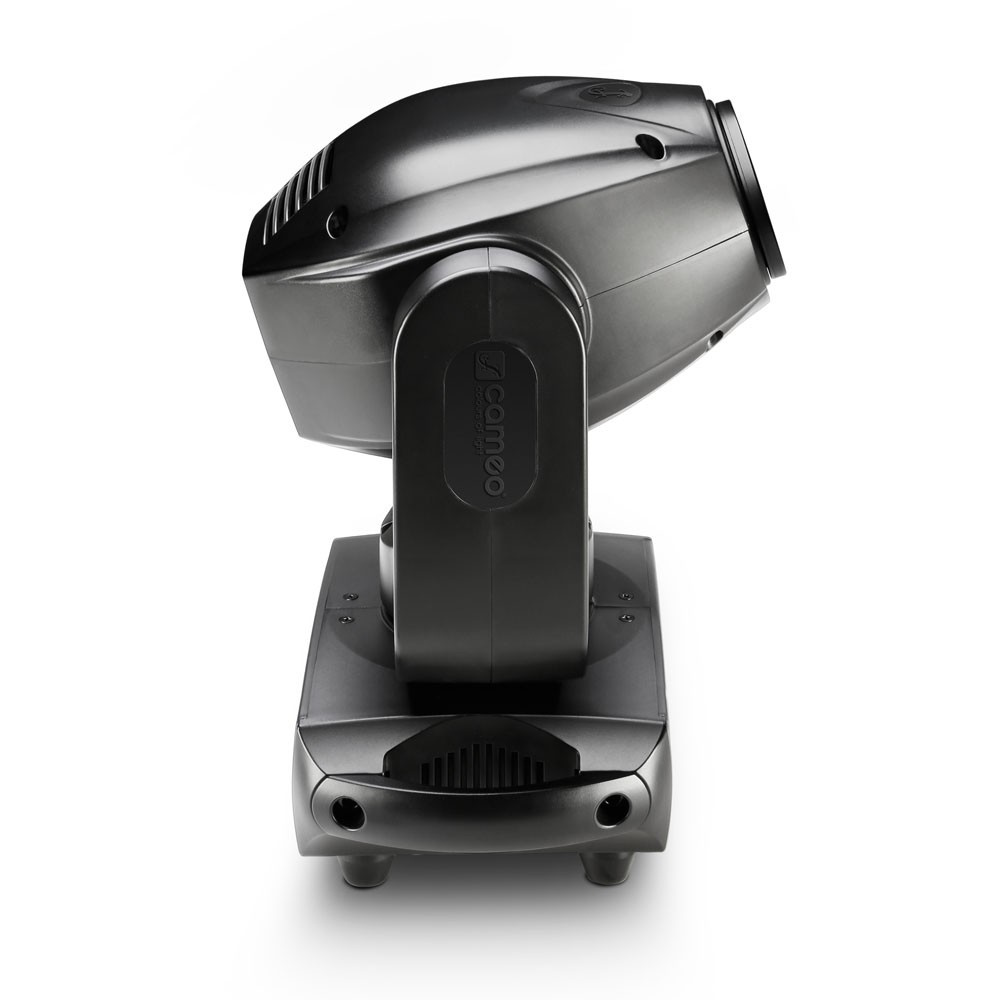

The Cameo AURO® SPOT 300 is an RDM-capable ultra bright moving head with 16-bit resolution, 630° pan and 235° tilt movement and high speed 3-phase motors. It is powered by a single 180 watt LED and sports 8 intense colors plus white and split colors. A rotating 3-facet prism, 8 fixed and 6 replaceable rotating gobos provide a wide variety of awesome animated effects.

The AURO® SPOT 300 features 5-channel, 15-channel, 24-channel DMX control modes, automated programs and sound activation as well as master, slave and standalone capabilities. Functions include a choice of 4 smooth dimming curves, gobo shake and a high-speed 0 - 20 Hz cycle strobe.

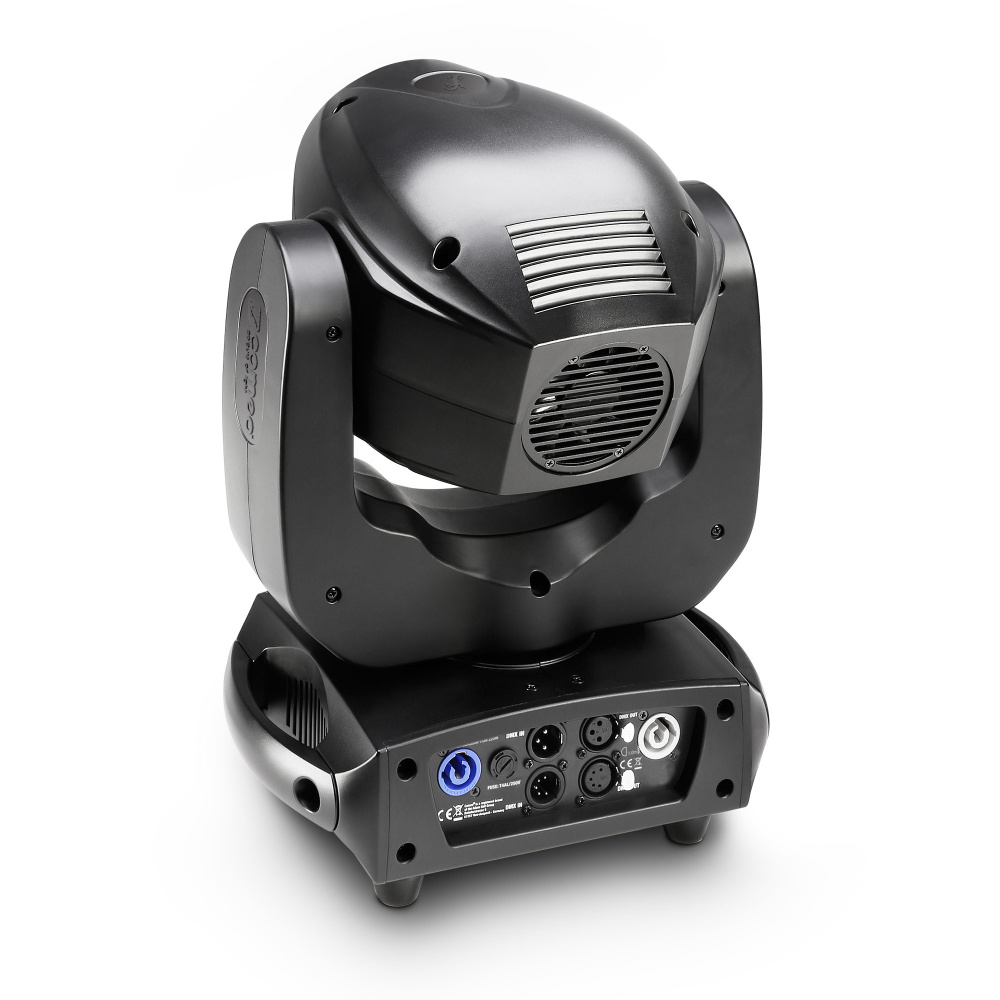

The heavy-duty housing integrates a temperature controlled low noise fan, 3-pin and 5-pin DMX plus Neutrik powerCON inputs and outputs. A battery-powered 6-button display enables convenient offline configuration. The all-professional multi-voltage AURO® SPOT 300 operates on 100 - 240 V AC.
