Adam Hall Hardware
172573

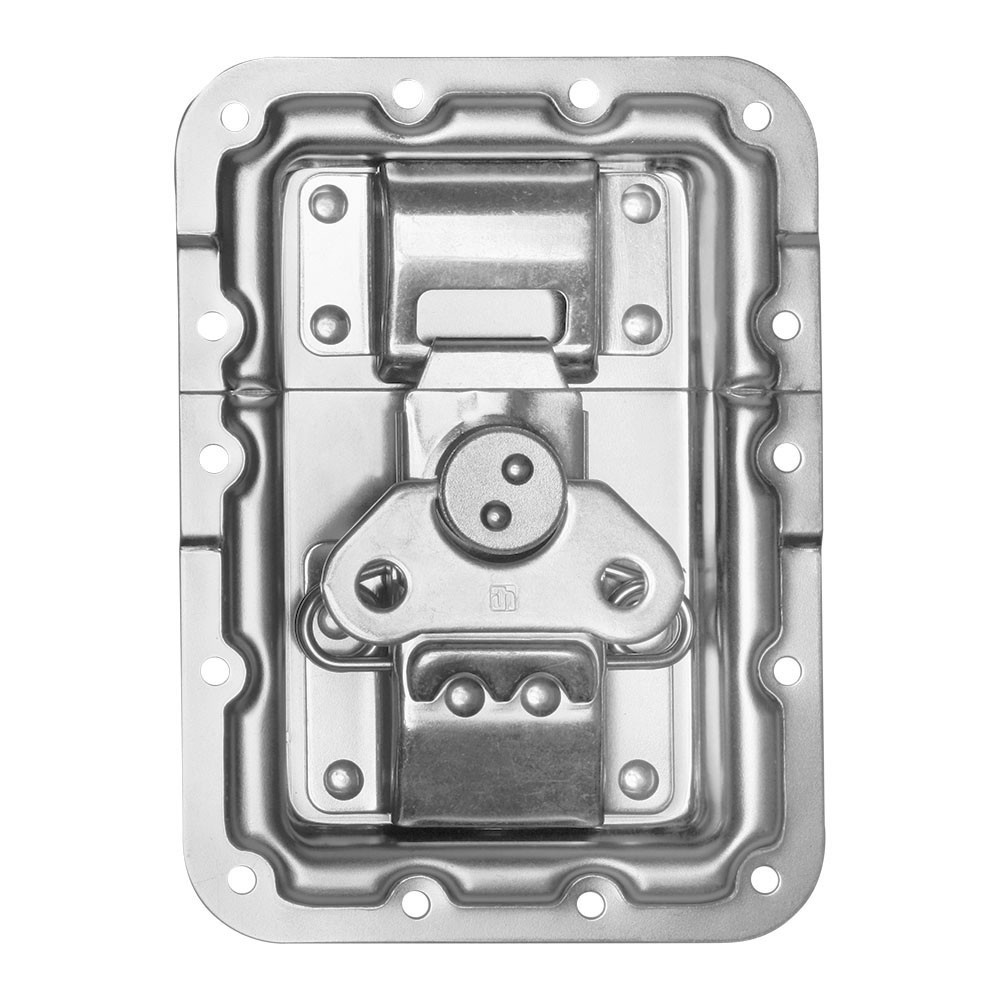

Butterfly Latch V3 large cranked 14 mm deep with Rivet Protection

172573

RRP 18,52 € / piece

Item No.:
172573
EAN:
4049521110290
Guarantee:
24 Months
Unit:
piece
Series:

Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

Specification texts
172573
172573
Butterfly Latch V3 large cranked 14 mm deep with Rivet Protection

RRP 18,52 € / piece

Specifications

Specifications

General
Product type
Catches
Type
Butterfly Latches
Material
Steel
Surface
galvanized
Mounting hole diameter
5.1 mm
Lockable
no
Dish type
cranked
Dish size
large
Dish depth
14 mm
Rivet protection design
Yes
With push-out spring
no
Push-flat function
Yes
Weight
0,557 kg

Downloads/links

Adam Hall Flightcase Hardware Catalogue

Category: Catalog

Type: pdf

Version: todo

File size: 114 MB

Technical drawing

Category: Data Sheet

Type: pdf

Version: todo

File size: 182 KB

Tender documents

Category: Tender Specifications

Type: zip

Version: todo

File size: 73 KB

Item images

Category: Product images

Type: zip

Version: todo

File size: -

Name
Category
Type
Stand
File size
Adam Hall Flightcase Hardware Catalogue Catalog pdf Nov 2016 114 MB
Technical drawing Data Sheet pdf Jan 2017 182 KB
Tender documents Tender Specifications zip May 2019 73 KB
Item images Product images zip - -
(0) Download files
