LD Systems
CURV 500 SLA T W

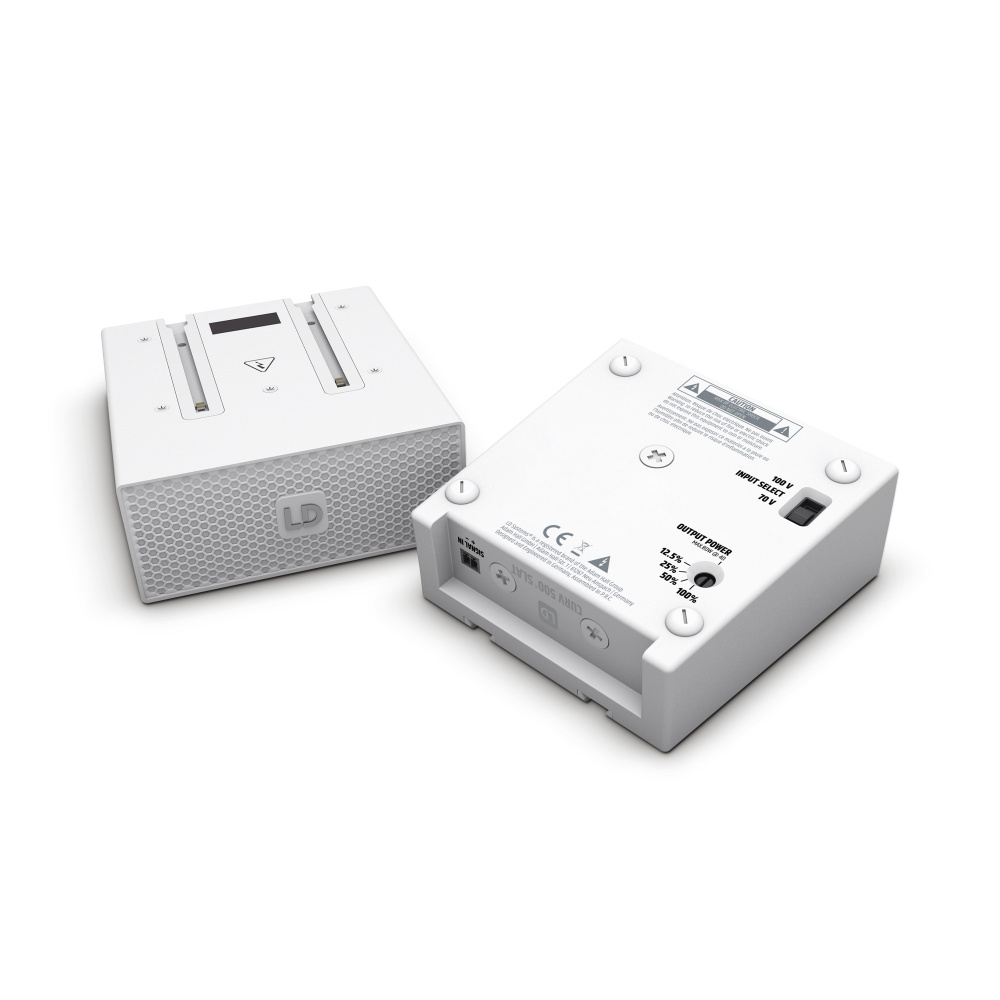

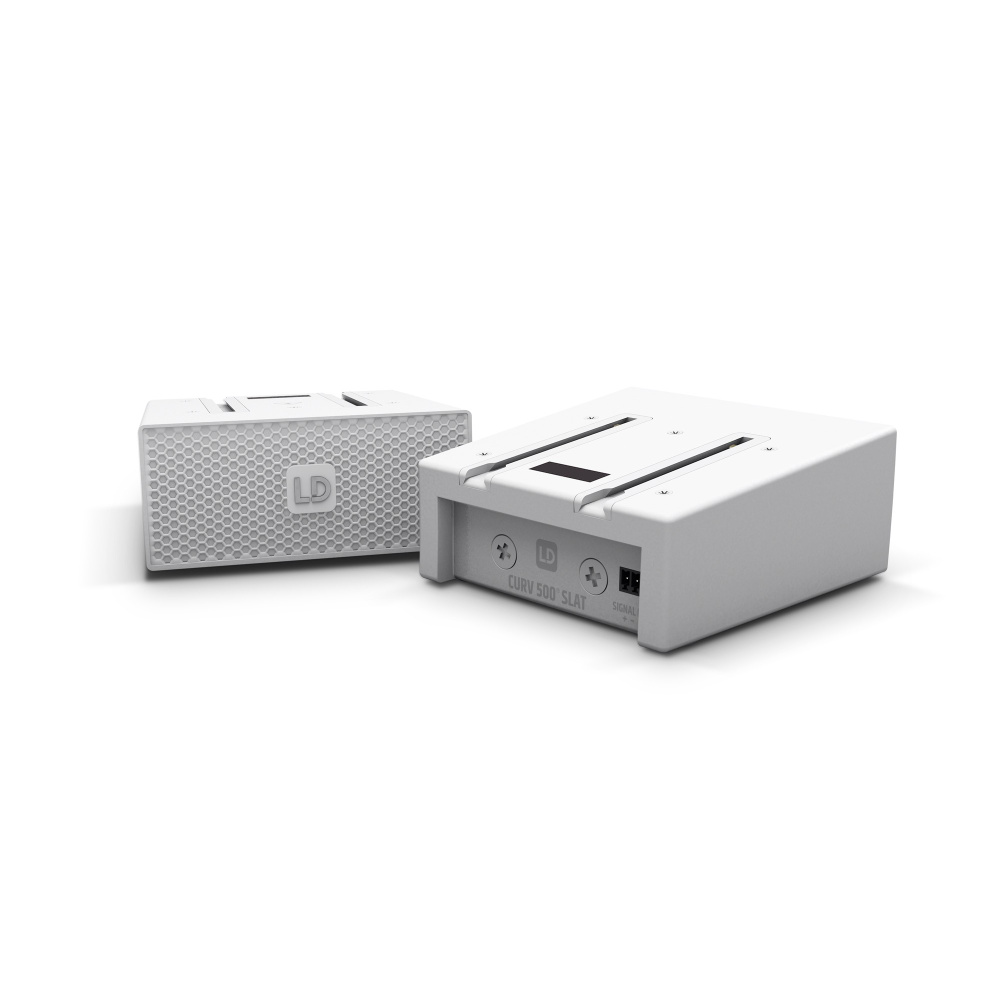

Curv 500® 70 / 100 V SmartLink® Adapter White

CURV 500 SLA T W
Watch the video

Price on request

Item No.:
LDCURV500SLAWT
EAN:
4049521218736
Guarantee:
24 Months
Unit:
piece
Series:
CURV 500
Questions about the product?
  • 70 / 100 V SmartLink® adapter for up to 6 LD CURV 500® satellites.
  • Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms
  • 2-pin input for screw connector
  • Switchable for 70 or 100 V operation
  • Special accessories for mounting on walls and ceilings
CURV 500 SLA T W
CURV 500 SLA T W
Curv 500® 70 / 100 V SmartLink® Adapter White

Price on request

Specifications

Specifications

General
Product type
PA Complete Systems Accessories
Type
Smartlink® Adapter
Material
Die-cast aluminium
Surface
Powder coated
Connectors
screw-/plug-in terminal 2 pole
Color
white
Width
122 mm
Height
57 mm
Depth
122 mm
Weight
0,35 kg
Features
2x M6 thread for optional wall/truss mount, 4 x rubber feet for desktop use, SmartLink® System

Description

This version of the SmartLink® adapter allows up to 6 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.
