LD Systems
SUB 88 A

2 x 8" active Subwoofer

SUB 88 A

Price on request

Item No.:
LDSUB88A
EAN:
4049521081811
Guarantee:
24 Months
Unit:
piece
Series:

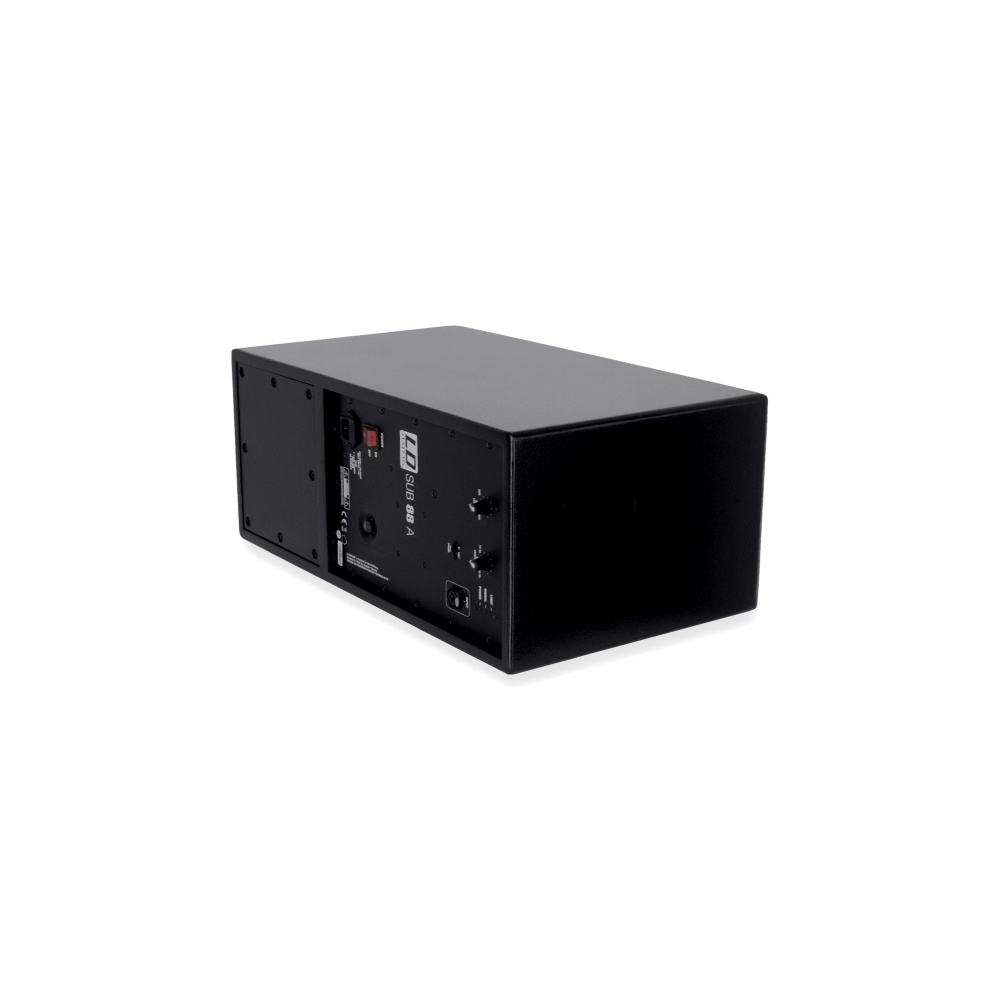

The Ld Systems SUB88A is an active 2 x 8" bandpass subwoofer with a power output of 150 W RMS.

The SUB88A features a 150 Watt (RMS) Mono-amplification unit offering great sound and dynamic characteristics. It is a perfect partner for the SAT62A active speaker or for the passive models SAT42/242/62 in combination with an external amplification unit such as the DJ200.

It can naturally be used with any other high/medium speaker if you wish to complete your sound...

Read on
SUB 88 A
SUB 88 A
2 x 8" active Subwoofer

Price on request

Specifications

Specifications

General
Product type
PA subwoofer
Type
Powered
Low/mid Woofer dimensions
2 x 8 "
Woofer dimensions (mm)
2 x 203 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Amplifier
Class A/B
System Power (RMS)
150 W
Frequency response
40 - 120
SPL (1W/1m)
92 dB
Max. SPL
115 dB
Protection circuits
overload

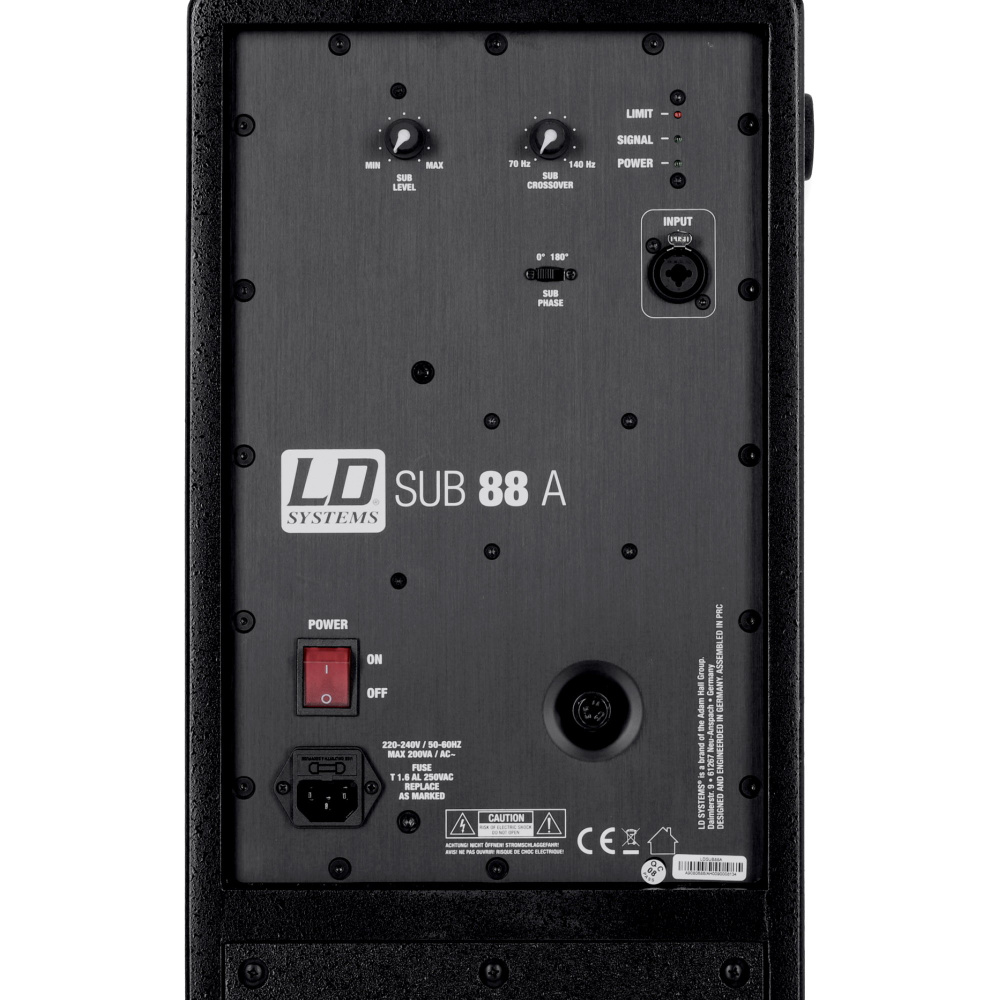

Controls
Low-pass filter (70 - 140 Hz), Phase 180°, volume
Indicators
Limit, Power, Signal
Line inputs
1
Line input connectors
6.3 mm jack, XLR
Operating voltage
transformer
Operating voltage
220 V AC - 240 V AC, 50-60 Hz
Cabinet material
15 mm MDF
Cabinet surface
texture paint
Cabinet colour
Black
Cabinet construction
Bandpass
Width
600 mm
Height
250 mm
Depth
350 mm
Weight
15 kg
