Cameo

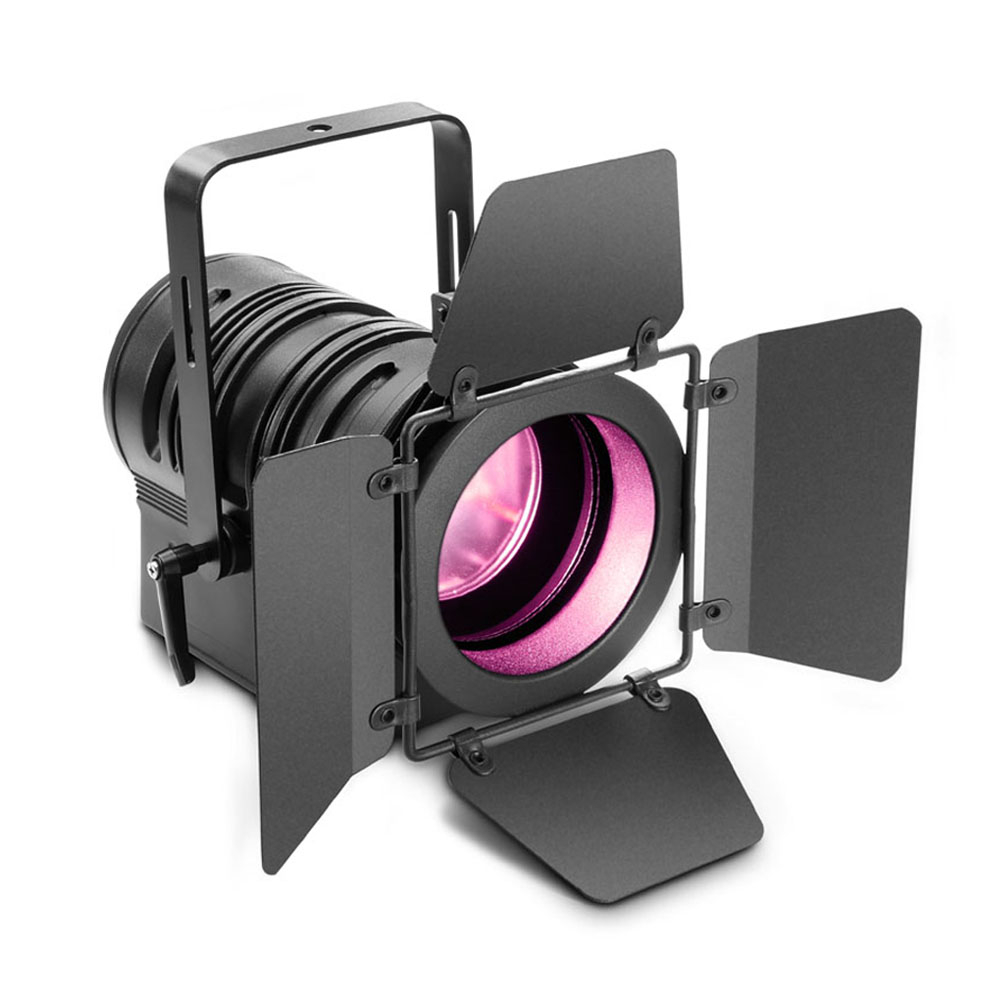

TS 60 W RGBW

Theatre Spotlight with PC Lens and 60W RGBW LED in Black Housing

TS 60 W RGBW

RRP 444.73 $ / piece

Item No.:
CLTS60WRGBW
EAN:
4049521214578
Guarantee:
24 Months
Unit:
piece
  • High-intensity 60 W RGBW COB LED
  • Plano-convex lens
  • Continuously adjustable manual zoom with beam angle of 9° to 41°
  • RDM enabled
  • 19,800 lux @ 1 m
  • Flicker-free projection
  • Rugged metal housing
  • Includes rotatable wing limiter and colour filter frame
TS 60 W RGBW
TS 60 W RGBW
Theatre Spotlight with PC Lens and 60W RGBW LED in Black Housing

RRP 444.73 $ / piece

Specifications

Specifications

General
Product type
LED PAR Lighting
Type
Indoor
Colour spectrum
RGBW
Number of LEDs
1
LED type
60 W
Refresh rate
3600 Hz
Dispersion
(Beam) 9° - 41° / (Field) 16° - 49 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
Protocols
USITT DMX 512 protocol
DMX mode
5-channel
DMX Functions
colour macro, CTO, Dimmer, RGBW, Strobe
Wireless DMX
no
Strobe flash rate
1–20 Hz
Standalone modes
Auto programs, slave mode, sound control, Static
Controls
Down, Enter, Mode, Up
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Indicators
LC display
Power consumption
65 W
Power connector
Power cord with safety plug (Type E / CEE 7/7)
Housing material
die cast metal
Cabinet colour
Black
Cooling
temperature-controlled fan
Operating Temperature
0 - 40 °C
Illuminance
19800lx @ 1m
Luminous flux
910 lm
Width
145 mm
Height
205 mm
Depth
240 mm
Weight
3,6 kg
Accessories (included)
barndoor

Description

The Cameo TS 60 W WW is a versatile theatre spotlight with a plano-convex lens and manual zoom that allows continuous variable angle adjustment of its even, soft-border beam from 9° to as much as 41°. The 60-watt LED of the RDM-enabled spotlight with a colour temperature of 3,200 Kelvin achieves a powerful light intensity of 19,800 lux at a distance of one metre.

The spotlight's DMX functions include a fast strobe, which can be adjusted from 1 to 20 Hz, and various dimmer curves. Sound control and integrated automated programmes allow it to be used as a standalone, while the refresh rate of 3,600 Hz ensures flicker-free operation. The TS 60 WW has rugged metal housing with temperature controlled fan , a display with four buttons for convenient configuration and 3-pin DMX connections. Delivery includes a rotatable flap to limit the light beam and a colour filter frame.
