Cameo
ZENIT® B60 C LSD

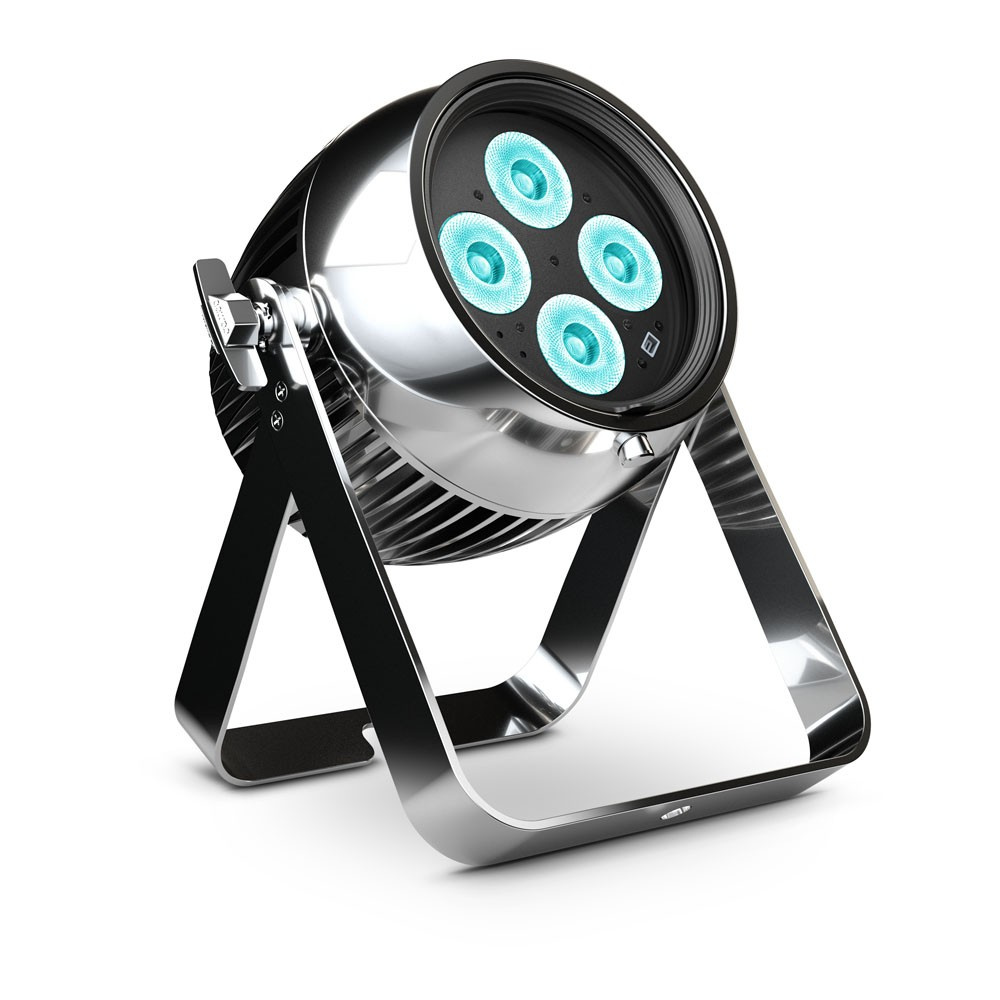

Battery-Powered W-DMX™ IP65 PAR Light chrome

Price on request

Item No.:

CLZB60CLSD

EAN:

4049521217753

Guarantee:

24 Months

Unit:

piece

Series:

ZENIT

Questions about the product?

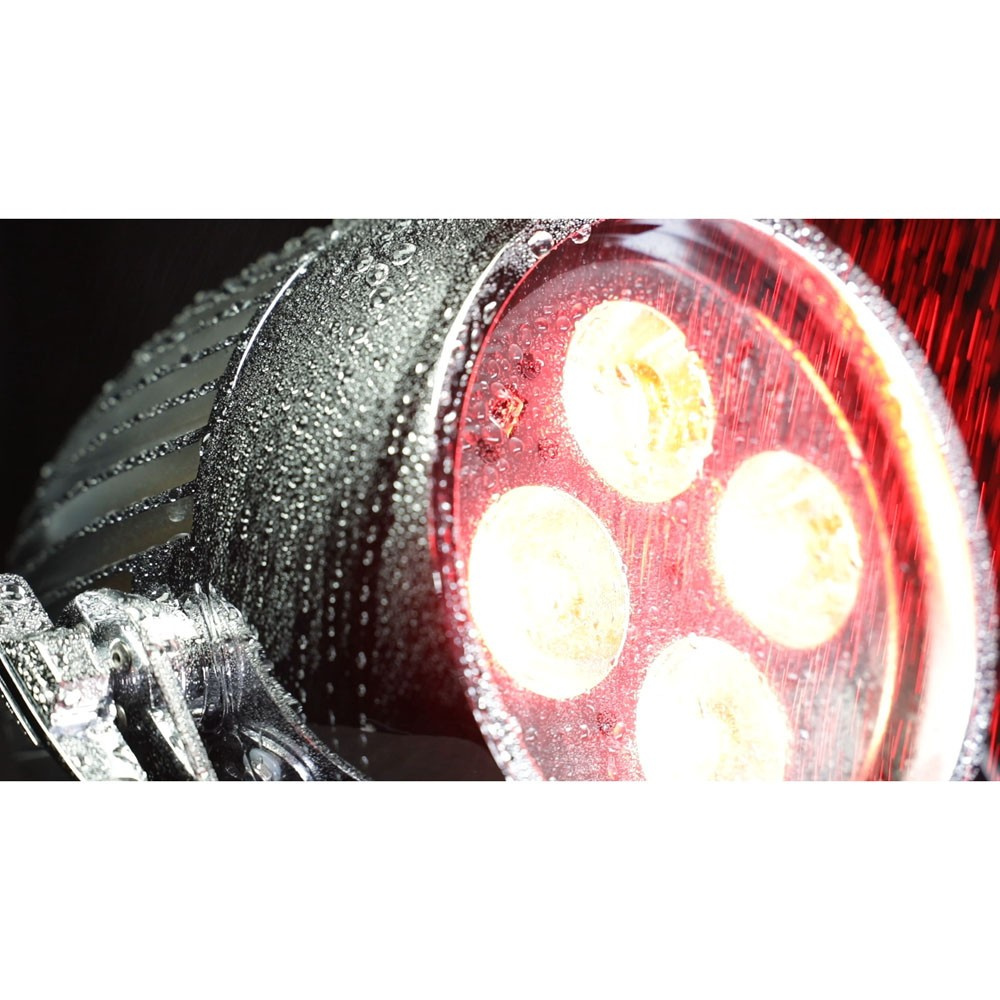

Professional battery-powered W-DMX™ PAR spotlight with IP65 protection rating

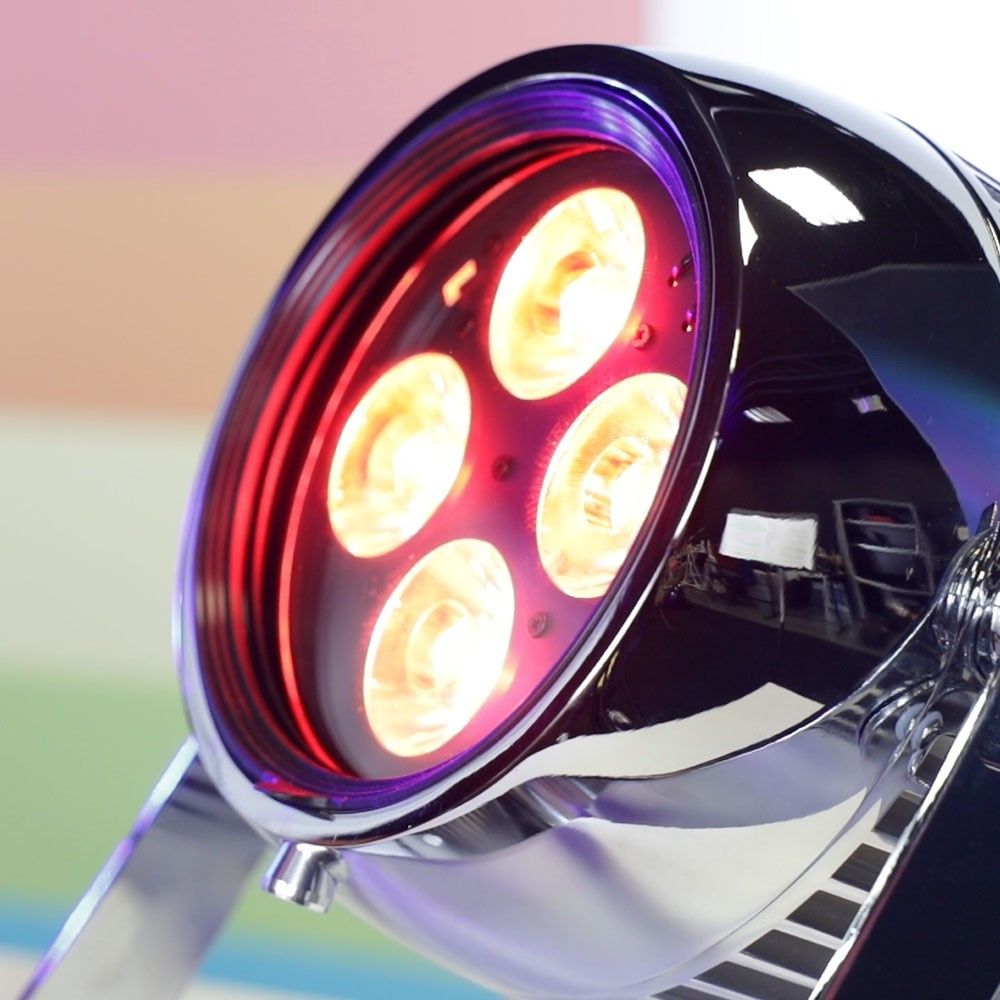

4 x 15 W RGBW Cree LEDs with 1900 lm luminous flux for especially consistent colour blending
Long-life, powerful lithium-ion battery for reliable operation
Battery management system prevents overcharging and deep discharging
Built-in 2.4 GHz W-DMX™ receiver

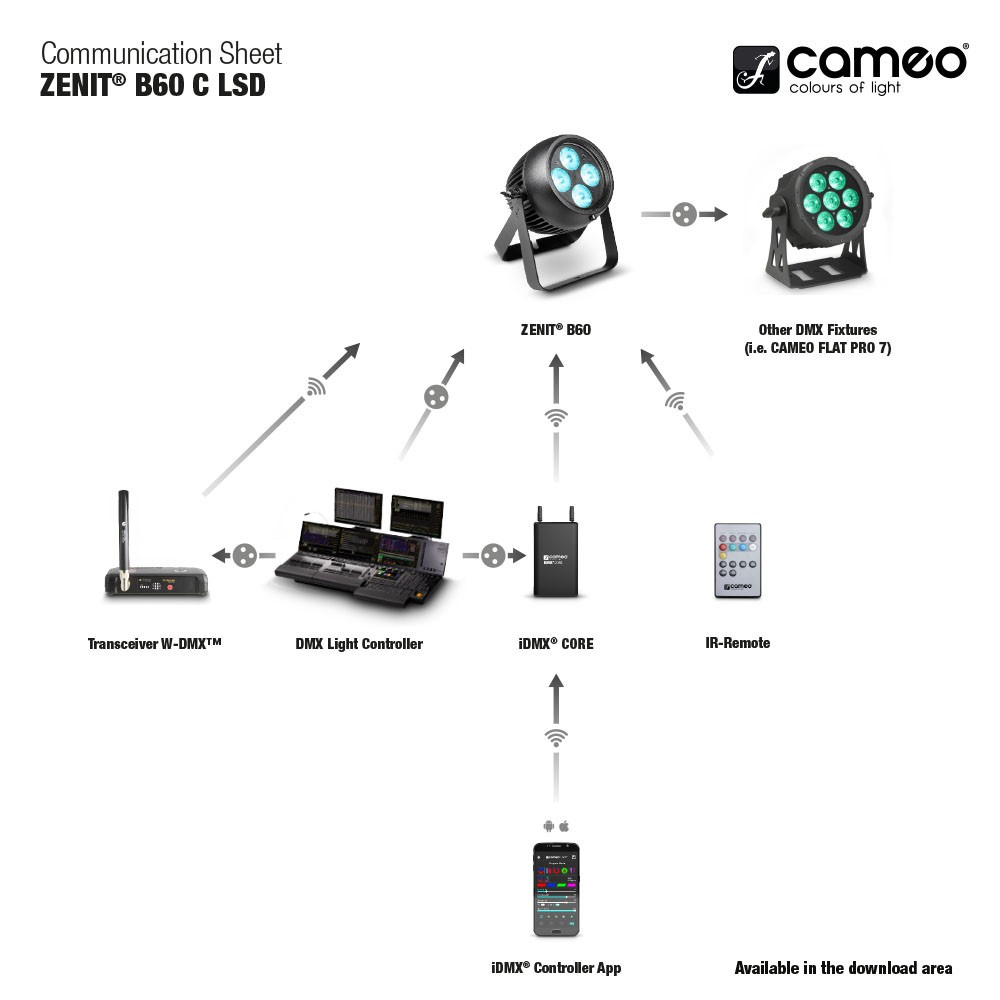

Control via W-DMX™, DMX, RDM, IR remote control or display
Includes 2 specially...

Professional battery-powered W-DMX™ PAR spotlight with IP65 protection rating
4 x 15 W RGBW Cree LEDs with 1900 lm luminous flux for especially consistent colour blending
Long-life, powerful lithium-ion battery for reliable operation
Battery management system prevents overcharging and deep discharging
Built-in 2.4 GHz W-DMX™ receiver
Control via W-DMX™, DMX, RDM, IR remote control or display

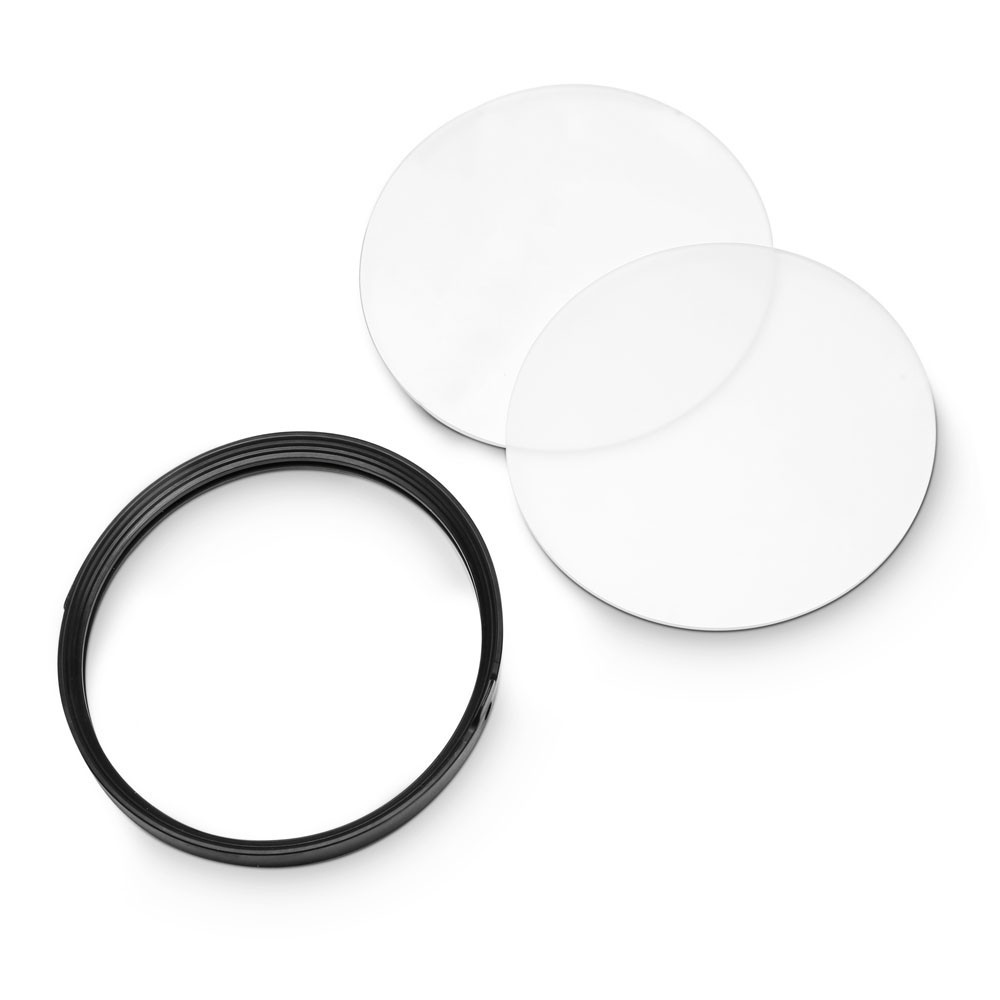

Includes 2 specially developed diffusion lenses for adjustable beam angle of 11°, 25° and 40°. Elliptical diffuser 60°x10° available as accessory
High-resolution colour blending and dimmer response with 16-bit technology
OLED display with 4 touch-sensitive controls for simple configuration
Access lock against unauthorised changes to menu settings

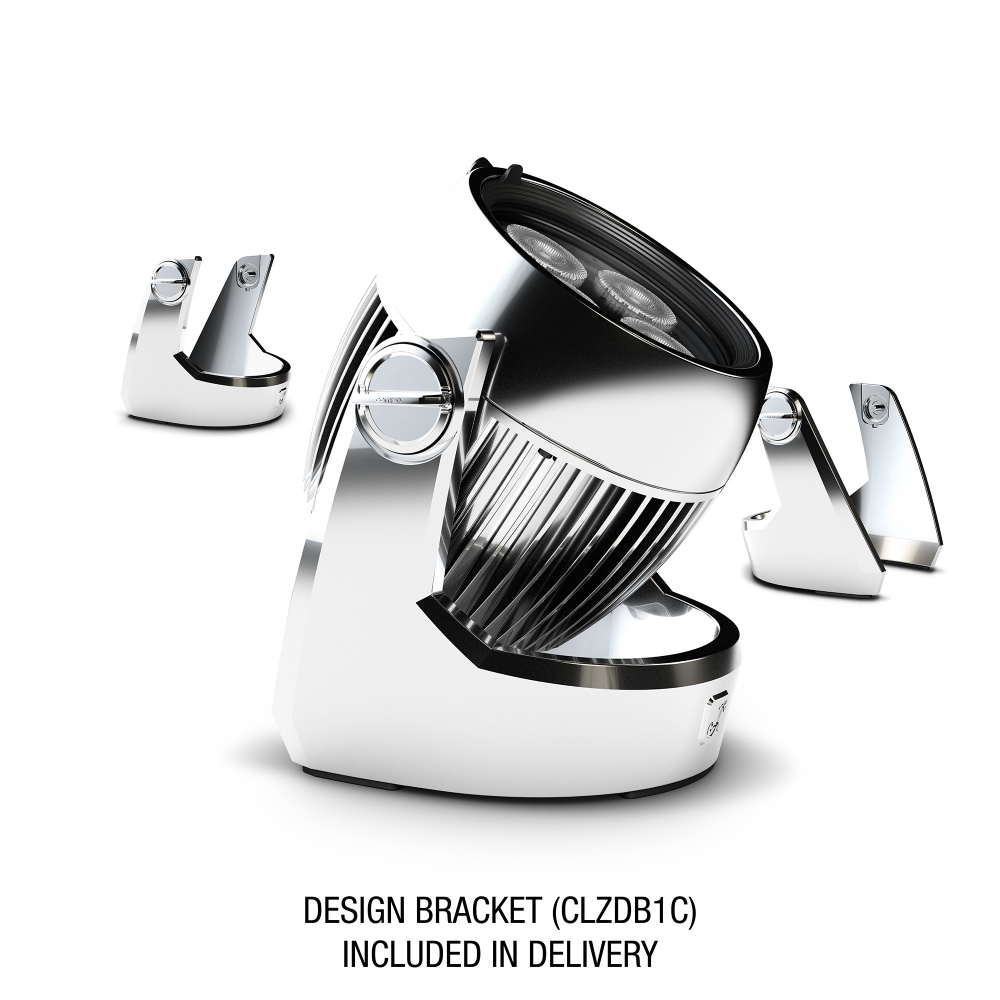

Matching design bracket (CLZDB1C) included in scope of delivery

Read on

ZENIT® B60 C LSD

Battery-Powered W-DMX™ IP65 PAR Light chrome

Price on request

Specifications

General

Product type

LED PAR Lighting

Type

Outdoor

Colour spectrum

RGBW

Number of LEDs

LED type

15 W

Refresh rate

3600 Hz

Dispersion

Without diffusor - (Beam) 11° / (Field) 18 °

DMX input

5-pin IP65

DMX output

5-pin IP65

DMX mode

10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel

DMX Functions

colour change, colour fade, colour jump, colour macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, reset, RGBW, RGBW Fine, strobe

Standalone modes

Auto programs, colour fade, colour jump, colour macro, Dimmer Curve, Dimmer Response, Display Lock, Master / Slave mode, static colour, strobe, White Balance adjustable

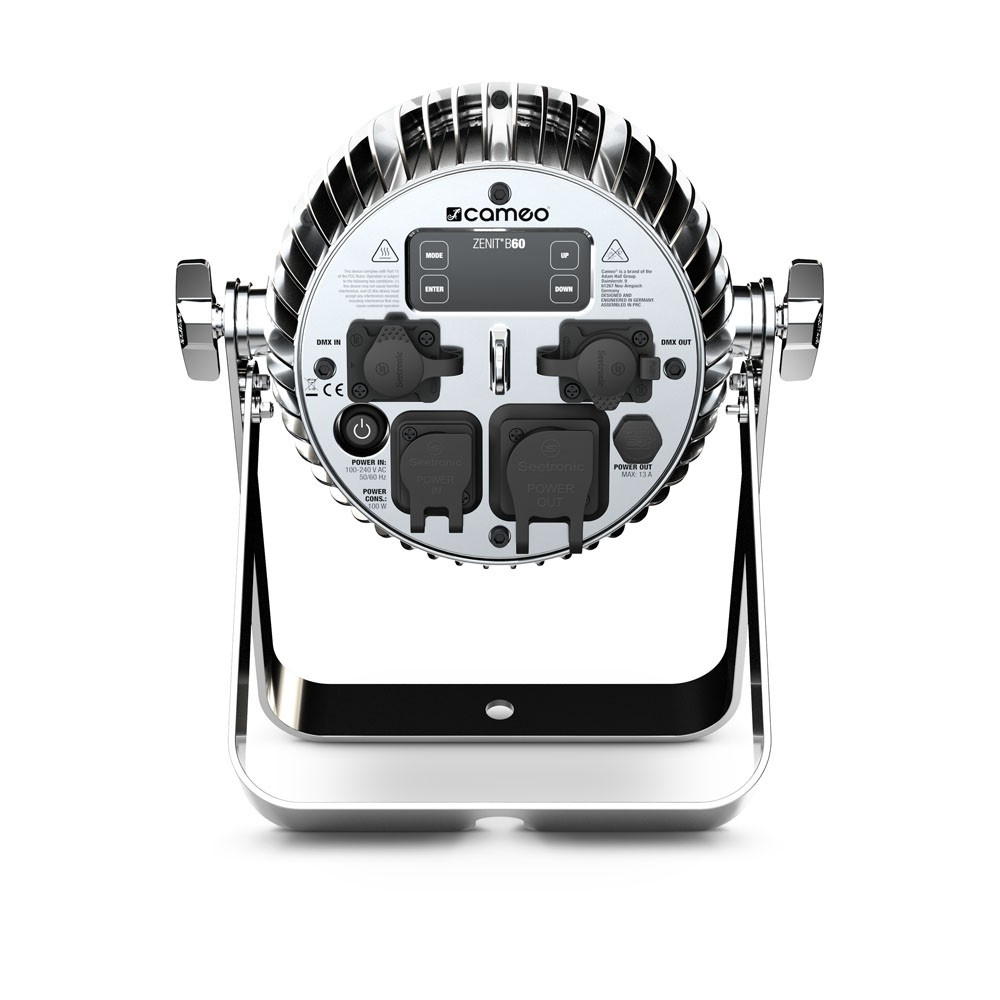

Controls

Enter, Mode, Value Down, Value Up

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

100 W

Power connector

IP65

Power supply connection

IP65

Housing material

Die-cast aluminium

Cabinet colour

chrome

Protection class IP

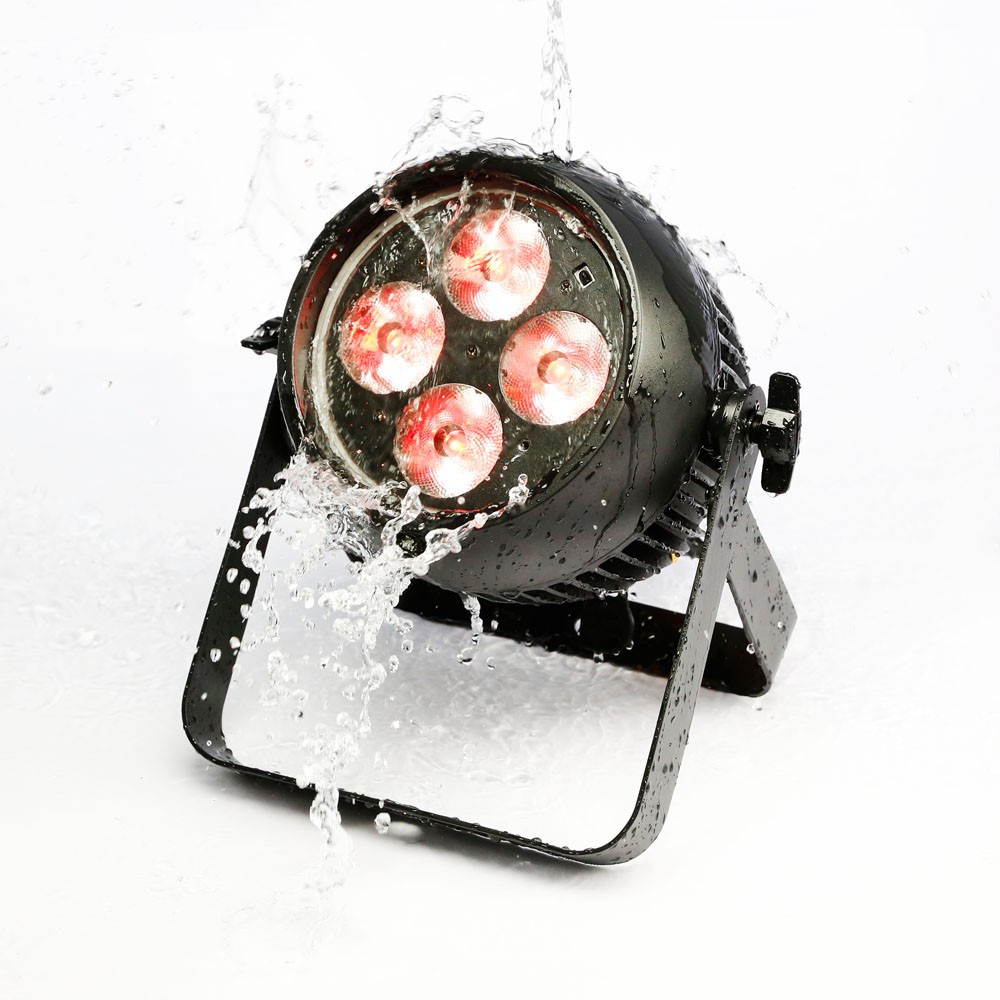

IP65

Battery capacity

217 Wh

Battery capacity

20.1 Ah

Battery operation time at maximum load

up to 24 hours

Charging time

Cooling

Convection

Illuminance

40000lx @ 1m

Luminous flux

1900 lm

Efficiency

32 lm/W

Operating Temperature

0 - 30 °C

Dimensions without mounting bracket

Width

187 mm

Height

187 mm

Length

164 mm

Weight

5,4 kg

Accessories (included)

Design Bracket

Description

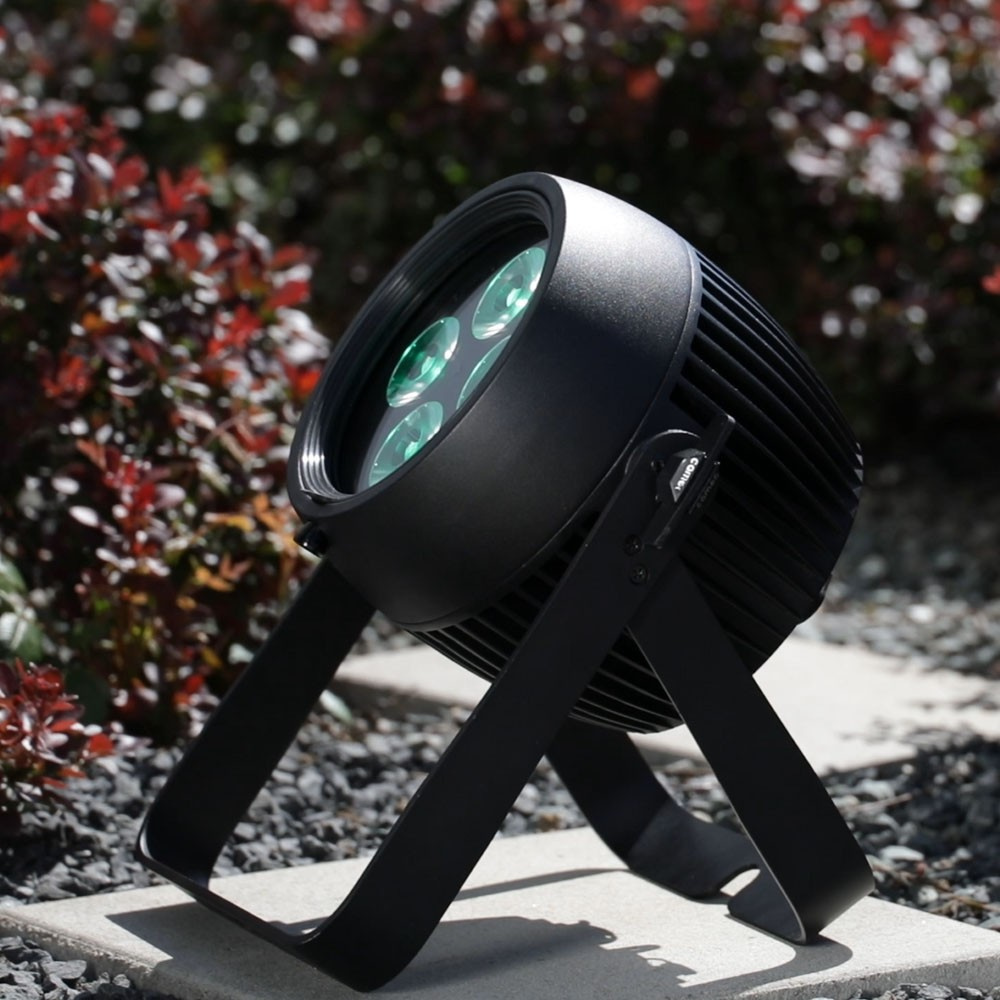

With battery operation, built-in wireless DMX and IP65 rating, the Cameo ZENIT® B60 is ready for demanding indoor and outdoor lighting applications. The highly professional PAR light sports four 15 W RGBW Cree LEDs with a 50,000 hour lifetime and powerful 1,900 lm output for brilliant, uniform colours with a precise 11° beam spread. For extra versatility it comes with two specially designed light shaping diffusers offering a choice of 25° or 40° beam angles while maintaining output.

In addition to seven modes of DMX, RDM and IR remote or manual control via the fixture’s display the ZENIT® B60 incorporates a 2.4 GHz W-DMX™ receiver. Developed by Wireless Solution Sweden AB, W-DMX™ has become the unofficial standard for professional wireless lighting control. The luminaire’s super capacity lithium-ion battery is made providing reliable performance up to 24 hours from a single charge with adjustable runtime in one hour increments. An intelligent control automatically calculates brightness, and the PAR light’s battery management system prevents overcharging and exhaustive discharge for extended battery life.

Sporting a 3,600 Hz refresh rate for flicker-free performance and highly efficient convection cooling for noiseless operation, the ZENIT® B60 is perfect for motion picture and TV applications. It utilises 16-bit technology for smooth high-resolution colour mixing and dimming and includes individual LED colour temperature correction plus a selection of dimming curves with adjustable response. The aluminium housing features a bright OLED display with four touch buttons for easy configuration while a security lock prevents unauthorized menu access.
