Cameo
OPUS® S5

Spot Moving Head

Price on request

Item No.:

CLOS5

EAN:

4049521338571

Guarantee:

24 Months

Unit:

piece

Series:

OPUS

Questions about the product?

Compact super bright Spot Moving Head with 17.500 lm output and huge illuminance of 39,000 lux @ 5 m
Advanced CMY colour mixing system plus colour wheel with 7 dichroic filters
Linear CTO correction from 6,500 - 2,600 K
Highly efficient optics with extra wide 6° - 46° zoom range
Even and flat projection field without hot spots at any zoom angle
Rotating animation wheel
Rotating gobo wheel with 7 interchangeable indexable...

Compact super bright Spot Moving Head with 17.500 lm output and huge illuminance of 39,000 lux @ 5 m
Advanced CMY colour mixing system plus colour wheel with 7 dichroic filters
Linear CTO correction from 6,500 - 2,600 K
Highly efficient optics with extra wide 6° - 46° zoom range
Even and flat projection field without hot spots at any zoom angle
Rotating animation wheel
Rotating gobo wheel with 7 interchangeable indexable glass gobos + open
Static gobo wheel with 8 interchangeable glass gobos + open
Rotatable and indexable 3-facet circular prism plus 6-facet linear prism
Variable frost for wash-like effects plus stepless iris
Ultra smooth 16-bit dimming with 4 selectable curves
Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz
Battery powered touchscreen display plus 6 touch buttons for offline configuration
Flexible control via built-in W-DMX™ Transceiver, DMX, RDM, Art-Net or sACN

Read on

OPUS® S5

Spot Moving Head

Price on request

Specifications

General

Product type

LED Moving Lights

Type

Profiles

Colour spectrum

Cold white

Number of LEDs

Color temperature

6700 K

LED type

380 W

Dispersion

6 - 48 °

Effects

Focus, Heavy Frost, Iris, Prism, Zoom

Colour mixing function

CMY + CTO

LED PWM Frequency

650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 25000 Hz (adjustable)

Color wheel

Number of gobos

15 + open (8 fixed + 7 rotating)

DMX input

XLR 3-pin male, XLR 5-pin male

DMX output

XLR 3-pin female, XLR 5-pin female

DMX mode

27-channel, 33-channel

DMX Functions

Animation Wheel, Auto Movement, Colour wheel, CTO, CTO Fine, Cyan, Cyan Fine, Device Settings, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, Gobo wheel, Gobo Wheel 1, Gobo Wheel 2, Iris, Magenta, Magenta Fine, PAN, PAN FINE, Prism, Rotation Fine, Rotation Gobo Wheel 1, Rotation Prism, Set Dimmer Curve, strobe, TILT, TILT FINE, Yellow, Yellow Fine, Zoom, Zoom Fine

PAN movement

540°

TILT movement

270°

High Speed Strobe

> 20 Hz

Standalone modes

Master/Slave Mode, Static Mode

Control

ArtNet, DMX, Master/Slave Signal, RDM, sACN, Wireless DMX

Controls

Down, Enter, Left, Mode, Right, Up

Indicators

Graphic Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz, Neutrik True 1 IN / OUT

Power consumption

650 W

Power connector

Neutrik powerCON TRUE1 TOP

Housing material

ABS plastic, Metal

Cabinet colour

Black

Protection class IP

IP20

Cooling

Silent, temperature controlled fan

Luminous flux

17500 lm

Maximum Ambient Temperature

-10 - 45 °C

Width

400 mm

Height

630 mm

Depth

250 mm

Weight

24 kg

Accessories (included)

2 x omega mounting, Power cord, Power Cord with Neutrik powerCON TRUE1 Connector, User's manual

Description

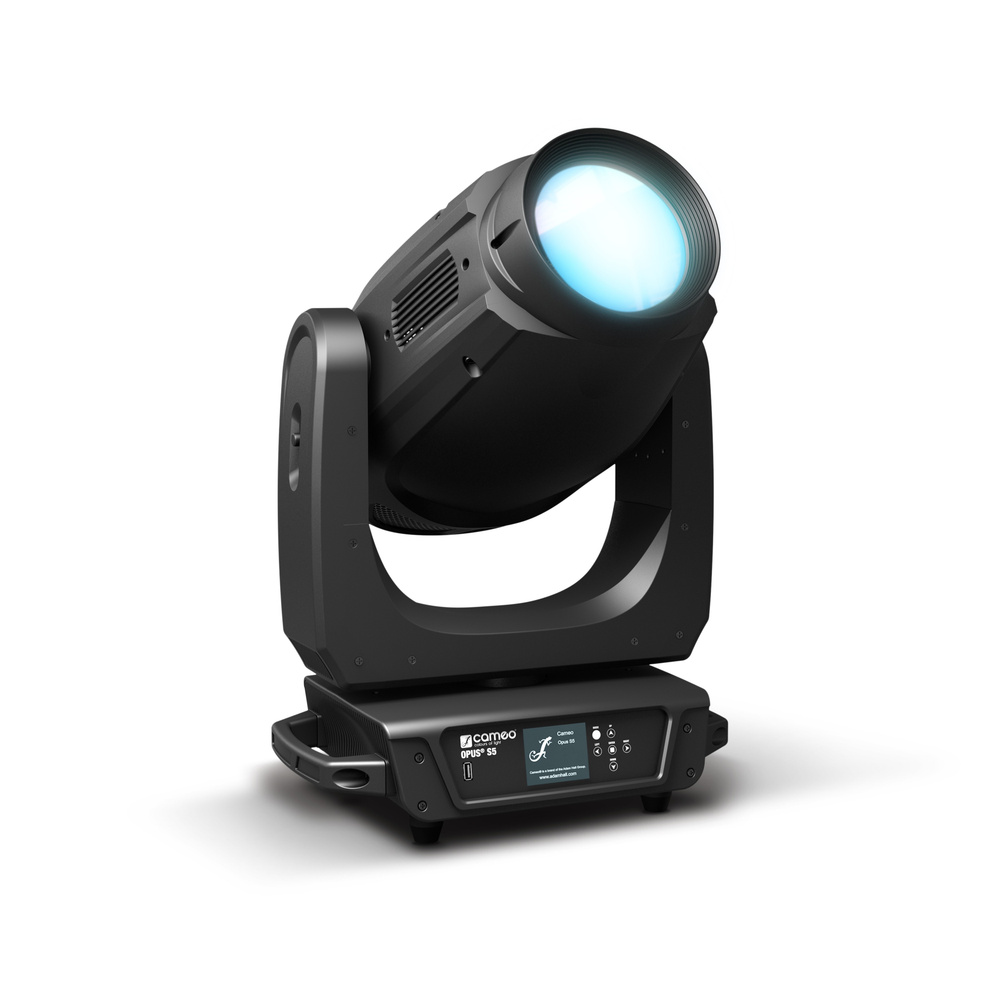

Illuminating stages with brilliant, lively colours, the Cameo OPUS® S5 is a compact super bright spot moving head with a powerful 380 W white LED engine, CMY mixing system and linear CTO correction. It is highly effective in venues of all sizes thanks to its wide zoom range. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour projection. The fixture has an enormous 17,500 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement. Permitting extensive beam control, the highly efficient optics feature an extra wide zoom range from 6° to 46° and stepless iris. A continuously variable frost filter provides soft, wash-like diffusion.

Generating spectacular morphing effects when used simultaneously, the OPUS® S5 has two gobo wheels with 7 rotating and 8 static glass gobos which can also be used in combination with the rotating animation wheel for amazingly vivid projections. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.

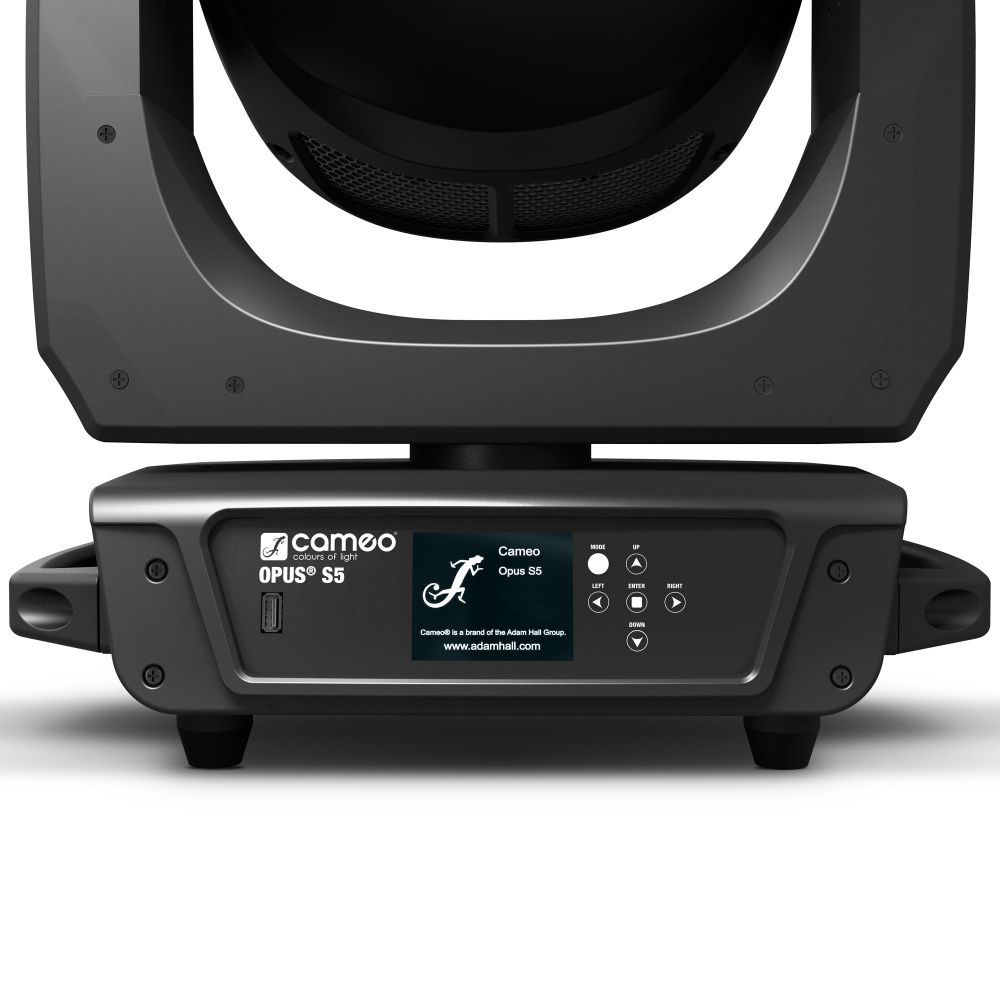

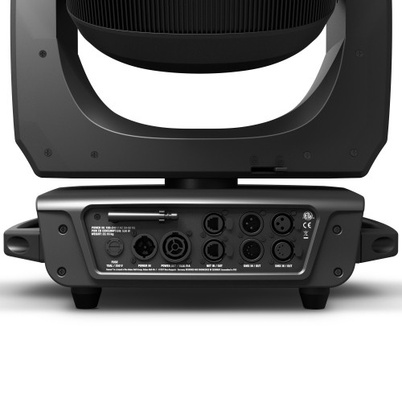

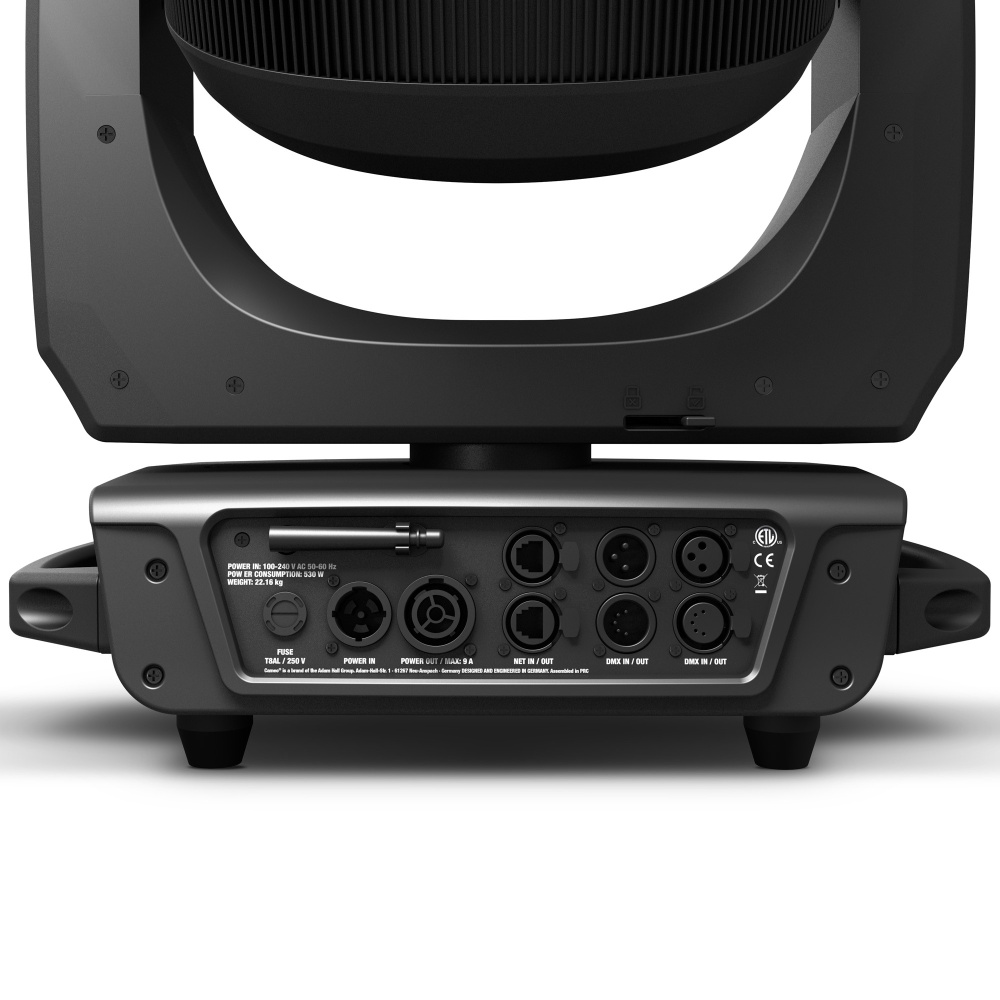

The OPUS® S5 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. It has a rugged ABS and metal housing with Neutrik® DMX and powerCON TRUE1 connectors and super efficient heat pipe cooling system with temperature controlled fans to ensure optimal cooling. A battery-powered touchscreen display with 6 additional touch buttons permits convenient offline configuration and two modes of menu navigation. The luminaire comes with two omega brackets and power cord.
