Cameo
AZOR® B1

LED Beam Moving Head

Price on request

Item No.:

CLAB1

EAN:

4049521336683

Guarantee:

24 Months

Unit:

piece

Series:

AZOR® Series

Questions about the product?

Beam Moving Head with 180,000 lx light intensity @ 3 m
Optical glass lens with extremely narrow 2° beam angle
16-bit three-phase motors
540° panning and 270° tilting with automated position correction.
Motorised focusing
14 colours plus open and split colours
17 static gobos plus open
Rotatable and indexable circular eightfold prism
Rotatable and indexable linear sixfold prism
4 programmable...

Beam Moving Head with 180,000 lx light intensity @ 3 m
Optical glass lens with extremely narrow 2° beam angle
16-bit three-phase motors
540° panning and 270° tilting with automated position correction.
Motorised focusing
14 colours plus open and split colours
17 static gobos plus open
Rotatable and indexable circular eightfold prism
Rotatable and indexable linear sixfold prism
4 programmable macros for standalone and master-slave operation

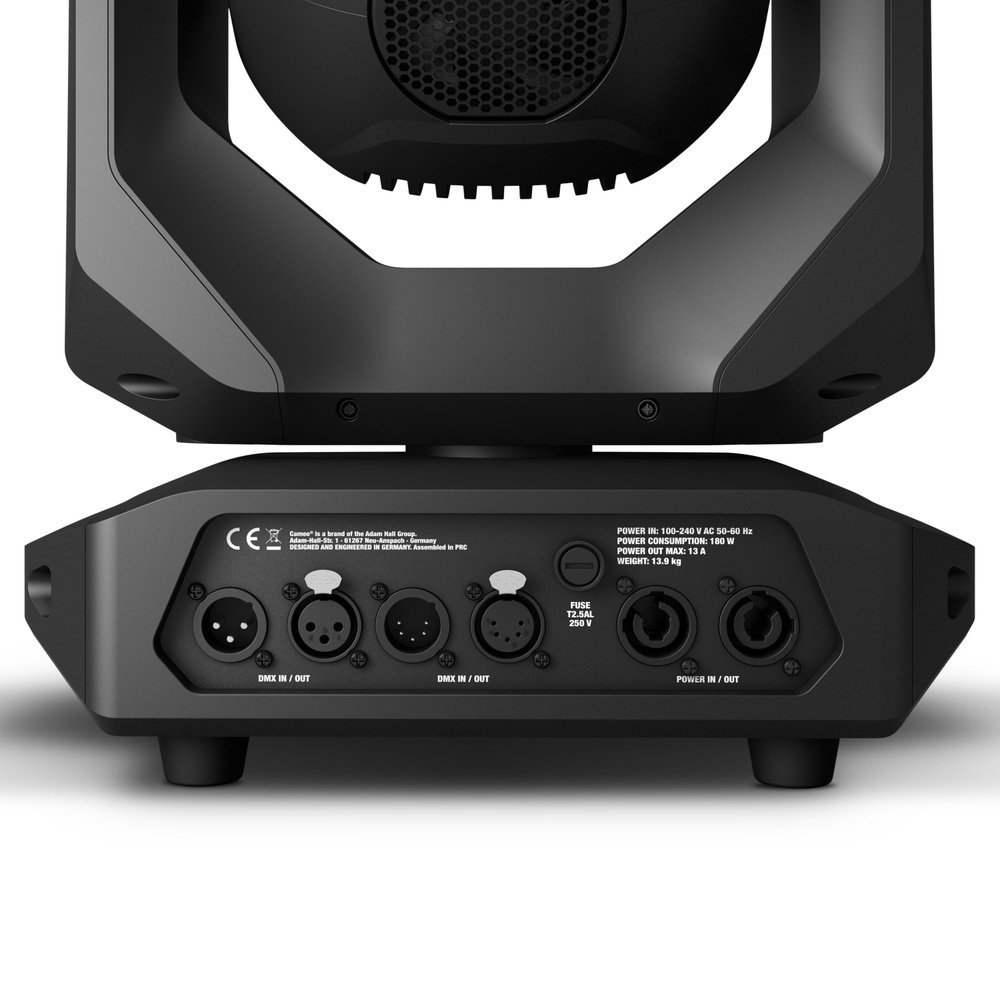

3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
Two Omega brackets and power cable included

Read on

AZOR® B1

LED Beam Moving Head

Price on request

Specifications

General

Product type

LED Moving Lights

Type

Moving Head

Colour spectrum

Cold white

Number of LEDs

Color temperature

9400 K

LED type

100 W

Refresh rate

Adjustable up to 3,600 Hz

Dispersion

2 °

DMX input

XLR 3-pin male, XLR 5-pin male

DMX output

XLR 3-pin female, XLR 5-pin female

DMX mode

13-channel, 16-channel

DMX Functions

Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Gobo wheel, PAN, PAN FINE, Pan/Tilt Macros, Pan/Tilt Speed, Prism Rotation/Indexing, Prism Selection, Set Dimmer Curve, Strobe, TILT, TILT FINE

PAN movement

540

TILT movement

270

High Speed Strobe

> 20 Hz

Standalone modes

4 x User Macros, Master / Slave mode, Settings

Controls

Enter, Mode, Value Down, Value Up

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

180 W

Power connector

Blue & White Power Twist I/O

Housing material

ABS plastic, Metal

Cabinet colour

Black

Protection class IP

IP20

Cooling

temperature-controlled fan

Illuminance

180,000 lx @ 3 m

Luminous flux

1800 lm

Maximum Ambient Temperature

-15 - 45 °C

Width

306 mm

Height

437 mm

Depth

220 mm

Weight

13,9 kg

Features

2 x Omega Clamp, Power supply

Description

The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing. 16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correction. A cold-white 100 W LED with 9,400 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from.

Additional features of the AZOR B1 include 17 static gobos, a circular eightfold and a linear sixfold prism that are rotatable and indexable. When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted. The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan.

Easy configuration is facilitated by the AZOR B1’s OLED display and four buttons, 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure unproblematic daisy chaining. The Beam Moving Head is supplied with three Omega brackets and a power cable.

Stories

19. Sept 2023

Where We Belong – Cameo at NATURE ONE 2023

Read on

15. Aug 2023

Illusions in the spotlight – magician Maxim Maurice tours with Cameo

Read on

7. Jun 2023

Cameo pushes the Lolita Room at Razzmatazz to new heights

Read on

20. Feb 2023

Radiant Carnival – Cameo lights up the alternative Stunksitzungen in Cologne

Read on

23. Aug 2022

Light art in the techno temple – Cameo at the new ZOOM Club in Frankfurt

Read on

10. May 2022

Light at Night: Cameo Installation at The Cheetah Club in Atlanta, USA

Read on

21. Aug 2019

Beams and Bass for the Dancing Crowd – Cameo OPUS SP5 and AZOR B1 at NATURE ONE

Read on

1. Apr 2019

Press: NicLen and Adam Hall Group Take Cooperation to Next Level – Cameo OPUS® S5 & SP5, ZENIT® W300, AZOR® B1, F2 T&D Available from DryHire Provider

Read on

17. Oct 2018

Press: Cameo Showcases New Professional LED Lighting Innovations at LDI in Las Vegas

Read on

Name	Category	Type	File size
CAMEO Product Catalogue	Catalog	pdf	9 MB
User´s Manual	Manual	pdf	3 MB
DMX Control Table	Data Sheet	pdf	61 KB
Data sheet	Data Sheet	pdf	1 MB
Photometric measurements	Data Sheet	pdf	877 KB
Technical drawing	Data Sheet	dwg	8 MB
Technical drawing	Data Sheet	pdf	4 MB
Fixture Library Daslight	Software	zip	84 KB
Fixture Library grandMA2	Software	zip	8 KB
Tender documents	Tender Specifications	zip	131 KB
Item images	Product images	zip	-
