Cameo

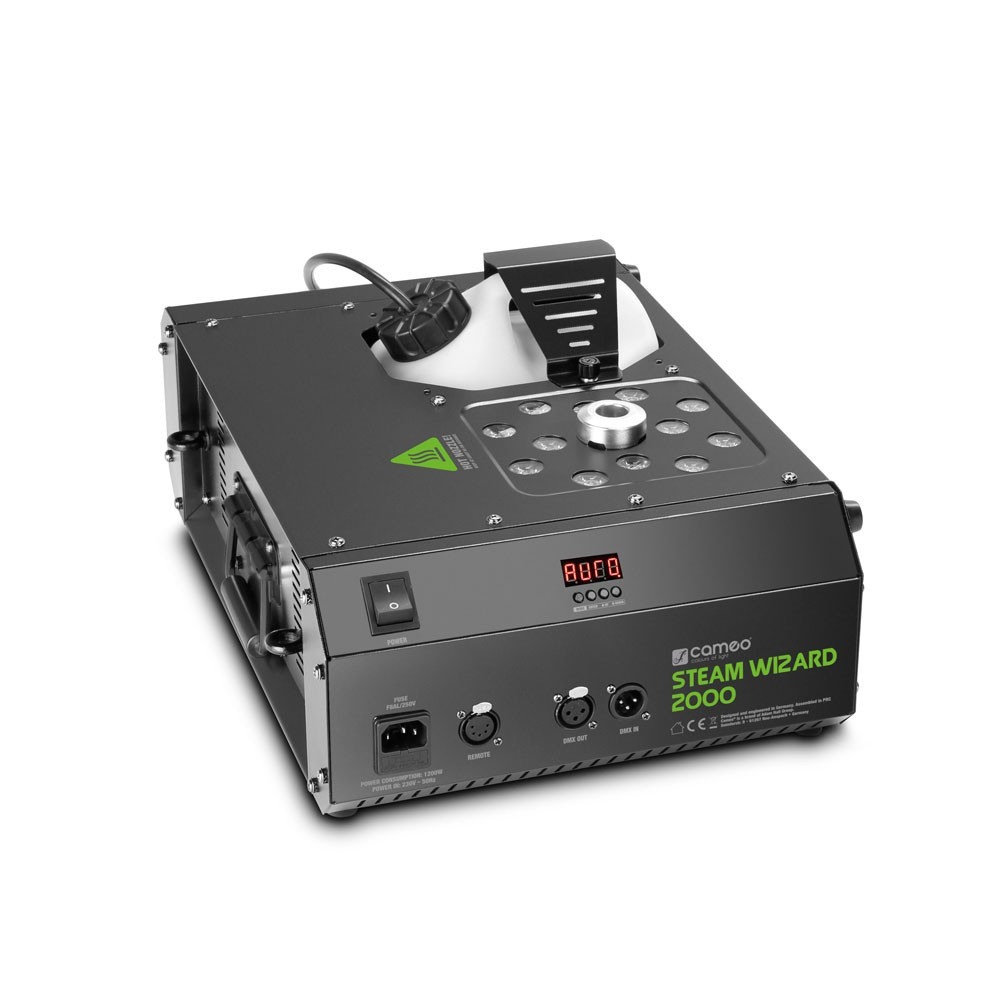

STEAM WIZARD 2000

Fog Machine with RGBA LEDs for Coloured Fog Effects

RRP 605.07 $ / piece

Item No.:

CLSW2000

EAN:

4049521218088

Guarantee:

24 Months

Unit:

piece

Series:

Steam Wizard

Questions about the product?

1,200 W heating element and high-performance pump for powerful blasts of fog

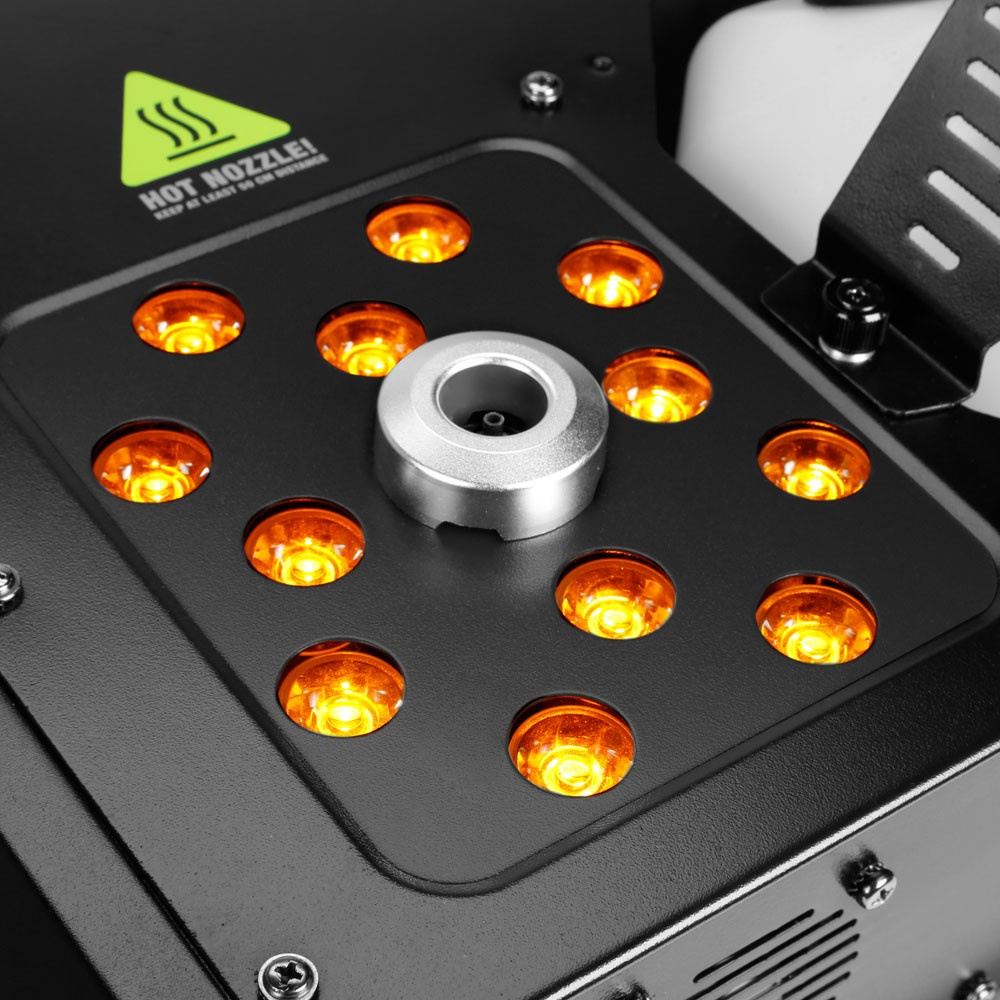

12 x 10W RGBA 4-in-1 LEDs for uniform fog illumination
Verical or horizontal mounting

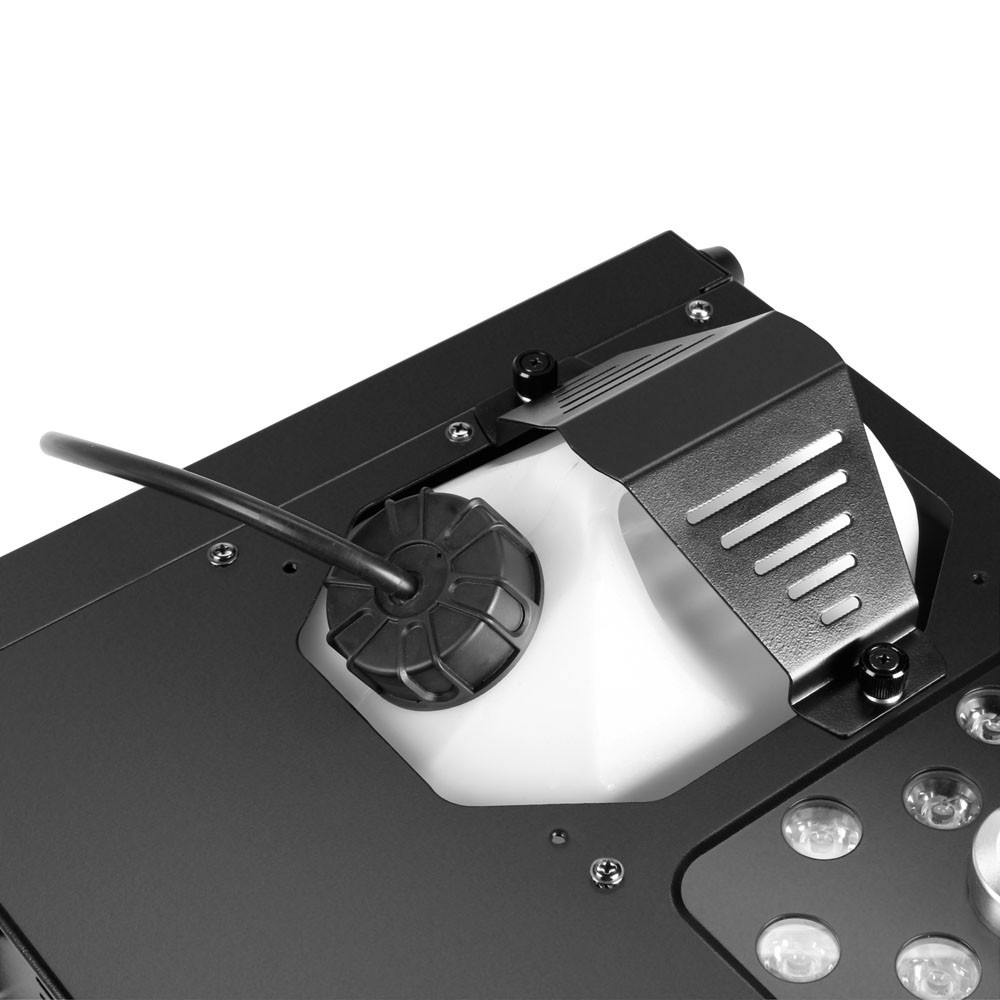

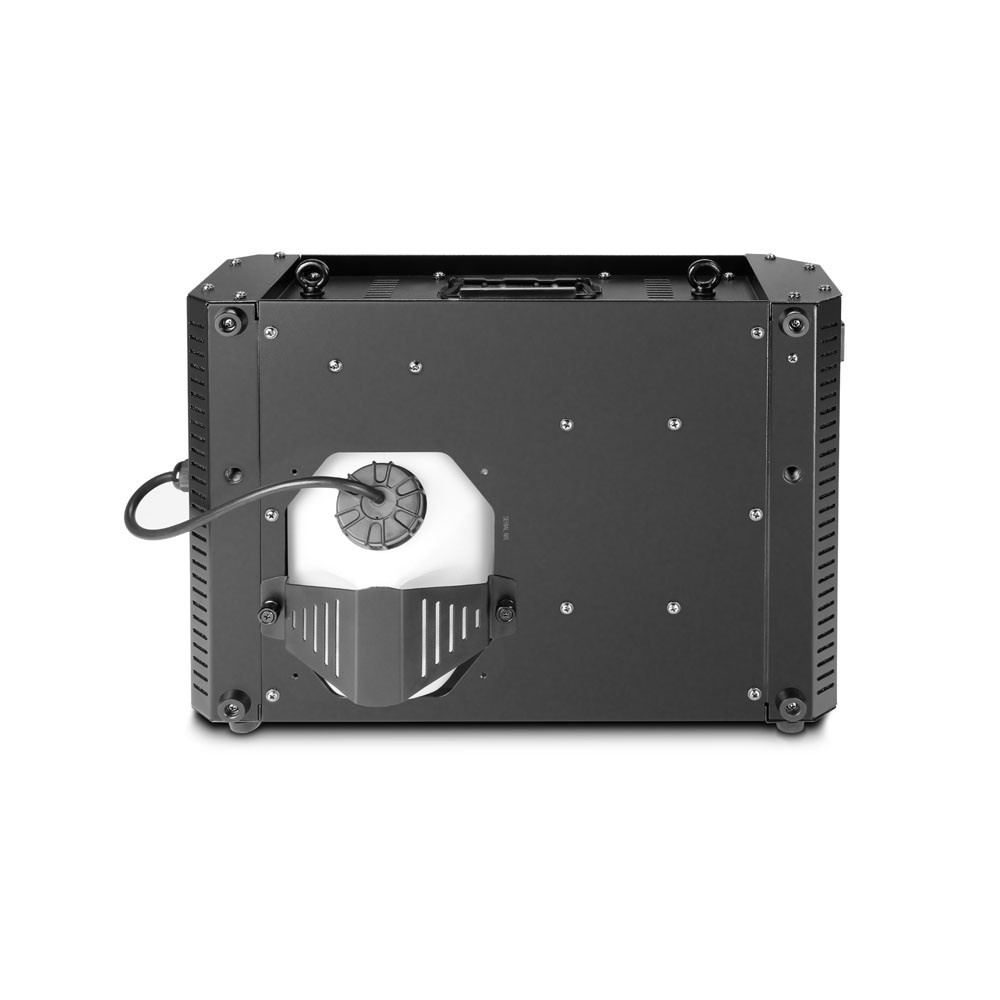

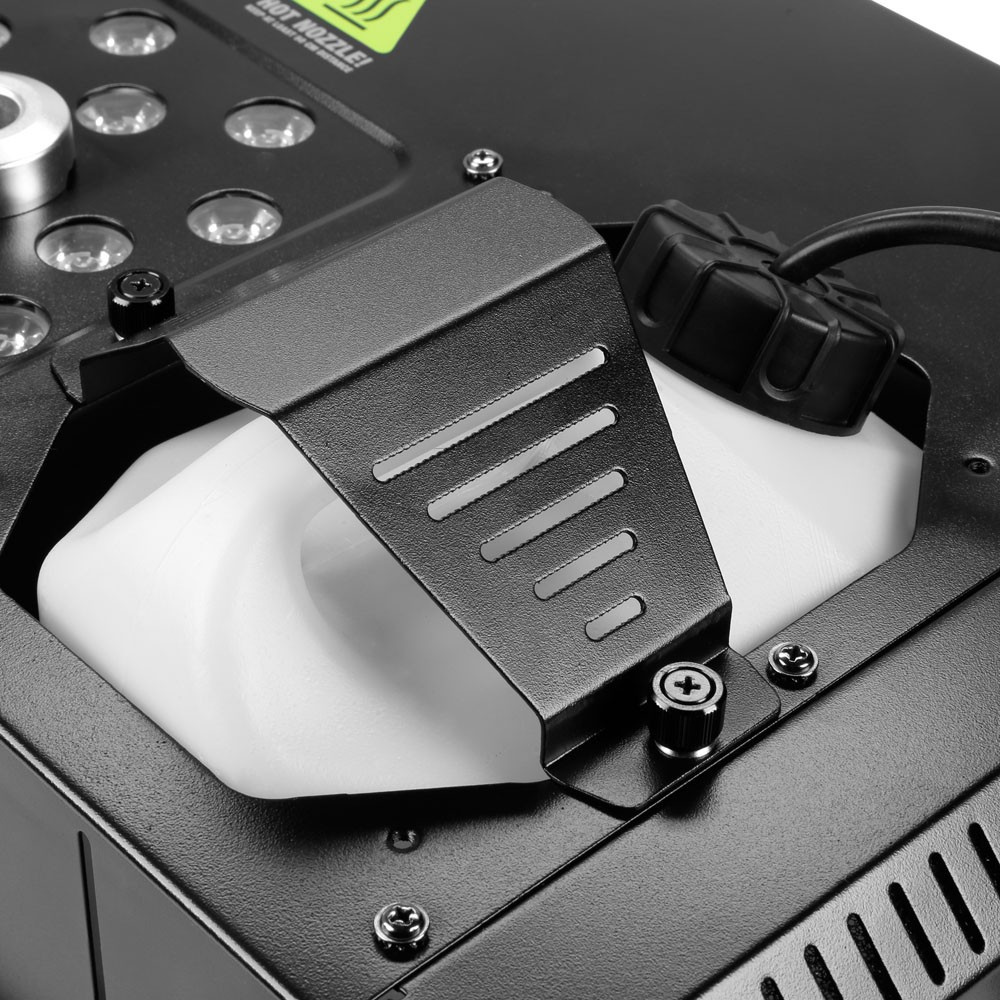

Top or bottom fluid tank placement options

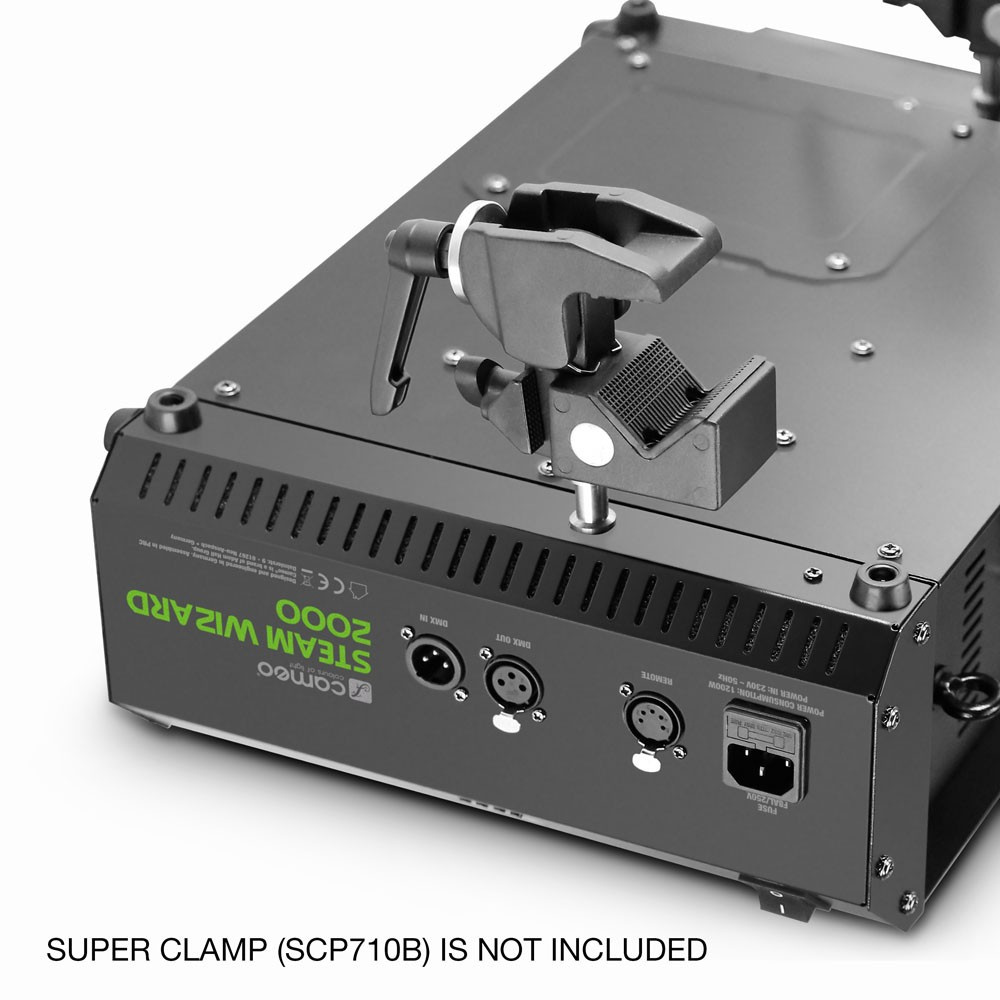

Bottom tank placement enables easy overhead installation for downward jets
Automatic shutdown prevents pump damage when fluid tank is empty
LED indicators for fluid tank and operating status
4-channel DMX...

1,200 W heating element and high-performance pump for powerful blasts of fog
12 x 10W RGBA 4-in-1 LEDs for uniform fog illumination
Verical or horizontal mounting
Top or bottom fluid tank placement options
Bottom tank placement enables easy overhead installation for downward jets
Automatic shutdown prevents pump damage when fluid tank is empty
LED indicators for fluid tank and operating status
4-channel DMX control

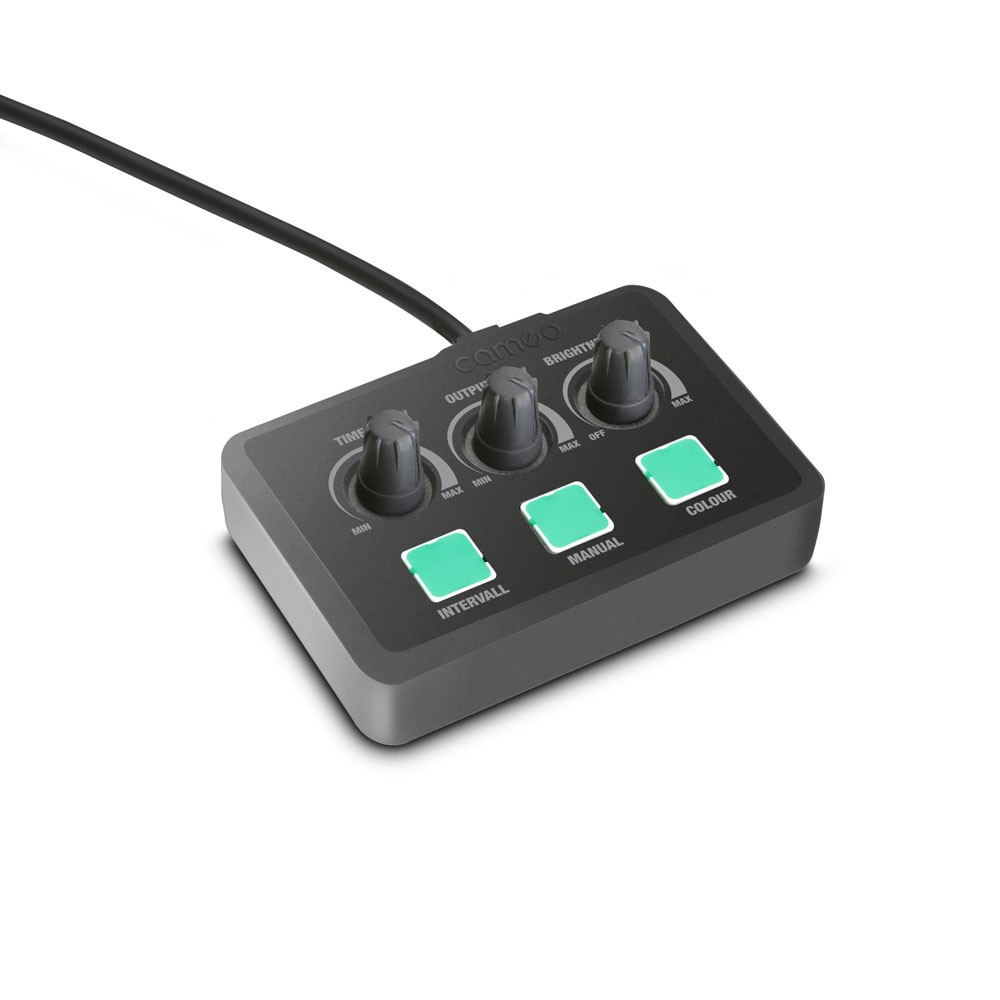

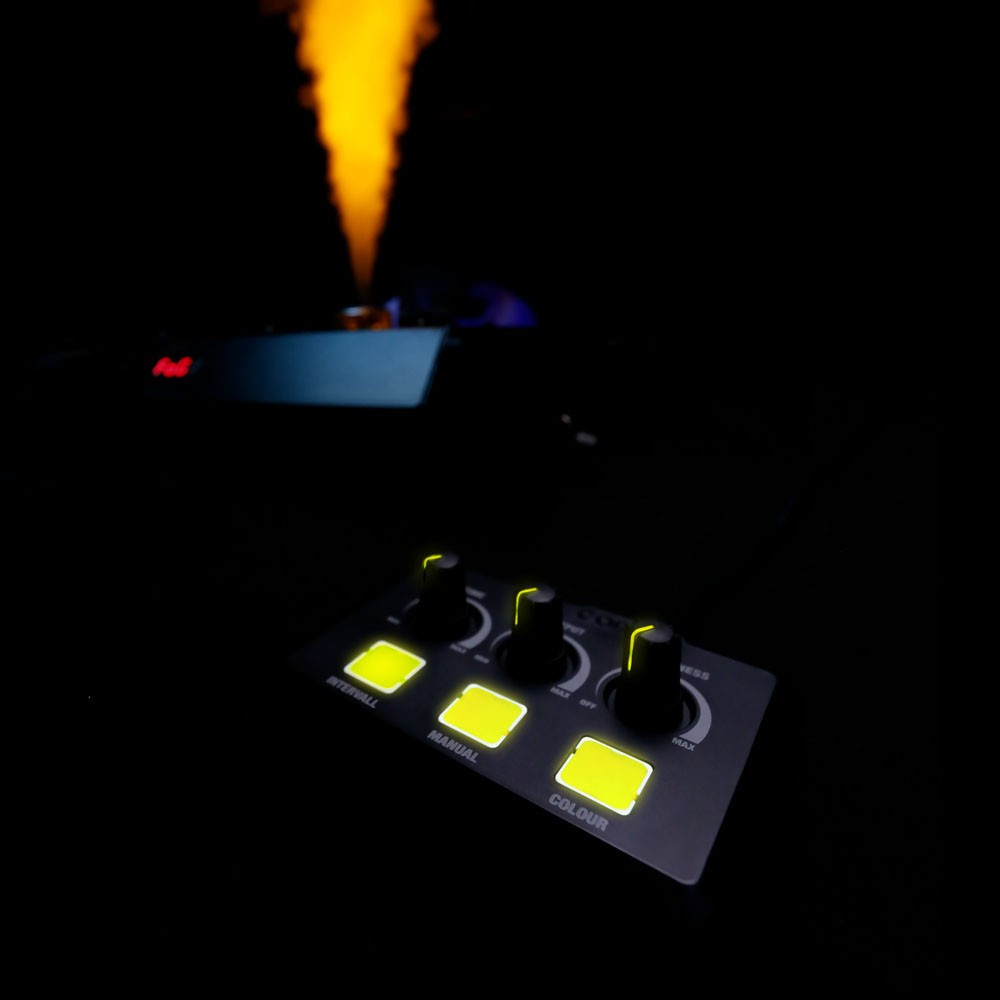

Includes handheld remote with illuminated buttons and controls for Continous, Timer, Manual, Fog Output, LED Brightness and Colour plus 10m cable

Read on

STEAM WIZARD 2000

Fog Machine with RGBA LEDs for Coloured Fog Effects

RRP 605.07 $ / piece

Specifications

General

Product type

Fog and Wind Machines

Type

Fog machine with LEDs

Power

1200 W

Output volume

approx. 500 m³/min

Range of fog output

approx. 7 m

Warm-up time

approx. 3 min

Fog duration

approx. 10 sec.

Reheating time

approx. 8 sec.

Fluid tank capacity

2.5 l

Fluid Consumption

approx. 50 ml/min

Number of LEDs

LED colour spectrum

RGBA

LED type

10 W 4 in 1 LED

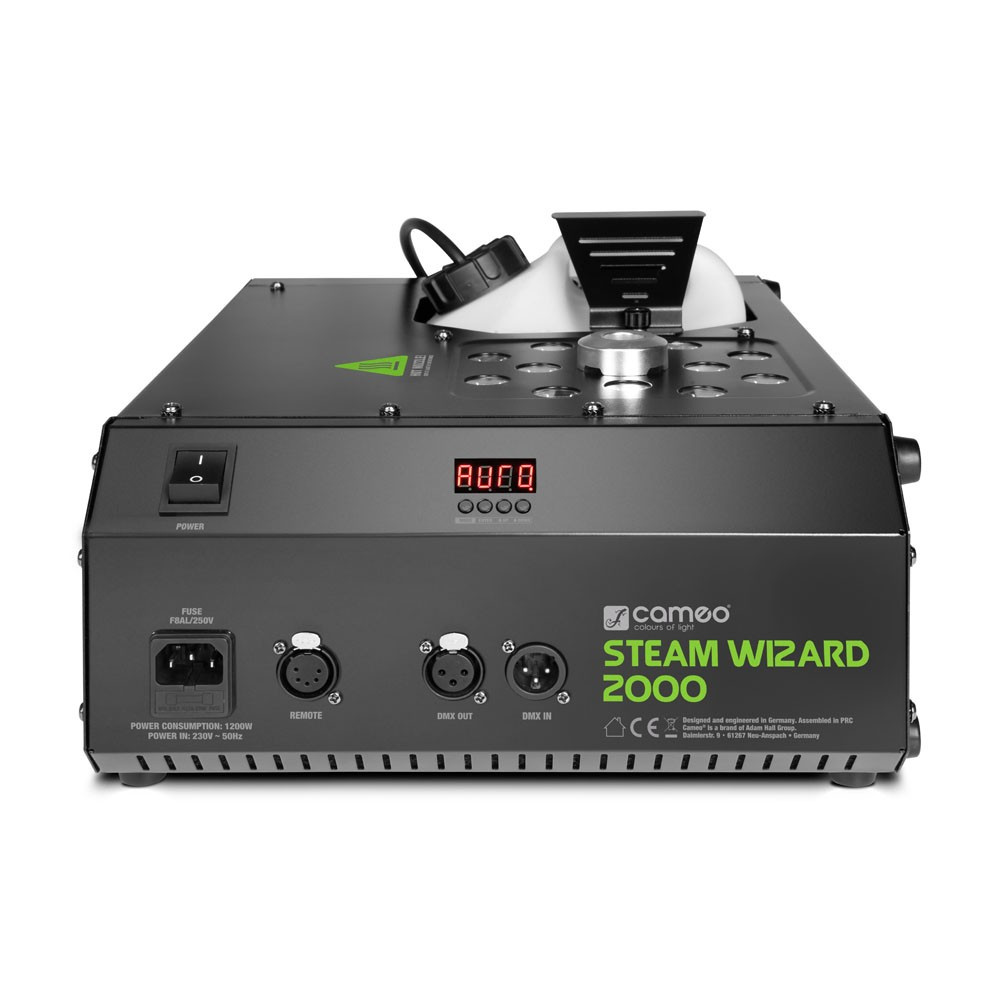

Remote connection

XLR 5-pin male

Remote cable length

10 m

Remote functions

colour change, continuous operation, duration, Interval, LED brightness, Manual control, output level

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

4-channel

DMX Functions

colour change, colour fade, colour jump, Dimmer, output level, strobe

Controls

Enter, Mode, Value Down, Value Up

Indicators

4-digit LED display

Operating voltage

230 V AC, 50 Hz

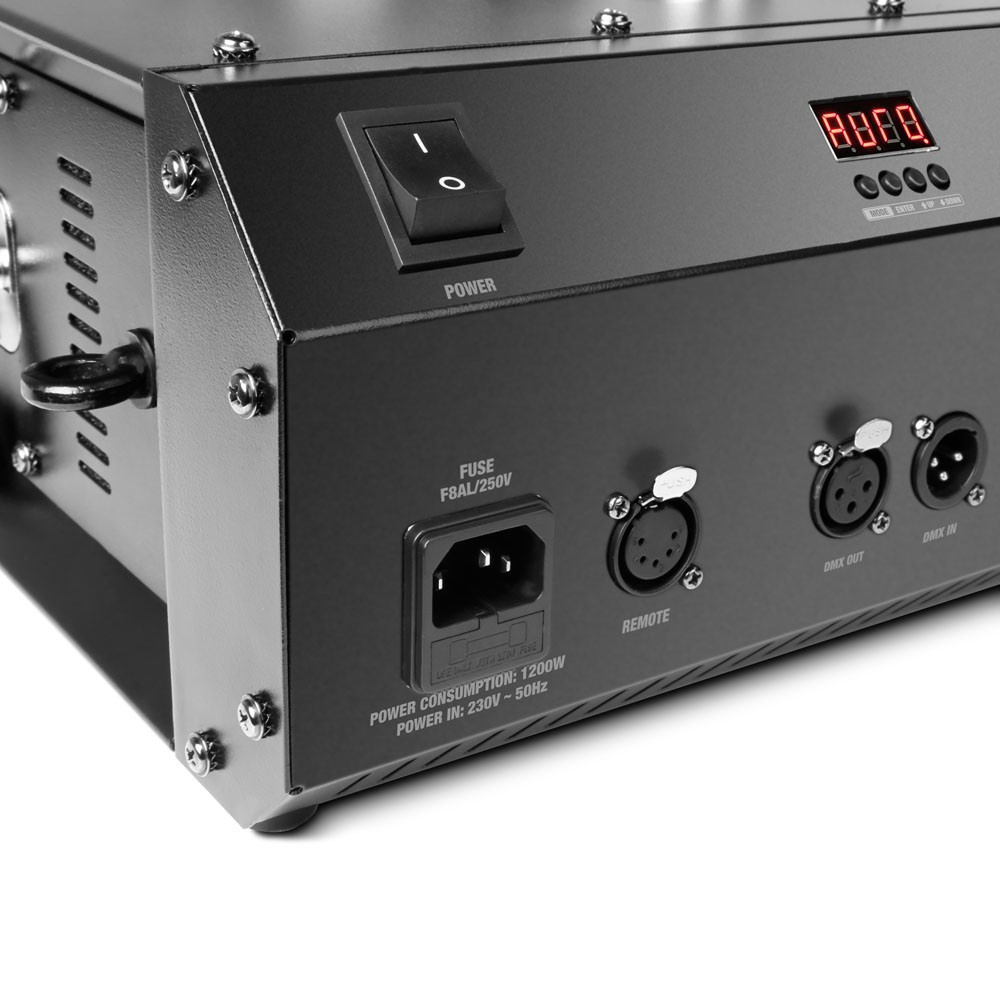

Fuse

F8AL / 250 V

Power consumption

1200 W

Power connector

IEC power connector female

Housing material

Metal

Cabinet colour

Black

Width

421 mm

Height

202 mm

Length

322 mm

Weight

9 kg

Description

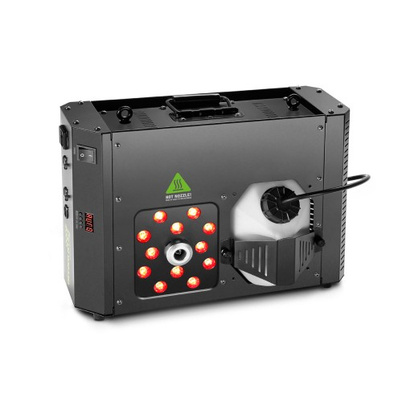

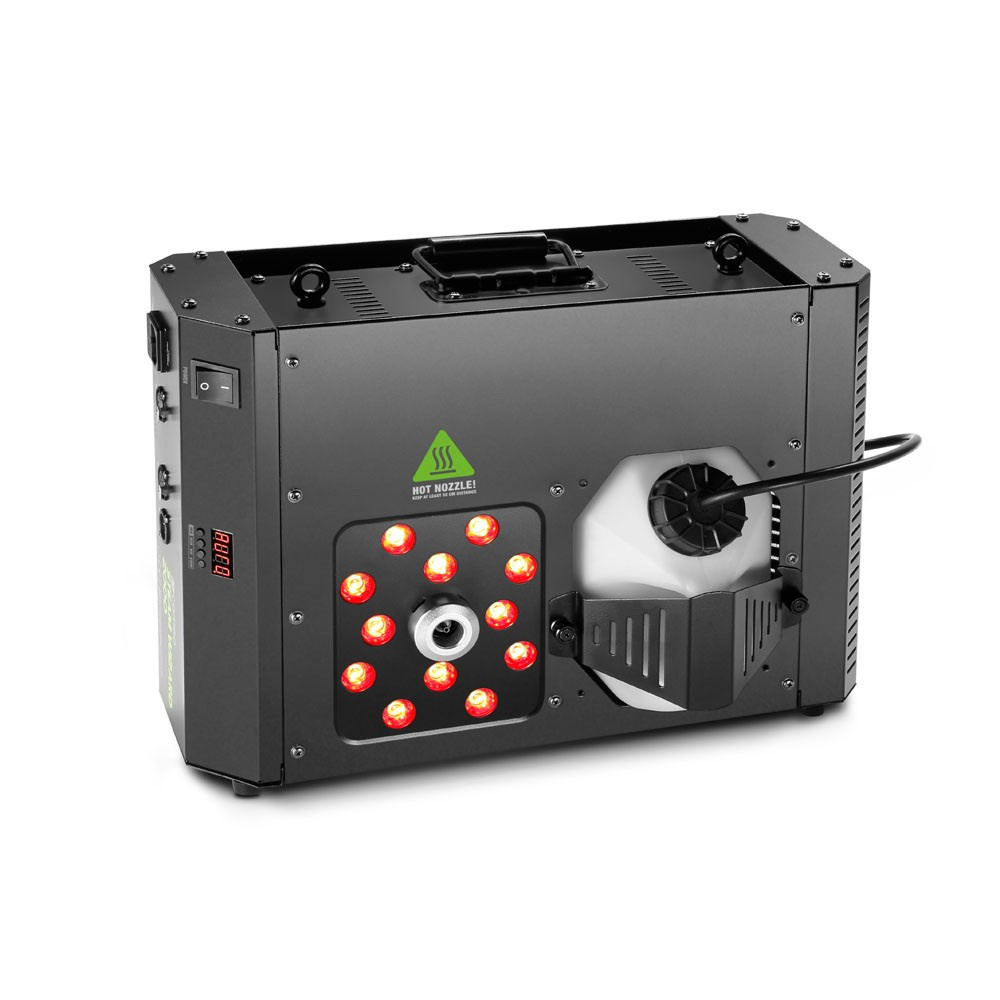

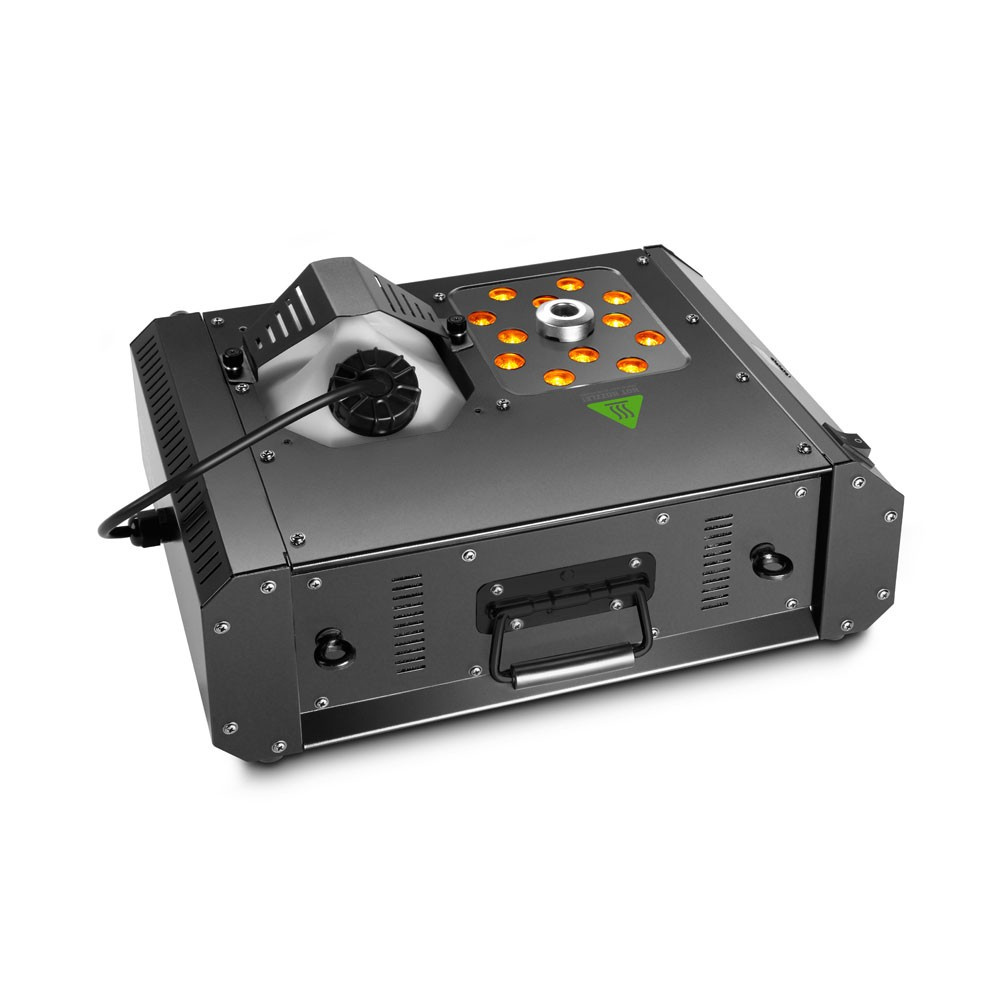

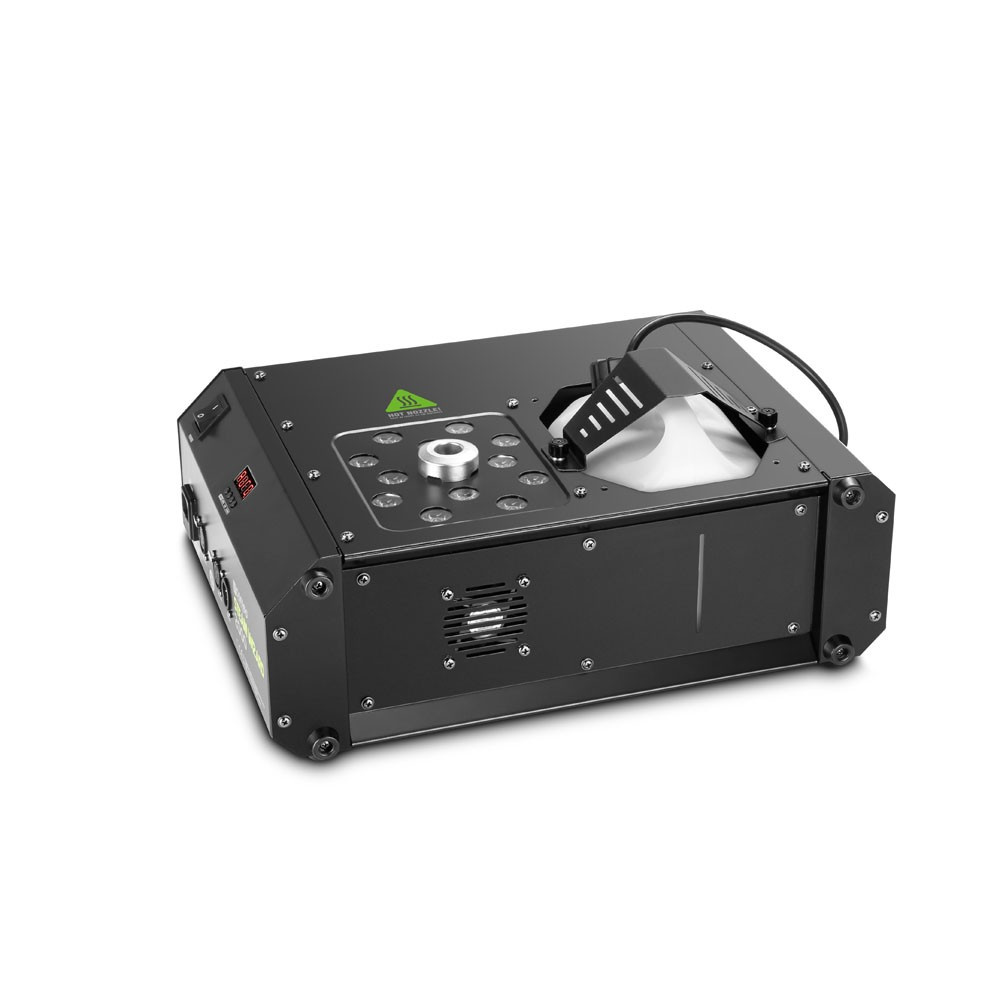

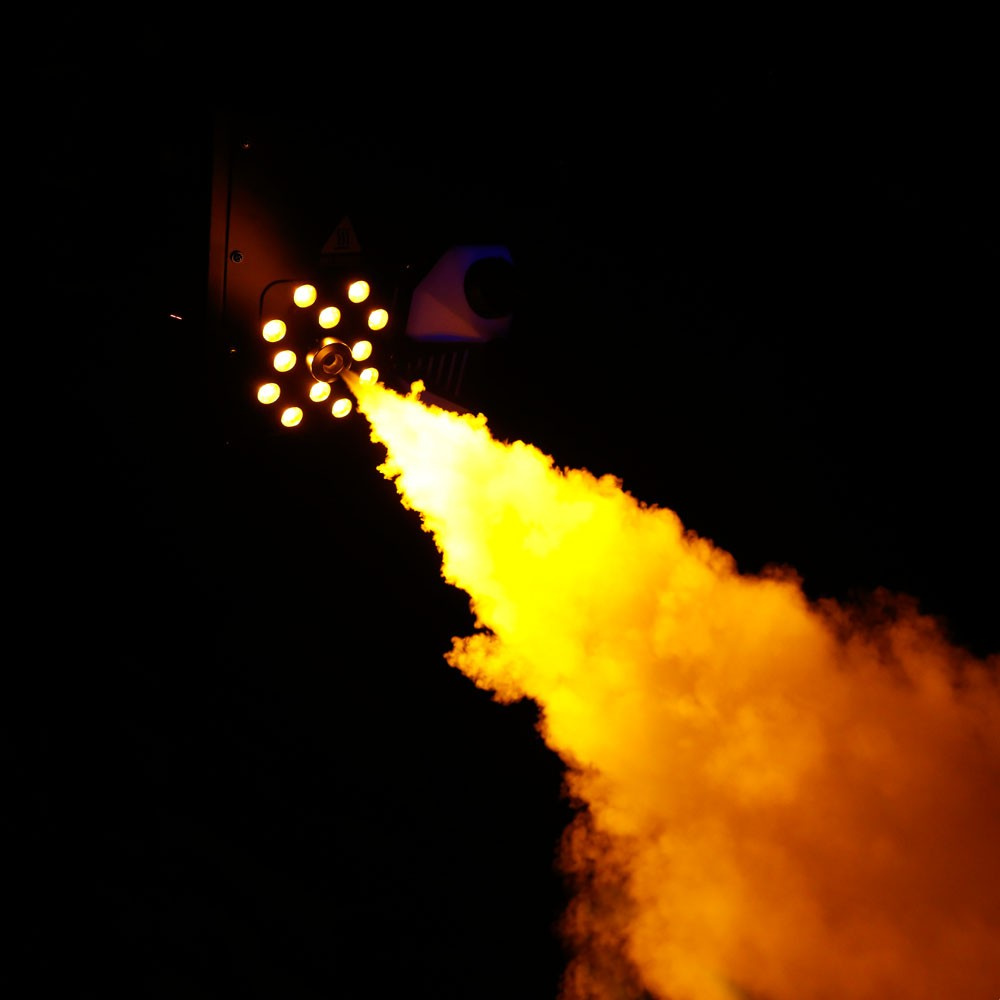

Creating spectacular moods and effects is a real blast with the Cameo Steam Wizard 2000. It produces dense, even bursts of water-based fog with lengths of 7 metres that are simultaneously illuminated by 12 high-power 10 watt 4-in-1 LEDs for dramatic scenes and rich RGBA colours. With top and bottom placement options for the fluid tank, this high-velocity vertical fog machine permits both ground operation and easy overhead installation. It can also be mounted horizontally.

The Steam Wizard 2000 utilizes a powerful 1,200 watt heating element and high-performance pump to ensure consistent output with minimum warm-up time between jets. LEDs indicate the operating status and fluid level. The automatic shutdown feature prevents damage to the pump when the fluid tank runs empty. The Steam Wizard 2000 is operated via DMX in 4-channel mode or the included remote with illuminated buttons and rotary controls providing easy visibility in the dark.

For best results, use Cameo Fast Fluid only, which is specially designed for Cameo Steam Wizard Series products.
