Ethernet control interface card for IPA series
- Fast-Ethernet (100 Mbps) control interface
- Remote control and DSP configuration of the IPA series via QUESTRA® software
- Status LED
- IP reset button for quick troubleshooting at the unit
- Asymmetric pins for error-free card assembly
Price on request
With the X-ECI Ethernet Control interface card, LD Systems extends the remote control options of its IPA DSP installation power amplifiers. In conjunction with LD Systems QUESTRA® software, the interface card provides flexible and effective configuration and control of fixed audio installations of various sizes - whether in hotels, restaurants, shopping centres, sports facilities, office environments and more.

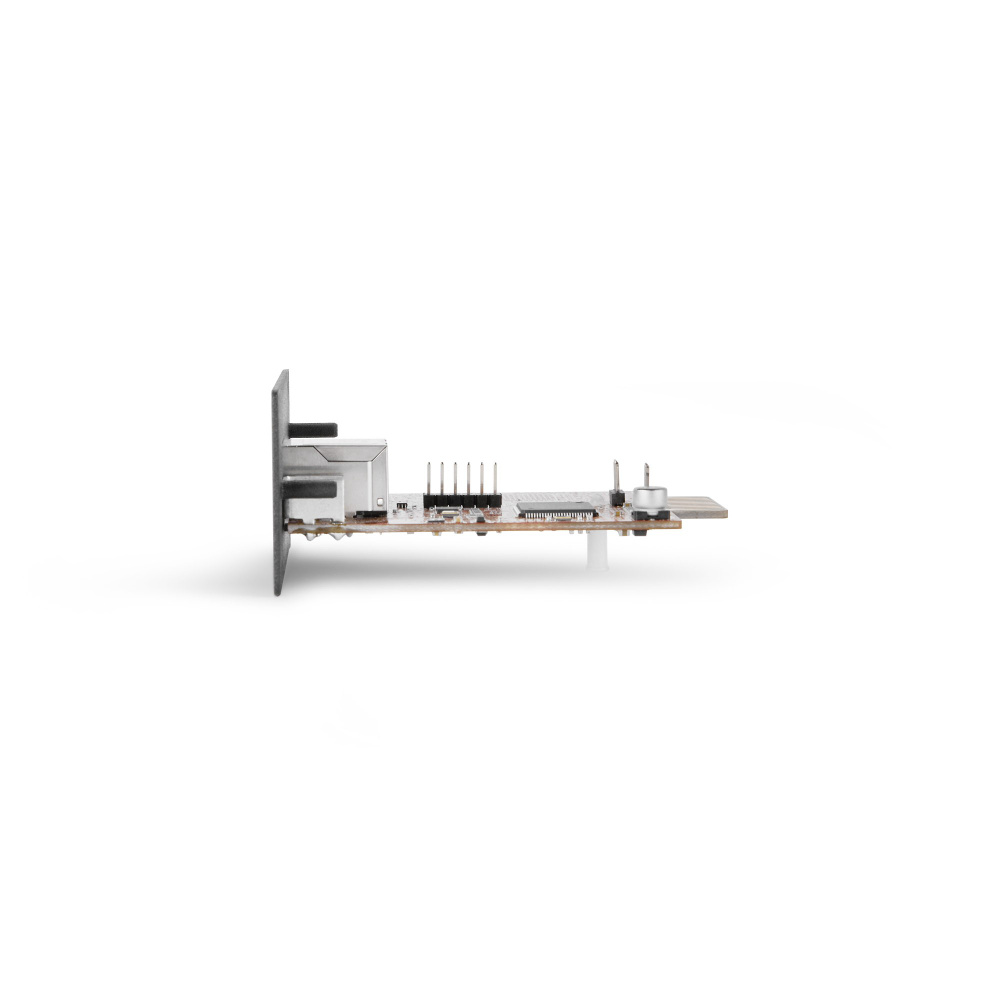

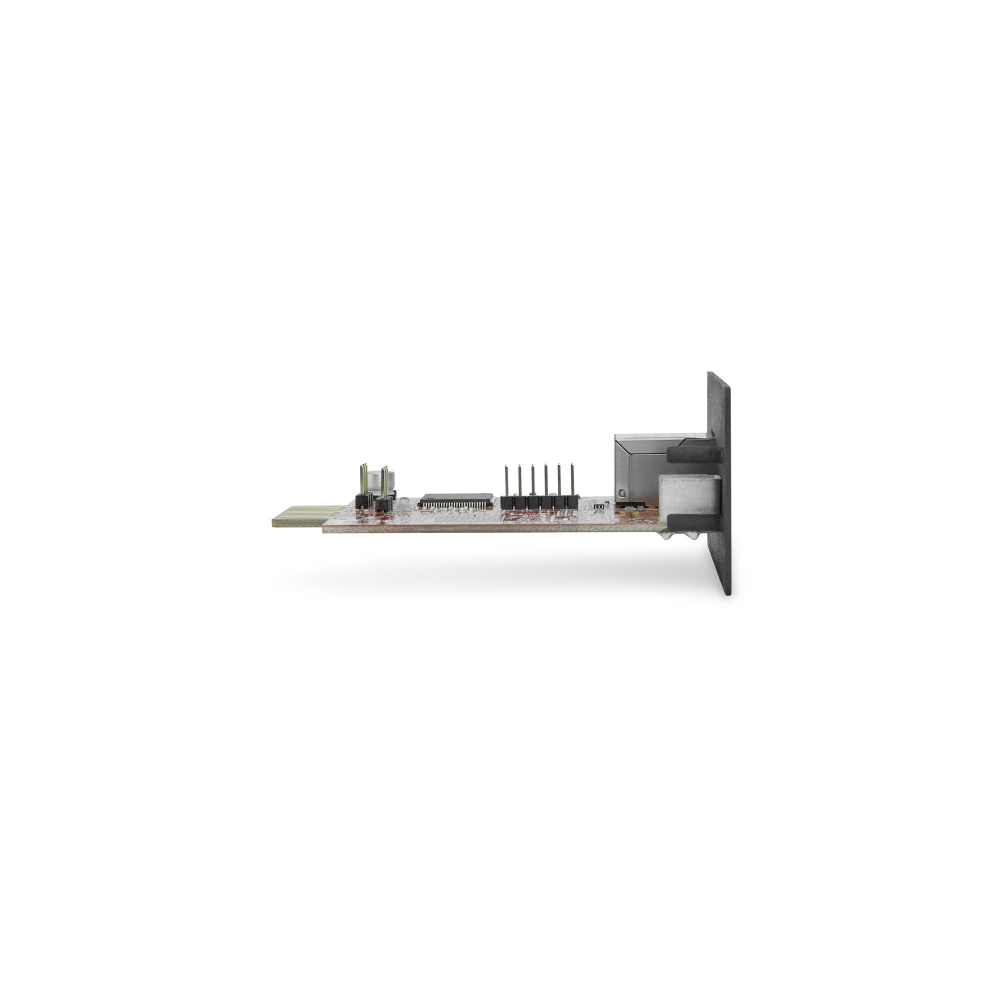

The X-ECI Ethernet Control interface card features a Cat5-based 100 Mbps Ethernet connection - compatible with all common IT network components - a status LED and an IP reset button for quick and easy troubleshooting. Thanks to the asymmetrical pin arrangement of the card, accidental incorrect installation of the interface card in the IPA housing is impossible.
Via the QUESTRA® software, system integrators can access all DSP settings of the IPA installation power amplifier. The possibilities range from signal processing at the input (preamp, compressor, etc.), signal flow in the matrix mixer, output processing (EQ, dynamics, delay, polarity, mute) to priority settings and preset management. In addition, customised control panels can be created in the QUESTRA® software, which can be used by end customers on smartphones, tablets or computers (via the QUESTRA® Panels app) for convenient control of their system.
