LD Systems
WIN 42 HHD 2 B 5

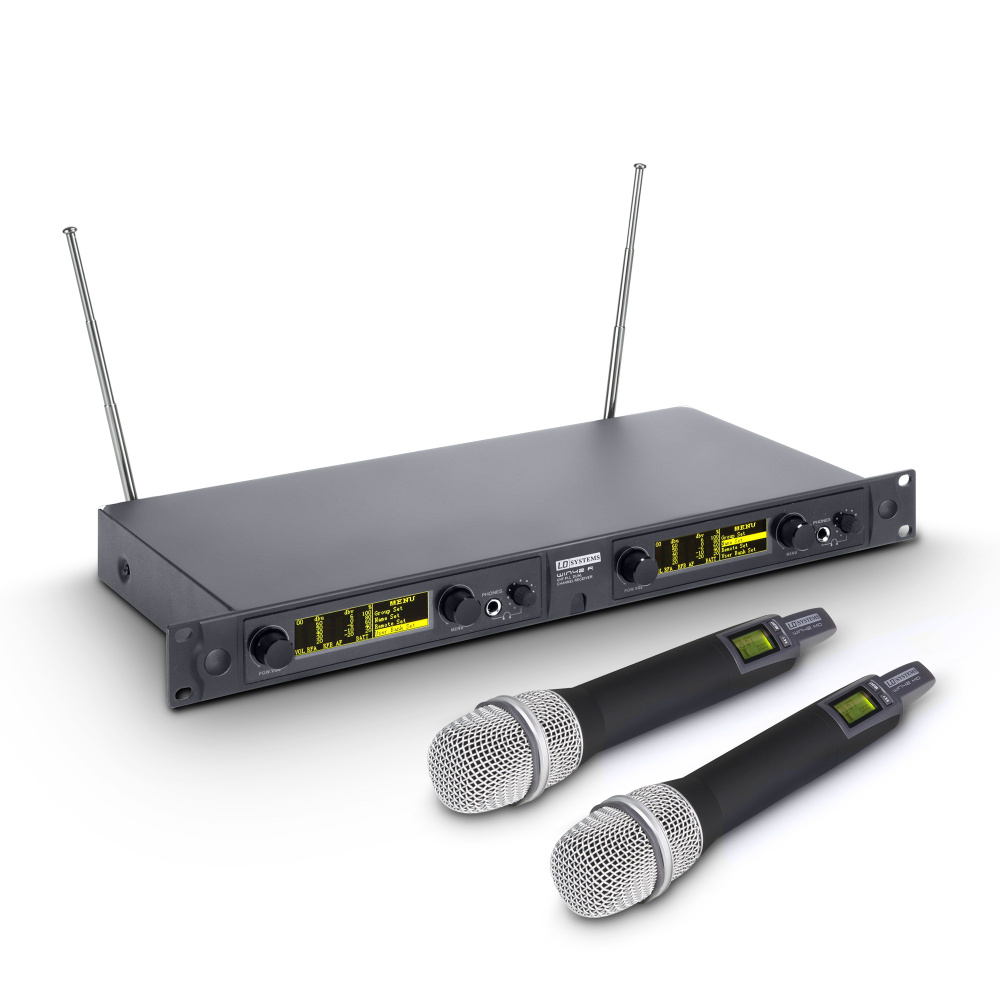

Dual - Wireless Microphone System with 2 x Dynamic Handheld Microphone

WIN 42 HHD 2 B 5

Price on request

Item No.:
LDWIN42HHD2B5
EAN:
4049521204975
Guarantee:
24 Months
Unit:
piece
Series:
Versions:

Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system.

With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 516 MHz to 558 MHz. Both the handheld microphone...

Read on
WIN 42 HHD 2 B 5
WIN 42 HHD 2 B 5
Dual - Wireless Microphone System with 2 x Dynamic Handheld...

Price on request

Specifications

Specifications

General
Product type
Wireless Microphone Systems
Type
Handhelds
Items in this set

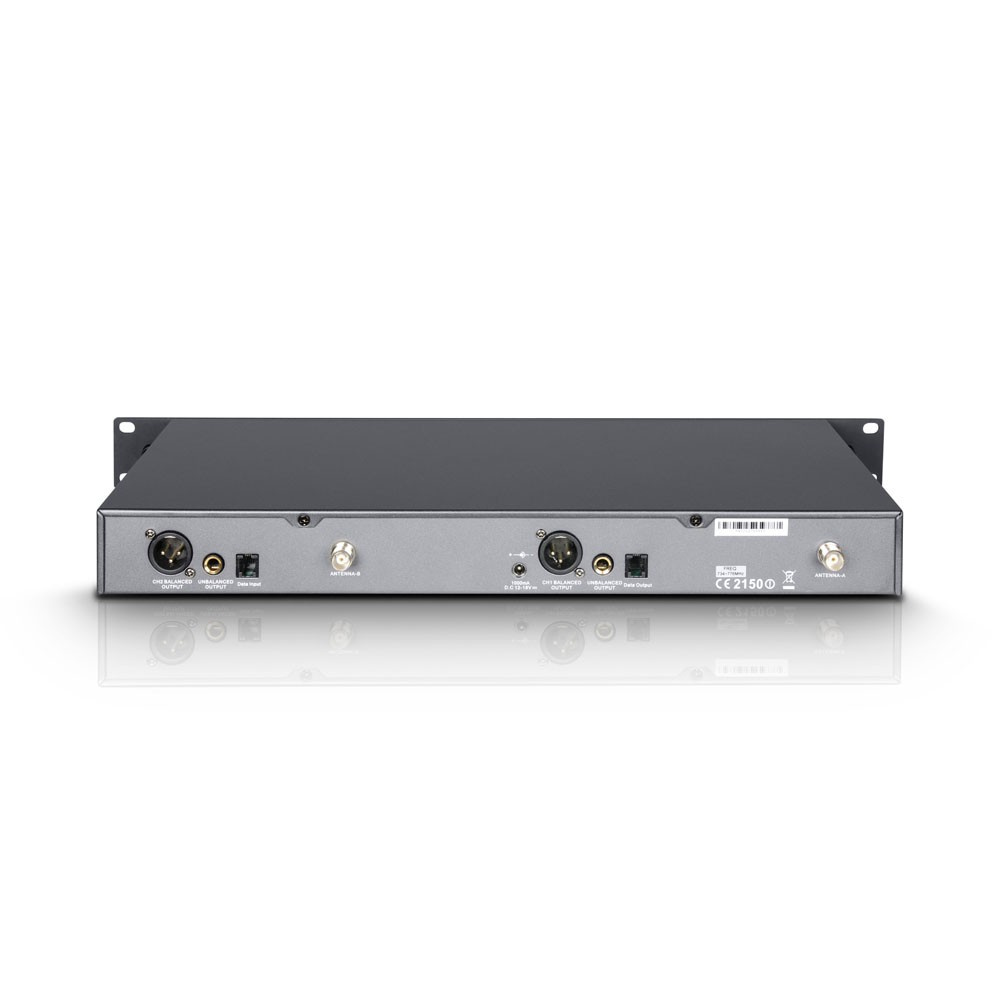

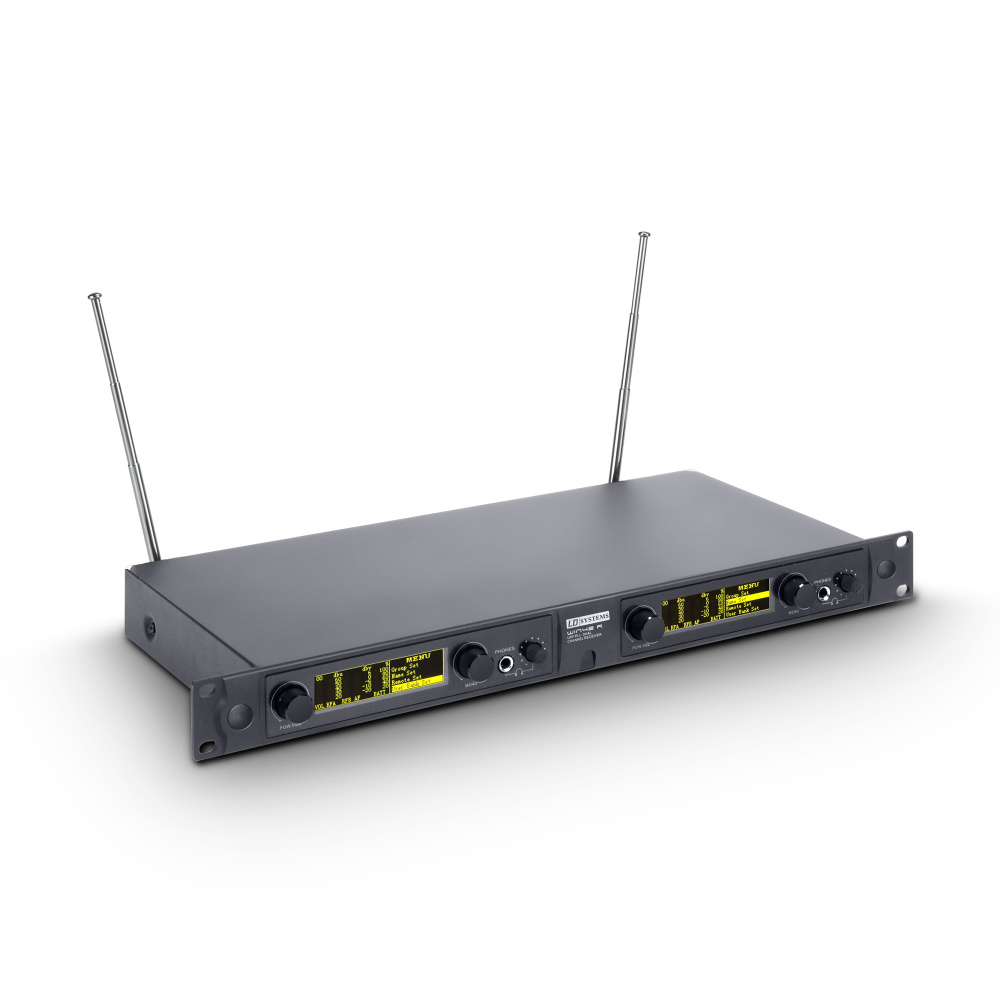

LD Systems WIN 42 R 2 B 5 Double receiver
View items
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Channels
2 x 1680
Groups
2 x 20 groups + 1 user group
Antenna inputs
2
Antenna connector
BNC
Frequency response
60 - 16.000 Hz
Noise reduction
Squelch
Transmission optimization
address allocation
Total Harmonic Distortion (THD)
< 1 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
2 x XLR
Audio output, unbalanced
2 x 6.3 mm TS
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+ 10 dBu
Headphones ouput
2
Headphones outputs
6.3 mm TRS
Controls
2 x headphones level, 2 x mains switch / volume, 2 x menu
Indicators
2 x multifunction LC display
Operating voltage
External Power Supply
Operating voltage
1,000 mA, 13.5 V DC
Width
480 mm
Height
44 mm
Depth
190 mm
Weight
2,4 kg
Accessories (included)
2 x antenna, 2 x TNC adapter, 2 x TNC cable, Batteries, Power supply, User's manual
Other features
channel search function
LD Systems WS 100 RK 19" Rack Kit
View items
Type
19" Rack Kits
Color
Black
Material
Steel
Surface
Powder coated
Weight
0,2 kg

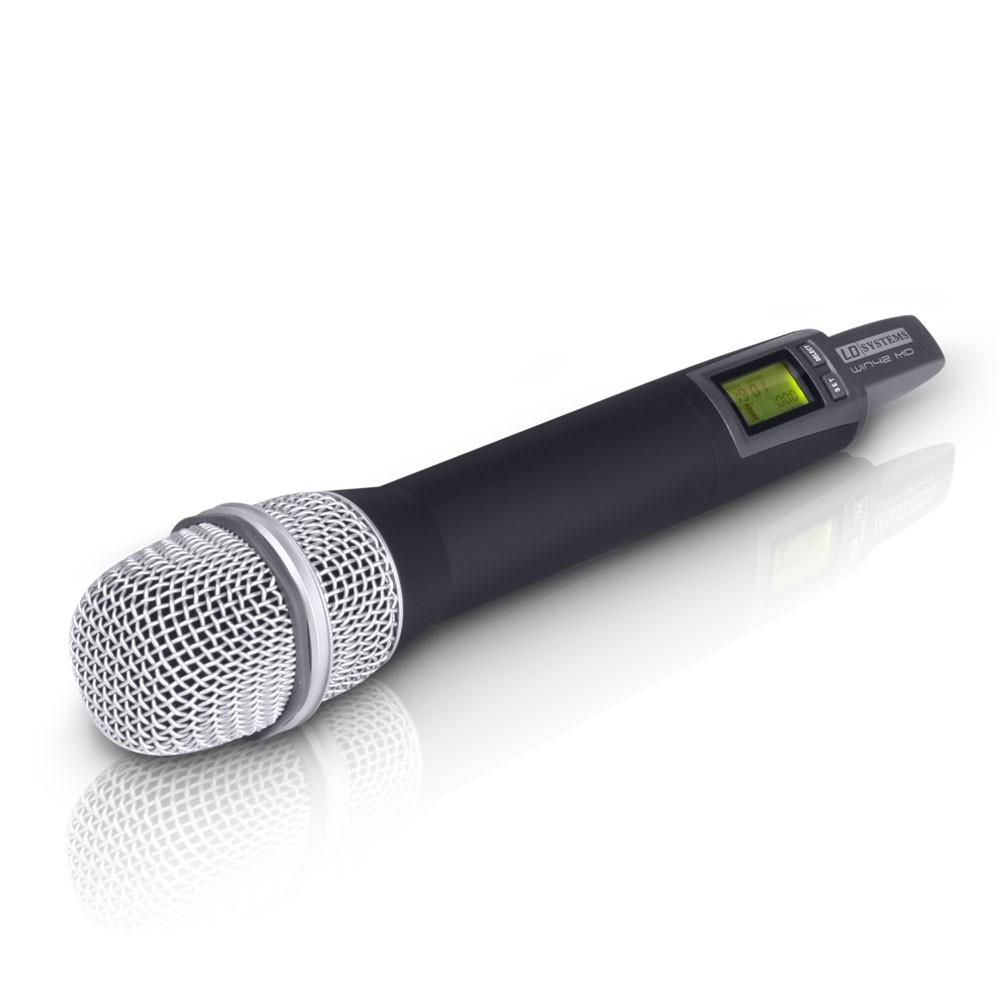

LD Systems WIN 42 MD B 5 Dynamic handheld microphone
View items
Transmission frequency range
516 - 558 MHz
Type
Microphones
Channels
1680
Groups
20 groups + 1 user group
Microphone type
Dynamic
Directivity
Cardioid
Rated HF output power
Variable (10, 30, 50 mW)
Operating time
>13 h (with alkaline batteries)
Length
255 mm
Diameter
52 mm
Controls
mute, Power, select, Set
Indicators
multifunction LC display
Operating voltage
2 x AA battery
Weight
0,35 kg
Other features
Adjustable audio sensitivity, Battery status indicator, incl. batteries, Interchangeable microphone head, IR frequency synchronisation, Transmission power adjustable in 3 stages
