LD Systems
SAT 42 G2 W

4" passive Installation Monitor white (pair)

SAT 42 G2 W

Price on request

Item No.:
LDSAT42G2W
EAN:
4049521154669
Guarantee:
24 Months
Unit:
pair
Series:

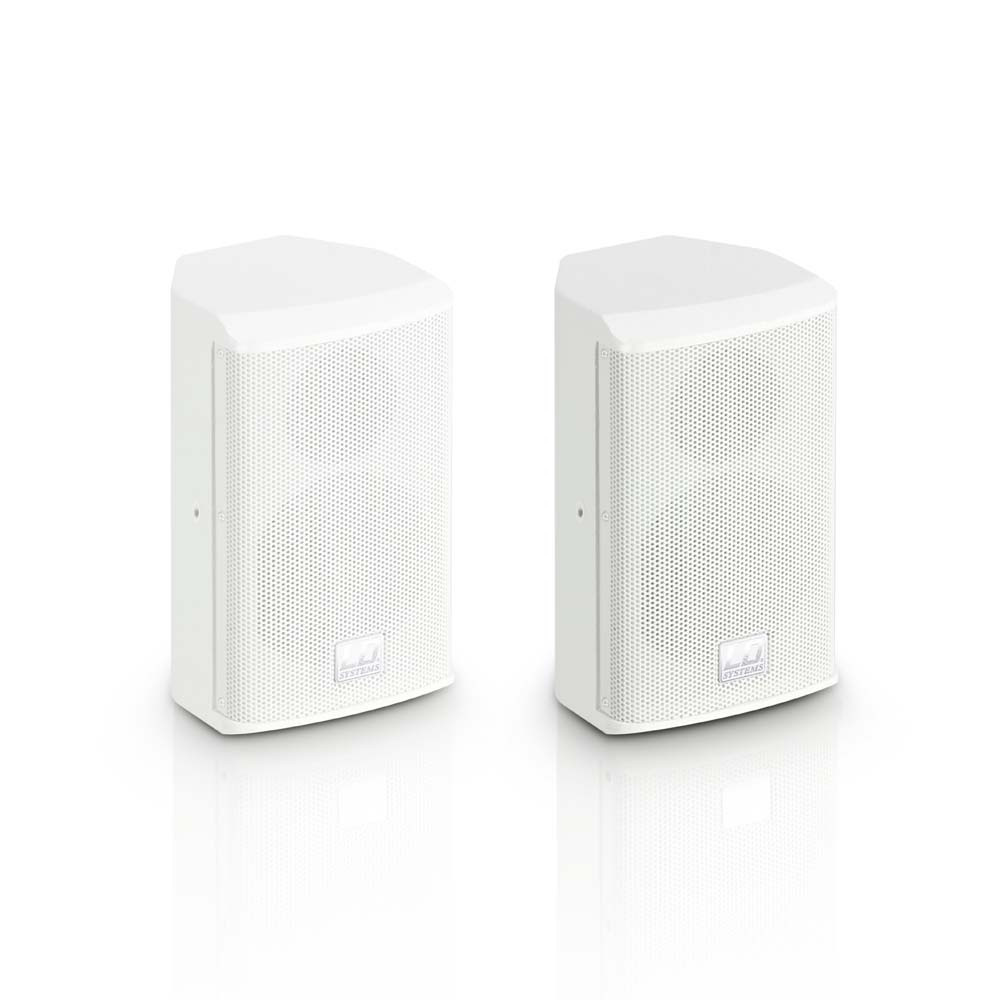

The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.

A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1“ silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers...

Read on
SAT 42 G2 W
SAT 42 G2 W
4" passive Installation Monitor white (pair)

Price on request

Specifications

Specifications

#DetailSpecificationsGeneralHeadline#
Product type
Installation Loudspeakers
Type
Wall-mounted Loudspeaker
Low/mid driver dimensions
4 "
Woofer size
101 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
HF driver dimensions
1 "
HF driver size
25 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
Dispersion (H x V)
60 x 60 °
Load rating (RMS)
60 W
Frequency response
75 - 20000 Hz
SPL (1W/1m)
85 dB
Max. SPL
103 dB
Impedance
16 Ohm
Protection circuits
HF Driver
Loudspeaker inputs
1
Speaker input connections
Clamp connector
Speakers per amplifier channel (DSP44/45K)
8
Cabinet material
12 mm MDF
Cabinet surface
texture paint
Cabinet colour
white
Cabinet construction
Closed
Width
140 mm
Height
230 mm
Depth
125 mm
Weight
5 kg
