Cameo

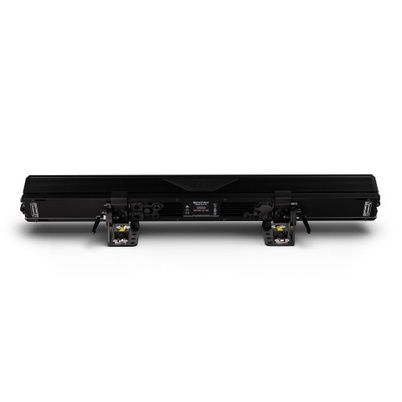

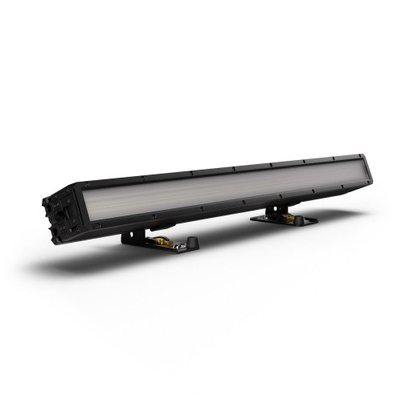

PIXBAR® SMD IP G2

IP65 SMD LED Bar

NEW
PIXBAR® SMD IP G2

Price on request

Item No.:
CLPBSMDIPG2
EAN:
4049521781452
Guarantee:
24 Months
Unit:
piece
  • Note: The technical specifications are preliminary.
  • Simple and efficient interconection of up to 3 units with the optional STACK-KIT
  • Adjustable feet for truss-bracing positioning
  • Optional VERTI-MOUNT for standing or hanging application
  • Easy slide-in filter mechanism with locking mechanism
  • Fanless cooling design
  • High brightness and accurate colour mixing
  • SPIN16® included
PIXBAR® SMD IP G2
PIXBAR® SMD IP G2
IP65 SMD LED Bar

Price on request

Specifications

Specifications

General
Product type
LED Bars
Type
IP65
Colour spectrum
RGBW
LED type
SMD
Lens
Clear acryl string lens
Refresh rate
650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Dimmer resolution
16 Bit, 8 Bit
Dimmer curves
Exponetial, Linear, Logarithmic, S curve
Strobe
0 - 20 Hz
Protocols
DMX, EZ-Remote, Master / Slave mode, RDM, Standalone, Wireless
DMX input
Wireless DMX, XLR 5-pin male IP65
DMX output
XLR 5-pin female IP65
Standalone modes
Auto programs, Colour presets, Loop, slave mode, Static
Controls
4 buttons, Display
Indicators
2-row display
Protection class IP
IP65
Ambient temperature (operating)
-10 - 40 °C
Cooling
Passive convention, fanless
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Max. current
42 A
Housing material
Die-cast aluminium
Cabinet colour
Black
Width
1018 mm
Height
205 mm
Depth
162 mm
Weight
12,5 kg

Description

Another remarkable addition to PIXBAR® Generation 2 lineup is the cutting-edge SMD LED version. With its sophisticated functions and robust design, it is the ideal lighting option for any event, whether indoors or outdoors. Like the other PIXBAR® G2 models it's equipped with an IP65 certification, and well-thought-out accessories to unlock the whole potential.

Whether hanging or standing, the optional connection system allows for a variety of creative designs and placement options creating unique lighting effects and set designs. Up to three units can be connected vertically with the optional VERTI MOUNT and STACK KIT for a seamless and synchronized lighting effect. With the M20 adapter the new PIXBAR®-Series can be mounted on M20 threaded base plates. Truss mounting is also made easier thanks to the adjustable feet. All filters can be inserted quickly and easily using the slide-in mechanism of the filter rail.

Additionally, the IP65 LED bars operate quietly thanks to the fanless cooling system, while still ensuring a strong light output. SPIN16® adaptors are also included with each device. So, what are you waiting for? Upgrade your lighting game with Generation 2 of the PIXBAR®-Series.
