Palmer
enz

Two Channel Unbalanced Line Isolation Box

NEW
enz

RRP 148.30 $ / piece

Item No.:
PENZ
EAN:
4049521659454
Guarantee:
60 Months
Unit:
piece
Series:
  • Eliminates ground loop hum and interfering signals
  • Two channel
  • 2 RCA inputs
  • 2 RCA outputs
  • Galvanic isolation via transformer
  • No loss of sound quality
  • Perfect for HiFi systems, car stereos, presentations and installations
  • No power supply needed
  • Solid casing made of aluminium and steel
  • Incl. rewritable tour label for attachment onto the back of the enz
  • Engineered in Germany
enz
enz
Two Channel Unbalanced Line Isolation Box

RRP 148.30 $ / piece

Specifications

Specifications

#DetailSpecificationsGeneralHeadline#
Product type
line isolator
Type
passive
Channels
2
Transformer isolated
Yes
Inputs
2
Input type
unbalanced
Input connectors
RCA
Outputs
2
Output type
Unbalanced
Output connectors
RCA
Ground lift switch
Yes
Housing
Aluminium continuous casting
Dimensions (W x H x D)
50 x 140 x 68 mm
Weight
0,42 kg
Ambient temperature (in operation)
- 20 - 70 °C
Relative Humidity
< 80% (non-condensing)
Accessories (included)
Inscription label (tour label), rubber feet
Audio
Max. input level (< 1% THD, 20 Hz)
+ 14 dBu
Max. input level (< 1% THD, 1 kHz)
+32 dBu
Frequency response (±0,2dB, relative 1kHz)
5 Hz - 20 kHz
Input impedance (1 kHz, Setting: 0 dB Pad, THRU)
16 kOhm
Output impedance (1 kHz, Setting : 0 dB Pad, THRU)
1,3 kOhm
THD (30 Hz, +4 dBu, unity, unweighted)
< 0.15 %
THD (1 kHz, +4 dBu, unity, unweighted)
< 0,003 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)
< 0,003 %
Transformer ratio
1 : 1

Description

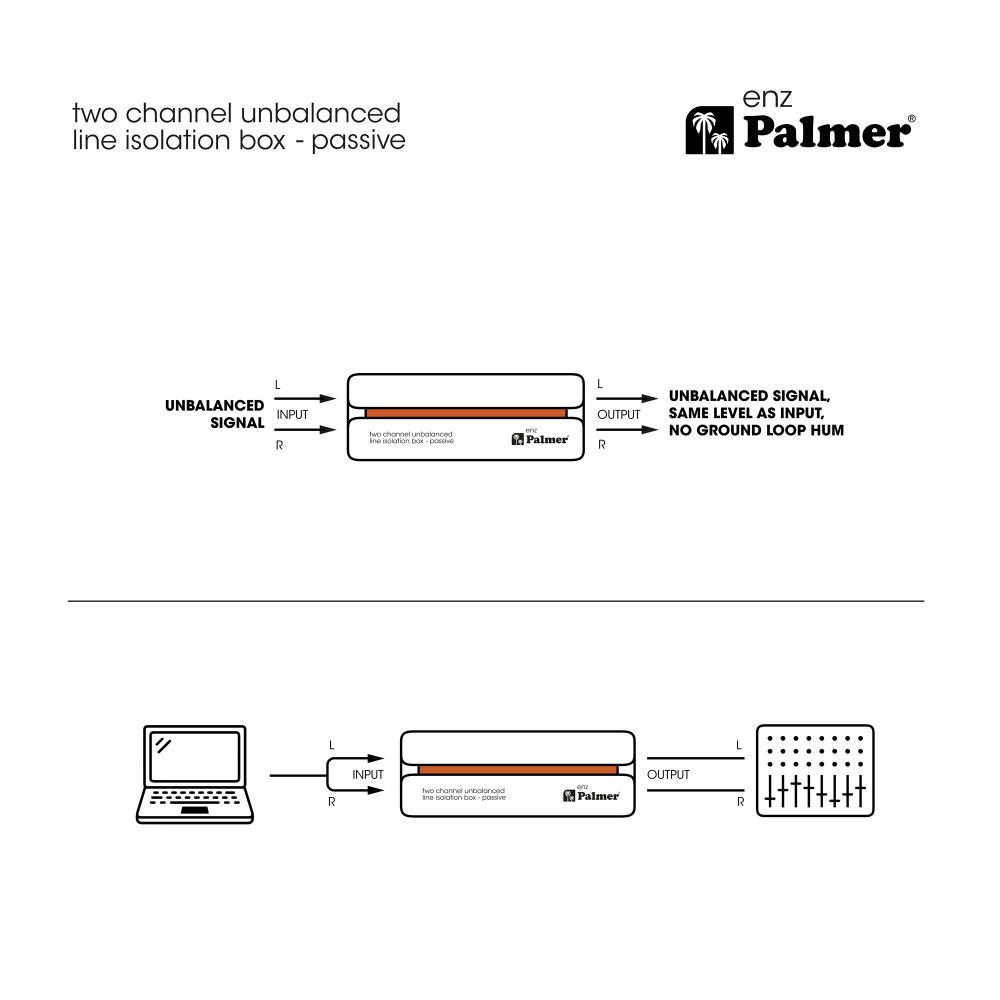

When connecting a media player or a laptop to a HiFi- or PA system, you often experience noise such as hum and buzz caused by ground loops. With the Palmer enz,

With the Palmer enz, you can be sure that such annoying interference signals do not occur anymore!

The cause of this interference lies mostly in ground potential differences, which result in stray DC currents via the audio lines. The solution is to place a transformer between the two devices to isolate the ground line. Palmer enz has two of these transformers for its two channels. Its inputs and outputs are RCA sockets, which are common for HiFi and consumer equipment. However, the sound quality will also satisfy professionals, since the sound remains unaltered.

This makes the enz Line Isolation Box a useful problem solver for home or car HiFi systems and PA systems from conference rooms to nightclubs. A Line Isolation box simply belongs in every DJ's kit. Whenever there is buzzing and humming, the Palmer enz brings silence with a touch of a button.
