Cameo
H1 FC

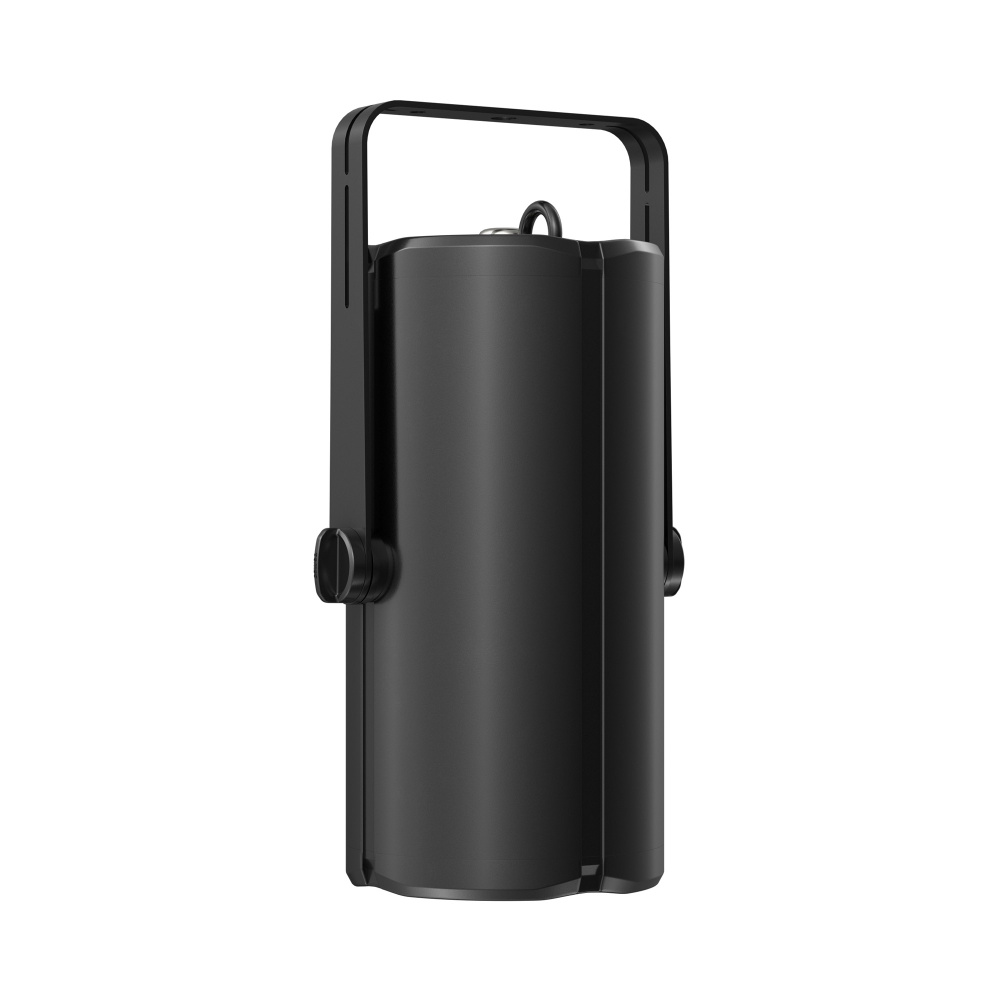

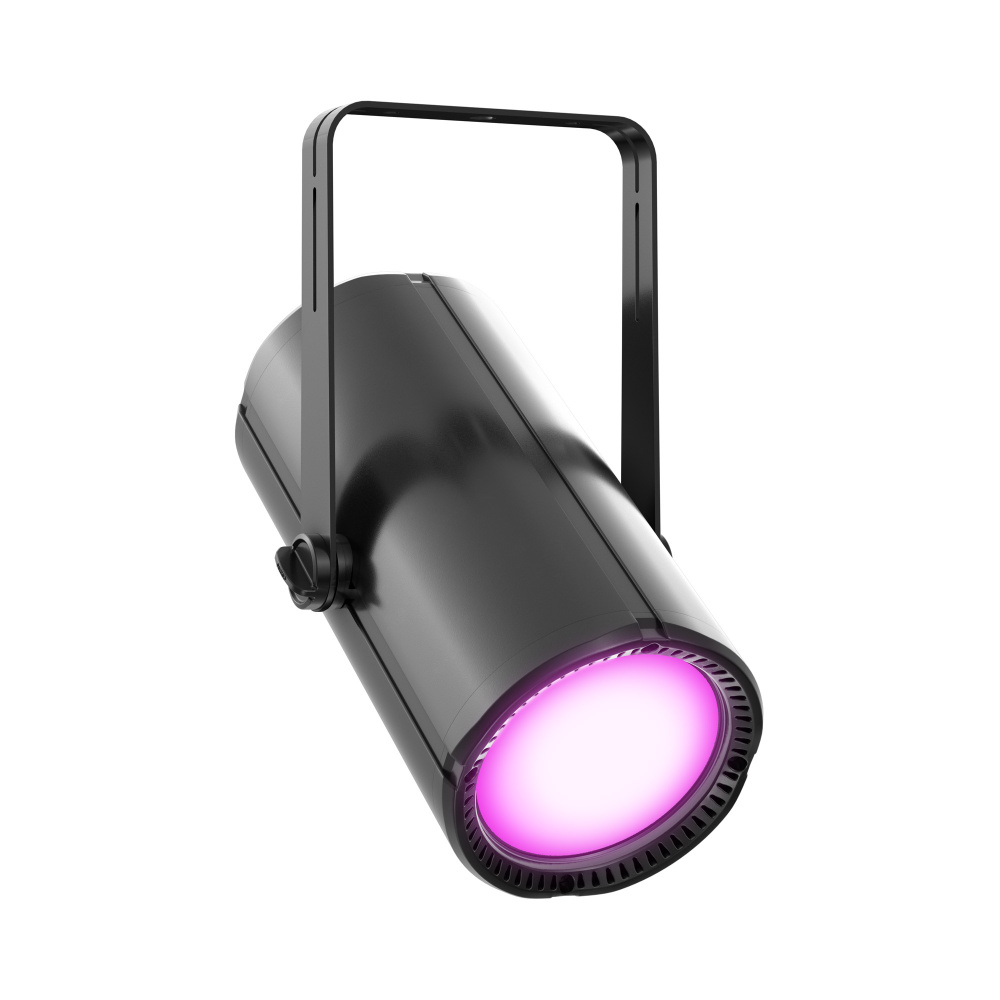

DMX-controllable house light with RGBAL LED Black

H1 FC

Price on request

Item No.:
CLH1FC
EAN:
4049521610752
Guarantee:
60 Months
Unit:
piece
Series:
  • 120 W RGBAL LED with total light output of 5200 lm
  • 1800 to 6500 K colour temperature, CRI > 90 for optimal colour reproduction
  • Adjustable beam angle from 20° to 65° via exchangeable lenses
  • Completely silent operation thanks to convection cooling without fans
  • Controllable via DMX, W-DMX ™, RDM and optional UNICON® remote control

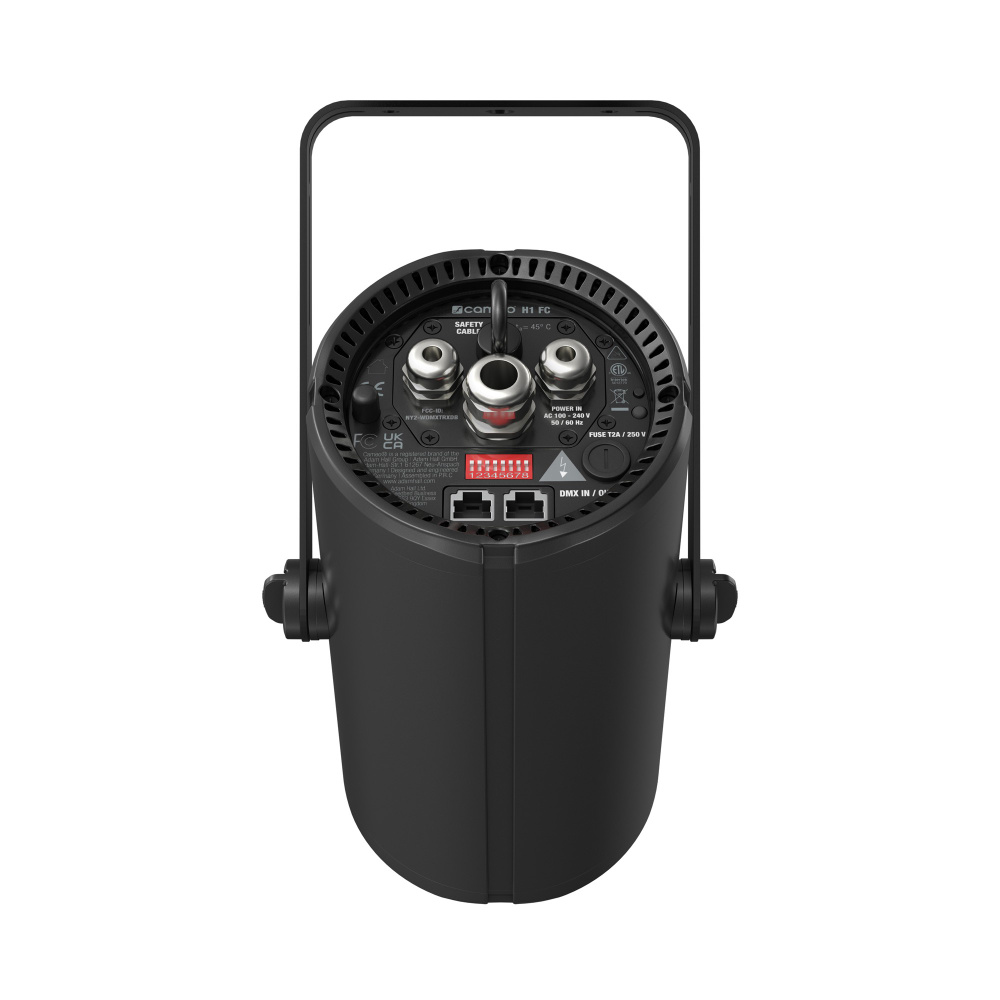

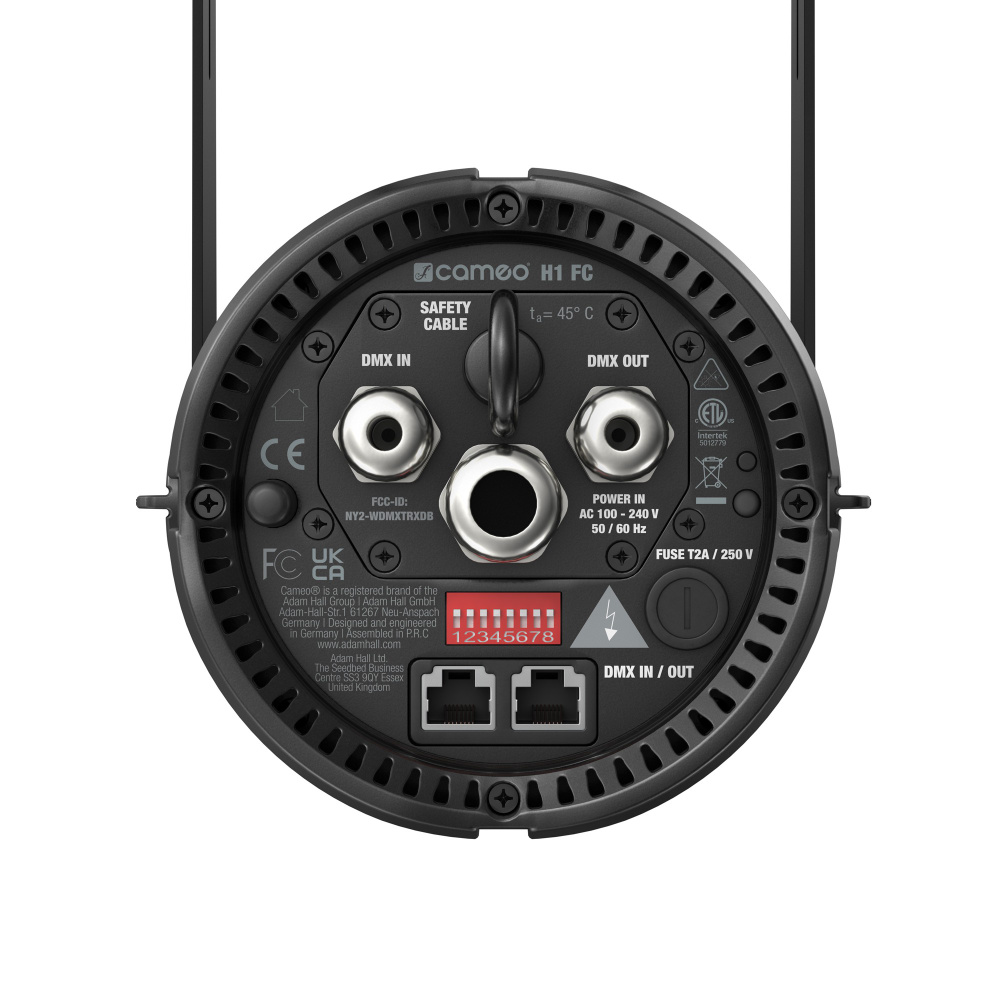

  • RJ45 and terminal block plug for simple integration into any environment
  • Combined form and...
Read on
H1 FC
H1 FC
DMX-controllable house light with RGBAL LED Black

Price on request

Specifications

Specifications

#DetailSpecificationsGeneralHeadline#
Product type
LED Lighting
Type
Installation spotlights
Colour spectrum
RGBAL
Number of LEDs
1
LED type
120 W COB
LED PWM Frequency
800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
Dispersion
30 °, 42 °, 54 °
DMX input
RJ45, Terminal block
DMX output
RJ45, Terminal block
DMX Functions
Colour presets, Colour temperature, Device Settings, Dimmer, Dimmer Fine, Hue Saturation, RGBAL, strobe
Control
DMX 512, RDM, W-DMX
Standalone Functions
Static
Controls
8 DIP Switch, External Remote Control, W-DMX Button
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
100 W
Luminous flux
5200 lm
Colour rendering index (Ra)
> 90
Inrush Current Power @ 10 ms
2.7 A @ 240 V / 50 Hz
Power connector
Terminal block
Ambient temperature (operating)
0 - 40 °C
Cabinet colour
Black
Housing material
Metal
Housing Cooling
Convection
Width
128 mm
Length
255 mm
Weight
3 kg
Scope of delivery
1 x omega mounting, 2 x exchange lenses

Description

Minimally designed installation light for sophisticated lumen beings

The full colour version of the compact Cameo® H1 FC makes it possible for light installers, interior designers and lighting technicians to meet the challenges of creating atmospheric lighting in a wide variety of locations. You can take the ambience in theatres, restaurants, hotels, at trade fair stands, and in many other places to the next level with this modern house light and emotionally inspire your audience. The installation fixture fits seamlessly into existing interior design with its deliberate minimalistic design. Its housing comes in either black or white and discreetly blends into interior spaces without drawing attention.

Efficient lighting technology for lighting architecture and comprehensive installation projects

The high lighting efficiency of the RGBAL LED module combined with a full range of colours and tunable white lighting lets you benefit in many ways. For one, Cameo's H1 FC doesn't make any noise during operation thanks to its convection cooling, making it the ideal choice for sound-sensitive environments. Secondly, the the full colour light with its high colour fidelity across all measurable categories creates visually stunning aesthetics without any distorted colour effects and allows the natural colours of costumes, objects and food to really pop. Finally, the H1 FC features a flicker-free light with high-resolution, soft dimmer response based on 16-bit technology so it can't be told apart from conventional lighting. Creating the perfect feel-good environment with a pleasant atmosphere is always guaranteed!

Controls based on the individual set-up

Our H1 series house light offers you maximum flexibility in terms of controls. You can integrate the installation light into your set-up using DMX, wireless W-DMX ™ and RDM. The device was deliberately designed with no built-in display to make it practical to use in interior design. The optionally available UNICON® remote control is the best way to intially configure the device and can be used to control, retrieve and save all device functions, so that you can transfer them to other devices and conveniently set up the entire lighting installation. In addition, the firmware on a vast array of compatible end devices can be updated using the UNICON® remote control.

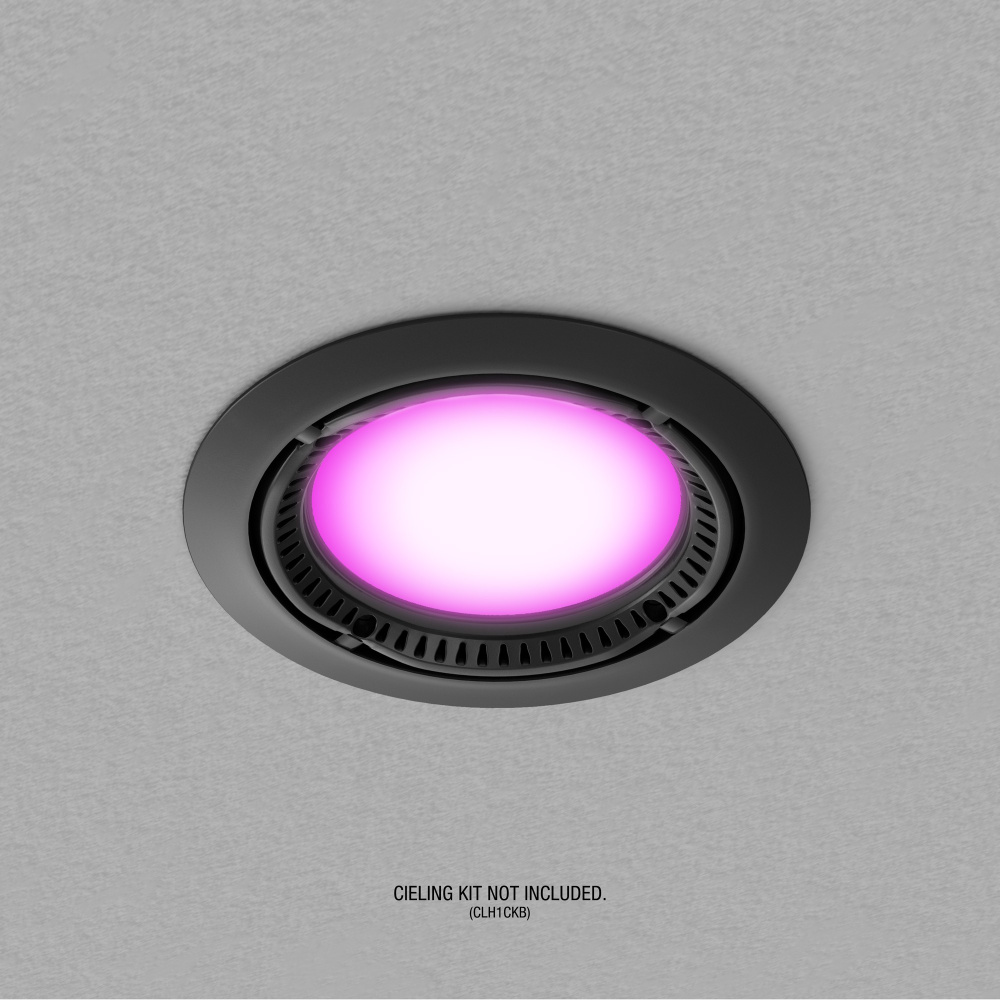

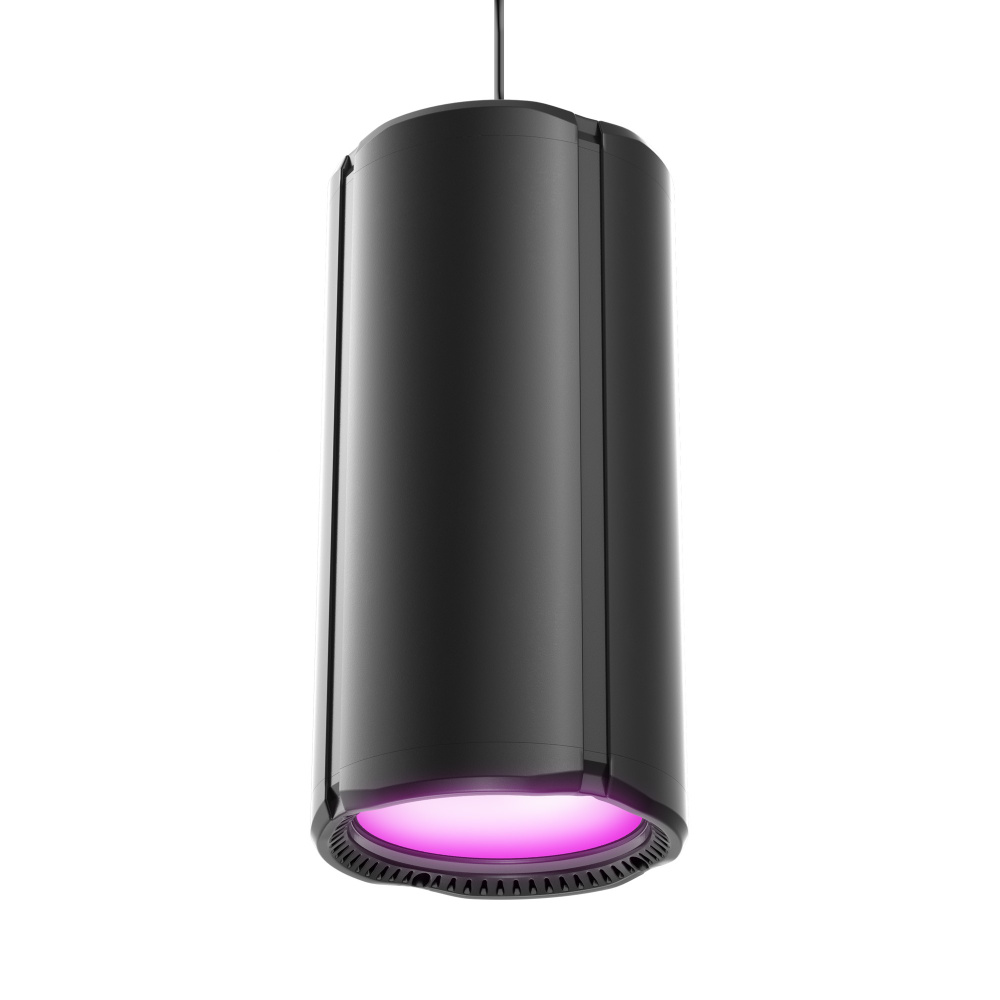

Flexible installation possibilities as a pendant, sconce or integrated ceiling light

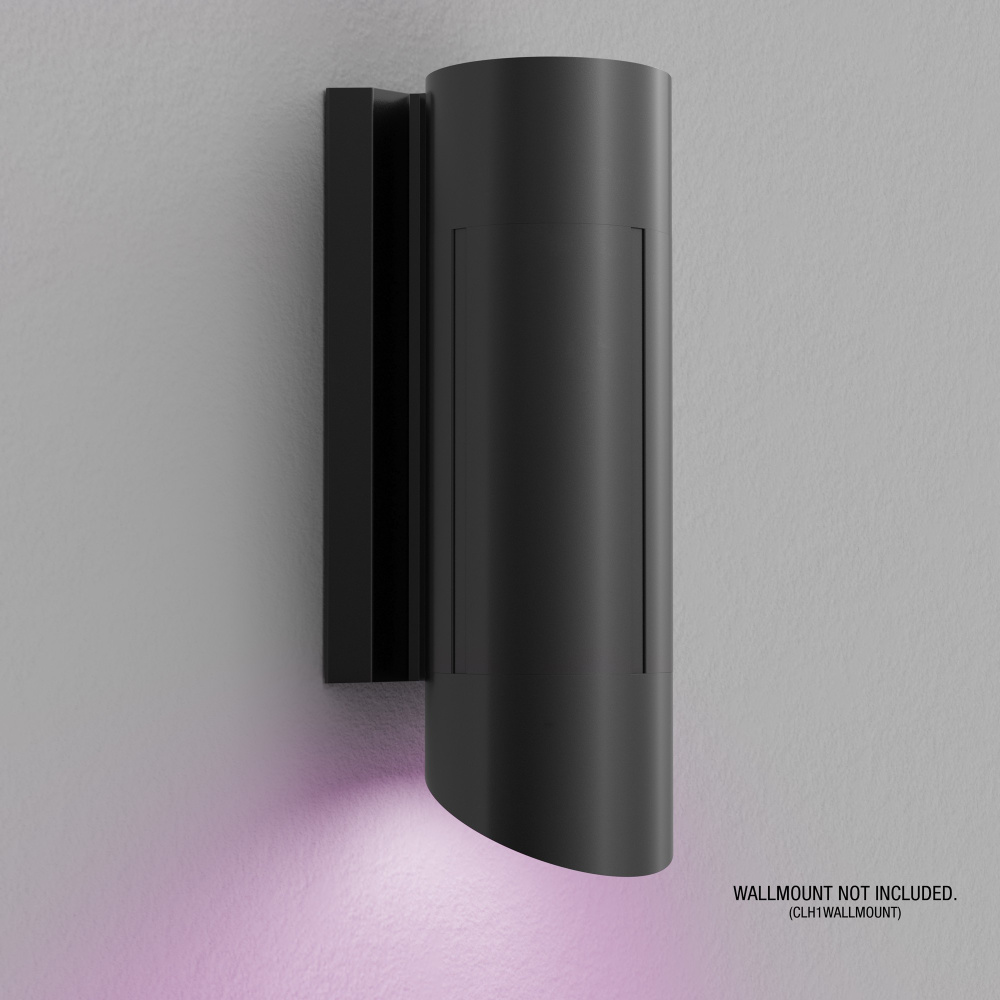

No less impressive are the wide variety of ways to install this modern house light. The H1 FC can be incoporated into your lighting concept based on your specific requirements as a hanging theatre light, a downlight on the wall or a built-in ceiling light. Quick installation flush to the ceiling is instantly possible with the optionally available installation kit. Cable connections can easily be tucked away and hidden from sight during installation with the wall bracket specially designed for the H1 series, which can also be used to install the spotlight as an uplight.

The Cameo H1 series combines extensive installation and control options and elegant design with the latest LED technology to cover all your modern architectural lighting needs.
