Cameo
STUDIO MINI PAR Q 8W

7 x 8 W QUAD Colour LED RGBW PAR Light in black Housing

Archived item
STUDIO MINI PAR Q 8W
Item No.:
CLPSTMINIQ8W
EAN:
4049521132858
Guarantee:
24 Months
Unit:
piece
Series:
Archived item: This item is no longer in our product range.
  • 7 x 8 W Ultra High Power QUAD RGBW LEDs
  • RGBW for perfect mixing of solid and pastel colours
  • Operated via DMX, in master/slave mode or standalone mode
  • Integrated microphone for sound control mode
  • Simple to operate using the four buttons and LED display
  • Double brackets included as standard
  • Compact, sturdy metal housing
STUDIO MINI PAR Q 8W
STUDIO MINI PAR Q 8W
7 x 8 W QUAD Colour LED RGBW PAR Light in black Housing

RRP 199.10 $ / piece

Specifications

Specifications

General
Product type
LED PAR Lighting
Type
Indoor
Colour spectrum
RGBW
Number of LEDs
7
LED type
8 W QUAD Colour
Refresh rate
5000 Hz
Dispersion
25 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
2-channel, 3-channel 1, 3-channel 2, 4-channel, 7-channel
DMX Functions
colour fade, colour jump, master dimmer, RGBW, strobe
Standalone modes
colour change, colour fade, slave mode, sound control, static colour
Controls
Enter, Mode, Value Down, Value Up
Indicators
LED Display
Operating voltage
100 V AC - 250 V AC
Power consumption
59 W
Power connector
Power cord with safety plug (Type E / CEE 7/7)
Housing material
Metal
Cabinet colour
Black
Cooling
fan
Illuminance
5000lx @ 1m
Dimensions without mounting bracket
Width
168 mm
Height
183 mm
Length
186 mm
Weight
2 kg

Description

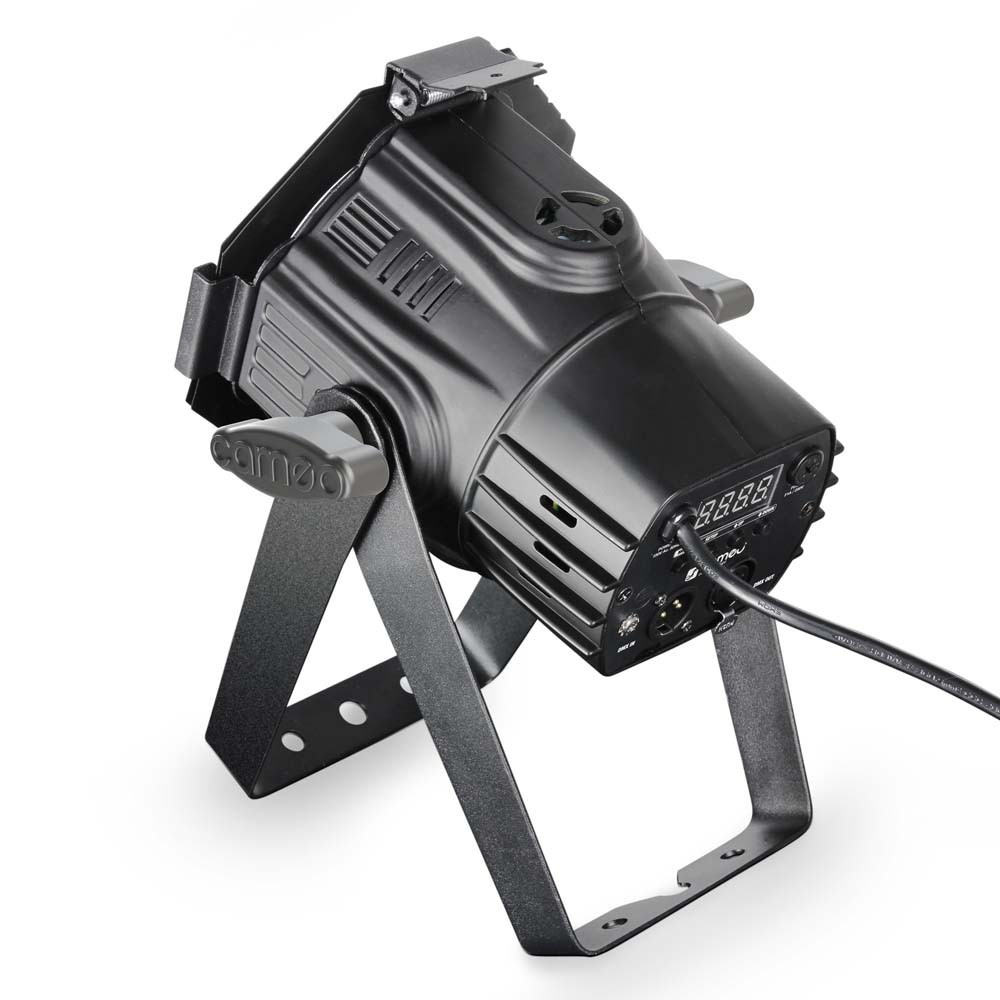

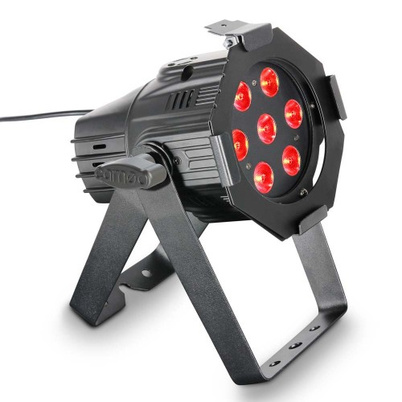

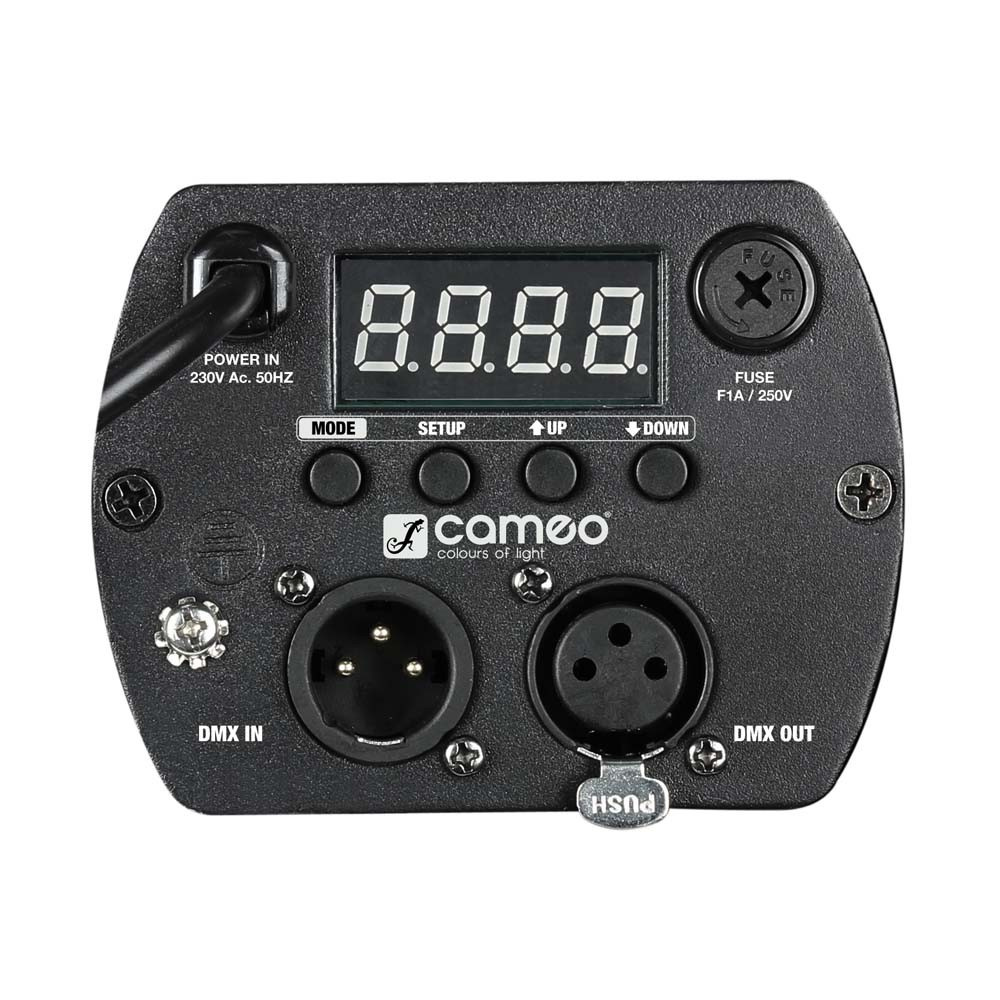

Extremely powerful Studio Mini PAR with seven 8 watt QUAD COLOUR LEDs for optimal colour mixing and perfect white light. This Studio LED PAR has a 25 degree beam angle and is controlled via five DMX modes. An LED display on the back and four buttons ensure simple and practical operation. Alternatively, the studio mini PAR can also be operated in standalone mode with a built-in microphone and sound control.

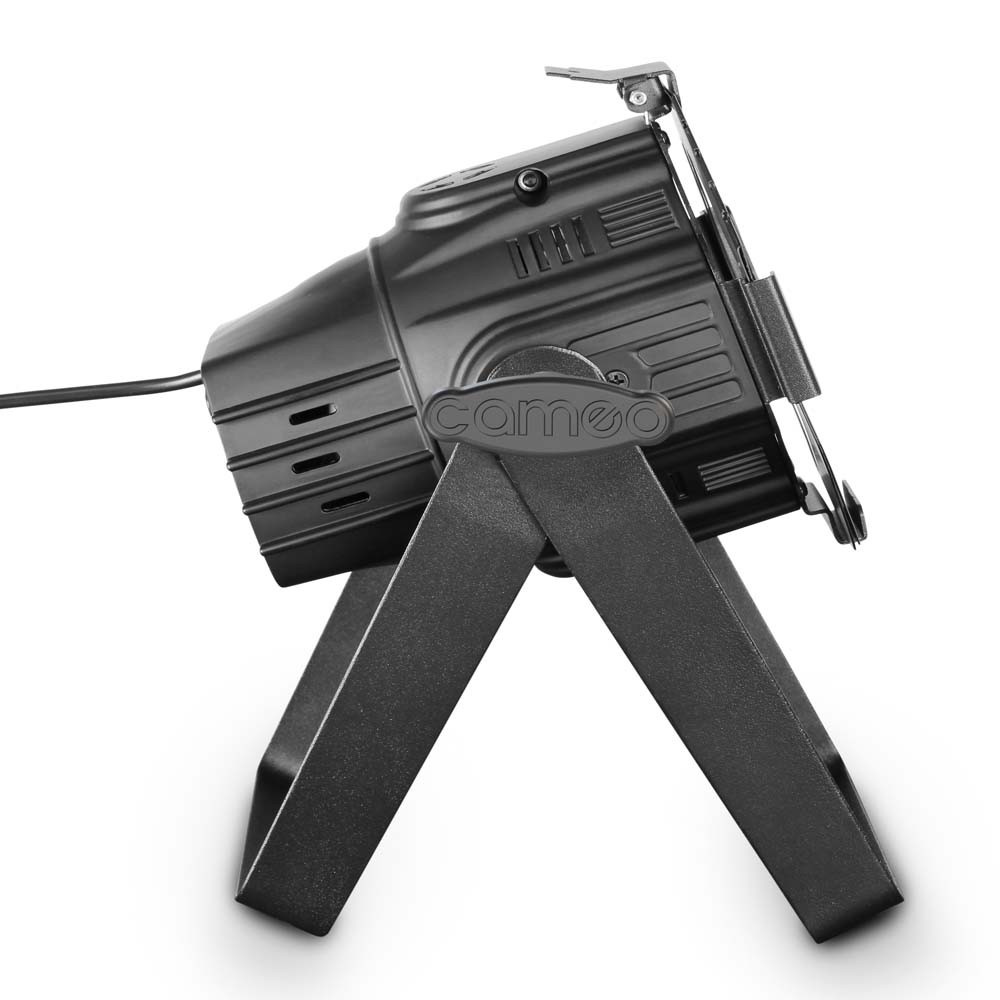

Sturdy black housing with a double bracket for use as a floor PAR or on stands or trusses.

Maximum power consumption 60 watts.
