LD Systems
DQOR 5 T B

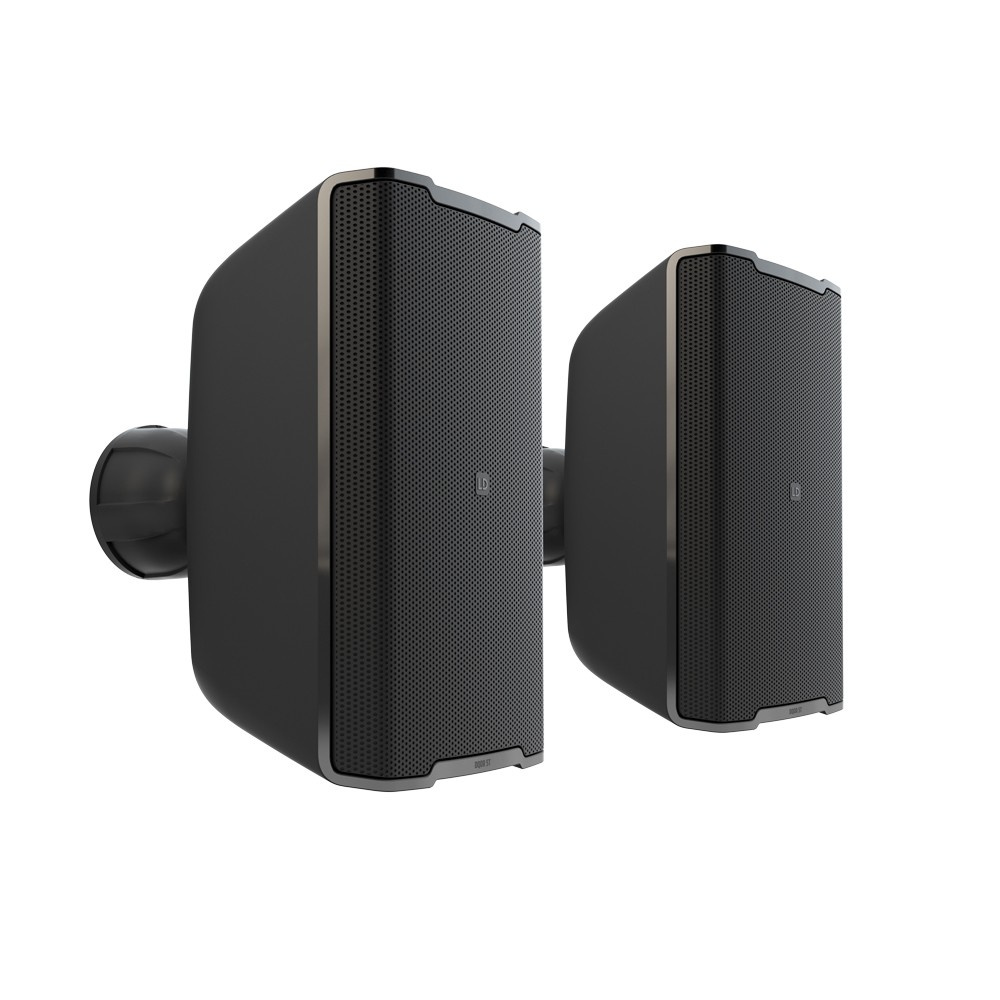

5" Two-way Passive Indoor/Outdoor Installation Loudspeaker 16 Ohm, 70/100 V, black (Pair)

DQOR 5 T B

Price on request

An alternative model exists for this item:

DQOR 5 B

LD Systems

DQOR 5 B

Go to article
Item No.:
LDDQOR5TB
EAN:
4049521489020
Guarantee:
60 Months
Unit:
piece
Series:
  • For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified

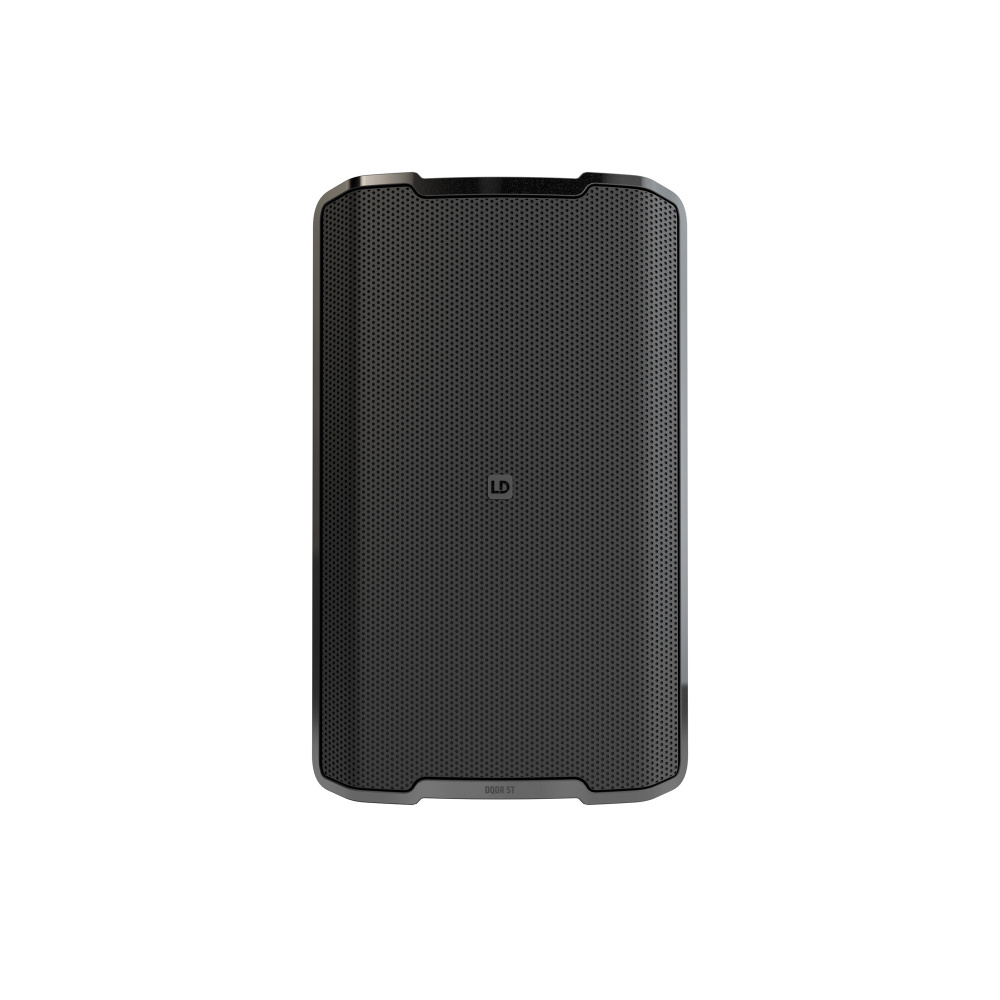

  • Corrosion-resistant aluminum front grille
  • Elegant, dynamic design to suit any environment
  • Available in black or white

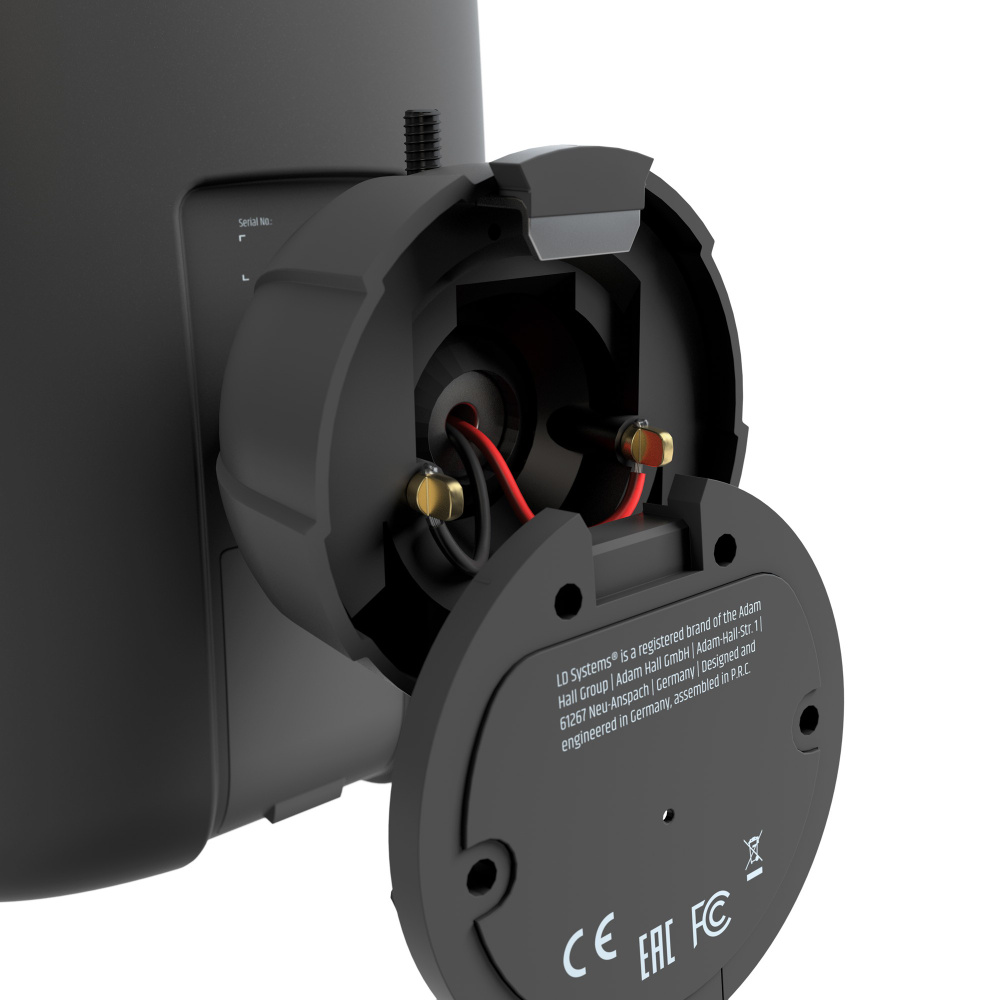

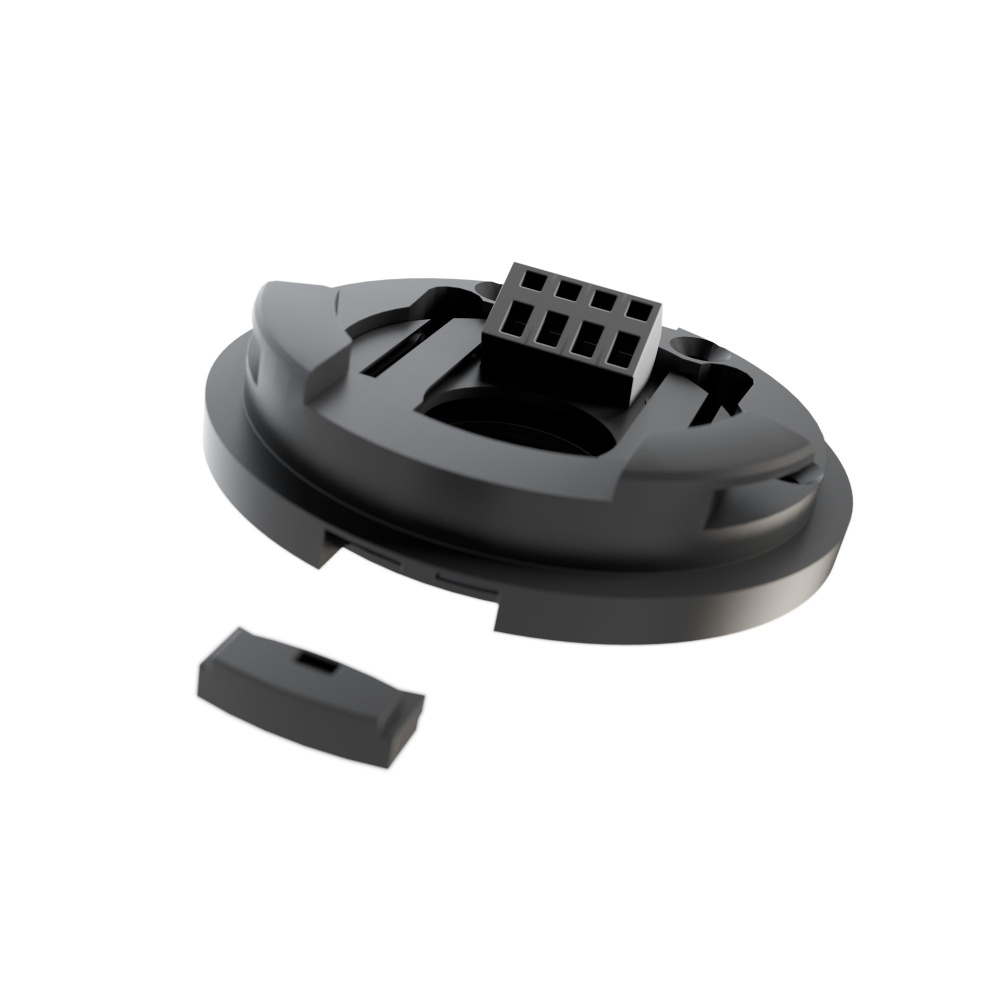

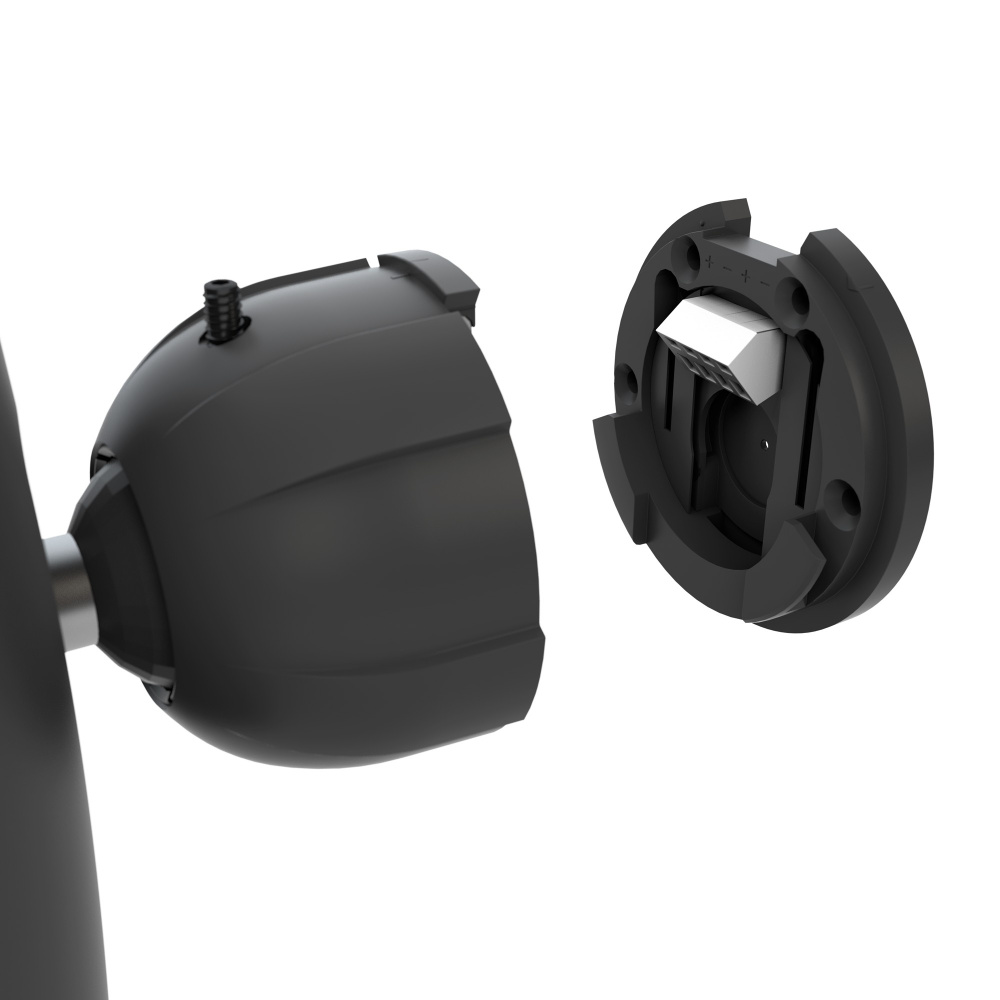

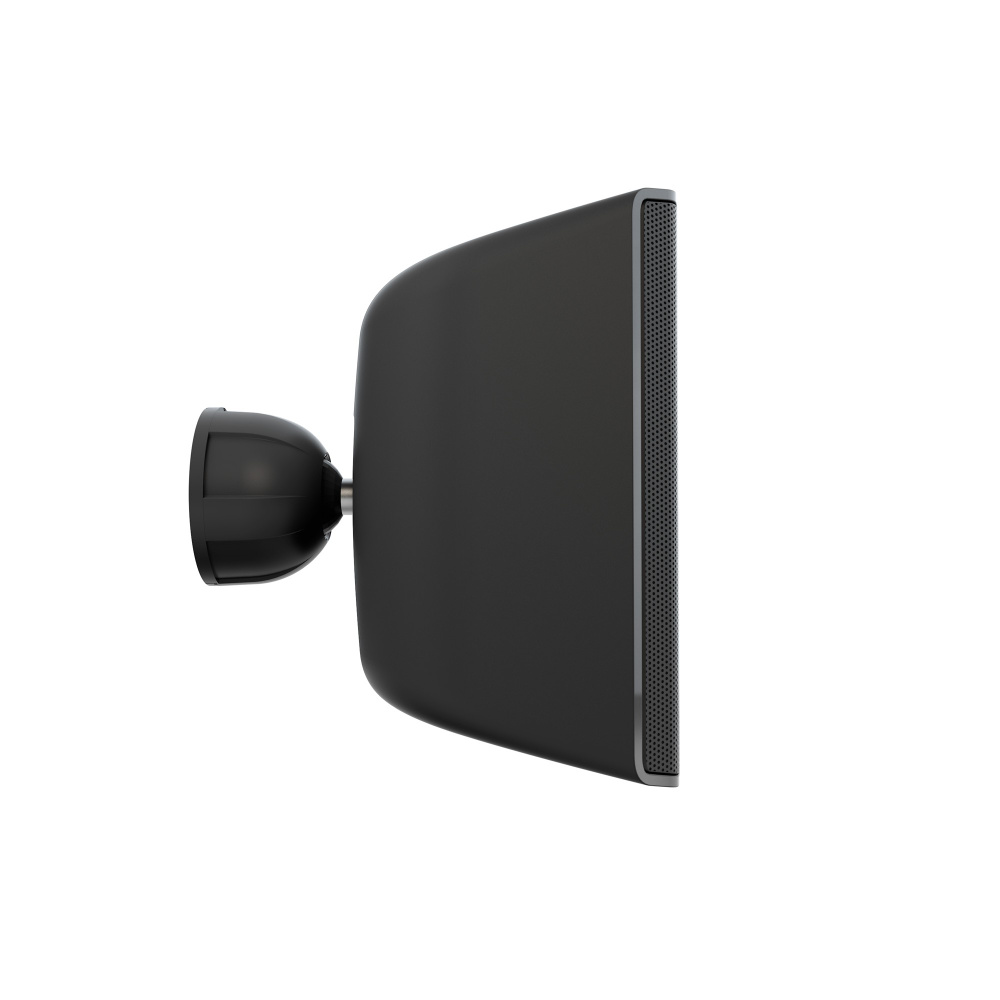

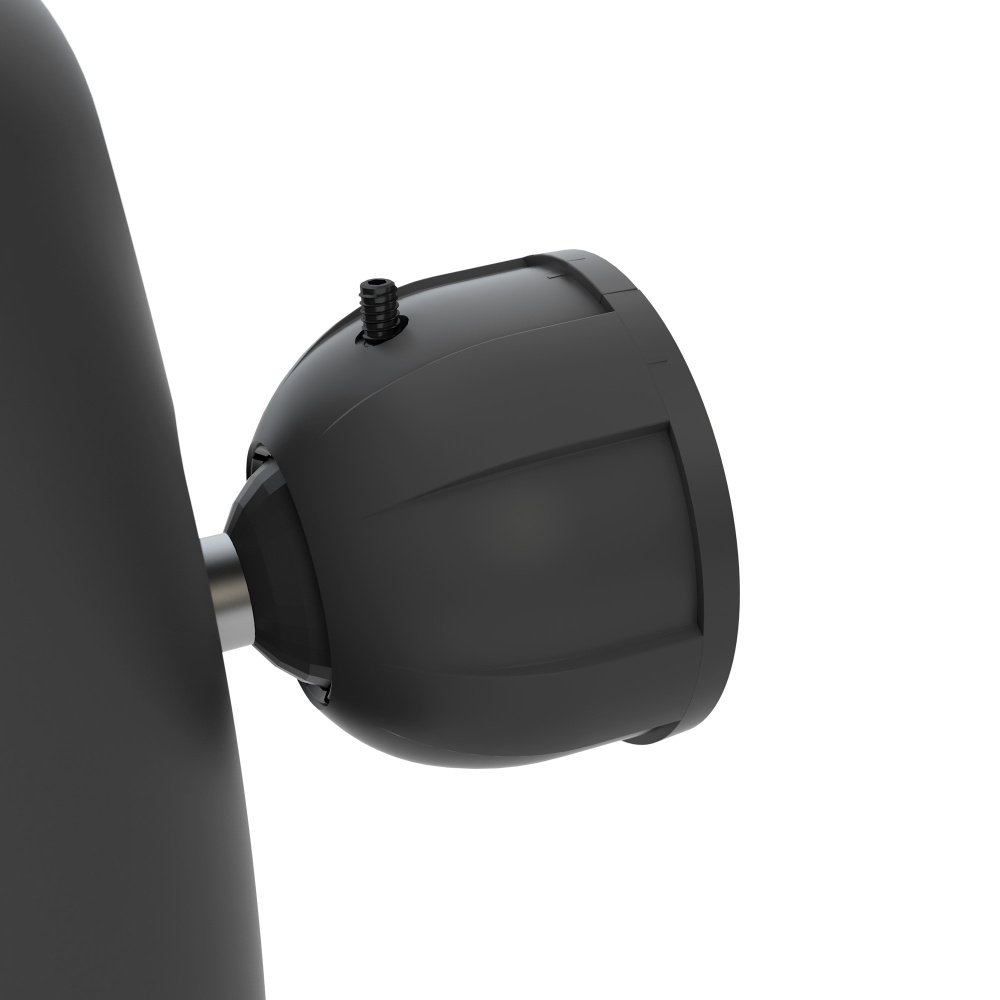

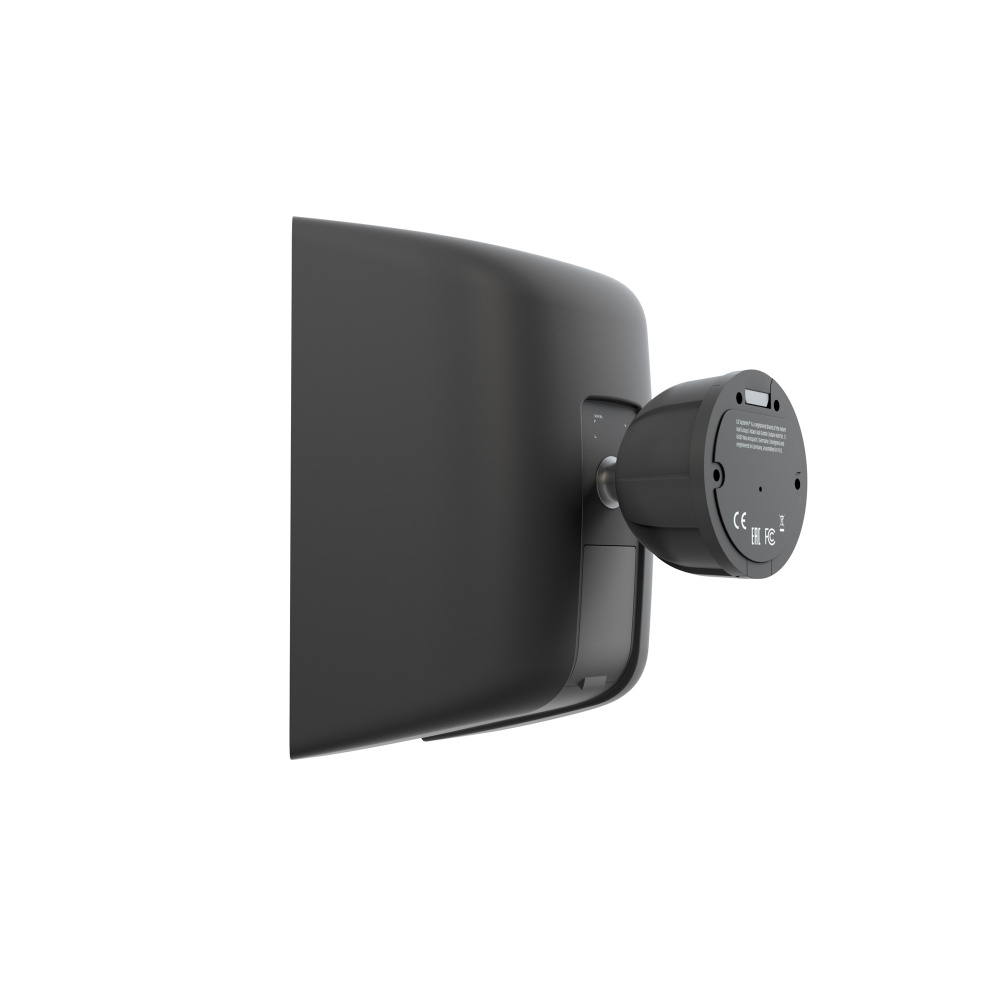

  • Slide-and-lock wall mount with concealed integrated connections
  • Superb, balanced sound thanks to a 2-way system

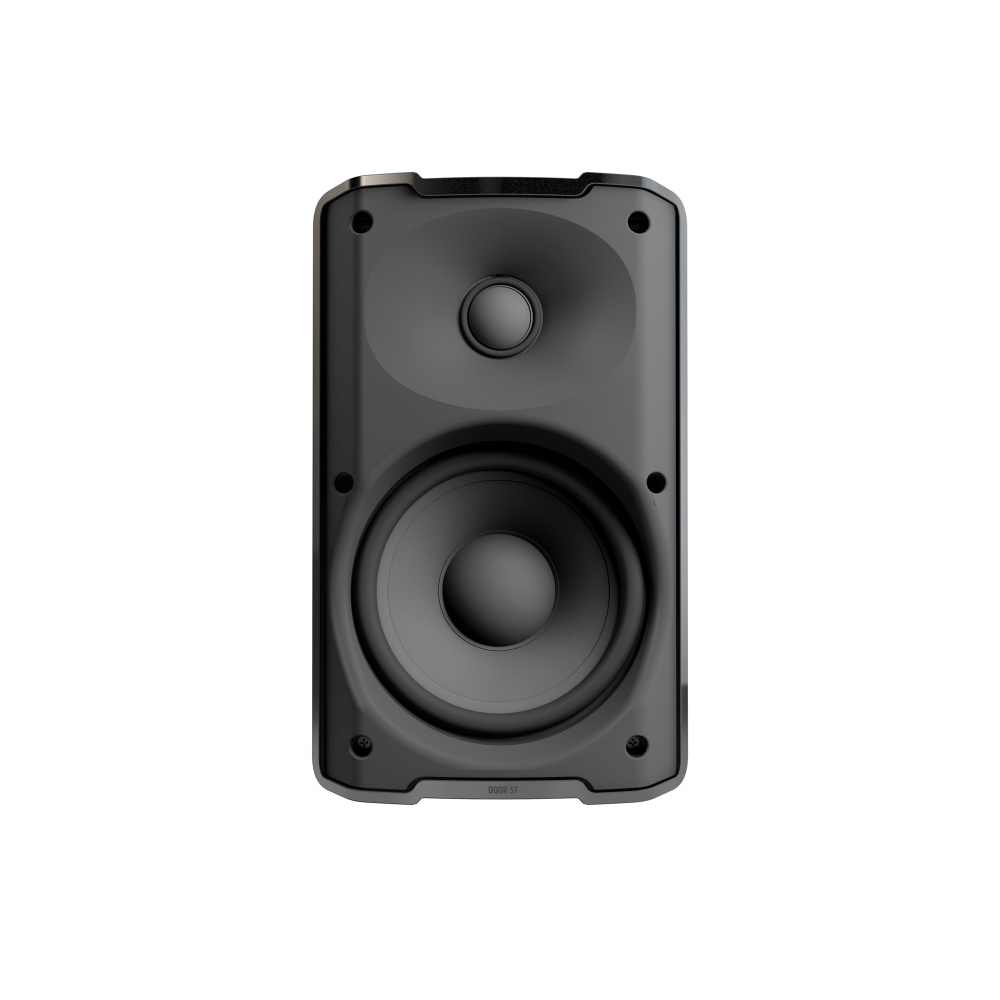

  • Weather treated paper cone woofer and FerroFluid™-cooled titanium high frequency driver
  • Wide coverage angle (120°...
Read on
DQOR 5 T B
DQOR 5 T B
5" Two-way Passive Indoor/Outdoor Installation Loudspeaker 16...

Price on request

Specifications

Specifications

General
Product type
PA loudspeaker
Type
Passive
Low/mid driver dimensions
5 "
Woofer size
132 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
1 "
Woofer voice coil (mm)
25.4 mm
Horn
BEM optimized CD Waveguide
HF driver dimensions
1 "
HF driver size
25.4 mm
HF driver magnet
Neodymium
HF driver brand
Custom-made
HF driver voice coil
1 "
HF driver voice coil
25.4 mm
Dispersion (H x V)
120° x 80° (-6 dB)
Load rating (RMS)
70 W
Peak power
140 W (>100Hz)
Frequency response
74 - 20000 Hz (-10dB)
Crossover frequency
1900 Hz
SPL (1W/1m)
84 dB
Max. SPL
105 dB
Impedance
16 Ohm(s)

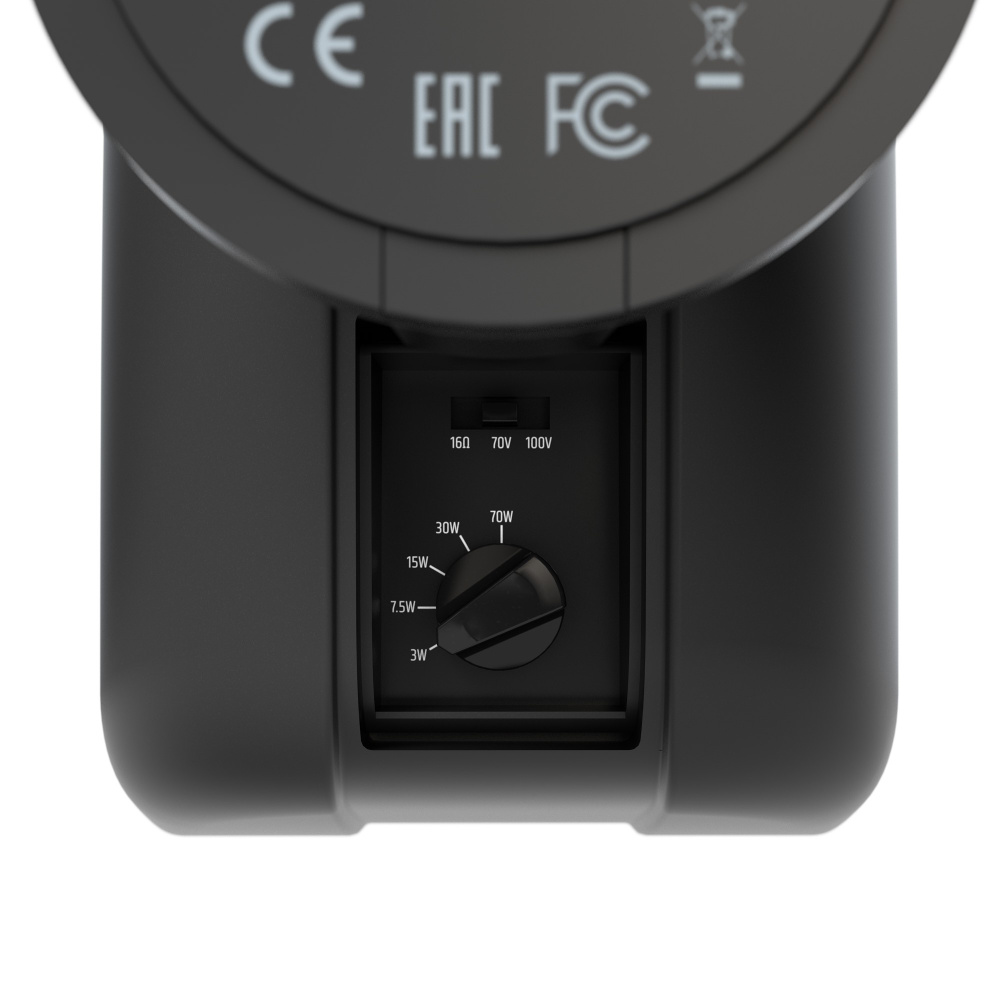

Input selector switch
70 V - 100 V - 16 Ohms
100V transformer power (Taps)
70 - 30 - 15 - 7,5 - 3W
70V transformer power (Taps)
70 - 30 - 15 - 7,5 - 3W
Speaker input connections

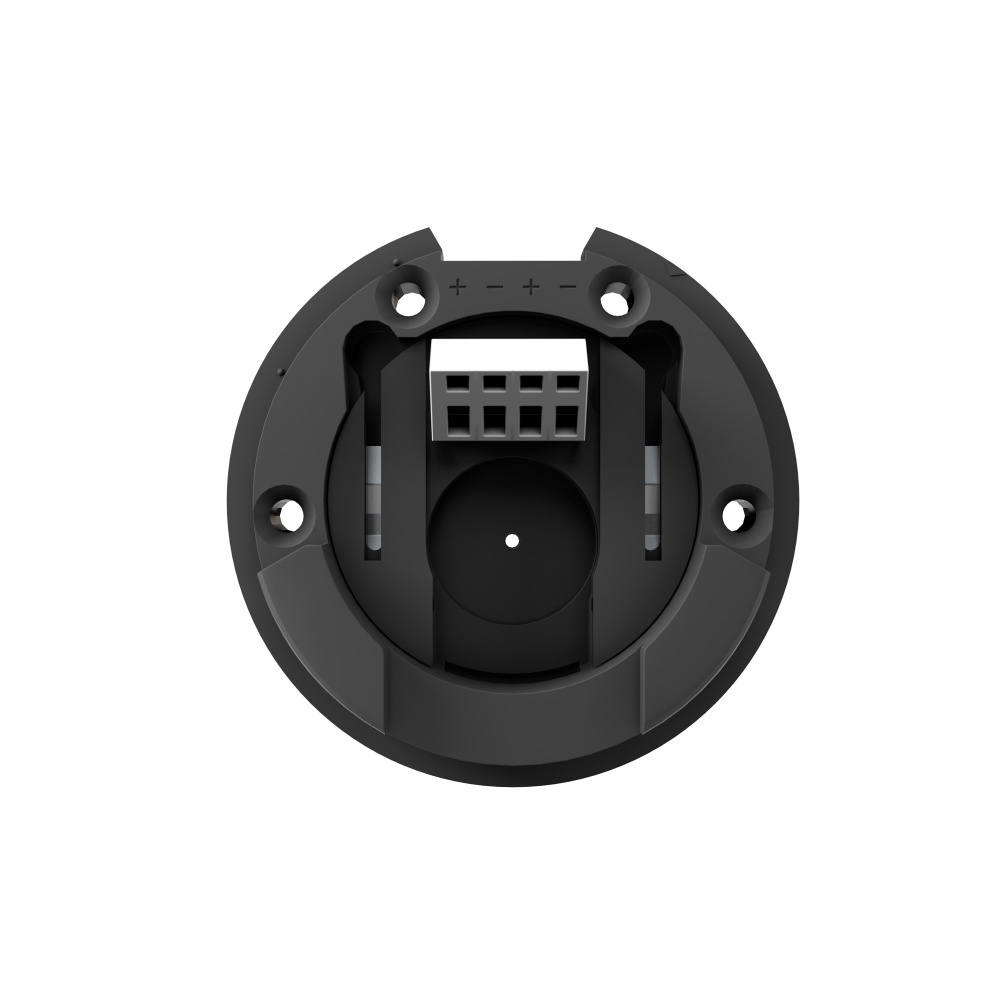

4-pole Terminal Block. Pitch 5.08mm
Cabinet material
ABS plastic
Protection class IP
55
Cabinet colour
Black (RAL 9005)
Width
156.7 mm
Height
253.8 mm
Depth
215.3 mm
Accessories (included)
Allen Key for the safety screw, Bracket for surface mount
Optional accessories
LDDQORWMC (rubber cover set for wall mount bracket)
Weight
3,9 kg

Description

Encourage your customers and guests to linger for longer with great sound. Thanks to their wide coverage angle and balanced sound, DQOR loudspeakers provide an inviting ambience.

Whether indoors or outdoors, with its elegant, dynamic design in black or white, the 2-way speaker fits harmoniously into any installation. Thanks to the clever slide-and-lock wall mount with concealed integrated connections, there is no need for unsightly cables. To maintain an elegant and smart look on the long term, the front grille is made of corrosion-resistant aluminum.

No restrictions! With a tilt angle of up to 27° and a 45° horizontal swivel angle, DQOR loudspeakers offer flexible positioning to meet your needs.

DQOR loudspeakers can also be used in a distributed sound system with numerous speakers and long cable runs. The DQOR 3T, DQOR 5T and DQOR 8T models are equipped with multitap transformers for 70V/100V systems to minimize power loss. Play background music and announcements at the sound level you want: the output power of each speaker can be adjusted with a power tap. Alternatively, the transformer variants can also be operated at conventional low impedance amplifier outputs. Their 16 Ohm impedance allows the parallel connection of up to eight DQOR loudspeakers at 2 Ohm. DQOR series loudspeakers provide superb sound and the sort of feel-good atmosphere which always puts your customers and employees in a great mood, whether in your shop, your hotel lobby, at a beach bar or on a cruise ship.
