LD Systems
SAT 262 G2 W

2 x 6.5" passive Installation Speaker white

SAT 262 G2 W

Price on request

Item No.:
LDSAT262G2W
EAN:
4049521222825
Guarantee:
24 Months
Unit:
piece
Series:
Versions:
  • Passive 2-way bass-reflex installation speaker
  • 180 W permanent load capacity
  • 116 dB maximum sound-level pressure
  • 2 x 6.5" custom woofer and a 1” Celestion tweeter driver
  • Rotating CD horn with 80° x 60° dispersion
  • For vertical or horizontal use

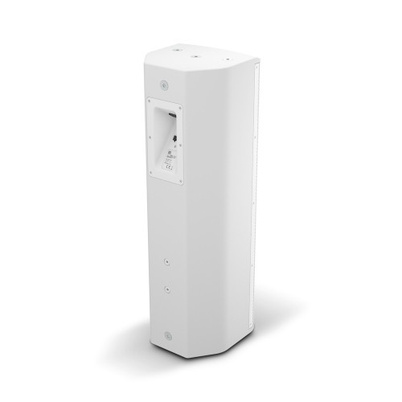

  • speakON-compatible and terminal block input

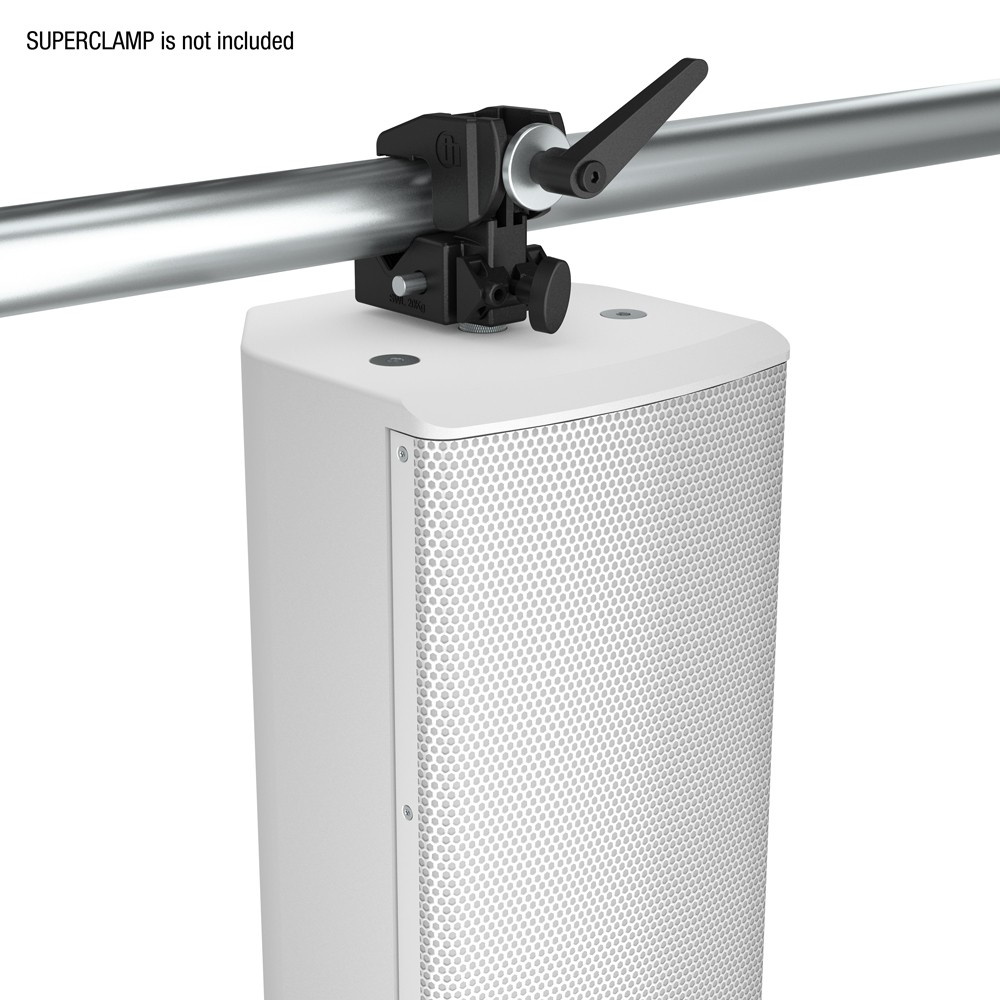

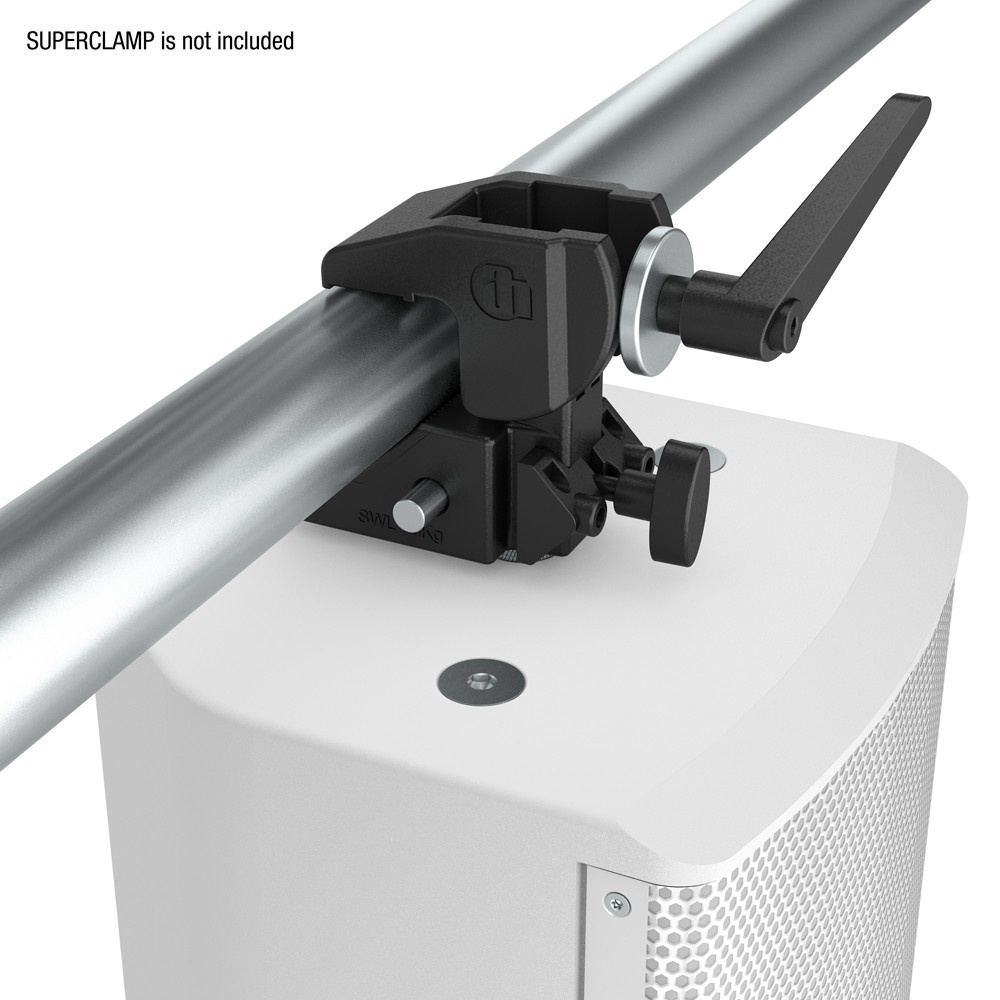

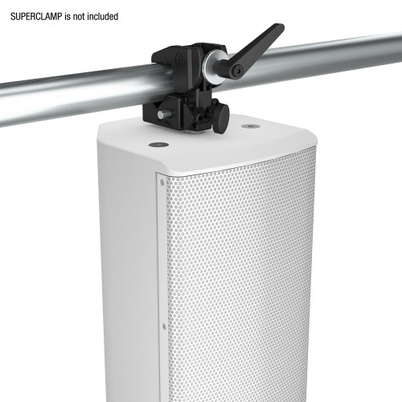

  • 4 x M8 mounting holes

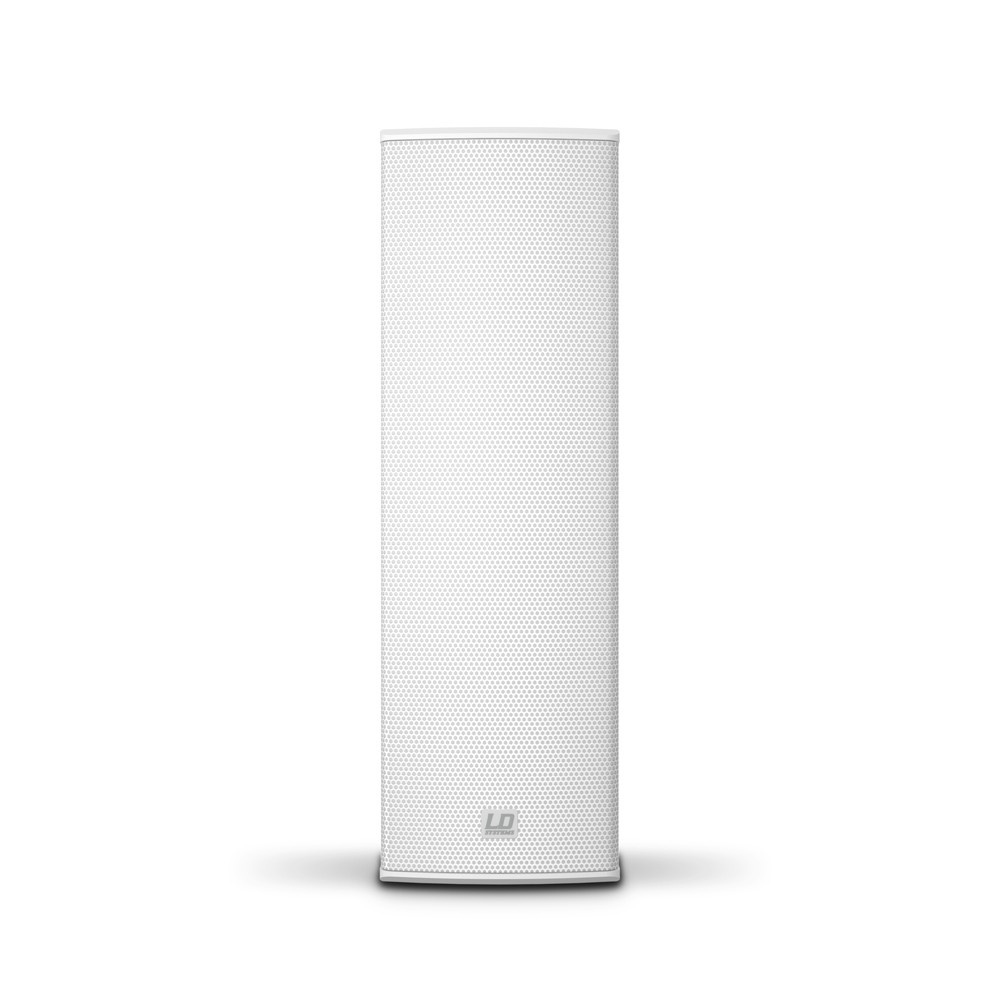

  • Shock-resistant front grille for optimum speaker protection
  • Extensive range of smart...
Read on
SAT 262 G2 W
SAT 262 G2 W
2 x 6.5" passive Installation Speaker white

Price on request

Specifications

Specifications

General
Product type
Installation Loudspeakers
Type
Wall-mounted Loudspeaker
Low/mid driver dimensions
2 x 6.5 "
Woofer size
2 x 165.1 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (mm)
38.1 mm
Horn
CD horn
HF driver dimensions
1 "
HF driver size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Celestion
HF driver voice coil
1 "
HF driver voice coil
25.4 mm
Dispersion (H x V)
80 x 60 °
Load rating (RMS)
180 W
Peak power
360 W
Frequency response
65 - 19000 Hz
SPL (1W/1m)
93 dB
Max. SPL
116 dB
Impedance
8 Ohm(s)
Protection circuits
HF Driver
Loudspeaker inputs
2
Speaker input connections
Speakon compatible, Terminal block
Loudspeaker outputs
1
Speaker output connections
Terminal block
Speakers per amplifier channel (DSP44/45K)
4
Cabinet material
12 mm MDF
Cabinet surface
texture paint
Cabinet colour
white
Cabinet construction
Bass Reflex
Width
200 mm
Height
630 mm
Depth
205 mm
Weight
9,8 kg

Description

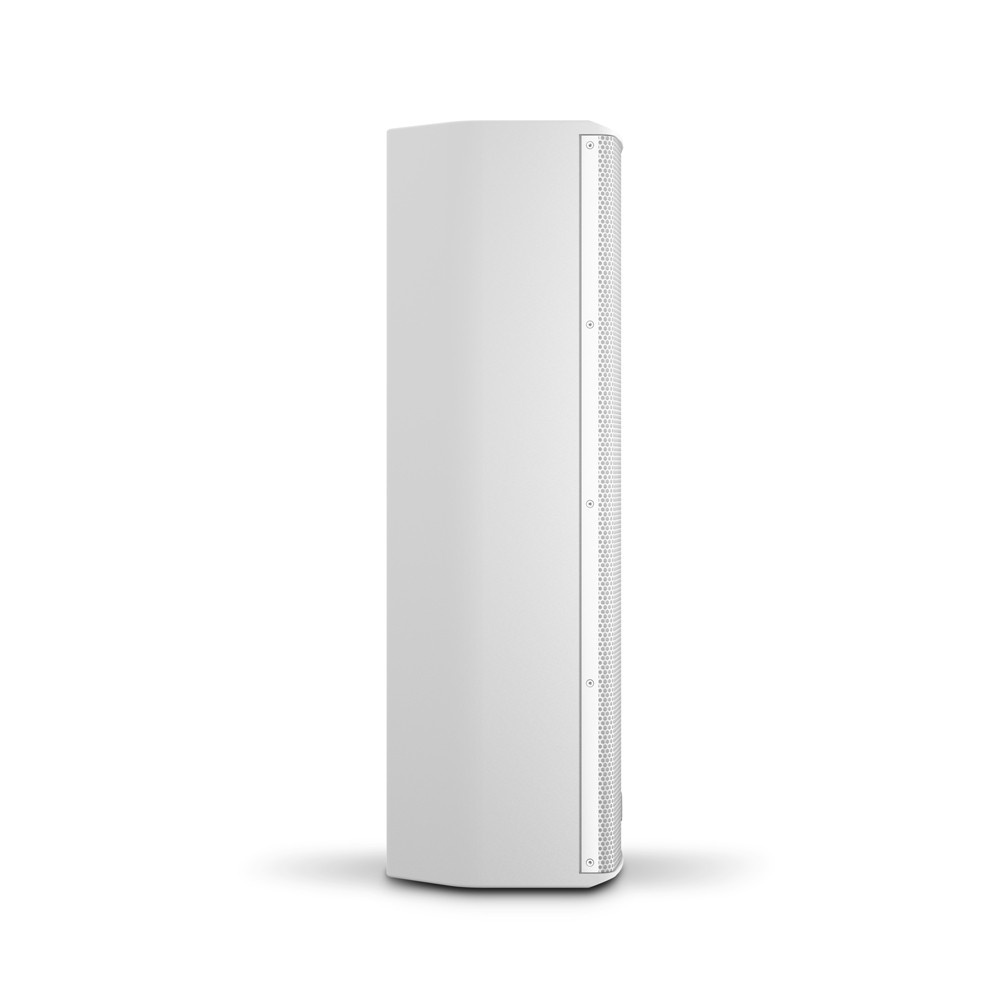

With its slim, streamlined design, the LD Systems SAT 262 G2 is excellently suited for permanent installation and discreet integration in virtually any setting. It features two 6.5" custom woofers and a 1” Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.

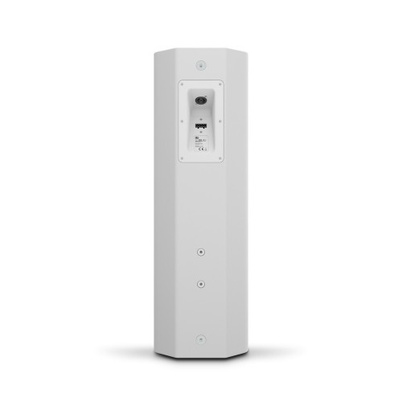

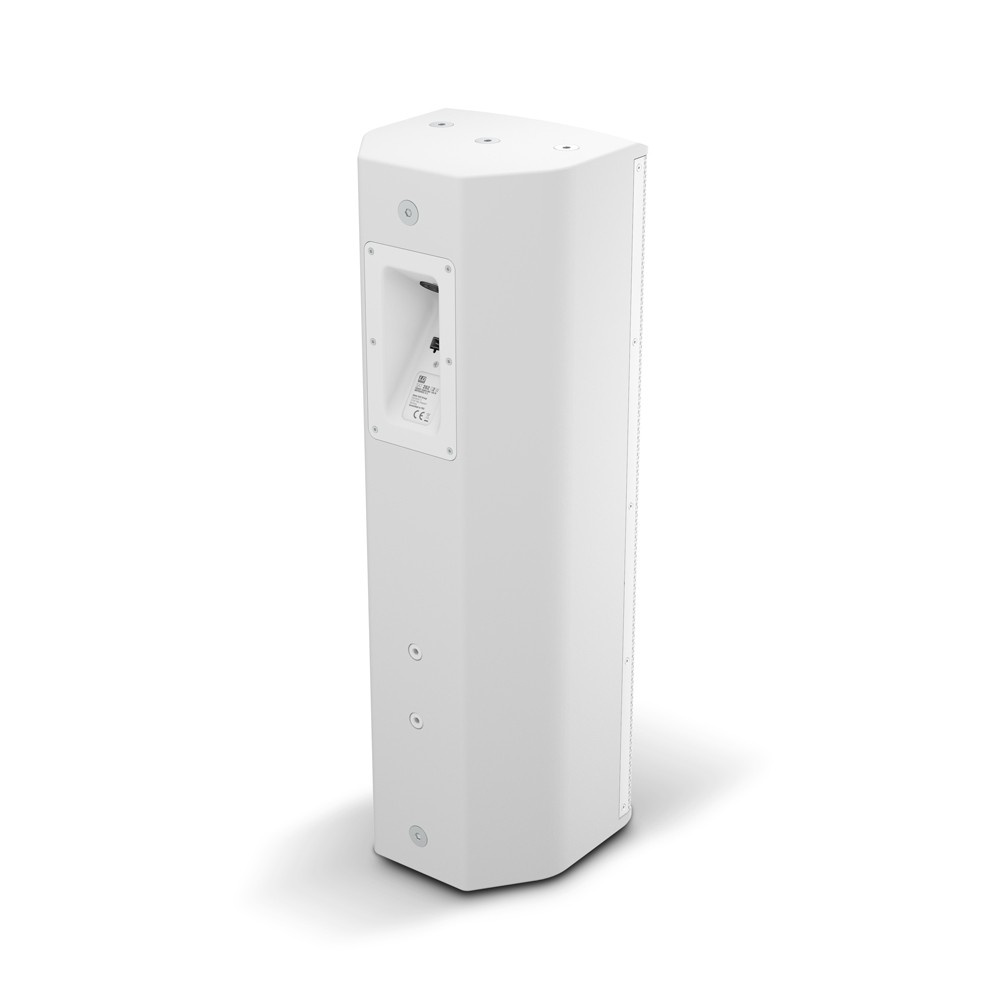

The SAT 262 G2 attains a maximum sound-level pressure of 116 dB over a frequency response curve of 65–19 kHz with a permanent load capacity of 180 watts. The reflex housing is made of 12 mm MDF and is equipped with four M8 mounting holes. A speakON-compatible socket and a terminal block provide input options, while an additional terminal block serves as an output for convenient parallel connection.

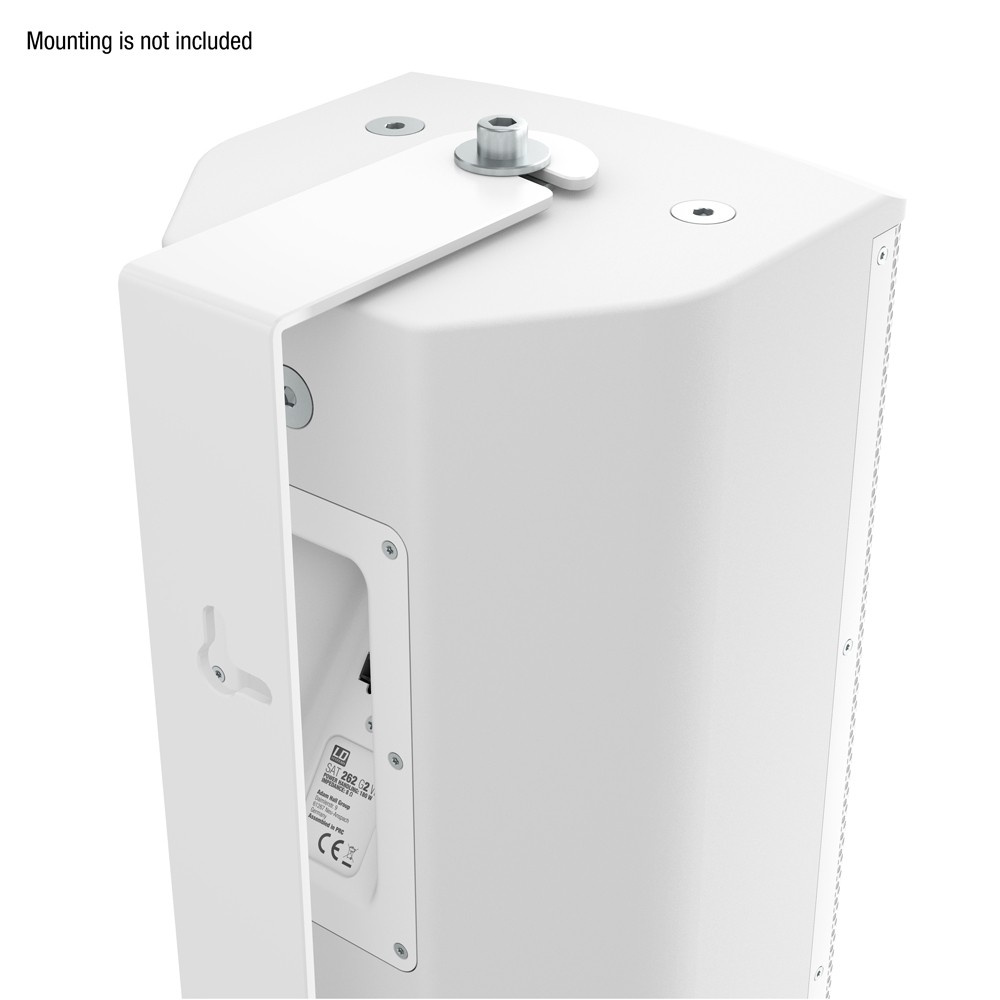

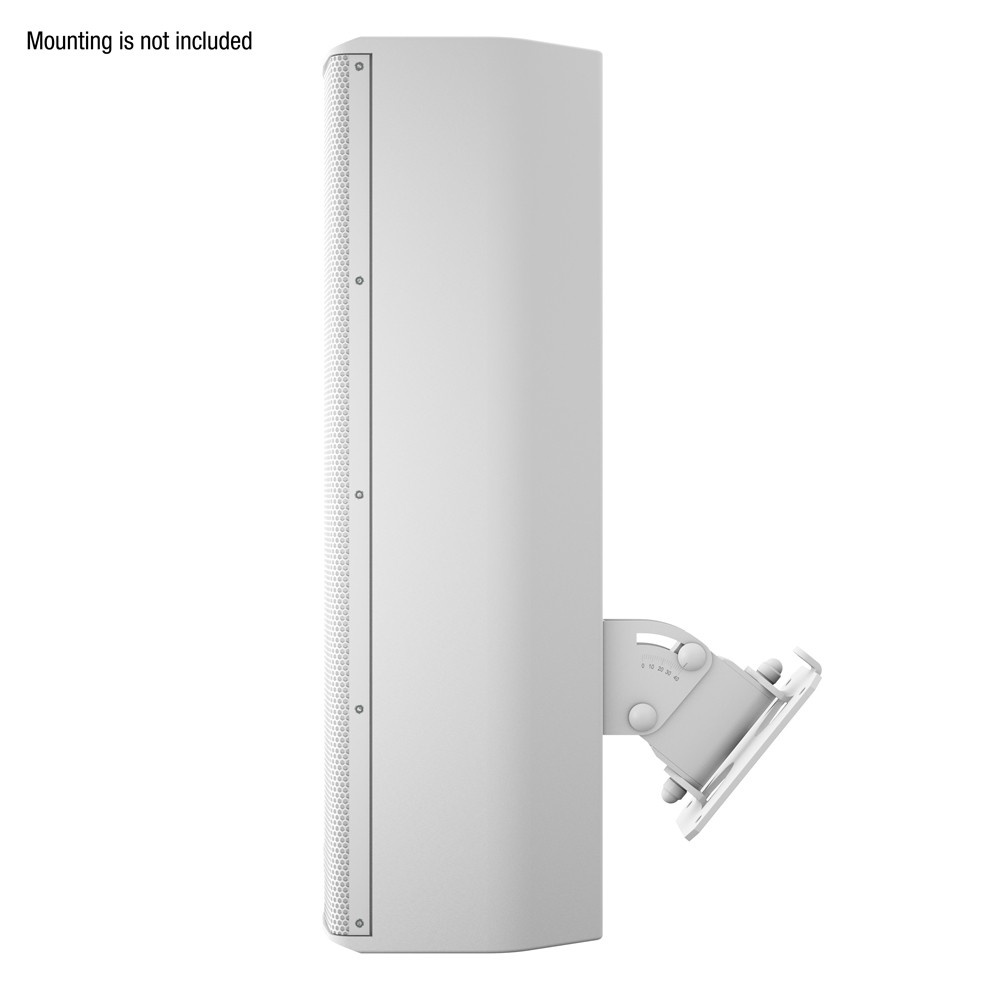

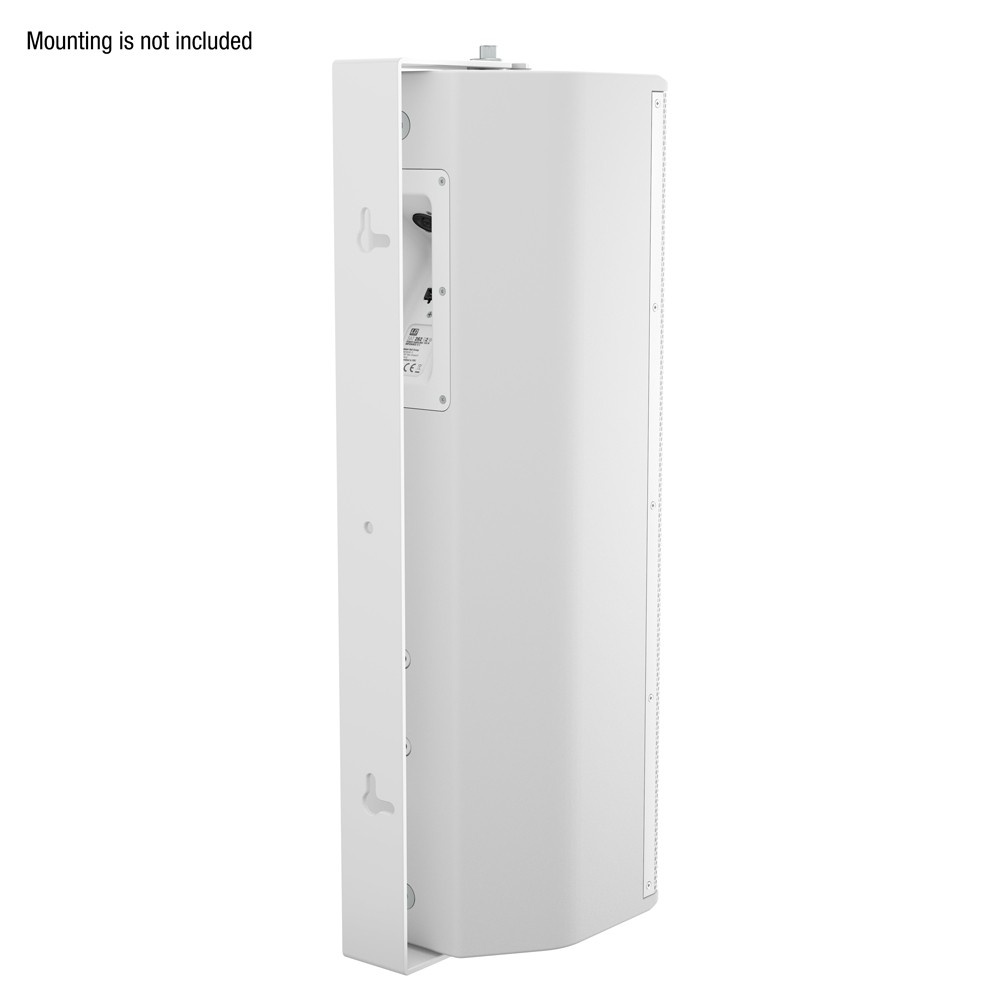

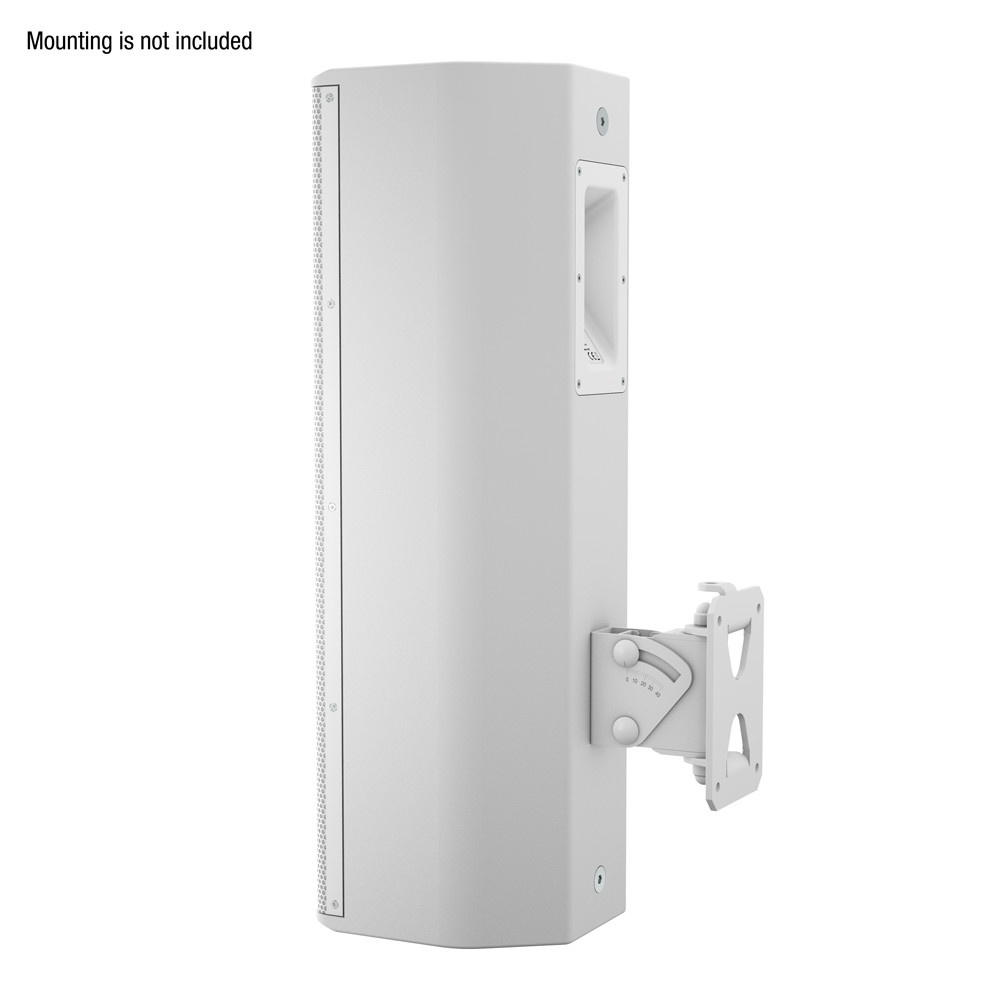

Special wall holders are available as an accessory to facilitate wall mounting. The SAT 262 G2 is available in black (Art. No. LDSAT262G2) or white textured finish (Art. No. LDSAT262G2W).
