LD Systems

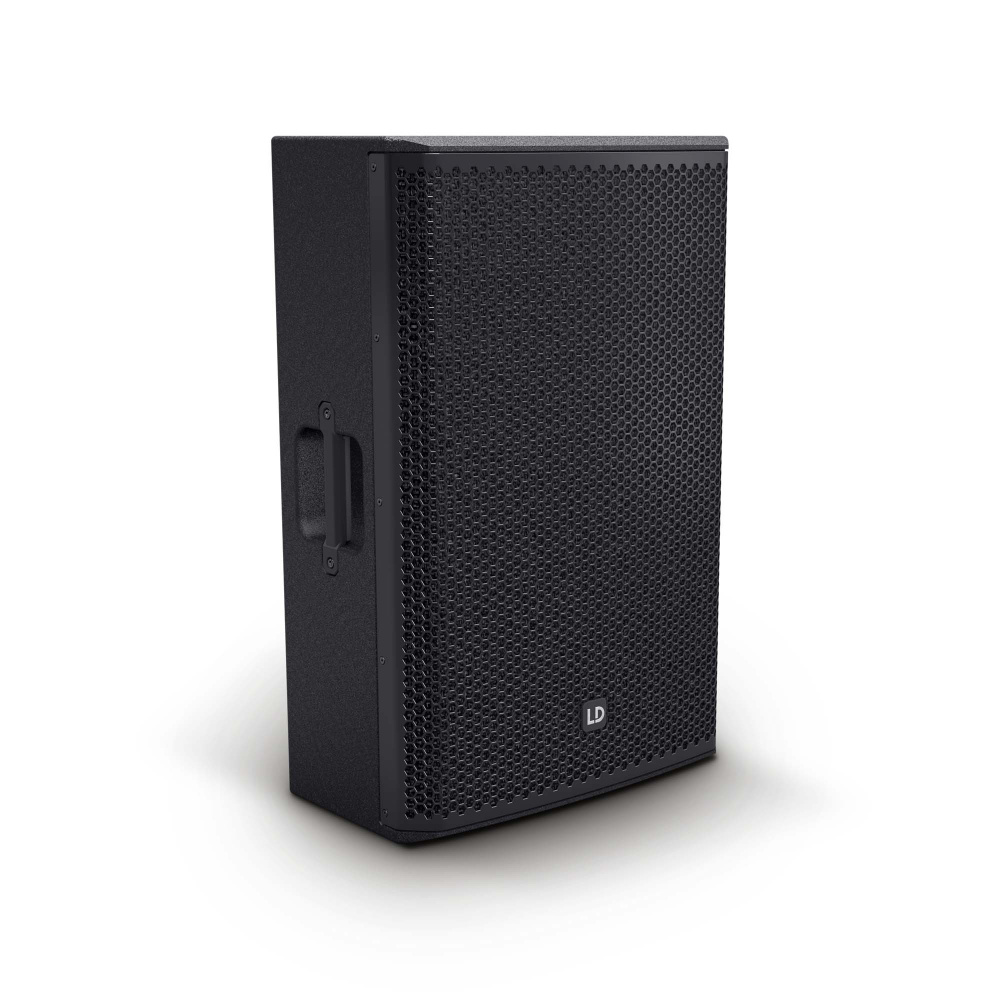

STINGER 15 G3

15" PA Loudspeaker passive

STINGER 15 G3

RRP 642.00 $ / piece

Item No.:
LDEB152G3
EAN:
4049521206672
Guarantee:
24 Months
Unit:
piece
Series:
Versions:
  • Passive 2-way bass-reflex PA speaker
  • 500 watts RMS
  • 127 dB maximum sound pressure level

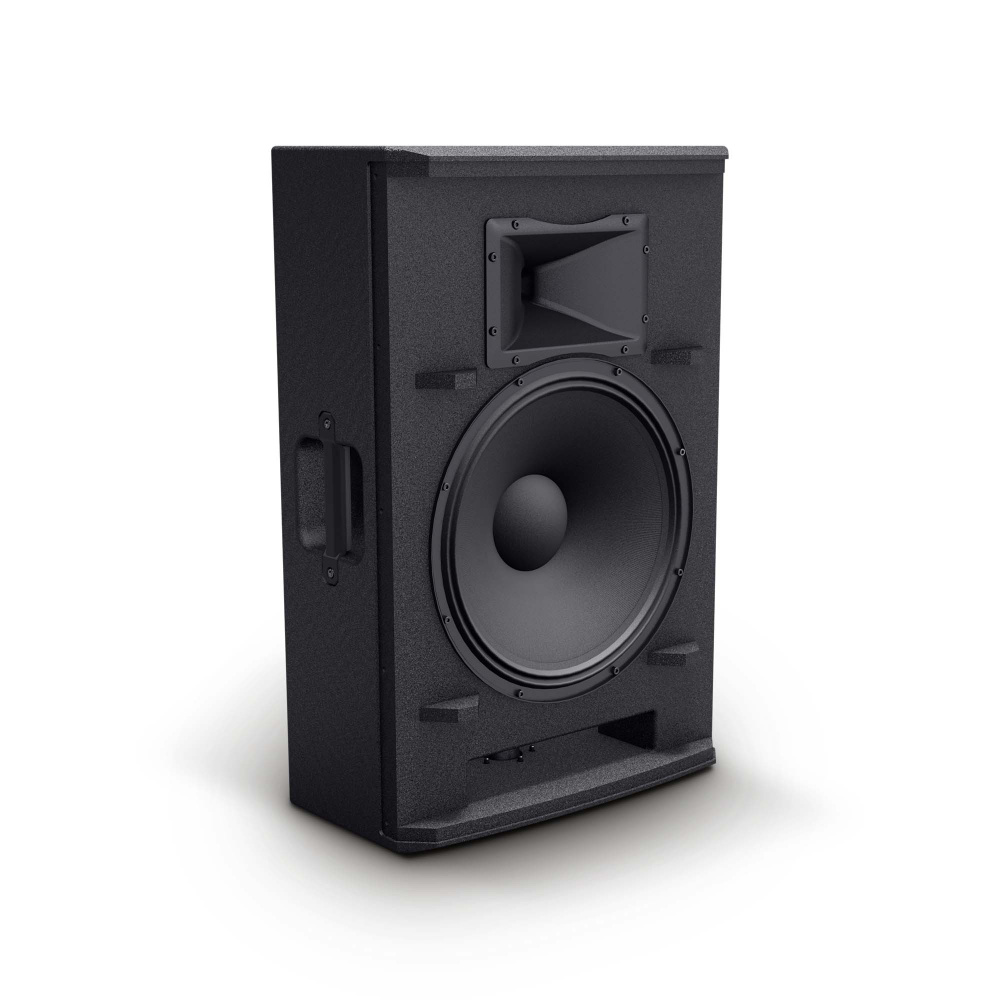

  • 15" Custom Woofer and BMS driver
  • Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
  • Birch plywood cabinet with extremely durable polyurea coating

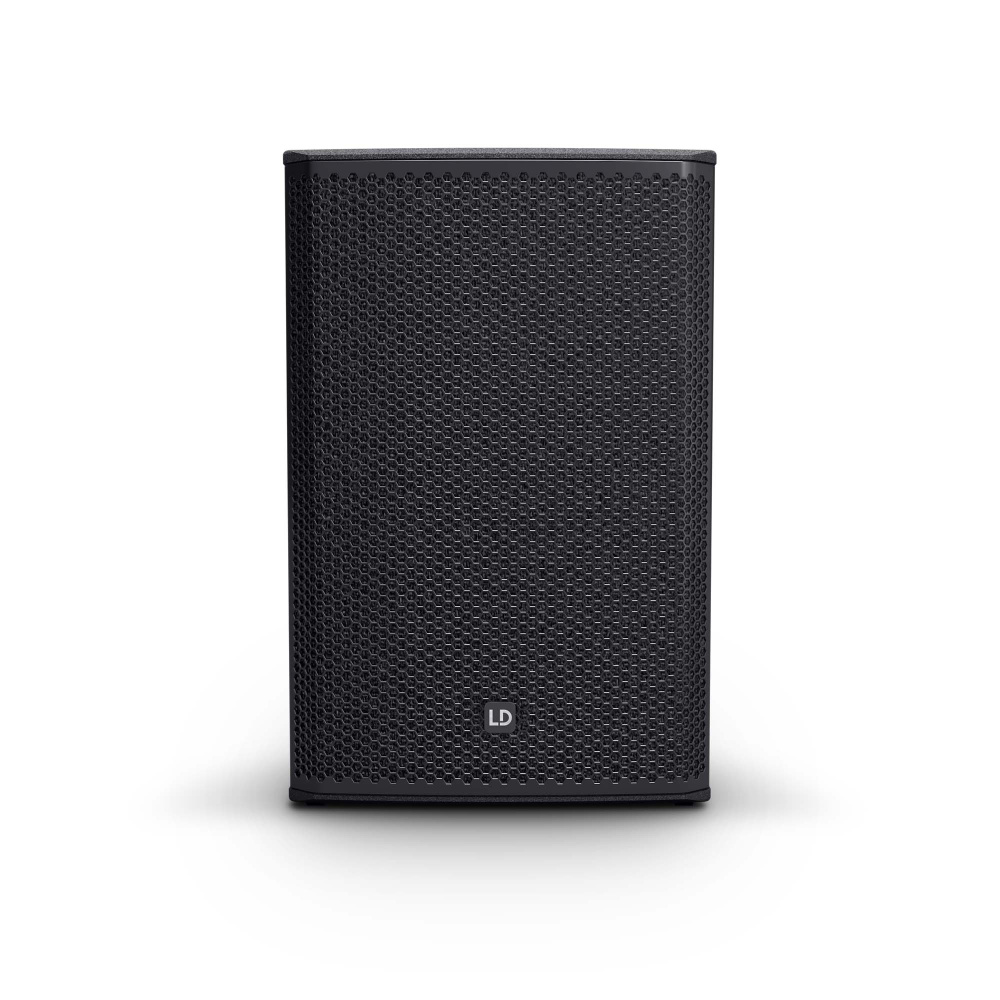

  • Shock-resistant front grille to protect the loudspeaker

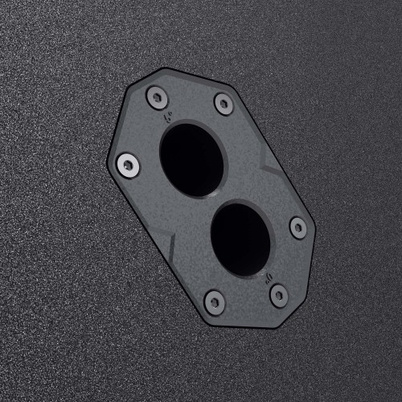

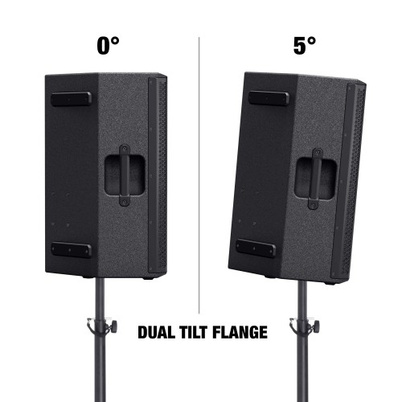

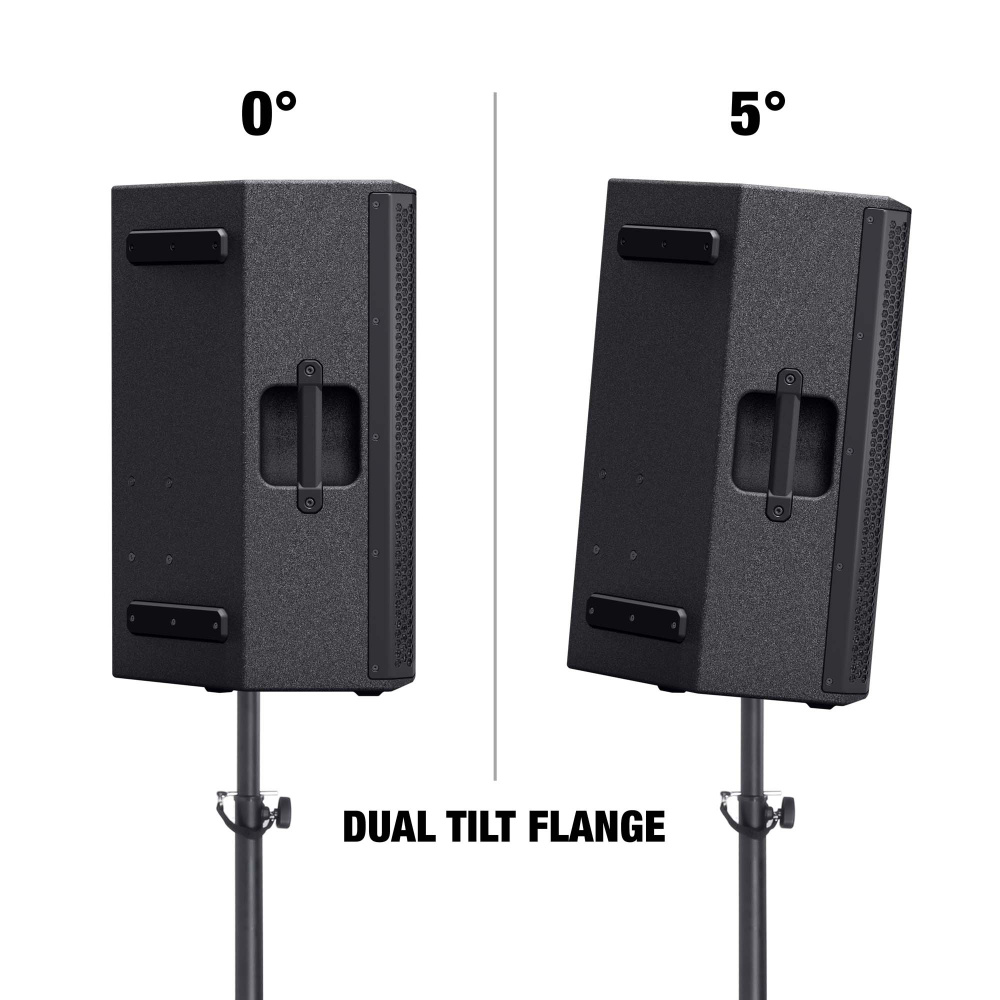

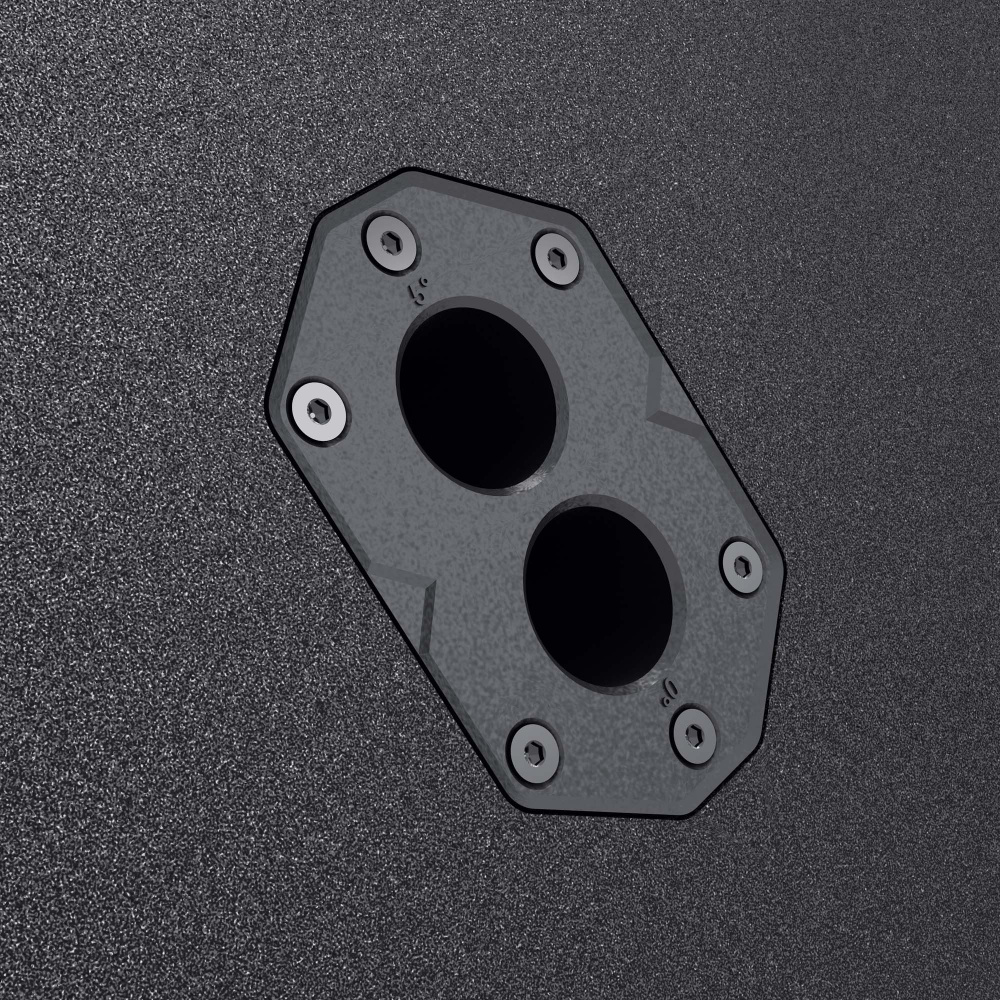

  • 36 mm Dual Tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories...
Read on
STINGER 15 G3
STINGER 15 G3
15" PA Loudspeaker passive

RRP 642.00 $ / piece

Specifications

Specifications

General
Product type
PA loudspeaker
Type
Passive
Low/mid driver dimensions
15 "
Woofer size
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
3 "
Woofer voice coil (mm)
76.2 mm
Horn
CD horn
HF driver dimensions
1 "
HF driver size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
BMS
HF driver voice coil
1 "
HF driver voice coil
25.4 mm
Dispersion (H x V)
90 x 50 °
Load rating (RMS)
500 W
Peak power
1000 W
Frequency response
50 - 20000 Hz
SPL (1W/1m)
100 dB
Max. SPL
127 dB
Impedance
8 Ohm(s)
Protection circuits
HF Driver
Loudspeaker inputs
1

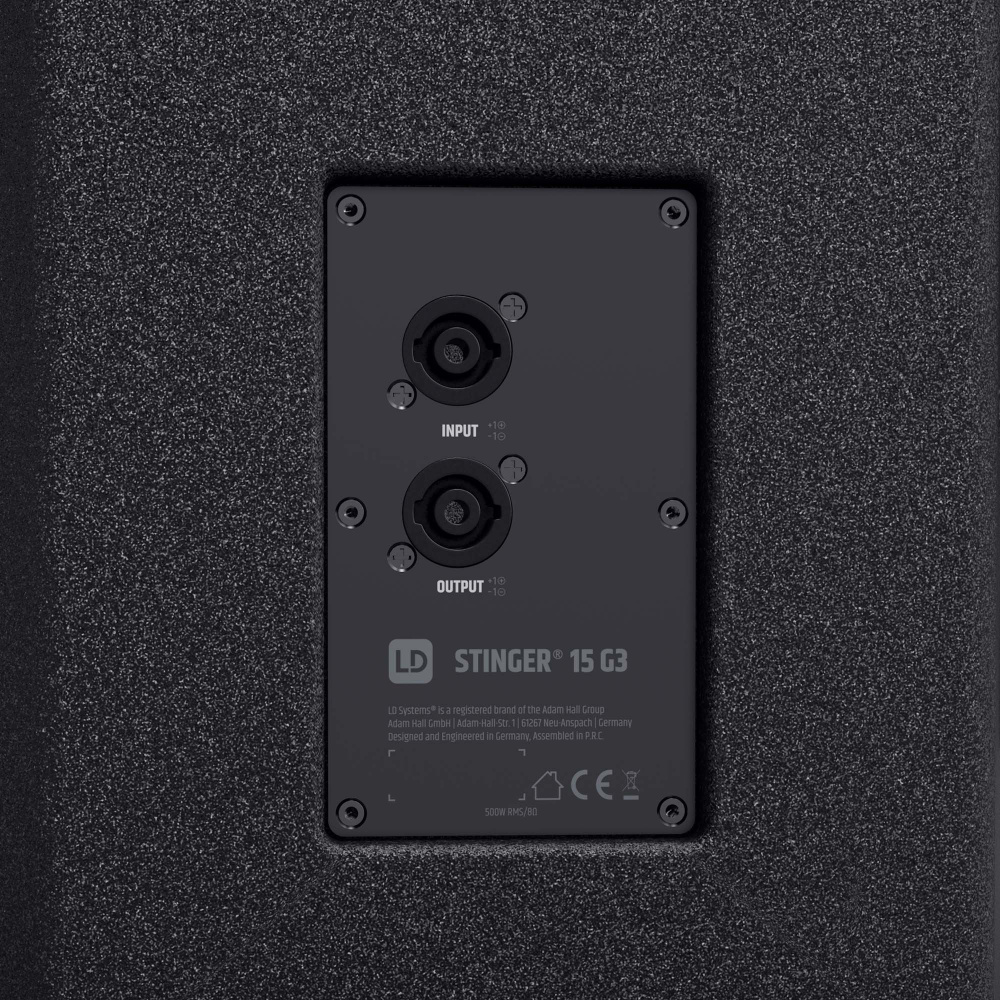

Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Speakers per amplifier channel (DSP44/45K)
3
Cabinet material
15 mm Plywood
Cabinet surface
Polyurea
Cabinet construction
Bass Reflex

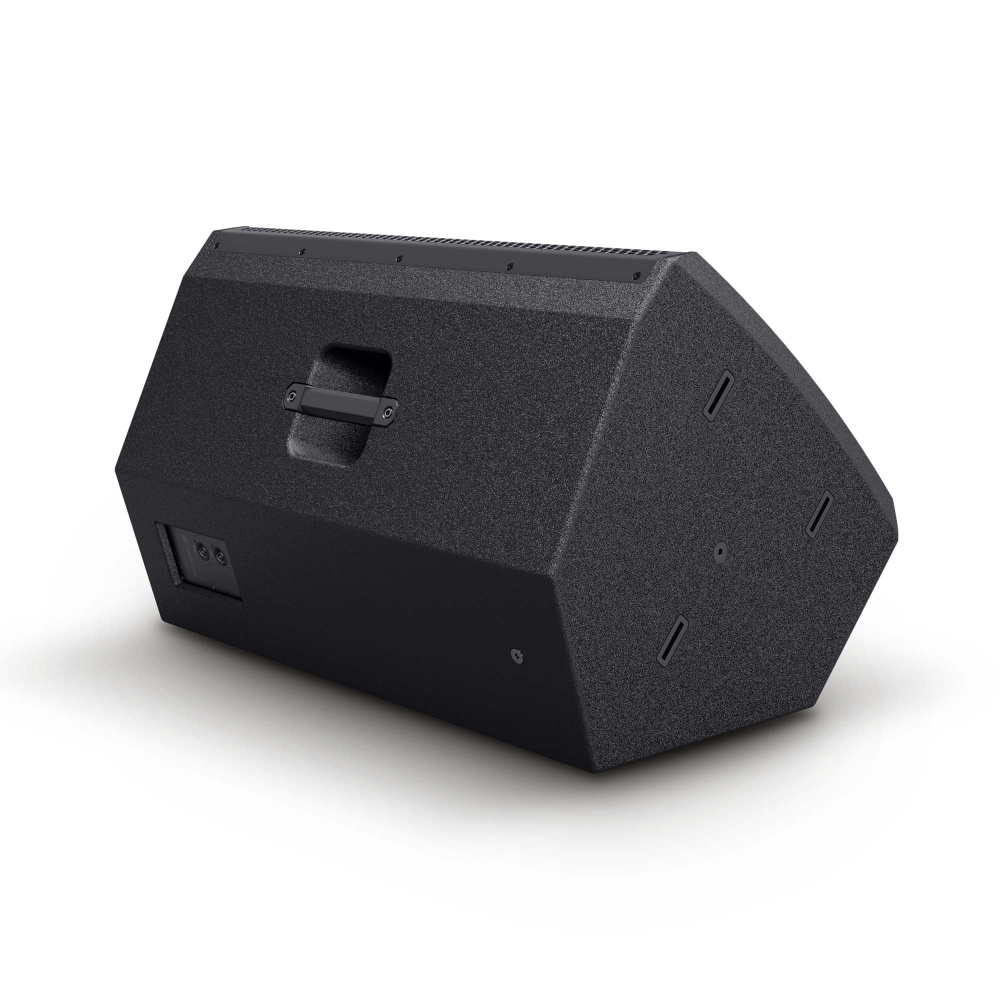

Monitor angle
54 °
Width
480 mm
Height
737 mm
Depth
455 mm
Weight
25,7 kg

Description

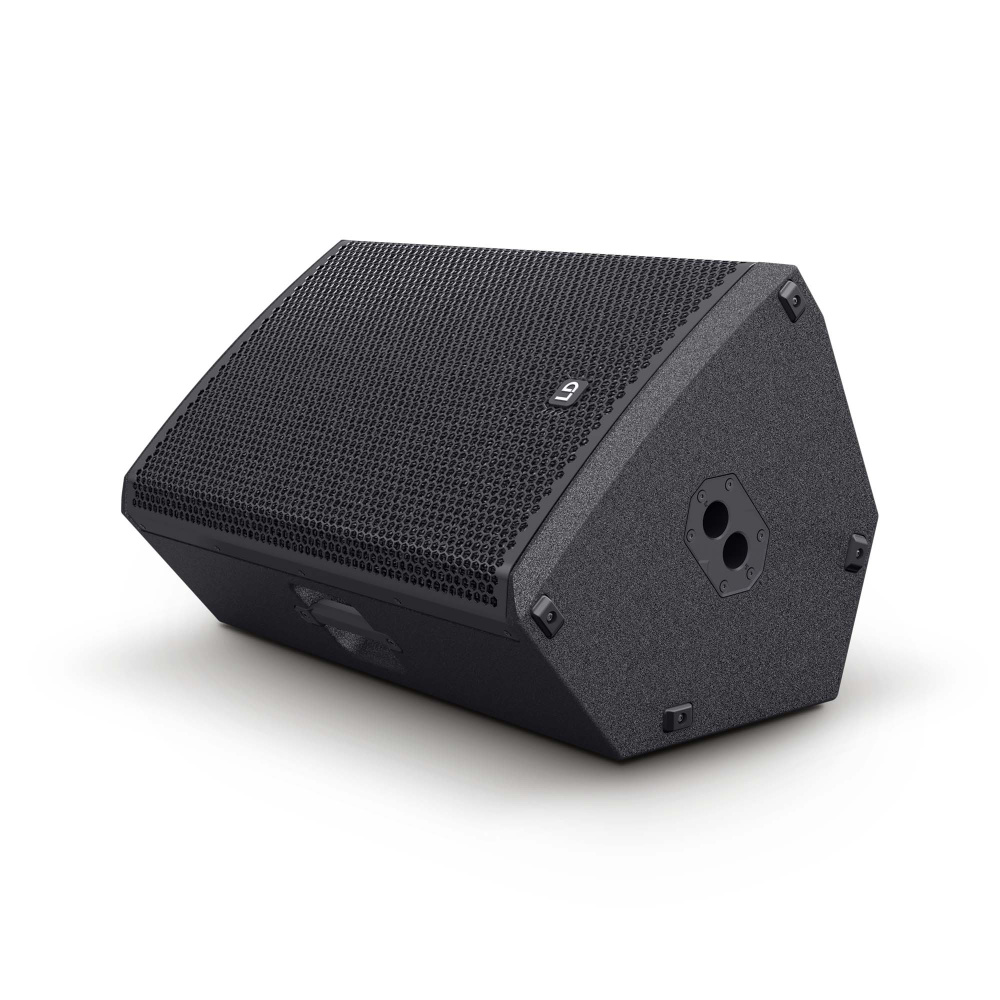

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger® 15 G3 provides 500 watts of continuous power; the maximum sound pressure level is 127 dB. Its specially developed 15" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.

The Stinger® 15 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 15 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
