LD Systems

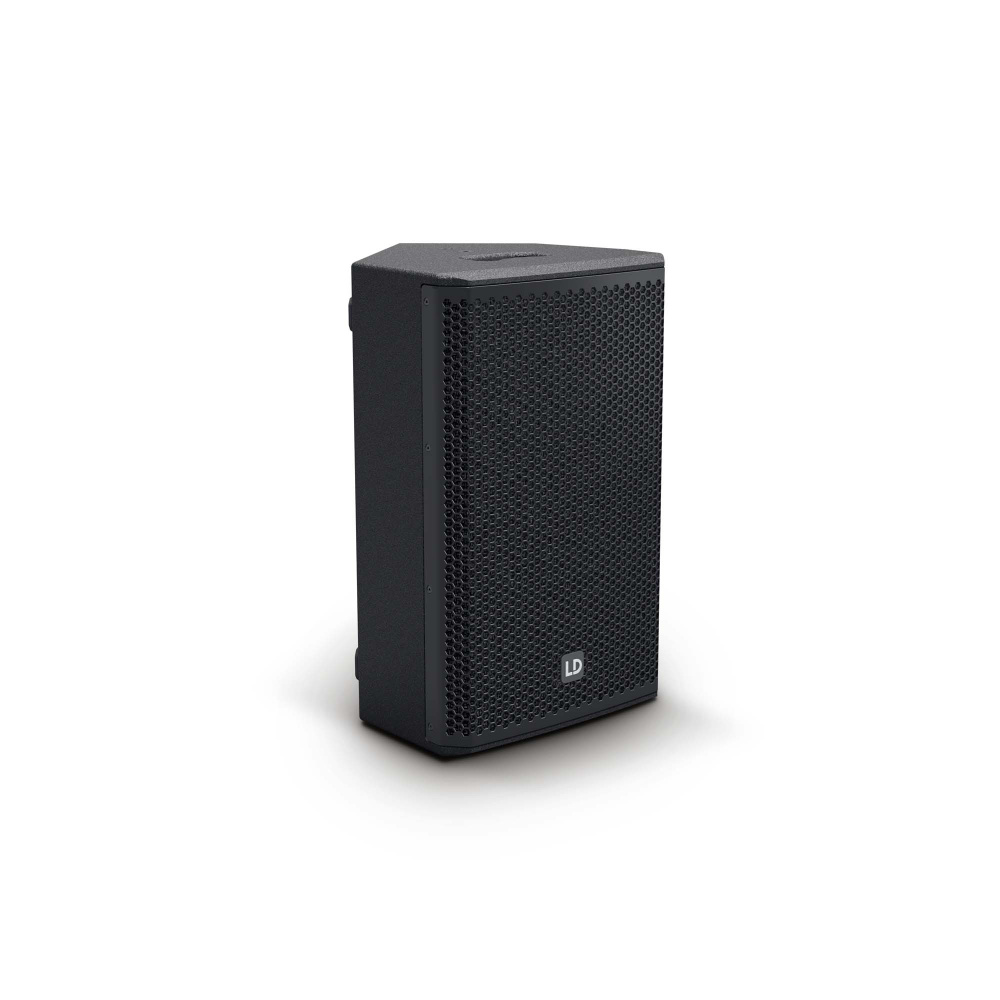

STINGER 10 G3

2-Way Passive 10” Bass Reflex PA Loudspeaker

STINGER 10 G3

RRP 452.00 $ / piece

Item No.:
LDEB102G3
EAN:
4049521206658
Guarantee:
24 Months
Unit:
piece
Series:
Versions:
  • 2-way passive 10” bass reflex PA speaker
  • 300 watts RMS power handling
  • 120 dB maximum SPL

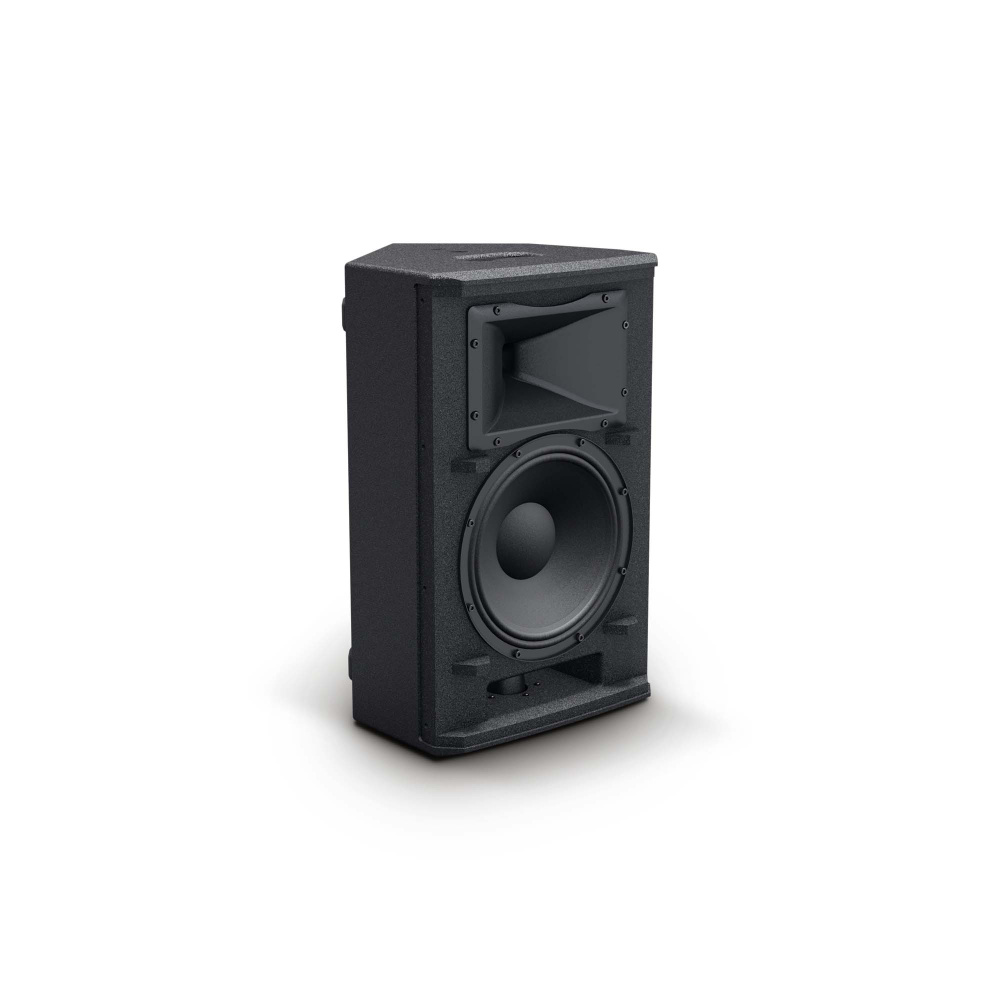

  • 10“ custom woofer and BMS compression driver
  • BEM optimized HF waveguide for uniform coverage

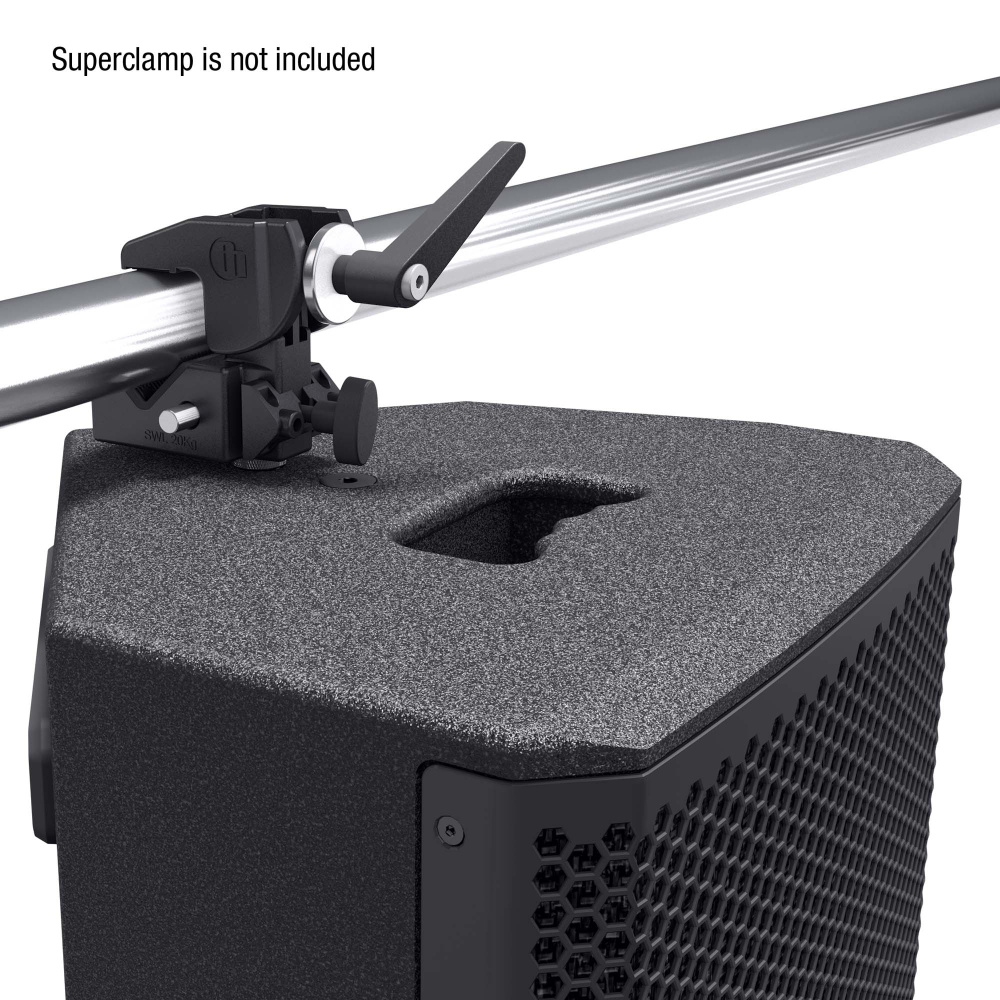

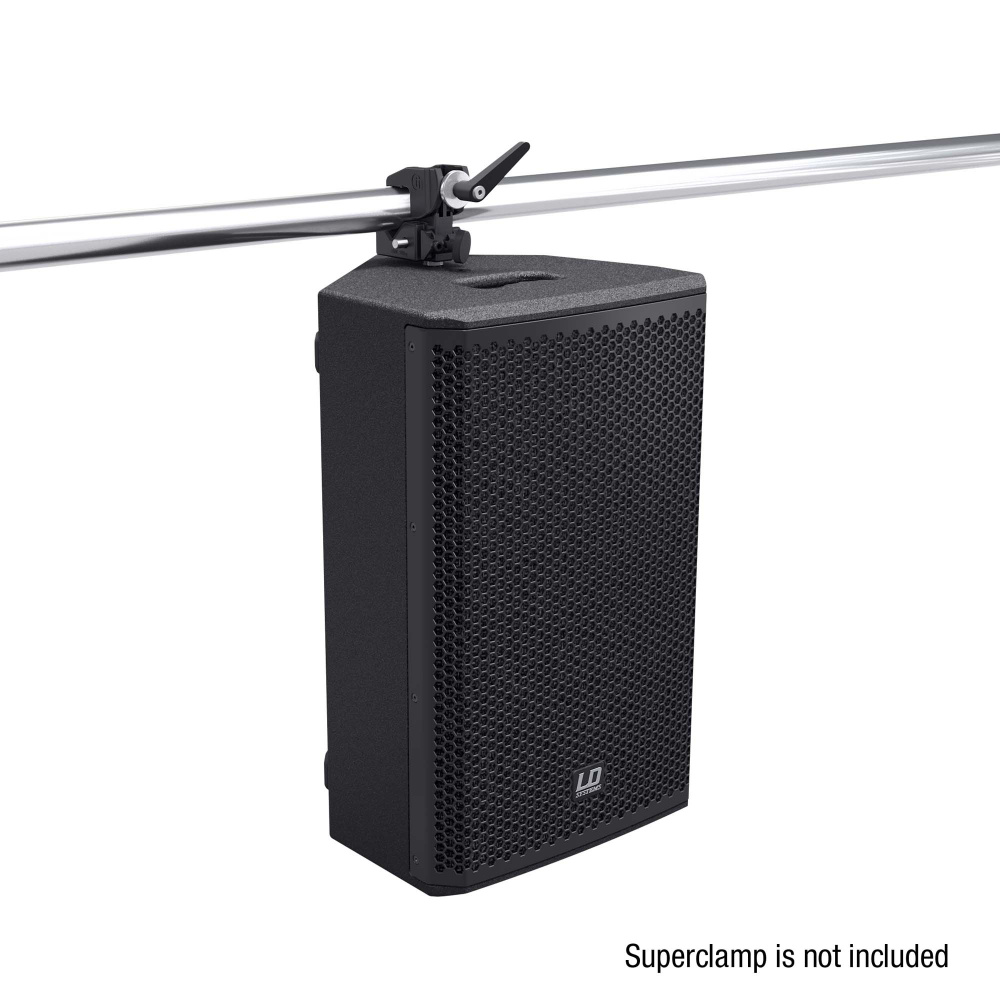

  • Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

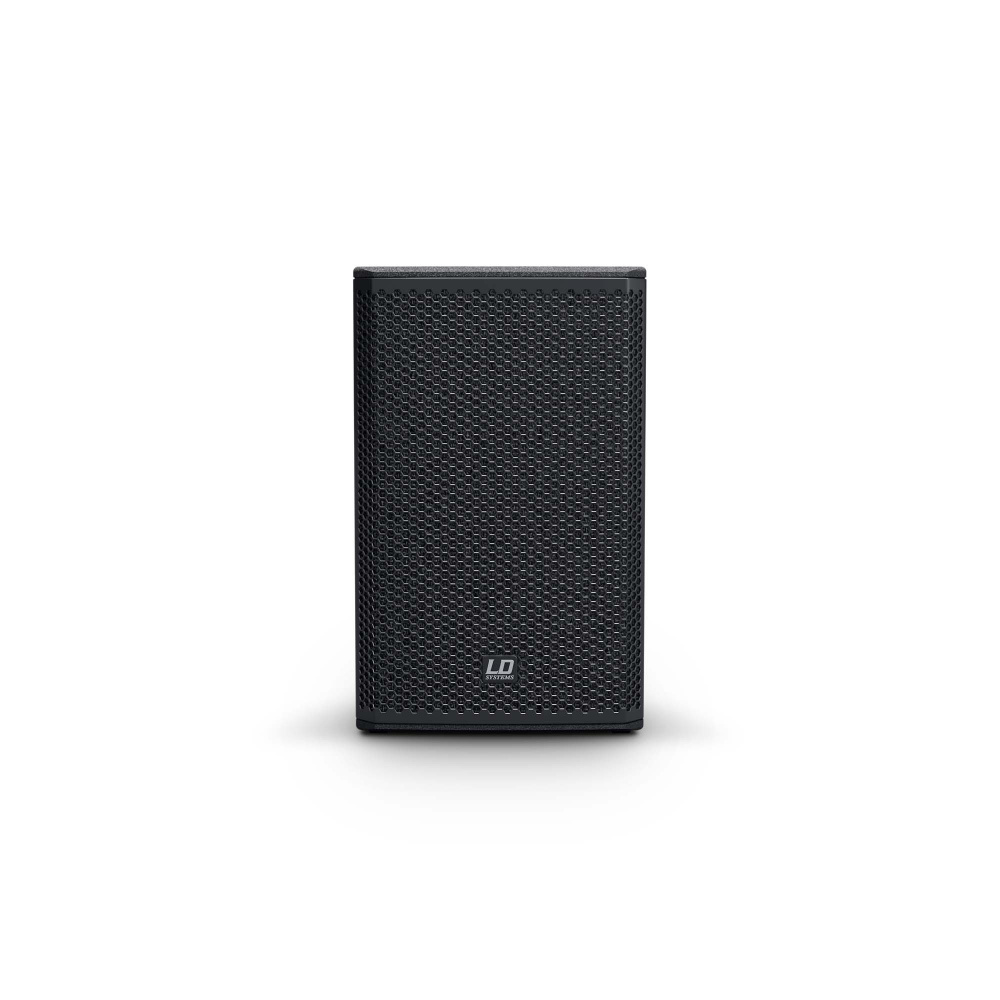

  • Shock-resistant front grill provides maximum speaker protection

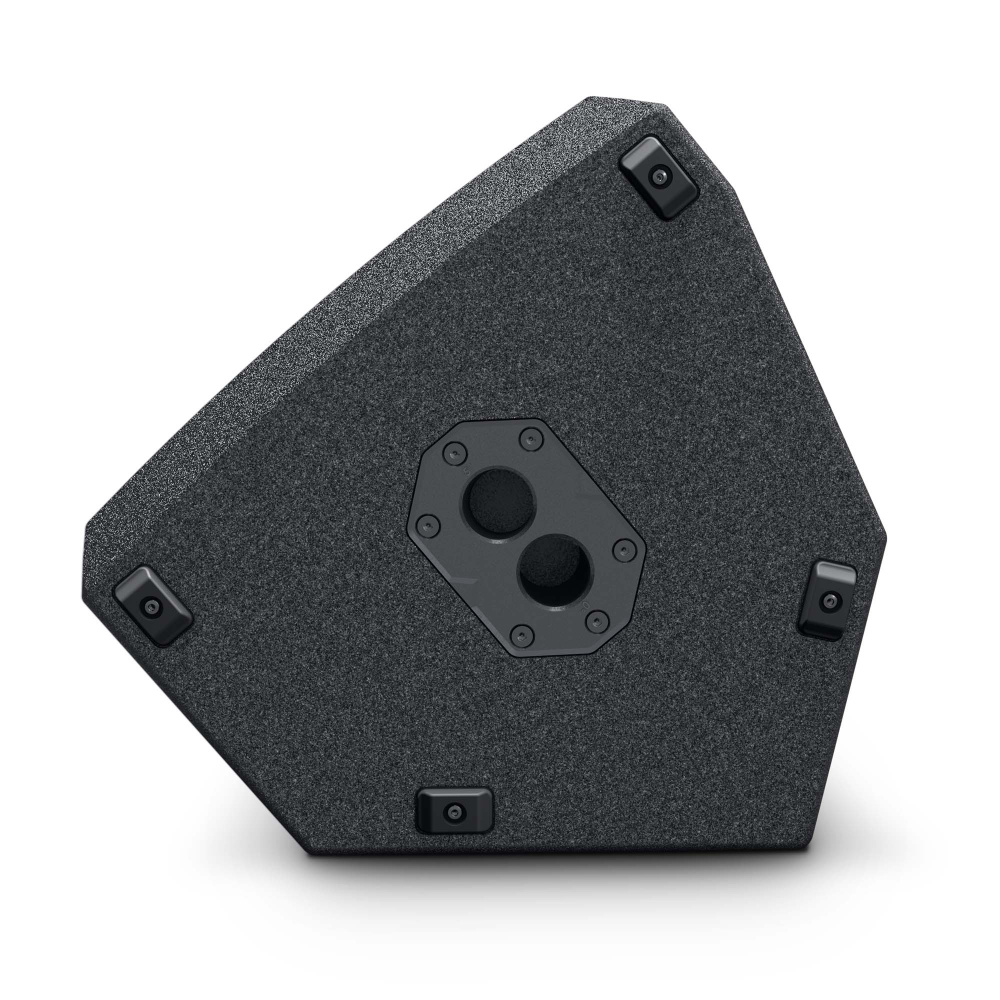

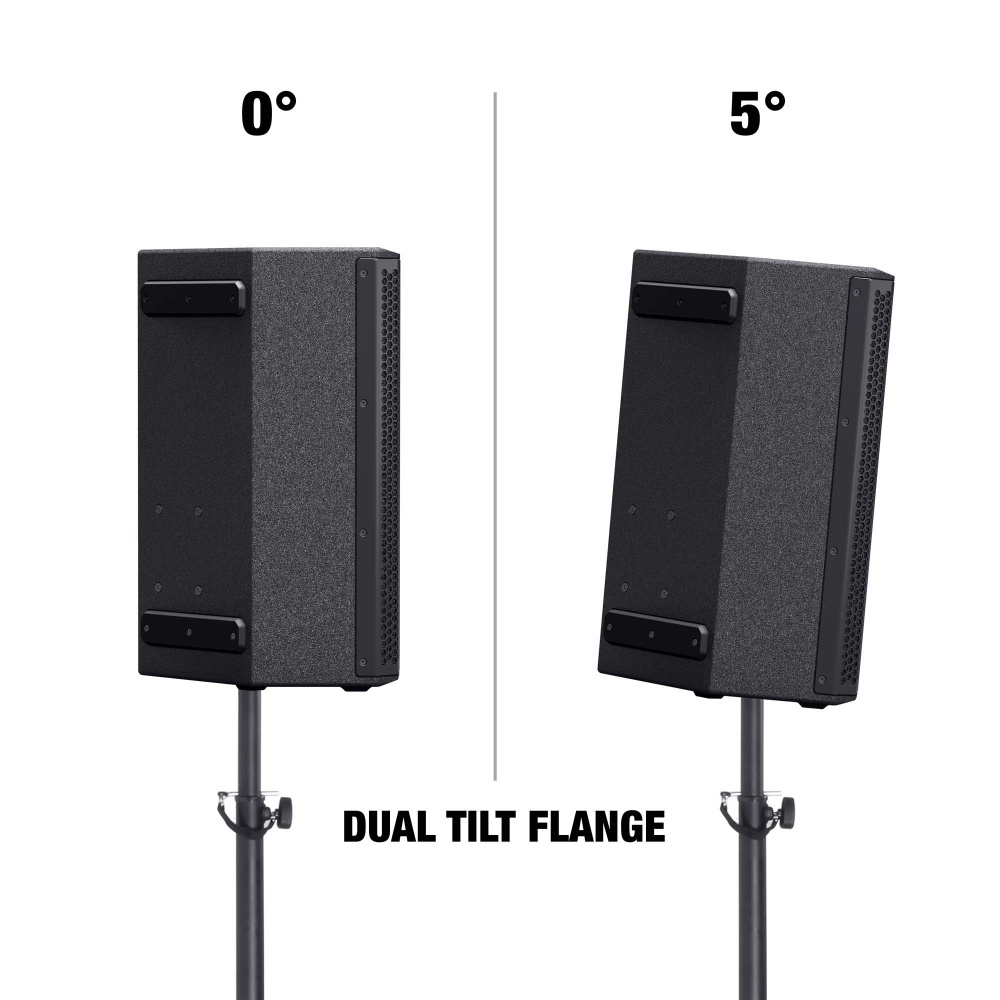

  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
  • Large selection of...
Read on
STINGER 10 G3
STINGER 10 G3
2-Way Passive 10” Bass Reflex PA Loudspeaker

RRP 452.00 $ / piece

Specifications

Specifications

General
Product type
PA loudspeaker
Type
Passive
Low/mid driver dimensions
10 "
Woofer size
254 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
2 "
Woofer voice coil (mm)
50.8 mm
Horn
BEM optimized CD Horn
HF driver dimensions
1 "
HF driver size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
BMS
HF driver voice coil
1 "
HF driver voice coil
25.4 mm
Dispersion (H x V)
90 x 50 °
Load rating (RMS)
300 W
Peak power
600 W
Frequency response
65 - 20000 Hz
SPL (1W/1m)
96 dB
Max. SPL
121 dB
Impedance
8 Ohm(s)
Protection circuits
HF Driver

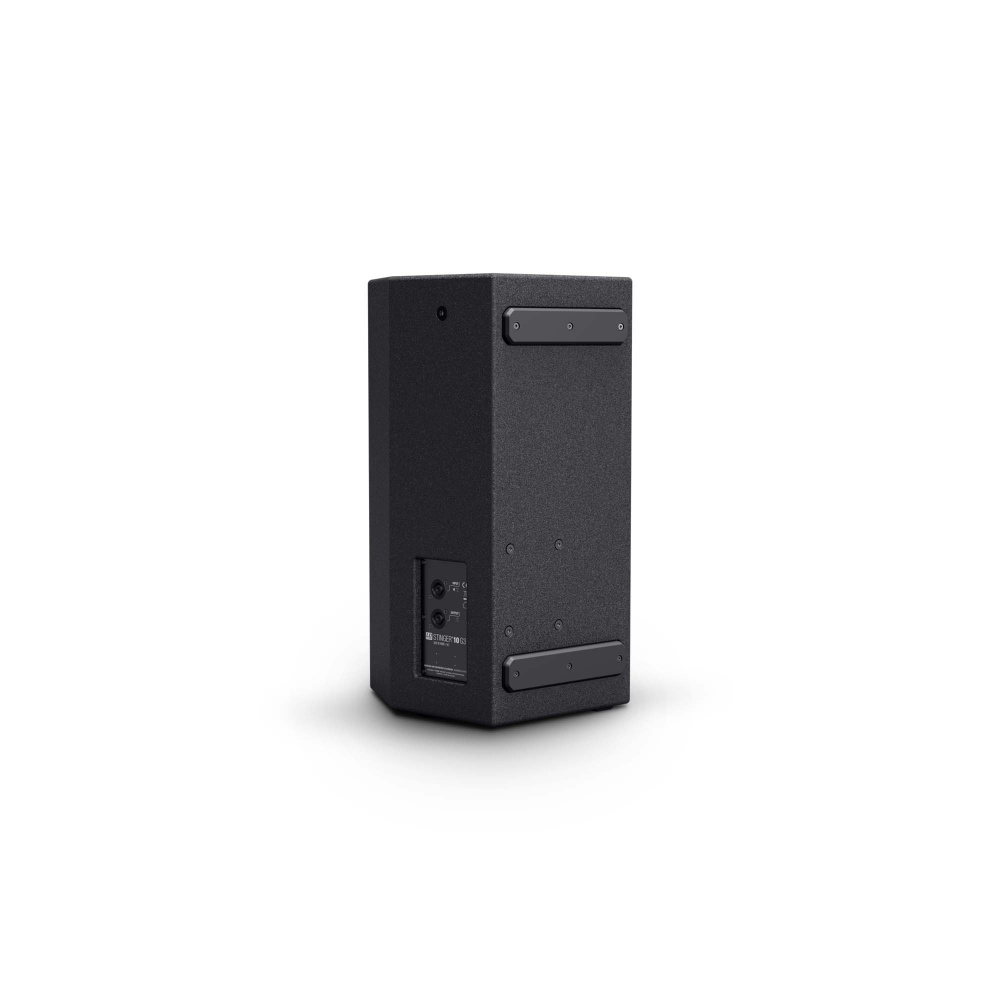

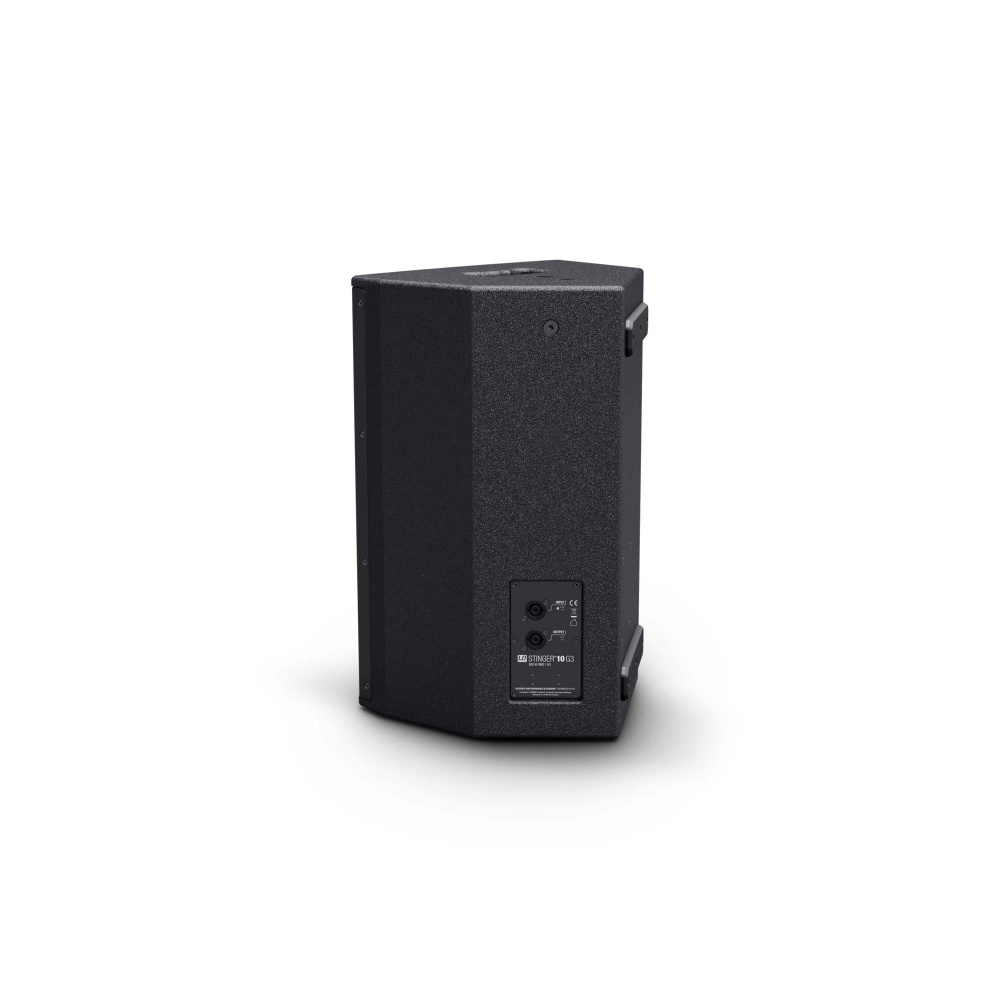

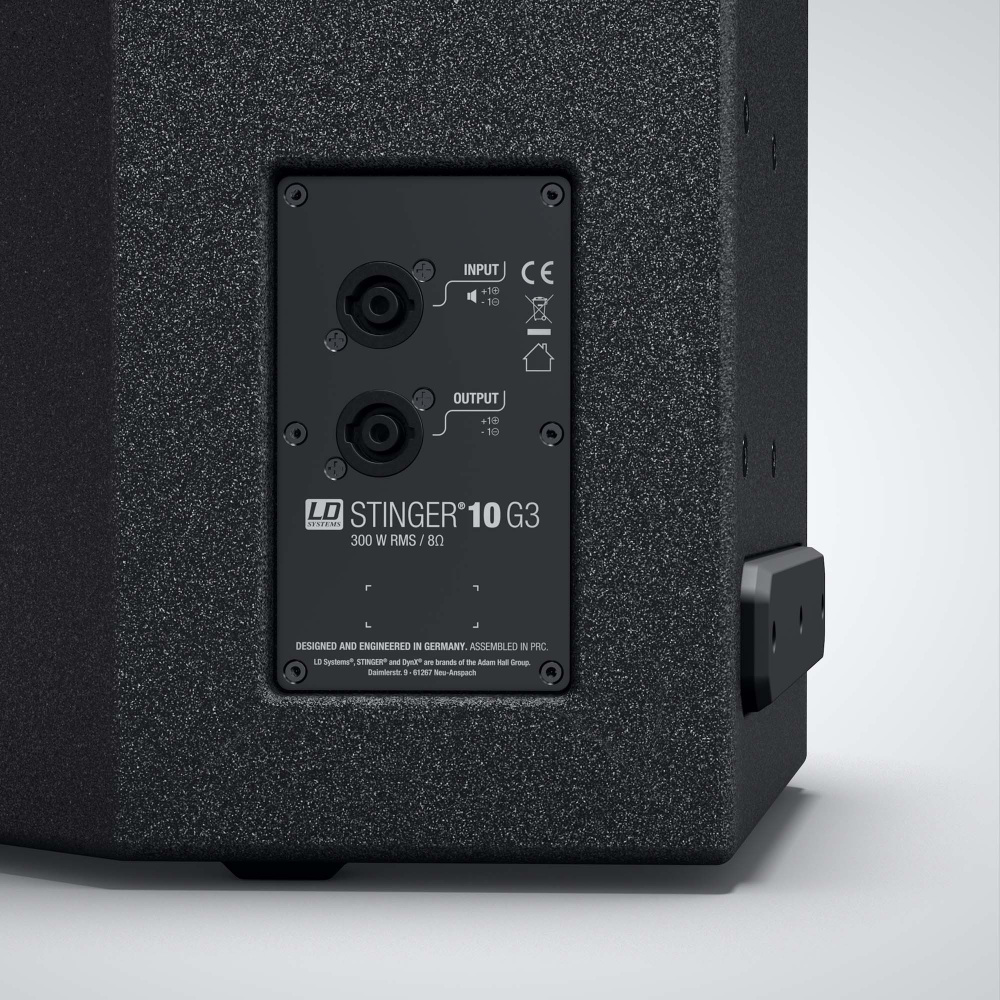

Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Speakers per amplifier channel (DSP44/45K)
4
Cabinet material
12 mm Plywood
Cabinet surface
Polyurea
Cabinet construction
Bass Reflex

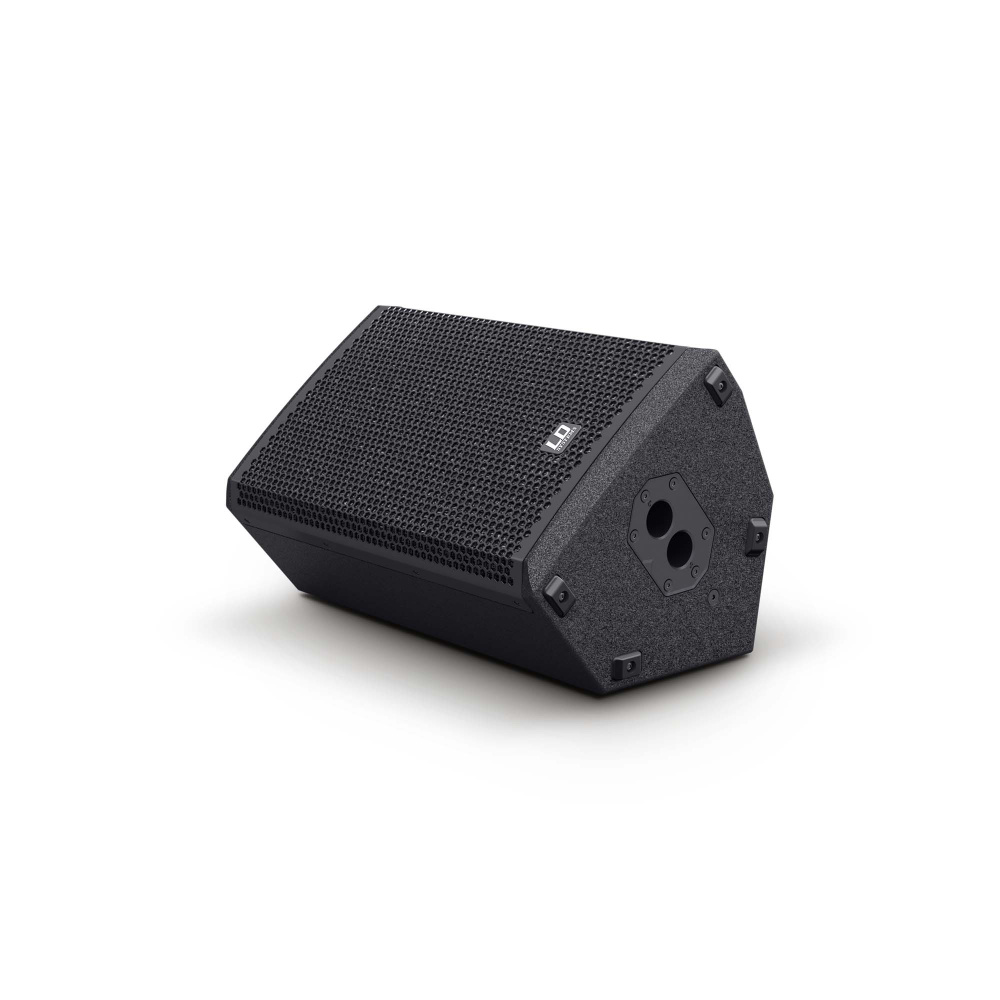

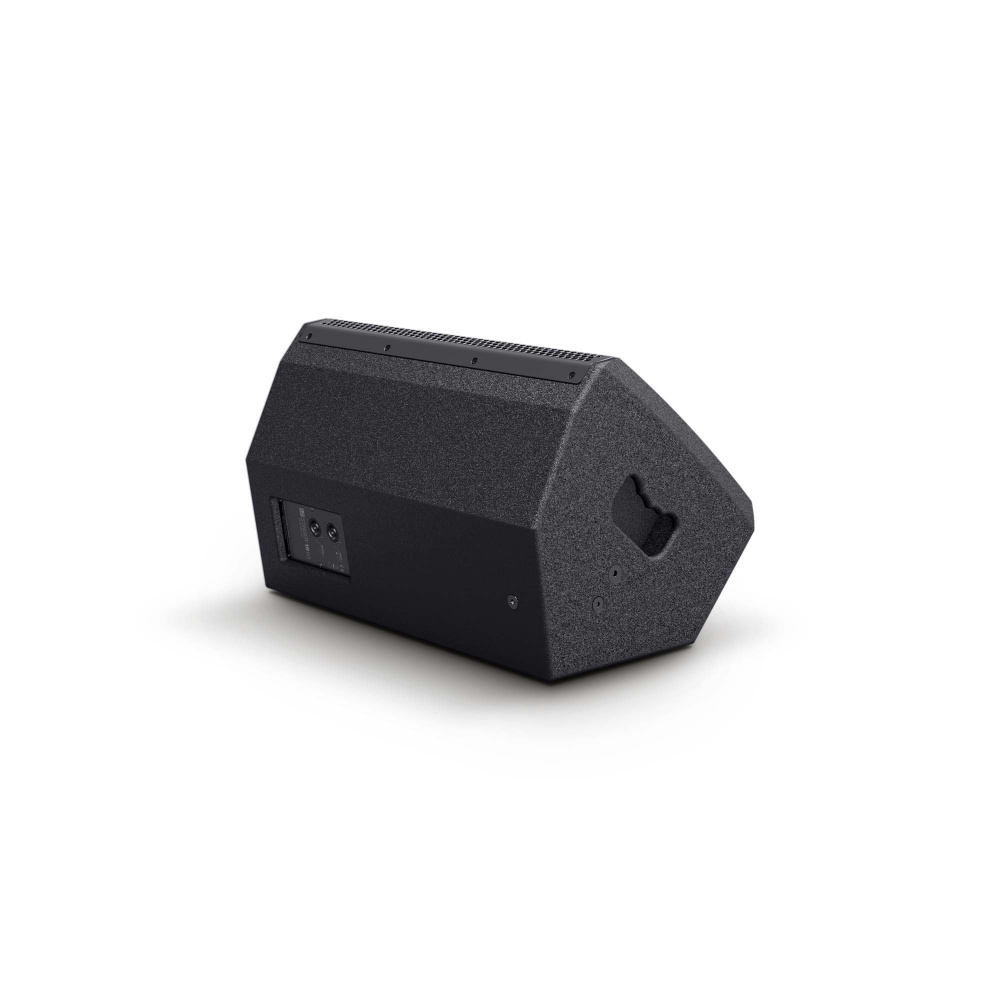

Monitor angle
54 °
Width
325 mm
Height
527 mm
Depth
318 mm
Weight
11,5 kg

Description

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger® 10 G3 provides 300 watts of continuous power; the maximum sound pressure level is 120 dB. Its specially developed 10" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The Stinger® 10 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 10 G3 is an affordable solution for professional PA applications; extensive accessories support the use on stage and in fixed installations.
